Morphometrical observation on the left atrium in human adults
- Authors: Gaponov AA1, Noskova ME1, Iakimov AA1,2
-
Affiliations:
- Ural State Medical University
- Ural Federal University
- Issue: Vol 102, No 5 (2021)
- Pages: 678-686
- Section: Experimental medicine
- Submitted: 05.10.2021
- Accepted: 05.10.2021
- Published: 13.10.2021
- URL: https://kazanmedjournal.ru/kazanmedj/article/view/82356
- DOI: https://doi.org/10.17816/KMJ2021-678
- ID: 82356
Cite item
Abstract
Aim. To determine the left atrial dimensions, their ratios and relationships that characterize anatomy for left atrium structure in the normal human adult using the model of the atrial end-diastolic phase.
Methods. We studied 54 heart specimens of subjects aged 35–88 years who died from non-cardiac causes. The atrial end-diastolic phase was modeled by filling a specimen fixed in 1% formalin with liquid silicone. After silicone hardened, we performed morphometric measurements by a caliper. The data were processed by using a cluster, correlation and variance analysis. For pairwise comparison, we used the Mann–Whitney U-test or a two-sided t-test.

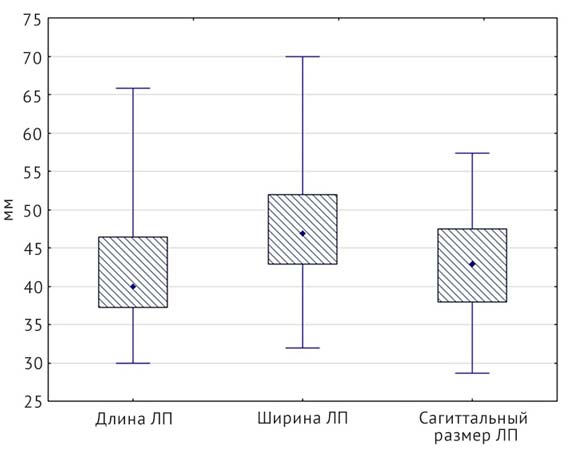

Results. The article presents mean, standard deviation, median, 25th percentile and 75th percentile and coefficients of variation for the length, width and sagittal size of the left atrium, as well as the values of the distances between the pulmonary vein orifices, which characterize the dimensions of the left atrium posterior wall. Based on the left atrial size differences and their ratios, the specimens were divided into three clusters. The first (n1=23) and second clusters (n2=10) were represented by hearts with a cubic atrium; the second group differed from the first in the larger size of the left atrium. The third cluster (n3=21) included the hearts in which the largest left atrium size was the width, so the shape of the atria resembled a parallelepiped. The typical number of the pulmonary vein ostia we found in 91% of the specimens. The posterior wall of the left atrium, with a common number and topography of the ostia, were rectangle or an unequal trapezium in shape. We analyzed correlations between the sizes of the heart, left atrium and its posterior wall. We concretized the conceptual apparatus concerning the nomenclature and terminology of the left atrium anatomical structures.
Conclusion. Based on the size ratio, two shape variations of the left atrium body can be identified: cubic or parallelepiped; cubic atria can be divided into large and small; the co-directional dimensions of the left atrial body and its posterior wall showed the strongest correlations.
Keywords
Full Text
About the authors
A A Gaponov
Ural State Medical University
Email: ayakimov07@mail.ru
Russian Federation, Ekaterinburg, Russia
M E Noskova
Ural State Medical University
Email: ayakimov07@mail.ru
Russian Federation, Ekaterinburg, Russia
A A Iakimov
Ural State Medical University; Ural Federal University
Author for correspondence.
Email: ayakimov07@mail.ru
Russian Federation, Ekaterinburg, Russia; Ekaterinburg, Russia;
References
- Gendlin G.E., Kovaleva A.I., Emelina E.I., Nikitin I.G. Linear and volumetric parameters of left atrium in patients with isolated aortic stenosis. Rossiyskiy kardiologicheskiy zhurnal. 2019; 24 (11): 16–21. (In Russ.) doi: 10.15829/1560-4071-2019-11-16-21.
- Martirosyan L.P., Balandina I.A. Parameters of volume of the atria and left ventricle in men and women of the mesomorphic body type according to the results of performing echocardiography. Volgogradskiy nauchno-meditsinskiy zhurnal. 2020; (2): 58–61. (In Russ.)
- Cho Y., Lee W., Park E.-A., Oh I.-Y., Choi E.-K., Seo J.-W., Oh S. The anatomical characteristics of three different endocardial lines in the left atrium: evaluation by computed tomography prior to mitral isthmus block attempt. Europace. 2012; 14 (8): 1104–1111. doi: 10.1093/europace/eus051.
- Kozlov V.A., Stebel'skiy S.E., Makovetskiy V.D., Yurchenko I.V. Topography and shape of heart cavities in ontogenesis. In: Prikladnaya anatomiya serdtsa. (Applied anatomy of the heart.) Ed. by V.A. Kozlov. Dnepropetrovsk. 1996; 6–32. (In Russ.)
- Whiteman S., Saker E., Courant V., Salandy S., Gielecki J., Zurada A., Loukas M. An anatomical review of the left atrium. Translational Res. Anat. 2019; 17: 100052. doi: 10.1016/j.tria.2019.100052.
- Chaplygina E.V., Kaplunova O.A., Evtushenko A.V., Karakozova E.A., Markevich A.V., Shvyrev A.A., Sankova I.V. Applied aspects of the anatomical structure of the human’s heart left atrium. Sovremennye problemy nauki i obrazovaniya. 2015; (5): 146–155. (In Russ.)
- Ho S.Y., Sánchez-Quintana D. The importance of atrial structure and fibers. Clin. Anat. 2009; 22 (1): 52–63. doi: 10.1002/ca.20634.
- Ho S.Y., Cabrera J.A., Sanchez-Quintana D. Left atrial anatomy revisited. Circ. Arrhythm. Electrophys. 2012; 5 (1): 220–228. doi: 10.1161/CIRCEP.111.962720.
- Dudkiewicz D., Słodowska K., Jasińska K.A., Dobrzynski H., Hołda M.K. The clinical anatomy of the left atrial structures used as landmarks in ablation of arrhythmogenic substrates and cardiac invasive procedures. Translational Res. Anat. 2021; 23 (3): 100102. doi: 10.1016/j.tria.2020.100102.
- Anderson R.H., Loukas M. The importance of attitudinally appropriate description of cardiac anatomy. Clin. Anat. 2009; 22 (1): 47–51. doi: 10.1002/ca.20741.
- Mori Sh., Tretter J., Spicer D., Bolender D., Anderson R.H. What is the real cardiac anatomy? Clin. Anat. 2019; 32 (3): 288–309. doi: 10.1002/ca.23340.
- Kausar A., Razzak I., Shapiai M.I., Beheshti A. 3D shallow deep neural network for fast and precise segmentation of left atrium. Multimedia Syst. 2021. doi: 10.1007/s00530-021-00776-8.
- Fal'kovskiĭ G.E. Stroenie serdtsa i anatomicheskie osnovy ego funktsii. (Structure of the heart and anatomical bases of its function.) M.: Nauchnyy tsentr serdechno-sosudistoy khirurgii im. A.N. Bakuleva. 2014; 136–143. (In Russ.)
- Mikhaylov S.S. Klinicheskaya anatomiya serdtsa. (Clinical anatomy of the heart.) M.: Meditsina. 1987; 59–71. (In Russ.)
- Gupta T., Cheema N., Randhawa A., Sahni D. Translational anatomy of the left atrium and esophagus as relevant to the pulmonary vein antral isolation for atrial fibrillation. Surg. Radiol. Anat. 2020; 42 (4): 367–376. doi: 10.1007/s00276-019-02327-3.
- Starchik D.A. Constitutional and structural features of right and left atriums of mature women. Vestnik Natsional'nogo mediko-khirurgicheskogo Tsentra im. N.I. Pirogova. 2016; 11 (1): 101–103. (In Russ.)
- Ikiz Z.A.A., Üçerler H., Özgür T. Anatomic characteristics of left atrium and openings of pulmonary veins. Anadolu. Kardiyol. Derg. 2014; 14 (8): 674–678. doi: 10.5152/akd.2014.4968.
