Expansion of trinucleotide CTG repeats in the TCF4 gene as a marker of fuchs’ endothelial corneal dystrophy

Cover Page

Abstract


Fuchs’ endothelial corneal dystrophy (FECD) is an inherited severe and progressive disease, characte­rized by endothelial cell density decrease and increasing corneal edema. FECD development may be linked to expanded trinucleotide repeat, CTG, in the third intron of the TCF4 gene. The study focuses on estimating the prevalence of expanded CTG repeat in TCF4 gene in the Russian population, in patients with normal cornea and in patients with FECD (by applying triplet repeat PCR technique and capillary electrophoresis). 51 patients with FECD and 38 patients with normal cornea were examined. The estimation of the number of CTG triplet repeats in TCF4 gene determination is the veracious laboratory marker of FECD.


INTRODUCTION

Over the past decades, researchers have made considerable progress in understanding the etiology of endothelial corneal dystrophy (ECD). Fuchs dystrophy is the most common form of ECD, occurring in 4%–4.5% of patients older than 50 years [1]. Despite some unresolved issues in the pathogenesis of Fuchs ECD, various genetic aberrations underlying its development have been proven. In 2001, L450W and Q455K mutations of the COL8A2 gene were found to cause an early form of Fuchs ECD. In 2005, researchers confirmed that mutations in the transcription factor 8 (TCF8) gene cause posterior polymorphic corneal dystrophy [2, 3]. In addition, various aberrations in the ZEB1, AGBL1, LOXHD1, and SLC4A11 genes also cause congenital hereditary endothelial dystrophy [4, 5]. However, despite significant progress in gene identification, the exact genetic cause of the mutations responsible for the development of ECD cannot be established in >90% of cases.

In 2010, Baratz et al. proved that the probability of developing Fuchs ECD is significantly higher in carriers of the rs17595731, rs613872, rs9954153, and rs2286812 nucleotide polymorphisms of the TCF4 gene. These markers helped to differentiate cases of Fuchs ECD with an accuracy of 78%. However, the rs613872 polymorphism is diagnostically the most significant marker for the development of Fuchs ECD [6]. Researchers have found that similar polymorphisms, such as rs17089887, are also associated with Fuchs ECD development in Asian–Chinese [7] and Indian [8] populations, which confirms the hypothesis that the pathogenic genetic anomaly is found in the TCF4 gene. The TCF4 gene, located at locus 18q21.2, is involved in regulation mechanisms of intercellular adhesion, cell motility, and cell proliferation [9].

Based on the report by Breschel et al. [10], which described the expansion (increase in number) of CTG trinucleotide repeats in the third intron of the TCF4 gene of the unstable CTG18.1 region, found in 3% of the population, Wieben et al. [11] in 2012 studied the relationship between expansion at the CTG 18.1 locus and Fuchs ECD. In this study, an increase in the number of CTG repeats of >50 is more strongly correlated with the development of Fuchs ECD than any of the gene loci previously identified. Expansion of the CTG sequence leads to the formation of toxic intranuclear ribonucleic acid (RNA) foci, sequestration of regulatory transcription factors, such as MBNL1, and splicing disruption (process of excision of certain nucleotide sequences) of RNA [12]. In 2014, after extensive identification of the entire sequence of the TCF4 gene in patients with Fuchs ECD, other significant genetic mutations within the TCF4 gene, which would be associated with the development of Fuchs ECD, were impossible to identify (except rs613872 and CTG18.1 trinucleotide repeat) [13]. This confirmed that the expansion of the sequence of CTG trinucleotide directly affects the pathogenesis of Fuchs ECD.

Thus, the expansion of CTG trinucleotide repeats in the third intron of the TCF4 gene is currently the most promising marker of Fuchs ECD.

This study aimed to assess the prevalence of CTG repeat expansion in the TCF4 gene in the Russian population in patients with healthy cornea and in patients with Fuchs corneal dystrophy.

MATERIALS AND METHODS

The study included 89 patients aged 50 years who were treated at the Ophthalmology clinic of the Pavlov State Medical University of Saint Petersburg. All participants underwent a standard ophthalmological examination. The patients were categorized into two groups. Group 1 included patients with signs of Fuchs ECD (n = 51) (men, 9; women, 42), with a mean age of 69.55 ± 8.54 (range, 50–86) years, with 26, 16, and 9 patients in stages 1, 2, and 3, respectively (Volkov–Dronov classification) [14]. Group 2 (control group) included patients with healthy corneas (n = 38) (men, 8; women, 30), with a mean age of 71.11 ± 8.17 (range, 58–88) years (Table 1).



Table 1 / Таблица 1

Patient characteristics

Характеристики пациентов

Indicators

Patients with Fuchs dystrophy

Control group

Quantity (men/women)

9/42

8/30

Age (years) ± SD

69.55 ± 8.54

71.11 ± 8.17

Age variation (years)

50–86

58–88



Genomic DNA from all patients was isolated from peripheral blood leukocytes by using a standard protocol to detect the expansion of CTG trinucleotide in the TCF4 gene [15]. Purified DNA was diluted in an elution TE buffer. When analyzing the DNA concentration, the absorption index of 260/280 in all samples ranged within 1.8–1.9. After the DNA concentration was measured, it was diluted to 100 ng/μL and stored at –20 °C.

The number of CTG repeats in the TCF4 gene was determined in two stages: screening using the classical polymerase chain reaction (PCR) method and confirmation of PCR expansion with triple repeat priming.

Flanking primers, which bind to sites beyond the expansion zone, were synthesized to perform a screening study of the number of CTG repeats in the TCF4 gene. One of the primers was labeled with FAM 6. The upstream primer bordered the 5’-end of the CTG repeat region. The downstream primer was a gapmer capable of hybridizing with any region of the CTG repeat site.

The nucleotide sequences of primers, concentration of PCR mixture components, and conditions for screening PCR and PCR with triple repeat priming are detailed in previous studies [16, 17].

Fragment analysis was performed using an ABI PRISM 3500 genetic analyzer (Applied Biosystems) to separate the reaction products after screening PCR and PCR with triple repeat priming.

Initially, a screening study was performed for the precise determination of the number of CTG repeats. To calculate the number of CTG repeats, 230 nucleotides, which comprise the size of the primers, and nucleotides before the onset of the expansion locus, were subtracted from the size of the PCR product obtained. The number of CTG repeats was calculated using the following formula:



The presence of the expansion of CTG repeats in the TCF4 gene was excluded to determine two alleles (Fig. 1).

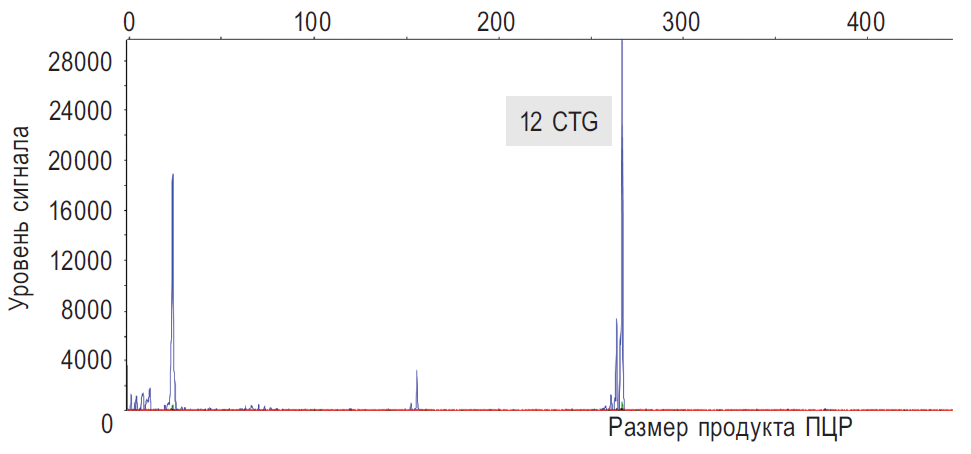

Fig. 1. Electrophoregram of the screening study of the number of CTG repeats in the TCF4 gene. Patients have no expansion of CTG repeats in the TCF4 gene

Рис. 1. Электрофореграмма скринингового исследования количества CTG-повторов в гене TCF4. Пациенты не имеют экспансии CTG-повторов в гене TCF4



The patient was considered to be a carrier of heterozygous expansion if the number of CTG repeats on one of the alleles exceeded 50. Differentiation between the same number of repeats on both alleles and expansion was required to detect one allele (Fig. 2). Thus, expansion was confirmed by PCR with triple repeat priming. No expansion was detected during PCR with triple repeat priming if the patient had the same number of repeats on two alleles.

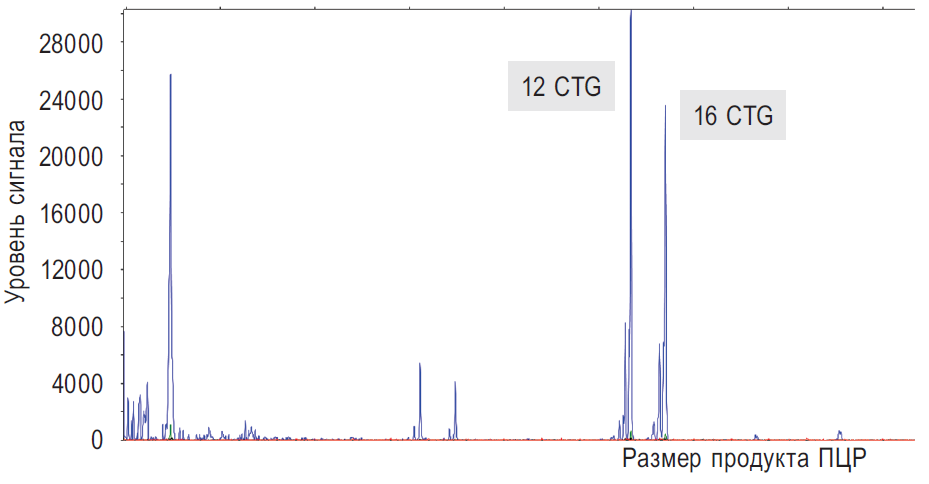

Fig. 2. Electrophoregram screening study of the number of CTG repeats in the TCF4 gene. Expansion required

Рис. 2. Электрофореграмма скринингового исследования количества CTG-повторов в гене TCF4. Требуется исключение экспансии



During the expansion of CTG repeats in the TCF4 gene on one of the alleles, a typical picture of the electrophoregram, shown in Fig. 3, was noted.

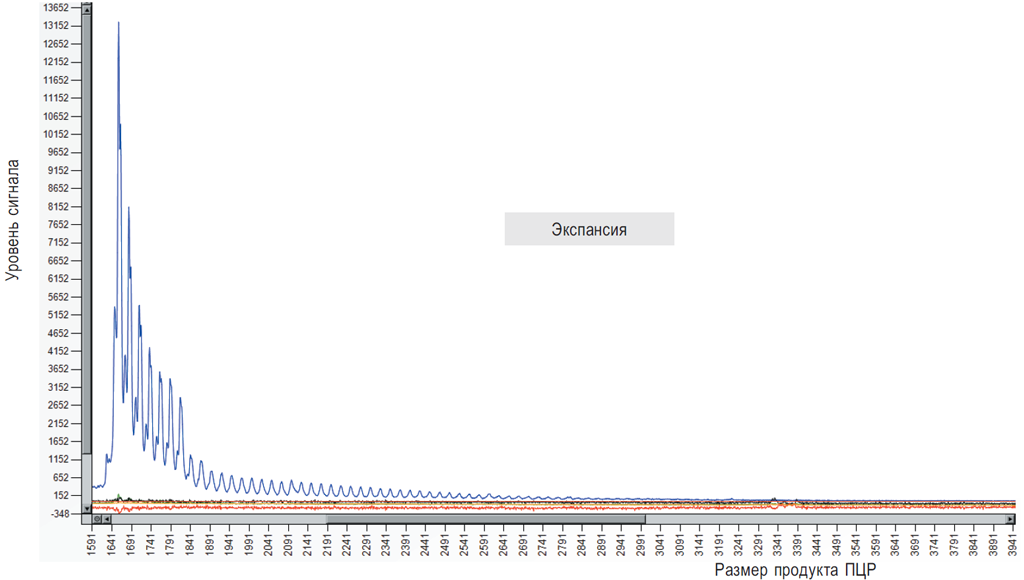

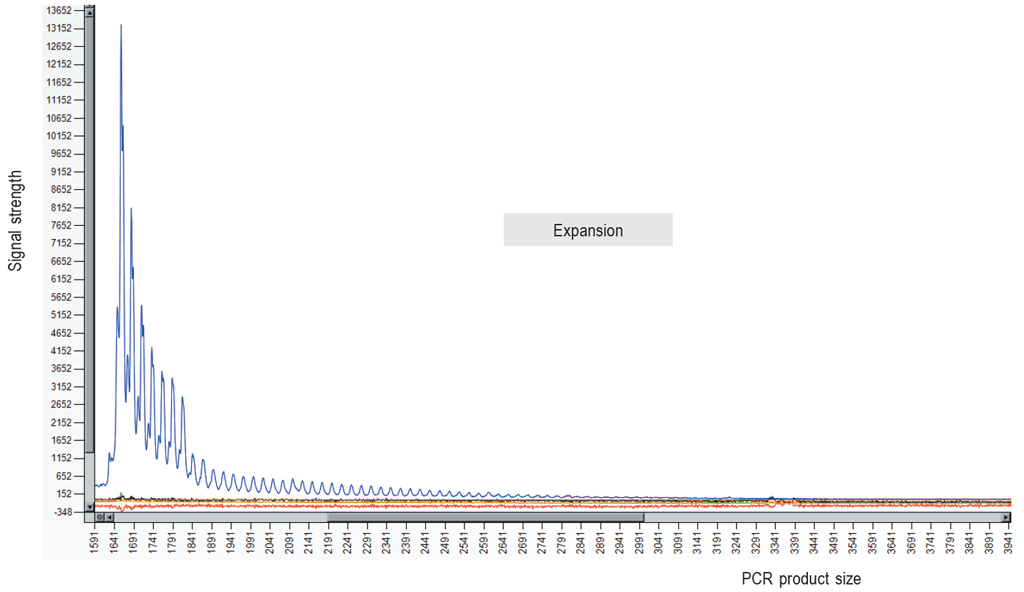

Рис. 3. PCR electrophoregram with triple repeat priming in a patient with an expansion of CTG repeats in the TCF4 gene

Fig. 3. Электрофореграмма ПЦР с праймингом тройных повторов у пациента с экспансией CTG-повторов в гене TCF4



In the absence of peaks in the electrophoregram after screening and the presence of a positive pattern, homozygous expansion was determined in patients by confirming PCR reaction.

Statistical analysis was performed using the Graph Pad 6.0 program. The χ2 test was used to compare the qualitative characteristics of the groups. The results were presented as the median and interquartile range. The results were considered statistically significant at p < 0.05.

RESULTS

The expansion in the group of patients with Fuchs ECD was 55%. In addition, a homozygous pathological increase in the number of repeats was detected in one patient. In the control group, an increase in the number of CTG repeats of >50 was not registered. The data obtained are presented in Fig. 4 and Fig. 5. The characteristics of patients from the control and Fuchs ECD groups are presented in Table 1.

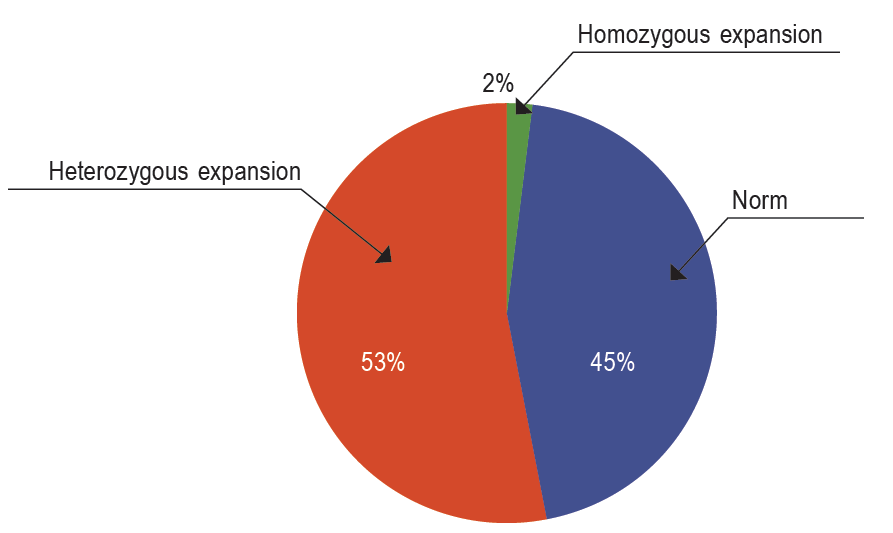

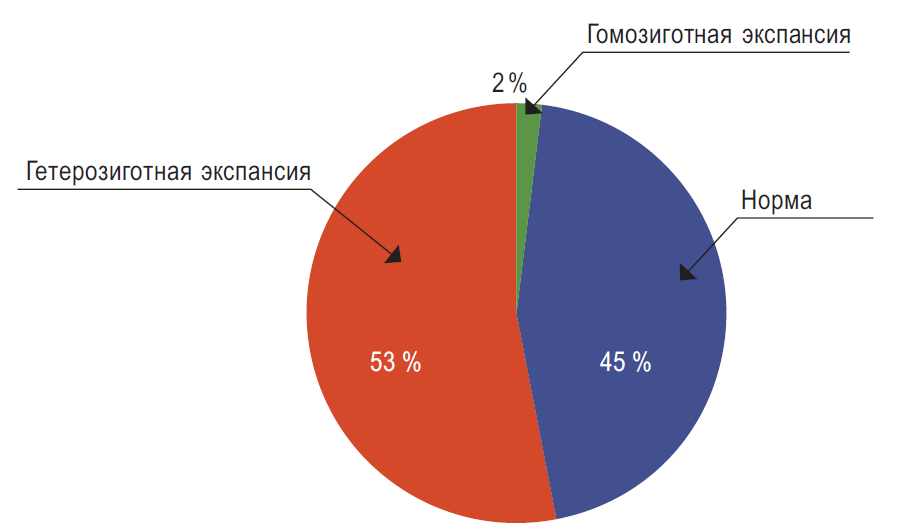

Fig. 4. The prevalence of expansion of CTG repeats in the TCF4 gene in the group of patients with FECD

Fig. 4. Распространённость экспансии CTG-повторов в гене TCF4 в группе пациентов с эндотелиальной дистрофией роговицы Фукса

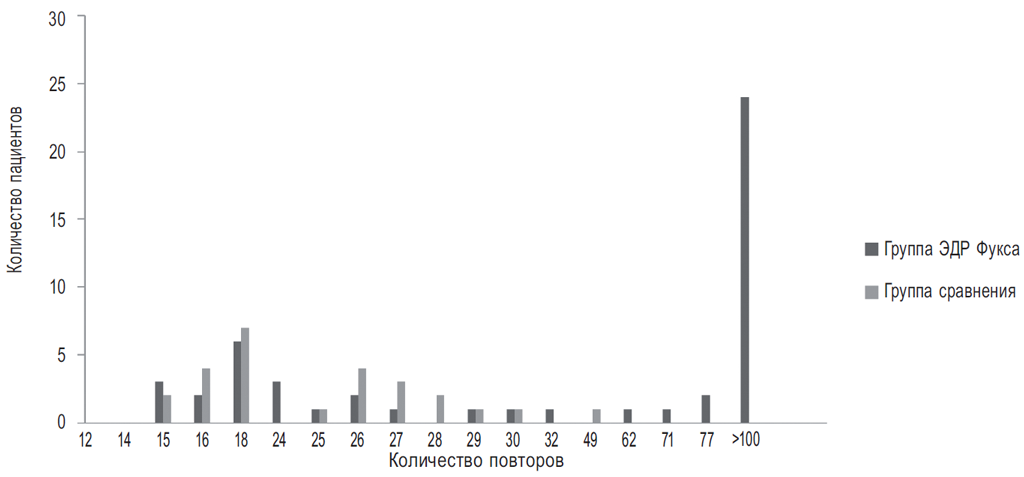

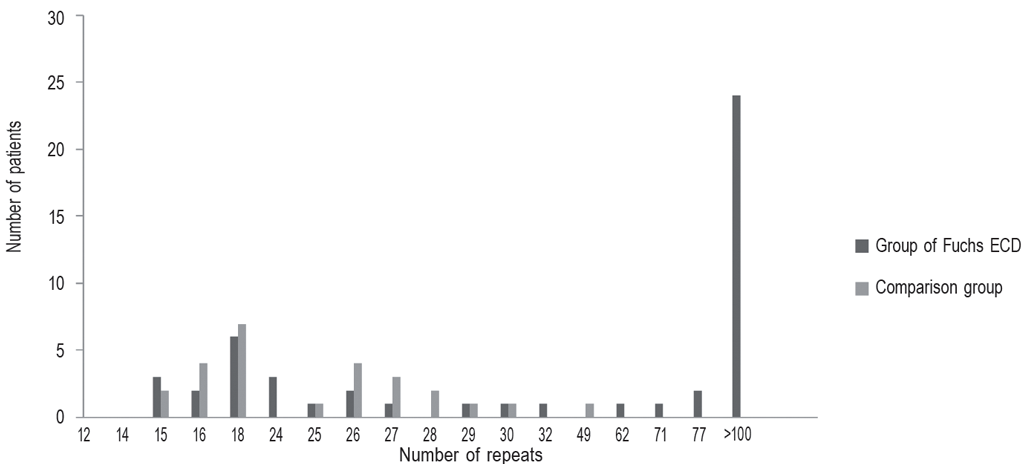

Fig. 5. The number of repetitions in the group of patients FECD and the comparison group

Fig. 5. Количество CTG-повторов в группе пациентов с эндотелиальной дистрофией роговицы Фукса и в группе сравнения



DISCUSSION

Fuchs ECD ranks high as an indication for corneal transplantation in the United States [18]. Currently, one of the main reasons for the development of Fuchs ECD may be an increase in the number of CTG repeats in the third intron of the TCF4 gene [19]. However, the penetrance and expressiveness of the mutation can vary significantly in different patients. Carriership of heterozygous or homozygous expansion without objective signs of Fuchs ECD increases the risk of the disease development by 76 times [20].

The pathogenesis of TCF4-associated Fuchs ECD is based on the formation of toxic mRNA with expansion CTG repeats of intranuclear formations that disrupt normal RNA homeostasis of the cell by adsorption of splicing factors, mainly MBNL1 [12]. In several experiments on the corneal endothelial cell lines of patients with Fuchs ECD, MBNL1 and MBNL2 proteins have been shown to be co-localized with the TCF4 gene mRNA foci. In patients with TCF4 gene mutation, the corneal endothelial cells were characterized by an altered mRNA splicing pattern compared with patients with Fuchs ECD without expansion. This finding confirmed that splicing is impaired due to CTG expansion rather than disease progression [12].

In addition, the toxicity of expansion mRNA of the TCF4 gene was proven by transfection of the TCF4 gene with an increased number of CTG repeats in human corneal endothelial cell lines. This modification not only caused the formation of mRNA foci, but also led to changes in the cells characteristic of Fuchs ECD. The importance of the participation of CTG expansion in the Fuchs ECD pathogenesis is also emphasized by the ability to block the development of Fuchs ECD in cell models by the addition of inhibitory antisense (CAG) 7 of mRNA [21].

The present research, which focused on the study of the prevalence of expansion in the TCF4 gene in patients with Fuchs ECD and patients without signs of corneal dystrophy, is one of the first studies conducted in the Russian Federation. The incidence of heterozygous expansion in the study group of Fuchs ECD was 53%, which was comparable with a number of studies conducted in the United States and Europe. Thus, the prevalence of expansion of CTG trinucleotides in patients with Fuchs ECD in different ethnic groups [8, 17, 22–25] ranges from 34% to 73%. In the Russian population, the only data on the frequency of occurrence of CTG trinucleotide expansion in patients with Fuchs ECD [26] coincide with global data (66.7%). However, the prevalence of this aberration in the Russian population without signs of Fuchs ECD has not been shown in any study. The prevalence of homozygous expansion in this study was 2%, which was also comparable with the results of previous studies [25, 26]. In addition, we showed that the control group, which included patients without corneal pathology, had no mutations, which was consistent with previous studies [7, 8, 24]. However, expansion in the TCF4 gene was present in 2%–7% of cases in studies involving larger sample sizes of patients in the comparison group. The presence of aberrations in the control group can be explained by the low level of penetrance and expressivity of the mutation under study.

CONCLUSION

Fuchs ECD, which had an unclear pathogenesis until recently, is a common ophthalmic disease in patients older than 40 years, and the diagnosis was based solely on clinical and instrumental data. However, in most patients, the description of a new pathogenic aberration in the form of expansion in the TCF4 gene not only confirmed the diagnosis but also created new etiological approaches for treatment.

Transparency of financial activity: None of the authors has a financial interest in the materials or methods presented.

There is no conflict of interest.

Sanasar S. Papanyan

Pavlov First Saint Petersburg State Medical University

Author for correspondence.
Email: Dr.papanyan@yandex.ru
ORCID iD: 0000-0003-3766-2211
SPIN-code: 9794-4692

Russian Federation, Saint Petersburg

MD, Aspirant, Ophthalmology Department

Sergey Yu. Astakhov

Pavlov First Saint Petersburg State Medical University

Email: astakhov73@mail.ru
SPIN-code: 7732-1150

Russian Federation, Saint Petersburg

MD, PhD, DMedSc, Professor, Head of the Department

Vladimir D. Nazarov

Pavlov First Saint Petersburg State Medical University

Email: nazarov19932@mail.ru
ORCID iD: 0000-0002-9354-8790

Russian Federation, Saint Petersburg

Research Fellow, Laboratory of Autoimmune Diagnostics, Center for Molecular Medicine

Sergey V. Lapin

Pavlov First Saint Petersburg State Medical University

Email: svlapin@mail.ru
ORCID iD: 0000-0002-4998-3699

Russian Federation, Saint Petersburg

MD, PhD, Head, Laboratory of Autoimmune Diagnostics, Center for Molecular Medicine

Sergey A. Novikov

Pavlov First Saint Petersburg State Medical University

Email: serg2705@yandex.ru

Russian Federation, Saint Petersburg

MD, PhD, DMedSc, Professor, Ophthalmology Department

Inna A. Riks

Pavlov First Saint Petersburg State Medical University

Email: riks0503@yandex.ru

Russian Federation, Saint Petersburg

MD, PhD, Assistant. Ophthalmo­logy department

Liliya K. Anikina

Pavlov First Saint Petersburg State Medical University

Email: lily-sai@yandex.ru

Russian Federation, Saint Petersburg

Student of 6th year

Kseniya S. Dovydenko

Pavlov First Saint Petersburg State Medical University

Email: ksenisens@gmail.com
ORCID iD: 0000-0002-8190-7223

Russian Federation, Saint Petersburg

Student of 6th year

  1. Afshari NA, Pittard AB, Siddiqui A, Klintworth GK. Clinical study of Fuchs corneal endothelial dystrophy leading to penetrating keratoplasty: a 30-year experience. Arch Ophthalmol. 2006;124(6): 777-780. https://doi.org/10.1001/archopht.124.6.777.
  2. Biswas S. Missense mutations in COL8A2, the gene encoding the alpha2 chain of type VIII collagen, cause two forms of corneal endothelial dystrophy. Hum Mol Genet. 2001;10(21):2415-2423. https://doi.org/10.1093/hmg/10.21.2415.
  3. Krafchak CM, Pawar H, Moroi SE, et al. Mutations in TCF8 cause posterior polymorphous corneal dystrophy and ectopic expression of COL4A3 by corneal endothelial cells. Am J Hum Genet. 2005;77(5):694-708. https://doi.org/10.1086/497348.
  4. Vithana EN, Morgan PE, Ramprasad V, et al. SLC 4A11 mutations in Fuchs endothelial corneal dystrophy. Hum Mol Genet. 2008;17(5):656-666. https://doi.org/10.1093/hmg/ddm337.
  5. Vithana EN, Morgan P, Sundaresan P, et al. Mutations in sodium-borate cotransporter SLC 4A11 cause recessive congenital hereditary endothelial dystrophy (CHED 2). Nat Genet. 2006;38(7): 755-757. https://doi.org/10.1038/ng1824.
  6. Thalamuthu A, Khor CC, Venkataraman D, et al. Association of TCF4 gene polymorphisms with Fuchs’ corneal dystrophy in the Chinese. Invest Ophthalmol Vis Sci. 2011;52(8):5573-5578. https://doi.org/10.1167/iovs.11-7568.
  7. Baratz KH, Tosakulwong N, Ryu E, et al. E 2-2 protein and Fuchs’s corneal dystrophy. N Engl J Med. 2010;363(11):1016-1024. https://doi.org/10.1056/NEJMoa1007064.
  8. Nanda GG, Padhy B, Samal S, et al. Genetic association of TCF4 intronic polymorphisms, CTG18.1 and rs17089887, with Fuchs’ endothelial corneal dystrophy in an Indian population. Invest Ophthalmol Vis Sci. 2014;55(11):7674-7680. https://doi.org/10.1167/iovs.14-15297.
  9. Forrest MP, Hill MJ, Quantock AJ, et al. The emerging roles of TCF4 in disease and development. Trends Mol Med. 2014;20(6): 322-331. https://doi.org/10.1016/j.molmed.2014.01.010.
  10. Breschel TS, McInnis MG, Margolis RL, et al. A novel, heritable, expanding CTG repeat in an intron of the SEF2-1 gene on chromosome 18q21.1. Hum Mol Genet. 1997;6(11):1855-1863.
  11. Wieben ED, Aleff RA, Tosakulwong N, et al. A common trinucleotide repeat expansion within the transcription factor 4 (TCF4, E2-2) gene predicts Fuchs corneal dystrophy. PLoS One. 2012;7(11):e49083. https://doi.org/10.1371/journal.pone.0049083.
  12. Wieben ED, Aleff RA, Tang X, et al. Trinucleotide repeat expansion in the transcription factor 4 (TCF4) gene leads to widespread mRNA splicing changes in Fuchs’ endothelial corneal dystrophy. Invest Ophthalmol Vis Sci. 2017;58(1):343-352. https://doi.org/10.1167/iovs.16-20900.
  13. Wieben ED, Aleff RA, Eckloff BW, et al. Comprehensive assessment of genetic variants within TCF4 in Fuchs’ endothelial corneal dystrophy. Invest Ophthalmol Vis Sci. 2014;55(9):6101-6107. https://doi.org/10.1167/iovs.14-14958.
  14. Дронов М.М. Глубокая дистрофия роговой оболочки и методы её лечения: Автореф. дис. … канд. мед. наук. – Л., 1978. – 16 с. [Dronov MM. Glubokaya distrofiya rogovoy obolochki i metody ee lecheniya. [dissertation] Leningrad; 1978. 16 p. (In Russ.)]
  15. Назаров В.Д., Лапин С.В., Гавриченко А.В., и др. Выявление экспансии тринуклеотидных повторов при болезни Гентингтона // Медицинская генетика. – 2017. – Т. 16. – № 3. – С. 24–29. [Nazarov VD, Lapin SV, Gavrichenko AV, et al. Investigation of trinucleotides expansion level in Huntington disease with triplet repeats PCR. Medical Genetics. 2017;16(3):24-29. (In Russ.)]
  16. Soliman AZ, Xing C, Radwan SH, et al. Correlation of severity of Fuchs endothelial corneal dystrophy with triplet repeat expansion in TCF4. JAMA Ophthalmol. 2015;133(12):1386-1391. https://doi.org/10.1001/jamaophthalmol.2015.3430.
  17. Vasanth S, Eghrari AO, Gapsis BC, et al. Expansion of CTG18.1 trinucleotide repeat in TCF4 is a potent driver of Fuchs’ corneal dystrophy. Invest Ophthalmol Vis Sci. 2015;56(8):4531-4536. https://doi.org/10.1167/iovs.14-16122.
  18. Eye Bank Association of America. 2015 Eye Banking Statistical Report. EBAA; 2016.
  19. Eghrari AO, Vasanth S, Wang J, et al. CTG18.1 Expansion in TCF4 Increases likelihood of transplantation in Fuchs corneal dystrophy. Cornea. 2017;36(1):40-43. https://doi.org/10.1097/ICO.0000000000001049.
  20. Zarouchlioti C, Sanchez-Pintado B, Hafford Tear NJ, et al. Antisense therapy for a common corneal dystrophy ameliorates TCF4 repeat expansion-mediated toxicity. Am J Hum Genet. 2018;102(4): 528-539. https://doi.org/10.1016/j.ajhg.2018.02.010.
  21. Hu J, Rong Z, Gong X, et al. Oligonucleotides targeting TCF4 triplet repeat expansion inhibit RNA foci and mis-splicing in Fuchs’ dystrophy. Hum Mol Genet. 2018;27(6):1015-1026. https://doi.org/10.1093/hmg/ddy018.
  22. Luther M, Grunauer-Kloevekorn C, Weidle E, et al. TGC repeats in intron 2 of the TCF4 gene have a good predictive power regarding to Fuchs endothelial corneal dystrophy. Klin Monbl Augenheilkd. 2016;233(2):187-194. https://doi.org/10.1055/s-0035-1546138.
  23. Mootha VV, Gong X, Ku HC, Xing C. Association and familial segregation of CTG18.1 trinucleotide repeat expansion of TCF4 gene in Fuchs’ endothelial corneal dystrophy. Invest Ophthalmol Vis Sci. 2014;55(1):33-42. https://doi.org/10.1167/iovs.13-12611.
  24. Nakano M, Okumura N, Nakagawa H, et al. Trinucleotide repeat expansion in the TCF4 gene in Fuchs’ endothelial corneal dystrophy in Japanese. Invest Ophthalmol Vis Sci. 2015;56(8):4865-4869. https://doi.org/10.1167/iovs.15-17082.
  25. Xing C, Gong X, Hussain I, et al. Transethnic replication of association of CTG18.1 repeat expansion of TCF4 gene with Fuchs’ corneal dystrophy in Chinese implies common causal variant. Invest Ophthalmol Vis Sci. 2014;55(11):7073-7078. https://doi.org/10.1167/iovs.14-15390.
  26. Антонова О.П. Современные аспекты диагностики и лечения первичной эндотелиальной дистрофии роговицы (Фукса): Дис. … канд. мед. наук. – М., 2016. – 127 с. [Antonova OP. Sovremennye aspekty diagnostiki i lecheniya pervichnoy endotelial’noy distrofii rogovitsy (Fuksa). [dissertation] Moscow; 2016. 127 p. (In Russ.)]
