BACKGROUND: Little attention has been paid to the study of delayed sensory and motor reactions in adolescents with spinal deformities after surgical treatment.

AIM: To study the reactions of the sensorimotor system of adolescents after surgical correction of spinal deformity.

MATERIALS AND METHODS: The state of the sensory and motor spheres was analyzed in the immediate postoperative period in 21 adolescents with idiopathic scoliosis and in 13 with congenital deformities of the spine. A complex of methods involving global and stimulation electroneuromyography was used. The amplitude of motor, reflex potentials and interference electromyogram was evaluated at the maximum arbitrary tension of the lower limb muscles. Using an esthesiometer, thermal pain sensitivity in Th1–S2 dermatomes was explored. In the process of surgical correction, intraoperative neuromonitoring was performed with registration of motor evoked potentials of the lower limb muscles.

RESULTS: At the beginning of surgical intervention, high-amplitude, well-reproducible motor evoked potentials were obtained in all patients. In the group of patients with idiopathic scoliosis, compared with those with congenital deformities, smooth flow of surgery prevailed (p > 0.05) without significant changes in motor potentials relative to the baseline (p > 0.05). The number of observations of motor potentials decreased in the both groups and did not exceed 10%; the differences were not significant (p > 0.05). The study of the reactions of the sensorimotor system in the immediate postoperative period triggered an increase in the amplitude of M-responses of m. rectus femoris, m. flexor digitorum brevis, m. gastrocnemius, and a decrease in the amplitude of the total EMG of m. rectus femoris. Values of H-reflexes remained at the preoperative level. The analysis of thermal pain sensitivity demonstrated the presence of a more pronounced reaction than that of the motor component. Changes in indicators of this type of sensitivity in groups of adolescents with idiopathic and congenital scoliosis were opposite. In idiopathic scoliosis, negative dynamics of the values prevailed, while in adolescents with congenital deformities of the spine, positive dynamics prevailed. This was because the amount of correction of the main and compensatory curves of the deformity in the group with idiopathic scoliosis was 48% greater (p = 0.0004) and 51% greater (p = 0.011), respectively.

CONCLUSIONS: After surgical correction of spinal deformities in adolescents, the reactions of the sensory system of thermal pain sensitivity were more pronounced than those of the motor sphere.

Full Text

BACKGROUND

Spinal cord injury remains a severe consequence despite all the fundamental and applied research, contemporary method advantages, and used surgical hardware to correct spinal deformity [1, 2]. One of the most serious complications is a neurological deficit, with an incidence of 0.37%–10% [3].

Spinal cord injury can occur after surgical interventions, including the correction of scoliosis and kyphosis, because these manipulations are aimed to elongate the spinal column and impart the spinal cord with significant tension, which results in prolonged injury [2].

Literature analysis revealed an increased incidence of spinal cord distraction injuries with the use of a growing rod system which is widely used to correct spinal deformities [4, 5]. Additionally, the number of incidents of traction spinal cord injuries increased over time from 0.72% in 1975 [6] to 1% in 1987 [7] and reached 17% in 2011 [8].

Most researchers agree that excessive distraction is the main cause of spinal cord damage and dysfunction during the correction of spinal deformities [9, 10].

Currently, surgeons argue about the optimal length and time of distraction to avoid paralysis [1, 11, 12]. However, an experimental model has shown that hypoxic events even during minor spinal distraction (in the absence of spinal cord open mechanical or vascular injuries) can cause metabolic deterioration in motor spinal neurons and permanent functional deficits [2, 13]. Concurrently, other authors bear evidence of increased spinal cord blood flow with a minor spinal distraction when the amplitude of the evoked potentials of the spinal cord is 80%–100% of the norm [14, 15]. Additionally, spinal cord dysfunction occurs from excessive tensile stress (affecting the pathways) and delayed onset of spinal cord ischemia in the upper thoracic region, which may be induced by a similar mechanical process acting on the internal blood vessels of the spinal cord, in acute or gradual spinal column elongation of the monkey [16].

Delayed postoperative neurological deficit is a potentially hazardous condition after the correction of kyphoscoliotic spinal deformity. Neurological disorders occur within several hours or days after the surgical intervention. Single reports have been published on this subject [4, 17, 18].

Subclinical changes in the sensorimotor system state are most often neglected by doctors and researchers; therefore, delayed postoperative responses of the sensitive and motor spheres of adolescents with scoliosis of various genesis to surgical treatment should be further investigated [19–21].

The study aimed to investigate the sensorimotor system responses of adolescents after surgical correction of spinal deformity.

MATERIALS AND METHODS

This study examined 34 patients with spinal deformities aged 11–18 years. Subjects were distributed into two groups based on disease etiology, namely, 1) idiopathic scoliosis in 21 adolescents and 2) congenital spinal deformities in 13 adolescents. The control group consisted of 32 healthy children aged 11–17 years.

A comparative analysis of anthropometric parameters revealed no significant differences in height, weight, and body mass index (BMI) in adolescents with idiopathic scoliosis before surgery from those of healthy peers (Table 1).



Table 1. Characteristics of the examined adolescents (M ± m)

Indicators

Adolescent groups

healthy

n = 32

with idiopathic scoliosis, n = 21

with congenital spinal deformities, n = 13

Age, years

14.5 ± 1.6

(range: 11–17)

15.0 ± 0.36

(range: 12–18)

14.0 ± 0.6

(range: 11–17)

Gender

Boys: 15;

girls: 17

Boys: 6;

girls: 15

Boys: 7;

girls: 6

Height, cm

161.0 ± 1.1

161.2 ± 1.6

150.0 ± 3.0*

Weight, kg

54.0 ± 1.2

53.2 ± 2.3

46.1 ± 2.2*

BMI, kg/m2

20.8 ± 0.3

20.6 ± 0.9

20.5 ± 0.8

Angle of the main curve of the deformity, °

51.3 ± 3.3

61.5 ± 4.9

Angle of the compensatory curve of the deformity, °

34.0 ± 4.7

n = 10

52.6 ± 5.0*

n = 9

* Significant difference from the indicators of healthy adolescents, p < 0.05. BMI: body mass index.



Adolescents with congenital scoliosis were shorter (–7.2%, p = 0.00035) and weighed less (–13.4%, p = 0.041) than healthy children and adolescents with idiopathic scoliosis. However, the BMI did not differ from the values of other groups of subjects (p = 0.589). The main curve angle in the group of patients with idiopathic scoliosis did not differ from the values of this indicator in adolescents with congenital scoliosis (p = 131). The compensatory curve was <35% (p = 0.016).

Adolescents with idiopathic scoliosis did not have any motor, reflex, or sensory disorders. Various vertebral changes at the deformity apex were determined (computed tomography), namely, vertebral body deformity, thinning of the arches, and rotation. The spinal canal dimensions were not reduced, and there was no compression of its structures. The main deformity curve was located at the vertebral Th7–Th12 levels, and the compensatory curve was located at the vertebrae L1–L3 levels.

The study of adolescents with congenital spinal deformities revealed various developmental vertebral abnormalities, including wedge- and butterfly-shaped vertebrae, semivertebrae, and block vertebrae, as well as vertebral segmentation and developmental disorders. Of the 13 patients, 7 were diagnosed with scoliosis, 4 had kyphoscoliosis with a leading scoliotic component, and 2 had kyphosis.

There were no intracanal abnormalities in patients with congenital scoliosis. The main curve of the spinal deformity was located at the Th6–L4 vertebral levels and the compensatory curve was at the Th9–L3 vertebral levels. Movement disorders were registered in 3 (21%) patients, including lower monoparesis on the right and lower spastic paraparesis.

We analyzed the changes in the sensory and motor sphere status in the immediate postoperative period (after 6–21 days, on average after 11.2 ± 0.9 days) to study the delayed responses of the sensorimotor system of adolescents after spinal deformity corrections.

During the study, the amplitudes of motor (M-responses) and reflex (H-reflexes) potentials were evaluated, as well as interference electromyogram (EMG) at the maximum voluntary muscle tension of the lower extremities. EMG was examined according to the design developed by A.P. Shein [20], using the Viking EDX digital system (Natus Medical Incorporated, USA). Previously published data [22] were used as the norm (control group).

The temperature and pain sensitivity was determined in Th1–S2 dermatomes using an electric esthesiometer (thermistor manufactured by EPCOS Inc., Germany). The control group consisted of 32 healthy adolescents aged 11–17 years.

Adolescents with spinal deformity underwent surgical correction. One-stage spinal deformity correction and stabilization were performed using transpedicular fixation systems during the surgical intervention. Spinal osteosynthesis was performed according to the Cotrel-Dubousset Instrumentation concept, and the level of fixation depended on the Lenke type of scoliosis.

The ISIS IOM system (Inomed Medizintechnik GmbH, Germany) was used to perform intraoperative neuromonitoring with the registration of motor evoked potentials (MEPs) of the lower extremity muscles upon stimulating the corresponding projection zones of the motor cortex [23].

Statistical result processing was performed using the Microsoft Excel 2010 program, the AtteStat add-on (Russia), and the Statistical Package for the Social Sciences program (SPSS Inc., Chicago, Illinois, USA). The studied data distribution normality was tested using the Shapiro–Wilk and Kolmogorov–Smirnov tests. The significance of changes in a normal type of distribution was assessed using the Student’s parametric t-test, after evaluating the condition for equality of variances using Levene’s test. The nonparametric principle of statistical processing was used in the absence of a normal distribution. The rate of recurrence (%, f) of different variants of the pyramidal system reaction to the spinal deformity correction was calculated as the ratio of the number of cases (n) of different neuromonitoring variants to the total number of cases (N). The significance of the differences between them was evaluated using the Z-test for the difference in shares and the χ2 test. The critical level of significance was equal to 0.05 when testing the statistical results.

RESULTS

A magnitude analysis of the deformity correction showed that the reduction in deformity in the main and compensatory curves was 77.8% ± 4.0% and 72.0% ± 5.2%, respectively, in idiopathic scoliosis, (Table 2). The amount of correction was lower, with 52.0% ± 5.9% and 48.0% ± 6.5% in the main and compensatory curves, respectively, in adolescents with congenital spinal deformities (Table 3).



Table 2. Values of spinal deformity correction in adolescents with idiopathic scoliosis (M ± m, n = 21)

Parameter

Before treatment

After treatment

Magnitude of change, %

Angle of the main curve of deformity, °

51.3 ± 3.3

(35–85)

12.7 ± 2.9*

(0–50)

p = 0.00006

77.8 ± 4.0

(25–100)

Angle of the compensatory curve of deformity, °

34.0 ± 4.7

(15–65)

10.6 ± 3.5*

(3–40)

p = 0.0051

72.0 ± 5.2

(39–88)

* Significance of difference from the preoperative level, p < 0.05.



Table 3. Values of spinal deformity correction in adolescents with congenital spinal deformities (M ± m, n = 13)

Parameter

Before treatment

After treatment

Magnitude of change, %

Angle of the main curve of deformity, °

61.5 ± 4.9

(40–81)

30.0 ± 4.1*

(11–60)

р = 0.0004

52.0 ± 5.9

(20–77)

Angle of the compensatory curve of deformity, °

52.6 ± 5.0

(35–80)

28.4 ± 5.1*

(15–61)

р = 0.0054

48.0 ± 6.5

(24–77)

* Significance of difference from the preoperative level, p < 0.05.



High-amplitude and well-reproducible MEPs were obtained in all patients at the beginning of the surgical intervention, which was used as a basic level of the spinal tract condition. Figure 1 presents variants of MEP changes during surgical spinal deformity corrections.

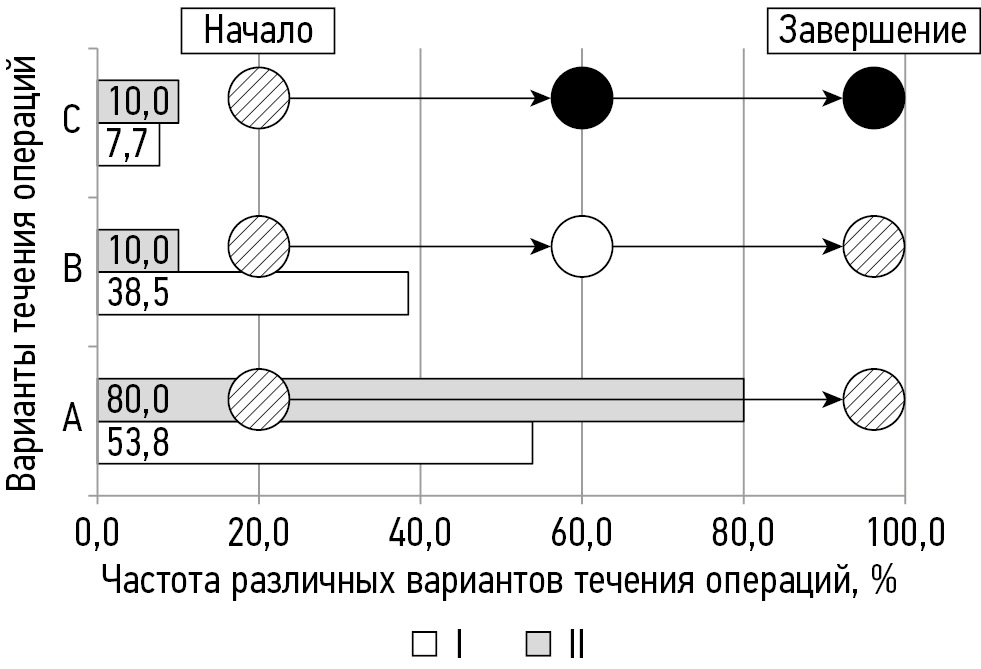

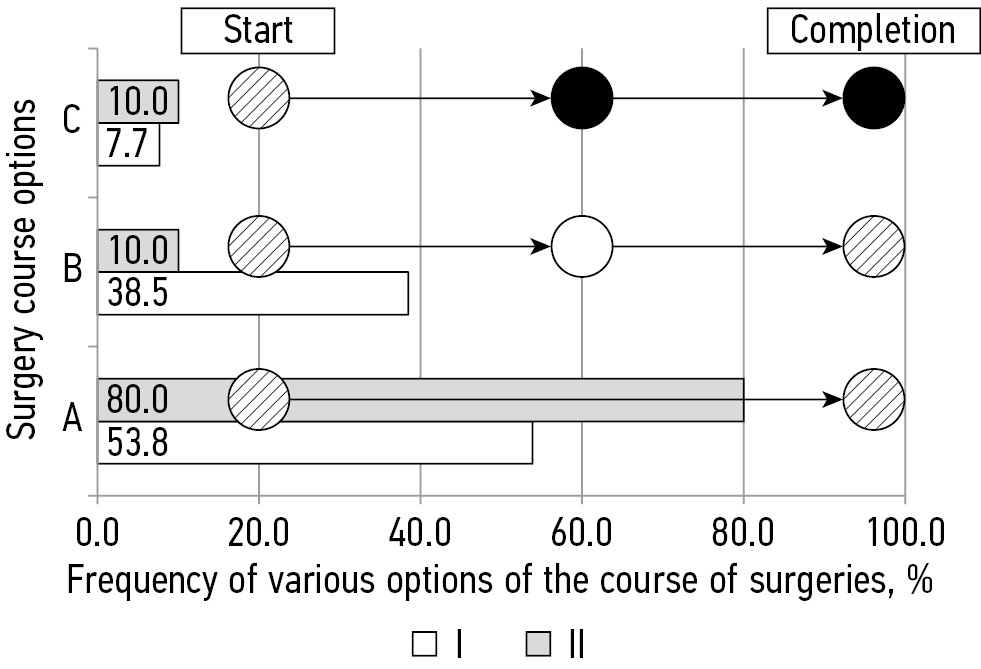

Fig. 1. Changes in motor evoked potentials (MEPs) during surgical spinal deformity correction in patients with congenital deformity (I) and idiopathic scoliosis (II). The abscissa axis is the frequency (%) of various surgical options. The ordinate axis presents surgical options: A) uneventful course of surgical intervention; B) emergence of unstable MEPs in form and characteristics; C) dangerous decrease in MEP amplitude. Hatching indicates high-amplitude stable basic MEPs and responses that remained at the base level at the end of the surgery. The white color indicates unstable MEPs in form and characteristics. The black color indicates a critical decrease in the MEP amplitude



The diagram illustrates that an uneventful course of surgery prevailed (p > 0.05) without significant changes in MEP relative to the baseline in the group of patients with idiopathic scoliosis compared with patients with congenital deformities (p > 0.05).

This response variant does not indicate the occurrence of danger for the spinal tracts but may be a precursor of a hazardous situation [24]. The number of cases of a dangerous decrease in MEP in both comparison groups did not exceed 10%, without statistically significant differences (p > 0.05) (Fig. 1). The surgeon’s actions were adjusted in such situations [23, 24]. Not a single case of clinical manifestation of newly acquired motor deficit was revealed in the analyzed sample after the end of the surgery.

The sensorimotor system response evaluation of adolescents with idiopathic scoliosis to the spinal deformity correction in the postoperative period demonstrated the ambiguity of the extent of motor and sensory sphere changes.

The analysis of the neuromuscular system responses to the spinal deformity correction revealed an insignificant change. There was an increase in the amplitude of M-responses of m. rectus femoris (4%, p = 0.008), m. flexsor digitorum brevis (7%, p = 0.001), and m. gastrocnemius (5%, p = 0.008) (Table 4).



Table 4. M-response amplitude and total electromyography of lower limb muscles in adolescents with idiopathic scoliosis before and after deformity correction (M ± m)

Muscles

Amplitude of M-responses, mV

Indicators of total electromyography

before correction

after correction

control group

before correction

after correction

amplitude, mV

frequency, turn/s

amplitude, mV

frequency, turn/s

M. rectus femoris

21.7 ± 0.7

n = 32

19.6 ± 0.6

2n = 36

20.4 ± 0.5*

2n = 36

р = 0.008

0.38 ± 0.03

2n = 40

252.0 ± 13.0

2n = 32

0.32 ± 0.03*

2n = 40

р = 0.005

276.0 ± 19.0

2n = 32

р = 0.083

M. tibialis anterior

7.7 ± 0.3

n = 32

8.6 ± 0.3

2n = 36

8.6 ± 0.3

2n = 36

0.47 ± 0.02

2n = 40

368.0 ± 16.0

2n = 32

0.50 ± 0.03

2n = 40

р = 0.21

357.0 ± 18.8

2n = 32

р = 0.176

M. extensor digitorum brevis

10.6 ± 0.7

n = 32

8.3 ± 0.5

2n = 36

8.7 ± 0.5

2n = 36

M. flexsor digitorum brevis

17.0 ± 1.1

n = 32

19.3 ± 0.8

n = 38

20.6 ± 1.0*

n = 38

р = 0.001

M. gastrocnemius

31.5 ± 1.2

n = 32

30.0 ± 1.3

2n = 36

31.4 ± 1.2*

2n = 36

р = 0.008

0.22 ± 0.02

2n = 40

358.4 ± 20.0

n = 32

0.23 ± 0.02

n = 40

325.8 ± 16.8*

2n = 32

р = 0.042

* Significant difference from the preoperative level, p < 0.05. 2n is the number of limbs. Turn is a change in the curve direction on the electromyogram with a curve amplitude of at least 100 μV.



Changes in the total EMG amplitude of m. tibialis anterior, m. gastrocnemius, and those of total EMG frequencies of m. rectus femoris and m. tibialis anterior was not registered. A significant decrease was found in the total EMG amplitude of m. rectus femoris (15.4%, p = 0.005) and the frequency of m. gastrocnemius (9%, p = 0.042). The amplitude of H-reflexes in the postoperative period corresponded to the initial level. Thus, it was 4.9 ± 0.6 mV preoperative and 5.0 ± 0.6 mV postoperative in m. gastrocnemius. The study on m. soleus revealed that the postoperative amplitude of H-reflexes (6.7 ± 1.1 mV) did not significantly differ from the preoperative level (6.2 ± 0.9 mV, p = 0.21).

The study on the change of temperature and pain sensitivity indicators in adolescents with idiopathic scoliosis registered pronounced responses of this sensory system. Thus, the analysis of thermal sensitivity on average for the sample showed a decrease in cases of normal (54.1%, from 15.7% ± 3.6% to 7.2% ± 2.8%, p = 0.0001) and increased (20%, from 48.5% ± 3.7% to 39.0% ± 2.3%, p = 0.008) thresholds. An increased number of thermoanesthesia cases was noted (52.1%, from 35.5% ± 2.1% to 54.0% ± 3.1%, p = 0.000002). The thermal sensitivity improvement prevailed only in three dermatomes (Th1, Th3, and Th7). The deterioration of indicators prevailed in other dermatomes (Fig. 2). This was especially pronounced in the Th9–L1 dermatomes (zone of the main and compensatory curves of deformity and surgical intervention). The predominance of negative changes is also confirmed by an increased threshold of thermal sensitivity by an average of 1.1° ± 0.1° for the sample (from 39.2° ± 0.4° to 40.3° ± 0.4°, p = 0.0001).

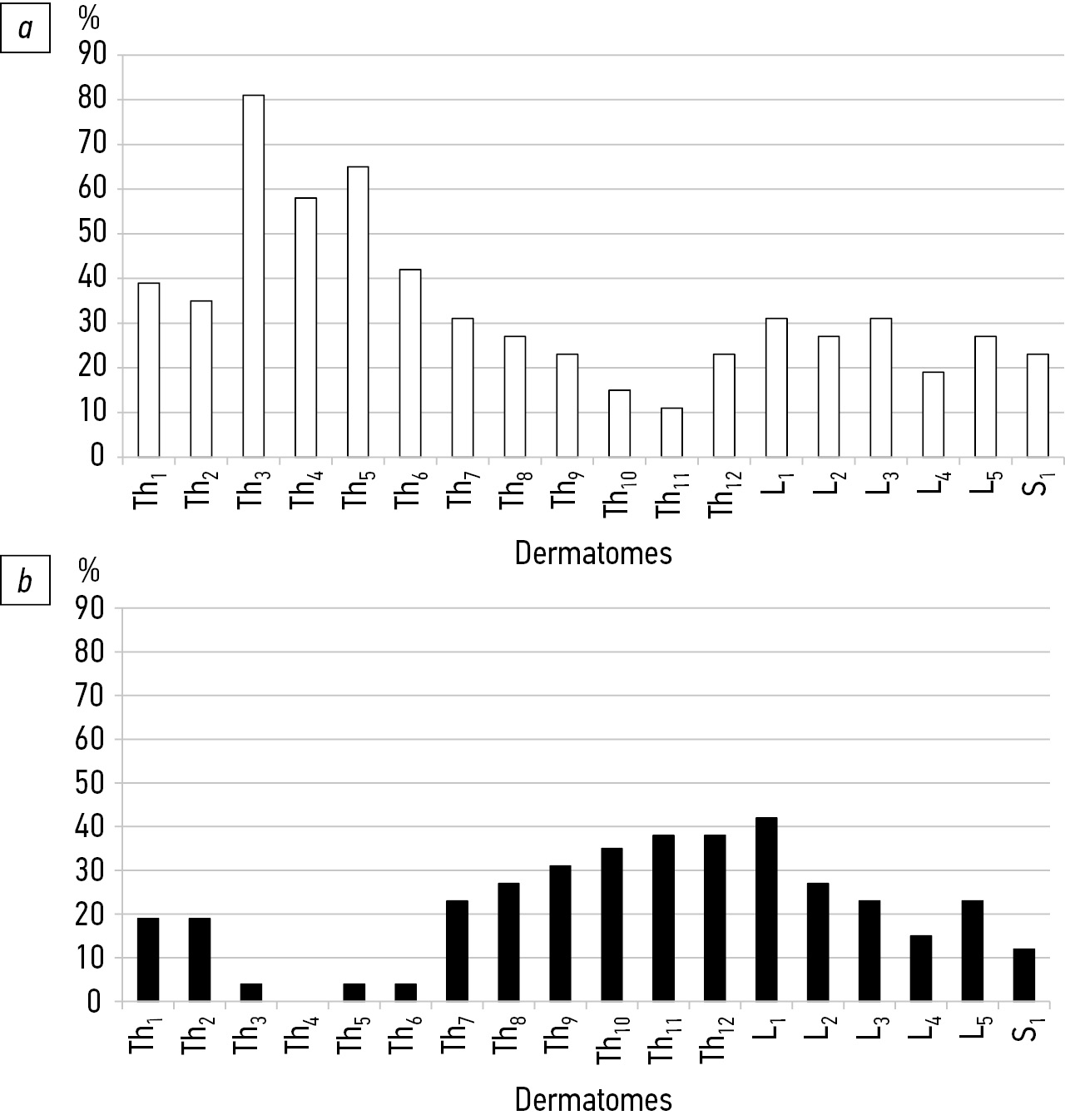

Fig. 2. Thermal sensitivity (%) improvement (a) and deterioration (b) in adolescents with idiopathic scoliosis 12.0 ± 1.2 days after surgical spinal deformity correction



Changes in pain sensitivity on average for the sample revealed a decreased number of cases of normal thresholds (34.5%, from 29.0% ± 3.3% to 19.0% ± 3.1%, p = 0.001), as well as an increased number of cases of elevated thresholds (16.7%, from 63.0% ± 4.9% to 73.5% ± 5.6%, p = 0.0004). The volume of reduced thresholds remained (8.4% ± 2.4% pre-treatment and 5.9% ± 2.2% post-treatment, p = 0.13).

Pain sensitivity improvement prevailed in the Th1 and Th2 dermatomes; while positive and negative changes were in the same proportions in the Th5 dermatome (Fig. 3). The negative change in indicators prevailed in other dermatomes (43%–67% of cases). An increased pain sensitivity threshold was also registered by 1.0° ± 0.1° on average for the sample (from 43.7° ± 0.4° to 44.5° ± 0.5°, p = 0.0001).

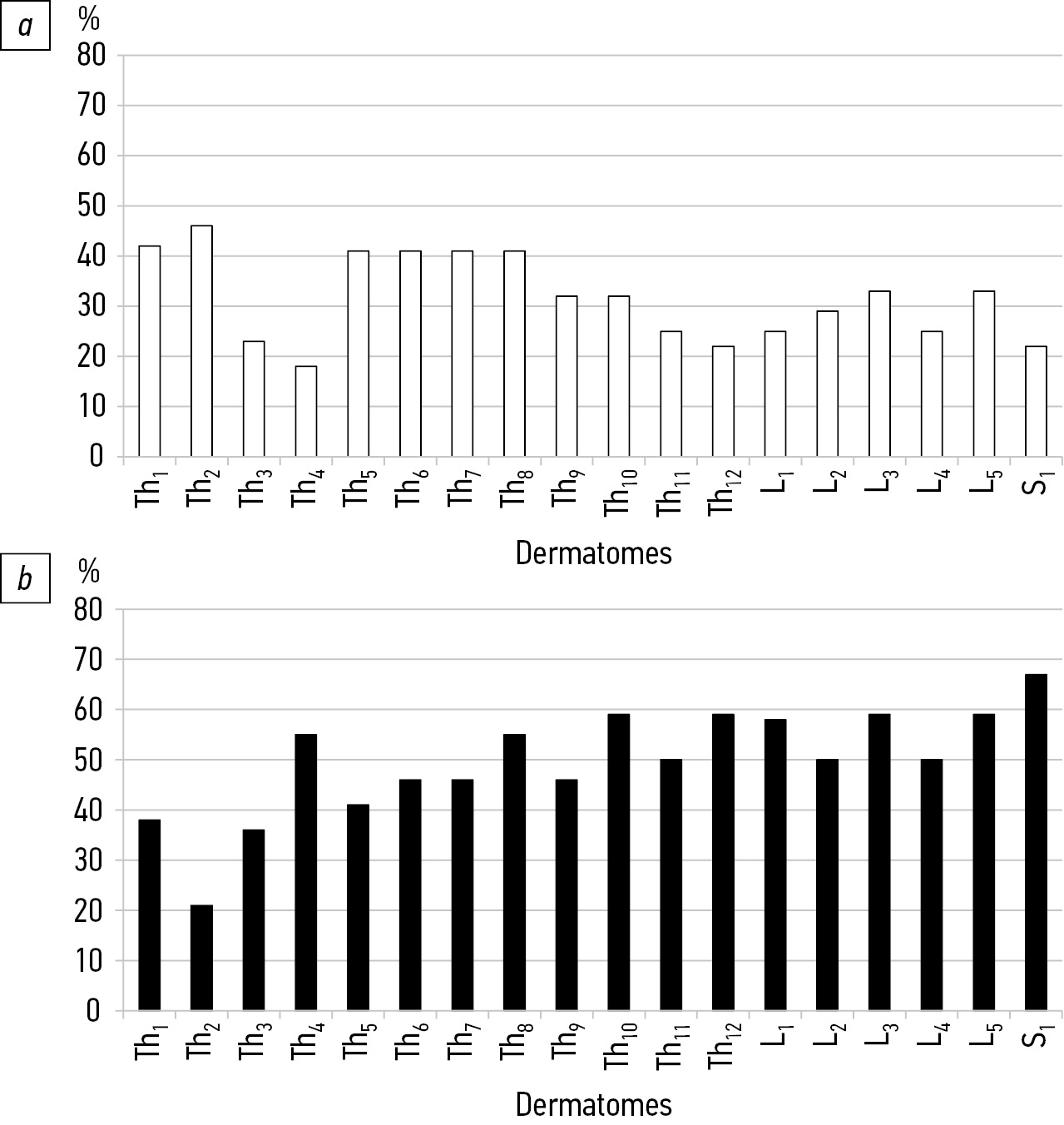

Fig. 3. Positive (a) and negative (b) pain sensitivity changes in adolescents with idiopathic scoliosis 12.0 ± 1.2 days after surgical spinal deformity correction



Thus, the change of the M-response amplitude of m. rectus femoris, m. flexsor digitorum brevis, and m. gastrocnemius was unpronounced in the immediate period after deformity correction in adolescents with idiopathic scoliosis. The total EMG amplitude of m. rectus femoris and the frequency of m. gastrocnemius significantly decreased. There were no changes in the total EMG amplitude of m. tibialis anterior and m. gastrocnemius, the total EMG frequencies of m. rectus femoris and m. tibialis anterior, and the amplitude of H-reflexes.

Negative temperature and pain sensitivity changes were detected at the subclinical level in most of the studied dermatomes, and there were no changes in the neurological status.

The analyses of the neuromuscular system changes after the deformity correction revealed a decreased total EMG amplitude of m. rectus femoris (by 21%, p = 0.0046) (Table 5), as well as an increased M-responses of m. flexsor digitorum brevis (by 11.5%, p = 0.0033) and m. gastrocnemius (by 19.2%, p = 0.016) in adolescents with congenital spinal deformities, as well as idiopathic scoliosis, although these changes were more pronounced than in idiopathic scoliosis.



Table 5. M-response amplitude and total electromyography of lower limb muscles in adolescents with congenital deformities before and after deformity correction (M ± m)

Muscles

Amplitude of M-responses, mV

Indicators of total electromyography

before correction

after correction

control group

before correction

after correction

amplitude, mV

frequency, turn/s

amplitude, mV

frequency, turn/s

M. rectus femoris

21.7 ± 0.7

n = 32

19.5 ± 0.9

2n = 24

18.1 ± 0.7

2n = 24

р = 0.61

0.377 ± 0.04

2n = 24

377.9 ± 20.1

2n = 14

0.299 ± 0.03*

2n = 24

р = 0.0046

348.2 ± 16.3

2n = 14

р = 0.077

M. tibialis anterior

7.7 ± 0.3

n = 32

8.8 ± 0.4

2n = 24

9.4 ± 0.6

2n = 24

р = 0.117

0.440 ± 0.04

2n = 24

413.0 ± 46.1

2n = 14

0.418 ± 0.04

2n = 24

р = 0.076

414.3 ± 45.2

2n = 14

р = 0.49

M. extensor digitorum brevis

10.6 ± 0.7

n = 32

7.5 ± 0.8

n = 22

7.5 ± 1.0

n = 22

M. flexsor digitorum brevis

17.0 ± 1.1

n = 32

17.4 ± 2.1

2n = 22

19.4 ± 2.1*

2n = 22

р = 0.0033

M. gastrocnemius

31.5 ± 1.2

n = 32

24.0 ± 2.5

2n = 24

28.6 ± 2.0*

2n = 24

р = 0.016

0.273 ± 0.03

n = 22

359.0 ± 40.2

2n = 14

0.250 ± 0.04

2n = 22

р = 0.226

310.0 ± 40.1

2n = 14

р = 0.104

* Significant difference from the preoperative level, p < 0.05. Turn is a change in the curve direction on the electromyogram with the curve amplitude of at least 100 μV.



There were no significant changes in other indicators. The h-reflex amplitude of m. gastrocnemius did not significantly differ before and after deformity correction (6.3 ± 0.8 mV and 6.4 ± 0.9 mV, respectively). Temperature and pain sensitivity changes revealed an increased number of cases of normal thermal sensitivity thresholds by 96% (from 6.8% ± 3.0% to 13.3% ± 3.6%, p = 0.001).

The volume of elevated thermal sensitivity thresholds remained at the preoperative level (38.3% ± 3.3% before surgery and 35.2% ± 1.7% after surgery, p = 0.177), as well as the proportion of thermoanesthesia, with 55.0% ± 3.0% before surgery and 50.6% ± 3.6% after surgery (p = 0.14). The thermal sensitivity threshold did not significantly change on average for the sample, as it was 40.9° ± 0.6° before treatment and 40.4° ± 0.6° after treatment (p = 0.55).

The dynamics of positive and negative thermal sensitivity changes in different dermatomes can be registered in antiphase (Fig. 4). Thus, the improvement prevailed in Th1–Th7 dermatomes (Fig. 4a). Negative changes were minimal (Fig. 4b). The parity of negative and positive changes was registered in the Th8 dermatome. The deterioration of thermal sensitivity prevailed from the Th9 to L1 levels (area of the main and compensatory curves of deformity and surgical intervention). The same values of multidirectional changes were recorded in the L2 and S2 dermatomes. Positive changes prevailed in L3, L4, L5, and S1.



Fig. 4. Proportion (%) of positive (a) and negative (b) changes in thermal sensitivity of adolescents with congenital spinal deformities 10.0 ± 0.7 days after surgical spinal deformity correction



A characteristic feature of pain sensitivity changes in the postoperative period was an increase by 3.6 times in the proportion of dermatomes with hyperesthesia (from 3.3% ± 1.6% to 15.3% ± 3.3%, p = 0.0002). The number of cases of normal thresholds decreased by 42% (from 18.2% ± 4.3% to 10.5% ± 2.8%, p = 0.013). The decreased proportion of dermatomes with elevated thresholds was minimal (by 6%, from 78.2% ± 6.05% to 73.6% ± 5.4%, p = 0.012). A predominantly positive change of pain sensitivity was registered in the area of dermatomes from Th6 to S2 (Fig. 5). The increased proportion of dermatomes with decreased thresholds most probably determined the average decrease in the pain sensitivity threshold by 1.1° ± 0.09° in the sample (from 46.0° ± 0.5° to 44.9° ± 0.5°, p = 0.00000000022).

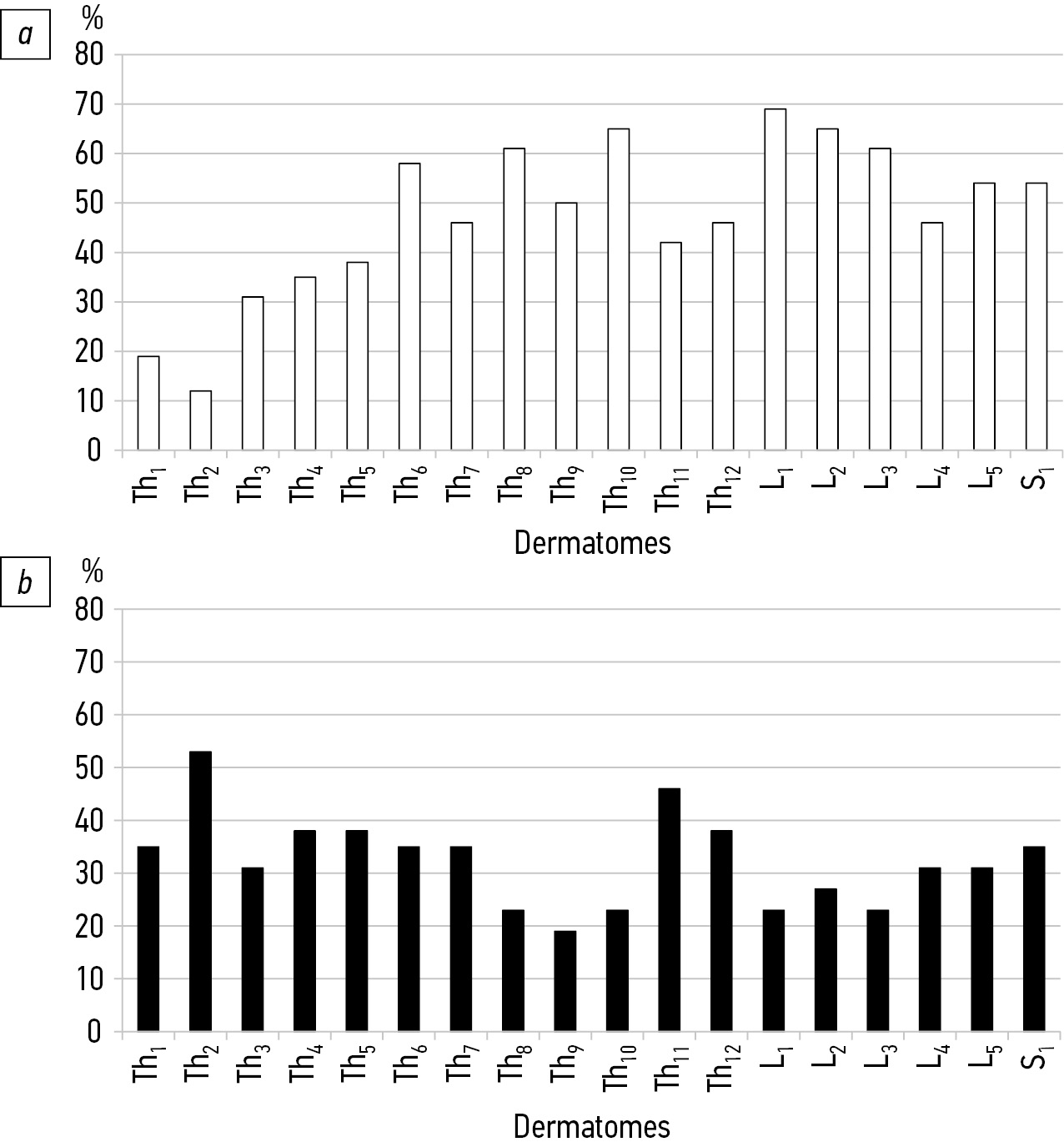

Fig. 5. Positive (a) and negative (b) pain sensitivity changes (%) in adolescents with congenital spinal deformities 10.0 ± 0.7 days after surgical spinal deformity correction



Thus, a decreased total EMG amplitude of m. rectus femoris was registered, as well as an increased M-responses of m. flexsor digitorum brevis and m. gastrocnemius, in the immediate period after surgical deformity correction in adolescents with congenital spinal deformities. There were no significant changes in other muscle activation parameters. A predominant improvement in temperature and pain sensitivity was noted in most of the studied dermatomes.

In conclusion, similar changes in the activation characteristics of muscles occurred in adolescents with idiopathic scoliosis and congenital spinal deformities in the immediate period after surgical deformity correction, which were more pronounced in congenital scoliosis.

However, the revealed changes in the sensory aspect of temperature and pain sensitivity in these two groups of adolescents were opposite: 1) deterioration in indices prevailed in idiopathic scoliosis, and 2) improvement prevailed with congenital spinal deformity. Temperature and pain sensitivity indicators changed at the subclinical level because there were no dynamics in the neurological status of adolescents. However, delayed postoperative negative responses to the sensitive aspect may be prerequisites for possible neurological disorders.

DISCUSSION

The analysis of various literature sources revealed a small number of objective instrumental studies of the sensorimotor system of adolescents with idiopathic scoliosis after surgical correction of spinal deformity [19, 20, 25]. The functional capabilities of the pyramidal structures of the spinal cord [20], various characteristics of voluntary and evoked bioelectrical activity of the lower limb muscles [19, 20], characteristics of changes in paraspinal muscle EMG parameters [19, 26], and temperature and pain sensitivity [21] were analyzed.

Our study revealed that the neuromuscular system responses to the correction of spinal deformity showed an increased M-response amplitude of m. rectus femoris, m. flexsor digitorum brevis, and m. gastrocnemius.

Our study results are confirmed by the findings of other authors who determined that the functionality of the sensorimotor system of the lower extremities improves in 37.8% of cases [20], and the conduction velocity along motor axons increases after spinal deformity correction [19]. An improvement in the functionality of the back muscles was also recorded, and the EMG indicators became more balanced [19, 26].

Cases of decreased amplitude characteristics of the electrical activity of the muscles, which were accompanied or not accompanied by motor disorders, should be paid with heightened attention by a neurologist not only in the postoperative period but also before the next stage of surgical treatment [24].

The analysis of temperature and pain sensitivity thresholds revealed a more pronounced negative reaction at the subclinical level compared to the motor component because of the peculiarities of surgical correction (transpedicular fixation), surgical intervention localization (dorsal approach), sensory conductor and ganglia location, and the scope of spinal deformity correction.

Posterior instrumental transpedicular fixation has several advantages, including a smaller number of vertebral fixation, the possibility of selective correction [27], and adequate deformity correction [28]. However, it has a disadvantage, namely the implementation of only single-stage correction [29]. All maneuvers are reduced to simultaneous distraction traumatic manipulations for the spinal cord [29, 30].

Negative temperature and pain sensitivity changes may be due to single-stage intraoperative spinal traction (derotation maneuver) when indirect spinal cord effects and reactive changes in blood vessels (microvascular ischemic events) can impair the spinal cord functions and structures [31].

The improvement in this type of sensitivity may be because the initially tense and compressed superficial meningeal arteries and some radicular arteries are in more optimal conditions after spinal deformity correction, and this leads to an improved trophism and neural structure functioning.

Literature analysis revealed no information in scientific publications about instrumental studies of the responses of the sensitive and motor aspects in adolescents with congenital spinal deformities.

Our study revealed that changes in the neuromuscular system after the deformity correction were almost the same in patients with congenital spinal deformities as in patients with idiopathic deformity, although the magnitude of the shifts was greater.

The registered changes in the study of temperature and pain sensitivity in adolescents with congenital deformity were predominantly positive, in contrast to the deterioration of this type of sensitivity in idiopathic scoliosis. Notably, the deformity correction value (%) in the group of subjects with idiopathic scoliosis was 48% higher (p = 0.0004) than in the absence of significant differences in the initial angle of the main curve of deformity in these groups of adolescents (p = 0.131). Correction of the compensatory curve in idiopathic scoliosis was also greater (by 51%, p = 0.011) than in congenital deformity.

The reduced rate of deformity correction in congenital pathology may be due to an increased proportion of cases of detected critical MEP changes during intraoperative monitoring, which indicates dangerous changes in the functional state of the spinal cord.

CONCLUSION

The study of responses of the sensorimotor system of adolescents with idiopathic scoliosis and congenital spinal deformities revealed an increased M-response amplitude of m. rectus femoris, m. flexsor digitorum brevis, and m. gastrocnemius, as well as decreased total EMG amplitude of m. rectus femoris in the immediate period after surgical treatment. Indicators of H-reflexes remained at the preoperative level.

The responses of the sensitive aspect (temperature and pain sensitivity) were more pronounced than those of the motor component, although at the subclinical level. Changes in groups of adolescents with idiopathic scoliosis and congenital spinal deformities were opposite because negative changes in the indices prevailed in idiopathic scoliosis, and temperature and pain sensitivity improved in congenital deformities. This is because the amount of deformity correction in the group of subjects with idiopathic scoliosis was greater by 48% in the absence of significant differences in the initial angle of the main curve of deformity. Correction of the compensatory curve in idiopathic scoliosis was also greater by 51% than in congenital deformities.

The reduced volume of the deformity correction in congenital deformities may be due to an increased proportion of cases with a critical decrease in the MEP amplitude during intraoperative monitoring.

ADDITIONAL INFORMATION

Funding. The study had no external funding.

Conflict of interest. The authors declare no conflict of interest.

Ethical considerations. The research subject was approved at a meeting of the ethics committee of the National Ilizarov Medical Research Center for Traumatology and Orthopedics of the Ministry of Health of the Russian Federation (Kurgan) dated November 13, 2018 No. 4 (59). This work has been conducted following the ethical standards of the Declaration of Helsinki, as amended. All patients or their legal representatives (in case the work described the data of studies involving minors) signed informed consent to the publication of data obtained as a result of the studies, without personal identification.

Author contributions. E.N. Shchurova created the study concept and design, wrote the text of the article, and edited the article text. M.S. Saifutdinov created the study concept and design, performed statistical processing of the material, wrote the text of the article, and edited the article text. M.A. Akhmedova collected and processed the material, and performed statistical processing. D.M. Savin collected and processed the material, and edited the article text. M.A. Bogatyrev processed the data and analyzed the archival material.

All authors made a significant contribution to the study and preparation of the article, as well as read and approved the final version before its publication.

×

About the authors

Elena N. Shchurova

National Ilizarov Medical Research Centre for Traumatology and Orthopaedics

Email: elena.shurova@mail.ru
ORCID iD: 0000-0003-0816-1004
SPIN-code: 6919-1265
Scopus Author ID: 602428322
ResearcherId: B-6692-2018

Dr. Sci. (Biol.)

Russian Federation, 6 M. Ulyanovoy str., Kurgan, 640014

Marat S. Saifutdinov

National Ilizarov Medical Research Centre for Traumatology and Orthopaedics

Email: maratsaif@yandex.ru
ORCID iD: 0000-0002-7477-5250
SPIN-code: 2811-2992
ResearcherId: U-4948-2018

Dr. Sci. (Biol.)

Russian Federation, 6 M. Ulyanovoy str., Kurgan, 640014

Mekhriban A. Akhmedova

National Ilizarov Medical Research Centre for Traumatology and Orthopaedics

Email: marina.ahmedova.90@mail.ru
ORCID iD: 0000-0001-5486-6422

MD, PhD student

Russian Federation, 6 M. Ulyanovoy str., Kurgan, 640014

Dmitry M. Savin

National Ilizarov Medical Research Centre for Traumatology and Orthopaedics

Email: savindm81@mail.ru
ORCID iD: 0000-0001-6284-2850
SPIN-code: 2155-2581

MD, PhD, Cand. Sci. (Med.)

Russian Federation, 6 M. Ulyanovoy str., Kurgan, 640014

Maksim A. Bogatyrev

National Ilizarov Medical Research Centre for Traumatology and Orthopaedics

Author for correspondence.
Email: 270419920000dok@gmail.com
ORCID iD: 0000-0003-4637-2435

MD, PhD student

Russian Federation, 6 M. Ulyanovoy str., Kurgan, 640014

References

  1. Hong JY, Suh SW, Lee SH, et al. Continuous distraction-induced delayed spinal cord injury on motor-evoked potentials and histological changes of spinal cord in a porcine model. Spinal Cord. 2016;54(9):649−655. doi: 10.1038/sc.2015.231
  2. Bell JES, Seifert JL, Shimizu EN, et al. Atraumatic spine distraction induces metabolic distress in spinal motor Neurons. J Neurotrauma. 2017;34(12):2034−2044. doi: 10.1089/neu.2016.4779
  3. Bartley CE, Yaszay B, Bastrom TP, et al. Perioperative and delayed major complications following surgical treatment of fdolescent idiopathic scoliosis. J Bone Joint Surg Am. 2017;99(14):1206−1212. doi: 10.2106/JBJS.16.01331
  4. Cotrel Y, Dubousset J. A new technic for segmental spinal osteosynthesis using the posterior approach. Orthop Traumatol Surg Res. 2014;100:37–41. doi: 10.1016/j.otsr.2013.12.009
  5. Formby PM, Wagner SC, Kang DG, et al. Reoperation after in-theater combat spine surgery. Spine J. 2016;16:329–334. doi: 10.1016/j.spinee.2015.11.027
  6. MacEwen GD, Bunnell WP, Sriram K. Acute neurological complications in the treatment of scoliosis. A report of the Scoliosis Research Society. J Bone Joint Surg Am. 1975;57:404–408.
  7. Cotrel Y, Dubousset J, Guillaumat M. New universal instrumentation in spinal surgery. Clin Orthop Relat Res. 1988;227:10–23.
  8. Sansur CA, Smith JS, Coe JD, et al. Scoliosis research society morbidity and mortality of adult scoliosis surgery. Spine. 2011;36:E593. doi: 10.1097/BRS.0b013e3182059bfd
  9. Lopez AJ, Scheer JK, Smith ZA, et al. Management of flexion distraction injuries to the thoracolumbar spine. J Clin Neurosci. 2015;22:1853–1856. doi: 10.1016/j.jocn.2015.03.062
  10. Lavelle WF, Beltran AA, Carl AL, et al. Fifteen to twenty-five year functional outcomes of twenty-two patients treated with posterior Cotrel-Dubousset type instrumentation: a limited but detailed review of outcomes. Scoliosis Spinal Disord. 2016;11:18. doi: 10.1186/s13013-016-0079-6
  11. Schwartz DM, Auerbach JD, Dormans JP, et al. Neurophysiological detection of impending spinal cord injury during scoliosis surgery. J Bone Joint Surg Am. 2007;89(11):2440−2449. doi: 10.2106/JBJS.F.01476
  12. Pahys JM, Guille JT, D’Andrea LP, et al. Neurologic injury in the surgical treatment of idiopathic scoliosis: guidelines for assessment and management. J Am Acad Orthop Surg. 2009;17:426–434. doi: 10.5435/00124635-200907000-00003
  13. Wu J, Xue J, Huang R, et al. Arabbit model of lumbar distraction spinal cord injury. Spine J. 2016;16:643–658. doi: 10.1016/j.spinee.2015.12.013
  14. Iwahara T. The influence of spine distraction on cat spinal cord blood flow and evoked potentials. Ni-hon Seikeigeka Gakkai Zasshi. 1991;65(1):44−55.
  15. Mironov SP, Vetrile ST, Natsvlishvili ZG, et al. Evaluation of the features of spinal blood circulation, microcirculation in the spinal cord tunics and neurovegetative regulation in scoliosis. Khirurgiia Pozvonochnika. 2006;3:38−48. (In Russ.)
  16. Cusick JF, Myklebust J, Zyvoloski M, et al. Effects of vertebral column distraction in the monkey. J Neurosurg. 1982;57(5):651−659. doi: 10.3171/jns.1982.57.5.0651
  17. Auerbach JD, Kean K, Milby AH, et al. Delayed postoperative neurologic deficits in spinal deformity surgery. Spine. 2016;41(3):E131−138. doi: 10.1097/BRS.0000000000001194
  18. Qiao J, Xiao L, Zhu Z, et al. Delayed postoperative neurologic deficit after spine deformity surgery: analysis of 5377 cases at 1 institution. World Neurosurg. 2018;111:e160−e164. doi: 10.1016/j.wneu.2017.12.010
  19. Lomaga IA, Malmberg SA, Tarasov NI, Petrukhin AS. Neurological syndromes for idiopathic progressing scolioses in children. Russkii Zhurnal Detskoi Nevrologii. 2008;3(3):12−19. (In Russ.)
  20. Shein AP, Krivoruchko GA, Riabykh SO. Reactivity and resistance of cerebrospinal structures when performing instrumental correction of the spine deformities. Rossiiskii Fiziologicheskii Zhurnal im. IM Sechenova. 2016;102(12):1495−1504. (In Russ.)
  21. Shchurova EN, Prudnikova OG, Ryabykh SO, Lipin SA. Comparative analysis of dynamics in thermal pain sensitivity after correction of severe and mild spine deformities in patients with idiopathic scoliosis. Genij Ortopedii. 2018;24(3):365−374. (In Russ.). doi: 10.18019/1028-4427-2018-24-3-365-374
  22. Shein AP, Sajfutdinov MS, Krivoruchko GA. Local and systemic responses of sensorimotor structures to limb elongation and ischemia. Kurgan: DAMMI; 2006. (In Russ.)
  23. Saifutdinov MS, Ryabykh SO, Savin DM, Tretyakova AN. Formalizing the results of intraoperative neurophysiological monitoring of the motor pathways into the spinal cord during the surgical correction of spinal deformities. Grekov’s Bulletin of Surgery. 2018;177(1):49−53. (In Russ.). doi: 10.24884/0042-4625-2018-177-1-49-53
  24. Saifutdinov MS, Ryabykh SO, Savin DM, Tretyakova AN. Quantitative characteristics of the risk of iatrogenic damage to the pyramidal tracts according to intraoperative neuromonitoring during surgical correction of spinal deformities. Voprosy nejrohirurgii. 2019;4:56−63. (In Russ.). doi: 10.17116/neiro20198304156
  25. Nikityuk IE, Vissarionov SV. Supporting function of the feet in children with severe forms of idiopathic scoliosis before and after surgical treatment. Genij Ortopedii. 2021;27(6):758−766. (In Russ.). doi: 10.18019/1028-4427-2021-27-6-758-766
  26. Lu WW, Hu Y, Luk KD, et al. Paraspinal muscle activities of patients with scoliosis after spine fusion: an electromyographic study. Spine. 2002;27(11):1180−1185. doi: 10.1097/00007632-200206010-00009
  27. Suk SI, Kim WJ, Lee SM, et al. Thoracic pedicle screw fixation in spinal deformities: Are they really safe? Spine. 2001;26(18):2049−2057. doi: 10.1097/00007632-200109150-00022
  28. Rose PS, Lenke LG, Bridwell KH, et al. Pedicle screw instrumentation for adult idiopathic scoliosis: an improvement over hook/hybrid fixation. Spine. 2009;34(8):852–857. doi: 10.1097/BRS.0b013e31818e5962
  29. Diab M, Smith AR, Kuklo TR. Neural complications in the surgical treatment of adolescent idiopathic scoliosis. Spine. 2007;32(24):2759−2763. doi: 10.1097/BRS.0b013e31815a5970
  30. Guidera KJ, Hooten J, Weatherly W, et al. Cotrel-Dubousset instrumentation. Results in 52 patients. Spine. 1993;18 (4): 427−431
  31. Awwad W, Bassi M, Shrier I, et al. Mitigating spinal cord distraction injuries: the effect of durotomy in decreasing cord interstitial pressure in vitro. Eur J Orthop Surg Traumatol. 2014;24(Suppl 1):S261−S267. doi: 10.1007/s00590-013-1409-5

Supplementary files

Supplementary Files
Action
1. JATS XML
2. Fig. 1. Changes in motor evoked potentials (MEPs) during surgical spinal deformity correction in patients with congenital deformity (I) and idiopathic scoliosis (II). The abscissa axis is the frequency (%) of various surgical options. The ordinate axis presents surgical options: A) uneventful course of surgical intervention; B) emergence of unstable MEPs in form and characteristics; C) dangerous decrease in MEP amplitude. Hatching indicates high-amplitude stable basic MEPs and responses that remained at the base level at the end of the surgery. The white color indicates unstable MEPs in form and characteristics. The black color indicates a critical decrease in the MEP amplitude

Download (83KB)
3. Fig. 2. Thermal sensitivity (%) improvement (a) and deterioration (b) in adolescents with idiopathic scoliosis 12.0 ± 1.2 days after surgical spinal deformity correction

Download (121KB)
4. Fig. 3. Positive (a) and negative (b) pain sensitivity changes in adolescents with idiopathic scoliosis 12.0 ± 1.2 days after surgical spinal deformity correction

Download (122KB)
5. Fig. 4. Proportion (%) of positive (a) and negative (b) changes in thermal sensitivity of adolescents with congenital spinal deformities 10.0 ± 0.7 days after surgical spinal deformity correction

Download (116KB)
6. Fig. 5. Positive (a) and negative (b) pain sensitivity changes (%) in adolescents with congenital spinal deformities 10.0 ± 0.7 days after surgical spinal deformity correction

Download (124KB)

Copyright (c) 2022 Shchurova E.N., Saifutdinov M.S., Akhmedova M.A., Savin D.M., Bogatyrev M.A.

Creative Commons License
This work is licensed under a Creative Commons Attribution 4.0 International License.

СМИ зарегистрировано Федеральной службой по надзору в сфере связи, информационных технологий и массовых коммуникаций (Роскомнадзор).
Регистрационный номер и дата принятия решения о регистрации СМИ: серия ПИ № ФС77-54261 от 24 мая 2013 г.


This website uses cookies

You consent to our cookies if you continue to use our website.

About Cookies
