使用具备可视化控制功能的新型个性化导向模板评估在儿童先天性脊柱畸形中的应用效果
- 作者: Toriya V.G.1, Vissarionov S.V.1, Pershina P.А.2
-
隶属关系:
- H. Turner National Medical Research Center for Children’s Orthopedics and Trauma Surgery
- H. Turner National Medical Research Center for Сhildren’s Orthopedics and Trauma Surgery
- 期: 卷 12, 编号 4 (2024)
- 页面: 473-480
- 栏目: New technologies in trauma and orthopedic surgery
- ##submission.dateSubmitted##: 10.11.2024
- ##submission.dateAccepted##: 06.12.2024
- ##submission.datePublished##: 15.12.2024
- URL: https://journals.eco-vector.com/turner/article/view/641742
- DOI: https://doi.org/10.17816/PTORS641742
- ID: 641742
如何引用文章
详细
背景。在治疗儿童先天性脊柱畸形时,使用个性化的外科导向模板安装椎弓根螺钉能够显著提高手术的精准性和安全性。
研究目的。开发并对比分析一种新型外科导向模板的应用效果,该模板在安装椎弓根螺钉时具备可视化控制功能,适用于伴有胸廓畸形的儿童先天性脊柱畸形患者。
材料与方法。本研究纳入了2022年6月至2023年6月接受外科治疗的30名伴有先天性脊柱和胸廓畸形的患者。分组方法:实验组(15名)- 使用新型导航模板;对照组(15名)- 采用传统“自由手” 技术。评估方法:术后通过计算机断层扫描(CT)数据,使用S.D. Gertzbein评分量表评估螺钉植入的准确性;数据分布正态性通过Shapiro–Wilk检验验证;两组结果通过独立样本t检验进行比较,统计显著性设为p < 0.05。
结果。实验组(新型导航模板):97.7%的螺钉无偏差(Grade 0);2.3%的螺钉偏差不超过2毫米(Grade I);无出现超过2毫米偏差的螺钉(Grade II及以上);无并发症报告。对照组(“自由手” 技术):89.7%的螺钉无偏差(Grade 0);7.5%的螺钉偏差在2毫米以内(Grade I);2.8%的螺钉偏差超过2毫米(Grade II及以上)。
结论。新型个性化导航模板具备可视化控制功能,可显著提高椎弓根螺钉植入的精准性,减少偏差,且未导致并发症。这一工具在治疗先天性脊柱畸形的临床实践中表现出良好的可靠性和便捷性, 具有广阔的应用前景。
全文:
BACKGROUND
The surgical treatment of pediatric patients with congenital spinal deformities remains a critical and challenging issue in modern cerebrology. Congenital spinal pathologies account for 2%–3% of all scoliotic deformities [1]. A study of the natural progression of congenital spinal deformities indicated that the risk of kyphotic and scoliotic curves increasing by up to 40° over 10 years is significant [2]. The steady progression of such deformities can profoundly affect the respiratory, cardiovascular, and nervous systems, ultimately leading to cardiopulmonary insufficiency syndrome [3]. Over time, these conditions resulted in severe functional impairments of the spinal column, cosmetic deformities, reduced motor activity, and considerable decline in the quality of life of pediatric patients [4]. In many cases, this progression leads to early-onset disability.
Modern surgical approaches for progressive congenital scoliosis aim to correct the spinal curvature while maintaining the achieved correction as the child grows. In recent years, correction techniques for congenital spinal deformities utilizing transpedicular screw fixation with metal constructs have become prevalent [5]. These constructs enable the highly effective correction of congenital curvatures, provide biomechanical stability, and ensure long-term postoperative outcomes. The accurate placement and positioning of the metal construct’s supporting elements are critical determinants of the effectiveness and safety of transpedicular screw fixation. The safety and accuracy of transpedicular screw placement are critical for assessing the quality of surgical treatment and minimizing potential complications. To increase the accuracy of transpedicular screw placement, various navigation methods are employed in clinical practice, including anatomical landmark visualization (freehand technique), specialized navigation systems, and template-guided techniques [6, 7]. However, commonly used techniques, such as the freehand method, are often less accurate and are associated with a high risk of screw malposition, which may result in severe complications, including damage to vascular and nervous structures [8–10]. Navigation systems, such as multislice computed tomography (CT) or fluoroscopic stepwise guidance, offer greater precision but have significant drawbacks. These include high radiation exposure for pediatric patients and surgical teams, high equipment costs, prolonged procedural time, and risk of infectious complications [11].
In recent years, additive technologies have emerged as a promising solution to enhance the personalization of surgical interventions. These technologies have the potential to improve the safety and efficacy of procedures in pediatric patients with spinal deformities [12].
This study aimed to conduct a comparative analysis of the effectiveness of a novel surgical guide template with visual control cutouts for transpedicular screw placement in pediatric patients with congenital spinal deformities and thoracic cage deformities.
MATERIALS AND METHODS
Design and development of a novel navigation template
The navigation template with visual control cutouts (Fig. 1) was developed as a monolithic structure using 3D printing with biocompatible plastic. The frame of the template features a support platform that precisely matches the contours of the posterior vertebral structures, including arches, spinous processes, and facet joints. It is equipped with two contralateral guiding tubes. The frame includes visual control cutouts: one at the level of the spinous process apex and two at the projection of the facet joints. These cutouts enable the verification of the accurate positioning of the template and adherence to the posterior bony structures of the vertebrae.

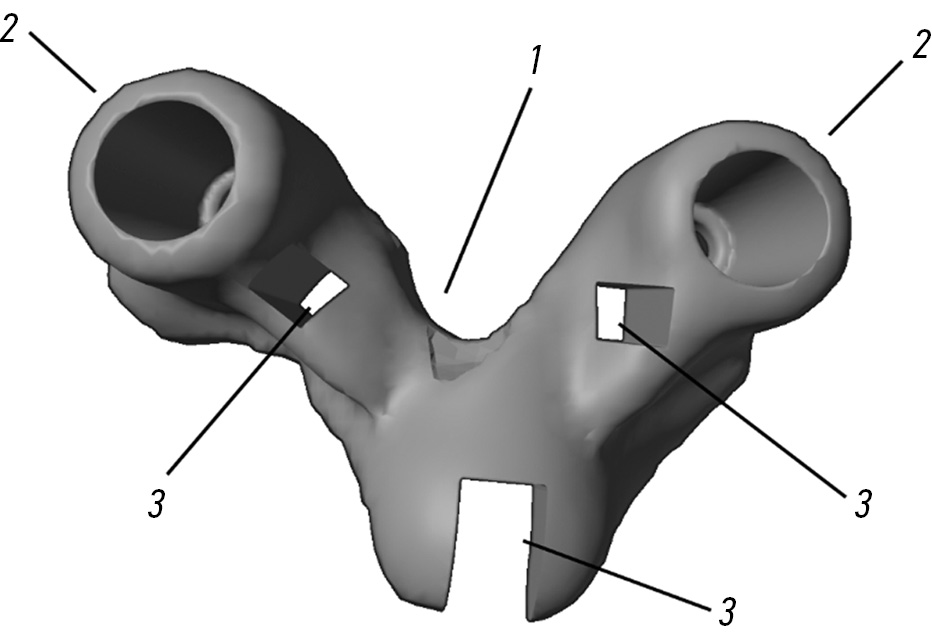

Fig. 1. Top view of the navigation template: 1, template body; 2, guiding tubes; 3, visual control cutouts
The template ensures stable fixation to the dorsal vertebral structures, eliminating the risk of displacement in the axial and sagittal planes. In addition, it allows for the visual assessment of the accuracy of positioning and precise fit before forming bone channels for transpedicular screw placement.
Intraoperative application
Intraoperatively, after the skeletonization of the posterior vertebral structures, the individualized navigation template is placed on the vertebra’s posterior bony structures, ensuring that the support platform conforms precisely to the anatomical contours. Then, the visual control cutouts were utilized to confirm the accurate positioning and precise fit of the template. Once the guide template is securely and accurately fitted to the posterior bony structures, bone channels for transpedicular screw placement are created in the vertebral body using a high-speed drill through the guide tubes integrated into the template frame.
After the removal of the template, the transpedicular screws are inserted into the prepared bone channels.
Patients and clinical study
The study included 30 pediatric patients with congenital thoracic spine deformities and associated thoracic cage deformities who underwent surgical correction and stabilization at the Department of Spinal Pathology and Neurosurgery, H. Turner National Medical Research Center for Сhildren’s Orthopedics and Trauma Surgery, between June 2022 and June 2023. The patients were divided into two groups: Group 1 (n = 15) received surgical treatment using the novel navigation template with visual control cutouts, whereas Group 2 (n = 15) received surgical treatment using the freehand method for placing the supporting elements.
Inclusion criteria: patients with congenital thoracic spine deformities with associated thoracic cage deformities and aged 5–9 years. Exclusion criteria: previous surgical interventions in the area of the congenital deformity, developmental anomalies of the spinal canal or spinal cord.
The following parameters were evaluated:
- Patient age and sex.
- Magnitude of the scoliotic deformity (measured using the Cobb method).
- Pre- and post-operative CT data.
- Number of formed channels and inserted screws.
- Time required for bone channel formation.
- Postoperative complications, including infections, neurological issues, and construct destabilization, over a follow-up period of 1.5 years.
Evaluation of the surgical outcomes
The accuracy of the transpedicular screw placement was visually evaluated on postoperative radiographs and CT scans using the Gertzbein scale [13]. To evaluate the effectiveness of the navigation template versus the freehand method, the time required for bone channel formation was compared between the two groups.
Data were analyzed using Student’s t-test for independent samples. The normality of the data distribution was verified using the Shapiro–Wilk test. A p value of <0.05 was considered significant.
RESULTS
Clinical data of the patients
The clinical characteristics of the patients included in the study are summarized in Table 1.
Table 1. Clinical data of the patients
Group 1 | |||||
Patient | Sex | Age | Number of screws | Magnitude of scoliotic deformity, °, Cobb method) | Magnitude of local kyphosis, ° |
1 | M | 5 | 4 | 34 | 19 |
2 | M | 7 | 4 | 30 | 20 |
3 | F | 7 | 5 | 37 | 19 |
4 | F | 7 | 6 | 26 | 21 |
5 | F | 9 | 8 | 34 | 19 |
6 | F | 6 | 4 | 29 | 17 |
7 | M | 9 | 5 | 39 | 14 |
8 | M | 9 | 7 | 39 | 14 |
9 | F | 6 | 7 | 23 | 19 |
10 | M | 6 | 4 | 33 | 17 |
11 | F | 6 | 8 | 22 | 14 |
12 | F | 8 | 8 | 42 | 15 |
13 | F | 7 | 8 | 27 | 15 |
14 | M | 6 | 5 | 34 | 19 |
15 | F | 6 | 5 | 38 | 17 |
Group 2 | |||||
1 | M | 8 | 4 | 36 | 17 |
2 | M | 8 | 6 | 35 | 19 |
3 | F | 8 | 6 | 25 | 12 |
4 | F | 9 | 5 | 31 | 18 |
5 | F | 7 | 4 | 41 | 12 |
6 | F | 5 | 5 | 29 | 20 |
7 | F | 8 | 6 | 28 | 12 |
8 | F | 8 | 6 | 38 | 21 |
9 | F | 9 | 5 | 40 | 13 |
10 | F | 8 | 4 | 33 | 14 |
11 | M | 5 | 6 | 39 | 18 |
12 | F | 9 | 6 | 27 | 15 |
13 | F | 5 | 5 | 23 | 21 |
14 | M | 6 | 5 | 29 | 19 |
15 | F | 8 | 5 | 35 | 16 |
Group 1 (n = 5) underwent surgery using the new navigation template with visual control windows. The mean age of the patients was 6.93 ± 1.28 years, and the group included six boys and nine girls. The average preoperative scoliotic curve was 32.47° ± 6.12°, and the average local kyphosis was 17.27° ± 2.37°. A total of 88 transpedicular screws were placed, and the number of fixation points per patient ranged from 4 to 8.
Group 2 (n = 15) underwent surgery using the freehand method for transpedicular screw placement. The mean age of the patients was 7.4 ± 1.45 years, and the group included 4 boys and 11 girls. The average preoperative scoliotic curve was 32.6° ± 5.67°, and the average local kyphosis was 16.47° ± 3.29°. A total of 78 transpedicular screws were placed, and the number of fixation points per patient ranged from 4 to 6.
Both groups had comparable baseline clinical characteristics, ensuring the validity of outcome comparisons and allowing for an accurate assessment of the efficacy and accuracy of the new navigation template with visual control windows compared with the traditional freehand method.
Analysis of the bone channel formation time
In both groups, a quantitative statistical analysis was performed on the time required to form bone channels before transpedicular screw placement. The mean times to create a single channel were 52.6 ± 2.6 and 134.7 ± 5.3 in Groups 1 and 2, respectively (p < 0.005). Thus, compared with the traditional method, the navigation template with visual control windows significantly reduced the time required for channel formation.
Notably, the time required for the formation of a single bone channel may vary significantly because of individual anatomical differences in patients’ bone structures.
Analysis of the accuracy of the transpedicular screw placement
The results of the assessment of the accuracy of transpedicular screw positioning, performed using the Gertzbein scale, are presented in Table 2.
Table 2. Accuracy of transpedicular screw placement according to the Gertzbein Scale
Grade | Number of screws (Group 1) | Proportion (Group 1), % | Number of screws (Group 2) | Proportion (Group 2), % |
0 | 86 | 97.7 | 66 | 84.6 |
1 | 2 | 2.3 | 9 | 11.5 |
2 | 0 | 0 | 3 | 3.8 |
3 | 0 | 0 | 0 | 0 |
Total | 88 | 100 | 78 | 100 |
The results show the higher accuracy of then new navigation template when used in placing the transpedicular screws compared with the freehand method. Moreover, 97.7% of the transpedicular screws were correctly placed (Grade 0) in the navigation template group. In the freehand group, the proportion of correctly placed screws was 84.6%. Screw displacement within 2 mm (Grade I) occurred in 2.3% and 11.5% of cases using the navigation template and freehand method, respectively. In the freehand group, displacement exceeding 2 mm (Grade II) was observed in 3.8% of the cases.
During the postoperative follow-up, no complications were recorded in either group.
DISCUSSION
The results demonstrate the high efficiency, precision, and usability of the new navigation template with visual control cutouts in the surgical treatment of pediatric patients with congenital spinal deformities. Of the 88 transpedicular screws placed, 97.7% (86 screws) were positioned correctly (Grade 0), reflecting the exceptional accuracy of the method. Only 2 (2.3%) screws demonstrated a displacement of up to 2 mm (Grade I), which may be considered a satisfactory outcome that did not lead to malposition-associated complications.
The inclusion of visual control cutouts did not compromise the fit of the template to the bone structures, ensuring reliable adherence to the posterior bony anatomy and facilitating precise transpedicular screw placement. These findings are consistent with the results of previous studies highlighting the advantages of customized navigation templates [14–18]. For instance, Pijpker et al. demonstrated high precision and accuracy of transpedicular screw placement using guide templates. Their analysis of 3D deviations revealed mean entry point and mean angular deviations of 1.40 ± 0.81 and 6.70° ± 3.77°, respectively. Notably, angular deviations were significantly greater in the sagittal plane than in the axial plane (p = 0.02). Importantly, all screws were classified as safe (100%), with no damage to neurovascular structures or breaches of the pedicle walls, underscoring the reliability of this method [19].
In contrast, many studies have reported lower accuracy, slower screw placement, reduced positioning precision, and higher incidence of complications with traditional methods compared with guide templates. For example, with the freehand method, the overall screw placement accuracy is approximately 73% [20], and 11.9% of cases exhibit screw deviations >2 mm, significantly increasing the risk of complications [21].
The developed customized guide template demonstrated exceptional accuracy of adherence to the posterior bony structures of the vertebrae. It ensured optimal stability during bone channel formation for the construction of support elements, enabling precise transpedicular screw placement. In the study, no patients had guide template displacement during the creation of channels for spinal system anchors, confirming the stability and reliability of this innovation.
The new guide template with visualization windows provides high precision for transpedicular screw placement, reliability, and ease of use during surgical procedures for correcting congenital spinal deformities, which can significantly improve surgical results.
CONCLUSION
This study evaluated the application of a customized navigation template with visual control cutouts. The new template demonstrated high positioning accuracy on the posterior bony structures of the vertebrae, precise transpedicular screw placement, and significant reductions in bone channel formation time. The results indicate that the developed navigation template has substantial potential to improve the quality of surgical care for children with congenital spinal deformities. The introduction of this navigation template into clinical practice emphasizes the potential for additive technologies to enhance the safety and efficacy of surgical procedures, particularly in complex cases.
ADDITIONAL INFORMATION
Funding source. This study was conducted as part of the research project “Comprehensive Treatment of Children with Congenital Chest Wall Deformities, Spinal Deformities, and Sternocostal Complex Instability” (Registration No. 1023021600029-8-3.2.10).
Competing interests. The authors declare that they have no competing interests.
Ethics approval. The study was approved by the Local Ethics Committee of the H. Turner National Medical Research Center for Сhildren’s Orthopedics and Trauma Surgery, Ministry of Health of Russia (Protocol No. 24-3-1, May 17, 2024).
Consent for publication. Written consent was obtained from legally acceptable representatives of patients for the publication of medical data.
Author contribution. All authors made a significant contribution to the study and preparation of the article, and each read and approved the final version before it was published.
Major contributions were distributed as follows: V.G. Toriya wrote sections of the article, collected data, analyzed the literature, and created the figures. S.V. Vissarionov conducted the staged editing of the manuscript. P.A. Pershina wrote sections of the article, conducted statistical data analysis, and conducted a literature review.
