Magnetic anomalies of the southeastern part of the King Through, Northeastern Atlantic

Cover Page

Cite item

Full Text

Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription or Fee Access

Abstract

The results of geomagnetic studies of the southeastern part of the King Trough and the central segment of the Azores-Biscay Rise, carried out in the Northeast Atlantic in 2023 on the 55th cruise of the RV “Akademik Nikolai Strakhov” are presented. These are the first systematic measurements of the magnetic field, which made it possible to construct a map of the magnetic anomaly of the study area. Intense magnetic anomalies were identified on the ridges bounding the King Trough, as well as linear anomalies on its flanks and in the southeastern part of the study area in the central segment of the Azores-Biscay rise. Spectral analysis and transformations of the magnetic anomaly indicate the existence of deep anomalies within the polygon. The intense deep anomalies are of volcanic origin and were formed in a different geomagnetic epoch than the deep parts and flanks of the King Trough. The results confirm the hypothesis of a complex two- or multi-stage formation of geological structures at the King Trough, with the exception of its southeastern part, which belongs to the Azores-Biscay Rise.

Full Text

Restricted Access

About the authors

A. N. Ivanenko

Shirshov Institute of Oceanology RAS

Email: palshin@ocean.ru
Russian Federation, Moscow

A. M. Gorodnitskiy

Shirshov Institute of Oceanology RAS

Email: palshin@ocean.ru
Russian Federation, Moscow

N. A. Palshin

Shirshov Institute of Oceanology RAS

Author for correspondence.
Email: palshin@ocean.ru
Russian Federation, Moscow

I. A. Veklich

Shirshov Institute of Oceanology RAS

Email: palshin@ocean.ru
Russian Federation, Moscow

V. L. Lyubinetskiy

Shirshov Institute of Oceanology RAS

Email: palshin@ocean.ru
Russian Federation, Moscow

References

  1. Городницкий А.М., Шишкина Н.А. Обобщенная петромагнитная модель океанской литосферы // Природа магнитных аномалий и строение океанической коры. М.: Изд-во ВНИРО, 1996. С. 243–252.
  2. Добрецов И.Л., Зоненшайн Л.П., Кузьмин М.И. и др. Разрез океанической коры трога Кинг (Центральная Атлантика) // Изв. АН СССР. Сер. геол. 1991. № 8. С. 141–146.
  3. Лисицын А.П., Зоненшайн Л.П., Кузьмин М.И., Харин Г.С. Магматические и метаморфические породы трога Кинг и хребта Палмер // Океанология. 1996. Т. 36. № 3. С. 431–443.
  4. Пальшин Н.А. и др. Геомагнитные исследования в Северной Атлантике // Океанология. 2023. Т. 63. № 5. С. 796–812. doi: 10.31857/S0030157423050131, EDN: PWDMTO.
  5. Силантьев С.А., Карпенко С.Ф., Беляцкий Б.В. Эволюция мантийного субстрата САХ, 14–16° с. ш. и 33°40' с. ш.: временные и вещественные ограничения процессов аккреции океанической литосферы по данным исследования Sm-Nd изотопной системы // Российский журнал наук о Земле. 2000. Т. 2. № 3. RJE00042.
  6. Чернышева Е.А., Кузьмин М.И., Харин Г.С., Медведев А.Я. Вариации состава спрединговых базальтов трога Кинг (Центральная Атлантика) и их возможные причины // Докл. РАН. 2013. Т. 448. № 4. С. 446–451. doi: 10.7868/S0869565213040191.
  7. Bonvalot S., Briais A., Kuhn M. et al. World Gravity Map WGM2012. Bureau Gravimétrique International. 2012. https://doi.org/10.18168/bgi.23
  8. Cann J.R. Petrology of basement rocks from Palmer Ridge, NE Atlantic // Phil. Trans. R. Soc. Lond. 1971. V. 268. P. 605–617. https://doi.org/10.1098/rsta.1971.0015
  9. Gee J.S., Kent D.V. Source of oceanic magnetic anomalies and the geomagnetic polarity reversals // Treatise on Geophysics, Geomagnetism / M. Kono (Ed.). Amsterdam: Elsevier, 2007. V. 5. P. 455–508.
  10. Gerovska D., Stavrev P. Magnetic data analysis at low latitudes using magnitude transforms // Geophysical Prospecting. 2006. V. 54. P. 89–98.
  11. Gerovska D., Araúzo-Bravo M.J. Calculation of magnitude magnetic transforms with high centricity and low dependence on the magnetization vector direction // Geophysics. 2006. V. 71(5). P. I21–I30. doi: 10.1190/1.2335516.
  12. Jones M.T. Bathymetric and magnetic traverses in the area of Rockall bank and King’s Trough // R.R.S. “DISCOVERY”, cruise 33, April–May 1970, National Institute of Oceanography. 1972. P. 1–21 (Unpublished Manuscript).
  13. Jones M.T. Bathymetric and magnetic traverses across the North Atlantic // N.C. Marcel Bayard, Cantat II Ocean Survey Cruise, National Institute of Oceanography Data Report Geophysics. 1973. P. 2–24 (Unpublished Manuscript).
  14. Kidd R.B., Searle R.C., Ramsay A.T.S. et al. The geology and formation of King's Trough, northeast Atlantic Ocean // Marine Geology. 1982. V. 48. Iss. 1–2. P. 1–30. https://doi.org/10.1016/0025-3227(82)90127-X
  15. Kidd R.B., Ramsay A.T.S. The geology and formation of the King's Trough complex in the light of deep sea drilling project site 608 drilling // Init. Repts DSDP. 1987. V. 94. P. 1245–1261.
  16. Macchiavelli C., Vergés J., Schettino A. et al. A new southern North Atlantic Isochron map: Insights into the drift of the Iberian plate since the late Cretaceous // Journal of Geophysical Research: Solid Earth. 2017. V. 122. P. 9603–9626. https://doi.org/10.1002/2017JB014769
  17. Origin and Geodynamic Evolution of King’s Trough: the Grand Canyon of the North Atlantic. Research Vessel METEOR Cruise No. M168 / A. Dürkefälden, J. Geldmacher, F. Hauff, R. Werner (Eds.). Inst. Geol. Univ. Hamburg, Leitstelle Deutsche Forschungsschiffe, 2020. 139 p.
  18. Miles P.R., Kidd R.B. Correlation of seafloor spreading magnetic anomalies across King's Trough, Northeast Atlantic Ocean // Init. Repts. DSDP. 1985. V. 94. P. 1149–1156.
  19. Miles P.R., Kidd R.B. The geology and formation of the King's Trough complex in the light of deep sea drilling project site 608 drilling // Init. Repts DSDP. 1987. V. 94. P. 1245–1261.
  20. Nazarova K.A. Serpentinized peridotites as a possible source for oceanic magnetic anomalies // Mar. Geophys. Res. 1994. V. 16. P. 455–462.
  21. NOAA National Centers for Environmental Information, ETOPO1 1 Arc-Minute Global Relief Model, 2009. https://www.ncei.noaa.gov/products/etopo-global-relief-model
  22. NOAA National Geophysical Data Center (NGDC). https://www.ncei.noaa.gov/maps/trackline-geophysics/
  23. Searle R.C., Whitmarsh R.B. The structure of King's Trough, Northeast Atlantic, from bathymetric, seismic and gravity studies // Geophysical Journal International. 1978. V. 53(2). P. 259–287. https://doi.org/10.1111/j.1365-246X.1978.tb03742.x
  24. Seton M., Whittaker J., Wessel P. et al. Community infrastructure and repository for marine magnetic identifications // Geochemistry, Geophysics, Geosystems. 2014. V. 5(4). P. 1629–1641. doi: 10.1002/2013GC005176.
  25. Skolotnev S.G., Sanfilippo A., Peyve A.A. et al. Seafloor spreading and tectonics at the Charlie Gibbs transform system (52–53°N, Mid Atlantic Ridge): Preliminary results from rv A.N. Strakhov expedition S50 // Ofioliti. 2021. V. 46(1). P. 83–101. doi: 10.4454/ofioliti.v46i1.539.
  26. Skolotnev S.G., Peyve A.A., Dobrolyubova K.O. et al. Structure of the Ocean Floor in the Junction Area of King’s Trough and the Azores–Biscay Rise (North Atlantic) // Dokl. Earth Sc. 2024. V. 516. P. 913–919. https://doi.org/10.1134/S1028334X24601275
  27. Srivastava S.P., Roest W.R. King’s Trough: reactivated pseudo-fault of a propagating rift // Geophys. J. Int. 1992. № 108. P. 143–150.
  28. Tanaka A., Okubo Y., Matsubayashi O. Curie point depth based on spectrum analysis of the magnetic anomaly data in East and Southeast Asia // Tectonophysics. 1999. V. 306. P. 461–470.
  29. Whitmarsh R.B., Ginzburg A., Searle R.C. The structure and origin of the Azores–Biscay Rise, North-east Atlantic Ocean // Geophysical Journal International. 1982. V. 70(1). P. 79–107.

Supplementary files

Supplementary Files
Action
1. JATS XML
Download

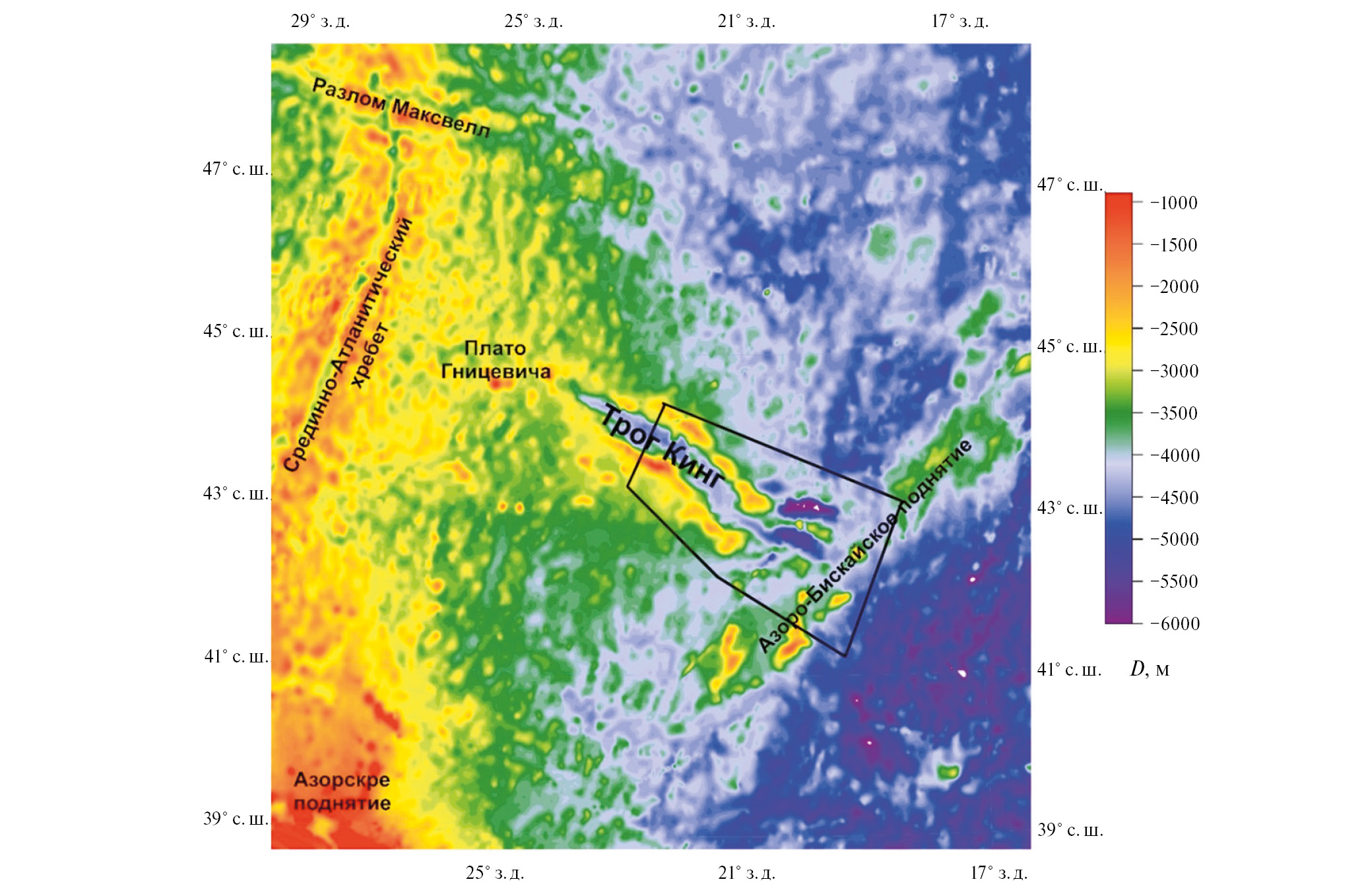

2. Fig. 1. Bathymetric map of the eastern flank of the Mid-Atlantic Ridge [21]. Ocean depth – D, m. The main structural elements and the position of the research area during the 55th cruise of the R/V “Akademik Nikolay Strakhov” (Torg King testing ground) are shown.

Download (432KB)
Indexing metadata

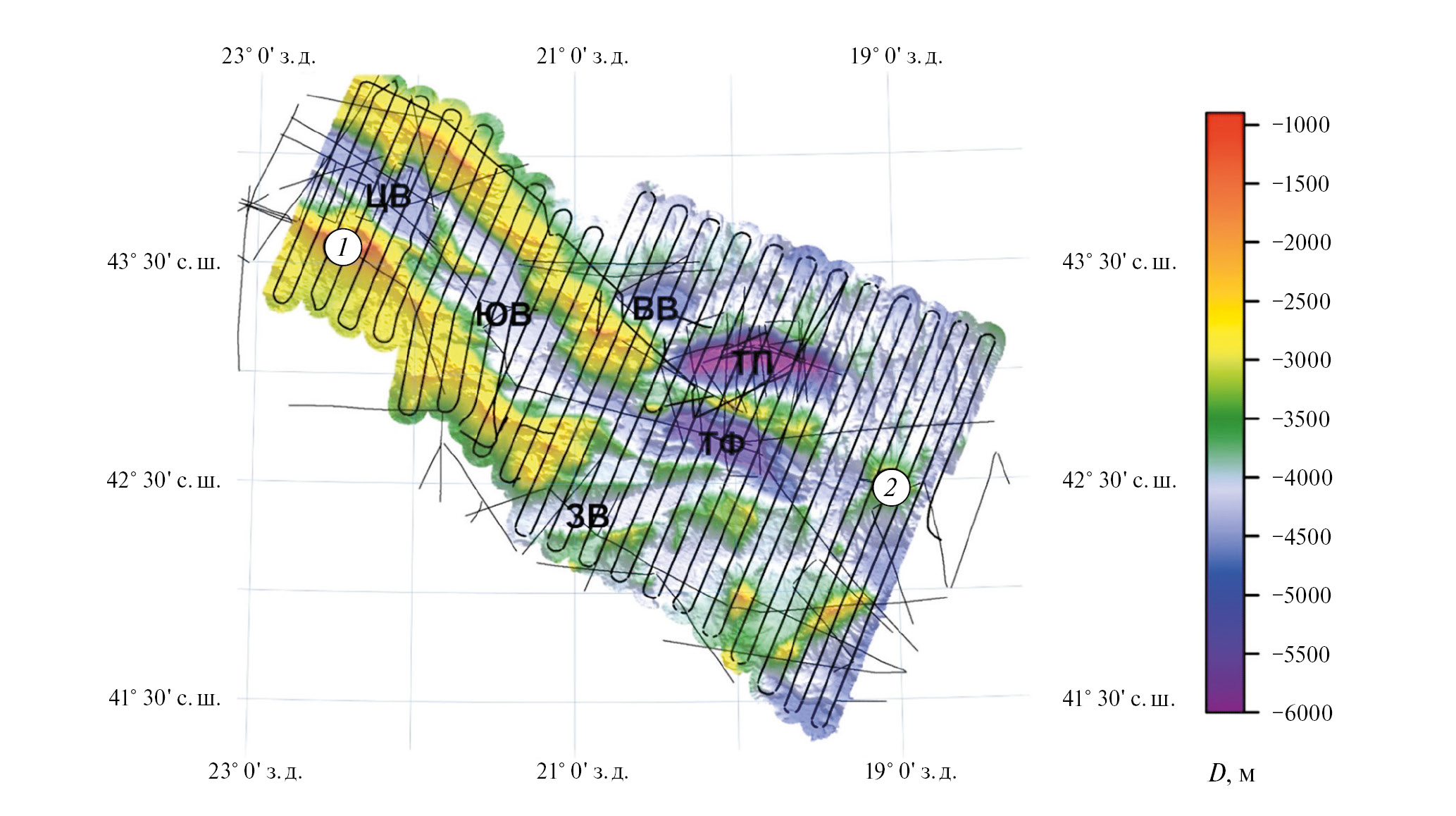

3. Fig. 2. Bathymetric map of the King Trough test site (depth D, m) and the route of the R/V Akademik Nikolay Strakhov on its 55th cruise (black lines). Thin black lines show the positions of the archival magnetic field measurements. Main structural elements: CB – central depression, SE – southern depression, EB – eastern depression, ZW – western elevation, TP – Peak trough, TF – Frin trough, 1 – Antialtair Mountain, 2 – Grigory Zima Mountain [26].

Download (364KB)
Indexing metadata
4. Fig. 3. Map of anomalous magnetic field graphs, Ta, nT, superimposed on a bathymetric map (depth in meters) [26].

Download (463KB)
Indexing metadata
5. Fig. 4. Anomalous magnetic field Ta, nT, and linear magnetic anomalies at the King Trough test site. Black circles are data from the catalogue [24], dashed lines are linear anomalies identified based on the cruise data (see also text). Numbers are numbers of magnetic anomalies. Depth isolines are shown to highlight the main structures. The main structural elements are shown in Fig. 2. Roman numerals designate morphostructural provinces: I – flank structures of the MAR; II – southeastern; III – central segment of the Azores-Biscayne Rise; IV – southeastern basins; V – southeastern end of the King Trough; VI – central part of the King Trough [26].

Download (316KB)
Indexing metadata
6. Fig. 5. Estimation of depths from the ocean surface to sources of magnetic anomalies at the testing site by the radially averaged spectrum of anomalies (red line) and by the radially averaged and frequency-normalized spectrum of anomalies (blue line). S is the power spectrum of magnetic anomalies, f is the spatial frequency.

Download (68KB)
Indexing metadata
7. Fig. 6. Magnitude of the anomalous magnetic field M, nT, at sea level (a) and at an altitude of 15 km (b). Shown are isolines of the bottom depth to highlight the main structures. Legend: A, B and C are the highlighted deep anomalies (see text). Roman numerals indicate morphostructural provinces (see Fig. 4), black lines are the boundaries between provinces [26].

Download (503KB)
Indexing metadata

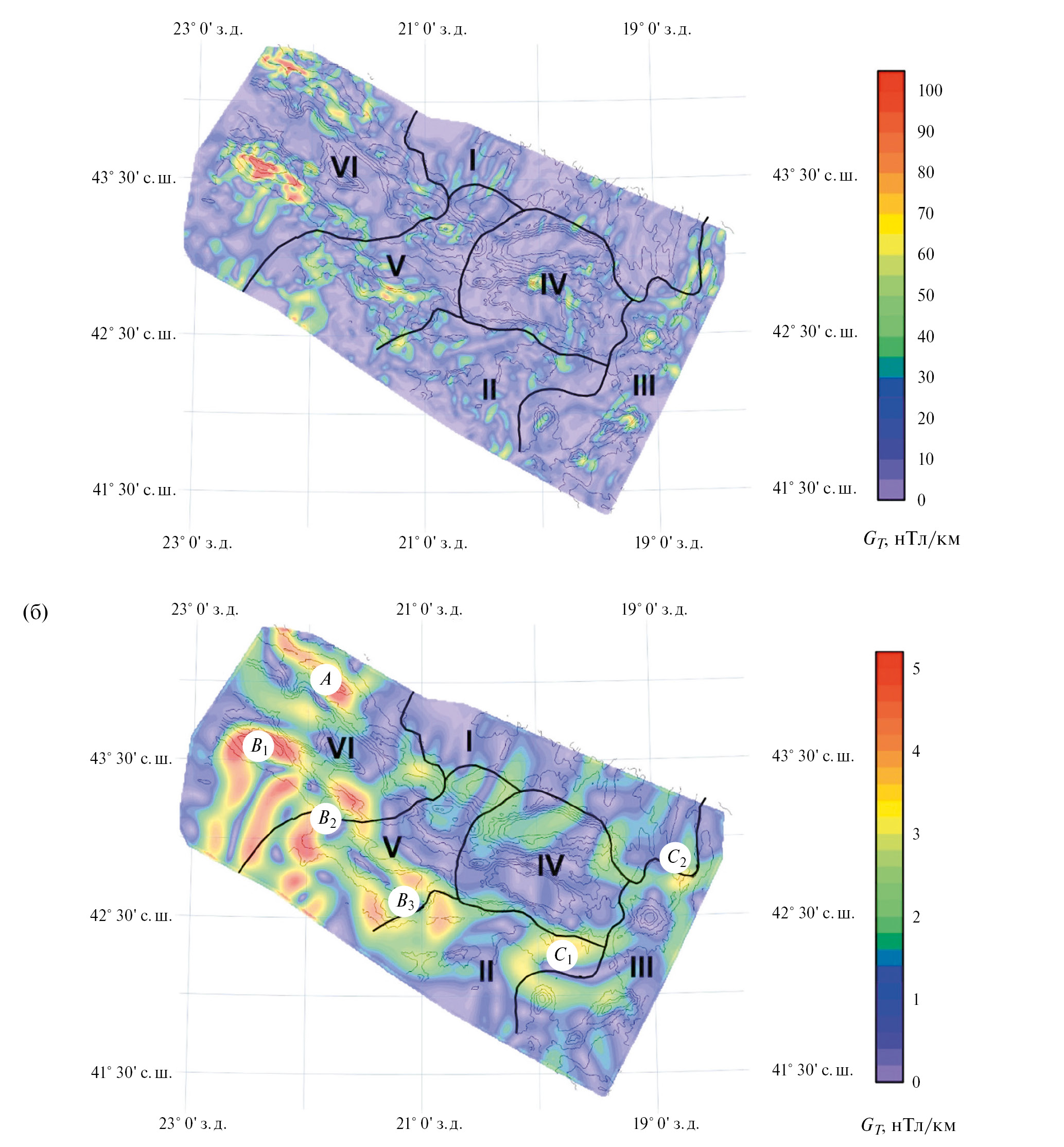

8. Fig. 7. Horizontal gradient of the anomalous magnetic field GT, nT/km, at sea level (a) and at an altitude of 15 km (b). The bottom depth contours are shown to highlight the main structures. Legend: A, B and C are the highlighted deep anomalies. The Roman numerals indicate the morphostructural provinces (see Fig. 4), the black lines are the boundaries between the provinces [26].

Download (566KB)
Indexing metadata
9. Fig. 8. Bouguer gravity anomalies, ∆GB, mGal (a), and residual gravity anomalies ∆Gres, mGal (b). Shown are the bottom depth contours to highlight the main structures. Legend: A, B, and C are the highlighted deep magnetic field anomalies. Roman numerals denote morphostructural provinces (see Fig. 4) [26].

Download (447KB)
Indexing metadata
