Agrotechnical performance indicators of the asymmetric working body of a fallow cultivator

Full Text

BACKGROUND

The advances in the new generation of agricultural technology is characterized by high productivity of the technological component when fulfilling the agrotechnical requirements for a specific method of tillage [1–12].

At Donskoy ANC, in the department of mechanization of crop production, a novel asymmetrical working body of a fallow cultivator has been developed. The new working body comprises a stand with a chisel and left- and right-handed blade cultivators installed on it sequentially (Fig. 1).

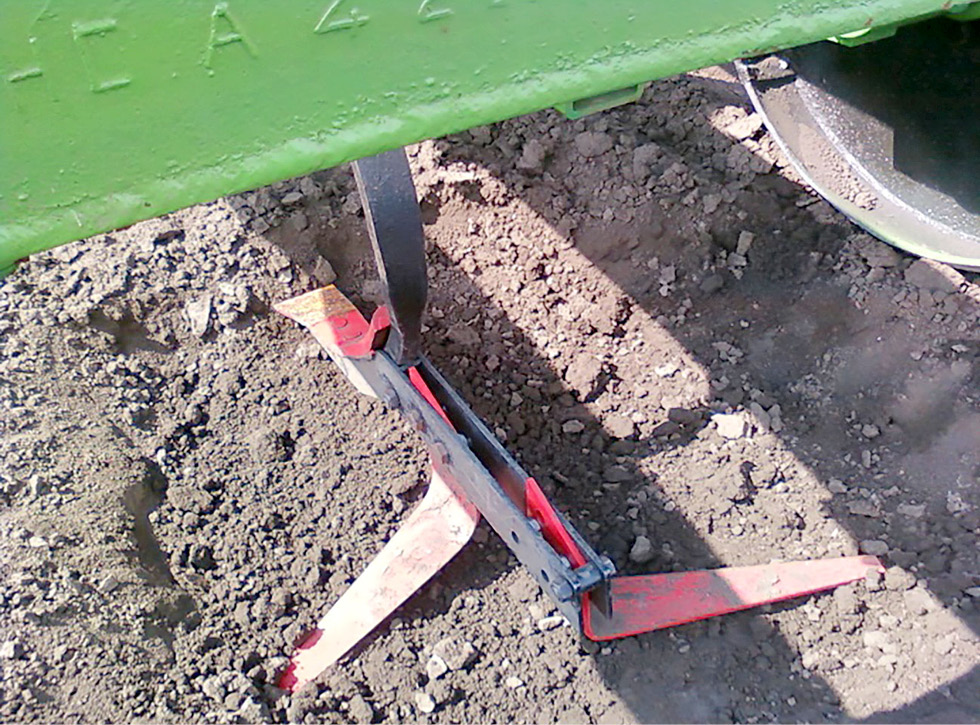

Fig. 1. New asymmetric working body of a fallow cultivator.

Рис. 1. Новый асимметричный рабочий орган парового культиватора.



The parameter of determining the effectiveness of the fallow cultivator is the quality of crumbling of soil processed by the working body of the fallow cultivator. The fallow cultivator should ensure a fine-clump structure and uniform loosening depth of the soil.

When these requirements are met, the treated area of the field is leveled, with the height of the ridges and depth of the furrows not exceeding the values that are set by considering agrotechnical requirements.

This study aimed to conduct a comparative analysis of the operation of a serial V-shaped sweep with the proposed new asymmetric working body of a fallow cultivator through field research in the fields of Donskoy ANC.

METHOD

Experimentation in the fields of Donskoy ANC was performed by conforming to the interstate standard GOST-33687-2015 “Machines and tools for surface tillage.”

Measurements of the cultivation depth are performed along the path of the rack of the new asymmetric working body of the fallow cultivator and the standard V-shaped sweep, immersing the ruler into the soil until it reaches the untreated layer. A total of 25 measurements n_depth were conducted for each accounting pass for cultivating the soil with the new working body of the fallow cultivator and the standard V-shaped sweep. To determine the movement stability, measurement data (current depth indicators ai) are processed by a statistical method to obtain the arithmetic mean depth value a_av, standard deviation σ_depth, and coefficient of variation v_depth as follows:

${\sigma }_{depth}=\pm \sqrt{\frac{{\displaystyle \sum _{i=1}^{n_{depth}}{\left(a_i-a_{av}\right)}^2}}{n_{depth}-1}},$               ${\nu }_{\mathit{d}\mathit{e}\mathit{p}\mathit{t}\mathit{h}}\mathit{=}\mathit{\pm }\frac{{\mathit{\sigma }}_{\mathit{d}\mathit{e}\mathit{p}\mathit{t}\mathit{h}}}{{\mathit{а}}_{\mathit{a}\mathit{v}}}\mathit{\cdot }100\%.$                                           (1)

Ridgeness of the soil field characterizes the average height of unevenness on the field surface after the soil tillage with the new working body of a fallow cultivator in comparison with that of a standard V-shaped sweep.

The height of the unevenness on the field is measured using a railing and ruler in four places in the forward and reverse direction of the movement of the working bodies.

After the new working body of the fallow cultivator and the standard V-shaped sweep have passed along the working width, a railing is placed on the top of the unevenness in spots on the field chosen at random.

A ruler is applied perpendicular to the railing to measure the height of unevenness on the field surface. A minimum of 10 measurements are performed at each point.

The quality of soil crumbling (i.e., the presence of lumps in the treated layer should be less than 25 mm in size) was determined after passing the new asymmetric working body of the fallow cultivator and the standard V-shaped sweep along the working width.

The operating width of a standard V-shaped sweep is less than the size of a pallet (0.5 × 0.5 m), divided into squares with a 25 × 25 mm area. Therefore, it is applied to the treated layer to quantitatively determine lumps exceeding the size of 25 mm; the quality of soil crumbling obtained by both working bodies was determined by weight by removing a sample of the treated soil and weighing individual fractions (Fig. 2).

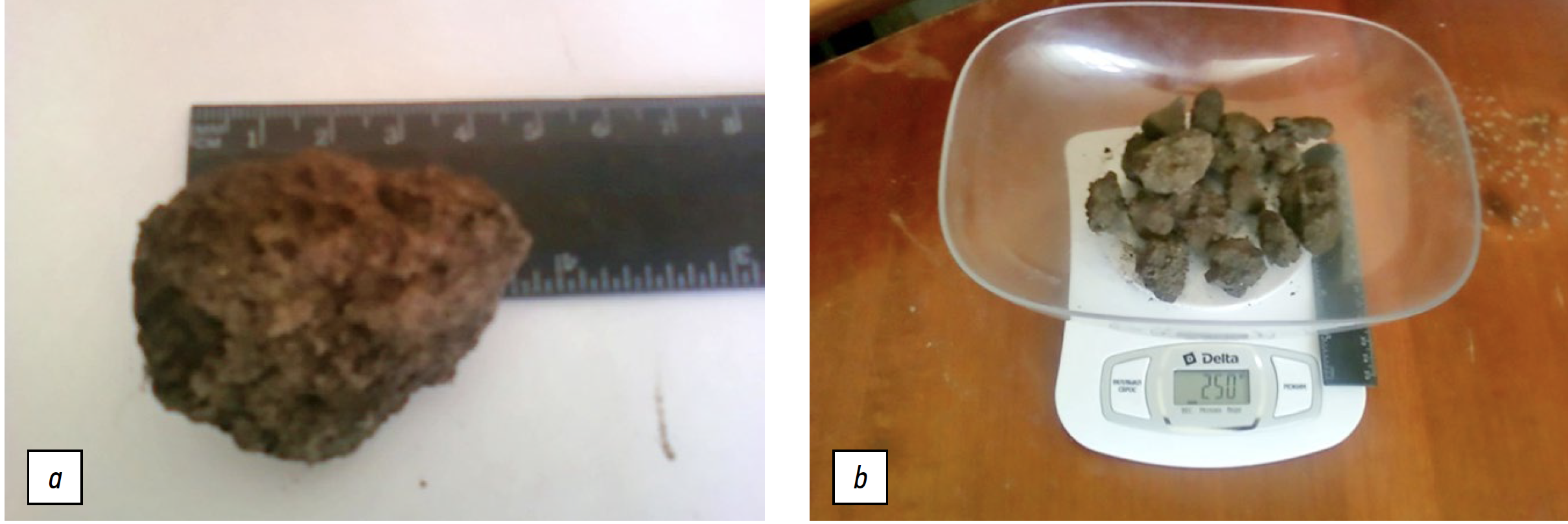

Fig. 2. Selection and weighing of lumps larger than 25 cm.

Рис. 2. Отбор и взвешивание комков, размер которых превышает 25 см.



The quality of soil crumbling was determined by samples taken at four points with three repetitions in the forward and reverse direction of the movement of the working bodies; subsequently, a manual analysis of fractions was performed in the laboratory to isolate lumps of sizes larger than 25 mm, followed by their weighing (Fig. 3).

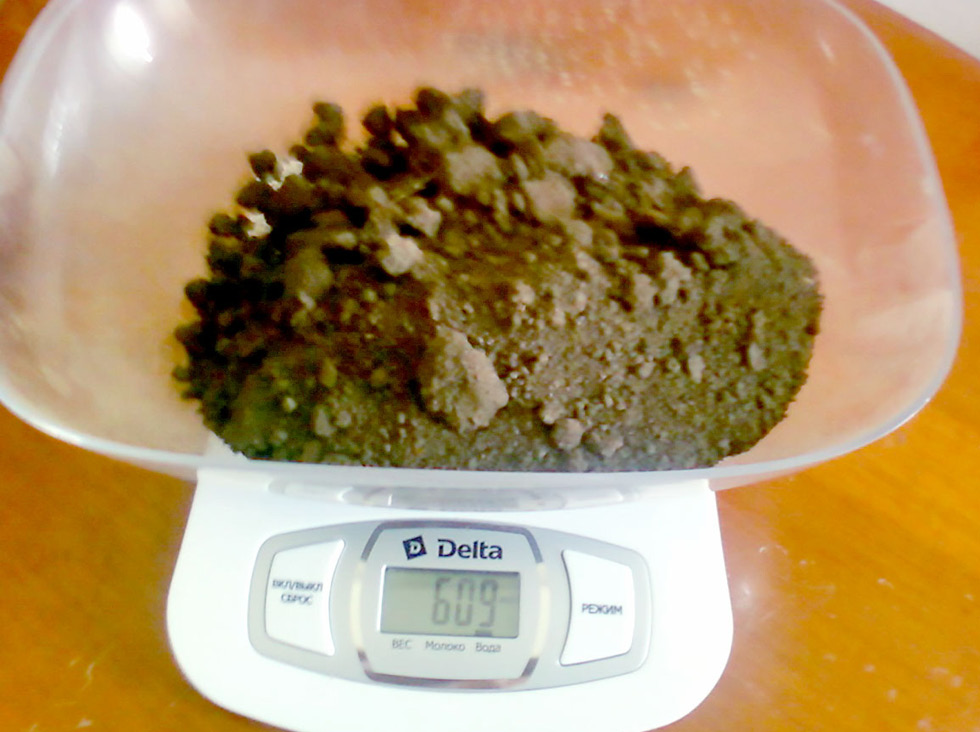

Fig. 3 Weighing of the full soil sample.

Рис. 3. Взвешивание общей пробы почвы.



The mass of isolated lumps  is determined as a percentage of the total sample mass  using the following equation:

$m_{\text{<25 mm}}=100-\frac{m_{\text{>25 mm}}\cdot 100\%}{m_{\sum }}$.                                                                (2)

RESULTS

The results of laboratory field research and processing of the obtained data are presented in Tables 1 and 2.



Table 1. The results of the study of motion stability of the new asymmetric working body of a fallow cultivator at a tillage depth of 8 cm

Таблица 1. Результаты исследования устойчивости хода нового асимметричного рабочего органа парового культиватора при глубине обработки почвы 8 см

Indicator	Indicator value, % at driving speed, km/h
	8,0	10,5	13,0
Average depth, cm	9,0	8,6	8,4
Mean-square deviation of depth, ±cm	0,71	0,89	0,89
Depth variation coefficient, %	7,86	10,40	10,65



Table 2. Results of the study of motion stability of a standard V-shaped sweep at a tillage depth of 8 cm

Таблица 2. Результаты исследования устойчивости хода стандартной стрельчатой лапы при глубине обработки почвы 8 см

Indicator	Indicator value, % at driving speed, km/h
	8,0	10,5	13,0
Average depth, cm	8,8	9,2	9,0
Mean-square deviation of depth, ±cm	0,84	2,0	2,10
Depth variation coefficient, %	9,55	15,21	23,30



The permissible deviation from the specified depth of tillage with the new working body of the fallow cultivator and the standard V-shaped sweep is ±2 cm.

The obtained data (Table 1 and Table 2) are combined in Table 3 for a comparative assessment of the stability of the stroke depth of the new working body of the fallow cultivator and the standard V-shaped sweep.



Таблица 3. Результаты сравнения устойчивости хода нового асимметричного рабочего органа парового культиватора и стандартной стрельчатой лапы при глубине обработки почвы 8 см

Working body	Mean-square deviation of depth, ±cm	Depth variation coefficient, %
New asymmetric working body of the fallow cultivator	0,71–0,89	7,96–10,65
Standard V-shaped sweep	0,84–2,10	9,55–23,30



Analysis of the obtained data (Table 3) shows that the new working body of the fallow cultivator meets the agrotechnical requirements regarding the stability of the stroke depth throughout the entire speed range, since the mean-square deviation of this indicator is ±0.71–0.89 cm, which does not exceed the permissible value (±2 cm). The standard V-shaped sweep meets the agrotechnical requirements regarding the stability of stroke depth only at movement speeds up to 10.5 km/h inclusive (mean-square deviation ±0.84–2.0 cm); additionally, at the movement speed of 13.0 km/h, it does not comply with the agrotechnical requirements regarding the stability of stroke depth, since the obtained indicator value (±2.1 cm) exceeds the permissible value (±2 cm). The coefficient of variation of 15.21% and 23.30% when cultivating the soil with a standard V-shaped sweep at a movement speed of 10.5 km/h and 13.0 km/h, respectively, indicates an excessive spread relative to the average depth at a given 8 cm.

This confirms the instability of the stroke depth of a standard V-shaped sweep when operating in these modes and the unsuitability of this working body for use in high-speed tillage equipment.

The uneven depth during the movement of the working bodies affects the leveling of the field surface after tillage.

The obtained ridgeness data are presented in Table 4.



Table 4. Results of the study of ridgeness of field surface after tillage by working bodies to a depth of 8 cm

Таблица 4. Результаты исследования гребнистости поверхности поля после обработки почвы рабочими органами на глубину 8 см

Working body	Indicator value, cm, at driving speed, km/h
	8,0	10,5	13,0
New asymmetric working body of the fallow cultivator	2,3	2,2	2,4
	2,3	2,4	2,2
	2,6	2,5	2,3
	2,1	2,7	2,6
Average	2,3	2,5	2,4
Standard V-shaped sweep	3,6	3,4	3,9
	3,5	3,4	4,1
	3,5	3,3	4,3
	3,2	3,6	4,2
Average	3,5	3,4	4,1



After passing the new asymmetrical working body of the fallow cultivator and the standard V-shaped sweep over the working width, according to the agrotechnical requirements for the ridgeness value of the field surface, the ridgeness value should not exceed 4 cm.

Thus, the new asymmetric working body of the fallow cultivator meets the agrotechnical requirements for the ridgeness value of the field surface after tillage (2.1–2.7 cm) and changes insignificantly (by 4%) with increasing speed.

Simultaneously the greatest ridgeness value of the field surface (on average 2.5 cm), not exceeding the permissible level (up to 4 cm), is noted at an average speed of movement (10.5 km/h); this value subsequently decreases to 2.4 cm when the movement speed increases to 13.0 km/h.

The uneven depth of tillage due to the stroke depth instability of the standard V-shaped sweep at a movement speed of 13.0 km/h caused increased ridgeness (3.9–4.2 cm), that does not meet the agrotechnical requirements for this indicator (up to 4 cm).

At a movement speed of 8.0 km/h and 10.5 km/h, the ridgeness value obtained after the passing of a standard V-shaped sweep was 3.2–3.6 cm and 3.3–3.6 cm, respectively, which is on average 1.4–1.5 times higher than that of the new working body of a fallow cultivator; however, this does not contradict the standardized agrotechnical requirements in terms of leveling the field surface.

The results of the study regarding the quality of soil crumbling and the background after the soil tillage with working bodies are presented in Table 5 and in Fig. 4.

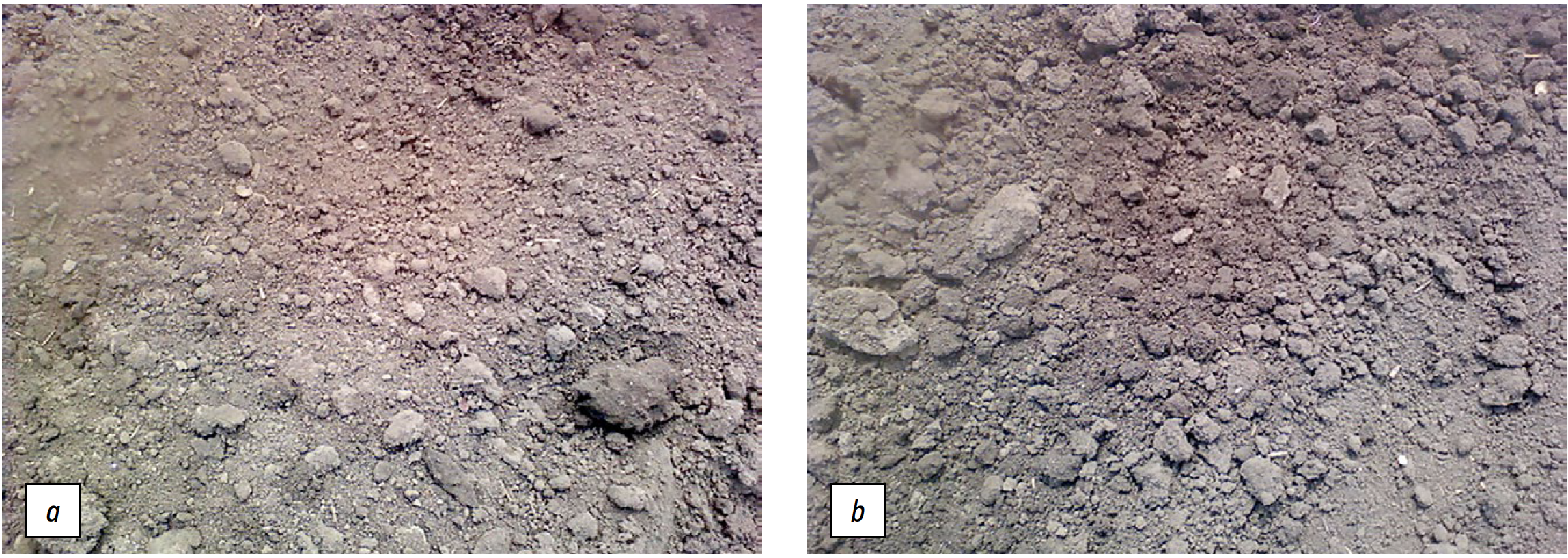

Fig. 4. Ground after tillage by working bodies: a — the new asymmetric working body of a fallow cultivator; b —the standard V-shaped sweep.

Рис. 4. Фон после обработки почвы рабочими органами: a — новый асимметричный рабочий орган парового культиватора; b — стандартная стрельчатая лапа.



Analysis of the obtained data (Table 5) reveals that both working bodies fulfill the agrotechnical requirements for the quality of crumbling of soil at a cultivation depth of 8 cm, since after passing through the treated soil layer, approximately 85.7–93.4% of lumps are less than 25 mm in size.



Table 5. Results of study of quality of soil crumbling by a new asymmetric working body of a fallow cultivator (depth 8 cm)

Таблица 5. Результаты исследования качества крошения почвы новым асимметричным рабочим органом парового культиватора (глубина 8 см)

Working body	Indicator value Lumps less than 25 mm in size, %
	Actual movement speed, km/h			Acceptable according to agrotechnical requirements
	8,0	10,5	13,0
New asymmetric working body of the fallow cultivator	88,9	91,3	93,2	Not less than 80%
	89,3	92,1	92,5
	89,5	91,8	92,9
	88,7	92,0	93,4
Average	89,1	91,8	93,0
Standard V-shaped sweep	86,0	87,4	85,9
	86,8	86,5	85,7
	86,7	87,7	86,6
		86,7	87,0
Average	86,6	87,1	86,3



The new asymmetric working body of the fallow cultivator with an increase in movement speed from 8.0 km/h to 13.0 km/h ensures an increase in the quality of soil crumbling from 88.7% to 93.4%, respectively.

When a standard V-shaped sweep operates, the quality of soil crumbling is at the same level as that obtained by the new asymmetric working body of the fallow cultivator, with 85.7–87.7% of lumps less than 25 mm in size in the treated layer.

It is noteworthy that in the most effective operating mode from the standpoint of increasing productivity (at a movement speed of 13.0 km/h), the standard V-shaped sweep provides the worst quality of soil crumbling (on average 86.3%); in contrast, the new working body of the fallow cultivator provides the best quality of soil crumbling (on average 93.0%).

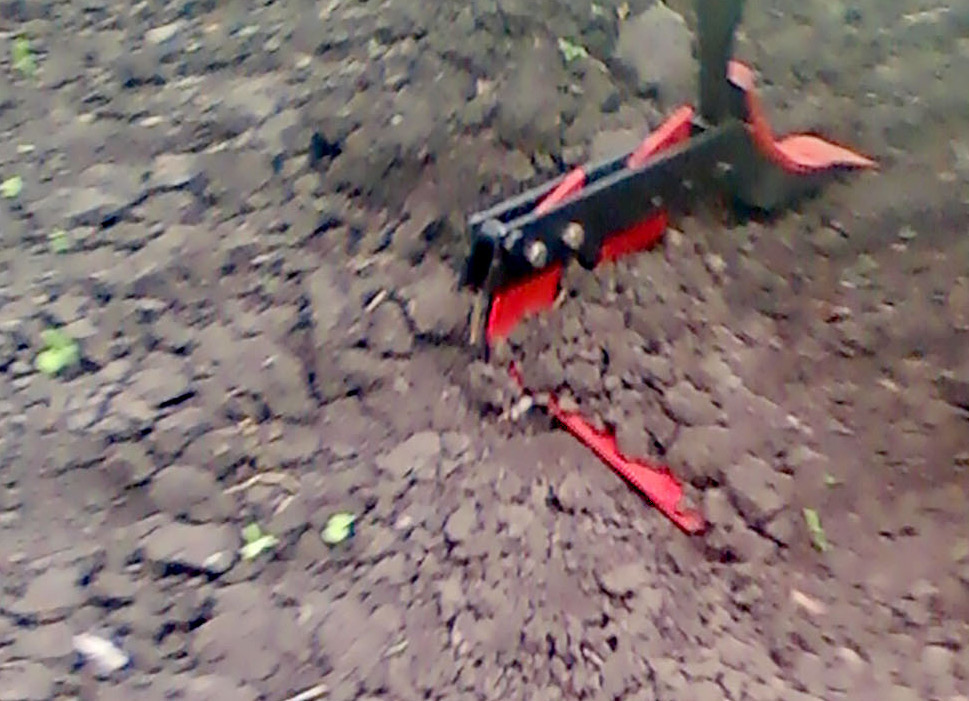

Fig. 5. Formation of a leading crack with a chisel of the new asymmetric working body of a fallow cultivator.

Рис. 5. Формирование опережающей трещины долотом нового рабочего органа парового культиватора.



n general, the new asymmetric working body of the fallow cultivator provides an improvement of 2.2–7.3% on average in the quality of soil crumbling in terms of the presence of lumps of sizes less than 25 mm in the treated soil layer as compared to that of the standard V-shaped sweep.

The improvement in the quality of soil crumbling by the new working body of the fallow cultivator is due to the following: with an increase in the speed of movement, an impact interaction between the formation and the chisel forms an advanced crack in the longitudinal direction (Fig. 5), and flat sweep rippers cut the separated soil mass in the transverse direction (Fig. 6), resulting in better quality of soil crumbling.

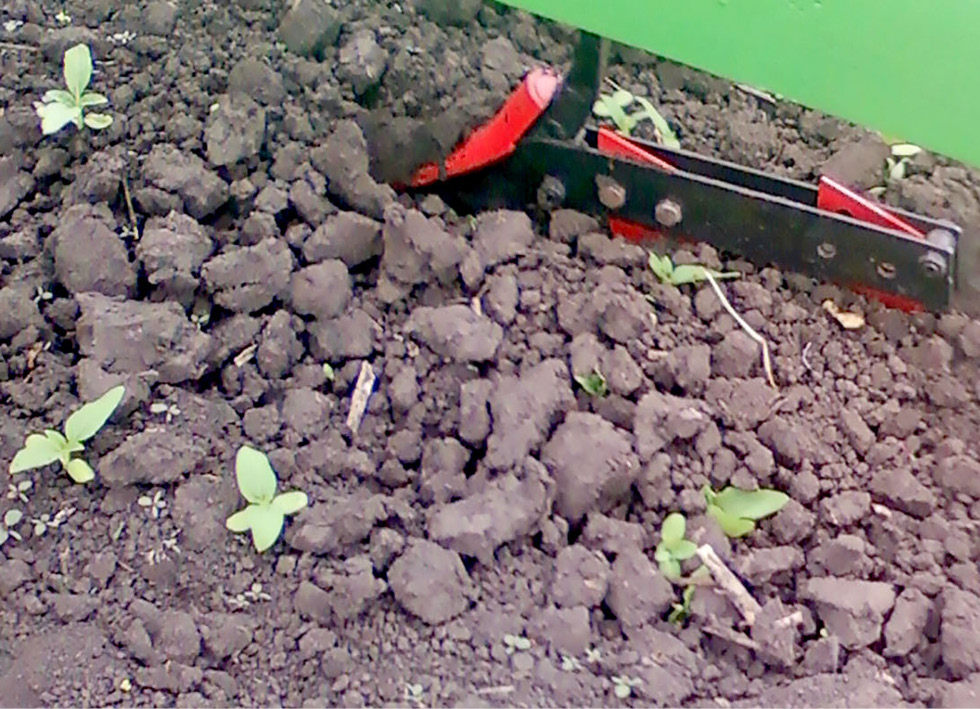

Fig. 6. Soil crumbling with flat-cut rippers of the new asymmetric working body of a fallow cultivator.

Рис. 6. Крошение почвы плоскорезными рыхлителями нового асимметричного рабочего органа парового культиватора.



Simultaneously, the higher the movement speed, the further the crack front propagates, which is accompanied by a greater intensity of soil crumbling by the new asymmetric working body of the fallow cultivator.

This is due to the close relationship between the amount of energy required to crumble the soil and the energy of the resulting crack, that is directly proportional to the surface tension of the lump.

The process of soil crumbling is caused by the presence of trapped air inside the layer, which is released when the balance of external forces is disturbed from the support from the untreated massif and from the influence of the working body. Simultaneously, at a shallow tillage depth, external forces from the working body acting on the formation cannot be balanced and turn into compression, tension, and shear deformations, which is accompanied by crumbling into separate lumps when the connection between them is lost.

The soil crumbling by the new asymmetrical working body of the fallow cultivator is accompanied by an increase in soil volume, that occurs when deformation occurs normal to the surfaces of destructive shear deformations. The increase in soil volume is due to a looser arrangement of the resulting lumps.

The standard V-shaped sweep does not contain a chisel; thus, impact interaction with the formation does not occur when it operates at an increased speed.

Additionally, the soil mass, under the influence of compression and shear deformations arising due to the working surface configuration of a standard V-shaped sweep, is subject to crumbling for some time, which is determined by the duration of interaction with the soil, that decreases with the increase in the movement speed.

Therefore, the higher the speed of the movement of a standard V-shaped sweep, the less time the soil is subject to crumbling, which is accompanied by a decrease in its crumbling quality.

CONCLUSIONS

The operational process of the new asymmetrical working body of the fallow cultivator meets the agrotechnical requirements regarding the stability of the stroke depth throughout the entire speed range, since the mean-square deviation of this indicator is ±0.71–0.89 cm, that does not exceed the permissible value (±2 cm). The standard V-shaped sweep meets the agrotechnical requirements regarding the stability of stroke depth only at movement speeds up to 10.5 km/h inclusive (mean-square deviation ±0.84–2.0 cm); additionally, at 13.0 km/h, it does not comply with the abovementioned agrotechnical requirements, since the obtained indicator value (±2.1 cm) exceeds the permissible value (±2 cm).

The coefficients of variation of 15.21% and 23.30% when cultivating the soil with a standard V-shaped sweep at movement speeds of 10.5 km/h and 13.0 km/h, respectively, indicates an excessive spread relative to the average depth value at given 8 cm. The latter circumstance confirms the instability of the stroke depth of the standard V-shaped sweep when operating in these modes and the unsuitability of this working body for high-speed tillage equipment.

The uneven depth of tillage due to the instability of the stroke depth of the standard V-shaped sweep at a movement speed of 13.0 km/h caused an increase in the ridgeness value (3.9–4.2 cm), that does not meet the agrotechnical requirements for this indicator (up to 4 cm). At speeds of 8.0 km/h and 10.5 km/h, the ridgeness value obtained after the passing of the standard V-shaped sweep was 3.2–3.6 cm and 3.3–3.6 cm, respectively, which is on average 1.4–1.5 times higher than that obtained by the new working body of a fallow cultivator; however, these values do not contradict agrotechnical requirements in terms of leveling the field surface.

The new asymmetric working body of the fallow cultivator, with an increase in the movement speed from 8.0 km/h to 13.0 km/h, ensures an increase in the quality of soil crumbling from 88.7% to 93.4%, respectively. When the standard V-shaped sweep operates, the quality of soil crumbling is at the same level, with 85.7–87.7% of lumps with sizes less than 25 mm in the treated layer. From the standpoint of increasing productivity, in the most effective operating mode (at a speed of 13.0 km/h), the standard V-shaped sweep provides the worst quality of soil crumbling (86.3% on average); on the contrary, the new asymmetric working body of the fallow cultivator provides the best quality of soil crumbling (on average 93.0%). Thus, the new asymmetrical working body of the fallow cultivator provides an improvement in the quality of soil crumbling by 2.2–7.3% on average in terms of the presence of lumps of sizes less than 25 mm in the treated soil layer as compared to that obtained by the standard V-shaped sweep.
