Development of heat and mass transfer modulus to Feflow code for calculation of brine loaded to permafrost ground

Cover Page

Full Text

Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription or Fee Access

Abstract

The article discusses the application of FreezeThaw75 module, developed by one of the authors to calculate heat and mass transfer taking into account water–ice and ice–water–water phase transitions. Numerical simulations are compared with the analytical solution and other software codes. The module was tested at one of the injection sites in Daldino-Alakitskii district of Yakutia. FreezeThaw75 module was developed in relation to Feflow v7.4–7.5 model environment. The module was tested on a model of brine injection into frozen rocks. The model simultaneously takes into account the movement of groundwater flow, heat and mass transfer and phase transitions. A feature of the calculations in the developed model is the consideration of large injected volumes of highly mineralized brines.It influences the degradation of permafrost and takes into account the cryohydrogeological conditions of the site. Brines are injected into permafrost rocks with a high absorption capacity especially in areas confined to zones of tectonic disturbances. The developed module can adjust the predicted potential of the operated injection sites. It can also act as an additional element of control over the injection process and the formation of an artificial aquifer in the permafrost rocks.

Full Text

Restricted Access

About the authors

I. A. Rastorguev

Kurchatov Institute; AK “Alrosa”

Author for correspondence.
Email: stiar@mail.ru
Russian Federation, pl. Kurchatova, 1, Moscow, 123098; ul. Sovetskaya, 5, Novosibirsk, 630007

I. V. Litvinova

AK “Alrosa”

Email: LitvinovaIV@alrosa.ru
Russian Federation, ul. Sovetskaya, 5, Novosibirsk, 630007

N. A. Iost

AK “Alrosa”

Email: LitvinovaIV@alrosa.ru
Russian Federation, ul. Sovetskaya, 5, Novosibirsk, 630007

A. V. Ilin

AK “Alrosa”

Email: LitvinovaIV@alrosa.ru
Russian Federation, ul. Sovetskaya, 5, Novosibirsk, 630007

References

  1. Gol’dberg, V.M., Skvortsov, N.P., Luk’yanchikova L.G. [Subsurface disposal of industrial sewage]. Moscow, Nedra Publ., 1994, 282 p. (in Russian)
  2. Drozdov, A.V. Disposal of drainage brines to permafrost rocks (by the example of Siberian platform permafrost zone). Irkutsk, IGTU Publ., 2007, 296 p. (in Russian)
  3. Drozdov A.V. [Assessment of the prospects of Levoberezhny site for the disposal of drainage brines from the Udachnaya pit]. Izv. Sib. otd. Sektsii nauk o Zemle RAEN, 2013, no. 1 (42). pp. 146–156. (in Russian)
  4. Drozdov A.V. [Structural tectonic criteria of assessing rock massif capacity for disposal of industrial sewage from diamond-mining enterprises in the Western Yakutiya cryolithozone]. Kriosfera Zemli, 2006, vol. X, no. 2, pp. 27–45. (in Russian)
  5. Drozdov A.V. Gotovtsev, S.P. [Specific features of brine migration in the permafrost zone upon their subsurface disposal]. In: [Formation of groundwater in the cryolithozone]. Yakutsk, IMZ SO RAN, 1992, pp. 31–48. (in Russian)
  6. Drozdov, A.V., Iost, N.A., Lobanov, V.V. [Cryohydrogeology of diamond deposits in Western Yakutia]. Irkutsk, Izd-vo IGTU, 2008. 507 p. (in Russian)
  7. Egorov, A. G. [Filtration effects in the tasks of hat and mass transfer and deformation of saturated porous media]. Extended Abstract of Doctoral (Phys.-Math.) Dissertation, Kazan, 1999, 31 p. (in Russian)
  8. Ershov, E.D., Komarov, I.A., Chuvilin, E.M. [Forecast of interaction processes between liquid technogenic brines disposed in frozen rock massifs]. Geoekologiya, 1997, vol. 2, pp. 19–29. (in Russian)
  9. Kosterina, E.A. [Mathematical modeling and numerical solution of unidimensional tasks of saturated-unsaturated filtration]. Extended Abstract of Cand. Sci. (Phys.-Math.) Dissertation, Kazan, 1999, 15 p. (in Russian)
  10. Grenier, C., Anbergen, H., Bense, V., Chanzy, Q. et al. Groundwater flow and heat transport for systems undergoing freeze-thaw: Intercomparison of numerical simulators for 2D test cases. Advances in Water Resources, 2018, vol. 114, pp. 196–218.
  11. McKenzie, J.M., Voss, C.I., Siegel, D.I. Groundwater flow with energy transport and water–ice phase change: Numerical simulations, benchmarks, and application to freezing in peat bogs, Advances in Water Resources, 2007, vol. 30, issue. 4, pp. 966–983.
  12. Mohammed, A.A., Bense, V.F., Kurylyk BL. et al. Modeling reactive solute transport in permafrost-affected groundwater systems, Water Resources Research, 2021, 57(7), art. e2020WR028771. https://doi.org/10.1029/2020WR028771
  13. Diersch, H.-J.G. FEFLOW: Finite Element Modeling of Flow, Mass and Heat Transport in Porous and Fractured Media. FEFLOW, 2014, 1018 p. URL: https://link.springer.com/book/10.1007/978-3-642-38739-5

Supplementary files

Supplementary Files
Action
1. JATS XML

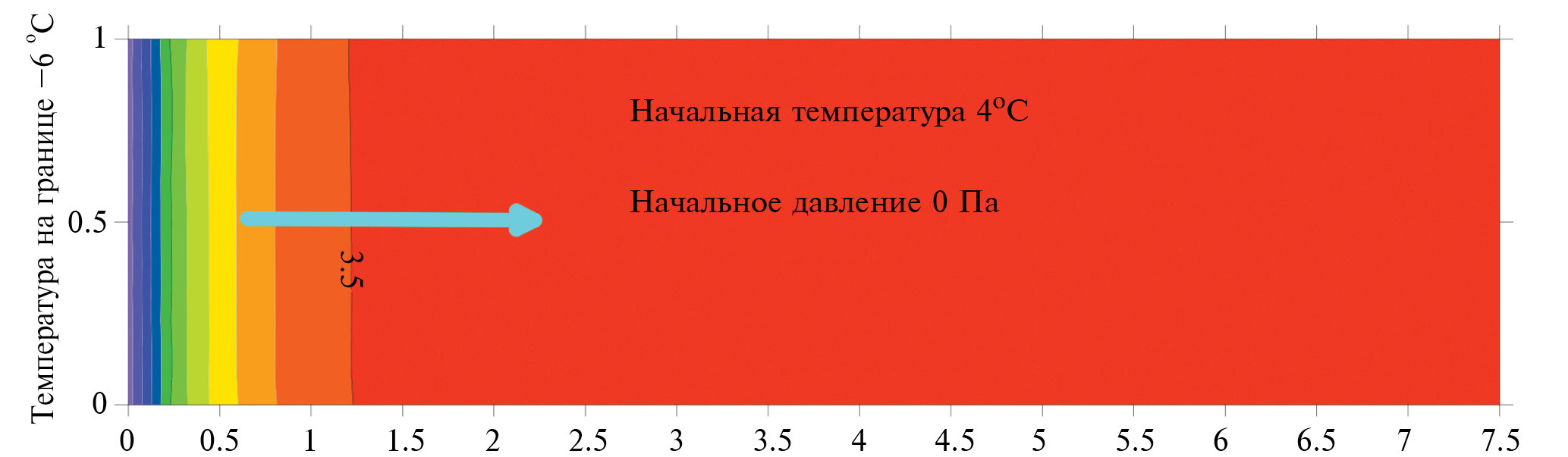

2. Fig. 1. Statement of the Lunardini problem.

Download (128KB)

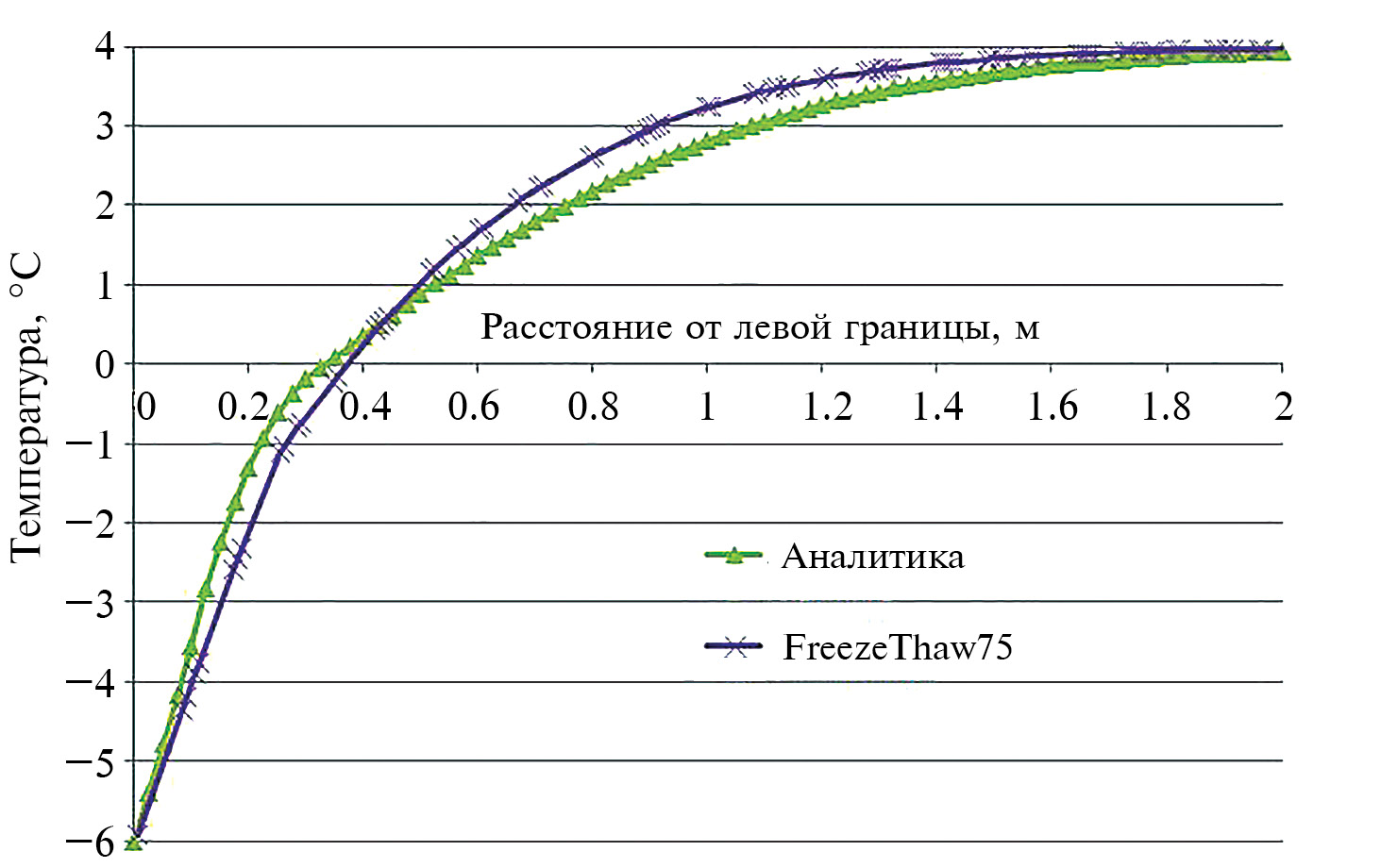

3. Fig. 2. Comparison of analytical calculation and calculation using the FreezeThaw75 module.

Download (176KB)

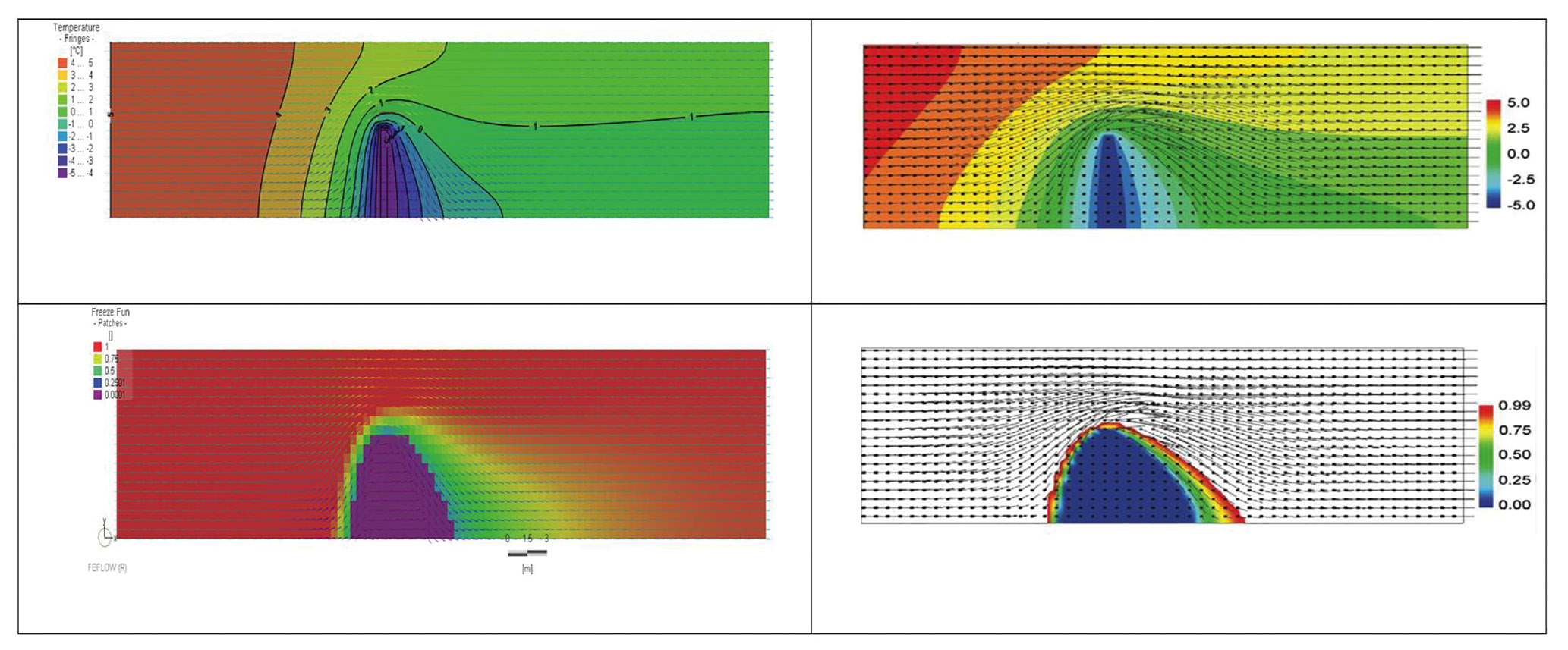

4. Fig. 3. Comparison of calculations on the FreezeThaw75 module (left) and SUTRA (right). The top row is a comparison by temperature, the bottom row is a comparison by moisture saturation.

Download (374KB)
5. Fig. 4. Initial and boundary conditions for the heat and mass transfer problem. The blue fill shows the initial ice content, the isolines show the initial pressures, and the red fill shows the initial concentration of industrial wastewater of 100 mg/l.

Download (209KB)

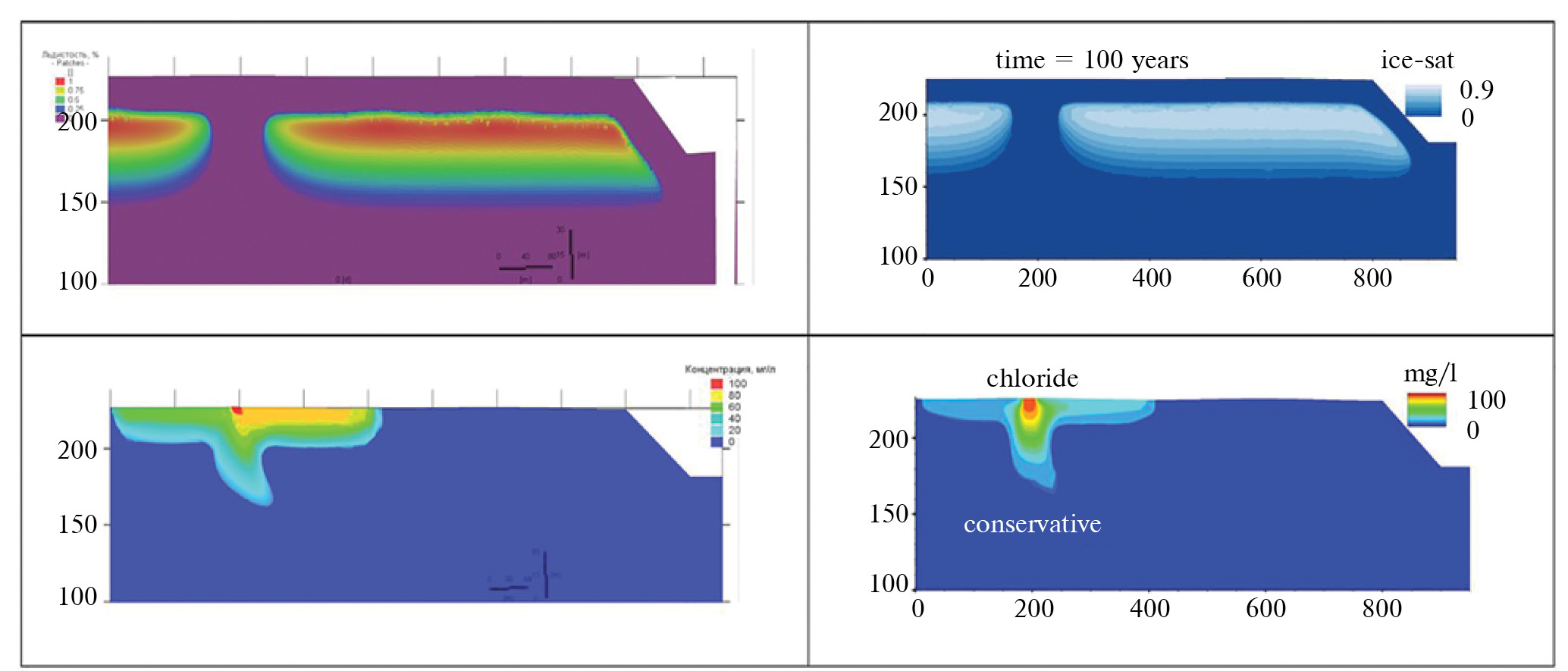

6. Fig. 5. Comparison of heat and mass transfer calculations in FreezeThaw75 (left) and calculations from [12] (right). Ice content at the top, chloride concentration at the bottom.

Download (192KB)

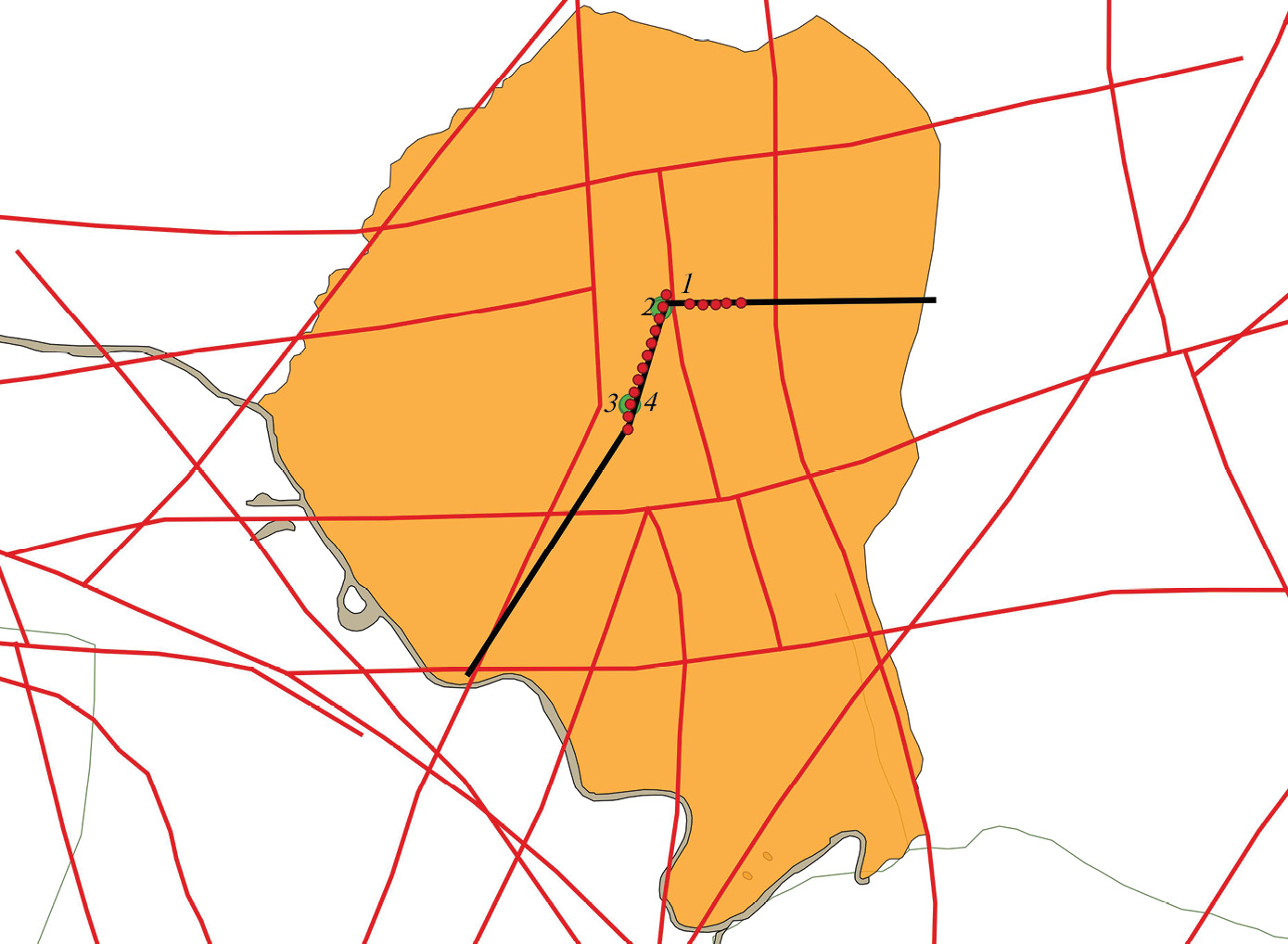

7. Fig. 6. Layout of the modeling object with a fault system (red lines). Wells: injections - red circles, observation - green; numbers - well numbers. The section line is shown in black.

Download (256KB)

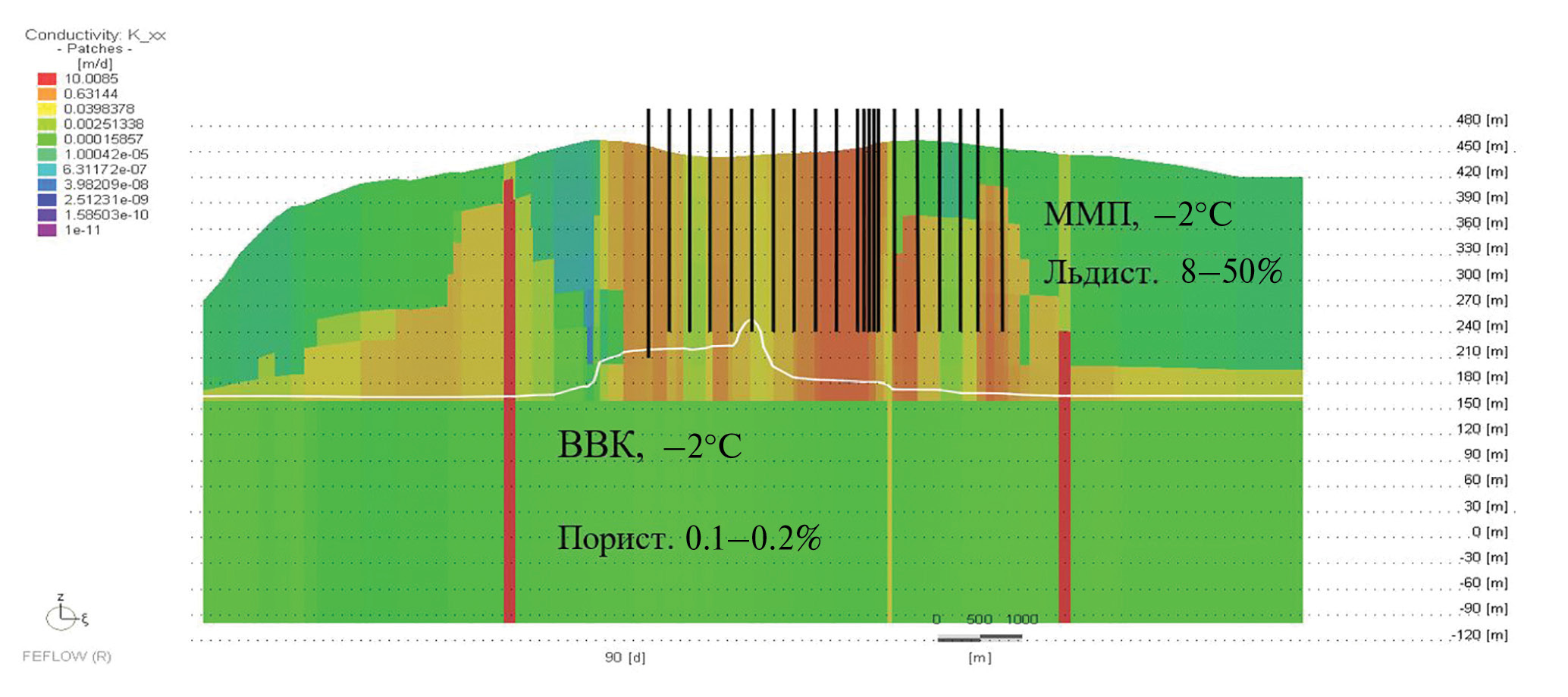

8. Fig. 7. Section diagram. On the left is the southern part of the model, on the right is the eastern part. Black lines are wells, white line is the repression curve, filling is the filtration coefficient 3 months after the start of injection.

Download (302KB)

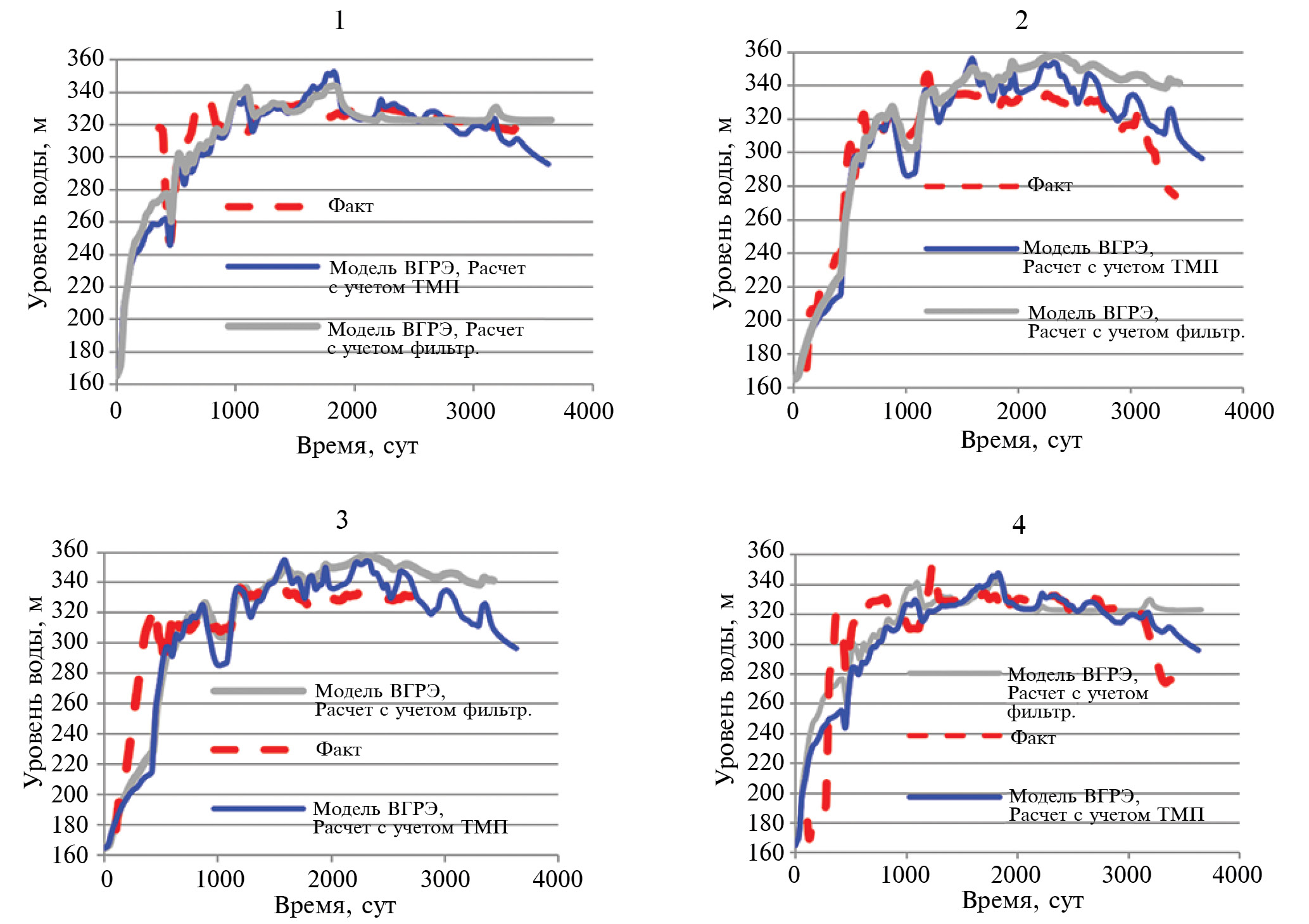

9. Fig. 8. Comparison of actual and calculated levels for piezometers No. 1–4 closest to injection wells.
