Methods of fog control for a vehicle windscreen before vehicle moving off
- Authors: Ignatiev V.V.1, Antoshina V.N.1
-
Affiliations:
- Central Scientific Research Automobile and Automotive Engines Institute NAMI
- Issue: Vol 16, No 4 (2022)
- Pages: 319-327
- Section: Transport and transport-technological complexes
- URL: https://journals.eco-vector.com/2074-0530/article/view/101415
- DOI: https://doi.org/10.17816/2074-0530-101415
- ID: 101415
Cite item
Abstract
INTRODUCTION: In any type of vehicle, the accessory equipment system of air heating and conditioning should ensure safety by means of glazing protection from fogging with high operational speed and minimal energy consuming, as driver’s reaction slows down in low visibility conditions and the risk of road accidents increases.
AIMS: Analytical review of state-of-the-art methods of efficiency improvement of condensate cleaning from the inner surface of a vehicle windscreen in order to discover promising methods of fog control before vehicle moving off which are energy efficient and driver- and passenger-friendly.
LINE OF RESEARCH: Review of publications, dedicated to issues of condensate cleaning and vehicle glazing prevention from fogging.
METHODS: Study and analysis of papers in the mentioned area, published in open sources.
RESULTS: Conditions of fogging on inner surfaces of vehicle glazing are discussed. Russian and foreign regulatory documents, featuring demands to the procedure of fog cleaning from the windscreen inner surface, are given. Special aspects of air drying in cabin of electric vehicles and ICE-driven vehicles and various methods of the windscreen inner surface heating are considered.

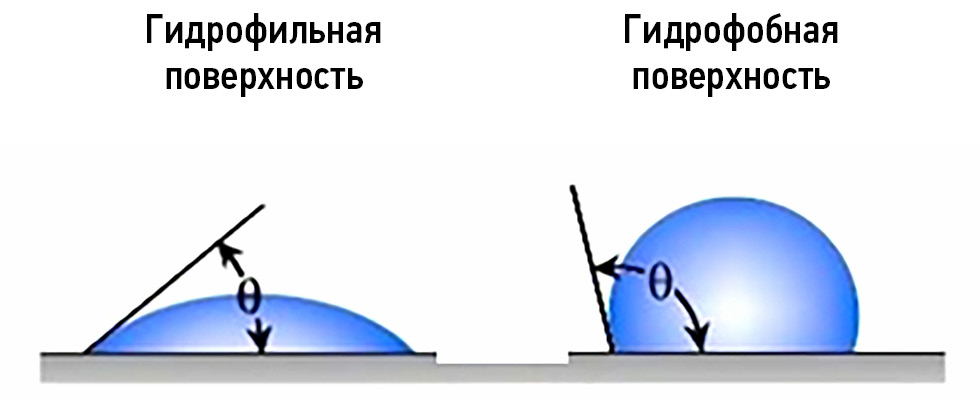

CONCLUSIONS: Efficiency of windscreen condensate cleaning may be increased significantly by means of conjuction of such methods as: a) making inner surfaces of vehicle glazing hydrophobic; b) defroster design optimization in order to ensure air supply having minimal pressure losses, maximal output mass, high speed and uniform distribution of airflow along the surface of critically important fields of view; c) using of tempered windscreens with transparent electrically-conducting layer; d) drying of vehicle cabin air. At present, the search for efficient methods of windscreen warming and cabin air drying in recirculation mode for both electric vehicles and ICE-driven vehicles, operating in low air temperature conditions, continues.
Full Text
-
About the authors
Vasily V. Ignatiev
Central Scientific Research Automobile and Automotive Engines Institute NAMI
Author for correspondence.
Email: vasiliy.ignatev@nami.ru
ORCID iD: 0000-0002-9037-4422
SPIN-code: 1302-7068
HVAC Research Engineer of the Vehicle Testing Department
Russian Federation, 2 Avtomotornaya street, 125438 MoscowValentina N. Antoshina
Central Scientific Research Automobile and Automotive Engines Institute NAMI
Email: valentina.antoshina@nami.ru
ORCID iD: 0000-0001-9112-8090
Lead Design Engineer of the Systems, Components and Assemblies Department
Russian Federation, 2 Avtomotornaya street, 125438 MoscowReferences
- eea.europa.eu [internet]. Greenhouse gas emissions from transport in Europe. [updated: 15.08.2022]. Available from: https://www.eea.europa.eu/ims/greenhouse-gas-emissions-from-transport
- A framework strategy for a resilient energy union with a forward-looking climate change policy European Commission // European Commission. Energy union package. Communication from the commission to the European parliament, the council, the European economic and social committee, the committee of the regions and the European investment bank. Brussels, 25.02.2015. Available from: http://eur-lex.europa.eu/resource.html?uri=cellar:1bd46c90-bdd4-11e4-bbe1-01aa75ed71a1.0001.03/DOC_1&format=PDF Accessed: Aug 15, 2022.
- EV vs ICE Vehicles: When to Expect Robust Competition? // VYGON Consulting. March 2016. 44 P. Available from: https://vygon.consulting/upload/iblock/c78/vygon_consulting_electricvehicles_2016_en.pdf Accessed: Aug 15, 2022.
- Galassi MC, Stutenberg K, Garcia Otura M, et al. Electric and hybrid vehicle testing: BMWi3 performance assessment in realistic use scenarios. European Commission. Joint Research Centre. Luxembourg: Publications Office of the European Union. 2018. doi: 10.2760/385640
- Innovative Air-Conditioning Systems for Conventional and Electric Vehicles. 2011. 9 P. Available from: https://trimis.ec.europa.eu/sites/default/files/project/documents/20140203_093312_80529_Paper_Innovative_airconditioning_systems.pdf Accessed: Aug 15, 2022.
- Mueller AS, Trick LM. Driving in fog: The effects of driving experience and visibility on speed compensation and hazard avoidance. Accident Analysis & Prevention. 2012;48:472–479. doi: 10.1016/j.aap.2012.03.003
- GOST 33992-2016. Avtomobili legkovye. Sistemy ochistki vetrovogo stekla ot obledeneniya i zapote-vaniya. Tekhnicheskie trebovaniya i metody ispytanii. Available from: https://files.stroynf.ru/Data2/1/4293745/4293745313.pdf Accessed: Aug 15, 2022. (In Russ).
- Council Directive 78/317/EEC of 21 December 1977 on the approximation of the laws of the Member States relating to the defrosting and demisting systems of glazed surfaces of motor vehicles. Available from: https://eur-lex.europa.eu/legal-content/EN/TXT/PDF/?uri=CELEX:31978L0317&from=EN Accessed: Aug 15, 2022.
- Laboratory Test Procedure For FMVSS 103. U.S. Department Of Transportation National Highway Traffic Safety Administration. Office of Vehicle Safety Compliance. Available from: https://www.nhtsa.gov/document/laboratory-test-procedure-fmvss-103-windshield-defrosting-and-defogging-systems Accessed: Aug 15, 2022.
- jade.io [internet]. Vehicle Standard (Australian Design Rule 8/01 – Safety Glazing Material. [updated: 15.08.2022]. Available from: https://jade.io/j/?a=outline&id=500833
- standards.globalspec.com [internet]. JIS D 4502-94. Passenger Cars – Windshield Demisting System. Japanese Standards Association. [updated: 15.08.2022]. Available from: https://jade.io/j/?a=outline&id=500833
- Faghri A, Zhang Y. Condensation. In: Transport Phenomena in Multiphase Systems. Academic Press; 2006. P. 581–677.
- Mu C, Pang J, Lu Q, Liu T. Effects of surface topography of material on nucleation site density of dropwise condensation. Chemical Engineering Science. 2008;63(4):874–880. doi: 10.1016/j.ces.2007.10.016
- Durán IR, Laroche G. Current trends, challenges, and perspectives of anti-fogging technology: Surface and material design, fabrication strategies, and beyond. Progress in Materials Science. 2019;99:106–186. doi: 10.1016/j.pmatsci.2018.09.001
- Zanganeh P, Goharrizi AS, Ayatollahi S, et al. Efficiency improvement of solar stills through wettability alteration of the condensation surface: An experimental study. Applied Energy. 2020;268. doi: 10.1016/j.apenergy.2020.114923
- Adhesion Enhancement of UV-Cure Inks onto Polymers by Gas-Phase Plasma Pretreatments // UV+EB Technology. 02.27.2019. Available from: https://uvebtech.com/articles/2019/adhesion-enhancement-of-uv-cure-inks-onto-polymers-by-gas-phase-plasma-pretreatments/. Accessed: Aug 15, 2022.
- Bazhant V, Khvalovski V, Ratouski I. Silikony. Kremniiorganicheskie soedineniya, ikh poluchenie, svoistva i primenenie. Moscow: Goskhimizdat; 1960. (In Russ).
- listtopa.ru [internet]. Obzor 10 luchshikh sredstv «antidozhd’» dlya avto 2022 goda. [updated: 15.08.2022]. Available from: https://listtopa.ru/auto/10-antidozhd (In Russ).
- Zhang Z, Wang J, Feng X, et al. The solutions to electric vehicle air conditioning systems: A review. Renewable and Sustainable Energy Reviews. 2018;91:443-463. doi: 10.1016/j.rser.2018.04.005
- Han X, Zou H, Wu J, et al. Investigation on the heating performance of the heat pump with waste heat recovery for the electric bus. Renewable Energy. 2020;152:835–848. doi: 10.1016/j.renene.2020.01.075
- Tang X, Guo Q, Li M, Jiang M. Heating Performance Characteristics of an Electric Vehicle Heat Pump Air Conditioning System Based on Exergy Analysis. Energies. 2020;13(11). doi: 10.3390/en13112868
- Chang T-B, Sheu J-J, Huang J-W. High-Efficiency HVAC System with Defog/Dehumidification Function for Electric Vehicles. Energies. 2020;14(1). doi: 10.3390/en14010046
- Kang SJ, Kader MF, Jun YD, Lee KB. Automobile defrosting system analysis through a full-scale model. International Journal of Automotive Technology. 2011;12(1):39–44. doi: 10.1007/s12239-011-0005-0
- Aroussi A, Hassan A, Clayton BR, Abdulnour BS. Comparison of Performance between Several Vehicle Windshield Defrosting and Demisting Mechanisms. SAE World Congress. March 5–8, 2001; Detroit Michigan. Available from: https://trid.trb.org/view/1789711
- Jahani K, Beigmoradi S. Utilizing CFD approach for Preeminent Assessment of Defroster Air Flow Distribution and Predicting Windscreen Deicing Behavior. SAE World Congress. 2014. SAE Technical Paper 2014-01-0688. Available from: https://www.sae.org/publications/technical-papers/content/2014-01-0688/
- Ignat’ev VV, Semikin SN. Avtomaticheskii kontrol’ zapotevaniya vetrovogo stekla avtomobilya. Bezopasnost’ kolesnykh transportnykh sredstv v usloviyakh ekspluatatsii: sb. mat. 110 mezhdunar. n.-t. konf. 2021;1:111–119 (In Russ).
- Khomchenko AV. Issledovanie svoistv elektroobogrevaemykh steklopaketov. Vestnik Belorussko-Rossiiskogo un-ta. 2016;(3):152–159. (In Russ).
- Unverdi SO, Eren H, Erdem V, et al. Technical note: Optimisation of the defroster ducts and windshield electric resistances of a city bus with CFD analysis. International Journal of Vehicle Design. 2010;52(1). doi: 10.1504/ijvd.2010.029644
- Otsenka tekushchego statusa kalibrovok sistemy mikroklimata avtomobilya AURUS SENAT 412300 v zimnikh usloviyakh // Tekhnicheskii otchet NITsIAMT FGUP «NAMI», poselok Avtopoligon, 2022. (In Russ).
