Methods for quantitative determination of total flavonoids in Quercus robur L. buds

Full Text

Аbbreviations: BASs – biologically active substances; HPLC – High Performance Liquid Chromatography; SP (Russia), XIV^th ed. – State Pharmacopoeia of the Russian Federation, XIV^th edition; GM – general monograph; SS – standard sample; UV spectroscopy –ultraviolet spectroscopy; PM –pharmacopoeial monograph; SD – Standard Deviation; RSD – Relative Standard Deviation.

INTRODUCTION

The genus Quercus L. (Fagaceae) is represented by more than 500 species, most of which are the most important producers of broad-leaved and mixed coniferous-broad-leaved forests in the European part of Russia and Western Europe¹,². In Russia, 19 species grow wild, and about 60 species have been introduced [1].

Quercus robur L. is a large tree with a wide-pyramidal tent-like crown, reaching more than 50 meters in height³. The economic importance of Quercus robur L. is quite great, so it is used in many areas: in the furniture and leather industries, in forestry, etc. The bark of Quercus robur L. is used in the world medical practice, it is found in such pharmacopoeias as Russian, British, European and others [6, 7]. Its bark is also used in the production of various complex medicines, such as “Stomatophyt”, “Tonsilgon N”, “Dentos” and others⁴,⁵,⁶,⁷.

Quercus robur L. is rather widely used in folk medicine as a remedy for the prevention and treatment of gastrointestinal, gynecological, as well as otorhinolaryngological and dermatological diseases [1].

A complex of biologically active substances (BASs), which include flavonoids, is present in plant objects, particularly, in the oak bark. This group of substances is one of the most common groups of all phenolic plants compounds, in the chemical structure of which there is a C₆-C₃-C₆ carbon skeleton [2–6]. These are the substances of a phenolic nature with valuable pharmacological properties such as anti-inflammatory, diuretic, choleretic, antispasmodic, antiviral, antioxidant, antimicrobial, etc., ones⁸ [2–6]. The oak bark also contains tannins (gallic acid, ellagic acid), triterpenes (fridelin, fridelinol, 3-friedelanol)⁹ and a number of other valuable substances [6–12].

Besides studying Quercus robur L. bark, the buds of this plant are of interest as a source of flavonoids. An important concept in the study of Quercus robur L. buds and their implementation into pharmaceutical and medical practice, is to solve the problem of standardization of raw materials, as well as the development of methods for the quantitative analysis of BASs in the raw materials. As a type of a medicinal plant raw material, buds are included in SP (Russia), XIV^th ed., as a general monograph (GM). It should be noted that the attention of domestic and foreign scientists used to be attracted to the study of some plants’ buds [13–16]. Currently, for the quantitative determination of flavonoids compounds, rather a wide list of analytical methods is used. The most frequently used methods are high-performance liquid chromatography (HPLC) and UV spectroscopy [14–17]. The UV spectroscopy method makes the quantitative determination of total flavonoids of biologically active substances in plant objects possible, whereas the HPLC method, as a rule, is used to determine individual components of the studied objects [14, 17].

Thus, the research was conducted on the study of Aesculus hippocastanum L. buds, which resulted in the development of a method for the quantitative determination of rhamnocitrin in Aesculus hippocastanum L. buds by HPLC [14, 15]. The same scientists studied the chemical composition of Aesculus hippocastanum L. buds by differential spectrophotometry, which resulted in the identification of the dominant substance in the raw material [15]. The study of new antimicrobial agents of the plant origin for the suppression of a microbial biofilm formation was also conducted to identify and quantify phenolic compounds extracted from Populus nigra and Populus alba L. buds. It was also done to evaluate their antimicrobial and antibiotic activity by HPLC [13]. Besides studying Populus nigra L. and Populus alba L. buds, the research of Populus balsamifera L. buds was conducted to determine the optimal way of extraction by a barothermic method, with ethanol and supercritical carbon dioxide, the isolation and purification of flavonoid components of Populus balsamifera L. buds [13].

The method of differential UV spectroscopy is widely used for the qualitative and quantitative assessment of BASs in plant raw materials [1, 15, 17–21]. The essence of differential spectrophotometry is the complex formation of aluminum cation, carbonyl and hydroxyl groups of flavonoid resulting in the stable complex formation, due to which the so-called bathochromic shift occurs [1, 19]. The differential spectrophotometry method was used in the development of methods for the quantitative determination of flavonoids in Leontodon autumnalis L. raw materials after the formation of a stained complex with an aluminum chloride solution [20]. This method was also used in the process of the development of the quantitative determination method of total flavonoids in Juglans regia L. leaves using the rutin standard sample at the analytical wavelength of 416 nm in order to solve the issues of the new type standardization of medicinal plant raw materials [22]. Differential spectrophotometry was used in the development of methods for the quantitative determination of total flavonoids in Tagetes patula flowers using a patulitrin standard sample (7-O-β-D-glucopyranoside 3,5,7,3’,4’-pentahydroxy-6-methoxyflavone) at the analytical wavelength of 428 nm [22]. As a result of the analysis of the above mentioned studies, it can be concluded that the method of differential spectrophotometry is in demand in modern pharmaceutical practice in the standardization of medicinal plant raw materials [22].

The method of differential spectrophotometry in the quantitative analysis of flavonoids has significant advantages, such as simplicity, availability, accuracy, small amounts of time spent on the analysis. Proceeding from the fact that the method of differential spectrophotometry makes it possible to determine the content of flavonoids, their total or the individual substance in the analyzed raw materials; it is logical to use this method in the development of regulatory documentation on the raw materials – Quercus robur L. buds [19].

In the course of the literature review regarding the study of Quercus robur L. buds, the data on the research of morphological and anatomical signs of Quercus robur L. buds, an important link in the standardization of new medicinal plant raw materials, were found [23]. A study of the alcoholic extracts based on Quercus robur L. buds, which revealed an antimicrobial activity against a number of pathogenic strains of microorganisms Pseudomonas aeruginosa, Staphylococcus aureus, Escherichia coli, Bacilluscereus, Candida albicans, had been conducted [24]. A further direction in the study of Quercus robur L. buds, is the development of methods for the quantitative determination of the BASs in the raw materials.

THE AIM of the article was to work out methods for the quantitative determination of total flavonoids in Quercus robur L. buds.

MATERIALS AND METHODS

The objects of the study were three samples of Quercus robur L. buds, harvested in the winter-spring period from late February to early April 2021. Sample No. 1 was collected in the Samara region (Pohvistnevsky district, Pervomaisk village); sample No. 2 – in the Botanical Garden of Samara University (Samara); sample No. 3 – in the Nature Forest Park “Dubki” (Samara, Russia). The species specificity of the analyzed objects was confirmed by the determinants of the central part of Russia [1].

Morphologically, Quercus robur L. buds are obovate, multilobed, dense, dark brown topping off in the center at the end of the shoot with one or three apical (terminal) buds [1, 23]. Both vegetative and generative buds from three representatives of this species were selected for the analysis. After harvesting, the buds were crumbled in a thin layer and dried without heating in a well-ventilated room without direct sunlight. The end of drying was determined by the brittleness of the buds. A differential spectrophotometry method was used to develop the methodology, which was carried out in accordance with the Pharmacopoeial Monograph of the State Pharmacopoeia (Russia), XIV^th ed. (SP (Russia), XIVth ed.)¹⁰.

A solution of cynaroside in 70% alcohol was used as a standard sample (Fig. 1). The cynaroside standard sample complies with the requirements of the Pharmacopoeial Monographs (PMs) and was provided for the research by the Research Equipment Sharing Center Center of SamSMU Institute of Pharmacy.

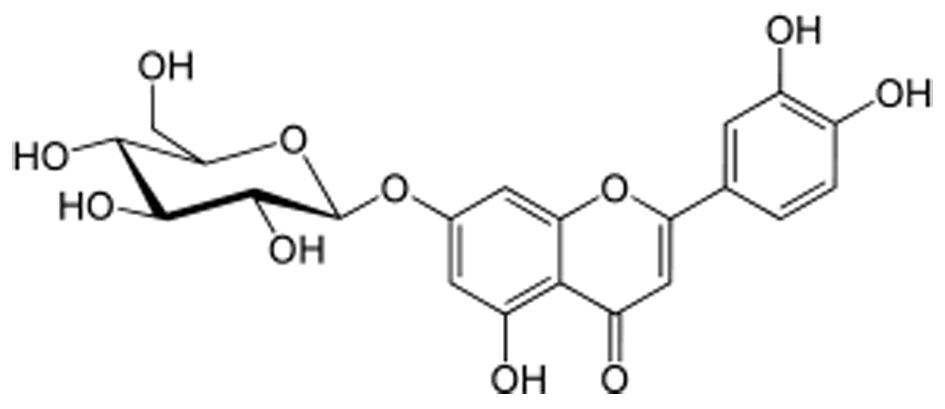

Figure 1 – Cynaroside formula



During the analysis of aqueous-alcoholic extractions of Quercus robur L. buds and standard samples of cynaroside solutions, the device “SF 2000” (Russia) was used. The aqueous-alcoholic extractions were prepared using 96% alcohol (Trademark OOO “Hippocrates”, Russia, Samara, series: 360917). The alcohol concentrations of 40%, 50%, 60%, 70%, 80%, 90% and 96% were obtained by diluting 96% alcohol according to Table No. 5 of Appendix to SP (Russia), XIV^th ed.¹¹.

Method of quantitative determination of total flavonoids in Quercus robur L. buds

Preparation of aqueous-alcoholic extractions from Quercus robur L. buds

The analytical sample of the raw material is ground to a particle size, passing through a sieve with a diameter of 2 mm. About 1 g of the crushed raw material (a precisely weighed amount) is placed in a conical heat-resistant flask (Erlenmeyer flask) with a 100 ml slotted volume, and 50 ml of 70% alcohol added. The flask is closed with a stopper and weighed on Sarto GOSM laboratory balance (LV 210-A (Ru-LV-210-A), No. 23425181; 2008; Russia) with an accuracy of ±0.001. The flask is attached to a reflux condenser and heated in a boiling water bath (moderate boiling) for 120 min. Then the flask is cooled for 30 minutes, closed with the same stopper, weighed again and the missing extractant is added to the original flask weight. The extraction is filtered over a paper filter (a red band)¹².

Preparation of test solution

5 ml of the obtained extraction is placed in a 25 ml volumetric flask, 1 ml of a 3% alcohol solution of aluminum chloride is added, the volume of the solution is brought to the mark with 96% alcohol (test solution A), stirred and left for some time (40 minutes) to form a flavonoid complex with aluminum. Then the optical density of the test solution is measured on a spectrophotometer at the wavelength of 400 nm. The solution obtained is used as a reference solution: 5 ml of the extraction (1:50) is placed in a measuring flask with a capacity of 25 ml and the volume of the solution is brought to the mark with 96% alcohol.

Preparation of cyanaroside standard sample solution

About 0.01 g (a precisely weighed amount) of cyanaroside is placed in a 50 ml volumetric flask, dissolved in 30 ml of 70% alcohol and heated in a water bath. The use of 70% alcohol provides the best dissolution of a cynaroside standard sample. After cooling the contents of the flask to room temperature, its volume is brought to the mark with 70% alcohol (solution A of cynaroside). 2 ml of a cynaroside A solution is placed into a 25 ml volumetric flask, 1 ml of a 3% alcohol solution of aluminium chloride is added, and the volume of the solution is adjusted to the mark with 96% alcohol (cynaroside test solution B). The optical density of the solution B on a spectrophotometer is measured at 400 nm.

Preparation of reference solution

2 ml of the cynaroside A solution was placed in a 25 ml volumetric flask and the volume of the solution was brought to the mark with 96% alcohol (the cynaroside B reference solution). Since 96% alcohol was used to bring a selected aliquot of aqueous-alcoholic extractions of Quercus robur L. buds to the mark, the alcohol of this concentration was also used to bring the cynaroside A solution to the mark.

The content of total flavonoids equivalent to cynaroside and absolutely dry raw materials in percent (X), is calculated by the formula:

$X=\frac{D\times m_0\times 50\times 25\times 2\times 100\times 100}{D_0\times m\times 5\times 25\times 25\times (100-W)}$,

where: D – the optical density of the test solution; D_o – the optical density of the cynaroside standard sample; m – the mass of raw materials, g; m_o – the mass of the cynaroside standard sample, g; W – the mass loss in drying, %.

In the absence of a cynaroside standard sample, it is advisable to use the theoretical value of the specific absorption index, 334.

$X=\frac{D\times 50\times 25\times 100}{m\times 334\times 5\times (100-W)}$,

where: D – the optical density of the test solution; m – the mass of raw materials, g; 334 – specific absorbance () of cynaroside standard sample at 400 nm; W – the weight loss in drying, %.

The value of the specific absorption index () for the cynaroside standard sample at 400 nm was calculated experimentally by the formula:

$E_{1cm}^{1\%}=\frac{D\times V_1\times V_2}{100\times q\times m_0}$,

where: D – the optical density of the test solution; m₀ – the mass of the cynaroside standard sample, g; V₁ – the volume of flask 1, ml; V₂ – the volume of flask 2, ml; q – the volume of the aliquot, ml;

Validation of analytical methods

Validation of the developed methods was carried out according to the following indicators: specificity, linearity, precision (a repeatability level), intralaboratory precision, correctness in accordance with SP (Russia), XIV^th ed.¹³. Microsoft Excel 2013 software was used for the calculations.

RESULTS AND DISCUSSIONS

In the course of the experiment, a method for the quantitative determination of total flavonoids in Quercus robur L. buds has been developed. As a result, the optimum conditions for the extraction have been determined, and the choice of the optimal extractant has been substantiated.

Since at present, the component composition of the buds has not been studied, the total substances (flavonoids) in the studied extracts were determined.

The development of the methods was carried out stage by stage. At the first stage, the absorption spectra of aqueous-alcoholic extractions on the basis of Quercus robur L. buds were studied. During the analysis of the obtained extracts by differential spectrophotometry, the absorption maxima of spectral curves characteristic for the substances of the flavonoid nature, were determined (Fig. 2). A bathochromic shift of the electronic absorption spectrum of the aqueous-alcoholic extractions of Quercus robur L. buds with an absorption maximum similar to that of the standard sample of a cynaroside solution (400 nm) was recorded (Fig. 3). Therefore, when carrying out the quantitative determination of total flavonoids in the aqueous-alcoholic extractions based on Quercus robur L. buds, cynaroside was chosen a standard sample (Fig. 4 and 5). The observed similar picture of spectral absorption curves in the analysis of the studied samples of raw materials and the cynaroside standard sample solution, makes it possible to assert that in aqueous-alcoholic extractions of Quercus robur L. buds flavonoids are present, and the method of differential spectrophotometry makes it possible to carry out their quantitative definition.

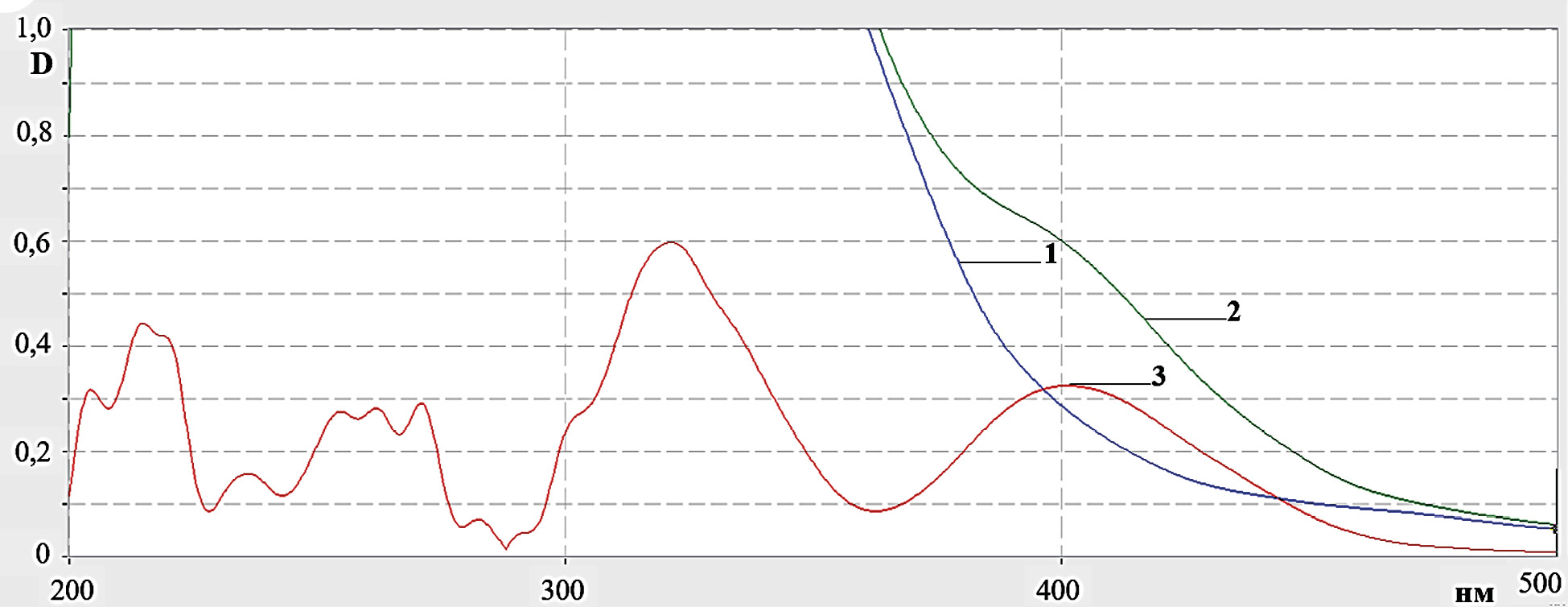

Figure 2 – Electronic spectra of solutions of aqueous-alcoholic extraction from Quercus robur L. buds. Note: 1 – extraction solution (direct spectrophotometry); 2 – extraction solution with addition of aluminum chloride; 3 – differential curve

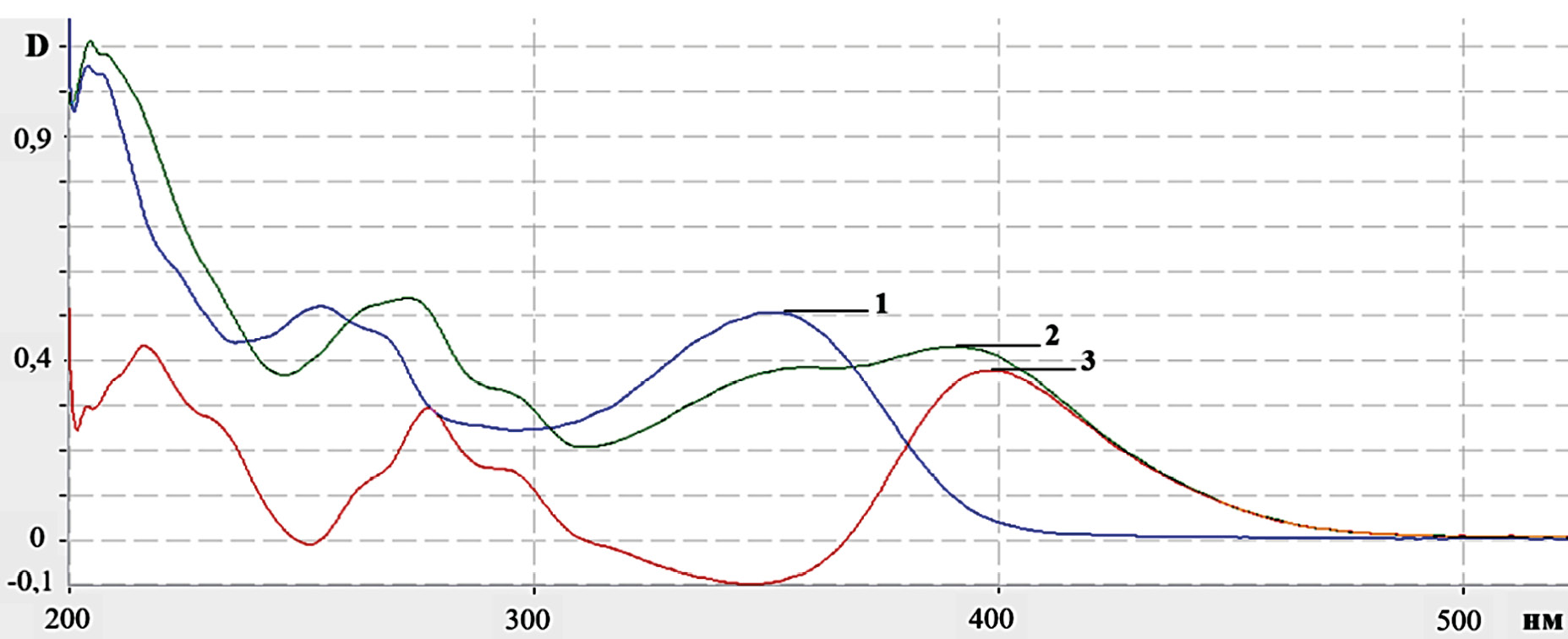

Figure 3 – Electronic spectra of aqueous-alcoholic solutions of cynaroside standard sample. Note: 1 – initial cynaroside solution (direct spectrophotometry); 2 – cynaroside solution with addition of aluminum chloride; 3 – differential curve of cynaroside (batochrome shift of short- and long-wave bands)

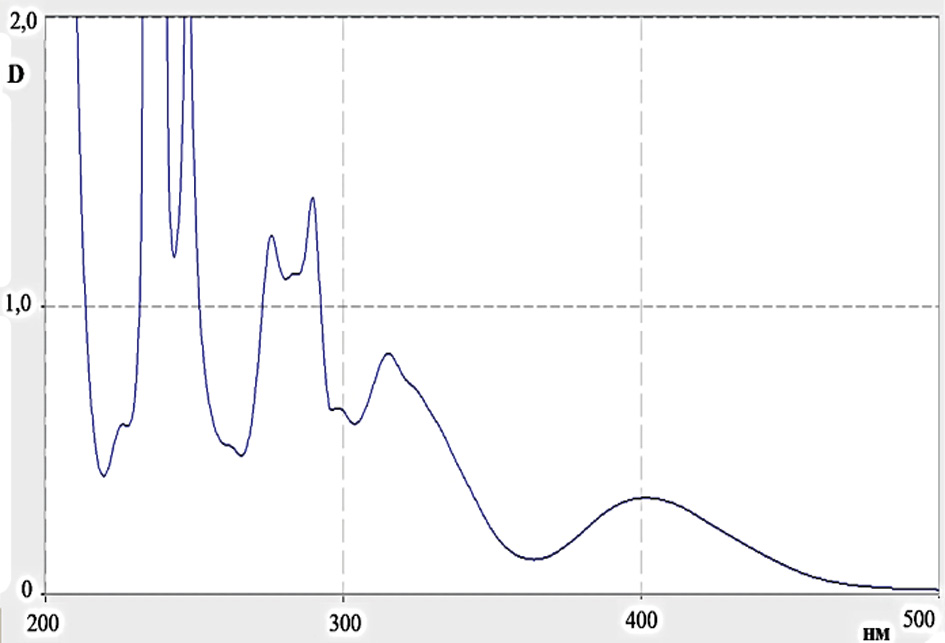

Figure 4 – Differential spectrum of aqueous-alcoholic extraction from Quercus robur L. buds

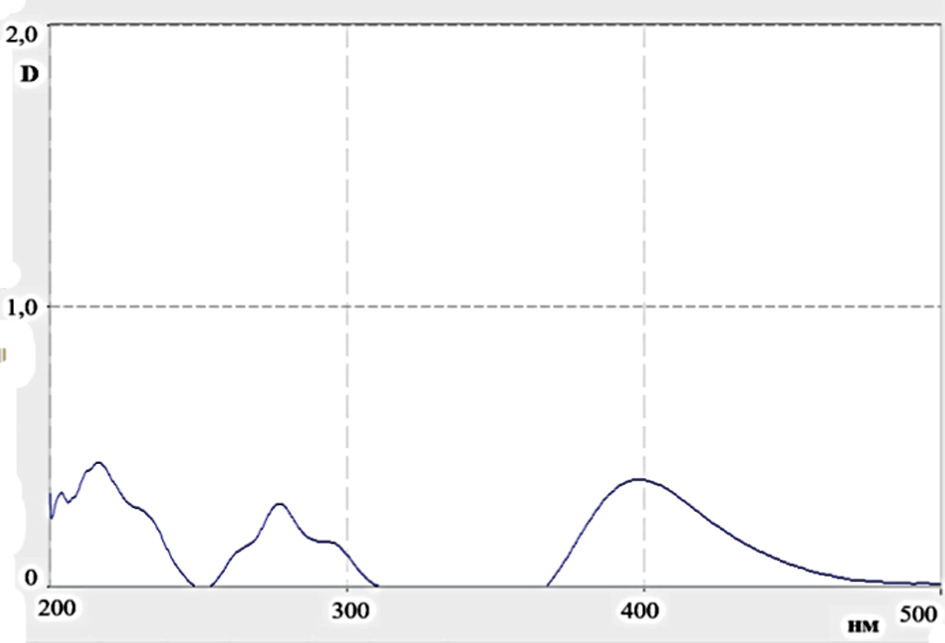

Figure 5 – Differential spectrum of cynaroside standard sample solution



At the second stage of the methods development, it was found out that the complete extraction of flavonoids from Quercus robur L. buds is achieved with the extraction of 70% alcohol. The next stage was an experiment to determine the optimal ratio “raw material-extractant” (1:50). Then the extraction time parameters were determined: it was found out that the maximum extraction of flavonoids from raw materials occurs during 120 minutes. The final step was to determine the degree of atomization of raw materials (2 mm), contributing to the full extraction of flavonoids by the extractant (Table 1).



Table 1 – Optimal extraction rates of total flavonoids from Quercus robur L. buds at wavelength of 400 nm

No.	Extractor	“Raw materials: extractant" ratio	Extraction time, min	Degree of atomization, mm	Optical density value, D	Total flavonoids content per cyanaroside and absolutely dry raw materials, %
1	40% ethanol	1:30	60 min	2	0.3918	0.23±0.012
2	50% ethanol	1:30	60 min	2	0.4116	0.24±0.012
3	60% ethanol	1:30	60 min	2	0.4417	0.24±0.012
4	70% ethanol	1:30	60 min	2	0.4705	0.25±0.013
5	80% ethanol	1:30	60 min	2	0.4866	0.24±0.012
6	90% ethanol	1:30	60 min	2	0.4771	0.22±0.011
7	96% ethanol	1:30	60 min	2	0.4725	0.23±0.012
8	70% ethanol	1:30	30 min	2	0.4845	0.20±0.01
9	70% ethanol	1:30	45 min	2	0.5236	0.21±0.01
10	70% ethanol	1:30	60 min	2	0.4742	0.23±0.012
11	70% ethanol	1:30	90 min	2	0.383	0.23±0.012
12	70% ethanol	1:30	120 min	2	0.3883	0.26±0.013
13	70% ethanol	1:30	150 min	2	0.388	0.25±0.013
14	70% ethanol	1:20	120 min	2	0.3169	0.14±0.01
15	70% ethanol	1:30	120 min	2	0,6121	0.16±0.01
16	70% ethanol	1:50	120 min	2	0.4399	0.27±0.012
17	70% ethanol	1:100	120 min	2	0.6121	0.26±0.013
18	70% ethanol	1:50	120 min	1	0.5843	0.23±0.012
19	70% ethanol	1:50	120 min	2	0.6649	0.27±0.013
20	70% ethanol	1:50	120 min	3	0.6063	0.23±0.011



On the basis of the obtained results, the conditions for the quantitative determination methods have been determined: the extraction of flavonoids from Quercus robur L. buds crushed to 2 mm, in 70% ethanol, in the ratio of “raw material-extractant” 1:50, within 120 min in a boiling water bath. The quantitative determination of total flavonoids equivalent to cynaroside, is carried out by differential spectrophotometry at the analytical wavelength of 400 nm, using a standard sample or value of the specific absorption index of the cynaroside standard sample (334).

The criterion for evaluating the analytical methods is the validation assessment. The validation of the methods was performed in accordance with SP (Russia), XIV^th ed.¹⁴.

The methods specificity was determined by the correspondence of the absorption maxima of the Quercus robur L. buds flavonoid complex and the solution of the standard cynaroside sample with aluminum chloride and the differential peak of the standard cynaroside sample.

The methods linearity was determined for a series of 10 cynaroside solutions (with the concentrations ranging from 0.00225 to 0.0225 mg/ml: 0.00225; 0.00325; 0.00425; 0.00525; 0.00625; 0.00725; 0.00825; 0.00925; 0.0125; 0.0225) with aluminum chloride at the wavelength of 400 nm. Based on the data obtained, a dependence graph of the optical density values of cynaroside solutions with aluminum chloride on the concentration of cynaroside was constructed, and then a linear regression equation was calculated (Fig. 6; Table 2).

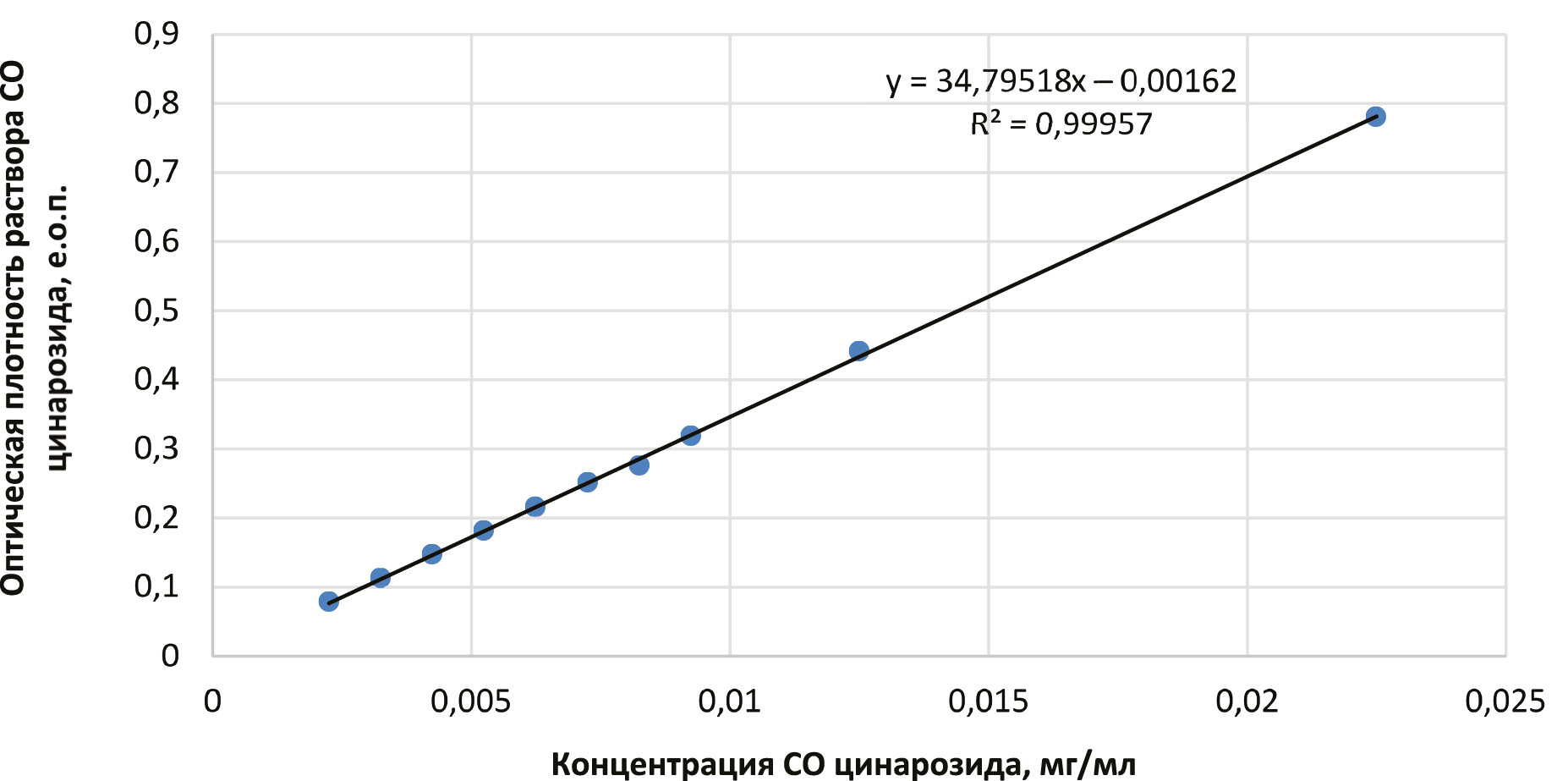

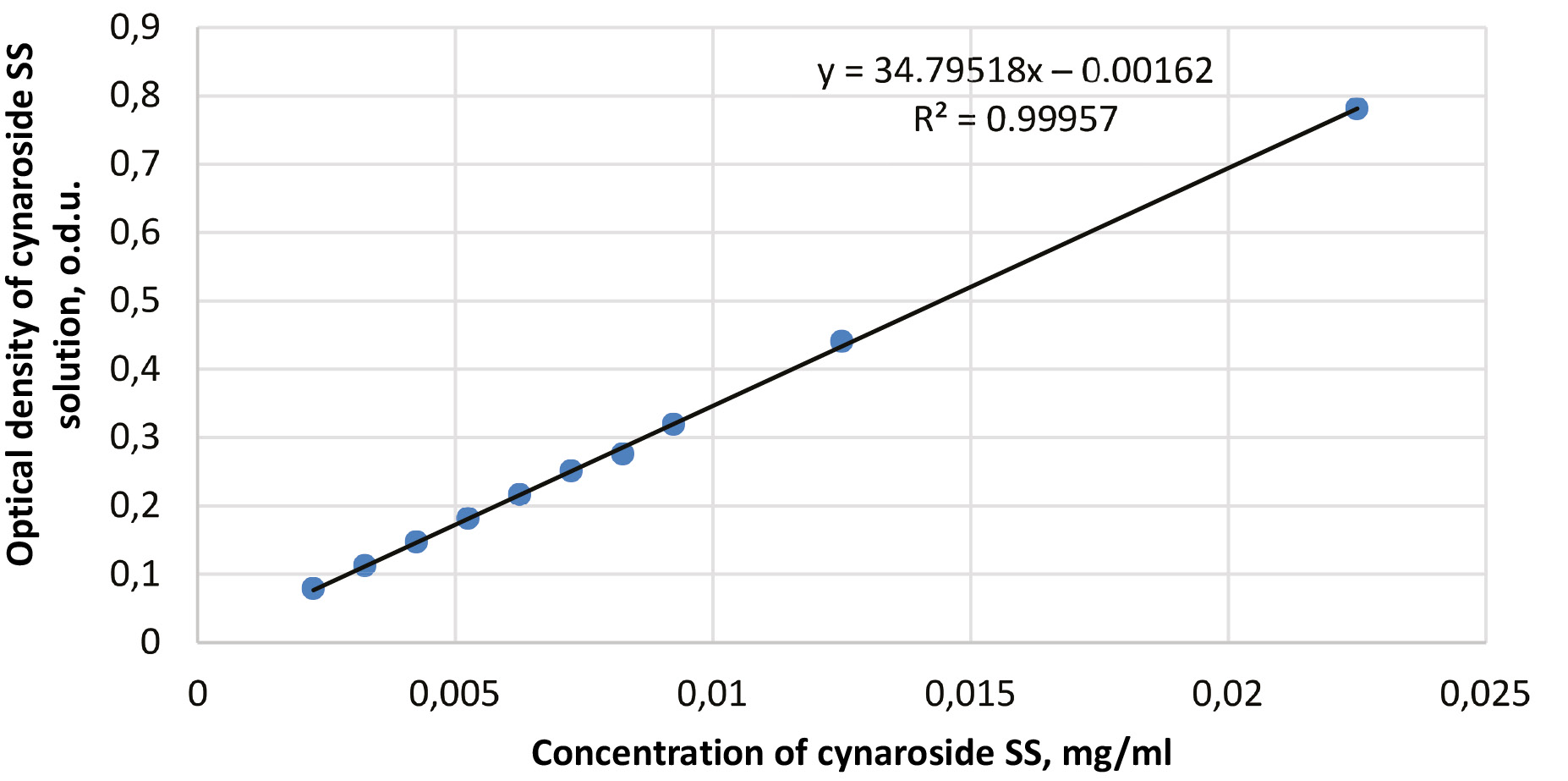

Figure 6 – Dependence of optical density values of cynaroside solutions with aluminum chloride on cynaroside concentration (differential version)



Table 2 – Input data for assessing methods linearity

No.	Concentration of cynaroside standard sample solution, mg/ml	The optical density value, o.d.u (average of three consecutive measurements)
1	0.00225	0.078411
2	0.00325	0.112547
3	0.00425	0.146935
4	0.00525	0.181541
5	0.00625	0.216048
6	0.00725	0.250947
7	0.00825	0.275401
8	0.00925	0.318974
9	0.0125	0.440864
10	0.0225	0.780564



While studying the linear dependence of the kind of y = bx + a, the correlation coefficient made 0,99957, hence, the given methods can be used for the analysis of total flavonoids in Quercus robur L. buds equivalent to cynaroside in the specified range of concentrations (Fig. 6; Table 2).

The precision of the methods (a repeatability level) was estimated by analyzing the studied sample of medicinal plant raw materials in a 10-fold replication (Table 3).



Table 3 – Precision estimation results of quantitative determination methods of total flavonoids in Quercus robur L. buds (repeatability level)

Metrological characteristics	f	$\overline{X}$, %	S2	SD	RSD	Р, %	t (tab.)	∆$\overline{X}$, %	$\overline{\epsilon }$, %
Values	9	0.24	0.00011738	0.011738	4.81%	95	2.262	±0.01	±3.44



To assess the in-laboratory precision, the analysis of the test sample was performed by another analyst on other days using the same equipment (Table 4). For each sample, the studies were carried out in six replications. Table 4 shows that the calculated value of Fisher’s F-criterion 1.19 is less than the tabulated value of 5.05. Consequently, the variance of the analysis results of both chemistries are statistically equivalent, and the differences between the values obtained are random. Thus, the developed methods meets the validation requirements for the index of in-laboratory precision.



Table 4 – Validation of laboratory precision of methods for determining total flavonoids in Quercus robur L. buds

Analyst 1	Analyst 2	Metrological characteristics
Х, ٪	Х, ٪	Analyst 1	Analyst 2
0.24	0.26	$\overline{X}$ = 0.24 S2 = 0.000057 SD = 0.00753 RSD = 3.16% $\overline{\epsilon }$ = 3.63%  $\overline{X}$±∆$\overline{X}$ = 0.24 ± 0.01	$\overline{X}$ = 0.25 S2 = 0.000080 SD = 0.00894 RSD = 3.58% $\overline{\epsilon }$ = 4.11%  $\overline{X}$±∆$\overline{X}$ = 0.25 ± 0.01
0.24	0.25
0.23	0.26
0.25	0.24
0.23	0.24
0.24	0.25

Notes: t_calculated = 2.44 < t (95%; 10); F_calculated = 1.19 < F (95%; 5; 5), differences between the results obtained are random



The correctness of the methods was determined by the addition method. Cynaroside solutions with the known concentration (80%, 100% and 120%) were added to the aliquot of the test sample. The average opening percentage was 100.30±2.12% (Tables 5 and 6). Three determinations were performed for each concentration. The error determined for the samples with additives of the standard samples, was within the error of a single determination, indicating that there was no systematic error. The value of the average opening percentage of the experiment 100,30±2,12% was within the normalized range of values and within 100±5% (Tables 5 and 6).



Table 5 – Preparation scheme of aqueous-alcoholic extractions from Quercus robur L. buds with solutions addition of cynaroside standard sample

Initial cynaroside content, mg/ml aqueous-alcoholic extraction	Cyanaroside additive, mg/ml	Total calculated cynaroside content, mg/ml	Concentration level relative to nominal, %
2.30	1.84	4.14	80
2.30	2.30	4.60	100
2.30	2.76	5.06	120



Table 6 – Assessment results of correctness of quantitative determination method of total flavonoids in Quercus robur L. buds

Injected cyanaroside, mg/ml	Found, mg/ml	Openness, %	Characteristics calculated for opening value, %
0.84	0.80	95.24	$\overline{X}$ = 100.30% SD = 2.76% RSD = 2.75%
0.84	0.86	102.38
0.84	0.83	98.81
2.30	2.32	100.87
2.30	2.26	98.26
2.30	2.38	103.48
2.76	2.81	101.81
2.76	2.72	98.55
2.76	2.85	103.26



The results obtained testify to the satisfactory precision of the proposed quantitative determination methods of total flavonoids in Quercus robur L. buds equivalent to cynaroside at the levels of repeatability and in-laboratory precision.

It was found out that the average content of flavonoids in the studied sample of the raw materials was 0.24 ± 0.01% (the relative error of the determination was ±3.60%).

Thus, based on the experimental results validation, it can be concluded that this method is suitable for the quantitative estimation of total flavonoids equivalent to cynaroside.

Using this methods, three samples of Quercus robur L. buds, harvested at the same time (May-June 2021), were analyzed (Table 7). It was determined that the content of total flavonoids in the analyzed samples varies from 0.27%±0.01 to 0.44%±0.02 depending on its habitat (Table 7).



Table 7 – The content of total flavonoids in Quercus robur L. buds samples (in %) equivalent to cynaroside

No. n/a	Characteristics of raw material sample	Content of total flavonoids in absolutely dry raw materials (in %) сalculated on cynaroside
1	Samara region, Pokhvistnevsky district, Pervomaysk village (March 2021)	0.27±0.01
2	Botanical Garden of Samara University, Samara (March 2021)	0.44±0.02
3	Natural forest park "Dubki", Samara (March 2021)	0.35±0.02



The presence of the flavonoid cynaroside in Quercus robur L. buds makes it possible to position them as a medicinal plant raw material. The medicines based on Quercus robur L. buds can be prescribed in diseases of chronic glomerulonephritis and pyelonephritis, complicated by a renal failure with hyperazotemia [25]. The indications for prescribing cynaroside may include hypertension, vasorenal hypertension complicated by nephrosclerosis and a chronic renal failure, as the flavonoid cynaroside alone has the above listed pharmacological effects [25]. The earlier studies on the research of the antimicrobial activity makes it possible to recommend Quercus robur L. buds as a raw material for the creation of antimicrobial agents [24].

The results obtained correlate with the data obtained for the buds of other plant species. If we take into account the fact that the determined total flavonoids in the buds of different species are converted to different substances, total flavonoids in Aesculus hippocastanum L. buds are equivalent to rhamnocitrin and varies from 1.24% to 2.31%. The content of total flavonoids in Populus balsamifera L. buds is equivalent to dihydroquercetin and rangers from 7.5% to 11.1%) [13–15].

Thus, the data obtained during the experiment suggest the feasibility of using the method of differential spectrophotometry for the quantitative determination of total flavonoids in Quercus robur L. buds. These results make it possible to recommend not less than 0.25% of total flavonoids for this type of raw material as a lower limit.

CONCLUSION

Thus, as a result of the study, the quantitative determination methods of total flavonoids in Quercus robur L. buds has been developed by differential spectrophotometry using a standard sample of cynaroside at the analytical wavelength of 400 nm. The content of total flavonoids has been determined for Quercus robur L. buds, which ranges from 0.27%±0.01 to 0.44%±0.02. The error of a single determination with a 95% confidence level is ±3.6%. The optimum values of the total flavonoids’ extraction from Quercus robur L. buds, have been established. For Quercus robur L. buds, the total flavonoids content not less than 0.25%, can be recommended as the lower limit.

A validation assessment of the developed methods by the indicators of specificity, linearity, precision (a repeatability level), in-laboratory precision, correctness in accordance with SP (Russia), XIV^th ed., has been carried out. Based on the results of the validation assessment of the experimental results, these methods can be suitable for the quantitative assessment of total flavonoids сalculated on cynaroside.

This study has laid the foundation for the study of Quercus robur L. buds chemical composition, a quantitative assessment of total flavonoids of BAS in them by differential spectrophotometry. The results of the study can be used in the creation of herbal medicines based on Quercus robur L. buds and used in the treatment of kidney and dermatological diseases due to the content of total flavonoids in the raw material of biologically active substances and the substance of cynaroside alone.

The results obtained contribute to the development of the normative documentation for the promising species of the raw materials “Quercus robur L. buds” for the introduction to the State Pharmacopoeia (Russia).

FUNDING

This study did not have any external support.

CONFLICT OF INTEREST

The authors declare no conflict of interest.

AUTHORS’ CONTRIBUTION

Nikolay A. Ryabov – data collection, conducting the experiment, analysis and interpretation of the data obtained, preparation of the draft manuscript, literature analysis, writing the manuscript; Vitaly M. Ryzhov – study planning, participation in the development of study concept and design, collection of plant material for analysis; Vladimir A. Kurkin – final approval of the manuscript publication, processing of the obtained results, checking the critical intellectual content, statistical processing of the obtained results.



¹ State Pharmacopoeia of the Russian Federation. Ministry of Health of the Russian Federation. XIV ed. Vol. 1–4. М., 2018. Available from: http://http://femb. ru/femb/pharmacopea. php

² Assessment report on Quercus robur L., Quercus petraea (Matt.) Liebl., Quercus pubescens Willd., cortex EMA/HMPC/3206/2009.

³ Ibid.

⁴ State Pharmacopoeia of the Russian Federation. Ministry of Health of the Russian Federation. XIV ed. Vol. 1–4. М., 2018.

⁵ Assessment report on Quercus robur L., Quercus petraea (Matt.) Liebl., Quercus pubescens Willd., cortex EMA/HMPC/3206/2009.

⁶ European Pharmacopoeia – 8^th. “01/2008:1887 corrected 6.0”. 2013. Available from: http://pharmeuropa.edqm.eu

⁷ British Pharmacopoeia 2009. British Pharmacopoeia Herbal Drugs and Herbal Drug Preparations // Oak Bark. 2009;37:203.

⁸ Assessment report on Quercus robur L., Quercus petraea (Matt.) Liebl., Quercus pubescens Willd., cortex EMA/HMPC/3206/2009.

⁹ State Pharmacopoeia of the Russian Federation. Ministry of Health of the Russian Federation. XIV ed. Vol. 1–4. М., 2018.

¹⁰ State Pharmacopoeia of the Russian Federation. Ministry of Health of the Russian Federation. XIV ed. Vol. 1–4. М., 2018.

¹¹ Ibid.

¹² Ibid.

¹³ State Pharmacopoeia of the Russian Federation. Ministry of Health of the Russian Federation. XIV ed. Vol. 1–4. М., 2018.

¹⁴ Ibid.
