Aim was to identify features of subchondral bone remodeling and synovitis severity in patients with early knee osteoarthritis using laboratory and instrumental methods.

Materials and methods. The study covered 60 patients with I-II radiological stages (by J. Kellgren and J. Lawrence, 1952) of gonarthrosis (according to R.D. Altman, 1991). Complex of clinical (history, complaints, palpation of joints, pain assessment by Visual Analogue Scale [VAS]), laboratory (interleukin-6, osteocalcin, Beta-Cross Laps, C-reactive protein [CRP] and others) and instrumental (X-ray, ultrasonography of knee joints) examinations of patients was carried out with subsequent statistical data processing.

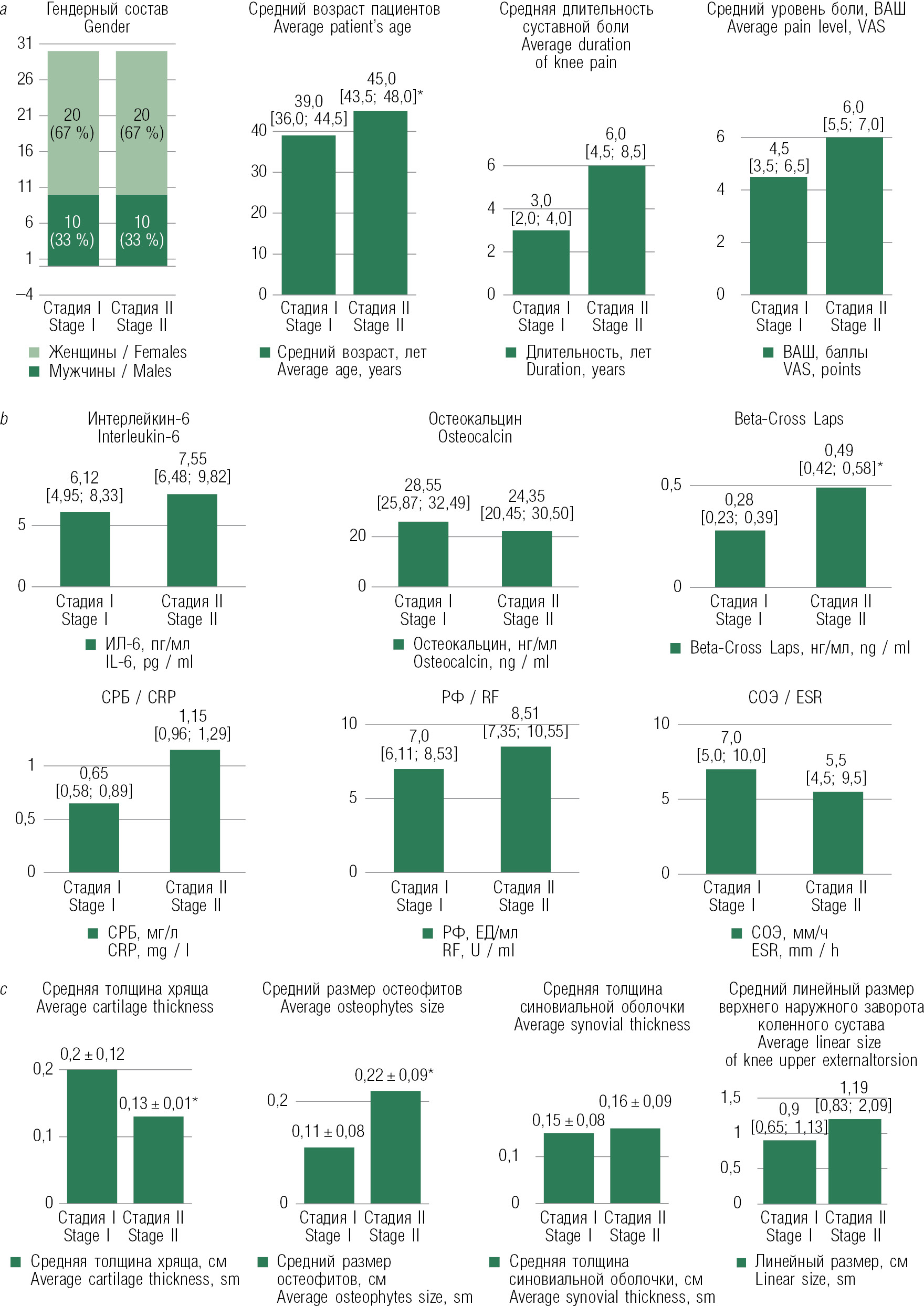

Results. In patients with stage II gonarthrosis, Beta-Cross Laps, CRP levels, osteophyte size were significantly higher, and articular cartilage thickness was lower in comparison with stage I group. Correlations were found between: pain intensity according to VAS and volume of upper torsion of knee joint; interleukin-6 and osteophyte size, volume of upper torsion, Beta-Cross Laps; level of Beta-Cross Laps and osteocalcin, osteophyte size; and some other relationships.

Conclusion. In patients with I-II radiological stages of gonarthrosis, remodeling of subchondral bone is observed and accompanied by tissue turnover changes that it is could be used in targeted therapy. Serum Beta-Cross Laps is important marker for early progression of gonarthrosis.

Full Text

Restricted Access

About the authors

V. I. Klementeva

Orenburg State Medical University


Russian Federation, Orenburg, Russia

Assistant of The Department of Internal Diseases

T. V. Chernisheva

Orenburg State Medical University

ORCID iD: 0000-0001-9645-5816
Scopus Author ID: 14057615900

Russian Federation, Orenburg, Russia

Doctor of Medical Science, the Head of Department of Internal Diseases

K. V. Korochina

Orenburg State Medical University (OrSMU)

Author for correspondence.
ORCID iD: 0000-0003-2110-1428
Scopus Author ID: 57041375800

Russian Federation, Orenburg, Russia

MD PhD, assistant of The Department of Internal Diseases

I. E. Korochina

Orenburg State Medical University

ORCID iD: 0000-0001-9956-4508
Scopus Author ID: 14058234100

Russian Federation, Orenburg, Russia

MD PhD, professor’s assistant of The Department of Polyclinical Therapy


  1. Кабалык М.А. Распространенность остеоартрита в России: региональные аспекты динамики статистических показателей за 2011–2016 гг. // Научно-практическая ревматология. – 2018. – Т. 56. – № 4. – С. 416–422. [Kabalyk MA. Prevalence of osteoarthritis in Russia: regional aspects of trends in statistical parameters during 2011-2016. Rheumatology science and practice. 2018;56(4):416-422. (In Russ.)].
  2. World Health Organisation. Priority diseases and reasons for inclusion. 6.12. Osteoarthritis. Available from:
  3. Алексеева Л.И., Телышев К.А. Ранний остеоартрит: разработка критериев диагностики // Современная ревматология. – 2020. – Т. 14. – № 3. – С. 140–145. [Alekseeva LI, Telyshev KA. Early osteoarthritis: development of diagnostic criteria. Modern rheumatology journal. 2020;14(3):140-145. (In Russ.)].
  4. Каратеев А.Е., Лила А.М. Остеоартрит: современная клиническая концепция и некоторые перспективные терапевтические подходы // Научно-практическая ревматология. – 2018. – Т. 56. – № 1. – С. 70–81. [Karateev AE, Lila AM. Osteoarthritis: current clinical concept and some promising therapeutic approaches. Rheumatology science and practice. 2018;56(1):70-81. (In Russ.)].
  5. 14412/1995-4484-2018-70-81.
  6. Алексеева Л.И., Зайцева Е.М. Роль субхондральной кости при остеоартрозе // Научно-практическая ревматология. – 2009. – Т. 47. – № 4. – С. 41–48. [Alexeeva LI, Zai¬tseva EM. Role of subchondral bone in osteoar¬thritis. Rheumatology science and practice. 2009;47(4):41-48. (In Russ.)].
  7. Кабалык М.А. Биомаркеры и участники ремоделирования субхондральной кости при остеоартрозе // Тихоокеанский медицинский журнал. – 2017. – № 1. – С. 36–41. [Kabalyk MA. Biomarkers of subchondral bone remodeling in osteoarthritis. Pacific medical journal. 2017;(1):36-41. (In Russ.)].
  8. 37-41.
  9. Kraus VB, Hsueh MF. Biomarkers and osteoarthritis. In: Genomic and precision medicine (Third edition). Infectious and inflammatory disease. Elsevier; 2019. P. 429-444.
  10. Igarashi M, Sakamoto K, Nagaoka I. Effect of glucosamine, a therapeutic agent for osteoarthritis, on osteoblastic cell differentiation. Int J Mol Med. 2011;28(3):373-379.
  11. Richette P, Roux C. Impact of treatments for osteopo¬rosis on cartilage biomarkers in humans. Osteoporos Int. 2012;23(Suppl 8):S877-880.
  12. Ширинский В.С., Казыгашева Е.В., Ширинский И.В. Воспаление и иммунитет: роль в патогенезе остеоартрита // Медицинская иммунология. – 2019. – Т. 21. – № 1. – C. 39–48. [Shirinsky VS, Kazygasheva EV, Shirinsky IV. Inflammation and immunity: a role of pathogenesis of osteoarthritis. Medical immunology (Russia). 2019;21(1):39-48. (In Russ.)].
  13. Mathiessen A, Conaghan PG. Synovitis in osteoarthritis: Current understanding with therapeutic implications. Arthri¬tis Res Ther. 2017;19(1):18.
  14. Mathiessen A, Slatkowsky-Christensen B, Kvien TK, et al. Ultrasound-detected inflammation predicts radiographic progression in hand osteoarthritis after 5-years. Annals of the Rheumatic Diseases. 2016;75(5):825-830.
  15. Стогов М.В., Овчинников Е.Н. Лабораторные тесты в доклинической диагностике остеоартроза. Аналитический обзор // Гений ортопедии. – 2016. – № 1. – С. 96–103. [Stogov MV, Ovchinnikov EN. Laboratory tests in preclinical diagnosis of osteoarthrosis. An analytical review. Genij ortopedii. 2016;(1):96-103. (In Russ.)].
  16. Насонов Е.Л., Лила А.М. Ингибиция интерлейкина 6 при иммуновоспалительных ревматических заболева¬ниях: достижения, перспективы и надежды // Научно-¬практическая ревматология. – 2017. – T. 55. – № 6. – C. 590–599. [Nasonov EL, Lila AM. Inhibition of interleukin 6 in immune inflammatory rheumatic diseases: achievements, prospects, and hopes. Rheumatology science and practice. 2017;55(6):590-599. (In Russ.)].
  17. Wiegertjes R, Loo FA, Davidson EN. A roadmap to target interleukin-6 in osteoarthritis. Rheumatology (Oxford). 2020;59(10):2681-2694.
  18. Luyten FP, Bierma-Zeinstra S, Dell’Accio F, et al. Toward classification criteria for early osteoarthritis of the knee. Semin Arthritis Rheum. 2018;47(4):457-463.
  19. Алексеев Д.Л., Никишина И.П. Ультразвуковое исследование опорно-двигательного аппарата в диагностике и мониторинге активности болезни при ювенильных артри¬тах // Научно-практическая ревматология. – 2017. – Т. 55. – № 6. – С. 647–654. [Alekseev DL, Nikishina IP. Ultrasound examination of the locomotor system in the diagnosis and monitoring of disease activity in juvenile arthritis. Rheumatology science and practice. 2017;55(6):
  20. -654. (In Russ.)].
  21. Макарова М.В., Агапитов А.В., Юницына А.В., и др. Ультразвуковая сонография и магнитно-резонансная томография в выявлении дегенеративных изменений при рентгенологически нулевой стадии остеоартроза коленных суставов // Вестник новых медицинских технологий. Электронное издание. – 2014. – № 1. – С. 100. [Makarova MV, Agapitov AV, Yunitsina AV, et al. Ultrasound sonography and magnetic resonance imaging in the detection of degenerative changes of X-ray negative osteoarthritis of the knee. Journal of new medical technologies. eJournal. 2014;(1):100. (In Russ.)].
  22. Orellana C, Moreno M, Calvet J, et al. Ultrasound fin¬dings in patients with femoracetabular impingement without radiographic osteoarthritis: A pilot study. J Ultra¬sound Med. 2019;38(4):895-901.
  23. Zivanovic S, Rackov LP, Zivanovic A, et al. Cartilage oligomeric matrix protein – inflammation biomarker in knee osteoarthritis. Bosn J Basic Med Sci. 2011;11(1):27-32.
  24. Altman RD. Criteria for classification of clinical osteoarthritis. J Rheumatol. 1991;27(Suppl.):10-12.
  25. Kellgren JH, Lawrence JS. Radiological assessment of osteo¬arthrosis. Ann Rheum Dis. 1957;16(4):494-502.
  26. Гладкова Е.В., Ромакина Н.А., Бабушкина И.В., и др. Роль нарушений ремоделирования гиалинового хряща в патогенезе ранних стадий остеоартроза коленных суставов // Тихоокеанский медицинский журнал. – 2019. – № 1. – С. 46–49. [Gladkova EV, Romakina NA, Babushkina IV, et al. The role of derangements in hyaline cartilage remodeling in pathogenesis of the early stages of knee osteoarthrosis. Paci¬fic medical journal. 2019;(1):46-49. (In Russ.)].
  27. Ishibashi K, Sasaki E, Ota S, et al. Detection of synovitis in early knee osteoarthritis by MRI and serum biomarkers in Japanese general population. Sci Rep. 2020;10(1):12310.
  28. Светлова М.С., Ромашина В.В., Везикова Н.Н., и др. Оценка содержания С-реактивного белка, интерлейкинов-1 и -6 и рецепторного антагониста интерлейкина-1 в крови больных ранним остеоартрозом коленных суставов // Терапевтический архив. – 2009. – Т. 81. – № 6. – С. 52–55. [Svetlova MS, Vezikova NN, Romashina VV, et al. Content of C-reactive protein, interleukin-1, interleukin-6 and interleukin-1 receptor antagonist in the blood of patients with early osteoarthrosis of the knee joints. Terapevticheskii arkhiv. 2009;81(6):52-55.
  29. (In Russ.)]
  30. Spector TD, Hart DJ, Nandra D, et al. Low-level increases in serum С-reactive protein are present in early osteoarthritis of the knee and predict progressive disease. Arthritis Rheum. 1997;40(4):723-727.
