Mathematical modeling of biomechanical elastic and hyperelastic properties of the myocardium
- Authors: Muslov S.A.1, Vasyuk Y.A.1, Zavialova A.I.1, Shupenina E..1, Sukhochev P..2, Guchukova L..3
-
Affiliations:
- Russian University of Medicine
- Lomonosov Moscow State University
- Odintsovo Regional Hospital
- Issue: Vol 23, No 4 (2023)
- Pages: 53-68
- Section: Original research
- URL: https://journals.eco-vector.com/MAJ/article/view/624108
- DOI: https://doi.org/10.17816/MAJ624108
- ID: 624108
Cite item
Abstract
BACKGROUND: The study of mechanical properties of biological tissues is extremely informative and is one of the most important areas of biomechanics. Knowledge of these aspects of biological objects based on experimental data can become a source of new medical and technical solutions for the reconstruction of organs and the development of replacement materials.
AIM: Passive mechanical properties of isolated myocardium are compared with linear, bilinear, exponential and the most common hyperelastic models (neohookean, Mooney–Rivlin, Ogden, Yeoh, polynomial and Veronda–Westmann).
MATERIALS AND METHODS: Literature data on mechanical tests of autopsy material obtained from mongrel dogs were used as initial data. To search for the most advanced calculation algorithms the computer algebra system was used, the Mathcad 15.0 software package and the multifunctional finite element analysis application ANSYS 2022 R2 were used. Direct comparison of models was made based on mathematical statistics.
RESULTS: Among the first group of models, the results closest to the experimental data were demonstrated by the exponential model R = 0.9958/0.9984 (in the longitudinal/transverse direction with respect to the myocardial fibers), the lowest accuracy was demonstrated by the linear model R = 0.9813/0.9803. Young’s moduli of linear, bilinear and exponential models and material constants of hyperelastic models are determined. The coefficient of elastic anisotropy of the myocardium, defined as the ratio of the elastic moduli of the linear model measured along and across the direction of the fibers, is equal to 2.18, which is very different from the literature data for the myocardium of the human heart. Deformation along the fibers of the heart muscle is more energy-consuming in the direction along the fibers than in the transverse direction (3.81 and 2.52 mJ/cm3). The most accurate hyperelastic models turned out to be the 2nd order polynomial model R = 0.9971 and the 3rd order Yeoh model R = 0.997. The largest deviations and the lowest correlation coefficient between the experimental and model data were demonstrated by the simple neohookean model R = 0.974 with a single parameter μ. The numerical values of the parameters of hyperelastic models obtained by calculation methods used practically did not differ from each other (≤2.16%).
CONCLUSIONS: The study demonstrated the importance of selecting the correct mechanical model for isolated myocardium. The data obtained can be useful in virtual interventions (simulations) for predicting outcomes and supporting clinical decisions, developing replacement materials and structures made of them for reconstructive operations on heart structures.
Full Text
Background
Heart failure remains one of the most common causes of death worldwide, particularly among individuals aged >60 years. The biomechanical parameters and deformation properties of tissues from different heart sections should be studied for developing and selecting appropriate materials for reconstructive cardiac surgeries. The study of passive mechanical properties of hard and soft biological tissues is extremely informative and a crucial area of biomechanics. Moreover, the study of passive myocardial properties has a critical applied aspect. Knowledge derived from experimental data on the physical and mechanical aspects of biological objects is beneficial for the development of new medical and technical solutions for the reconstruction of biological tissue properties and substitute materials. Furthermore, mathematical models of biotissues do not require samples and provide researchers with opportunities to study various physiological states in silico (defined as computer modeling and simulation of an experiment, more often biological) without the risk to the health and life of the modeled objects [1].
Professor V.Y. Izakov, the founder of the distinctive Soviet school of myocardial biophysics, and his students recognized the significance of mathematical modeling of cardiac tissues. Their studies were based on the understanding that active elements of cardiac tissue are immersed in a specific rheological environment, including the foundational monograph [2] on experimental and computer models in cardiovascular physiology and cardiology. Regarding its mechanical properties, the myocardium is similar to polymeric materials, which are the subject of rheology. The mechanical function of the cardiac muscle and pumping function of the heart are influenced by the rheological medium. Therefore, the study of the role of this medium in the functioning of the heart in both normal and pathological conditions is crucial. Consequently, the authors analyzed the passive myocardium as a biological medium to which the experimental and theoretical apparatus of classical mechanics of deformable media, primarily rheology, i.e., from the positions of elasticity, viscosity, and plasticity, is applicable and did not consider large hyperelastic deformations characteristic to cardiac tissues.
Soft biological tissues are complex, heterogeneous (heterophase), anisotropic, physically nonlinear, and virtually incompressible (Poisson’s ratio µ ≈ 0.5) and physiologically active structures. Sarvazyan, head of the laboratory of the Institute of Theoretical and Experimental Biophysics of the Russian Academy of Sciences, investigated the difficulty of finding the Young’s modulus of soft tissues of the body. Nevertheless, recent studies have noted that solving problems of elasticity theory is beneficial for overcoming the problems of diagnostics of pathologies of soft biological tissues of human body organs. Moreover, it is critical to have knowledge of deformation and strength properties of heart tissues to predict possible complications during surgical reconstructive interventions performed in prosthetics [4–6].
Methodological aspects of studying elastic properties of myocardial structures
Our understanding of the constitutive (establishing, determining, forming the basis) relations concerning the mechanical properties of the heart wall is limited. It is based on the results of uniaxial studies of samples obtained by dissection of tissues from different parts of the heart such as the ventricular trabeculae [7]. Although one-dimensional studies contribute to the understanding of the fundamentals of cardiac mechanics, their quantitative or qualitative extrapolation to intact cardiac tissue is not fully justified. For example, what is isometric in the one-dimensional case is not so in three-dimensional measurements, since the lateral edges of the specimens are not fixed during the test and can deform freely [8]. Given that the majority of the heart wall is subjected to multiaxial loads, extrapolations based on uniaxial data may not accurately reflect the true tissue stresses or strains. Moreover, Izakov et al. [2] observed that the drug behaves stiffer under biaxial tension than under uniaxial strains. Consequently, uniaxial tests provide underestimated values of tangential moduli. Moreover, theoretically, uniaxial data cannot be generalized to establish relationships for a three-dimensional model. To obtain the fundamental results to understand three-dimensional myocardial mechanics, acquiring knowledge of the myocardial properties under multiaxial loading is crucial [9–12]. Only if one assumes that the tissue is incompressible can the two-dimensional test data be generalized to obtain complete three-dimensional constitutive relations [13, 14]. Consequently, research should focus on measuring multiaxial forces and strains in isolated tissue, from which constitutive relations for the gender myocardium will then be derived. Nevertheless, uniaxial tests of biotissues remain popular among researchers because of the relative simplicity of experimental techniques and theoretical calculations. Thus, the aim of the study [7] was to determine the relationship between one- and two-dimensional stresses and strains of isolated canine myocardial tissues and study the following aspects: the degree of viscoelasticity under biaxial loading, presence and degree of anisotropy between fibers in the longitudinal and cross direction, regional heterogeneity of material properties, and specificity of the difference between the results of uniaxial and biaxial tests of the same specimen.
A brief review of studies of elastic properties and hyperelastic models of the myocardium
The mechanical properties of the myocardium are a subject of intense experimental investigation. As stated by [15], if we exclude the results on experimental objects with elastic moduli above 150 kPa (which are atypical, e.g., 400 kPa for the “systolic modulus” of dogs [16]) from the analysis, we obtain that the Young’s modulus of human and mechanical properties of animal heart tissues exhibit a considerable range, spanning from 29.25 ± 9.42 to 65.10 ± 12.74 kPa (M ± m). This variation is attributed to various factors, including the magnitude of deformation, measurement methods, and other variables. Importantly, there is no consensus regarding the type of elastic anisotropy observed in cardiac tissue. This is evidenced by the observed differences in the elastic moduli of myocardial sections, which depend on the direction of deformation in these sections.
Recently, alongside the conventional mechanical and ultrasound tests, other physical methods for measuring the deformation parameters of tissues have gained increasing popularity. In a study, myocardial elastography, a method based on radiofrequency (RF) correlation, was developed to assess the local distribution of strain in the heart in vivo [17]. A three-dimensional approach was employed to accurately measure inhomogeneities such as lesions after RF ablation or infarction. The study demonstrated that three-dimensional myocardial elastography is a valuable approach for assessing the regional distribution of deformations in three dimensions in cardiac patients and that the assessment of tissue deformations is significant in clinical cardiology, as it enables the quantitative assessment of cardiac function.
As observed in that myocardial stiffness plays a crucial role in cardiac function [18]. Currently, it can be invasively and indirectly assessed by catheter angiography. The aim of this study was to demonstrate the feasibility of quantifying right ventricular stiffness noninvasively by cardiac magnetic resonance elastography in dogs with severe congenital pulmonary valve stenosis causing right ventricular hypertrophy and to compare it with remote left ventricular myocardium. Furthermore, correlations between stiffness and selected pathophysiological parameters obtained by transthoracic echocardiography and cardiac magnetic resonance imaging were investigated.
Despite the existence of several studies on myocardial biomechanical properties, information on systematic studies of the parameters of hyperelastic properties of cardiac tissues is lacking. In a study by [15, 19], myocardial hyperelastic properties were described using the two-parameter Mooney–Rivlin model, and numerical values of the C10 and C01 coefficients of the model were obtained. The authors conducted an investigation into the hyperelastic properties of myocardium, using curves sourced from [4] and derived from the results of mechanical tensile tests. The study examined 80 hearts obtained from corpses of adult individuals (men and women) aged 31–70 years. The epicardium, ventricular myocardium, and endocardium samples were stretched in two directions. The authors of [20] characterized the passive mechanical properties of late fetal and neonatal pig hearts using biaxial mechanical testing as a surrogate for the mechanical properties of the human fetal heart. Samples from both right and left ventricles at late gestation from 85 days to delivery were used. Subsequently, constitutive modeling was performed using a transversal-isotropic model of the Fang and Humphrey type that factors in fiber orientation. No significant difference in mechanical stiffness was found in all age groups and between the right and left ventricular samples. The rationale for this work was to characterize the variability of myocardial stiffness during deformation.
A comprehensive examination of the application of biomechanical models to investigate the passive properties of myocardium under finite strain was presented by Avazmohammadi et al. [21]. The authors provided the constitutive equations of the models and classified them according to symmetry groups (isotropic, transversally isotropic, and orthotropic) and by the parameters on which they were based (equality of invariants of the strain tensor W = Ψ (Ii) or strain components W = Ψ (Eij); the authors’ designations are preserved). However, a review of the literature revealed that majority of models are relatively uncommon and have not been widely used in the field of large deformation mechanics. An exception to this is the Holzapfel–Ogden model, which has been presented in the literature as the Holzapfel model [1] or the Ogden model [22]. Furthermore, the review did not include a comparative analysis of the accuracy of approximation of passive myocardial properties by different models.
In investigated the mechanical response of passive sheep myocardium obtained from three different regions of the heart [1]. Tissue samples from the central regions of the left and right ventricles and from the interventricular septum were obtained. The results demonstrated that the Choi–Vito and Fang models exhibited the greatest fit to the left ventricle, whereas the Holzapfel, polynomial (anisotropic), and four-fiber family models demonstrated the greatest fit to the right ventricle. The authors observed that two of the six models applied were associated with the use of the Green–Lagrange tensor and four with the use of Ik strain invariants. For more than 30 years, the Fang model has been widely used to characterize the nonlinearity of soft biological tissues. However, there has been no systematic discussion on the statistical parameters of either elastic or hyperelastic models of myocardial structures.
The present study aimed to identify the mechanical properties of passive myocardial tissues by analyzing the most well-known elastic and hyperelastic models.
Materials and methods
In this study, computer models were compared with experimental data obtained by scientists from the Johns Hopkins Medical Institute (1983) [7]. The study material was obtained from 49 nonbreed dogs weighing approximately 20 kg that had previously received anesthesia. Sodium heparin (2000 units) was administered intravenously to suppress thrombus formation in myocardial vessels before heart extraction from the animal. Following extraction, the heart was immediately rinsed and immersed in ice-cold oxygenated saline for several minutes before sectioning. The anterior and posterior free walls of the left ventricle and basal and apical halves (above and below the equator), were examined. Strains in the central part of the specimen were measured to minimize edge artifacts. Differences in thickness within each specimen were minimized by sampling. Flat slices of the free wall of the left ventricular heart were studied under mechanical biaxial and uniaxial tests. Epicardial and endocardial specimens were not used owing to the presence of substantial coronary vessels and trabeculations, respectively.
The deformation properties of myocardial tissues were investigated using the computer algebra system Mathcad 15.0 and the application program package ANSYS 2022 R2. The linfit and genfit functions were employed to determine the parameters of linear and exponential functions, respectively, and the correlation coefficients, which were calculated using the corr Mathcad 15.0 function. The fit of the model data to the experimental data in the ANSYS 2022 R2 package was evaluated using the Error Norm for Fit function in the absolute error position.
In the construction of adequate phenomenological numerical deformation models of biological tissues, the function σ = σ (ε) is selected, where σ is the applied mechanical stress and ε is the relative strain. This function is preferred because it minimizes the discrepancies between calculated and experimental data. The linear model, also called Hooke’s law, is a common choice owing to its relative simplicity and the uniqueness of the parameter, Young’s modulus E = σ/ε. Moreover, a multiphase model, such as a two-phase bilinear model with two Young’s moduli, E1 and E2, is commonly used. This model reflects the bimodular nature of deformation properties observed in biological tissues. Indeed, soft biotissues are composite materials composed of components with different mechanical properties. Therefore, it is not surprising that such a material exhibits complex mechanical behavior. As evidenced by the literature data, at the initial stage of tissue deformation, the elastin matrix with elasticity modulus E1 is responsible for elasticity, acting as a bearing element. Collagen fibers are included in the deformation process later, only at ε = εcr. They are significantly stiffer and initiate the increase of the total Young’s modulus of the tissue up to E2. In the historical context, other functions σ = σ (ε) are defined by the following formulas: ε2 = aσ2 + bσ (Wertheim, 1847) [24], ε = aσn (Morgan, 1960) [25], σ = kεd and σ = B [emε – 1] (Kenedi, 1964) [26], and ε = C + kσb and ε = x + y lg σ (Ridge and Wright, 1964) [27]. These formulas were proposed, but were not widely recognized. The authors of proposed the regression functions Stress = aeb (strain) + c to approximate the experimental σ–ε curves of the left ventricular myocardium of Sprague–Dawley rats during mitral regurgitation [28]. They used the three-parameter dependence stress = A [exp B (stretch ratio) – 1] + C [7]. The exponential approximation is recommended by biomechanists because of the high degree of correlation observed between experimental and calculated data [29, 30]. Furthermore, the efficacy of the e-approximation is supported by considerable evidence indicating the exponential nature of the J-dependence of stress–strain σ = σ (ε) observed in the majority of soft biological tissues [31, 32]. Additionally, the exponential function is the most popular because it describes the hardening effect of soft tissue deformation.
Table 1 / Таблица 1
Elastic models used in the study
Упругие модели, использованные в исследовании
Model | Mathematical formulation |
Linear | σ = Eε |
Bilinear | σ = E1ε + E2 (ε – εcr) θ(ε – εcr) |
Exponential | σ = a (ebε – 1) |
Note: E, Young’s modulus in the linear model; E1 = Emin, E2 = Emax, Young’s moduli in the bilinear model; θ, a step function of Heaviside, equal to zero for negative values of the argument and one for positive values; parameters a and b correspond to the greatest accuracy of approximation of the exponential model; e ≈ 2.72, the base of natural logarithms.
Table 2 / Таблица 2
Elastic modulus of linear, bilinear, and exponential models
Модули упругости линейной, билинейной и экспоненциальной моделей
Model | Mathematical formulation |
Linear | E |
Bilinear | E1 = Emin = ab, E2 = Emax = abebεmax |
Exponential | E (ε) = Emax = abebε,
|
Table 3 / Таблица 3
List of hyperelastic models used in the study
Список гиперупругих моделей, использованных в исследовании
Model | Mathematical formulation | Source |
Neohookean | ||
Mooney–Rivlin | [33] | |
Ogden | [22] | |
Yeoh | [35] | |
Polynomial, five-parameter | σ = 2 (λ – λ–2)[C10 + C01λ–1 + 2C20 (λ2 + 2λ–1 – 3) + + 2λ–1C02 (2λ + λ–2 – 3) + 3C11 (λ – 1 – λ–1 + λ–2)] | [36] |
Veronda–Westmann |
| [37] |
Note: σ, conditional stresses; λ = ε + 1, coefficients (multiplicities) of deformation; the rest, material constants of hyperelastic models.
In our study of myocardial deformation properties, the experimental σ–ε curves [7] were approximated by various functions (Table 1).
Table 2 shows the formulas used to determine the values of elastic moduli in the bilinear and exponential model.
Furthermore, the present study examined the differences in myocardial tissue isolated from the left ventricular wall by comparing six hyperelastic models: the neohookean, Mooney–Rivlin, Ogden, Yeoh, polynomial, and Veronda–Westmann models. Table 3 summarizes the constitutive equations of these models.
Electron microscopic study was performed using a Hitachi 12A microscope.
Results and discussion
Elastic modules
In the longitudinal direction, the experimental graph of σ–ε tensile tests of specimens and calculated curves plotted using linear, bilinear, and exponential functions are presented in Fig. 1. The experimental graph of σ–ε and regression curves for the transverse direction exhibit a similar appearance.

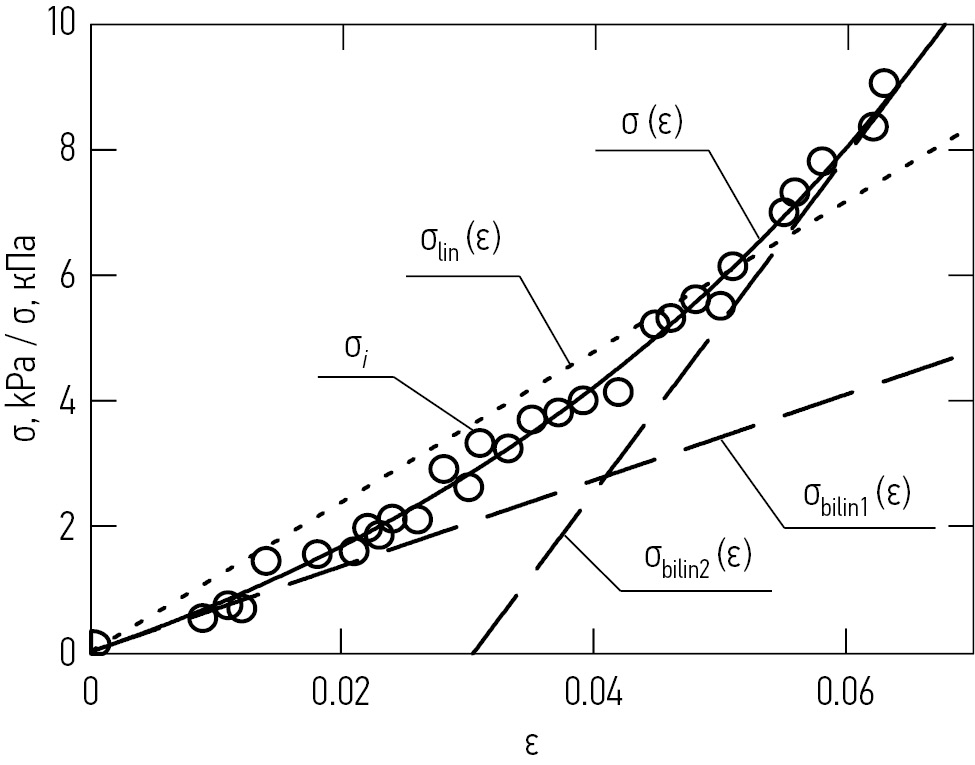

Fig. 1. Longitudinal direction. Stress-strain graphs of myocardial models: linear σlin, bilinear σbilin (with 2 elastic modules E1 and E2) and exponential σ (ε). The points σi represent experimental data, ε is the relative deformation
Рис. 1. Направление вдоль волокон. Графики напряжение – деформация моделей миокарда: линейной σlin, билинейной σbilin (с двумя модулями упругости E1 и E2) и экспоненциальной σ (ε). Точки σi — опытные данные, ε — относительная деформация
Table 4 presents the parameters of the deformation and strength properties of the three elastic models used.
Table 4 / Таблица 4
Parameters of linear, bilinear, and exponential models of deformation and strength properties of myocardial tissues. Mathcad 15.0
Параметры линейных, билинейных и экспоненциальных моделей деформационных и прочностных свойств тканей миокарда. Mathcad 15.0
Direction relative to fibers | Deformation properties of the model | Strength properties (experience) | |||||||
exponential | linear | bilinear | |||||||
a, kPa | b | Eavg, kPa | Elin, kPa | E1, kPa | E2, kPa | åcr | åmax | ómax, kPa | |
Longitudinal | 3.359 | 20.343 | 145.92 | 119.627 | 68.33 | 267.43 | 0.041 | 0.067 | 9.557 |
Transverse | 1.307 | 18.317 | 70.174 | 55.016 | 23.93 | 155.03 | 0.066 | 0.101 | 7.358 |
Note: εcr, deformation corresponding in the bilinear model to the point where σbilin1 = σbilin2 (Fig. 1), at which the elastin mechanism of deformation of soft biological tissues is replaced by the collagen mechanism.
Table 4 illustrates that myocardial tissues exhibit greater stiffness in the longitudinal direction than in the transverse direction, as evidenced by deformation and strength parameters (Eavg, 145.92 and 70.174 kPa). In the longitudinal direction, the myocardial tissues show increased stiffness (σmax 9.557 and 7.358 kPa), whereas in the transverse direction, they display elevated plasticity (εmax 0.101 and 0.067), which is consistent with the experimental data [7].
Table 5 / Таблица 5
Statistical indicators of exponential models of myocardial tissues, Mathcad 15.0
Статистические показатели экспоненциальных моделей тканей миокарда, Mathcad 15.0
Direction relative to fibers | Standard deviation SD, kPa | Maximum absolute error, kPa | Maximum relative error d, % | Correlation coefficient R |
Longitudinal | 0.048 | 0.078 | 5.517 | 0.9958* |
Transverse | 0.018 | 0.028 | 3.47 | 0.9984* |
* The correlation coefficient of the linear and bilinear models was 0.9812/0.9787.
The differential Young’s modulus of the myocardium in the exponential model is incremental; that is, it increases with strain. The calculated modulus in the longitudinal/transverse direction exhibited a minimum at baseline (68.33/23.93 kPa), a maximum at ε = εmax (267.43/155.03 kPa), and an Emax/Emin ratio (an index of nonlinearity of elastic properties) of 3.91/6.48. These results slightly differ from those obtained for biaxial testing of the pig fetal heart (15.20 ± 6.28/7.21 ± 4.80 and 83.89 ± 51.80/ 34.81 ± 31.78 kPa, Emax/Emin = 5.52/4.82) and significantly differ from the known data for other biotissues, for example, for the oral mucosa (E1 = 0.15, E2 = 16.5 MPa [38]) and periodontal ligament (E1 = 0.05, E2 = 10 MPa, εcr = 0.075 [39]). The parameters of the relationship σ = a (ebε – 1) were calculated with a = 3.359/1.307 kPa and b = 20.343/18.317 (determined using the genfit Mathcad 15.0 function).
The myocardial elastic anisotropy coefficient, defined as the ratio of elastic moduli of the linear model measured along and across the fibers, was found to be 119.627/55.016 kPa = 2.18. This value coincides with the literature data (1.2–2.6) [40], which also demonstrated that in rat myocardium, the right ventricular tissue shows more pronounced anisotropic behavior than the left ventricular tissue and interventricular septum. The authors employed the ratio of maximum tangent modulus values along and across myocardial fibers as an index of anisotropy.
In an isotropic material, the mechanical properties are consistent in all directions of deformation. In contrast, an anisotropic material exhibits mechanical properties that vary depending on the direction of deformation. Orthotropic material represents a special case of anisotropy, where changes occur in three mutually orthogonal directions. This phenomenon is further observed in the myocardium [41]. While a healthy myocardium can be considered orthotropic, a significant degree of anisotropy, although not orthotropy, is observed in scar tissue. This was established by a study evaluating the mechanical properties of rat myocardium in response to myocardial infarction. The equiaxial stretching test revealed a continuous increase in elastic modulus within 28 days after myocardial infarction when the tissue was stretched perpendicular to the fibers, whereas no differences were found when stretching parallel to the fibers [42].
The specific strain work of the specimens, geometrically equal to the area under the curve σ (ε), was calculated as a definite integral:
Along the fibers, it was 3.81, whereas across, it was 2.52 mJ/cm3. Thus, deformation along the fibers of cardiac muscle is more energy-consuming in the direction along the fibers than across, further indicating the presence of elastic anisotropy in the myocardium.
Table 5 presents statistical parameters that demonstrate the efficacy of the exponential model in the analysis of deformation properties of myocardial tissues. The mean squared error of the e-approximation was 0.048/0.018 (in the longitudinal/transverse direction relative to fibers), maximum absolute error was 0.078/0.028, and maximum relative error was 0.055/0.034. The correlation coefficient between experimental and model data was 0.9958/0.9984, indicating that the exponential model (σ = a (ebε – 1)) is sufficiently acceptable.
Hyperelastic models
All soft biological materials, including passive myocardial tissues of humans and animals, are hyperelastic [34]. However, the parameters of the hyperelastic properties of myocardium have not been studied in detail. In this study, the parameters of the main hyperelastic models are considered in the packages of specialized programs Mathcad 15.0 and ANSYS 2022 R2. These packages were used simultaneously to search for the most optimal calculation algorithms.

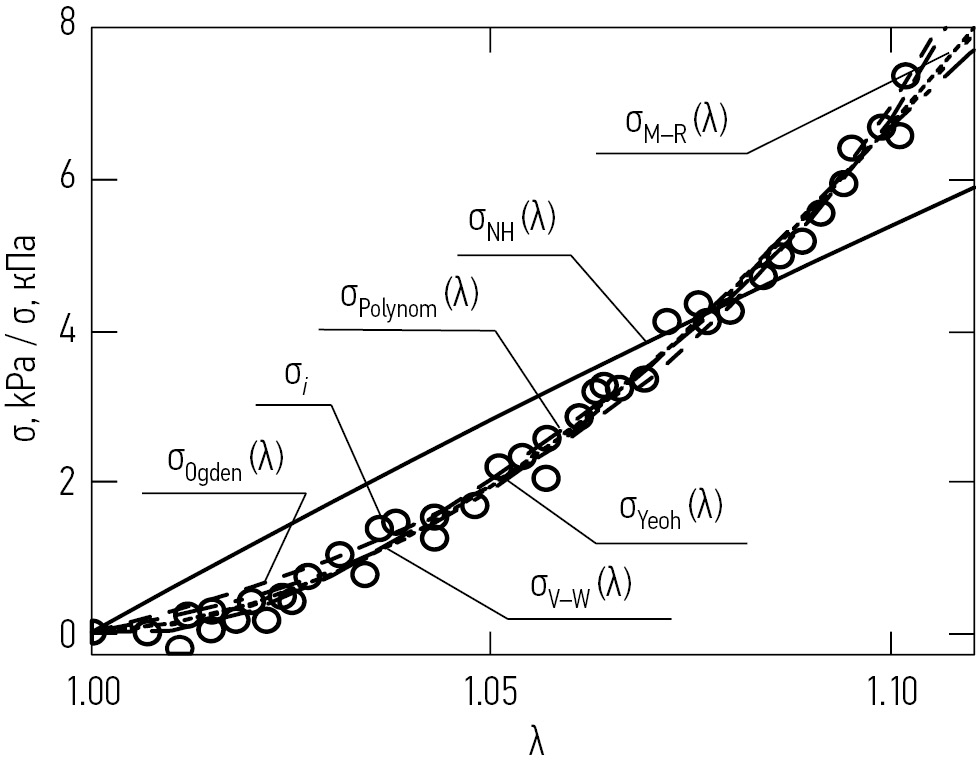

Fig. 2. Cross myocardial fibers direction. Experimental points (σi) and model curves of 6 hyperelastic models used: neohookean (NH), Mooney–Rivlin (M–R), Ogden (Ogden), Yeoh (Yeoh), polynomial (Polynom) and Veronda–Westmann (V–W). λ — strain coefficient
Рис. 2. Направление поперечно волокнам миокарда. Опытные точки (σi) и модельные кривые шести использованных гиперупругих моделей: неогуковской (NH), Муни – Ривлина (M–R), Огдена (Ogden), Йео (Yeoh), полиномиальной (Polynom) и Веронда – Вестманн (V–W). λ — коэффициент деформации
Table 6 / Таблица 6
Parameters of hyperelastic myocardial models in the longitudinal direction of the fibers
Параметры гиперупругих моделей миокарда в направлении вдоль волокон
Hyperelastic model (constant models) | Calculation method | μ, kPa | á | C10, C1, kPa | C01, C2, kPa | C20, C3, kPa | C02, kPa | C11, kPa |
Neohookean (μ) | Mathcad | 20.862 | – | – | – | – | – | – |
ANSYS | 41.72 | – | – | – | – | – | – | |
Mooney–Rivlin (C10, C01) | Mathcad | – | – | 281.004 | –272.88 | – | – | – |
ANSYS | – | – | 281.004 | –272.88 | – | – | – | |
Ogden (μ, α) | Mathcad | 1.74 | 27.83 | – | – | – | – | – |
ANSYS | 1.74 | 28.66 | – | – | – | – | – | |
Yeoh (C1, C2, C3) | Mathcad | – | – | 12.817 | 625.399 | –6.60 · 103 | – | – |
ANSYS | – | – | 12.817 | 625.399 | –6600.9 | – | – | |
Polynomial (C10, C01, C20, C02, C11) | Mathcad | – | – | 1.36 · 103 | –1.36 · 103 | –1.37 · 106 | –1.56 · 106 | 2.93 · 106 |
ANSYS | – | – | 1.36 · 103 | –1.36 · 103 | –1.37 · 106 | –1.57 · 106 | 2.94 · 106 | |
Veronda–Westmann (C1, C2, C3) | Mathcad | – | – | 35.562 | 3.815 | –124.57 | – | – |
The model myocardial curves are presented in a summary plot (Fig. 2). The numerical parameters of the models are provided in Tables 6 (longitudinal direction) and 7 (transverse direction), and the statistical metrics are presented in Table 8.
Notably, the difficulty associated with the application of most hyperelastic models is that the parameters of such models often lack physical meaning. Consequently, such models are challenging to approximate. This issue can be most effectively addressed in the NH (µ is the shear modulus) and two-parameter Mooney–Rivlin (2C10 + 2C01 = µ0 ≈ E0/3) models. The more accurate the initial shear modulus and approximate equality are, the more incompressible the hyperelastic material is. As is known, almost all soft biological tissues are incompressible (Poisson’s ratio: 0.5) or close to it. Nevertheless, an analysis of Tables 6–8 enables us to draw some conclusions.
Table 7 / Таблица 7
Parameters of hyperelastic myocardial models in the transverse fiber direction
Параметры гиперупругих моделей миокарда в направлении поперек волокон
Hyperelastic model | Calculation method | μ, kPa | á | C10, C1, kPa | C01, C2, kPa | C20, C3, kPa | C02, kPa | C11, kPa |
Neohookean (μ) | Mathcad | 9.823 | – | – | – | – | – | – |
ANSYS | 19.65 | – | – | – | – | – | – | |
Mooney–Rivlin (C10, C01) | Mathcad | – | – | 128.252 | –127.59 | – | – | – |
ANSYS | – | – | 128.252 | –127.59 | – | – | – | |
Ogden (μ, α) | Mathcad | 0.716 | 24.174 | – | – | – | – | – |
ANSYS | 0.739 | 24.716 | – | – | – | – | – | |
Yeoh (C1, C2, C3) | Mathcad | – | – | 3.351 | 241.665 | –1.9 · 103 | – | – |
ANSYS | – | – | 3.351 | 241.664 | –1.9 · 103 | – | – | |
Polynomial (C10, C01, C20, C02, C11) | Mathcad | – | – | 228.36 | –230.35 | 5.4 · 104 | 6.03 · 104 | –1.1 · 105 |
ANSYS | – | – | 228.36 | –230.36 | 5.4 · 104 | 6.03 · 104 | –1.1 · 105 | |
Veronda–Westmann (C1, C2, C3) | Mathcad | – | – | –549.82 | –0.262 | –144.08 | – | – |
For example, the inequalities ∂2W/∂λ2 > 0, where W is the strain energy, or ∂σ/∂λ > 0 (Hill [43] and Drucker [44] conditions) serve as a criterion for the mechanical stability of hyperelastic models in uniaxial tension. These inequalities indicate restrictions on the model parameters. For the two-parameter Mooney–Rivlin model, these restrictions are reduced to the inequality C10 + C01 > 0. Figure 2 and Tables 6 and 7 show that these inequalities are satisfied, indicating that this model is mechanically stable and can be applied in the whole range of deformations. All other elastic and hyperelastic models are stable (Figs. 1 and 2).
Tables 6 and 7 reveal that the only parameter of the NH model µ differs by a factor of two between the two program packages. This discrepancy is possibly due to the different forms of recording the constitutive equation of this model in ANSYS 2022 R2 and Mathcad 15.0 (Table 3). Thus, this issue should be clarified.
Table 8 / Таблица 8
Statistical parameters of hyperelastic models
Статистические параметры гиперупругих моделей
Hyperelastic model | Calculation method | Direction relative to fibers | Standard deviation SD, kPa | Maximum absolute error, kPa | Maximum relative error d, % | Correlation coefficient R |
Neohookean | Mathcad | Longitudinal | 0.804 | 1.07 | 11.195 | 0.98 |
Transverse | 0.821 | 1.191 | 16.182 | 0.974 | ||
ANSYS | Longitudinal | 18.763* | ||||
Transverse | 26.984* | |||||
Mooney–Rivlin two-parameter | Mathcad | Longitudinal | 0.226 | 0.548 | 5.738 | 0.997 |
Transverse | 0.213 | 0.404 | 5.485 | 0.995 | ||
ANSYS | Longitudinal | 1.488* | ||||
Transverse | 1.818* | |||||
First-order Ogden | Mathcad | Longitudinal | 0.22 | 0.397 | 4.152 | 0.9967 |
Transverse | 0.277 | 0.571 | 7.759 | 0.9931 | ||
ANSYS | Longitudinal | 1.399* | ||||
Transverse | 3.070* | |||||
Second-order Yeoh | Mathcad | Longitudinal | 0.214 | 0.475 | 4.975 | 0.997 |
Transverse | 0.238 | 0.495 | 6.727 | 0.994 | ||
ANSYS | Longitudinal | 1.355* | ||||
Transverse | 2.271* | |||||
Second-order polynomial | Mathcad | Longitudinal | 0.206 | 0.447 | 4.682 | 0.9971 |
Transverse | 0.198 | 0.495 | 6.725 | 0.9961 | ||
ANSYS | Longitudinal | 1.235* | ||||
Transverse | 1.571* | |||||
Veronda–Westmann | Mathcad | Longitudinal | 0.214 | 0.467 | 4.885 | 0.9968 |
Transverse | 0.212 | 0.45 | 6.117 | 0.9955 |
* Residual (ANSYS parameter).
Table 8 illustrates that the polynomial model exhibited the least discrepancy between the model and experimental data, with a mean square error of 0.198 kPa, maximum absolute error of 0.447 kPa, maximum relative error of 4.682 %, correlation coefficient between experimental and model data of 0.9971, and residual parameter (ANSYS 2022 R2) of 1.235. The simple NH model exhibited the greatest discrepancies (mean square error of 0.821 kPa, maximum absolute error of 1.191 kPa, maximum relative error of 16.182 %, correlation coefficient between experimental and model data of 0.974, and residual parameter of 26.984). The Yeoh, Veronda–Westmann, and Ogden models demonstrated a high correlation between experimental and calculated data (R = 0.997).
Comparison with literature data
In conclusion, we compare the modeling results presented in this report with those obtained by [15] from the Mooney–Rivlin model based on the data of Ostrovsky et al. [4] in the study of the elastic properties of the myocardium of hearts taken from adult human cadavers. The elastic modules (Elin, E1, E2 и Eavg) of human myocardium were found to be 2.77 ± 1.22 times smaller in modulus, and the type of elastic anisotropy was found to be opposite (less and more than unity: 0.86 and 2.18). It is plausible that this phenomenon was initially observed by Izakov et al., who noted that preparations from the outer layer of the ventricles exhibited greater stiffness across the fibers, whereas preparations from the inner layer demonstrated greater stiffness along the fibers [2]. The coefficients of the two-parameter Mooney–Rivlin models C10 and C01 exhibited a significant discrepancy from those obtained in this study. In the longitudinal direction, the average difference was 8.03 times less, whereas in the transverse direction, the average difference was 5.27 times less. We believe that this discrepancy may be attributed to several factors, including the methodological peculiarities in the preparation of biomaterial samples for the study, such as sectioning and fixation, which prevent the destruction and preservation of tissues prior to measurements. Additionally, differences in the methods of mechanical testing, particularly regarding strain rate, and in the calculated formulas of elastic properties may contribute to this discrepancy. It appears that the tested samples were from different localizations. Furthermore, the human heart is anatomically distinct from the dog heart. Additionally, according to Ref. [45], the directions of myocardial muscle fibers are not straightforward to determine.
Fig. 3. Myofibril, mitochondria and paravasal connective tissue. Longitudinal section of a cardiomyocyte fragment. Transmission electron microscopy, ×13,000. Arrow points to connective tissue next to a blood microvessel, the dotted line is the cut line in Fig. 4
Рис. 3. Миофибрилла, митохондрии и паравазальная соединительная ткань. Продольный срез фрагмента кардиомиоцита. Трансмиссионная электронная микроскопия, ×13 000. Стрелка указывает на соединительную ткань рядом с кровеносным микрососудом, пунктирная линия — линия среза на рис. 4
Figures 3 and 4 present electron microscopic images of myocardial slices longitudinally and transversely to its fibrous structures. In the myocardium, fibrillar structures of connective tissue origin, namely, collagen and elastic fibers, are scant. They are localized mainly in narrow connective tissue layers between myocardial muscle cells (cardiomyocytes) and accompanying blood vessels (arrow in Figure 3). The main volume is occupied by muscle cells, which belong to the transverse striated muscle tissue with the characteristic transverse striation. This striation of myofibrils is based on sequences of regularly repeating units, called sarcomeres. Each sarcomere is represented by a set of contractile filaments composed of actin (thin) and myosin (thick) filaments. These filaments interact with each other during contraction. The efficiency of contraction largely depends on the ordered packing of thick and thin filaments, which is most clearly demonstrated on cross sections (Fig. 4). This ordered packing is hexagonal, which is the most densely packed structure.
Fig. 4. Cross section of a myofibril. Transmission electron microscopy, ×60,000. Mutual hexagonal packing of thick and thin myofilaments. The cut was made approximately at the level indicated by the dotted line in Fig. 3
Рис. 4. Поперечный срез миофибриллы. Трансмиссионная электронная микроскопия, ×60 000. Взаимная гексагональная упаковка толстых и тонких миофиламентов. Срез проведен примерно на уровне, обозначенном пунктиром на рис. 3
The extent to which the collective contractile structures of cardiomyocytes influence the physicomechanical properties of the myocardium, particularly the parameters under investigation, remains uncertain. Hence, an exclusively passive mechanical response of the tissue cannot be assumed.
Finally, a considerable degree of dispersion was observed in the data pertaining to the parameters of elastic and hyperelastic models within a single series of measurements [1]. Regarding the values of myocardial elastic modules established in this study, they were found to be in satisfactory agreement with the reduced range (without atypical values) of 29–65 kPa, as previously established in Ref. [15] based on an analysis of literature data.
Conclusions
- The results of modeling the biomechanical properties of isolated myocardium using elastic and hyperelastic phenomenological models are presented. Numerical values of the parameters of linear, bilinear, and exponential models and of the main hyperelastic models (neohookean, Mooney–Rivlin, Ogden, Yeoh, polynomial, and Veronda–Westmann models) for uniaxial stretching of specimens along and across fibers were obtained.
- The myocardium cannot be considered as an isotropic tissue; its deformation behavior cannot be represented by models that do not factor in fiber orientation. The elastic and hyperelastic properties of the myocardium are anisotropic and depend on the preferential orientation of the tissue fibers. The coefficient of elastic anisotropy, defined as the ratio of the elastic moduli of a linear model measured along and across the fiber direction, was 2.18, and deformation along myocardial fibers is more energy-consuming than across fibers (3.81 and 2.52 mJ/cm3).
- The errors of the models have been examined. Among the elastic models of passive myocardium, the exponential model is the most suitable to approximate the experimental data; among the hyperelastic models, the polynomial, Yeoh, Veronda–Westmann, and Ogden models are the most suitable to approximate the experimental data (the correlation coefficient between experimental and calculated data of all the above models was R > 0.99).
- All investigated models are mechanically stable as they satisfy the Hill and Drucker conditions ∂2W/∂λ2 > 0, ∂σ/∂λ > 0 (W, internal energy of the material; σ, mechanical stress; and λ, strain ratio), and can be applied over the entire strain range.
- The present study demonstrates the importance of selecting an appropriate model for isolated myocardium. The established numerical characteristics can be used for accurate computer modeling of myocardial mechanical function in virtual interventions and in future work on emulation of elastic and hyperelastic properties of passive myocardial tissue. Moreover, the results can be used for developing replacement materials for reconstructive surgeries and applied in cardiac tissue engineering.
Additional information
Acknowledgments. The authors are grateful to the head of the Department of Histology, Cytology and Embryology of the Russian University of Medicine, Professor, Doctor of Medical Sciences, corresponding member RAS V.V. Banin for consulting and providing electron microscopic images of fibrous structures of the myocardium.
Funding source. The study was carried out within the framework of NIOKR AAAA16-116102010059-6 of the Federal State Budgetary Institution CITiS “Study of physical and mechanical properties of materials for medicine” and research work state registration 121072300086-8 “Analysis and synthesis of the dynamics of controlled systems in extreme situations”.
Ethics approval. No specific biomedical studies in humans were planned or conducted.
Competing interests. The authors declare that they have no competing interests.
Consent for publication. There are no personal medical data or photographs in the article.
Author contribution. All authors made a substantial contribution to the conception of the study, acquisition, analysis, interpretation of data for the work, drafting and revising the article, final approval of the version to be published and agree to be accountable for all aspects of the study.
Personal contribution of each author: S.A. Muslov — GC-MS, concept and design of the study, calculations in the Ansys 2022 R2 package, analysis and interpretation of data, writing the manuscript; Yu.A. Vasyuk — GC-MS, editing the manuscript, providing text and graphic material on the structure of the myocardium, making final corrections; A.I. Zavialova — collection and processing of materials for the review part of the article, proofreading of the manuscript; E.Yu. Shupenina — collection and processing of materials for the review part of the article; P.Yu. Sukhochev — calculations in the computer algebra system Mathcad 15.0, data analysis, preparation of graphic material in accordance with the requirements of the editor; L.Z. Guchukova — collecting and processing materials for the review part of the article, editing the manuscript for spelling and syntax errors, editing the list of publications.
Дополнительная информация
Благодарности. Авторы признательны заведующему кафедрой гистологии, цитологии и эмбриологии ФГБОУ ВО «Российский университет медицины» профессору, д-ру мед. наук, чл.-корр. РАН В.В. Банину за консультации и предоставление электронно-микроскопических снимков волокнистых структур миокарда.
Источник финансирования. Исследование выполнено в рамках НИОКТР АААА-А16- 116102010059-6 ФГАНУ ЦИТиС «Изучение физико-механических свойств материалов для медицины» и НИР № 121072300086-8 «Анализ и синтез динамики управляемых систем в экстремальных ситуациях».
Конфликт интересов. Авторы декларируют отсутствие явных и потенциальных конфликтов интересов, связанных с публикацией настоящей статьи.
Этический комитет. Специальные биомедицинские исследования у людей не планировались и не проводились.
Информированное согласие на публикацию. Персональные медицинские данные и фотографии в статье отсутствуют.
Вклад авторов. Все авторы внесли существенный вклад в разработку концепции, проведение исследования и подготовку статьи, прочли и одобрили финальную версию перед публикацией.
Наибольший вклад распределен следующим образом: С.А. Муслов — концепция и дизайн исследования, расчеты в пакете Ansys 2022 R2, анализ и интерпретация данных, написание рукописи; Ю.А. Васюк — редактирование рукописи, предоставление текстового и графического материала по структуре миокарда, внесение окончательной правки; А.И. Завьялова — сбор и обработка материалов для введения и обзорной части статьи, консультации по основной части, вычитывание рукописи; Е.Ю. Шупенина — сбор и обработка материалов для обзорной части статьи; П.Ю. Сухочев — расчеты в системе компьютерной алгебры Mathcad 15.0, анализ данных, подготовка графического материала; Л.З. Гучукова — сбор и обработка материалов для обзорной части статьи, редактирование рукописи, редактирование списка публикаций.
About the authors
Sergey A. Muslov
Russian University of Medicine
Author for correspondence.
Email: sergeymuslov@yandex.ru
ORCID iD: 0000-0002-9752-6804
SPIN-code: 7213-2852
Scopus Author ID: 6507596970
ResearcherId: AAK-9440-2020
Cand. Sci. (Physics and Mathematics), Dr. Sci. (Biol.), Professor of the Department of Normal Physiology and Medical Physics
Russian Federation, 20 building 1 Delegatskaya St., Moscow, 127473Yury A. Vasyuk
Russian University of Medicine
Email: yvasyuk@yandex.ru
ORCID iD: 0000-0003-2913-9797
SPIN-code: 2265-5331
Scopus Author ID: 6508291333
ResearcherId: G-1772-2013
MD, Dr. Sci. (Med.), Professor, Scientific Secretary, Head of the Department of Hospital Therapy No. 1, Honored Doctor of the Russian Federation, Honored Worker of Higher Education of the Russian Federation
Russian Federation, 20 building 1 Delegatskaya St., Moscow, 127473Alla I. Zavialova
Russian University of Medicine
Email: allaz05@list.ru
ORCID iD: 0009-0001-1727-4388
SPIN-code: 4883-7130
MD, Cand. Sci. (Med.), Assistant Professor, Department of Hospital Therapy No. 1, Head of the Therapeutic Department of the Kuskovo Medical Center
Russian Federation, 20 building 1 Delegatskaya St., Moscow, 127473Elena Yu. Shupenina
Russian University of Medicine
Email: eshupenina@mail.ru
ORCID iD: 0000-0001-6188-4610
SPIN-code: 2090-9938
MD, Cand. Sci. (Med.), Professor of the Department of Hospital Therapy No. 1
Russian Federation, 20 building 1 Delegatskaya St., Moscow, 127473Pavel Yu. Sukhochev
Lomonosov Moscow State University
Email: ps@moids.ru
ORCID iD: 0000-0002-8004-6011
SPIN-code: 7780-8694
Researcher at the Laboratory of Mathematical Support for Simulation Dynamic Systems, Department of Applied Research, Faculty of Mechanics and Mathematics
Russian Federation, MoscowLayla Z. Guchukova
Odintsovo Regional Hospital
Email: Gucci.loca@mail.ru
ORCID iD: 0009-0007-2150-6034
SPIN-code: 8280-0970
general practitioner
Russian Federation, Odintsovo, Moscow RegionReferences
- Nemavhola F, Pandelani T, Ngwangwa H. Fitting of hyperelastic constitutive models in different sheep heart regions based on biaxial mechanical properties. bioRxiv preprint. 2021. doi: 10.1101/2021.10.28.466240
- Izakov VYa, Markhasin VS, Yasnikov GP, et al. Vvedenie v biomekhaniku passivnogo miokarda. Moscow: Nauka; 2000. (In Russ.)
- Skovoroda AR. Zadachi teorii uprugosti v probleme diagnostiki patologii myagkikh biologicheskikh tkanei. Moscow; 2006. (In Russ.)
- Ostrovsky NV, Chelnokova NO, Golyadkina AA, et al. Biomechanical parameters of the ventricles of the human heart. Fundamental research. 2015;(1–10):2070–2075. (In Russ.)
- Ovcharenko EA, Kalashnikov KYu, Glushkova TV, Barbarash LS. Modeling of implantation of a bioprosthesis by the finite element method. Complex problems of cardiovascular diseases. 2016;(1):6–11. (In Russ.) doi: 10.17802/2306-1278-2016-1-6-11
- Shilko SV, Kuzminsky YuG, Borisenko MV. Mathematical model and software implementation of monitoring of the cardiovascular system. Problems of Physics, Mathematics and Technics. 2011;3(8):104–112. (In Russ.)
- Demer Linda L, Yin Frank C. Passive biaxial mechanical properties of isolated canine myocardium. J Physiol. 1983;339(1):615–630. doi: 10.1113/jphysiol.1983.sp014738
- Fung YC. Elasticity of soft tissues in simple elongation. Am J Physiol. 1967;213(6):1532–1544. doi: 10.1152/ajplegacy.1967.213.6.1532
- Mirsky I. Assessment of passive, elastic stiffness of cardiac muscle: mathematical concepts, physiologic and clinical considerations, directions of future research. Prog Cardiovasc Dis. 1976;18(4):277–308. doi: 10.1016/0033-0620(76)90023-2
- Fung YC. Biorheology of soft tissues. Biorheology. 1973;10(2):139–155. doi: 10.3233/bir-1973-10208
- Panda SC, Natarajan R. Finite-element method of stress analysis in the human left ventricular layered wall structure. Med Biol Eng Comput. 1977;15(1):67–71. doi: 10.1007/bf02441577
- Smolyuk LT, Protsenko YL. Mechanical properties of passive myocardium: experiment and mathematical model. Biophysics. 2010;55(5):905–909. (In Russ.) doi: 10.1134/S0006350910050209
- Green AE, Adkins JE. Large Elastic Deformations and Nonlinear Continuum Mechanics. Oxford: Clarendon; 1960. doi: 10.2307/3613144
- Fung YC. Biomechanics, its scope, history, and some problems of continuum mechanics in physiology. Appl Mech Rev. 1973;21(1):1–20. doi: 10.1016/0043-1648(68)90345-1
- Muslov SA, Lotkov AI, Arutyunov SD, Albakova TM. Calculation of parameters of mechanical properties of the heart muscle. Perspective materials. 2020;(12):42–52. (In Russ.) doi: 10.30791/1028-978x-2020-12-42-52
- Anliker M. Direct measurements of the distensibility of heart ventricles. Presented at the 2nd Annual Workshop of the Basic Science Council of the American Heart Association, Ames Research Centre. Moffett Field, Calif., 1968 4-8th Aug.
- Papadacci C, Bunting EA, Wan EY, et al. 3D myocardial elastography in vivo. IEEE Trans Med Imaging. 2017;36(2):618–627. doi: 10.1109/TMI.2016.2623636
- da Silveira JS, Scansen BA, Wassenaar PA, et al. Quantification of myocardial stiffness using magnetic resonance elastography in right ventricular hypertrophy: initial feasibility in dogs. Magn Reson Imaging. 2016;34(1):26–34. doi: 10.1016/j.mri.2015.10.001
- Muslov SA, Albakova MB, Guchukova LZ. Constants of the hyperelastic Mooney–Rivlin model of the ventricular wall of the heart. Cardiological Bulletin. 2021;16(2–2):39. (In Russ.)
- Ren M, Ong CW, Buist ML, Yap CH. Biventricular biaxial mechanical testing and constitutive modelling of fetal porcine myocardium passive stiffness. J Mech Behav Biomed Mater. 2022;134:105383. doi: 10.1016/j.jmbbm.2022.105383
- Avazmohammadi R, Soares JS, Li DS, et al. A contemporary look at biomechanical models of myocardium. Annu Rev Biomed Eng. 2019;21:417–442. doi: 10.1146/annurev-bioeng-062117-121129
- Ogden RW, Saccomandi G, Sgura I. Fitting hyperelastic models to experimental data. Comput Mech. 2004;34(6):484–502. doi: 10.1007/s00466-004-0593-y
- Chen J, Ahmad R, Li W, et al. Biomechanics of oral mucosa. J R Soc Interface. 2015;12(109):20150325. doi: 10.1098/rsif.2015.0325
- Wertheim MG. Memoire sur l’elasticite et la cohesion des pricipaux tissus du corps humain. Ann Chimie Phys Paris (Ser. 3). 1847;21:385–414.
- Morgan FR. The mechanical properties of collagen fibers: stress-strain curves. J Soc Leather Trades Chem. 1960;44:171–182.
- Kenedi RM, Gibson T, Daly CH. Bioengineering study of the human skin. In: Structure and Function of Connective and Skeletal Tissue. S.F. Jackson, S.M. Harkness, R. Tristram (eds.) Scientific Comittee, St. Andrews, Scotland; 1964. P. 388–395. doi: 10.1016/b978-1-4831-6701-5.50022-x
- Ridge MD, Wright V. Mechanical properties of skin: A bioegineering study of skin texture. J Appl Physiol. 1966;21(5):1602–1606. doi: 10.1152/jappl.1966.21.5.1602
- Corporan D, Saadeh M, Yoldas A, et al. Passive mechanical properties of the left ventricular myocardium and extracellular matrix in hearts with chronic volume overload from mitral regurgitation. Physiol Rep. 2022;10(14):e15305. doi: 10.14814/phy2.15305
- Yamada H. Strength of Biological Materials. Baltimore; 1973. doi: 10.1126/science.171.3966.57-a
- Muslov SA, Pertsov SS, Arutyunov SD. Fiziko-mekhanicheskie svoistva biologicheskikh tkanei. Ed. by O.O. Yanushevich. Moscow; 2023. 457 p. (In Russ.)
- Fung Y.C. Biomechanics: Mechanical Properties of Living Tissues. Second edition. Springer; 1993. 586 p. doi: 10.1115/1.2901550
- Muslov SA, Pertsov SS, Chizhmakov EA, et al. Elastic linear, bilinear, nonlinear exponential and hyperelastic skin models. Russian Journal of Biomechanics. 2023;27(3):89–103. (In Russ.) doi: 10.15593/RZhBiomeh/2023.3.07
- Ivanov DV, Fomkina OA. Opredelenie postoyannykh dlya modelei Neo–Guka i Muni–Rivlina po rezul’tatam ehksperimentov na odnoosnoe rastyazhenie. Bulletin of the Saratov University. Mathematics. Mechanics. 2008;(10):114–117. (In Russ.)
- Shmurak MI, Kuchumov AG, Voronova NO. Analysis of hyperelastic models for describing the behavior of soft tissues of the human body. Master’s Journal. 2017;(1):230–243. (In Russ.)
- Yeoh OH. Some forms of the strain energy function for rubber. Rubber Chem Technol. 1993;66(5):754–771. doi: 10.5254/1.3538343
- Rivlin RS. Some applications of elasticity theory to rubber engineering. In: Collected Papers of R.S. Rivlin. 1997;1:9–16. doi: 10.1007/978-1-4612-2416-7_2
- Veronda DR, Westmann RA. Mechanical characterizations of skin-finite deformations. J Biomech. 1970;3(1):111–124. doi: 10.1016/0021-9290(70)90055-2
- Kanbara R, Nakamura Y, Ochiai KT, et al. Three-dimensional finite element stress analysis: the technique and methodology of nonlinear property simulation and soft tissue loading behavior for different partial denture designs. Dent Mater J. 2012;31(2):297–308. doi: 10.4012/dmj.2011-165
- Borak L, Florian Z, Bartakova S, et al. Bilinear elastic property of the periodontal ligament for simulation using a finite element mandible model. Dent Mater J. 2011;30(4):448–454. doi: 10.4012/dmj.2010-170
- Sacks M, Chuong C. Biaxial mechanical properties of passive right ventricular free wall myocardium. J Biomech Eng. 1993;115(2):202–205. doi: 10.1115/1.2894122
- Emig R, Zgierski-Johnston CM, Timmermann V, et al. Passive myocardial mechanical properties: meaning, measurement, models. Biophys Rev. 2021;13(5):587–610. doi: 10.1007/s12551-021-00838-1
- Sirry MS, Butler JR, Patnaik SS, et al. Characterisation of the mechanical properties of infarcted myocardium in the rat under biaxial tension and uniaxial compression. J Mech Behav Biomed Mater. 2016;63:252–264. doi: 10.1016/j.jmbbm.2016.06.029
- Hill R. A general theory of uniqueness and stability in elastic-plastic solids. J Mech Phys Solids. 1958;6(3):236–249. doi: 10.1016/0022-5096(58)90029-2
- Drucker DC. A definition of a stable inelastic material. J Appl Mech. 1959;26(1):101–195. doi: 10.1115/1.4011929
- Wang Y, Haynor DR, Kim Y. An investigation of the importance of myocardial anisotropy in finite-element modeling of the heart: methodology and application to the estimation of defibrillation efficacy. IEEE Trans Biomed Eng. 2001;48(12):1377–1389. doi: 10.1109/10.966597
