Molecular genetic mechanisms of sugar transport in plants in the absence and during arbuscular mycoryza development

Cover Page

Abstract


The review is aimed to analyze molecular mechanisms of carbohydrate transport during the formation of arbuscular mycorrhiza (AM), a widespread symbiosis of plants with Glomeromycotina subdivision fungi. Due to AM-symbiosis, plants receive microelements, mainly phosphorus, and fungi are supplied by products of carbon assimilation. The study of sugar transport mechanisms in plants as well as between plants and symbiont is methodologically difficult because of the obligatory status of AM fungi. The mechanisms of carbohydrate transport in leaf and root cells are concerned, particular interest is paid to transporters, specific to AM structures. Several resumptive schemes are designed. SWEET family of transporters (Sugars Will Eventually be Exported Transporters), including AM-specific uniporters are reviewed. We summarize results on expression of genes encoding transporter in cells of plants without AM, in AM-plant cells with arbuscules and AM-plant cells without arbuscules. The data on genes of MST proteins family (Monosaccharide Transporters) participating in direct transport of sugars from the soil to the foliar mycelium of AM fungi are considered.


INTRODUCTION

Symbiosis biology is curretly focuses on revealing the mechanisms behind efficient symbiosis between plants and fungi in the form of arbuscular mycorrhiza (AM). AM is the most common rhizosphere symbiosis formed between plants (>92% of families) and fungi of the Glomeromycotina subdivision of the Mucoromycota subphylum [1]. AM is distributed from alpine meadows to tundra and deserts, achieving the most diverse communities in the taiga zone [2, 3]. AM has also been used actively to create artificial agrosystems. However, the successful development of biological farming is impossible without understanding the mechanisms of formation and development of effective plant–microbe interactions within agroecosystems.

AM fungus may have enabled plants’ occupation of land ecosystems almost 0.5 billion years ago, which played a key role in forming the contemporary biosphere [4]. Under the conditions of symbiosis, the fungus receives carbohydrates and fatty acids from the plant. These fatty acids constitute up to 70% of the total volume of metabolites received [5, 6], whereas the host plant receives phosphorus, water, and a number of macro- and microelements from the AM fungus [3]. Thus, the effectiveness of AM symbiosis probably depends largely on transport processes’ intensity. The transport of metabolites from plants to mycosymbionts, which are not able to feed themselves autotrophically since they have limited ability to synthesize the necessary organic substances, is very important. This is why they are considered plant symbionts [3]. In the case of carbohydrate metabolism violations and/or transport of its products to mycosymbiont, the plant–microbial interaction can change; specifically, it can shift from a mutualistic relationship to a parasitic one [3, 7, 8]. Revealing the genes encoding the enzymes involved in regulating carbohydrate metabolic intensity, as well as the transporters of host plant metabolites to AM, should contribute to a deeper understanding of the formation and development of effective AM symbiosis. This review presents the latest data on carbohydrate exchange and the transport of metabolites within plants without AM fungi and upon their inoculation.

TRANSPORT OF SUGARS FROM ABOVEGROUND PARTS OF PLANTS

In the 1980s and 1990s, research on carbohydrate transport within living organisms provided information about a wide range of proteins involved in this process: β-galactoside transporter, namely, LacY lactose permease, discovered in Escherichia coli [9]; uniporter of glucose human GLUT1 (Glucose Transporter 1) [10], sodium glucose human symporter SGLT1 (Sodium Glucose Linked Transporter 1) [11], and glucose transporter SNF3 (Sucrose Non-Fermenting 3) detected in Saccharomyces cerevisiae (identified in a mutant, not fermenting sucrose) [12]; chlorella hexose uptake protein HUP1 (Hexose uptake 1; supposed glucose/H+ chlorella symporter) [13]; plant sugar symporter STP (Sugar Transport Protein) revealed in Arabidopsis thaliana [14]; yeast hexose uniporter Hxt (Hexose Transporter), discovered in S. cerevisiae [15]; and plant sucrose/H+-symporter SUT (Sucrose Transporter) [16]. These plant studies have helped describe, in detail, the mechanisms of sugar transport both within cells and between different organs [17-20]. Subsequently, in 2006, tonoplastic protein antiporters of tonoplast membrane hexose transporter (TMT) family (Tonoplast Monosaccharide Transporters) monosaccharides were identified [21]. Later, in 2010, bidirectional sugar uniporters of the SWEET family (Sugars Will Eventually be Exported Transporters) were detected [22]. Moreover, in 2015, it was shown that the BvTST2.1 protein of the red beet (Beta vulgaris Tonoplast-localized Sucrose Transporter 2.1) is characterized by high similarity of amino acid sequences, with members of the transporter monosaccharide tonoplast family identified in A. thaliana. The authors renamed this group of proteins the Tonoplast Sugar Transporters (TST) [23]. The overall data accumulated, to date, provide an overview of sugar synthesis and transport within plant leaves (Fig. 1).

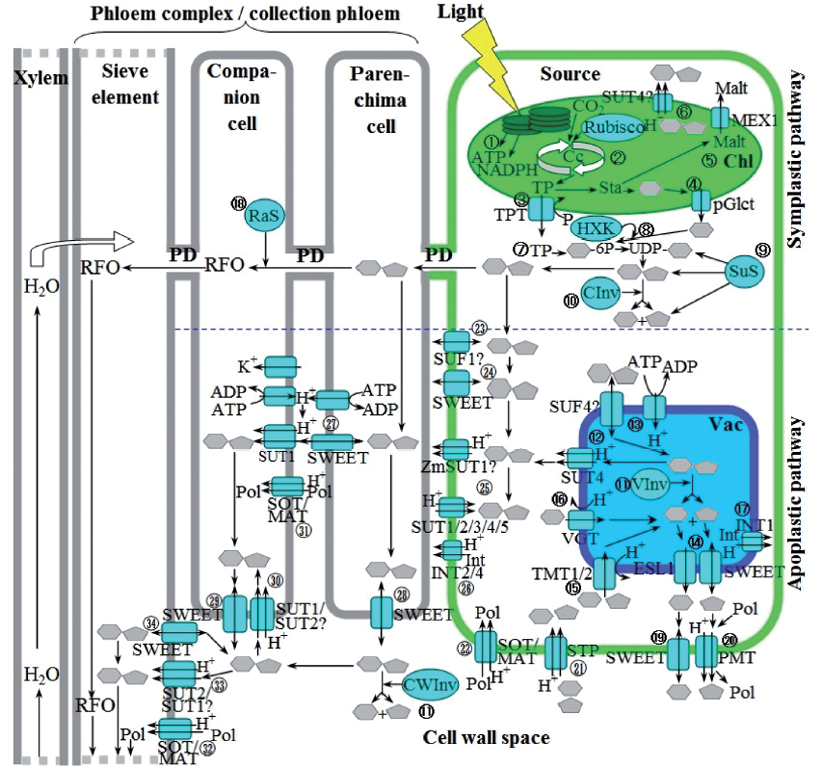

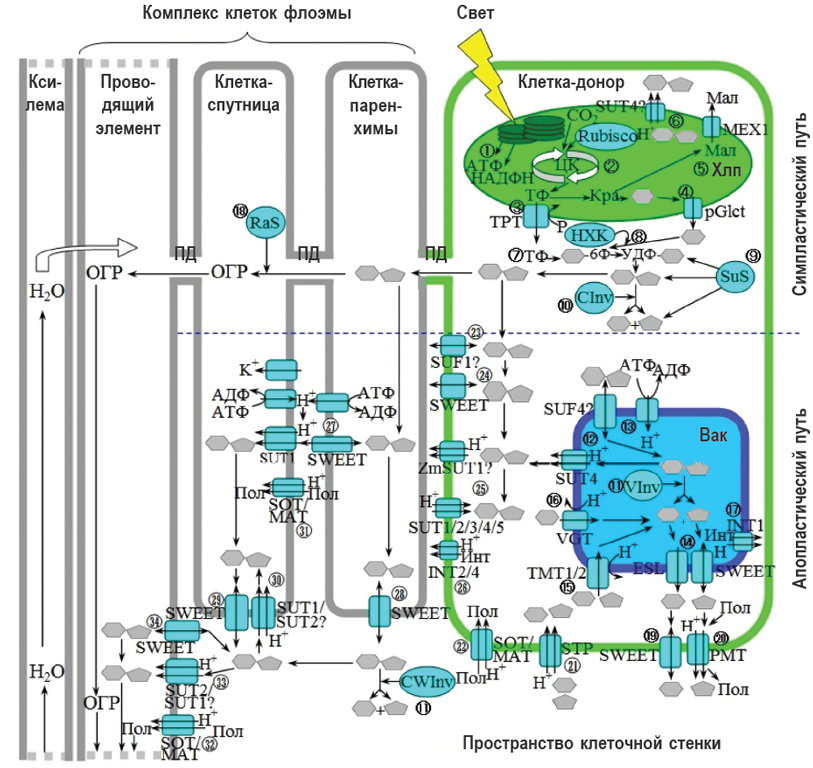

Fig. 1. General scheme of transport of sugars from the aerial parts of the plants (based on materials presented by [17-20] with changes and additions). Source – leaf mesophyll donor cell (Source mesophyll cell), PD – Plasmodesma, Malt – Maltose, Sta – Starch, Chl – Chloroplast, Rubisco – Ribulose-1,5-bisphosphate carboxylase/oxygenase, Vac – Vacuole, АТP – Adenosine triphosphate, ADP – Adenosine diphosphate, NADPH – reduced form of NADP+ – Nicotinamide Adenine Dinucleotide Phosphate, Cc – Calvin cycle, Р – inorganic orthophosphate , ТP – Triose-Phosphate, UDP- – Uridine diphosphate Glucose, -6P – glucose 6-phosphate, HXK – hexokinase,  – sucrose, hexoses:  – glucose, – fructose, RFO – Raffinose Family Oligosaccharides, CInv – Cytosolic Invertase, VInv – Vacuolic Invertase, CWInv – Cell Wall Invertase, Pol – Polyols, Int – Inositol. Description of scheme is presented in the text. To simplify the comparison of the text and data presented in the figures, the continuous numbering for transporters and ferments was carried out, which is represented by numbers in circles; a similar approach was used by [19–20]



Fig. 1 presents the conducting tissues array (xylem and phloem complex, leaf mesophyll cells) in which carbohydrate synthesis and transformation takes place, as well as the mechanisms of apoplastic and symplastic sugar transport. In the light phase of photosynthesis on thylakoid membranes, chlorophyll light energy is transformed into chemical bound energy. The energy is carried by the molecules of adenosine triphosphate acid (ATP) and nicotinamide adenine dinucleotide phosphate ( Fig. 1). This process is linked to the water photolysis system. In the dark phase of photosynthesis, the ribulose bisphosphate carboxylase/oxygenase Rubisco activities in the chloroplasts’ stroma are involved in fixating carbon dioxide gas in the Calvin cycle (in the case of C3 plants;  Fig. 1) and the synthesis of a number of organic compounds, including triosephosphate (TP). The TP then either leaves the chloroplasts’ stroma and enters the mesophyll cells’ cytosol, via Triose Phosphate/Phosphate Translocator [24, 25] ( Fig. 1), or, at the violation of outflow triose, is stocked up in the form of starch (“Sta” in Fig. 1). Splitting starch into glucose in the plastids enables its export to the cytosol via the plastidic Glucose Transporter/Suppressor of the G Protein Beta 1 (pGlct/SGB1) [26, 27] ( Fig. 1). The chloroplast maltose transporter 1, namely, MEX1 (Chloroplast Maltose Exporter 1;  Fig. 1) [28], transports maltose from plastids to the cytoplasm. Sucrose’s output, probably by sucrose transporter type 4 (SUT4) ( in Fig. 1), on the plastid membrane has also been demonstrated [17].

Triose phosphate’s transformation into glucose-6-phosphate and then into uridine diphosphate glucose ( Fig. 1) [17], as well as glucose phosphorylation by the hexokinase-1 enzyme ( Fig. 1), takes place in mesophyll cytoplasm [29]. The HXK1 enzyme (Hexokinase 1), which is now considered responsible for the perception and transmission of metabolic signals, mediates the glucose-induced repression of genes associated with photosynthesis, such as the gene encoding the small Rubisco subunit [30, 31]. HXK1 gene overexpression in Arabidopsis, tomato, and rice leads to decreased growth and chlorophyll content, inhibited photosynthesis, and decreased rbcS expression [31]. Sucrose Synthase (SuS) catalyzes the reversible reaction, which explains its involvement in both the synthesis of sucrose from uridine diphosphate glucose, and fructose, and in its catabolism ( Fig. 1) [17]. SUS-glycosyltransferase is believed to play a major role in providing the activated form of glucose (Uridine diphosphate glucose) during cellulose synthesis. In Medicago truncatula, five SUS genes were identified [32]. These encode a number ofof SUS specific for different plant tissues. The plant sucrose synthase gene family is usually represented by six forms, grouped into several subfamilies [33–35]. The leaf development stage shift causes expressions of various SUS forms. SUS synthesis intensifies under stress conditions [36].

Cytosolic Invertase (CInv) [17] splits sucrose up to glucose and fructose in donor cells’ cytoplasm ( see Fig. 1), whereas vacuolar invertase (VInv) [17, 18] splits sucrose in the vacuole of the donor cell (see Fig. 1), Cell Wall Invertase (CWInv) [17, 18] does the same in the cell wall space ( see Fig. 1). Regarding transport from the vacuole to mesophyll cytoplasm, sucrose arrives through the sucrose symporter SUT4 ( see Fig. 1), which is localized in the mesophyll vacuoles’ tonoplasts [37–39]. It should be noted that not all SUT4 transporters are localized in the vacuole membrane [38]. In contrast, regarding transport from cytoplasm to vacuole, sucrose probably moves via bidirectional energy-independent SUF4 (facilitator), as detected in Pisum sativum and Phaseolus vulgaris, ( see Fig. 1) [17, 40]. A representative member of the Early responsive to dehydration protein 6 monosaccharide transporters (ERD6-like transporters) localized in tonoplasts, namely, Early responsive to dehydration Six Like 1 (ESL1) (see Fig. 1) [17, 27]. ESL1 provide glucose export from vacuoles. In contrast, fructose withdrawal occurs via SWEET family proteins localized in the mesophyll cells’ tonoplasts (Sugars Will Eventually be Exported Transporters;  Fig. 1) [19, 22, 41]. Absorption of glucose and fructose into vacuole ( see Fig. 1) [17, 21], and that of glucose alone is mediated by the Vacuolar Glucose Transporter (VGT) ( see Fig. 1) [42]. Moreover, inositol’s transport from vacuoles is mediated by inositol transporter 1 (INT1) ( see Fig. 1) [17].

The symplastic pathway of sucrose transport from mesophyll cells to parenchyma cells passes through the plasmodesma. Thus, the transport of sugars from donor cells to the cells of phloem conducting elements can be completely symplastic [20]. This transport is followed by the formation of Raffinose Family Oligosaccharides (RFO) from sucrose via Raffinose Synthase (RaS) ( see Fig. 1) in the phloem’s companion cells [18, 43], which increases transport intensity. It is assumed that RFOs are carried through plasmodesma to the conducting elements, symplastically arriving at the cells that consume sugar in an as-yet-unidentified way [18].

The apoplastic pathway includes the transport of sugars through the cell wall, by which glucose arrives from the cytoplasm as a result of the SWEET transporter operation ( Fig. 1) [19, 22, 41], whereas fructose and polyols do so via Polyol/Monosaccharide Transporter (PMT) ( Fig. 1) [17]. Glucose’s and fructose’s retrograde transport from the cell wall space to mesophyll cell cytoplasm is carried based on STP activity, related to a group of monosaccharide transporters (MST) (Sugar Transport Protein and Monosaccharide Transporter;  see Fig. 1) [17]. Polyol transport involves sorbitol transporters (SOT) and mannitol transporters (MAT), namely, sorbitol and mannitol symporters, respectively ( in Fig. 1) [44]. A total of 17 SOT transporters have been identified ( in Fig. 1) [20]. The transport of sucrose from the cell wall space to the cytoplasm is mediated by a number of transporters: probably sucrose transporter of 1st type – Sucrose Facilitator 1 (SUF1), dicovered in pea and bean ( see Fig. 1) [17, 40], specific SWEET sugar transporters ( Fig. 1) [19, 22, 41], and also sucrose/H+ symporter of 1st type (SUT1) (and less often SUT2/3/4/5, which have been less studied than SUT1;  Fig. 1) [17]. In turn, from the cytoplasm, inositol exported into at the cell wall space via Inositol Transporters 2 and 4 (INT2 and INT4) ( see Fig. 1) [17].

Bidirectional transport of sucrose by specific SWEET sugar transporters takes place in the phloem parenchyma cells ( and  see Fig. 1) and in companion cells ( see Fig. 1) [19, 22, 41]. Sucrose arrives, through the apoplast, to the companion cells ( see Fig. 1) via sucrose symporter of type 2, namely, SUT1 (SUC2, Sucrose transporters of type 2) [18]. The energy required for sucrose symport is provided by H+-transport ATPase, which determines the proton gradient and transmembrane potential, adjusted by the AKT2/3 type (Arabidopsis K+ transporter 2/3)’s potassium channels (K+ channels in the inward direction) [18]. H+-transport ATPase can be localized, not only on the companion cells’ plasmalemma, but also on the parenchymal cells’ plasmalemma [19]. Sucrose transport from the cell wall to companion cells is carried out by SUT1 and, possibly, SUT2 symporters (SUC2 and SUC3, respectively;  Fig. 1) [18]. The import of polyols to companion cells and conducting phloem elements is mediated by sorbitol and mannitol symporters, namely, SOT and MAT, respectively (  Fig. 1) [44]. However, we currently know little about the further distribution of polyols in the sugar-consuming cells.

At the final stage of the apoplastic pathway, sucrose is transported from the cell wall to the conducting elements of phloem via SUT2, and possibly SUT1, symporters (SUC3 and SUC2;  Fig. 1) [18, 45]; bidirectional transport of sucrose to the conducting elements of phloem and back to the cell wall can occur via a SWEET uniporter ( Fig. 1) [19, 41]. After transport into the conducting elements of phloem, sugars (sucrose, glucose, and fructose) are supplied to different consuming organs (Sink in Fig. 2) by those same transporters, i.e., sucrose by SUT1 and hexoses by MST [17, 18]. From the consuming bodies of donor cells of sugars (source), water and mineral substances are supplied through conducting xylem tissues (Fig. 1 and 2).

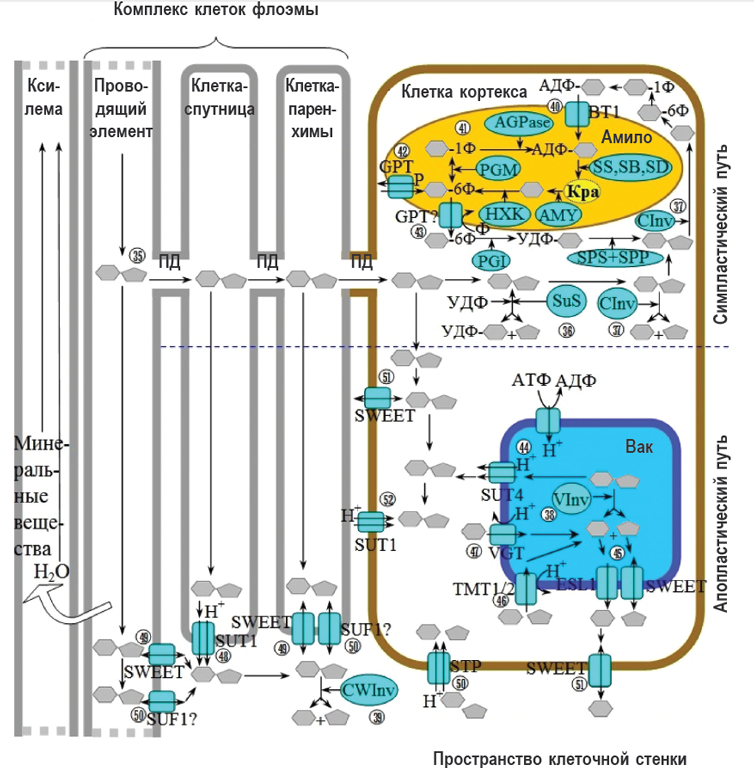

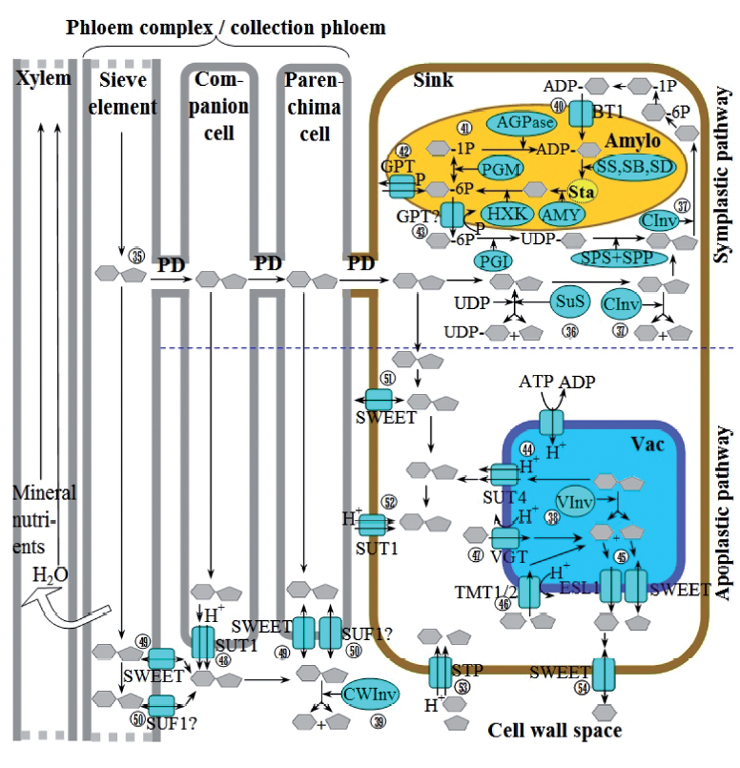

Fig. 2. Scheme of the transport of sugars in the cells of the roots of a plant without AMsymbiosis (based on materials presented by [17-18, 20, 47, 50, 52-54] with changes and additions). In Fig. 2: for abbreviations see explanations to Fig. 1; Sink – a root cortex cell consuming sugar (Sink cortex cell), Amylo – Amyloplast, -1P – glucose-1-phosphate, ADP- – adenosine diphosphate Glucose, AGPase – ADP-glucopyrophosphorylase, PGM – phosphoglucomutase, SS – Starch Synthase, SB – Starch Branching enzyme, SD – amylopectin cleaving enzyme (Starch Debranching enzyme), AMY – amylase, PGI – phosphoglucose isomerase, SPS – Sucrose-Phosphate Synthase, SPP – Sucrose-phosphate phosphatase. Description of scheme see the text



It can be concluded that sugars, the primary products of photosynthesis, are the form of transported carbon (sucrose and hexoses) and energy used as substrates for carbohydrate, protein, and lipid metabolism. Additionally, sugars are considered regulatory gene expression messengers in plant ontogenesis [17, 18, 46, 47]. It has also been shown that, during AM formation, plants’ carbohydrate metabolism can change markedly [48]. Up to 20% photoassimilated by plant metabolites can be supplied to AM fungus [48]. Nevertheless, many mechanisms of this process remain unknown. Perhaps this is because there are no specific pathways for assimilate transformation and transport during AM formation, but the activity of the genes encoding transporters, and of the protein enzymes that are involved in sugar metabolism, may be regulated [17, 49, 50]. Nevertheless, this field still remains understudied. For example, the expression dynamics of the genes encoding proteins, such as Rubisco, has not been investigated in depth. In the near future, our understanding of these concepts may expand significantly as a result of research conducted at the transcriptional and proteomic levels.

SUGAR TRANSPORT TO PLANT ROOTS

Having considered the transport mechanisms of sugars from the photoassimilating leaf cells to the cells consuming these metabolites through phloem, we focus here on the unloading mechanisms in the root cells. Unloading at phloem elements occurs through symplasts or predominantly the symplast pathway, with an intermediate apoplastic post-phloem stage [51]. Unfortunately, there has been only fragmented study of the phloem unloading mechanisms, partly based on indirect results or modeling [51]. However, based on the latest data, a summary scheme can be drawn, as shown in Fig. 2.

The symplast pathway of sucrose transport in roots includes its supply through plasmodesmata from source cells (donor cells) to sink cells (sugar-consuming cells) through conducting phloem elements and further through companion cells and phloem parenchyma ( Fig. 2). The sucrose synthase (SuS) enzyme, catalyzing the reversible reaction of sucrose synthesis/decay in sink cells of root cortex consuming sugars ( Fig. 2), plays an important role in this [17, 52]. Cytoplasmic invertase (CInv) [17] is involved in splitting of sucrose into glucose and fructose in the root cortex cells cytoplasm ( Fig. 2), while vacuolar invertase (VInv) [17, 18] does this in vacuoles ( Fig. 2), and cell wall invertase (CWInv) [17, 18] does this in the cell wall space ( Fig. 2).

After the splitting of sucrose by invertase in the cytoplasm ( Fig. 2), the obtained glucose can be used to synthesize glucose-6-phosphate via hexokinase (HXK), involving transformation into glucose-1-phosphate as a result of phosphoglucomutase (PGM) activity, and then into adenosine diphosphate glucose via adenosine diphosphate glucopyrophosphorylase. This can be further transported into amyloplasts via BT1 protein, which is encoded by the BT1 gene (Brittle1) in Zea mays ( Fig. 2) [55, 56]. Adenosine diphosphate glucose can also be obtained in the glucose-1-phosphateamyloplasts via adenosine diphosphate glucose pyrophosphorylase ( Fig. 2) [47, 56]. Adenosine diphosphate glucose is involved in synthesizing starch via a number of enzymes, such as Starch Synthase (SS), Starch Branching Enzyme, and Starch Debranching Enzyme (SDE) [47]. If necessary, in amyloplast, starch is split up by amylase (AMY) into hexoses, which are, in turn, subjected to phosphorylation by hexokinase (HXK) with glucose-6-phosphate synthesis. The splitting of starch can involve a number of enzymes, such as alpha and beta amylase, limit dextrinase, and maltase [56]. Glucose-6-phosphate can be reversibly turned into glucose-1-phosphate via phosphoglucomutase (PGM) [47].

It is still unclear how glucose-6-phosphate arrives at the cytoplasm of the cells, consuming sugars ( Fig. 2) [18]. Sugars may be exported from amyloplasts to the cytoplasm in the form of glucose-6-phosphate via a transporter ( Fig. 2) [47], which supplies glucose-6-phosphate from the cytoplasm to amyloplasts ( Fig. 2) [47, 54]. Glucose-Phosphate Transporter [encoded, e.g., in the Vitis vinifera genome (VvGPT1)] [54] of the MST family is a phosphate-dependent antiporter [53, 56]. Unfortunately, the earlier identified transporter, carrying glucose-1-phosphate from the cytosol to amyloplasts and back ( Fig. 2) [47], has not been described in other studies [56]. Both chloroplasts and amyloplasts may contain the glucose and maltose transport proteins pGlcT and MEX, respectively [56], but no evidence for this has yet been presented. In cytoplasm, glucose-6-phosphate exposed to phosphoglucose isomerase can be reversibly turned into uridine diphosphate glucose which, alongside fructose-6-phosphate, is involved in sucrose synthesis when exposed to the effect of sucrose phosphate synthase enzyme, followed by the detachment of phosphate by means of Sucrose Phosphate Phosphatase (SPP) [47].

Sucrose is supplied from the vacuoles to cytoplasm by SUT4 ( Fig. 2) [37–39]. Tonoplast H+, transporting ATPase, generates the necessary proton gradient [19]. From vacuoles, glucose is exported by the tonoplast monosaccharide transporter ESL1 ( Fig. 2) [17, 27], and fructose is exported by a SWEET protein localized in tonoplasts ( Fig. 2) [19, 22]. The transport of glucose and fructose to vacuoles is mediated by the tonoplastic membrane transporter of hexoses TMT1 or TMT2 ( in Fig. 2) [17, 21], and that of glucose alone is also mediated by vacuolar monosaccharide VGT transporter ( Fig. 2) [42].

Sucrose’s apoplastic transport involves the sucrose symporter of the 2nd type (SUT1) ( Fig. 2; localized on the membrane of phloem cells, namely, companion cells) [18, 57]. Bidirectional transport of sucrose from the conducting elements of phloem, from phloem parenchyma, and back to apoplast, is enabled by the specific transporters of SWEET sugars ( Fig. 2) [19, 41], as well as, probably, by the sucrose facilitator SUF1 (energy-independent bidirectional transporter) ( Fig. 2) [19, 40]. However, these proteins were only accurately localized in seeds [40]. From the cell wall, sucrose is supplied to the root cortex cells consuming sugars by SWEET facilitators ( Fig. 2) [19, 22, 41], and also as a result of the action of the H+-dependent symporter SUT1 ( Fig. 2) [17, 18]. Hexoses are supplied to root cortex cells by STP transporters [ Fig. 2; e.g., by Vitisvinifera Hexose Transporter 1 (VvHT1)] [19, 58], and also by SWEET hexose transporters ( Fig. 2) [19, 41].

TRANSPORT OF SUGARS IN SYMBIOTIC CELL STRUCTURES OF PLANT ROOTS WITH ARBUSCULAR MYCORRHIZAL FUNGUS

Plants’ interaction with AM fungus leads to redistribution of nutritious substances in the roots, the formation of new symbiotic bodies, such as arbuscules (involving the in-growth of plant plasma membrane into the plant cell at the site of AM fungus hyphal penetration; the plasma membrane in arbuscules is called the periarbuscular membrane: PAM), and subsequent multiple branching of the arbuscule trunk with formation of the new AM symbiosis partners interactions interface – periarbuscular space (PAP) formed on the cell wall of the host plant between PAM and the arbuscular membrane (ArM) with arbuscule cell wall (Fig. 3). AM symbiosis is followed by the transport of nutritious substances from plants to AM fungus, particularly organic acids, lipids, and sugars. The plants’ photosynthetic products are supplied to the symbiotic partner by sugar transporters of a number of families; the main ones are SWEET, SUT, and MST. Currently, all transporters’ functions and localizations are unclear and, from the data of transcriptional profiles, not all transporters have been detected [50].

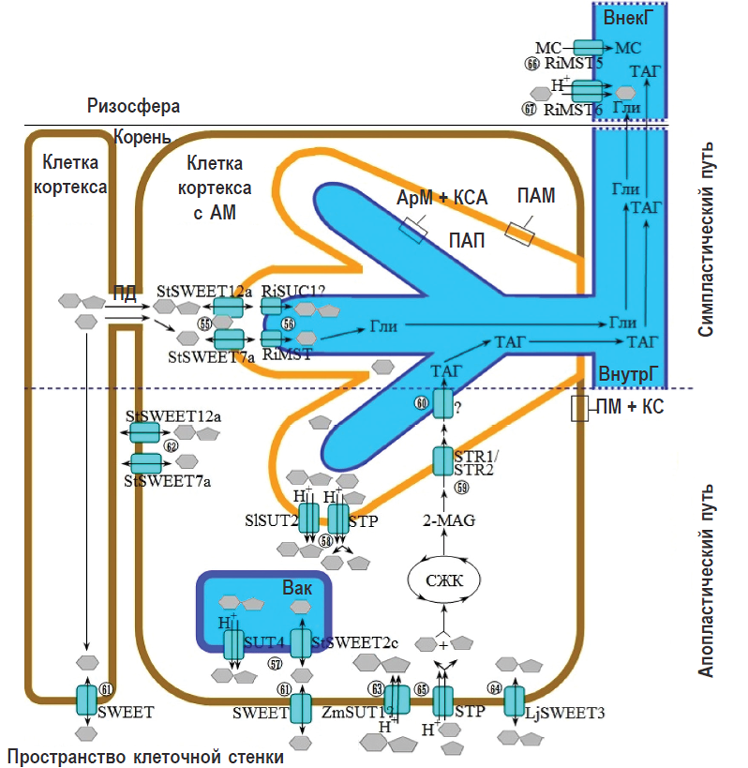

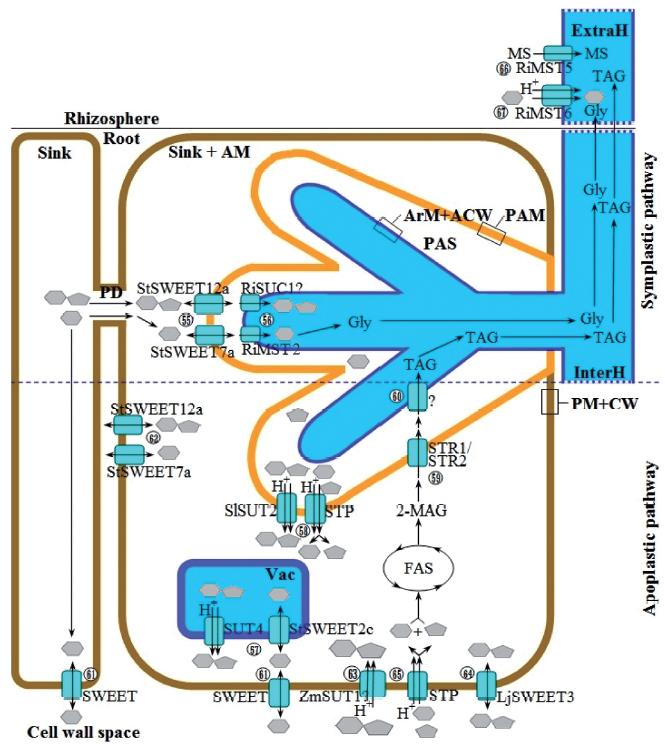

Fig. 3. Scheme of sugar transport to the roots of AM plants with arbuscules (based on materials presented by [18, 50, 52, 59] with changes and additions). In Fig. 3: for abbreviations see explanations to Fig. 1; Sink – a root-sugar cell that consumes sugar (Sink cortex cell); “Sink + AM” – a root cortex cell with AM that consumes sugar (Sink cortex cell with Arbuscular Mycorrhiza), “PM + CW” – Plasmatic Membrane and Cell Wall, PAM – Peri-Arbuscular Membrane, PAS – Peri-Arbuscular Space, “ArM + ACW” – Arbuscule Membrane and Arbuscule Cell Wall, InterH – Intercellular intraradical Hypha, ExtraH – Extraradical Hypha, FAS – Fatty Acid Synthase system, 2-MAG – 2-Monoacylglycerol, TAG – Triacyl-glycerol, Gly – Glycogen, MS – Monosaccharides. Description of transporters, see the text



The specificity of transport processes in AM has been analyzed in cells with and without arbuscules [60]. It has been shown that, in Solanum tuberosum, sugars are transported from host plants to the AM fungus Rhizophagus irregularis, mainly by sucrose and glucose facilitators, StSWEET12 and StSWEET7a, respectively (Fig. 3) [ 50, 61], acting on PAP and transporting sugars from cytoplasm to PAP and back. Through ArM to PAP, glucose is transported in arbuscules via the fungal R. irregularis Monosaccharide Transporter 2 (RiMST2) ( see Fig. 3) [50, 61–63] or as a result of Geosiphon pyriformis Monosaccharide Transporter 1 (GpMST1) activity [64]. Through ApM, sucrose can be transported by the Rirregularis Sucrose transporter 1 (RiSUC1) (information about the transcript is available at https://www.ncbi.nlm.nih.gov/nuccore/HQ848966; Fig. 3); however, there is little information about RiSUC1 since only one group is conducting research [62]. Then, sugar is transported through the intraradical mycelium, in the form of glycogen, to the extraradical mycelium of AM fungus (Fig. 3) [50, 52]. The content of sugars in root cortical cell cytoplasm is regulated by their transfer from vacuoles to tonoplastic transporters, which is related to sucrose symporter SUT4 and glucose StSWEET2c facilitator ( Fig. 3) [50]. The host plant regulates the outflow of unnecessary sugars from periarbuscular spaces by sucrose symporter SlSUT2 (Solanum lycopersicum Sucrose Transporter 2;  Fig. 3) [49, 50, 63, 65] and hexose STP Symporter ( Fig. 3) [18, 50].

There is another significant pathway involved in supplying carbon-containing metabolites from host plants to AM fungal tissues. This includes forming a number of fatty acids (with 16 carbon atoms) from hexoses, which are synthesized through the synthase Fatty Acid System (FAS) and released from FAS using thioesterase [52]. Palmitic acid (C16:0) is converted into 2-monoacylglycerol (2MAG) by RAM2 (the RAM2 gene encodes glycerol-3-phosphate acyltransferase) [52]. Lipids are exported to the periarbuscular space by 2-MAG transfer through PAM, using STR1 and STR2 proteins (stunted arbuscule transporters) [52, 66], from the heterodimer ABC-transporter (ATP Binding Cassette) family [66] localized on the periarbuscular membrane ( Fig. 3) [52]. Further, the lipids are transported by unknown fungal transporters on ArM ( Fig. 3) [52]. In the intraradical 2-MAG mycelium, they can be transformed into triacylglycerol (TAG), which, in turn, is transported to extraradical mycelium (Fig. 3).

Apoplastically, the sugars are transported to cells, both with and without AM fungus, by SWEET hexose transporters ( Fig. 3) [19, 41]. However, we suppose there are facilitators of this family specific to AM symbiosis. Candidates for the specific transport of sucrose and glucose in S. tuberosum through the plasma membrane of root cortical cells containing AM are StSWEET12 and StSWEET7a, respectively ( in Fig. 3) [50, 61]. In this context, the effectors secreted by AM fungi either directly or indirectly activate SWEET gene expression through the activation of transcription factors [67]. Sucrose can be transported to cells with arbuscules in two ways: in Z. mays, by means of the non-specific symporter ZmSUT1 ( Fig. 3) [17, 57]; and in Lotus japonicus, in a manner involving the specific facilitator LjSWEET3 ( Fig. 3) [50]. Hexoses are transported to cells with arbuscules by the STP symporter ( Fig. 3) [18, 50].

Although this review is aimed at providing an overview of data on carbohydrate transport between the host plant and AM fungus, we will touch upon one more issue: Can sugars be supplied to the extraradical mycelium of AM fungus directly from the soil, where they are excreted by plants? In the over century-long history of physiological research on AM fungi, scientists have been unable to provide a reliable answer to this question. AM fungi are believed to be obligate plant symbionts since they cannot feed saprotrophically and absorb organic substances important for their development from soil, particularly sugars [3]. However, in the late 1990s, it was suggested that, by uptake carbon-containing compounds from the soil, fungi control carbohydrate transport in plant–microbial systems [68]. However, this hypothesis was disproved in further research. Currently, it is considered that the host plant controls the supply of sugars to AM fungus by adjusting the action of sucrose symporter SlSUT2 [49, 50, 63, 65] and hexose STP symporter [18, 50]. Nuclear magnetic resonance spectroscopy showed that sugars are supplied to AM fungus through intraradical mycelium in the form of hexoses, mostly in the form of glucose but, to a lesser degree, in the form of fructose. However, it was not revealed whether AM fungus can receive sucrose [69]. This is consistent with the hypothesis of mandatory biotrophy, obligate status of AM fungi in relation to the host plant as well as also by the necessity to transport sugar from the plant through intraradical mycelium to the extraradical hyphae of the AM fungus. It is assumed that arbuscules and intercellular hyphae are sites where AM fungi receive carbon [3, 70, 71], whereas conjugate phosphate transport is localized mainly in periarbuscular space [72]. Supposedly, intercellular hyphae can also be important sites for carbohydrate exchange [62].

The first fungus glucose symporter, Geosiphon pyriformis Monosaccharide Transporter 1 (GpMST1), was discovered in 2006 [64]. In 2011, RiMST2, RiMST3, and RiMST4 transporters were discovered in R. irregularis and studied [62]. It turned out that extraradical AM fungus mycelium can actively uptake not only glucose, but also xylose. Consequently, the monosaccharides obtained by extraradical hyphae can also be a source of carbon for AM fungi. The supposed monosaccharide transporter Glomus intraradices GiMST2 (RiMST2, based on the data on DAOM strain No. 181,602 G. intraradices = Rhizophagus irregularis according to https://www.uniprot.org/taxonomy/747089) is characterized by intense and specific expression in the cells with arbuscules, whereas RiMST4 is characterized by expression in extraradical mycelium [62]; however, further experiments did not confirm preferential RiMST4 expression in extraradical mycelium [59]. The 2016 analysis of RiMST2, RiMST3, RiMST4, RiMST5, and RiMST6 transporters on plants, such as Medicago truncatula, Sorgum bicolor, and Populus trichocarpa, deserves special attention in this context [59]. For the first time, researchers discovered RiMST5 and RiMST6 transporters, which are involved in transporting sugars from soil to extraradical AM fungus mycelium. RiMST5 is a high-affinity monosaccharide transporter ( Fig. 3) [50, 59], whereas RiMST6 is a high-affinity symporter specific for glucose. Both transporters allow the import of sugars to AM fungi from soil directly by extraradical mycelium ( Fig. 3) [50, 59]. The discovery of this group of transporters should allow revised approaches to maintaining axenic culture of AM fungi, enabling their growth without the host plant. We need to search for new working hypotheses to explain the obligate status of AM fungi in relation to plants.

PLANT SUGAR TRANSPORTERS DURING THE DEVELOPMENT OF AM SYMBIOSIS

Many transporters of model plants, such as A. thaliana, have been studied in detail. However, these studies have not included the group of plants forming AM symbiosis under natural conditions (only under some artificially created conditions) [73]; therefore, the study of carbohydrate metabolism upon AM symbiosis on the given plant is not entirely correct. In this context, we analyze transporters of those plant species that form AM, considering their homology with A. thaliana transporters. Organisms that form mycorrhiza include common model plants, such as Medicago truncatula; the authors can also select the highly mycotrophic black medick (Medicago lupulina) as a new focus for AM research [74]. Analysis of the literature prompted the conclusion that many plant sugar transporters are not specific for AM except for the recently discovered bidirectional SWEET uniporters [22, 61]. The transporters that are promising for further study in plant species forming AM are presented in the Table.



Table 1

Some sugar transporter genes in plants forming arbuscular mycorrhiza

Gene of interest

Homologues of gene

Family*

Plant

Link

MtSUT1-1

AtSUT1 (including AtSUC2)

SUT family of sucrose symporters

Medicago truncatula

[49]

MtSUT1-2

MtSUT1-3

GmSUT1

Glycine max

[75]

PsSUT1

Pisum sativum

[40]

VfSUT1

Vicia faba

[76]

MtSUT2

M. truncatula

[49]

OsSUT3

ZmSUT3, no homology withA. thaliana

Oryza sativa

[38, 49, 77]

MtSUT4-1

AtSUT4 (=AtSUC4)

M. truncatula

[49]

MtSUT4-2

M. truncatula

[49]

ZmSUT5

OsSUT5, no homology withA. thaliana

Zea mays

[38, 49, 77]

PsSUF1

AtSUT1

SUF family of bi-directional sucrose uniporters (facilitators)

Pisum sativum

[40, 49]

PsSUF4

AtSUT4

Pisum sativum

[40, 49]

MEX-genes have not yet been studied in AM species

AtMEX1

MEX family of maltose uniporters

Arabidopsis thaliana

[19, 28]

MtSWEET1a = Medtr1g029380

AtSWEET1

SWEET family of bi-directional sugar uniporters

M. truncatula

[78]

MtSWEET1b = Medtr3g089125

MtSWEET2a = Medtr8g042490

AtSWEET2

MtSWEET2b = Medtr2g073190

MtSWEET2с = Medtr6g034600

MtSWEET3a = Medtr3g090940

AtSWEET3

MtSWEET3b = Medtr3g090950

MtSWEET3c = Medtr1g028460

MtSWEET4 = Medtr4g106990

AtSWEET4

MtSWEET5a = Medtr6g007610

AtSWEET5

MtSWEET5b = Medtr6g007637

MtSWEET5c = Medtr6g007623

MtSWEET5d = Medtr6g007633

MtSWEET6 = Medtr3g080990

AtSWEET6

MtSWEET7 = Medtr8g099730

AtSWEET7

MtSWEET9a = Medtr5g092600

AtSWEET9

MtSWEET9b = Medtr7g007490

MtSWEET11 = Medtr3g098930

AtSWEET10

MtSWEET12 = Medtr8g096320

MtSWEET13 = Medtr3g098910

AtSWEET13

MtSWEET14 = Medtr8g096310

AtSWEET14

MtSWEET15a = Medtr2g007890

AtSWEET15

MtSWEET15b = Medtr5g067530

MtSWEET15c = Medtr7g405730

MtSWEET15d = Medtr7g405710

MtSWEET16 = Medtr2g436310

AtSWEET16

Mtst1

AtSTP1

STP subfamily of MST family of monosaccharide symporters

M. truncatula

[17]

Medtr4g091370

Medtr4g090600

Medtr3g008160

AtSTP3

Medtr3g008170

Medtr1g038630

AtSTP4

Medtr5g082540

Medtr3g093010

Medtr3g007910

Medtr3g023480

Medtr5g041550

Medtr3g093060

CAD31121

AtSTP5

Medtr5g094760

AtSTP7

Medtr4g116770

Medtr4g116800

Medtr5g006070

AtSTP13

MtHext1

Medtr1g104750

Medtr1g104770

Medtr8g103010

AtSTP14

Medtr6g087040

Medtr8g102860

Medtr3g118530

TMT2 у A. thaliana

TMT subfamily of MST family of monosaccharide antiporters

M. truncatula

[17]

Medtr3g116060

Medtr5g024740

TMT3 у A. thaliana

Medtr5g044910

Medtr8g073100

Medtr2g013310

AtPMT4

PMT subfamily of MST family of monosaccharide and polyol symporters

M. truncatula

[17]

Medtr6g007340

Medtr4g071950

AtPMT5

Medtr4g072030

Medtr3g116240

MtC00740

Medtr6g088450

AtPMT3

Medtr8g103500

Medtr8g077890

AtPMT6

Medtr5g075300

Medtr5g019870

Medtr4g077770

VGT2 у A. thaliana

VGT subfamily of MST family of monosaccharide antiporters

M. truncatula

[17]

Medtr4g064820

VGT1 у A. thaliana

Medtr1g116830

INT1 у A. thaliana

INT subfamily of MST family of inositol symporters

M. truncatula

[17]

Medtr1g116660

Medtr1g116650

Medtr3g084110

Medtr7g005910

Medtr2g048720

INT2 у A. thaliana

Medtr5g077580

Medtr2g049020

Medtr2g026140

INT3 у A. thaliana

Medtr2g026160

Medtr7g082270

pGlcT у A. thaliana

pGlct/SGB1 subfamily of MST family of glucose uniporters

M. truncatula

[17, 27]

Medtr6g087910

At1g67300

Medtr3g080240

At1g05030

Medtr8g077310

At1g19450

ESL subfamily of MST family of glucose uniporters

M. truncatula

[17]

Medtr5g020270

Medtr8g077300

MtC20248

Medtr7g113960

At1g54730

Medtr7g113970

Medtr4g118610

At5g18840

Medtr2g020710

Note: “Family*” – the following reductions of families and subfamilies of conveyors are specified:

·             family of active sucrose/H+ Sucrose Transporters – SUT (synonym – SUC, Sucrose transporters);

·             family of bi-directional non-volatile sucrose unipores – SUF (SUcrose Facilitators, type 1 and 4 facilitators) discovered in plants forming AM – Pisum sativum and Phaseolus vulgaris;

·             family of chloroplast maltose exporters – MEX;

·             family of monosaccharide transporters – MST [27], including 7 subfamilies:

◦ H+-symporter monosaccharides subfamily – STP (Sugar Transport Proteins),

◦ tonoplast H+-antiporter monosaccharides subfamily – TMT (Tonoplast Membrane Transporters),

◦ subfamily of vacuolar H+-symporters of monosaccharides and polyols – PMT (Polyol / Monosaccharide Transporters),

◦ vacuolar H+-antiporter monosaccharides subfamily – VGT (Vacuolar Glucose Transporters),

◦ subfamily of H+-inositol importers – INT (Inositol Transporter),

◦ subfamily of nonvolatile glucose uniporters – pGlct/SGB1 (plastidic Glucose transporter / Suppressor of G protein Beta 1, [27]),

◦ tonoplast glucose uniporter subfamily – ESL (Early-responsive to dehydration Six-Like);

·             family of bi-directional nonvolatile uniporters – SWEET (Sugars Will Eventually be Exported Transporters).



Plant transporters of sugars are divided into three key families: SUT (SUC), MST (including the subfamilies STP, TMT, PMT, VGT, pGlct/SGB1, ESL, INT) and SWEET, and others, for example, SUF and MEX (see Table and Fig. 1–3).

M. truncatula was revealed to have six SUT genes [49] forming three SUT clades (clades I, II, and IV) [49]; A. thaliana has nine genes (AtSUT1AtSUC2, AtSUC1, AtSUC5, AtSUC6, AtSUC7, AtSUC8, AtSUC9; AtSUT2 = AtSUC3; AtSUT4 = AtSUC4), which also form three SUT clades [49, 77]. Other plant species have SUT genes of the third clade that are not homologous to these genes, for example, OsSUT3 in Oryza sativaand ZmSUT3 in Z. mays. At the same time, some species can have many more SUT genes; for example, O. sativa has the OsSUT5 gene, while Z. mays has the ZmSUT5 and ZmSUT6 genes [49]. M. truncatula has the MtSUT4-1 gene, which has generated great interest since it encodes the sugar transporter protein SUT4, intensively accumulating in cells with arbuscules and in cells of leaves localized in tonoplasts. It is also involved in transporting sucrose from vacuoles to cytoplasm [79]. On the other hand, MtSUT1-3, MtSUT2, MtSUT4-1, and MtSUT4-2 are expressed at similar levels in leaves and roots. MtSUT1-1 is characterized by a 20-fold increase of transcript accumulation in leaves compared to roots [49]. This indicates MtSUT1-1’s significant role in transporting sucrose in the aboveground parts of lucerne. At the same time, MtSUT4-1works mainly in the roots. Based on the analysis of expression levels, the most important genes in AM development with regard to sugar transport are the following:

1) Gene of tonoplast sucrose symporter MtSUT4-1 in the AM roots of M. truncatula [49];

2) Gene of sucrose symporter MtSUT1-1 in the leaves of M. truncatula; the protein acts on the plasma membrane of mesophyll cells [49];

3) Gene of sucrose symporter SlSUT2 in S. lycopersicum ( Fig. 3) [49, 50, 63, 65], which regulates the outflow of unnecessary sugars from PAP;

4) Gene of sucrose symporter ZmSUT1 in Z. mays ( Fig. 3) [17, 57]; the protein acts on PM.

Proton-dependent symporters include SUT, STP (from MST), PMT (from MST), and INT (from MST); meanwhile, proton-dependent antiporters include TMT (from MST) and VGT (from MST). Uniporters are MEX, pGlct/SGB1 (from MST), ESL (from MST), and bidirectional uniporters (facilitators), namely, SUF and SWEET (which do not belong to the MST family). SUF genes (facilitators) include SUT genes’ homologs (symporters), but it is evident that they are functionally markedly different from the SUT genes. At the same time, SUF proteins are analogs of SWEET proteins: they are functionally similar, but have different origins. PsSUF1, PsSUF4, PvSUF1, and PvSUF4 genes have been detected in two species: P. sativum and P. vulgaris [17, 40]. A further search for genes of the given groups in other plant species is required to identify their significance in plants’ carbohydrate metabolism.

M. truncatula has 62 MST genes, including 23 STP, 5 TMT, 11 PMT, 2 VGT, 3 pGlct/SGB1, 8 ESL, and 10 INT [17]. Apparently, the most common are STP proteins, which function as H+/hexose symporters localized on the plasma membrane, many of which have low specificity in the substrate with the greatest affinity to glucose [80–82]. The homology of MST genes from M. truncatula with A. thaliana genes is presented in the Table. The number of MST genes in different plant species also varies (e. g., 53 MST gene in A. thaliana, 59 in Vitis vinifera, and 68 in O. sativa) [17]. Incorporating these genes into the MST family is conditional since, functionally, the family includes symporters and antiporters along with uniporters. Analysis of the literature showed that all of the well-known SUT, MST, and MEX genes are not specific for AM symbiosis. From the perspective of sugar transport and the high level of expression of MST transporter genes, the hexose STP symporter gene regulating the outflow of unnecessary sugars from PAP should be highlighted in AM development. The protein acts on PAM ( Fig. 3) [50] and PM ( Fig. 3) [50].

The only known family of transporters in which, according to the current understanding, the genes specific for AM symbiosis development can be identified is the SWEET family, which was first discovered by Chen et al. [22]. Localization of the proteins encoded by SWEET genes in cells with AM is presented in Fig. 3. The high variability of SWEET protein functions should be highlighted: some of them act as bilateral,energy-dependent uniporters for monosaccharides, while others do this for sucrose (see Fig. 1–3). SWEET transporters functionality depends on the domain structure of the genes encoding them [83]. Phylogenetically, SWEET transporters can be divided into four clades: proteins of clades I and II predominantly transport hexoses, while proteins of clades III and IV predominantly transport sucrose and fructose, respectively [22, 83, 84]. SWEET proteins play an important role in a number of processes: in AM development, pollen maturation, and the aging of plants [22, 61], and also in responses to biotic and abiotic stresses [22, 83, 85].

Based on the level of expression during AM development, the most important SWEET transporter genes, from a sugar transport perspective, are the following:

1) sucrose and glucose facilitator genes in S. tuberosum, namely, StSWEET12a and StSWEET7a, respectively [50, 61]; the proteins act on PAM ( Fig. 3) and PM ( Fig. 3);

2) the vacuolar glucose facilitator gene StSWEET2c in S. tuberosum ( Fig. 3) [50, 61]; the protein acts in tonoplasts;

3) LjSWEET3 facilitator gene in L. japonicus ( Fig. 3) [50]; the protein acts on PM.

The SWEET family includes 17 genes in A. thaliana [86]. Single-celled and green seaweed have only 1–3 copies of SWEET genes, while monocotyledons have 18–23 such genes and dicotyledons have 15–68 [83]. Plants have more SWEET genes than animals and prokaryotes [87]. All of the genes discovered in other plant species are A. thaliana gene homologs (numeration of the gene titles is the same). However, different plant species have a large number of SWEET protein isoforms. The number of discovered SWEET genes increases yearly. For example, in 2005, M. truncatula was identified as having 18 [88] or 24 [67] SWEET genes, but this number increased to 26 [78] and, later, 35 [61]. Different plant species have different numbers of SWEET genes: Glycine max has 52 genes [88], Solanum tuberosum has 35, and S. lycopersicum has 29 [61].

In this context, there is good reason to believe that not all SWEET genes have been discovered. This bolsters our belief that a number of new SWEET genes will be found in the coming years, which should broaden our knowledge of the functions of the transporters that they encode.

CONCLUSION

This review summarizes findings on the diversity of sugar transport pathways in plants, both inside cells and between different organs. There should be special consideration of the mechanisms by which sugars are supplied to fungal symbionts during the development of AM. Contemporary methodological approaches have allowed identification of not only transporter proteins localized on the membranes of symbiotic structures, but also the genes encoding them.

Critical analysis of the literature showed that the genes specifically involved in sugar transport to the AM probably belong to SWEET transporters. The other genes associated with sugar transport are apparently not specific with respect to AM. Nevertheless, the genes important for AM symbiosis development are as follows:

1) gene of the tonoplast sucrose symporter MtSUT4-1 in AM roots and MtSUT1-1 in leaves; the proteins are localized on the plasma membrane of mesophyll cells;

2) gene of the sucrose symporter SlSUT2; the protein is localized on the periarbuscular membrane;

3) gene of the sucrose symporter ZmSUT1; the protein is probably localized on the plasmalemma of root cortex cells;

4) gene of the hexose symporter STP; the protein is localized on periarbuscular membrane and plasmalemma of root cortex cells;

5) AM-specific genes of sucrose and glucose facilitators, StSWEET12a and StSWEET7a; the proteins are localized on the periarbuscular membrane and plasmalemma of root cortex cells;

6) AM-specific gene of the vacuolar glucose facilitator StSWEET2c; the protein is localized in root cortex tonoplast cells with AM;

7) facilitator gene LjSWEET3; the protein is localized on plasmalemma.

Fungal candidate genes involved in carbohydrate exchange during AM symbiosis development are the following:

1) fungus transporter genes of RiMST2 and GpMST1 monosaccharides; the proteins are localized on the ArM;

2) gene of fungus sucrose transporter RiSUC1; the protein is probably localized on the ArM;

3) genes of fungus transporters RiMST2, RiMST3, and RiMST4 (data on function and localization of proteins are still fragmentary and contradictory);

4) gene of fungus high-affinity uniporter of RiMST5 monosaccharides and fungus glucose symporter RiMST6; the proteins are likely to be localized on the plasmalemma of extraradical AM fungus mycelium.

Data on the functions and localizations of different transporters are still rather debatable in a wide range of cases. Thus, the work of Doidy et al. refers to TMT1 and TMT2 transporters as sucrose antiporters, but they actually transport hexoses, namely, fructose and glucose [17]. The functions of TMT [21] and TST [23] transporters are still unclear. Localization of transporters on the amyloplast membrane for the import and export of glucose-1-phosphate has been confirmed by only one study [47].

Analyses of StSWEET2b, StSWEET10a, and StSWEET10b gene expression levels may be inaccurate due to mismatching between the data on the phylogenetic tree created based on SWEET genes and data on the expression in histograms, although this does not reduce the value of the research on SWEET genes in Solanum tuberosum [61].

Apparently, classifying SUT and SUC transporters in different plant species cannot be considered definitive. Thus, A. thaliana and M. truncatula for the SUT transporters are divided into three clades, while O. sativa and Z. mays are represented by more clades [49].

The localization of PsSUF1, PsSUF4, PvSUF1, and PvSUF4 sucrose facilitators (energy-independent bidirectional transporters), which were found on the membrane of phloem cells [19], or in plasmalemma and tonoplasts [17], remains unclear. Transmission electron microscopy of plant seeds made it possible to conclude that PvSUF1 and PvSUT1 are localized in the cells of conducting elements and parenchyma, whereas PsSUT1, PsSUF1, and PsSUF4 are localized in all of the tissues (parenchyma, cambium, etc.), except palisade tissues and hypodermis [40]. Thus, we need to continue studies in this field to draw definitive conclusions. In a number of studies, the researchers themselves stated that conclusions about the mechanisms of sugar transport in plants are mostly based on indirect data or on modeling results [51], so the findings are still only based on assumptions.

This research was supported by RFBR grant No. 18-016-00220 (“Transport of sugars from aboveground parts of plants” and “Transport of sugars to plant roots” sections) and RSF grant No. 16-16-00118 (“Transport of sugars in symbiotic plant root cell structures with AM fungus” section). Part of this work was performed in the framework of the state task No. 0664-2019-0026 (“Plant transporters of sugars during AM symbiosis development” section).

The authors declare that there are no conflicts of interest.

Andrey P. Yurkov

All-Russia Research Institute for Agricultural Microbiology

Author for correspondence.
Email: yurkovandrey@yandex.ru
ORCID iD: 0000-0002-2231-6466
SPIN-code: 9909-4280
Scopus Author ID: 56835374200
ResearcherId: A-8513-2014
https://vk.com/andreyyurkov

Russian Federation, 3, Podbelsky highway, Pushkin, Saint-Petersburg, 196608

PhD (Candidate of Biology), Assistant Professor, Leading Researcher, Laboratory No 4 of Ecology of Symbiotic and Associative Rhizobacteria

Alexey A. Kryukov

All-Russia Research Institute for Agricultural Microbiology

Email: rainniar@rambler.ru
SPIN-code: 4685-2723
Scopus Author ID: 57104771700

Russian Federation, 3, Podbelsky highway, Pushkin, Saint-Petersburg, 196608

PhD (Candidate of Biology), Researcher, Laboratory No 4 of Ecology of Symbiotic and Associative Rhizobacteria

Anastasia O. Gorbunova

Saint Petersburg State University

Email: gorbunova.anastasia93@mail.ru
SPIN-code: 3515-6450

Russian Federation, 7/9, Universitetskaya embankment, Saint-Petersburg, 199034

Graduate Student, Department of Geobotany and Plant Ecology, Faculty of Biology

Alexei M. Afonin

All-Russia Research Institute for Agricultural Microbiology

Email: aafonin@arriam.ru
SPIN-code: 9321-2462

Russian Federation, 3, Podbelsky highway, Pushkin, Saint-Petersburg, 196608

Graduate Student, Laboratory No 9

Anastasija A. Kirpichnikova

Saint Petersburg State University

Email: nastin1972@mail.ru
SPIN-code: 9960-9527

Russian Federation, 7/9, Universitetskaya embankment, Saint-Petersburg, 199034

Junior Researcher, Department of Plant Physiology and Biochemistry, Faculty of Biology

Ksenia S. Dobryakova

Komarov Botanical Institute, Russian Academy of Sciences

Email: kdobryakova@mail.ru
SPIN-code: 4197-0725
Scopus Author ID: 57200207883

Russian Federation, 2, Professor Popov str., Saint Petersburg, 197376

PhD (Candidate of Biology), Junior Researcher, Laboratory of Molecular and Ecological Physiology.

Eduard M. Machs

Komarov Botanical Institute, Russian Academy of Sciences

Email: emachs@binran.ru
SPIN-code: 9496-0538
Scopus Author ID: 8619012500

Russian Federation, 2, Professor Popov str., Saint Petersburg, 197376

PhD (Candidate of Biology), Senior Researcher, Laboratory of Biosystematics and Plant Cytology

Maria F. Shishova

Saint Petersburg State University

Email: mshishova@mail.ru
ORCID iD: 0000-0003-3657-2986
SPIN-code: 7842-7611
Scopus Author ID: 6602992714

Russian Federation, 7/9, Universitetskaya embankment, Saint-Petersburg, 199034

Doctor of Science in Biology, Professor, Department of Plant Physiology and Biochemistry

  1. Spatafora JW, Chang Y, Benny GL, et al. A phylum-level phylogenetic classification of zygomycete fungi based on genome-scale data. Mycologia. 2017;108(5):1028-46. https://doi.org/10.doi: 10.3852/16-042.
  2. Van der Heijden MGA, Boller T, Wiemken A, San ders IR. Different arbuscular mycorrhizal fungal species are potential determinants of plant community structure. Ecology. 1998;79:2082-2091. https://doi.org/10.1890/0012-9658(1998)079[2082: DAMFSA]2.0.CO;2.
  3. Smith SE, Read DJ. Mycorrhizal symbiosis. Cambridge; 2008. 787 p.
  4. Pyrozynski KA, Malloch DW. The origin of land plants: a matter of mycotrophism. Biosystems. 1975;6(3),153-164.
  5. Beilby JP, Kidby DK. Biochemistry of ungerminated and germinated spores of the vesicular-arbuscular mycorrhizal fungus, Glomus caledonius: changes in neutral and polar lipids. J Lipid Res. 1980;21(6):739-750.
  6. Luginbuehl LH, Oldroyd GED. Understanding the arbuscule at the heart of endomycorrhizal symbioses in plants. Curr Biol. 2017;27(17): R952-R963. https://doi.org/10.1016/j.cub.2017.06.042.
  7. Fitter A. Costs and benefits of mycorrhizas: implications for functioning under natural conditions. Experientia. 1991;47(4):350-355. https://doi.org/10.1007/BF01972076.
  8. Li H, Smith FA, Dickson S, et al. Plant growth depressions in arbuscular mycorrhizal symbioses: not just caused by carbon drain? New Phytol. 2008;178:852-862. https://doi.org/10.1111/j.1469-8137.2008.02410.x.
  9. Büchel DE, Gronenborn B, Müller-Hill B. Sequence of the lactose permease gene. Nature. 1980;283:541-5. https://doi.org/10.1038/283541a0.
  10. Mueckler M, Caruso C, Baldwin SA, Panico M. Sequence and structure of a human glucose transporter. Science. 1985;229(4717):941-945. https://doi.org/10.1126/science.3839598.
  11. Hediger MA, Coady MJ, Ikeda TS, Wright EM. Expression cloning and cDNA sequencing of the Na+/glucose co-transporter. Nature. 1987;330:379-381. https://doi.org/10.1038/330379a0.
  12. Celenza JL, Marshall-Carlson L, Carlson M. The yeast snf3 gene encodes a glucose transporter homologous to the mammalian protein. PNAS. 1988;85:2130-2134. https://doi.org/10.1073/pnas.85.7.2130.
  13. Sauer N, Tanner W. The hexose carrier from Chlorella. cDNA cloning of a eucaryotic H+-cotransporter. FEBS Lett. 1989;259(1):43-46. https://doi.org/10.1016/0014-5793(89)81489-9.
  14. Sauer N, Friedlander K, Graml-Wicke U. Primary structure, genomic organization and heterologous expression of a glucose transporter from Arabidopsis thaliana. EMBO J. 1990;9(10):3045-3050. https://doi.org/10.1002/j.1460-2075.1990.tb07500.x.
  15. Lewis DA, Bisson LF. The HXT1 gene product of Saccharomyces cerevisiae is a new member of the family of hexose transporters. Mol Cell Biol. 1991;11(7):3804-13. https://doi.org/10.1128/MCB.11.7.3804.
  16. Riesmeier JW, Willmitzer L, Frommer WB. Isolation and characterization of a sucrose carrier cDNA from spinach by functional expression in yeast. EMBO J. 1992;11(13):4705-4713. https://doi.org/10.1002/j.1460-2075.1992.tb05575.x.
  17. Doidy J, Grace E, Kühn C, et al. Sugar transporters in plants and in their interactions with fungi. Trends in Plant Science. 2012a;17(7):413-422. https://doi.org/ 10.16/j.tplants.2012.03.009.
  18. Lemoine R, La Camera S, Atanassova R, et al. Source-to-sink transport of sugar and regulation by environmental factors. Frontiers in Plant Science. 2013;4:272.
  19. Ludewig F, Flügge UI. Role of metabolite transporters in source-sink carbon allocation. Front Plant Sci. 2013;4:231. https://doi.org/10.3389/fpls.2013.00231.
  20. Wei X, Liu F, Chen C, et al. The Malus domestica sugar transporter gene family: identifications based on genome and expression profiling related to the accumulation of fruit sugars. Front Plant Sci. 2014;5:569. https://doi.org/10.3389/fpls.2014.00569.
  21. Wormit A, Trentmann O, Feifer I, et al. Molecular identification and physiological characterization of a novel monosaccharide transporter from Arabidopsis involved in vacuolar sugar transport. Plant Cell. 2006;18:3476-90. https://doi.org/10.1105/tpc.106.047290.
  22. Chen LQ, Hou BH, Lalonde S, et al. Sugar transporters for intercellular exchange and nutrition of pathogens. Nature. 2010;468(7323):527-532. https://doi.org/10.1038/nature09606.
  23. Jung B, Ludewig F, Schulz A, et al. Identification of the transporter responsible for sucrose accumulation in sugar beet taproots. Nature Plants 1. 2015;14001. https://doi.org/10.1038/nplants.2014.1.
  24. Fliege R, Flugge UI, Werdan K, Heldt HW. Specific transport of inorganic phosphate, 3-phosphoglycerate and triosephosphates across the inner membrane of the envelope in spinach chloroplasts. Biochim Biophys Acta. 1978;502(2):232-247. https://doi.org/10.1016/0005-2728(78)90045-2.
  25. Flügge UI, Fischer K, Gross A, et al. The triose phosphate-3-phosphoglycerate-phosphate transloca tor from spinach chloroplasts: nucleotide sequence of a full-length cDNA clone and import of the in vitro synthesized precursor protein into chloroplasts. EMBO J. 1989;8(1):39-46. https://doi.org/10.1002/ j.1460-2075.1989.tb03346.x.
  26. Weber A, Servaites JC, Geiger DR, et al. Identification, purification, and molecular cloning of a putative plastidic glucose translocator. Plant Cell. 2000;12(5):787-802. https://doi.org/10.1105/tpc.12.5.787.
  27. Büttner M. The monosaccharide transporter(-like) gene family in Arabidopsis. FEBS Lett. 2007;581(12):2318-24. https://doi.org/10.1016/j.febslet.2007.03.016.
  28. Niittylä T, Messerli G, Trevisan M, et al. A previously unknown maltose transporter essential for starch degradation in leaves. Science. 2004;303(5654):87-89. https://doi.org/10.1126/science.1091811.
  29. Wang J, Wang X, Geng S, et al. Genome-wide identification of hexokinase gene family in Brassica napus: structure, phylogenetic analysis, expression, and functional characterization. Planta. 2018;248:171-182. https://doi.org/10.1007/s00425-018-2888-8.
  30. Moore B, Zhou L, Rolland F, et al. Role of the Arabidopsis glucose sensor HXK1 in nutrient, light, and hormonal signaling. Science. 2003;300:332-336. https://doi.org/10.1126/science.1080585.
  31. Van Dingenen J, Antoniou C, Filippou P, et al. Strobilurins as growth-promoting compounds: how stroby regulates Arabidopsis leaf growth. Plant Cell and Environment. 2017;40(9):1748-60. https://doi.org/10.1111/pce.12980.
  32. Hohnjec N, Becker JD, Puhler A, et al. Genomic organization and expression properties of the MtSucS1 gene, which encodes a nodule enhanced sucrose synthase in the model legume Medicago truncatula. Mol Gen Genet. 1999;261:514-522. https://doi.org/10.1007/s004380050995.
  33. Baud S, Vaultier MN, Rochat C. Structure and expression profile of the sucrose synthase multigene family in Arabidopsis. J Exp Bot. 2004;55(396):397-409. https://doi.org/10.1093/jxb/erh047.
  34. Hirose T, Scofield GN, Terao T. An expression analysis profile for the entire sucrose synthase gene family in rice. Plant Sci. 2008;174(5):534-543. https://doi.org/10.1016/j.plantsci.2008.02.009.
  35. Zhang DQ, Xu BH, Yang XH, et al. The sucrose synthase gene family in Populus: structure, expression, and evolution. Tree Genet Genomes. 2011;7(3):443-56. https://doi.org/10.1007/s11295-010-0346-2.
  36. Xiao X, Tang C, Fang Y, et al. Structure and expression profile of the sucrose synthase gene family in the rubber tree: indicative of roles in stress response and sucrose utilization in the laticifers. FEBS Journal. 2013;281(1):291-305. https://doi.org/10.1111/febs.12595.
  37. Sauer N. Molecular physiology of higher plant sucrose transporters. FEBS Lett. 2007;581:2309-2317. https://doi.org/10.1016/j.febslet.2007.03.048.
  38. Kühn C, Grof CP. Sucrose transporters of higher plants. Curr Opin Plant Biol. 2010;13(3):288-298. https://doi.org/10.1016/j.pbi.2010.02.001.
  39. Payyavula RS, Tay KH, Tsai CJ, Harding SA. The sucrose transporter family in Populus: the importance of a tonoplast PtaSUT4 to biomass and carbon partitioning. Plant J. 2011;65(5):757-770. https://doi.org/10.1111/j.1365-313X.2010.04463.x.
  40. Zhou Y, Qu H, Dibley KE, et al. A suite of sucrose transporters expressed in coats of developing legume seeds includes novel pH-independent facilitators. Plant J. 2007;49(4):750-764. https://doi.org/10.1111/j.1365-313X.2006.03000.x.
  41. Chardon F, Bedu M, Calenge F, et al. Leaf fructose content is controlled by the vacuolar transporter SWEET17 in Arabidopsis. Curr Biol. 2013;23(8):697-702. https://doi.org/10.1016/j.cub.2013.03.021.
  42. Aluri S, Büttner M. Identification and functional expression of the Arabidopsis thaliana vacuolar glucose transporter 1 and its role in seed germination and flowering. Proc Natl Acad Sci USA. 2007;104(7):2537-42. https://doi.org/10.1073/pnas.0610278104.
  43. Taji Т, Ohsumi С, Iuchi S, et al. Important roles of drought- and cold-inducible genes for galactinol synthase in stress tolerance in Arabidopsis thaliana. Plant J. 2002;29:417-426. https://doi.org/10.1046/j.0960-7412.2001.01227.x.
  44. Klepek YS, Volke M, Konrad KR, et al. Arabidopsis thaliana POLYOL/MONOSACCHARIDE TRANSPORTERS1 and 2: fructose and xylitol/H+ symporters in pollen and young xylem cells. J Exp Bot. 2010;61(2):537-550. https://doi.org/10.1093/jxb/erp322.
  45. Meyer S, Melzer M, Truernit E, et al. AtSUC3, a gene encoding a new Arabidopsis sucrose transporter, is expressed in cells adjacent to the vascular tissue and in a carpel cell layer. Plant J. 2000;24(6):869-882. https://doi.org/10.1046/j.1365-313x.2000.00934.x.
  46. Halford NG, Curtis TY, Muttucumaru N, et al. Sugars in crop plants. Ann Appl Biol. 2011;158(1):1-25. https://doi.org/10.1111/j.1744-7348.2010.00443.x.
  47. Wang W, Zhou H, Ma B, et al. Divergent evolutionary pattern of sugar transporter genes is associated with the difference in sugar accumulation between Grasses and Eudicots. Sci Rep. 2016;6:29153. https://doi.org/10.1038/srep29153.
  48. Bago B, Pfeffer PE, Shachar-Hill Y. Carbon metabolism and transport in arbuscular mycorrhizas. Plant Physiol. 2000;124:949-957. https://doi.org/10.1104/pp.124.3.949.
  49. Doidy J, van Tuinen D, Lamotte O, et al. The Medicago truncatula sucrose transporter family: characterization and implication of key members in carbon partitioning towards arbuscular mycorrhizal fungi. Molecular Plant. 2012b;5(6):1346-1358. https://doi.org/10.1093/mp/sss079.
  50. Hennion N, Durand M, Vriet C, et al. Sugars en route to the roots. Transport, metabolism and storage within plant roots and towards microorganisms of the rhizosphere. Physiol Plant. 2019;165(1):44-57. https://doi.org/10.1111/ppl.12751.
  51. Milne RJ, Grof CP, Patrick JW. Mechanisms of phloem unloading: shaped by cellular pathways, their conductances and sink function. Curr Opin Plant Biol. 2018;43:8-15. https://doi.org/10.1016/j.pbi.2017.11.003.
  52. Wang W, Shi J, Xie Q, et al. Nutrient exchange and regulation in arbuscular mycorrhizal symbiosis. Mol Plant. 2017;10(9):1147-1158. https://doi.org/10.1016/j.molp.2017.07.012.
  53. Weber AP, Linka N. Connecting the plastid: transporters of the plastid envelope and their role in linking plastidial with cytosolic metabolism. Annu Rev Plant Biol. 2011;62:53-77. https://doi.org/10.1146/annurev-arplant-042110-103903.
  54. Noronha H, Conde C, Delrot S, Gerós H. Identification and functional characterization of grapevine transporters that mediate glucose-6-phosphate uptake into plastids. Planta. 2015;242(4):909-920. https://doi.org/10.1007/s00425-015-2329-x.
  55. Denyer K, Dunlap F, Thorbjornsen T, et al. The major form of ADP-glucose pyrophosphorylase in maize endosperm is extra-plastidial. Plant Physiol. 1996;112(2):779-85. https://doi.org/10.1104/pp.112.2.779.
  56. Noronha H, Silva A, Dai Z, et al. A molecular perspective on starch metabolism in woody tissues. Planta. 2018;248(3):559-568. https://doi.org/10.1007/s00425-018-2954-2.
  57. Carpaneto A, Geiger D, Bamberg E, et al. Phloem-localized, proton-coupled sucrose carrier ZmSUT1 mediates sucrose efflux under the control of the sucrose gradient and the proton motive force. J Biol Chem. 2005;280(22):21437-21443. https://doi.org/10.1074/jbc.M501785200.
  58. Fillion L, Ageorges A, Picaud S, et al. Cloning and expression of a hexose transporter gene expressed during the ripening of grape berry. Plant Physiol. 1999;120(4):1083-1094. https://doi.org/10.1104/pp.120.4.1083.
  59. Ait Lahmidi N, Courty P-E, Brulé D, et al. Sugar exchanges in arbuscular mycorrhiza: RiMST5 and RiMST6, two novel Rhizophagus irregularis monosaccharide transporters, are involved in both sugar uptake from the soil and from the plant partner. Plant Physiol Biochem. 2016;107:354-363. https://doi.org/10.1016/j.plaphy.2016.06.023.
  60. Gaude N, Bortfeld S, Duensing N, et al. Arbuscule-containing and non-colonized cortical cells of mycorrhizal roots undergo extensive and specific reprogramming during arbuscular mycorrhizal development. Plant J. 2012;69(3):510-528. https://doi.org/10.1111/j.1365-313X.2011.04810.x.
  61. Manck-Gotzenberger J, Requena N. Arbuscular mycorrhiza symbiosis induces a major transcriptional reprogramming of the potato SWEET sugar transporter family. Front Plant Sci. 2016;7:487. https://doi.org/10.3389/fpls.2016.00487.
  62. Helber N, Wippel K, Sauer N, et al. A versatile monosaccharide transporter that operates in the arbuscular mycorrhizal fungus Glomus sp. is сrucial for the symbiotic relationship with plants. The Plant Cell. 2011;23(10): 3812-23. https://doi.org/10.1105/tpc.111.089813.
  63. Garcia K, Doidy J, Zimmermann SD, et al. Take a trip through the plant and fungal transportome of Mycorrhiza. Trends Plant Sci. 2016;21(11):937-950. https://doi.org/10.1016/j.tplants.2016.07.010.
  64. Schüssler A, Martin H, Cohen D, et al. Characterization of a carbohydrate transporter from symbiotic glomeromycotan fungi. Nature. 2006;444:933-936. https://doi.org/10.1038/nature05364.
  65. Bitterlich M, Krügel U, Boldt-Burisch K, et al. The sucrose transporter SlSUT2 from tomato interacts with brassinosteroid functioning and affects arbuscular mycorrhiza formation. Plant J. 2014;78(5):877-889. https://doi.org/10.1111/tpj.12515.
  66. Gutjahr C, Radovanovic D, Geoffroy J, et al. The half-size ABC transporters STR1 and STR2 are indispensable for mycorrhizal arbuscule formation in rice. Plant J. 2012;69(5):906-920. https://doi.org/10.1111/j.1365-313X.2011.04842.x.
  67. Chandran D. Co-option of developmentally regulated plant SWEET transporters for pathogen nutrition and abiotic stress tolerance. IUBMB. 2015;67(7):461-471. https://doi.org/10.1002/iub.1394.
  68. Nielsen KL, Bouma TJ, Lynch JP, Eissenstat DM. Effects of phosphorus availability and vesicular-arbuscular mycorrhizas on the carbon budget of common bean (Phaseolus vulgaris). New Phytol. 1998;139:647-656. https://doi.org/10.1046/j.1469-8137.1998.00242.x.
  69. Pfeffer PE, Douds DD, Becard G, Shachar-Hill Y. Carbon uptake and the metabolism and transport of lipids in an arbuscular mycorrhiza. Plant Physiol. 1999;120(2):587-598. https://doi.org/10.1104/pp.120.2.587.
  70. Smith SE, Smith FA. Structure and function of the interfaces in biotrophic symbioses as they relate to nutrient transport. New Phytologist. 1990;114(1):1-38. https://doi.org/10.1111/j.1469-8137.1990.tb00370.x.
  71. Smith SE, Dickson S, Smith FA. Nutrient transfer in arbuscular mycorrhizas: how are fungal and plant processes integrated? Australian J Plant Physiol. 2001;28(7):683-694. https://doi.org/10.1071/PP01033.
  72. Pumplin N, Harrison MJ. Live-cell imaging reveals periarbuscular membrane domains and organelle location in Medicago truncatula roots during arbuscular mycorrhizal symbiosis. Plant Physio logy. 2009;151(2):809-819. https://doi.org/10.1104/pp.109.141879.
  73. Veiga RS, Faccio A, Genre A, et al. Arbuscular mycorrhizal fungi reduce growth and infect roots of the non-host plant Arabidopsis thaliana. Plant Cell Environ. 2013;36(11):1926-1937. https://doi.org/10.1111/pce.12102.
  74. Yurkov AP, Veselova SV, Jacobi LM, et al. The effect of inoculation with arbuscular mycorrhizal fungus Rhizophagus irregularis on cytokinin content in highly mycotrophic Medicago lupulina line under low phosphorus level in soil. Plant Soil Environ. 2017;63(11):519-24. https://doi.org/10.17221/617/2017-PSE.
  75. Aldape MJ, Elmer AM, Chao WS, Grimes HD. Identification and characterization of a sucrose transporter isolated from the developing cotyledons of soybean. Archives Biochem Biophys. 2003;409(2):243-250. https://doi.org/10.1016/S0003-9861(02)00631-8.
  76. Weber H, Borisjuk L, Heim U, et al. A role for sugar transporters during seed development: molecular cha racterization of a hexose and a sucrose carrier in fava bean seeds. Plant Cell. 1997;9:895-908. https://doi.org/10.1105/tpc.9.6.895.
  77. Feuerstein A, Niedermeier M, Bauer K, et al. Expression of the AtSUC1 gene in the female gametophyte, and ecotype-specific expression differences in male reproductive organs. Plant Biol (Stuttg). 2010;12 Suppl 1:105-114. https://doi.org/10.1111/j.1438-8677.2010.00389.x.
  78. Kryvoruchko IS, Sinharoy S, Torres-Jerez I, et al. MtSWEET11, a nodule-specific sucrose transporter of Me dicago truncatula. Plant Physiol. 2016;171(1): 554-65. https://doi.org/10.1104/pp.15.01910.
  79. Reinders A, Sivitz AB, Starker CG, et al. Functional analysis of LjSUT4, a vacuolar sucrose transporter from Lotus japonicas. Plant Mol Biol. 2008;68(3):289-299. https://doi.org/10.1007/s11103-008-9370-0.
  80. Truernit E, Schmid J, Epple P, et al. The sink-specific and stress-regulated Arabidopsis STP4 gene: enhanced expression of a gene encoding a monosaccharide transporter by wounding, elicitors, and pathogen challenge. Plant Cell. 1996;8:2169-2182. https://doi.org/10.1105/tpc.8.12.2169.
  81. Nørholm MHH, Nour-Eldin HH, Brodersen P, et al. Expression of the Arabidopsis high-affinity hexose transporter STP13 correlates with programmed cell death. FEBS Lett. 2006;580(9):2381-2387. https://doi.org/10.1016/j.febslet.2006.03.064.
  82. Poschet G, Hannich B, Büttner M. Identification and characterization of AtSTP14, a novel galactose transporter from Arabidopsis. Plant Cell Physiol. 2010;51:1571-1580. https://doi.org/10.1093/pcp/pcq100.
  83. Li H, Li X, Xuan Y, et al. Genome wide identification and expression profiling of SWEET genes family reveals its role during Plasmodiophora brassicae-induced formation of clubroot in Brassica rapa. Front Plant Sci. 2018;9:207. https://doi.org/10.3389/fpls.2018.00207.
  84. Lin IW, Sosso D, Chen LQ, et al. Nectar secretion requires sucrose phosphate synthases and the sugar transporter SWEET 9. Nature. 2014;508:546-549. https://doi.org/10.1038/nature13082.
  85. Liu Q, Yuan M, Zhou Y, et al. A paralog of the MtN3/saliva family recessively confers race-specific resistance to Xanthomonas oryzae in rice. Plant Cell Environ. 2011;34:1958-1969. https://doi.org/10.1111/j.1365-3040.2011.02391.x.
  86. Chen LQ, Cheung LS, Feng L, et al. Transport of sugars. Annu Rev Biochem. 2015;84:865-894. https://doi.org/10.1146/annurev-biochem-060614-033904.
  87. Yuan M, Wang S. Rice MtN3/saliva/SWEET family genes and their homologues in cellular organisms. Mol Plant. 2013;6(3):665-674. https://doi.org/10.1093/mp/sst035.
  88. Patil G, Valliyodan B, Deshmukh R, et al. Soybean (Glycine max) SWEET gene family: insights through comparative genomics, transcriptome profiling and whole genome re-sequence analysis. BMC Genomics. 2015;16:520. https://doi.org/10.1186/s12864-015-1730-y.

Supplementary files

Supplementary Files Action
1. Fig. 1. General scheme of transport of sugars from the aerial parts of the plants (based on materials presented by [17-20] with changes and additions). Source – leaf mesophyll donor cell (Source mesophyll cell), PD – Plasmodesma, Malt – Maltose, Sta – Starch, Chl – Chloroplast, Rubisco – Ribulose-1,5-bisphosphate carboxylase/oxygenase, Vac – Vacuole, АТP – Adenosine triphosphate, ADP – Adenosine diphosphate, NADPH – reduced form of NADP+ – Nicotinamide Adenine Dinucleotide Phosphate, Cc – Calvin cycle, Р – inorganic orthophosphate , ТP – Triose-Phosphate, UDP- – Uridine diphosphate Glucose, -6P – glucose 6-phosphate, HXK – hexokinase,  – sucrose, hexoses:  – glucose, – fructose, RFO – Raffinose Family Oligosaccharides, CInv – Cytosolic Invertase, VInv – Vacuolic Invertase, CWInv – Cell Wall Invertase, Pol – Polyols, Int – Inositol. Description of scheme is presented in the text. To simplify the comparison of the text and data presented in the figures, the continuous numbering for transporters and ferments was carried out, which is represented by numbers in circles; a similar approach was used by [19–20] View (578KB) Indexing metadata
2. Fig. 2. Scheme of the transport of sugars in the cells of the roots of a plant without AMsymbiosis (based on materials presented by [17-18, 20, 47, 50, 52-54] with changes and additions). In Fig. 2: for abbreviations see explanations to Fig. 1; Sink – a root cortex cell consuming sugar (Sink cortex cell), Amylo – Amyloplast, -1P – glucose-1-phosphate, ADP- – adenosine diphosphate Glucose, AGPase – ADP-glucopyrophosphorylase, PGM – phosphoglucomutase, SS – Starch Synthase, SB – Starch Branching enzyme, SD – amylopectin cleaving enzyme (Starch Debranching enzyme), AMY – amylase, PGI – phosphoglucose isomerase, SPS – Sucrose-Phosphate Synthase, SPP – Sucrose-phosphate phosphatase. Description of scheme see the text View (461KB) Indexing metadata
3. Fig. 3. Scheme of sugar transport to the roots of AM plants with arbuscules (based on materials presented by [18, 50, 52, 59] with changes and additions). In Fig. 3: for abbreviations see explanations to Fig. 1; Sink – a root-sugar cell that consumes sugar (Sink cortex cell); “Sink + AM” – a root cortex cell with AM that consumes sugar (Sink cortex cell with Arbuscular Mycorrhiza), “PM + CW” – Plasmatic Membrane and Cell Wall, PAM – Peri-Arbuscular Membrane, PAS – Peri-Arbuscular Space, “ArM + ACW” – Arbuscule Membrane and Arbuscule Cell Wall, InterH – Intercellular intraradical Hypha, ExtraH – Extraradical Hypha, FAS – Fatty Acid Synthase system, 2-MAG – 2-Monoacylglycerol, TAG – Triacyl-glycerol, Gly – Glycogen, MS – Monosaccharides. Description of transporters, see the text View (375KB) Indexing metadata

Views

Abstract - 287

PDF (Russian) - 157

PDF (English) - 13

PlumX


Copyright (c) 2019 Yurkov A.P., Kryukov A.A., Gorbunova A.O., Afonin A.M., Kirpichnikova A.A., Dobryakova K.S., Machs E.M., Shishova M.F.

Creative Commons License
This work is licensed under a Creative Commons Attribution 4.0 International License.
