The role of water-transporting aquaporins of the PIP and TIP subfamilies in plant development and adaptation to stress factors
- Authors: Danelia G.V.1, Emelyanov V.V.1, Shishova M.F.1
-
Affiliations:
- Saint Petersburg State University
- Issue: Vol 22, No 4 (2024)
- Pages: 343-368
- Section: Genetic basis of ecosystems evolution
- Submitted: 15.10.2024
- Accepted: 07.11.2024
- Published: 15.12.2024
- URL: https://journals.eco-vector.com/ecolgenet/article/view/637037
- DOI: https://doi.org/10.17816/ecogen637037
- ID: 637037
Cite item
Abstract
The comparative analyses of current knowledge of the diversity of aquaporins in angiosperms are presented in the review. Their structure, coding, and diversity of regulatory pathways are considered. Special attention is paid to aquaporins responsible for water transport. Data on the participation of various aquaporins in plant adaptation to abiotic factors causing hydration and dehydration are presented. The participation of aquaporins in the processes of plant growth and development from germination to seed formation are considered in sufficient detail. The data presented in the review indicate the main directions of further research important for elucidation of the mechanisms involved in regulation of aquaporins, mainly responsive for transmembrane water transport. The special significance of the studies at the omics level — transcriptomic and proteomic is noted. They will allow identifying the specificity of aquaporin isoforms involved in the development of the adaptive response or at different stages of plant development.
Keywords
Full Text
INTRODUCTION
The ability to create and maintain gradients of ions and water-soluble bioactive compounds between the internal contents and the environment is the fundamental property of living cells. The implementation of this property is closely related to the selective permeability of many compounds, ions, and water, which is driven by the properties of biological membranes. It is very important to study water transport mechanisms, because the extra- and intracellular environments are aqueous. Biological membranes are lipid bilayers having intrinsic passive permeability to water. In various models, it has been demonstrated that the intensity of passive H2O flux may vary within the range of 5–15 × 10–3 cm/s, depending on the lipid composition of the membrane, the asymmetry of the lipid bilayer, and other factors [1–3]. However, the vital activity of any cell is closely related to changes in the intensity of water fluxes passing through membranes (including a sharp increase), which are necessary for osmoregulation and cannot be fully explained by the passive permeability of the lipid bilayer.
Aquaporins are a large family of membrane transport proteins that function as selective channels for the transport of water and other molecules, including gases, through cell membranes along a concentration gradient in both directions [4]. Aquaporins are characterized by a high transport rate that exceeds that of many other transporters, including ion channels. In some cases, the transport rate may reach more than a billion water molecules per second [5]. Aquaporins belong to the family of highly conserved major intrinsic proteins (MIP). Representatives of this family have been identified in all living organisms, except for thermophilic archaea and several bacteria [6].
The greatest diversity of aquaporins is typical of the green plants (Viridiplantae), especially the higher plants (Embryophyta). Embryophyta are characterized by the highest number of aquaporin isoforms, which resulted from polyploidization that occurred during the evolution of this taxon [7]. The importance of this phenomenon is confirmed by the fact that at least 35% of existing flowering species are descendants of polyploid species [8, 9]. The subsequent conservation of many genes encoding these transporters is due to the need to effectively regulate water homeostasis under changing environmental conditions in an attached lifestyle [6, 10]. A total of 35 genes encoding aquaporins were identified in the genome of Arabidopsis, 33 in rice, 34 in orange, 41 each in maize and sorghum, 47 in tomato, 50 in banana, 55 in poplar, 66 in soybean, 71 in cotton, and 120 in rapeseed [6, 11, 12].
In recent years, a substantial body of research has been accumulated on the physiological significance of aquaporins during development and adaptation to stress factors [10, 13–16]. However, the mechanisms underlying these processes are not fully elucidated. This review aims to provide a comparative analysis of the primary mechanisms of aquaporin involvement in the development and adaptation to abiotic stress factors. A comparative analysis of adaptation to dehydration and growth underlying processes are of particular interest.
HISTORY OF DISCOVERY AND CLASSIFICATION OF AQUAPORINS
As early as 1953, the transport of water across biological membranes through specialized pores was hypothesized [17]. However, this assumption had not been experimentally confirmed until 1970, when the presence of such pores was observed in human erythrocytes [18]. In 1988, a protein with a molecular mass of 28 kDa was isolated from erythrocytes and renal tubules (CHIP28, AQP1), then purified, and partially characterized [19]. The genes of these proteins were cloned, and their transport function was demonstrated by heterologous expression of the corresponding genes in Xenopus oocytes [20, 21]. In plants, the first aquaporin was identified as Nodulin 26 (GmNOD26) in rhizobial tubercles of soybean [22]. Further studies of plant aquaporins have facilitated the detailed characterization of many membrane transporters and have resulted in a substantial expansion of our understanding of the water regime.
In plants, including algae and higher plants, such as mosses, lycopodium, dicotyledons and monocotyledons, there are up to eight subfamilies of aquaporins. These subfamilies include plasma membrane intrinsic proteins (PIPs), tonoplast intrinsic proteins (TIPs), nodulin26-like membrane proteins (NIPs), small basic intrinsic proteins (SIPs), uncharacterized X intrinsic proteins (XIPs), large integral proteins, GlpF-like intrinsic proteins (GIPs), and hybrid intrinsic proteins [10, 23]. Proteins belonging to the latter two groups are exclusively present in prokaryotes and certain lower plants, and they have been completely lost in seed plants. The number of isoforms in these groups is minimal (1–3). In green algae, homologs of the PIP and GIP families have been identified and classified into the MIP A-E subclasses [14]. The analysis of 82 plants (5200 aquaporin isoforms) indicates that the PIP subfamily (1807 isoforms) is the most abundant by the number of isoforms. The TIPs and NIPs subfamilies exhibit a high degree of similarity in terms of isoform diversity [24].
The general scheme of intracellular localization of aquaporins in plants is illustrated in Figure 1. It should be noted that members of different families can be identified or their localization in other cell membranes can be predicted, independent of their initial localization. Contrary to the prevailing view that mitochondrial membranes contain no aquaporins [14], a recent proteomic analysis has identified these proteins, presumably belonging to the TIP subfamily [25, 26].

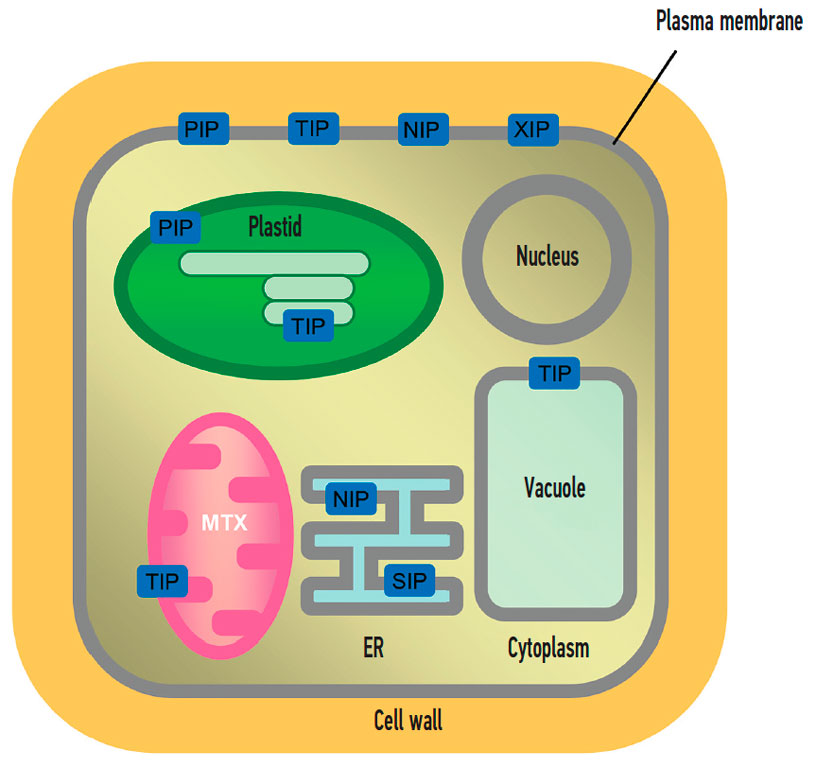

Fig. 1. Cellular localization of aquaporins. PIP, TIP, NIP, and XIP aquaporins are localized primarily in the plasma membrane and are present on the entire cell surface. SIP aquaporins and some NIP aquaporins were found in the endoplasmic reticulum (ЭПС) membrane. TIP aquaporins are localized in the tonoplast, the vacuole membrane. Some PIP and TIP aquaporins were predicted to be localized in the inner chloroplast membrane and the thylakoid membrane. A number of TIP aquaporins were found in mitochondrial (МТХ) membranes

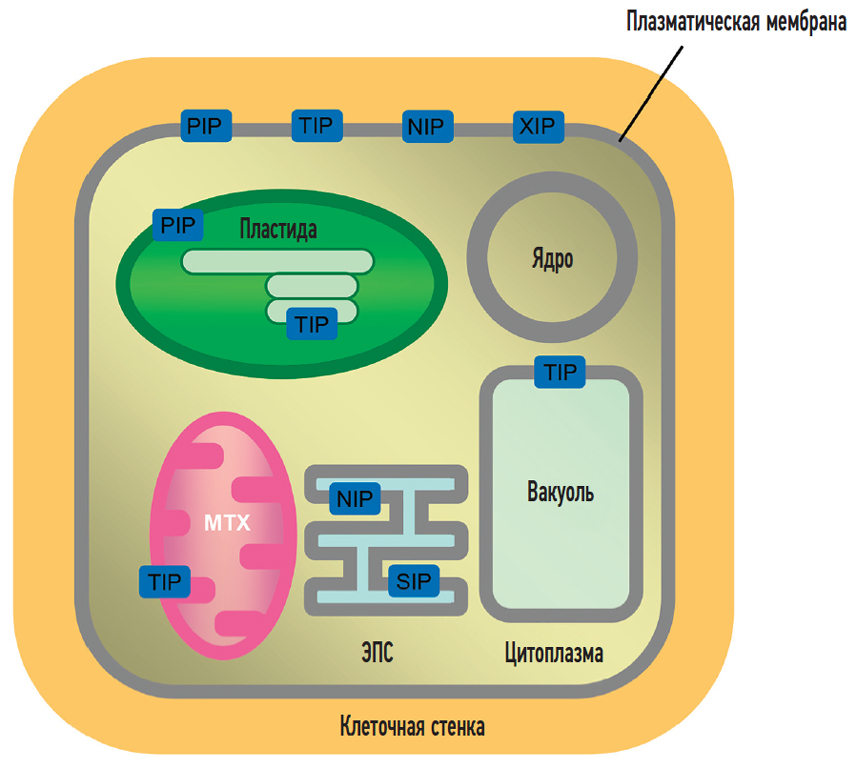

Рис. 1. Клеточная локализация аквапоринов. PIP-, TIP-, NIP- и XIP-аквапорины локализуются преимущественно в плазматической мембране и присутствуют на всей поверхности клетки. SIP-аквапорины и некоторые NIP-аквапорины были обнаружены в мембране эндоплазматической сети (ЭПС). TIP-аквапорины локализуются в тонопласте — мембране вакуоли. Было предсказано, что некоторые PIP- и TIP-аквапорины локализуются во внутренней мембране хлоропласта и мембране тилакоидов. Ряд представителей TIP-аквапоринов выявлен в мембранах митохондрий (МТХ)
The aforementioned scheme appears to be inconclusive due to the potential variability in the distribution of aquaporins within cell membranes across diverse shoot and root tissues. This variability may also depend on the developmental stage of the plant organism and the impact of stress factors on the plant [24, 27]. This phenomenon is exemplified by the localization and intracellular redistribution of representatives of the PIP and TIP aquaporin subfamilies.
STRUCTURE AND TRANSPORT PROPERTIES OF AQUAPORINS
Like all members of the MIP superfamily, aquaporins possess the following structural characteristics (Fig. 2):
- Six transmembrane alpha-helical domains [6];
- Localization of N- and C-termini in the cytosol; and
- Five loops connecting transmembrane domains (A–E: A, C, and E face outward, whereas B and D face into the cytosol).

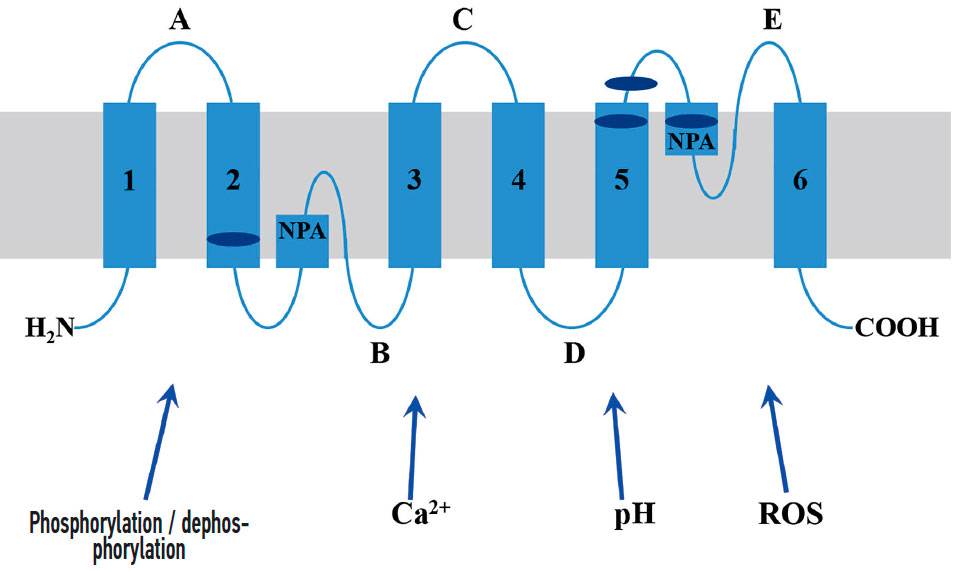

Fig. 2. The structure of plant aquaporin. Transmembrane domains (1–6), loops (A–E), NPA (Asn-Pro-Ala) motifs are located in loops B and E. Posttranslational modification is possible as a result of changes in phosphorylation, depends on pH, Ca2+ ions, and the presence of reactive oxygen species (ROS). Dark ellipse — aromatic/arginine filter — ar/R filter (from [4], with alterations)

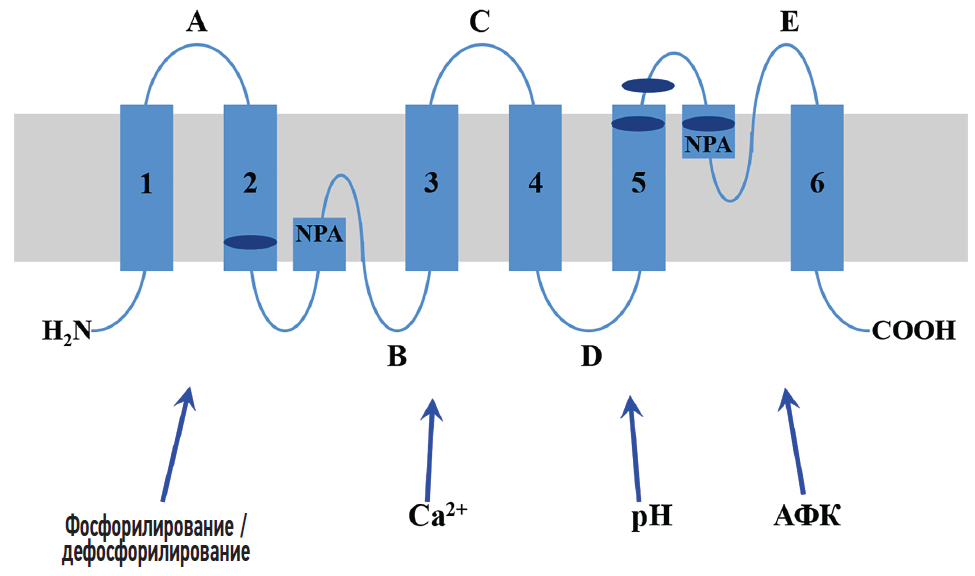

Рис. 2. Структура аквапорина растений. Трансмембранные домены (1–6), петли (А–Е), мотивы NPA (Asn-Pro-Ala) находятся в петлях B и E. Посттрансляционная модификация возможна в результате изменения фосфорилирования, зависит от рН, ионов Са2+, а также присутствия активных форм кислорода (ROS). Темный элипс — ароматический/аргининовый фильтр — ar/R filter (по: [4], с изменениями)
The classical structure of aquaporins (six transmembrane domains) is thought to have arisen from a tandem intragenic duplication of the coding sequence for a protein with three transmembrane domains, which may have functioned as a homodimer [10].
The assembly of four monomers of aquaporins results in the formation of homo- or heterotetrameric complexes [4]. Each monomer of the complex functions as an independent water channel having an activity determined by its amino acid composition, interaction with neighboring monomers, post-translational modification, and the action of various signaling molecules [10, 27]. Two conserved loops (cytoplasmic loop B and outer loop E) contain the NPA-motif (Asn-Pro-Ala), which is critical for aquaporin functionality. This motif regulates the permeability of the transporter to substrates, including water [4]. Loops B and E form half-helices that are directed inside the membrane and converge in the middle to form a pore. At the point of convergence, there are two NPA motifs that, together with four amino acid (AA) residues located on the apoplastic side of the second (Phe81) and fifth (His210) transmembrane helices and within the E loop (Thr, Arg; known as the aromatic/arginine [ar/R] filter), contribute to the determination of the substrate specificity of the pore [10]. Another distinguishing trait of aquaporins is the presence of AEF (Ala-Glu-Phe) or AEFXXT (Ala-Glu-Phe — any AK — any AA-Thr) motifs in the N-terminal domain [6].
The above data indicate the complex structure of the channel, which determines its permeability. Although aquaporins were originally characterized as water transporters, this property is not exhibited by all groups of plant aquaporins. Furthermore, variations in substrate permeability can be observed within the same subfamily. This phenomenon has been demonstrated for PIP [10], TIP, and NIP aquaporins [28], as well as SIP [29] and XIP aquaporins [30]. The peculiarities of the transport function of angiospermous aquaporins are presented in Table 1.
Table 1. Transport functions of aquaporin subfamilies in angiosperms
Таблица 1. Транспортные функции подсемейств аквапоринов покрытосеменных растений
Aquaporin subfamily | Transport specificity according to [10] |
PIP (plasma membrane intrinsic proteins) | Transport of water, hydrogen peroxide, and carbon dioxide (different functions in different members of the subfamily) |
TIP (tonoplast intrinsic proteins) | Transport of water, hydrogen peroxide, ammonium, and urea |
NIP (Nodulin26-like intrinsic proteins) | Permeable to a wide range of substrates, including both beneficial and toxic metalloids, but poorly permeable to water (different functions in different members of the subfamily) |
SIP (small basic intrinsic proteins) | Low water permeability |
XIPs (uncharacterized/X intrinsic proteins) | Low water permeability |
The following model systems are used to determine the transport properties of aquaporins with respect to specific substrates: (1) isolated tissues (e.g., leaf discs); (2) protoplasts; (3) membrane vesicular fractions isolated from cells of wild-type or transgenic plants with recombinant aquaporins; (4) Xenopus clawed frog oocytes; (5) yeast cells; (6) liposomes with purified and embedded aquaporin proteins (proteoliposomes) or flat lipid bilayers [10, 31]. However, data obtained for the same protein in different model systems may differ [32]. Therefore, caution should be exercised when transferring results obtained on proteoliposomes, oocytes, or yeast to in planta conditions.
AQUAPORIN ENCODING IN DIFFERENT PLANT SPECIES
As previously mentioned, Viridiplantae are distinguished by a substantial number of genes that encode aquaporins. Table 2 presents examples of aquaporin encoding from five primary subfamilies across diverse species of higher plants. It is evident that the number of aquaporin genes may vary considerably even among closely related species. The presence of 120 genes in rapeseed, in contrast to the 35 genes observed in Arabidopsis, is particularly noteworthy. This increase in the number of aquaporin genes may be attributed to genome-wide duplication during evolution [11, 33].
Table 2. Coding of aquaporins in some species of angiosperms
Таблица 2. Кодирование аквапоринов у некоторых видов цветковых растений
Plant species | Total AQP genes | PIP1 | PIP2 | Total PIP | TIP1 | TIP2 | TIP3 | TIP4 | TIP5 | Total TIP | NIP1 | NIP2 | NIP3 | NIP4 | NIP5 | NIP6 | NIP7 | Total NIP | SIP1 | SIP2 | Total SIP | XIP1 | XIP2 | XIP3 | Total XIP | Reference* |
Thale cress Arabidopsis thaliana (L.) Heynh. | 35 | 5 | 8 | 13 | 3 | 3 | 2 | 1 | 1 | 10 | 2 | 1 | 1 | 2 | 1 | 1 | 1 | 9 | 2 | 1 | 3 | 0 | 0 | 0 | 0 | [34] |
Rapeseed Brassica napus L. (canola)** | 120 | 19 | 24 | 43 | 9 | 13 | 10 | 1 | 2 | 35 | 4 | 4 | 6 | 6 | 5 | 4 | 2 | 31 | 6 | 5 | 11 | 0 | 0 | 0 | 0 | [11] |
Brassica oleracea L. var. italica broccoli | 65 | 8 | 15 | 23 | 6 | 7 | 5 | 1 | 1 | 20 | 2 | 2 | 3 | 5 | 3 | 2 | 1 | 18 | 2 | 2 | 4 | 0 | 0 | 0 | 0 | [35] |
Gossypium hirsutum L. upland cotton** | 71 | 15 | 13 | 28 | 14 | 7 | 0 | 2 | 0 | 22 | 3 | 1 | 0 | 0 | 2 | 6 | 0 | 12 | 7 | 0 | 7 | 1 | 0 | 0 | 1 | [36] |
Populus trichocarpa black cottonwood Torr.& A.Gray ex Hook. | 55 | 5 | 10 | 15 | 8 | 4 | 2 | 1 | 2 | 17 | 5 | 1 | 5 | 0 | 0 | 0 | 0 | 11 | 4 | 2 | 6 | 5 | 1 | 0 | 6 | [37] |
Glycine max (L.) Merr. soy bean | 66 | 8 | 14 | 22 | 9 | 7 | 4 | 2 | 1 | 23 | 5 | 2 | 0 | 1 | 1 | 2 | 2 | 13 | 6 | 0 | 6 | 2 | 0 | 0 | 2 | [38] |
Cucumis melo L. melon | 31 | 2 | 10 | 12 | 3 | 2 | 1 | 1 | 1 | 8 | 1 | 2 | 0 | 1 | 2 | 1 | 1 | 8 | 1 | 1 | 2 | 1 | 0 | 0 | 1 | [25] |
Daucus carota subsp. sativus (Hoffm.) Arcang garden carrot | 47 | 6 | 8 | 14 | 4 | 5 | 2 | 1 | 2 | 14 | 6 | 1 | 1 | 2 | 2 | 1 | 0 | 13 | 2 | 2 | 4 | 2 | 0 | 0 | 2 | [39] |
Oryza sativa L. rice | 33 | 3 | 8 | 11 | 2 | 2 | 2 | 3 | 1 | 10 | 4 | 2 | 3 | 1 | 0 | 0 | 0 | 10 | 1 | 1 | 2 | 0 | 0 | 0 | 0 | [40] |
Hordeum vulgare L. barley | 40 | 5 | 14 | 19 | 2 | 3 | 2 | 3 | 1 | 11 | 2 | 3 | 2 | 1 | 0 | 0 | 0 | 8 | 1 | 1 | 2 | 0 | 0 | 0 | 0 | [41] |
Sorghum bicolor (L.) Moench sorghum | 41 | 4 | 10 | 14 | 2 | 3 | 3 | 3 | 2 | 13 | 5 | 2 | 3 | 1 | 0 | 0 | 0 | 11 | 2 | 1 | 3 | 0 | 0 | 0 | 0 | [42] |
Zea mays L. maize | 41 | 4 | 9 | 13 | 2 | 4 | 4 | 4 | 1 | 15 | 3 | 4 | 2 | 1 | 0 | 0 | 0 | 10 | 2 | 1 | 3 | 0 | 0 | 0 | 0 | [12] |
Note. The total number of genes encoding aquaporins or their subfamilies is shown in bold. *The authors of references cited here used not only the amino acid sequences of proteins, but also information about the genomes and transcriptomes of the plants studied, so the table specifically refers to genes encoding full-length proteins. **Evolutionarily young polyploids. Примечание. Полужирным шрифтом выделено общее количество генов, кодирующих аквапорины или их подсемейства. *Авторы приведенных здесь статей использовали не только аминокислотные последовательности белков, но и информацию о геномах и транскриптомах изучаемых растений, поэтому в таблице речь идет именно о генах, кодирующих полноразмерные белки. **Эволюционно молодые полиплоиды. |
It is hypothesized that PIP-aquaporins diverged into two highly conserved groups (PIP1 and PIP2) prior to the emergence of land plants. Although the number of groups did not increase further, a significant increase in the number of isoforms of PIP1 and PIP2 aquaporins was observed [10]. A separate subfamily of TIP aquaporins was exclusively formed in land plants, with TIP2, TIP3, and TIP4 representing the predominant groups. Conversely, TIP1 and TIP5 appear as sister groups to TIP3 and TIP2, respectively, in flowering plants. Furthermore, the NIP subfamily is distinguished by its high degree of variability among different species. Another noteworthy phenomenon pertains to the encoding of the XIP subfamily. The loss of the entire XIP subfamily is a distinctive feature of monocotyledons and certain dicotyledons, as evidenced by many species within the Brassicaceae family.
AQUAPORIN REGULATION
In the last two decades, a lot of studies have been conducted to evaluate changes in the activity of plant aquaporins at the level of gene expression and protein accumulation as an adaptation to stress factors causing changes in water regime [15]. The most common subjects of analysis are factors leading to dehydration, such as drought, salinity, or high and low temperatures. However, the factors leading to excessive environmental moisture for land plants, including short-term stress conditions such as flooding and long-term stress conditions for higher plants that have evolved to live in an aquatic environment, remains underexplored with regard to the involvement of aquaporins in the response formation.
The above processes are accompanied by changes in water fluxes, both through the plasmalemma and across intracellular membranes. This assumption is consistent with the data on changes in the expression patterns of genes encoding various aquaporins, the accumulation spectra of the corresponding proteins, and the modification of their functional activity. A large body of evidence points to the formation of a complex regulatory system at the transcriptional and post-translational levels. The mechanisms implemented at the protein level include phosphorylation and dephosphorylation, changes in protein reconstitution (Fig. 2), functional tetramerization of aquaporin monomers, and the intensity of incorporation/replacement of different aquaporin isoforms within cell membranes [4].
The current understanding of these mechanisms, which allow for the regulation of water transport intensity through various membranes of the plant cell, will be discussed in more detail.
Transcriptional regulation under dehydration conditions
Several studies have shown that the expression of genes encoding aquaporins is tissue specific and strongly influenced by environmental factors such as drought, salinity, and high/low temperatures. The data summarized in Table 3 clearly show that the studied genes encoding aquaporins of the PIP and TIP subfamilies, which are specialized in water transport, significantly change their expression profile. In addition, the level of transcript accumulation of PIP family genes is the most variable.
Table 3. Regulation of aquaporins at the transcriptional level under dessication stress
Таблица 3. Регуляция аквапоринов на транскрипционном уровне в условиях обезвоживания
Analyzed gene, species and tissue specificity | Acting factor | Changes in transcript abundance | Reference |
FaPIP1;2, FaPIP2;1 and FaTIP1;1 in the leaves of Festuca arundinacea Vill. | Drought | FaPIP1;2 and FaTIP1;1 expression decreased in both analyzed genotypes (with high and low drought tolerance); FaPIP2;1 expression decreased only in the genotype with high drought tolerance | [43] |
Salinization | FaPIP1;2 expression decreased in the high salt tolerance genotype; FaTIP1;1 expression increased in both genotypes | ||
FpPIP1;2, FpPIP2;1 and FpTIP1;2 in the leaves of F. pratensis Huds. | Low positive temperatures | Reduced expression in both genotypes (high and low cold tolerance) | |
TaPIP1-1, TaPIP1-4, TaPIP2-26 in the elongation zone of the third true leaf of Triticum aestivum L.; TaPIP1-2, PutTaPIP2-2, TaPIP2-2C3, TaPIP2-3C1, TaPIP2-4C1, TaAQP2 in the mature zone of the second true leaf | Salinization | TaPIP2-26: an increase compared to the control at night. TaPIP1-2: a decrease compared to the control during both day and at night. PutTaPIP2-2: a decrease compared to the control during the day. TaPIP2-3C1: a decrease compared to the control at night. TaPIP2-4C1: an increase compared to the control during the day. TaAQP2: a decrease compared to the control both during the day and at night | [44] |
13 AtPIP genes (5 PIP1 genes, 8 PIP2 genes) in roots and aerial parts of Arabidopsis thaliana (L.) Heynh. | Drought (mannitol 250 mM) | Aerial parts: There was a strong decrease in the expression of PIP1;5, PIP2;2, PIP2;3, and PIP2;6. The expression of PIP1;1 first increased and then gradually decreased. The expression level of PIP1;2, PIP2;7 and PIP2;8 initially remained at the same level, followed by a gradual decrease. The expression of PIP1;3, PIP1;4, PIP2;1, and PIP2;5 increased strongly in both roots and aerial parts, whereas the expression of PIP1;5, PIP2;2, and PIP2;3 decreased in both roots and aerial parts. The expression level of PIP2;4 decreased much more in roots than in the aerial parts. The expression level of PIP2;6 decreased less in roots than in the aerial parts | [45] |
Salinization (150 mM NaCl) | Aerial parts: PIP1;2 and PIP1;5 expression levels exhibited an initial increase, followed by a subsequent decline; PIP2;6 expression levels demonstrated a decline; the remaining genes exhibited an increase in expression. Roots: PIP1;5 expression demonstrated a decrease, whereas the expression of other genes exhibited an increase | ||
Low positive temperatures (4 °C) | Aerial parts: There was an increased expression of PIP2;5 and PIP2;6, and a decreased expression of all other genes. Roots: there was an increased expression of PIP1;4, PIP2;1, PIP2;5, and PIP2;6; the expression of PIP2;8 first increased, then decreased (in total, no changes); there was a decreased expression of all other genes | ||
12 CmPIP genes (2 PIP1 genes, 10 PIP2 genes) in roots and leaves of Cucumis melo L. | Salinization (50 mM NaCl in Hoagland solution) | Roots: PIP2.1, PIP2.5, and PIP2.6 showed a significant decrease in expression. Leaves: PIP1.1 showed a significant increase | [46] |
Exposure to high temperatures (40 °C) | Roots: PIP1.1, PIP1.2, and PIP2.2 showed a significant increase, whereas PIP2.1, PIP2.5, PIP2.6, PIP2.9, and PIP2.10 showed a significant decrease. Leaves: PIP2.6 showed a marked increase | ||
8 CmTIP genes (3 TIP1 genes, 3 TIP2 genes, TIP3.1, TIP4.1, and TIP5.1) in roots and leaves of C. melo | Salinization (50 mM NaCl in Hoagland solution) | Roots: TIP1.1 showed a weak increase in expression, whereas TIP2.2, TIP4.1 showed no significant differences | |
Exposure to high temperatures (40 °C) | Roots: TIP1.1 showed a significant increase in expression; other genes showed a decrease. Leaves: TIP1.1 showed a significant decrease, TIP1.3 showed a significant increase, and TIP2.1 showed an increase | ||
AcAQP2 (from the PIP1 group) in roots, bulbs, and leaves of Allium cepa L. | Salinization (25, 50, 75, and 100 mM NaCl) | In roots, a decrease was observed for all concentrations except for 75 mM NaCl | [47] |
AcAQP1 (from the PIP2 group) in roots, bulbs, and leaves of A. cepa | In roots, a statistically significant decrease in expression was detected at 100 mM NaCl, whereas in bulbs, a statis-tically significant decrease was detected at all concentra-tions except for 75 mM NaCl. | ||
AcAQP3 from the TIP2 group in roots, bulbs, and leaves of A. cepa | Leaves showed a decrease in expression for concentra-tions of 50 and 100 mM NaCl; roots showed a decrease for all concentrations but most pronounced for 50 mM NaCl; bulbs showed a decrease for concentrations of 50, 75, and 100 mM NaCl | ||
ZmPIP2;2 and ZmPIP2;6 in roots of Zea mays L. | Drought | No changes compared with control | [48] |
10 PIP genes (4 PIP1 genes, 6 PIP2 genes) in leaves of Brassica oleracea L. var. italica | Salinization | PIP1–2 showed an almost threefold increase in expression compared with control leaves | [49] |
The data on stress-induced change in expression presented in Table 3 demonstrate three key findings: (1) not all aquaporin genes within the same subfamily undergo unidirectional changes in expression intensity in response to stress; (2) the effects of transcriptional exposure to the same stressor may vary in its impact on the accumulation of expression products, depending on the studied organ (e.g., roots or leaves) and/or its age; (3) a change in gene expression in several tested aquaporins exhibit complex changes over time. These data support the existence of regulation at the transcriptional level, although the mechanisms underlying these phenomena are far from understanding. In the foreseeable future, a renewed interest in this regulatory form is likely to accompany the deciphering of promoter regions of genes and the identification of transcription factors. Therefore, it is currently impossible to characterize the regularities of the observed differences and to assess the extent to which the change in transcription of different aquaporins is due to a non-specific or, conversely, a specific response to stress factor exposure.
Post-translational regulation during dehydration
The findings from the aforementioned studies indicate the possibility of regulating the aquaporin activity at both the gene and protein levels. An evident mechanism of the latter involves the alteration in the spectrum of aquaporin isoforms, which is consistent with the previously characterized change in the transcription of aquaporin-encoding genes. Nevertheless, there may be mechanisms that result in changes in the activity of existing aquaporins within specific membranes. The mechanisms underlying the regulation of aquaporins at the post-translational level are described below. Membrane transporters, including aquaporins, are characterized by conformational changes, which is one of the mechanisms of permeability control. An analysis of the three-dimensional structure of several aquaporins has led to the conclusion that the gate mechanism is in a constant dynamic equilibrium that shifts in response to changes in external conditions. Phosphorylation, protonation, and binding of bivalent cations are critical factors in this regulatory response. The process of phosphorylation and dephosphorylation of serine and threonine residues within aquaporins is subject to the regulation of protein kinases, leading to alterations in the tertiary structure and, consequently, the pore size [50–53]. A key aspect of water transport across the plasma membrane is the phosphorylation of Ser256 compared with the phosphorylation of Ser264 and Ser269 [54]. Another mechanism that may lead to a decrease in aquaporin activity is the destruction of disulfide bridges, a process that involves the participation of heavy metals such as mercury and silver [55, 56]. The effect of reactive oxygen species (ROS) on aquaporin activity is similar [57]. However, high levels of ROS inhibit the activity of aquaporins, whereas low levels have a stimulating effect [58].
Some alternative regulatory mechanisms at the protein level have been identified for aquaporins. One such mechanism involves a change in the rate of aquaporin transport from the synthesis site in the endoplasmic reticulum (ER) to the corresponding membranes [59, 60]. This mechanism may offer a potential explanation for the discrepancy between the stress-induced change in the accumulation of transcription products and the pool of encoded proteins detected in studies [61]. The mechanisms underlying this process are still unclear. One hypothesis proposes the involvement of two-acid motifs in the amino acid sequences of PIP aquaporins, which are likely involved in the mechanism of ER exit. An alternative mechanism involves the regulation of SNARE (soluble N-ethylmaleimide-sensitive factor adaptor protein receptors) proteins of the syntaxin family, which are involved in membrane fusion during vesicular transport. Together, these mechanisms may account for the observed constant “recycling” between membranes detected for aquaporins, although the rate of this recycling may vary. In addition to redistribution between cell membranes, aquaporins may be rapidly removed from their respective membranes under osmotic and salt stress, which subsequently reduces membrane permeability to water. The rapid response is believed to be partially determined by the degree of phosphorylation of the C-terminal domain [4, 10]. Consequently, a complex system of changes in the aquaporin pool within membranes, encompassing the plasmalemma and tonoplast, serves to regulate the dynamic equilibrium of aquaporin permeability to water under both normal conditions and stressors [27].
The examples evaluated in this section unmistakably demonstrate the heterogeneity of mechanisms that regulate the involvement of aquaporins in the development of adaptation mechanisms in plants. These mechanisms are manifested at the level of both transcripts and proteins. Furthermore, the identified changes vary by their orientation and velocity, depending on both the stressor type and the studied aquaporin. Currently, the PIP family of aquaporins is the most extensively studied, which can be attributed to the deep interest of researchers in this group, considering the critical role of plasmalemma permeability to water. Moreover, these data indicate the need to continue and expand studies aimed at further identification of multiple pathways regulating the aquaporin activity at different levels of organization and during dehydration. Further improvements in the accurate identification of closely related aquaporin-encoding genes and isoforms of these transporters are essential. A comparison of the rate and direction of aquaporin transport in the cell with the rate of their synthesis/degradation may be important.
Aquaporins in flooding and in aquatic higher plants
A large body of data indicates that the spectrum of aquaporins and their activity change when exposed to the risk of dehydration (salinity, drought, and high and low temperatures). However, the mechanisms for aquaporin contribution to the adaptive response to factors that are expected to increase the water flux into cells are not clearly understood. These factors include flooding (short-term response) and the growth of secondary aquatic higher plants in an aquatic environment (long-term adaptation).
The role of aquaporins in flooding has been studied for several decades. However, most of this research has focused on elucidating the effect of oxygen deficiency that develops during flooding on water transport. A decrease in hydraulic conductivity has been identified as one of the earliest effects observed during flooding [62]. This phenomenon may be attributed to a rapid decrease in aquaporin permeability. The regulatory mechanisms include a rapid decrease in pH induced by hypoxia, as well as the subsequent protonation of histidine residues [63]. Another potential mechanism may involve the accumulation of ROS, which have been identified as regulators of aquaporin activity [57]. However, the existing data do not allow for a clear distinction between the effects of oxygen deficiency and excess water. This challenge may be partially addressed by studying the changes in aquaporin activity under conditions of well-aerated hydroponics. Unfortunately, no studies have been found that directly address this question, although some insights can be obtained from papers on control plants cultivated in hydroponics. The following examples provide illustrative cases.
As demonstrated in previous studies, a decline in the expression of genes encoding aquaporins HvPIP2;1, HvPIP2;2, and HvPIP2;5 is accompanied by a reduction in water absorption by barley roots [64]. However, a comparative analysis of aquaporins belonging to the PIP subfamily in root hairs of wild-type barley seedlings and brb mutants, characterized by a complete absence of hairs, which were cultivated in hydroponics, revealed no significant differences [65]. Consequently, it was concluded that aquaporin isoforms specifically expressed in root hairs are not involved in water absorption.
As a second example, we can mention another study that compared the roots of soybean seedlings grown in hydroponic systems (aerated and hypoxic). It was shown that the expression of four tested genes encoding PIP2 aquaporins varied significantly in control, but according to the authors, it this variation corresponded to the diurnal rhythm [66]. Thus, it is currently impossible to assess the effect of flooding on aquaporin activity in the absence of oxygen deficiency during short-term exposure.
In contrast to higher land plants, higher secondary aquatic plants absorb soluble substances mainly through leaves rather than roots [67]. The data indicate that only 25 aquaporin genes have been identified in the genome of Zostera marina L., including only 4 PIP genes, which is much fewer than in land angiosperms. This phenomenon may be related to a reduced need for proteins responsible for water absorption and mineral elements in plants growing in the aquatic habitat [67].
The study of tissue localization and aquaporin activity in such plants is still at its early stages. The interpretation of data obtained from monocotyledonous angiosperms of the genera Zostera and Posidonia is complicated by the fact that these plants grow in the sea, and the need to avoid excessive watering of tissues in these plants is combined with the need to cope with salinity (in contrast to glycophytic angiosperms). Nonetheless, Table 4 demonstrates a substantial accumulation of transcripts of genes encoding representatives of PIP aquaporins in shoot cells of apical meristems and epidermis. Conversely, transcripts of TIP protein genes were observed when the effect of salinization and vacuole size increased. The data in Table 4 underscores the need for further research on potential changes in the function of aquaporins and the mechanisms of their regulation in aquatic plants.
Table 4. PIP and TIP aquaporins in marine angiosperms
Таблица 4. Аквапорины PIP и TIP у морских покрытосеменных растений
Plant species | Expressed gene, accumulated protein | Reference |
Zostera marina L. | In contrast to land plants, PIP gene expression was higher in shoots than in roots. Specific expression of TIP1 and TIP5 genes was observed in male flowers. | [67] |
The role of PIP proteins in the regulation of water content during growth, seed germination, and the tidal cycle has been demonstrated | [68] | |
Posidonia oceanica (L.) Delile | PoPIP1;1 transcripts were detected in meristematic regions of shoot and root apical meristems, epidermal and subepidermal cells of leaves, and vascular tissues. PoTIP1;1 transcripts were detected in tissues whose cells had a well-defined vacuole. Upon exposure to elevated salinity, PoTIP1;1 expression was greatly increased compared with PoPIP1;1 expression. | [69] |
The immunolocalization of PoPIP1;1 protein on leaf transversal sections re-vealed its presence in the epidermis and, to a lesser extent, in vascular bun-dles and the mesophyll; the accumulation of this protein increased when ex-posed to increased salinity | [70] |
AQUAPORINS IN PLANT DEVELOPMENT
The ability of organisms to adapt to adverse environmental factors is predicated on genetic programs that ensure individual development under normal conditions. In the ontogenesis of flowering plants, there are stages that are similar to the periods of dehydration or increased hydration. One example is the well-known process of dehydration during seed formation, which increases the dormant period. It is also known that intensive hydration processes result in a significant increase in cell volume. Such processes include seed germination, elongation (unique to plant cells), apical growth of the pollen tube and root hair, and isodiametric cell growth (observed, for example, during leaf development). These processes involve enhanced transport of water and dissolved compounds through the plasmalemma and tonoplast. Nonetheless, the data on the role of PIP and TIP proteins in the aforementioned processes, as presented in the literature, remain rather fragmentary. The following examples illustrate their involvement at different stages of development, as evidenced by changes in the transcriptional and protein profiles of aquaporins.
Aquaporins in seed germination
Seed swelling, which involves hydration of the endosperm and embryo, accompanied by metabolic activation, including the formation of lytic vacuoles, appears to be the primary stage in the development of angiosperms [16]. Using Arabidopsis seeds as an example, the water content has been shown to increase from 11% in dry seeds to 82% 24 h after the onset of germination [71]. During the germination process, an increase in water flux is observed, accompanied by elongation of seedling cells and vacuolization [72, 73].
The example of Arabidopsis seeds shows that active expression of aquaporin genes belonging to the PIP1 (PIP1;1, PIP1;2, and PIP1;4) and PIP2 (PIP2;1, PIP2;2, PIP2;6, and PIP2;7) subfamilies as well as tonoplast aquaporin genes (TIP1;1, TIP1;2, and TIP2;1) starts after germination. A similar increase in the accumulation of PIP and TIP aquaporin gene transcripts was found in rice, bean, and horse chestnut. The involvement of aquaporins in the enhancement of water absorption is confirmed by inhibitor analysis (mercury ions) as well as by the studies of transgenic and mutant plants of rice, Arabidopsis, and tobacco. For example, knockout mutants in the OsPIP1;3 gene were characterized by a strong decrease in germination rate, whereas an increase in the expression of this gene enhanced the germination process [74]. The role of these proteins in the regulation of germination and longevity of Arabidopsis seeds has been demonstrated using TIP3 aquaporin gene mutants [75]. Therefore, the enhancement of water transport through both the plasmalemma and the tonoplast is evident.
The sprouting stage is followed by the development of seedlings and their juvenile organs, whose cells undergo significant elongation, thereby establishing the polarity of the emerging plant organism. This initial developmental stage passes into the vegetative growth phase, accompanied by a shift in the function of aquaporins.
Aquaporins and axial organ growth
Root aquaporins
Primary roots are formed from embryonic roots in seeds. There is evidence that PIP and TIP aquaporins are important for the growth of primary root cells [72]. Whereas PIP aquaporins determine the intensity of water entry from the outside, TIP1 and TIP2 proteins are involved in the biogenesis of provacuoles and the development of lytic vacuoles, providing water transport within vacuoles during root cell growth. This hypothesis is supported by the increased expression of VfTIP2;1 and VfTIP2;2 genes during root growth after germination in horse beans [76].
The data on the role of PIP and TIP aquaporins during root development are presented in Table 5. They have been characterized in detail in maize seedlings [77]. The transcriptional spectrum of the ZmPIP1;1, ZmPIP1;5, ZmPIP2;1, and ZmPIP2;5 genes and the expression of the encoded isoforms showed a certain zonality when moving from the tip of the primary root to the zone of lateral root emergence. Using in situ hybridization and immunocytochemical approaches, aquaporin isoforms were localized to different zones (e.g., cortex, epidermis) depending on the stage of root development. The most comprehensive studies are presented for rice, grape (Vitis vinifera L.), maize, Arabidopsis, and barley. In the maize root, a change in the expression of ZmPIP1;1, ZmPIP1;5, ZmPIP2;1, and ZmPIP2;5 genes was observed when moving from the tip of the primary root to the zone of lateral root emergence (Table 5) [77]. The specificity of aquaporin isoform distribution has also been shown for the root zones of rice seedlings [78]. The authors suggested that the specificity of the distribution of different representatives of aquaporins is associated with differences in the mechanisms of intercellular water transport, as well as with the development of aerenchyma that is typical of hydrophytes. In grape roots, the gene expression and protein levels of VvPIP1s and VvPIP2s were shown to be equally distributed in the cortex and vascular tissue at the root tip. However, their levels are reduced in cortical cells of mature root zones [79].
Table 5. Root aquaporins
Таблица 5. Аквапорины в корнях
Object | Expressed gene, accumulated protein | Plant | Reference |
Root of 7–8-day old seedlings (0–5 mm from the tip) | ZmPIP1;1, ZmPIP2;1 and ZmPIP2;6 contribute most to expression, with the ZmPIP2;6 protein exhibiting a consist-ently low expression level across all root zones, yet being the most abundantly detected protein | Zea mays L. | [77] |
Root of 7–8-day old seedlings (5–10 mm from the tip) | Predominant expression of ZmPIP1;1, ZmPIP2;1, and ZmPIP2;5, whereas ZmPIP1;5 expression is increased compared with the tip. Of the proteins, ZmPIP2;1/2;2 and small amounts of ZmPIP1;2 and ZmPIP2;6 are detected | Z. mays | [77] |
Root of 7–8-day old seedlings (10–20 mm from the tip) | Predominant expression of ZmPIP1;1, ZmPIP1;2 and ZmPIP2;5, with a slightly smaller contribution of ZmPIP1;5. The accumulation of ZmPIP1;2 protein reaches the first maximum, and ZmPIP2;1/2;2, ZmPIP2;5, and ZmPIP2;6 proteins are also detected | Z. mays | [77] |
Root of 7–8-day old seedlings (30–40 mm from the tip) | Predominant expression of ZmPIP1;5, ZmPIP2;1 and ZmPIP2;5 and accumulation of ZmPIP2;5 protein; lower levels of ZmPIP1;2 protein compared with the previous zone | Z. mays | [77] |
Root of 7–8-day old seedlings (50–60 mm from the tip) | Predominant expression of ZmPIP1;5 and ZmPIP2;5 and the accumulation of ZmPIP1;2 (second maximum), ZmPIP2;1/2;2, ZmPIP2;5 and ZmPIP2;6 proteins | Z. mays | [77] |
Root of 7–8-day old seedlings (100–110 mm from the tip) | Predominant expression of ZmPIP1;5 and ZmPIP2;5 and the accumulation of ZmPIP1;2 (second maximum), ZmPIP2;1/2;2 and ZmPIP2;5 proteins | Z. mays | [77] |
Root of 38-day-old plants, 4 mm zone from root tip | OsPIP1s, OsPIP2;1, OsPIP2;3, OsPIP2;5 and OsTIP2;1 were predominantly localized in the endoderm of the root tip | Oryza sativa L. | [78] |
Root of 38-day-old plants, 35 mm zone from root tip | The distribution of proteins among the tissues was found to be relatively uniform; however, their prevalence was found to be minimal | O. sativa | [78] |
Root of a 5-day-old seedling (above the growth zones) | Active expression of RsPIP1, RsPIP2, and RsTIP in vessels and endoderm, with weaker expression in pericycle and xylem parenchyma; RsTIP is expressed in the epidermis | Raphanus sativus L. | [80] |
Grape root tip | The distribution of VvPIP1s and VvPIP2s is uniform; however, their expression levels are 100- to 1000-fold greater in the meristem and elongation zone | Vitis vinifera L. | [79] |
Mature root zones | The expression of VvPIP1-1 was predominantly observed in the periderm, whereas VvPIP2 accumulation was relatively uniform in different root tissues | V. vinifera | [79] |
Growing root zones | Intensive accumulation of HvPIP1;2, HvPIP2;2, HvPIP2;5, HvTIP1;1, and HvTIP2;3 | Hordeum vulgare L. | [81] |
Sprout roots | Almost all the PIP aquaporins studied showed the highest level of expression in zones of rapid root elongation in 4-day-old seedlings, as opposed to 7-day-old seedlings | Z. mays | [12] |
Root hairs (in aqueous solution) | PIP2;2 expression not detected | Arabidopsis thaliana (L.) Heynh. | [82] |
Root hairs of hydro-ponic plants | No differences in expression (transcripts of HvPIP1;1-4, HvPIP2;1-2, HvPIP2;4-5, HvTIP1;1-2, and HvTIP2;3 genes were tested) between wild-type plants and mutants lacking root hairs in the root epidermis; no aquaporin genes specifically expressed in root hairs were identified | H. vulgare | [65] |
A comparison of the zonality of expression of genes encoding aquaporin isoforms in grape roots with their homologs in Arabidopsis demonstrated that most aquaporin isoforms were distributed similarly in these two species. The expression of PIP aquaporin genes was found to be significantly higher in the root tip compared to more mature regions along the primary root axis [79].
The tissue localization of transcripts of six aquaporin isoforms (HvPIP2;2, HvPIP2;5, HvPIP2;7, HvPIP1;2, HvTIP1;1, and HvTIP2;3) has been examined in barley [81]. The results demonstrated an intensive accumulation of aquaporin gene expression products in the epidermis and protoxylem. Expression in the endodermis and stem was primarily observed in less mature secondary roots, suggesting a potential role of aquaporins in regulating radial water transport. Among all aquaporin genes examined in barley, HvTIP1;1 exhibited ubiquitous expression, whereas HvPIP2;5 was predominantly expressed in the bark.
Thus, the activity of aquaporin protein expression and accumulation was repeatedly demonstrated in the youngest zones of the root, often adjacent to meristems. In these zones, the cells are characterized by elongation, leading to a dramatic increase in cell length along the vertical axis. Interestingly, no such direct dependence on the presence of aquaporins was found for another type of cell growth, the apical type, observed during root hair formation (Table 5).
As the plant undergoes further development, including the root, the need to augment the absorption of water and aqueous solutions, in addition to their transportation to the aerial organs, becomes increasingly evident. The inhibitor analysis data indicate that the contribution of aquaporins to the hydraulic conductivity of roots ranges from 64% in Arabidopsis to 70%–80% in wheat, 60%–70% in maize, 57% in tomato, and over 90% in barley [16]. Furthermore, mutants exhibiting impaired coding of the PIP1 and PIP2 genes demonstrated a 20%–30% decrease in permeability. However, the role of aquaporins in determining permeability is hypothesized to undergo changes during the development. For example, the permeability levels in the meristematic zone and the zone of extension in grape roots were demonstrated to be approximately 1000-fold higher compared with the zone of the formed root.
The findings suggest that the function of aquaporins belonging to the PIP1 and PIP2 subfamilies undergoes substantial changes during the root development. Among these proteins, the highest degree of diversity is observed in the youngest growing zones. However, it remains a challenge to identify the precise factors that determine the observed tissue and species specificity of the aquaporin transcriptional and protein profiles.
Shoot aquaporins
Shoot development is characterized by intensive growth processes. These processes start during the formation of seedling structures (i.e., juvenile organs such as hypocotyl/epicotyl and coleoptile) and persist throughout stem and leaf development. The process of stem growth and development, similar to that of root development, involves changes in the intensity of water transport at both the cellular level and the level of the entire shoot. Unfortunately, there is much less data on the changes in aquaporin isoform abundance during stem development compared with that in the root.
Hypocotyl and stem aquaporins
The hypocotyl, an embryo component, assumes an intermediate anatomical position between the embryonic root and stem during germination. This juvenile organ serves as a model organ in the study of various physiological processes, including the regulation of growth involving aquaporins. Already in the late 1990s, data on the involvement of aquaporins in water absorption during the growth of sunflower hypocotyl cells were obtained using an inhibitor assay [83]. Furthermore, in non-growing tissues of hypocotyls, the effect of inhibitors was considerably weaker, suggesting a modification in the contribution of aquaporins. Subsequent studies of hypocotyl growth in plants such as Arabidopsis, common radish, and castor bean, among others, revealed the participation of various representatives of the PIP and TIP subfamilies of aquaporins. The primary outcomes of these studies are summarized in Table 6.
Table 6. Aquaporins in hypocotyls and stems
Таблица 6. Аквапорины в гипокотилях и стеблях
Object | Expressed gene, accumulated protein | Plant | Reference |
Hypocotyls of 6-day-old castor bean seed-lings | The presence of RcPIP2-1 correlated with growth intensity. The levels of RcPIP1-1 and RcTIP1-1 did not change | Ricinus communis L. | [88] |
Hypocotyls of 4-day-old seedlings | Intense accumulation of transcription products and syn-thesis of aquaporin-encoded proteins of RsPIP1;2, RsPIP1;1, RsPIP1;3, and RsTIP1;1, whereas RsPIP2;1, RsPIP2;3, and RsTIP2;1 were weaker | Raphanus sativus L. | |
Hypocotyls of 6-day-old seedlings | TIP2 (δ-TIP) accumulates intensively | Arabidopsis thaliana (L.) Heynh. | [87] |
Hypocotyls of 2-day-old seedlings | Active expression of AtTIP1 (γ-TIP) in the growth zone, disappearing after 24 hours | A. thaliana | [86] |
Hypocotyls and stems of etiolated seedlings (0–7 days old) | The expression of PsPIP1;1, PsPIP2;1, and PsTIP1;1 was observed for all 7 days; PsPIP2;1 expression gradually in-creased | Pisum sativum L. | [89] |
Young stems | SvPIP2;1 expression | Setaria viridis (L.) P. Beauv. | [90] |
Fast growing inter-nodes | Enhanced expression of OsTIP1;1, OsTIP2;2, OsPIP1;1, OsPIP2;1, and OsPIP2;2 | Oryza sativa L. var. indica (deepwater rice) | [91] |
Stems | Expression of genes encoding PIP1-3, PIP1-4, PIP1-5, PIP2-1 and PIP2-2, PIP2-4, PIP2-5 and PIP2-11 aquaporins | Linum usitatissimum L. | [92] |
Young stems | Expression of genes encoding PIP1-1, PIP1-3, PIP1-6, PIP2-1, and PIP2-9, as well as TIP1-8, TIP1-11, and TIP2-3 | Gossypium hirsutum L. | [36] |
The differential accumulation of various isoforms of aquaporins belonging to the PIP and TIP families has been demonstrated in radish [84, 85]. In hypocotyls, RsPIP1-2 mRNA and the corresponding protein exhibited the highest accumulation. For the majority of the genes and encoded proteins of RsPIP1, RsPIP2, and RsTIP2 groups, the accumulation was much weaker. The accumulation of transcripts and TIP2 protein was also observed in the hypocotyls of Arabidopsis [86, 87].
A detailed study was conducted on growing hypocotyls of castor bean [88]. In etiolated development at 6–8 days, the accumulation of the RcPIP2-1 aquaporin corresponded to the intensity of hypocotyl elongation. Conversely, growth inhibition, induced by illumination, resulted in suppressed accumulation of this particular isoform. This relationship was not observed in the other aquaporins (RcTIP1-1 and RcPIP1-1).
Aquaporins belonging to these families regulate stem growth at later stages of plant development. For example, studies on pea seedlings have demonstrated that the expression of aquaporin genes, specifically PIP1, PIP2, and TIP2, is initiated in hypocotyls and subsequently continues in young stems [89]. This effect is also evident at later stages of plant development, where stems maintain/exhibit the capacity for substantial growth. In particular, the accumulation of PsPIP2;1 transcripts gradually increased with stem elongation. Expression of genes encoding different isoforms of aquaporins of the PIP1, PIP2, and TIP2 subfamilies was detected in the stems of two cereal species (bristle grass and deep-water rice) and flax, which are characterized by internode growth (Table 6).
The data from various plant species have demonstrated that changes (increase/decrease) in the expression of aquaporin genes belonging to the PIP1, PIP2, and TIP2 subfamilies result in corresponding changes in the growth intensity of hypocotyls and stems, as well as in the stem/root ratio [16].
Consequently, the involvement of aquaporins belonging to the PIP1, PIP2, and TIP2 subfamilies in shoot growth at both the juvenile development stage and the vegetative growth stage was demonstrated at the transcriptional and protein levels.
Coleoptile and leaf aquaporins
Leaves are an integral part of the shoot. The physiological development of these organs can be divided into two processes: (1) growth and formation of the lamina and (2) provision of photosynthesis. Both processes depend on the availability of water and other compounds that can be transported by aquaporins. We mostly focus on growth processes.
At the earliest stages of development of a flowering plant seedling, the cotyledon (first embryonic leaf) forms the first embryonic leaves, which are then replaced by true leaves. Their functions include both the nutrition during photosynthesis, and protective function when germinating through the soil layer. This function is especially expressed in coleoptiles as embryonic organs of monocotyledons, modified from the second leaf. Cotyledon cells are characterized by their rapid and intensive growth, which may be associated with aquaporins, as indicated by limited data. For example, the expression of the AtTIP1 gene (γ-TIP; Table 7) has been observed during the development of petioles and in the cotyledons of Arabidopsis plants [86].
Intensive growth is also typical of a juvenile organ such as the coleoptile. The parenchyma cells of the coleoptile, a modified leaf of cereals with a specialized defense function, are characterized by elongation. Studies on maize coleoptiles undoubtedly point to the role of aquaporins of the PIP family (Table 7) [12]. The accumulation of mRNA of the PIP1-1, PIP1-2, PIP1-3, PIP1-5, PIP2-1, PIP2-2, PIP2-3, PIP2-5, PIP2-6, TIP1-1, and TIP1-2 genes was shown. However, the intensity of accumulation of most transcription products was much weaker than in mesocotyls and other juvenile organs, such as parts of the germinal stem (Table 7) [12]. The exceptions include PIP2-3, PIP2-6, TIP1-1, and TIP1-2.
Table 7. Aquaporins in leaves and coleoptiles
Таблица 7. Аквапорины в листьях и колеоптилях
Object | Expressed gene, accumulated protein | Plant | Reference |
Growing cotyledons of 3–5-day old seedlings | AtTIP1 (γ-TIP) is expressed in the petioles of the cotyledons and in the cotyledons themselves; expression is observed in the vascular bundles and, to a lesser extent, in the mesophyll; by Day 5, expression is ceased in the vascular bundles first | Arabidopsis thaliana (L.) Heynh. | [86] |
Coleoptiles of seed-lings (96 h after seed swelling) | Expression: PIP1-1, PIP1-2, PIP1-3, PIP1-5, PIP2-1, PIP2-2, PIP2-3, PIP2-4, PIP2-5, PIP2-6, TIP1-1, and TIP1-2 | Zes mays L. | [12] |
Leaf petiole of a 5-day-old seedling | The expression of RsPIP1, RsPIP2, and RsTIP is observed in all tissues, with particularly pronounced intensity in vascular bundle tissues | Raphanus sativus L. | [80] |
Primary leaf of a 5-day-old seedling | HvTIP1 is highly expressed in the elongation zone; however, it is not expressed in fully elongated cells (in both the wild type and the mutant) | Hordeum vulgare L. | [95] |
Leaves of seedlings at the 3rd leaf stage | The expression of HvPIP1;6 in the growing zone of the leaf accounts for up to 85% of the total PIP1, which is consistent with protein accumulation | H. vulgare | [96] |
Young leaf of a 6-day-old seedling | AtTIP2 is intensively expressed in cotyledons and young leaves | A. thaliana | [87] |
Young leaves of 14–16-day-old seedlings | The expression of HvPIP1;1, HvPIP1;5, HvPIP2;2, HvPIP2;5, HvTIP1;1, and HvTIP2;3 genes is observed in various growth zones; HvPIP2;5 is expressed in the mesophyll, whereas HvPIP1;1 and HvPIP2;2 are expressed in the epidermis | H. vulgare | [93] |
Leaf (near the leaf sheath) | ZmTIP1 expression is notably pronounced in the vascular bundle, which is located between the xylem and phloem in the parenchyma | Z. mays | [97] |
Young leaves of 2-week-old plants | The expression of BnTIP1 and BnPIP1 in the mesophyll and bundle sheath, exhibiting a weak tendency to differentiate in bundle cells | Brassica napus L. | [98] |
Rosette plant | AtTIP1 is expressed in growing bracts and vascular bundles of petioles and in young leaves; there was no expression in stem apex and leaf buds | A. thaliana | [86] |
Mature leaves | Expression of genes encoding aquaporins PIP1-1, PIP1-6, PIP2-1 and PIP2-9, and TIP2-3 is observed; accumulation of transcripts is increased compared with young leaves | Gossypium hirsutum L. | [36] |
The study sought to elucidate the role of aquaporins from these two subfamilies in the subsequent development of the lamina (Table 7). Previous studies have conducted a detailed investigation of aquaporin gene expression during leaf development. One of the studies involved growing barley leaves [93]. Of the 23 genes analyzed, 17 exhibited differences in the accumulation of transcription products in young growing tissues and in well-developed photosynthetic zones. Notably, the study identified tissue and age specialization. Seven of the tested genes were predominantly expressed in growth zones (Table 7). HvPIP2;5 was found to be expressed in the mesophyll, whereas HvPIP1;1 and HvPIP2;2 were expressed in the epidermis. In the elongation zone of barley leaves, HvPIP1;1 and HvPIP2;5 transcripts constituted 90% of the total number of transcripts of the PIP1 and PIP2 genes. The analysis further revealed that the ZmPIP1;1 and ZmPIP2;1 homologs in maize also contributed significantly to the total transcripts of PIP1 and PIP2 genes in the maize leaf elongation zone, along with ZmPIP2;2 [94]. The findings on the role of PIP aquaporins do not exclude the importance of TIP subfamily representatives. The results obtained from the analysis of Arabidopsis, barley, maize, and rapeseed are summarized in Table 7. The increased expression of TIP aquaporin genes indicates their critical role in the vacuolization of leaf cells.
Furthermore, an accumulation of transcripts from the PIP1-1, PIP1-6, PIP2-1, PIP2-9, and TIP2-3 genes, was observed in mature cotton leaves, with this accumulation increasing with leaf age [36]. The proteins encoded by these genes are thought to be involved in the supply of water and nutrients needed for metabolic processes.
The significance of aquaporins belonging to the PIP1, PIP2, and TIP1, TIP2 subfamilies was shown through the use of transgenic plants. The increase in the accumulation of transcripts for genes belonging to the aforementioned aquaporin subfamilies, including heterologous ones, has been observed in these models, resulting in the intensification of leaf growth [16]. Consequently, a substantial body of evidence has emerged regarding the enhanced transcription of aquaporin genes belonging to the PIP1, PIP2, and TIP subfamilies during the leaf development. However, there is a lack of research on the specificity of transcript accumulation of these genes depending on age (i.e., juvenile developmental stage and mature leaf stage) and tissue specificity.
Aquaporins in the development of reproductive organs
The reproductive process in angiosperms comprises several stages, including flower bud formation, flower development, fertilization, embryo formation, and seed and fruit development. Obviously, each stage depends on the availability of water and nutrients. Therefore, it may be assumed that aquaporins play their role in these processes. However, studies addressing this subject are limited, because most of them investigate on the role of aquaporins in fruit and seed formation. This particular aspect was the primary focus in preparation for the present review.
Nevertheless, the involvement of aquaporins in other steps will be described below. For example, an increase in transcription of PpTIP1 and PpPIP2 has been shown during flower bud development in peach trees [99]. It has been demonstrated that PIP2;2 aquaporins play a regulatory role in the process of reversible petal opening in tulips and rough gentian [100, 101]. Furthermore, the studies have revealed that NtPIP2;1, but not NtPIP1;1, is expressed in tobacco plants during pollen germination on the pistil stigma [102]. In addition, the expression of AtTIP1;3 and AtTIP5;1 genes has been detected in Arabidopsis pollen during pollen formation and subsequent germination [103, 104].
Fruit aquaporins
Fruit growth and development are driven by two primary processes: cell division and cell elongation. Cell elongation, in particular, depends on aquaporin-mediated water transport through the plasmalemma and tonoplast, resulting in subsequent accumulation in the vacuole. The driving force of this water flux is the high osmotic pressure generated by the accumulated metabolites, primarily sugars. Table 8 presents data on changes in the expression level of aquaporin-encoding genes during the development and ripening of fruits of different plant species.
One of the earliest documented examples of the correlation between the fruit development and the expression of tonoplast aquaporin genes was observed in Arabidopsis fruits. In addition, the accumulation of transcription products has been observed in the early stages of fetal development, although this has not been detected in the embryo [86]. Subsequent research demonstrated the expression of aquaporin TIP1 genes in pea, with maximal expression occurring at the onset of seed formation [106]. In addition, the role of TIP1 in grape berry development has been demonstrated, with increasing expression levels during the ripening process [108]. Specific expression of the CsTIP1;1 and CsTIP2;1 genes has been detected during the formation of cucumber fruits [114].
Further evidence supporting the involvement of PIP aquaporins in fruit development is provided in the studies of various plant species, including beans, grapes, tomatoes, and apples (Table 8). These studies revealed an accumulation of PIP transcription products, particularly those belonging to the PIP1 group. This accumulation was found to be phase-dependent, with a peak during the ripening stage and a subsequent decline at the end of the ripening period [109, 113, 114]. However, the profile of genes encoding different isoforms of PIP1 aquaporins differed considerably. The expression of genes belonging to the PIP2 group has been demonstrated in some plants studied during fruit formation and ripening [108, 110].
Table 8. Fruit aquaporins
Таблица 8. Аквапорины плодов
Object | Expressed gene, accumulated protein | Plant | Reference |
Growing pod | AtTIP1 (γ-TIP) expression is observed during ovary-to-fruit development and later in pod flaps; no expression in seed embryos | Arabidopsis thaliana (L.) Heynh. | [86] |
Seed coat of growing beans | PvPIP2;3 in the phloem unloading zone involved in phloem water entry | Phaseolus vulgaris L. | [105] |
Pericarp of growing beans (up to 5 days after flowering) | Maximum expression of PsTIP1 (γ-TIP) in fruits is observed on Day 4 | Pisum sativum L. | [106] |
Pericarp of growing berries | Expression of the aquaporin genes AQ1 and AQ2 corre-sponded to periods of rapid growth | Vitis vinifera L. | [107] |
Berry ripening | Expression of VvTIP1;2, VvTIP1;3, VvPIP2;3, and VvPIP2;5 genes increased during maturation | V. vinifera | [108] |
Growing tomato fruits | Expression of LePIP1;1, LePIP1;4, and LePIP1;5 | Lycopersicon esculentum Mill. | [109] |
Growing fruits (15 days after flowering) | Very strong expression of ScPIP2a | Solanum chacoense Bitter | [110] |
Mature fruits (40 days after flowering) | Almost no expression of ScPIP2a | S. chacoense | [110] |
Cotton fibers | TIP aquaporin genes are expressed during the period of maximal fiber elongation | Gossypium hirsutum L. | [111] |
Growing apple fruits | Expression of MdPIP1a and MdPIP1b genes | Malus domestica Baumg. | [112] |
Peel and pulp of rip-ening apples | MdAQP gene expression varied at the climacteric stage depending on tissue identity and apple cultivar | M. domestica | [113] |
Cucumber fruits | Expression of CsTIP1;1, CsTIP2;1, and CsPIP1;3 was fruit specific | Cucumis sativus L. | [114] |
Consequently, the role of aquaporins belonging to the PIP and TIP families was demonstrated through the observation of fruit formation. The most frequent specific expression of PIP1 and TIP1 aquaporin genes, which depended on the ripening phase and the intensity of fruit vacuolization, was observed in the studies.
Role of aquaporins in seed formation
The formation of seeds may be regarded as the culminating stage in the life cycle of higher plants. During the early stages of seed development, there was an intensive expression of genes encoding aquaporins of the PIP1 and PIP2 groups in various tissues. Several publications from the early 2000s have reported the accumulation of transcripts of the aquaporins PIP1;1, PIP1;2 PIP2;1, and PIP2;2, as well as TIP2;1 and TIP2;2, for various plants, including Arabidopsis, soybean, tomato, and rice [115]. The increase in the number of expressed aquaporin genes and in the intensity of their transcription are associated with the provision of photosynthesis and the transport of aqueous sucrose solution, which promotes seed development. Another aquaporin, TIP3, has been identified as a marker of mature seeds [12]. It has been identified in the membranes of protein bodies derived from the vacuolar system in maturing bean seed cells [116, 117]. Later, this aquaporin was identified in seeds of several plants, including Arabidopsis, pea, maize, and horse chestnut [115]. However, the process of TIP3 accumulation in the membranes of protein bodies is typical of desiccated orthodox seeds, whereas in recalcitrant seeds (which are unstable to dehydration, such as in oak and horse chestnut), it was preserved in the tonoplast [13]. In addition, TIP3 was shown to be localized in the plasmalemma. It has been hypothesized that TIP3 functions as a partial compensatory mechanism for transport processes within the plasmalemma, since the abundance of aquaporins PIP1 and PIP2 decreases significantly during maturation [118].
At later stages of seed maturation, especially in orthodox seeds, aquaporins participate in the rapid outflow of water during seed desiccation [71, 75]. Eleven isoforms of PIP aquaporins were found in dry seeds of Arabidopsis, with almost no accumulation of transcripts of the corresponding genes. In dry rice seeds, active expression of only the PIP2;7 gene was observed, whereas the expression of the PIP1;1, PIP1;2, and PIP2;1 genes was very low [74].
The obtained data demonstrate that the distinct aquaporin isoforms present at varying stages of seed development induce an initial increase in seed size and an accumulation of nutrients within the seed. This is subsequently followed by desiccation and a dormant state. Consequently, multidirectional water fluxes are initiated through different cell membranes. The precise mechanism of such initiation is still unclear.
CONCLUSION
A comprehensive literature review reveals that aquaporins constitute a substantial group of membrane proteins that facilitate the permeability of the plasmalemma and intracellular membranes to water and a variety of other compounds. An extensive experimental database has been amassed, enabling to assess the diversity of mechanisms that regulate their activity (from transcriptional to post-translational). Of particular interest are the data on the physiological role of aquaporins, particularly their involvement in the growth and development of plants. One of the fundamental processes underlying these phenomena is elongation. There is compelling evidence that H+-ATPases localized on the plasmalemma and tonoplast participate in this process [119, 120]. The data presented in this review indicate the active involvement of aquaporins belonging to the PIP and TIP subfamilies, localized on the plasmalemma and tonoplast, in this type of growth. These aquaporins are the most conservative in the course of evolution [23]. They are predominantly involved in the regulation of the growth intensity of a wide variety of plant organs, starting from juvenile parts (Tables 5–8). It is hypothesized that the intensity of water transport by TIP is significantly superior to that of PIP, a finding that aligns with the established role of plasmalemma and tonoplast aquaporins. The former are responsible for the entry of water into the cell from the outside, whereas the latter facilitate the rapid transportation of water into the vacuole to prevent cell damage. This balance of functions plays a critical role in the successful execution of growth processes during development. Interestingly, aquaporins of the same subfamilies are involved in the reverse process, the dehydration that occurs during seed formation. Furthermore, the intensity of this process determines the longevity of seed formation.
The selected mechanism is probably further used by plants in adapting to unfavorable conditions, primarily those associated with water deficiency, including salinity, drought, and low temperatures. Table 3 summarizes the data on the role of aquaporins PIP1 and PIP2 in the regulation of water fluxes through the plasmalemma under these conditions. The reverse stress factor, characterized by flooding leading to excess water, also appears to necessitate the active involvement of TIP aquaporins; however, the available data are limited. Most of the data presented in this review were obtained at the transcriptional level. In some cases, changes in expression were confirmed at the protein level. A detailed analysis of the protein profiles of plasmalemma and tonoplast is required, because the diversity of aquaporin isoforms and multiple mechanisms of post-translational regulation are not always considered. In general, the data collected so far are still too fragmentary to characterize the role of these aquaporins in normal and stress-stimulated states. These factors can either stimulate or inhibit growth, as well as to determine the intensity of adaptation processes.
ADDITIONAL INFO
Authors’ contribution. All authors made a substantial contribution to the conception of the study, acquisition, analysis, interpretation of data for the work, drafting and revising the article, final approval of the version to be published and agree to be accountable for all aspects of the study. Personal contribution of each author: G.V. Daneliia — collection and processing of the material, writing the main part of the text; V.V. Yemelyanov — concept and idea of the study, figure preparation, making final edits; M.F. Shishova — concept and idea of the study, writing the main part of the text, making final edits, funding acquisition.
Funding source. This research was funded by the Russian Science Foundation, grant number 22-14-00096, https://rscf.ru/en/project/22-14-00096/
Competing interests. The authors declare no conflict of interests.
ДОПОЛНИТЕЛЬНАЯ ИНФОРМАЦИЯ
Вклад авторов. Все авторы внесли существенный вклад в разработку концепции, сбор и анализ литературных источников и подготовку статьи, прочли и одобрили финальную версию перед публикацией. Личный вклад каждого автора: Г.В. Данелия — сбор и обработка материала, написание основной части текста; В.В. Емельянов — концепция и идея статьи, рисунки, внесение окончательной правки; М.Ф. Шишова — концепция и идея статьи, написание основной части текста, внесение окончательной правки, привлечение финансирования.
Источник финансирования. Исследование выполнено за счет гранта Российского научного фонда № 22-14-00096, https://rscf.ru/project/22-14-00096/.
Конфликт интересов. Авторы декларируют отсутствие явных и потенциальных конфликтов интересов, связанных с публикацией настоящей статьи.
About the authors
Georgy V. Danelia
Saint Petersburg State University
Email: georgdanelia@gmail.com
ORCID iD: 0009-0005-9330-4840
Russian Federation, Saint Petersburg
Vladislav V. Emelyanov
Saint Petersburg State University
Email: bootika@mail.ru
ORCID iD: 0000-0003-2323-5235
SPIN-code: 9460-1278
Cand. Sci. (Biology), Associate Professor
Russian Federation, Saint PetersburgMaria F. Shishova
Saint Petersburg State University
Author for correspondence.
Email: mshishova@mail.ru
ORCID iD: 0000-0003-3657-2986
SPIN-code: 7842-7611
Dr. Sci. (Biology), Professor
Russian Federation, Saint PetersburgReferences
- Krylov AV, Pohl P, Zeidel ML, Hill WG. Water permeability of asymmetric planar lipid bilayers: leaflets of different composition offer independent and additive resistances to permeation. J Gen Physiol. 2001;118(4):333–340. doi: 10.1085/jgp.118.4.333
- Mathai JC, Tristram-Nagle S, Nagle JF, Zeidel ML. Structural determinants of water permeability through the lipid membrane. J Gen Physiol. 2008;131(1):69–76. doi: 10.1085/jgp.200709848
- Shinoda W. Permeability across lipid membranes. Biochim Biophys Acta Biomembr. 2016;1858(10):2254–2265. doi: 10.1016/j.bbamem.2016.03.032
- Kapilan R, Vaziri M, Zwiazek JJ. Regulation of aquaporins in plants under stress. Biol Res. 2018;51(1):4. doi: 10.1186/s40659-018-0152-0
- Inden T, Hoshino A, Otagaki S, et al. Genome-wide analysis of aquaporins in Japanese Morning Glory (Ipomoea nil). Plants. 2023;12(7):1511. doi: 10.3390/plants12071511
- Afzal Z, Howton TC, Sun Y, Mukhtar MS. The roles of aquaporins in plant stress responses. J Dev Biol. 2016;4(1):9. doi: 10.3390/jdb4010009
- Singh S, Bhatt V, Kumar V, et al. Evolutionary understanding of aquaporin transport system in the basal eudicot model species Aquilegia coerulea. Plants. 2020;9(6):799. doi: 10.3390/plants9060799
- Wood TE, Takebayashi N, Barker MS, et al. The frequency of polyploid speciation in vascular plants. PNAS USA. 2009;106(33): 13875–13879. doi: 10.1073/pnas.0811575106
- Stuessy T, Weiss-Schneeweiss H. What drives polyploidization in plants? New Phytol. 2019;223(4):1690–1692. doi: 10.1111/nph.15929
- Groszmann M, Osborn HL, Evans JR. Carbon dioxide and water transport through plant aquaporins. Plant Cell Environ. 2017;40(6):938–961. doi: 10.1111/pce.12844
- Sonah H, Deshmukh RK, Labbé C, Bélanger RR. Analysis of aquaporins in Brassicaceae species reveals high-level of conservation and dynamic role against biotic and abiotic stress in canola. Sci Rep. 2017;7(1):2771. doi: 10.1038/s41598-017-02877-9
- Su Y, Liu Z, Sun J, et al. Genome-wide identification of maize aquaporin and functional analysis during seed germination and seedling establishment. Front Plant Sci. 2022;13:831916. doi: 10.3389/fpls.2022.831916
- Obroucheva NV, Sin’kevich IA. Aquaporins and cell growth. Russ J Plant Physiol. 2010;57(2):153–165. doi: 10.1134/S1021443710020019
- Maurel C, Boursiac Y, Luu D-T, et al. Aquaporins in plants. Physiol Rev. 2015;95(4):1321–1358. doi: 10.1152/physrev.00008.2015
- Chaumont F, Tyerman SD, editors. Plant aquaporins: From transport to signaling. New York: Springer; 2017. 353 p. doi: 10.1007/978-3-319-49395-4
- Wang Y, Zhao Z, Liu F, et al. Versatile roles of aquaporins in plant growth and development. Int J Mol Sci. 2020;21(24):9485. doi: 10.3390/ijms21249485
- Koefoed-Johnsen V, Ussing HH. The contributions of diffusion and flow to the passage of D2O through living membranes: Effect of neurohypophyseal hormone on isolated anuran skin. Acta Physiol Scand. 1953;28(1):60–76. doi: 10.1111/j.1748-1716.1953.tb00959.x
- Macey RL, Farmer REL. Inhibition of water and solute permeability in human red cells. Biochim Biophys Acta Biomembr. 1970;211(1):104–106. doi: 10.1016/0005-2736(70)90130-6
- Denker BM, Smith BL, Kuhajda FP, Agre P. Identification, purification, and partial characterization of a novel Mr 28,000 integral membrane protein from erythrocytes and renal tubules. J Biol Chem. 1988;263(30):15634–15642. doi: 10.1016/s0021-9258(19)37635-5
- Preston GM, Carroll TP, Guggino WB, Agre P. Appearance of water channels in Xenopus oocytes expressing red cell CHIP28 protein. Science. 1992;256(5055):385–387. doi: 10.1126/science.256.5055.385
- Fushimi K, Uchida S, Harat Y, et al. Cloning and expression of apical membrane water channel of rat kidney collecting tubule. Nature. 1993;361(6412):549–552. doi: 10.1038/361549a0
- Fortin MG, Morrison NA, Verma DPS. Nodulin-26, a peribacteroid membrane nodulin is expressed independently of the development of the peribacteroid compartment. Nucleic Acids Res. 1987;15(2): 813–824. doi: 10.1093/nar/15.2.813
- Hussain A, Tanveer R, Mustafa G, et al. Comparative phylogenetic analysis of aquaporins provides insight into the gene family expansion and evolution in plants and their role in drought tolerant and susceptible chickpea cultivars. Genomics. 2020;112(1):263–275. doi: 10.1016/j.ygeno.2019.02.005
- Rabeh K, Sallami A, Gaboun F, et al. Genome-wide analysis of aquaporin and their responses to abiotic stresses in plants: A systematic review and meta-analysis. Plant Stress. 2024;11:100362. doi: 10.1016/j.stress.2024.100362
- Lopez-Zaplana A, Nicolas-Espinosa J, Carvajal M, Bárzana G. Genome-wide analysis of the aquaporin genes in melon (Cucumis melo L.) Sci Rep. 2020;10(1):22240. doi: 10.1038/s41598-020-79250-w
- Møller IM, Rao RSP, Jiang Y, et al. Proteomic and bioinformatic profiling of transporters in higher plant mitochondria. Biomolecules. 2020;10(8):1190. doi: 10.3390/biom10081190
- Kudoyarova G, Veselov D, Yemelyanov V, Shishova M. The role of aquaporins in plant growth under conditions of oxygen deficiency. Int J Mol Sci. 2022;23(17):10159. doi: 10.3390/ijms231710159
- Lopez-Zaplana A, Bárzana G, Ding L, et al. Aquaporins involvement in the regulation of melon (Cucumis melo L.) fruit cracking under different nutrient (Ca, B and Zn) treatments. Environ Exp Bot. 2022;201:104981. doi: 10.1016/j.envexpbot.2022.104981
- Ishikawa F, Suga S, Uemura T, et al. Novel type aquaporin SIPs are mainly localized to the ER membrane and show cell-specific expression in Arabidopsis thaliana. FEBS Lett. 2005;579(25): 5814–5820. doi: 10.1016/j.febslet.2005.09.076
- Lopez D, Bronner G, Brunel N, et al. Insights into Populus XIP aquaporins: evolutionary expansion, protein functionality, and environmental regulation. J Exp Bot. 2012;63(5):2217–2230. doi: 10.1093/jxb/err404
- Luang S, Hrmova M. Structural basis of the permeation function of plant aquaporins. In: Chaumont F, Tyerman SD, editors. Plant aquaporins: From transport to signaling. New York: Springer; 2017. P. 1–28. doi: 10.1007/978-3-319-49395-4_1
- Noronha H, Agasse A, Martins AP, et al. The grape aquaporin VvSIP1 transports water across the ER membrane. J Exp Bot. 2014;65(4):981–993. doi: 10.1093/jxb/ert448
- Shivaraj SM, Deshmukh R, Sonah H, Bélanger RR. Identification and characterization of aquaporin genes in Arachis duranensis and Arachis ipaensis genomes, the diploid progenitors of peanut. BMC Genom. 2019;20:222. doi: 10.1186/s12864-019-5606-4
- Quigley F, Rosenberg JM, Shachar-Hill Y, Bohnert HJ. From genome to function: the Arabidopsis aquaporins. Genome Biol. 2001;3(1):research0001.1. doi: 10.1186/gb-2001-3-1-research0001
- Nicolas-Espinosa J, Carvajal M. Genome-wide identification and biological relevance of broccoli aquaporins. Plant Genome. 2022;15(4):e20262. doi: 10.1002/tpg2.20262
- Park W, Scheffler BE, Bauer PJ, Campbell BT. Identification of the family of aquaporin genes and their expression in upland cotton (Gossypium hirsutum L.). BMC Plant Biol. 2010;10:142. doi: 10.1186/1471-2229-10-142
- Gupta AB, Sankararamakrishnan R. Genome-wide analysis of major intrinsic proteins in the tree plant Populus trichocarpa: characterization of XIP subfamily of aquaporins from evolutionary perspective. BMC Plant Biol. 2009;9:134. doi: 10.1186/1471-2229-9-134
- Zhang DY, Ali Z, Wang CB, et al. Genome-wide sequence characterization and expression analysis of major intrinsic proteins in soybean (Glycine max L.). PLoS One. 2013;8(2):e56312. doi: 10.1371/journal.pone.0056312
- Rajora N, Thakral V, Geetika, et al. Understanding aquaporins regulation and silicon uptake in carrot (Daucus carota). J Plant Biochem Biotechnol. 2023;32(1):51–62. doi: 10.1007/s13562-022-00780-7
- Sakurai J, Ishikawa F, Yamaguchi T, et al. Identification of 33 rice aquaporin genes and analysis of their expression and function. Plant Cell Physiol. 2005;46(9):1568–1577. doi: 10.1093/pcp/pci172
- Hove RM, Ziemann M, Bhave M. Identification and expression analysis of the barley (Hordeum vulgare L.) aquaporin gene family. PLoS One. 2015;10(6): e0128025. doi: 10.1371/journal.pone.0128025
- Reddy PS, Bhadra Rao TSR, Sharma KK, Vadez V. Genome-wide identification and characterization of the aquaporin gene family in Sorghum bicolor (L.). Plant Gene. 2015;1:18–28. doi: 10.1016/j.plgene.2014.12.002
- Pawłowicz I, Rapacz M, Perlikowski D, et al. Abiotic stresses influence the transcript abundance of PIP and TIP aquaporins in Festuca species. J Appl Genet. 2017;58:421–435. doi: 10.1007/s13353-017-0403-8
- Lu Y, Jeffers R, Raju A, et al. Does night-time transpiration provide any benefit to wheat (Triticum aestivum L.) plants which are exposed to salt stress? Physiol Plant. 2023;175(1):e13839. doi: 10.1111/ppl.13839
- Jang JY, Kim DG, Kim YO, et al. An expression analysis of a gene family encoding plasma membrane aquaporins in response to abiotic stresses in Arabidopsis thaliana. Plant Mol Biol. 2004;54(5):713–725. doi: 10.1023/b: plan.0000040900.61345.a6
- Lopez-Zaplana A, Martinez-Garcia N, Carvajal M, Bárzana G. Relationships between aquaporins gene expression and nutrient concentrations in melon plants (Cucumis melo L.) during typical abiotic stresses. Environ Exp Bot. 2022;195:104759. doi: 10.1016/j.envexpbot.2021.104759
- Solouki A, Berna-Sicilia JÁ, Martinez-Alonso A, et al. Onion plants (Allium cepa L.) react differently to salinity levels according to the regulation of aquaporins. Heliyon. 2023;9(3):e13815. doi: 10.1016/j.heliyon.2023.e13815
- Quiroga G, Erice G, Ding L, et al. The arbuscular mycorrhizal symbiosis regulates aquaporins activity and improves root cell water permeability in maize plants subjected to water stress. Plant Cell Environ. 2019;42(7):2274–2290. doi: 10.1111/pce.13551
- Nicolas-Espinosa J, Yepes-Molina L, Martinez-Bernal F, et al. Deciphering the effect of salinity and boron stress on broccoli plants reveals that membranes phytosterols and PIP aquaporins facilitate stress adaptation. Plant Sci. 2024;338:111923. doi: 10.1016/j.plantsci.2023.111923
- Verdoucq L, Rodrigues O, Martinière A, et al. Plant aquaporins on the move: Reversible phosphorylation, lateral motion and cycling. Curr Opin Plant Biol. 2014;22:101–107. doi: 10.1016/j.pbi.2014.09.011
- Li C, Wang W. Molecular biology of aquaporins. In: Yang B, editor. Aquaporins. Advances in experimental medicine and biology. Vol. 969. Dordrecht: Springer; 2017. P. 1–34. doi: 10.1007/978-94-024-1057-0_1
- Wu XN, Rodriguez CS, Pertl-Obermeyer H, et al. Sucrose-induced receptor kinase SIRK1 regulates a plasma membrane aquaporin in Arabidopsis. Mol Cell Proteom. 2013;12(10):2856–2873. doi: 10.1074/mcp.M113.029579
- Bellati J, Champeyroux C, Hem S, et al. Novel aquaporin regulatory mechanisms revealed by interactomics. Mol Cell Proteom. 2016;15(11):3473–3487. doi: 10.1074/mcp.M116.060087
- Fushimi K, Sasaki S, Marumo F. Phosphorylation of serine 256 is required for cAMP-dependent regulatory exocytosis of the aquaporin-2 water channel. J Biol Chem. 1997;272(23):14800–14804. doi: 10.1074/jbc.272.23.14800
- Javot H, Maurel C. The role of aquaporins in water uptake. Ann Bot. 2002;90(3):301–313. doi: 10.1093/aob/mcf199
- Przedpelska-Wasowicz EM, Wierzbicka M. Gating of aquaporins by heavy metals in Allium cepa L. epidermal cells. Protoplasma. 2011;248(4):663–671. doi: 10.1007/s00709-010-0222-9
- Henzler T, Ye Q, Steudle E. Oxidative of water channels (aquaporins) in Chara by hydroxyl radicals. Plant Cell Environ. 2004;27(9):1184–1195. doi: 10.1111/j.1365-3040.2004.01226.x
- Aroca R. Exogenous catalase and ascorbate modify the effects of abscisic acid (ABA) on root hydraulic properties in Phaseolus vulgaris L. plants. J Plant Growth Regul. 2006;25(1):10–17. doi: 10.1007/s00344-005-0075-1
- Luu D-T, Maurel C. Aquaporin trafficking in plant cells: an emerging membrane-protein model. Traffic. 2013;14(6):629–635. doi: 10.1111/tra.12062
- Sun Q, Liu X, Kitagawa Y, et al. Plant aquaporins: Their roles beyond water transport. Crop J. 2024;12(3):641–655. doi: 10.1016/j.cj.2024.04.005
- Yepes-Molina L, Bárzana G, Carvajal M. Controversial regulation of gene expression and protein transduction of aquaporins under drought and salinity stress. Plants. 2020;9(12):1662. doi: 10.3390/plants9121662
- Jackson MB, Davies WJ, Else M. Pressure-flow relationships, xylem solutes and root hydraulic conductance in flooded tomato plants. Ann Bot. 1996;77(1):17–24. doi: 10.1006/anbo.1996.0003
- Törnroth-Horsefield S, Wang Y, Hedfalk K, et al. Structural mechanism of plant aquaporin gating. Nature. 2006;439(7077): 688–694. doi: 10.1038/nature04316
- Gitto A, Fricke W. Zinc treatment of hydroponically-grown barley (H. vulgare) plants causes a reduction in root and cell hydraulic conductivity and isoform-dependent decrease in aquaporin gene expression. Physiol Plant. 2018;164(2):176–190. doi: 10.1111/ppl.12697
- Burke S, Sadaune E, Rognon L, et al. A redundant hydraulic function of root hairs in barley plants grown in hydroponics. Funct Plant Biol. 2020;48(4):448–459. doi: 10.1071/fp20287
- Matsuo N, Nanjo Y, Tougou M, et al. Identification of putative aquaporin genes and their expression analysis under hypoxic conditions in soybean [Glycine max (L.) Merr.]. Plant Prod Sci. 2012;15(4):278–283. doi: 10.1626/pps.15.278
- Shivaraj SM, Deshmukh R, Bhat JA, et al. Understanding aquaporin transport system in eelgrass (Zostera marina L.), an aquatic plant species. Front Plant Sci. 2017;8:1334. doi: 10.3389/fpls.2017.01334
- Yanada K-i, Kondo K, Ino N, et al. Plasma membrane aquaporins function in moisture regulation during seed germination and leaf hydration in eelgrass. Aquat Bot. 2024;192:103760. doi: 10.1016/j.aquabot.2024.103760
- Cozza R, Pangaro T. Tissue expression pattern of two aquaporin-encoding genes in different organs of the seagrass Posidonia oceanica. Aquat Bot. 2009;91(2):117–121. doi: 10.1016/j.aquabot.2009.03.007
- Serra IA, Nicastro S, Mazzuca S, et al. Response to salt stress in seagrasses: PIP1;1 aquaporin antibody localization in Posidonia oceanica leaves. Aquat Bot. 2013;104:213–219. doi: 10.1016/j.aquabot.2011.05.008
- Hoai PTT, Tyerman SD, Schnell N, et al. Deciphering aquaporin regulation and roles in seed biology. J Exp Bot. 2020;71(6): 1763–1773. doi: 10.1093/jxb/erz555
- Obroucheva NV, Sinkevich IA, Lityagina SV, Novikova GV. Water relations in germinating seeds. Russ J Plant Physiol. 2017;64(4): 625–633. doi: 10.1134/s102144371703013x
- Nonogaki H. Seed germination and dormancy: The classic story, new puzzles, and evolution. J Integr Plant Biol. 2019;61(5):541–563. doi: 10.1111/jipb.12762
- Liu H-Y, Yu X, Cui D-Y, et al. The role of water channel proteins and nitric oxide signaling in rice seed germination. Cell Res. 2007;17(7):638–649. doi: 10.1038/cr.2007.34
- Footitt S, Clewes R, Feeney M, et al. Aquaporins influence seed dormancy and germination in response to stress. Plant Cell Environ. 2019;42(8):2325–2339. doi: 10.1111/pce.13561
- Novikova GV, Tournaire-Roux C, Sin’kevich IA, et al. Vacuolar biogenesis and aquaporin expression at early germination of broad bean seeds. Plant Physiol Biochem. 2014;82:123–132. doi: 10.1016/j.plaphy.2014.05.014
- Hachez C, Moshelion M, Zelazny E, et al. Localization and quantification of plasma membrane aquaporin expression in maize primary root: a clue to understanding their role as cellular plumbers. Plant Mol Biol. 2006;62(1–2):305–323. doi: 10.1007/s11103-006-9022-1
- Sakurai J, Ahamed A, Murai M, et al. Tissue and cell-specific localization of rice aquaporins and their water transport activities. Plant Cell Physiol. 2008;49(1):30–39. doi: 10.1093/pcp/pcm162
- Gambetta GA, Fei J, Rost TL, et al. Water uptake along the length of grapevine fine roots: Developmental anatomy, tissue-specific aquaporin expression, and pathways of water transport. Plant Physiol. 2013;163(3):1254–1265. doi: 10.1104/pp.113.221283
- Suga S, Murai M, Kuwagata T, Maeshima M. Differences in aquaporin levels among cell types of radish and measurement of osmotic water permeability of individual protoplasts. Plant Cell Physiol. 2003;44(3):277–286. doi: 10.1093/pcp/pcg032
- Knipfer T, Besse M, Verdeil J-L, Fricke W. Aquaporin-facilitated water uptake in barley (Hordeum vulgare L.) roots. J Exp Bot. 2011;62(12):4115–4126. doi: 10.1093/jxb/err075
- Javot H, Lauvergeat V, Santoni V, et al. Role of a single aquaporin isoform in root water uptake. Plant Cell. 2003;15(2):509–522. doi: 10.1105/tpc.008888
- Hejnowicz Z, Sievers A. Reversible closure of water channels in parenchymatic cells of sunflower hypocotyl depends on turgor status of the cells. J Plant Physiol. 1996;147(5):516–520. doi: 10.1016/s0176-1617(96)80040-x
- Suga S, Imagawa S, Maeshima M. Specificity of the accumulation of mRNAs and proteins of the plasma membrane and tonoplast aquaporins in radish organs. Planta. 2001;212(2):294–304. doi: 10.1007/s004250000396
- Suga S, Komatsu S, Maeshima M. Aquaporin isoforms responsive to salt and water stresses and phytohormones in radish seedlings. Plant Cell Physiol. 2002;43(10):1229–1237. doi: 10.1093/pcp/pcf148
- Ludevid D, Höfte H, Himelblau E, Chrispeels MJ. The expression pattern of the tonoplast intrinsic protein γ-TIP in Arabidopsis thaliana is correlated with cell enlargement. Plant Physiol. 1992;100(4):1633–1639. doi: 10.1104/pp.100.4.1633
- Daniels MJ, Chaumont F, Mirkov TE, Chrispeels MJ. Characterization of a new vacuolar membrane aquaporin sensitive to mercury at a unique site. Plant Cell. 1996;8(4):587–599. doi: 10.2307/3870337
- Eisenbarth DA, Weig AR. Dynamics of aquaporins and water relations during hypocotyl elongation in Ricinus communis L. seedlings. J Exp Bot. 2005;56(417):1831–1842. doi: 10.1093/jxb/eri173
- Schuurmans JAMJ, van Dongen JT, Rutjens BPW, et al. Members of the aquaporin family in the developing pea seed coat include representatives of the PIP, TIP, and NIP subfamilies. Plant Mol Biol. 2003;53(5):655–667. doi: 10.1023/b: plan.0000019070.60954.77
- McGaughey SA, Osborn HL, Chen L, et al. Roles of aquaporins in Setaria viridis stem development and sugar storage. Front Plant Sci. 2016;7:1815. doi: 10.3389/fpls.2016.01815
- Muto Y, Segami S, Hayashi H, et al. Vacuolar proton pumps and aquaporins involved in rapid internode elongation of deepwater rice. Biosci Biotechnol Biochem. 2011;75(1):114–122. doi: 10.1271/bbb.100615
- Shivaraj SM, Deshmukh RK, Rai R, et al. Genome-wide identification, characterization, and expression profile of aquaporin gene family in flax (Linum usitatissimum). Sci Rep. 2017;7(1):46137. doi: 10.1038/srep46137
- Besse M, Knipfer T, Miller AJ, et al. Developmental pattern of aquaporin expression in barley (Hordeum vulgare L.) leaves. J Exp Bot. 2011;62(12):4127–4142. doi: 10.1093/jxb/err175
- Fricke W, Knipfer T. Plant aquaporins and cell elongation. In: Chaumont F, Tyerman SD, editors. Plant aquaporins: From transport to signaling. New York: Springer; 2017. P. 107–131. doi: 10.1007/978-3-319-49395-4_5
- Schünmann PHD, Ougham HJ. Identification of three cDNA clones expressed in the leaf extension zone and with altered patterns of expression in the slender mutant of barley: A tonoplast intrinsic protein, a putative structural protein and protochlorophyllide oxidoreductase. Plant Mol Biol. 1996;31(3):529–537. doi: 10.1007/bf00042226
- Wei W, Alexandersson E, Golldack D, et al. HvPIP1;6, a barley (Hordeum vulgare L.) plasma membrane water channel particularly expressed in growing compared with non-growing leaf tissues. Plant Cell Physiol. 2007;48(8):1132–1147. doi: 10.1093/pcp/pcm083
- Barrieu F, Chaumont F, Chrispeels MJ. High expression of the tonoplast aquaporin ZmTIP1 in epidermal and conducting tissues of maize. Plant Physiol. 1998;117(4):1153–1163. doi: 10.1104/pp.117.4.1153
- Frangne N, Maeshima M, Schäffner AR, et al. Expression and distribution of a vacuolar aquaporin in young and mature leaf tissues of Brassica napus in relation to water fluxes. Planta. 2001;212(2):270–278. doi: 10.1007/s004250000390
- Yooyongwech S, Horigane AK, Yoshida M, et al. Changes in aquaporin gene expression and magnetic resonance imaging of water status in peach tree flower buds during dormancy. Physiol Plant. 2008;134(3):522–533. doi: 10.1111/j.1399-3054.2008.01143.x
- Azad AK, Sawa Y, Ishikawa T, Shibata H. Characterization of protein phosphatase 2A acting on phosphorylated plasma membrane aquaporin of tulip petals. Biosci Biotechnol Biochem. 2004;68(5):1170–1174. doi: 10.1271/bbb.68.1170
- Nemoto K, Niinae T, Goto F, et al. Calcium-dependent protein kinase 16 phosphorylates and activates the aquaporin PIP2;2 to regulate reversible flower opening in Gentiana scabra. Plant Cell. 2022;34(7):2652–2670. doi: 10.1093/plcell/koac120
- Bots M, Feron R, Uehlein N, et al. PIP1 and PIP2 aquaporins are differentially expressed during tobacco anther and stigma development. J Exp Bot. 2005;56(409):113–121. doi: 10.1093/jxb/eri009
- Soto G, Fox R, Ayub N, et al. TIP5;1 is an aquaporin specifically targeted to pollen mitochondria and is probably involved in nitrogen remobilization in Arabidopsis thaliana. Plant J. 2010;64(6): 1038–1047. doi: 10.1111/j.1365-313x.2010.04395.x
- Wudick MM, Luu D-T, Tournaire-Roux C, et al. Vegetative and sperm cell-specific aquaporins of Arabidopsis highlight the vacuolar equipment of pollen and contribute to plant reproduction. Plant Physiol. 2014;164(4):1697–1706. doi: 10.1104/pp.113.228700
- Zhou Y, Setz N, Niemietz C, et al. Aquaporins and unloading of phloem-imported water in coats of developing bean seeds. Plant Cell Environ. 2007;30(12):1566–1577. doi: 10.1111/j.1365-3040.2007.01732.x
- Ozga JA, van Huizen R, Reinecke DM. Hormone and seed-specific regulation of pea fruit growth. Plant Physiol. 2002;128(4): 1379–1389. doi: 10.1104/pp.010800
- Schlosser J, Olsson N, Weis M, et al. Cellular expansion and gene expression in the developing grape (Vitis vinifera L.). Protoplasma. 2008;232(3–4):255–265. doi: 10.1007/s00709-008-0280-9
- Fouquet R, Léon C, Ollat N, Barrieu F. Identification of grapevine aquaporins and expression analysis in developing berries. Plant Cell Rep. 2008;27(9):1541–1550. doi: 10.1007/s00299-008-0566-1
- Shiota H, Sudoh T, Tanaka I. Expression analysis of genes encoding plasma membrane aquaporins during seed and fruit development in tomato. Plant Sci. 2006;171(2):277–285. doi: 10.1016/j.plantsci.2006.03.021
- O’Brien M, Bertrand C, Matton DP. Characterization of a fertilization-induced and developmentally regulated plasma-membrane aquaporin expressed in reproductive tissues, in the wild potato Solanum chacoense Bitt. Planta. 2002;215(3):485–493. doi: 10.1007/s00425-002-0770-0
- Smart LB, Vojdani F, Maeshima M, Wilkins TA. Genes involved in osmoregulation during turgor-driven cell expansion of developing cotton fibers are differentially regulated. Plant Physiol. 1998;116(4):1539–1549. doi: 10.1104/pp.116.4.1539
- Hu C-G, Hao H-J, Honda C, et al. Putative PIP1 genes isolated from apple: Expression analyses during fruit development and under osmotic stress. J Exp Bot. 2003;54(390):2193–2194. doi: 10.1093/jxb/erg238
- Lv J, CaoY, Tai R, et al. Comparative study of expression patterns of aquaporin (AQP) genes in apple fruits with contrasting ripening behavior. Sci Hortic. 2023;318:112133. doi: 10.1016/j.scienta.2023.112133
- Zhu Y-X, Yang L, Liu N, et al. Genome-wide identification, structure characterization, and expression pattern profiling of aquaporin gene family in cucumber. BMC Plant Biol. 2019;19:345. doi: 10.1186/s12870-019-1953-1
- Chinnasamy GP, Sundareswaran S, Subramanian KS, et al. Aquaporins and their implications on seeds: A brief review. J Appl Nat Sci. 2021;13(3):970–980. doi: 10.31018/jans.v13i3.2830
- Maurel C, Kado RT, Guern J, Chrispeels MJ. Phosphorylation regulates the water channel activity of the seed-specific aquaporin α-TIP. EMBO J. 1995;14(13):3028–3035. doi: 10.1002/j.1460-2075.1995.tb07305.x
- Hunter PR, Craddock CP, Di Benedetto S, et al. Fluorescent reporter proteins for the tonoplast and the vacuolar lumen identify a single vacuolar compartment in Arabidopsis cells. Plant Physiol. 2007;145(4):1371–1382. doi: 10.1104/pp.107.103945
- Gattolin S, Sorieul M, Frigerio L. Mapping of tonoplast intrinsic proteins in maturing and germinating Arabidopsis seeds reveals dual localization of embryonic TIPs to the tonoplast and plasma membrane. Mol Plant. 2011;4(1):180–189. doi: 10.1093/mp/ssq051
- Kirpichnikova А, Chen Т, Teplyakova S, Shishova M. Proton pump and plant cell elongation. Biol Commun. 2018;63(1):32–42. doi: 10.21638/spbu03.2018.105
- Kirpichnikova AA, Kudoyarova GR, Yemelyanov VV, Shishova MF. The peculiarities of cell elongation growth of cereal coleoptiles under normal and flooding conditions. Ecological genetics. 2023;21(4):401–417. EDN: QWDPWQ doi: 10.17816/ecogen623901
Supplementary files
