Retinal and optic nerve functional activity after vitrectomy for vitreomacular traction syndrome

Cover Page

Abstract


Background. Impacts of vitrectomy for vitreomacular traction syndrome on retinal and optic nerve functional activity are analyzed.

Materials and methods. The electrophysiological monitoring was carried out before vitrectomy and on Days 1, 3, 7, 14, 30, 60, 180 after surgery in 59 patients (59 eyes). Patients were divided into three groups depending on the intraocular tamponade type: the first group – air tamponade, the second group – gas (C3F8) tamponade, the third group – BSS (balanced salt solution).

Results. A significant inhibition of the functional activity of neurons of internal layers of the retina and of the optic nerve was revealed on the Day 1 after surgery compared to baseline data (р < 0.001). In groups I and III, the functional activity of inner layers of the retina and of the optic nerve restored twice as actively as that in the second group.

Conclusions. Vitrectomy causes a reversible and significant inhibition of functional activity of retina and optic nerve. The duration of vitrectomy procedure is a significant negative factor determining the degree of depression of the functional activity of inner layers of the retina and of the optic nerve in the post-op period. The gas tamponade of the vitreous cavity with perfluoropropane-air mixture, compared to air and BSS tamponades, is a significant negative factor influencing the degree of functional activity inhibition of retina and optic nerve after surgery.


Full Text

INTRODUCTION

Retinal macular diseases are significant causes of pronounced decrease in visual acuity and thus deterioration in the quality of life of patients [1]. Vitreomacular traction syndrome (VMTS) leads to edema, macular hole formation, and dysfunction of the central retinaea [2, 3]. Subtotal vitrectomy (VE), with removal of the posterior hyaloid membrane and the internal limiting membrane, and vitreous cavity tamponade with absorbable gas is the conventional surgical approach [4]. However, despite the success of surgical treatment of VMTS, functional outcomes after VE are often unsatisfactory [5, 6]. This may be due to adverse effects on the optic nerve pathway of physical factors (such as the vibrational effect of the vitreous cutter tip on the retina, and membrane removal) and chemical factors (such as the effect of various stains, and vitreous body substitutes) [7–10]. The aim of our study, therefore, was to conduct an analysis of changes with time in the functional activity of the retina and optic nerve after VE in VMTS cases using detailed electrophysiological examinations.

MATERIALS AND METHODS

Inclusion criteria in the study were:

(1) patients with VMTS requiring surgical treatment using

(2) a standard three-port transciliary 25G VE, and

(3) strict observance of the terms of control examinations and an electrophysiological examination.

Exclusion criteria from the study were:

(1) diseases that affect the functional activity of the retina and the optic nerve (such as partial atrophy of the optic nerve, glaucoma, diabetic retinopathy, or retinal detachment); and

(2) intraoperative complications affecting the functional activity of the retina and the optic nerve (such as acute circulatory failure in the optic nerve, or iatrogenic retinal detachment).

A control group (70 patients, 70 eyes) consisted of patients who underwent standard, uncomplicated cataract removal with intraocular lens implantation. This surgery was confined to the anterior chamber of the eye, not affecting the retina and the optic nerve structure and functions.

All VE patients underwent a three-port 25G VE using the Accurus vitrectomy system (Alcon, USA). During the surgical procedure, the working frequency of cut of the vitreous cutter was on average 2,500 rpm, and the volume of the eyeball was replenished with balanced salt solution (BSS, Alcon, USA). The posterior hyaloid membrane contrasted with triamcinolone acetonide (Kenalog 40 (KRKA, Slovenia)) was removed. The internal limiting membrane stained with Membrane Blue stain (Dorc, Holland) was removed with vitreal tweezers. In 20 patients (20 eyes), surgery was completed with tamponade of the vitreal cavity with sterile air, in 20 patients (20 eyes), — with gas-air mixture (C3F8 and sterile air in a 1 : 4 ratio), and in 19 patients (19 eyes), — with BSS.

Visual acuity was examined in all patients, and electrophysiological testing was performed. Visometry was performed using Sivtsev visual acuity charts according to the standard method. The functional activity of neurons in inner retinal layers was evaluated by electrical sensitivity (ES) threshold and the critical frequency of phosphene disappearance (CFPD). ES and CFPD were examined on an Esophy-01 electro ophthalmic stimulator (Spetsmedpribor, Russia). The functional state of the optic nerve was determined estimating flash visual evoked potentials (FVEP) using Tomеy EP-1000 Multifocal electrophysiological instrument (Tomey Corporation, Japan).

The following electrophysiological parameters were analyzed:

  • FVEP: latency of the P2 component (ms), relative (%) change in the P2 component latency;
  • electrophosphene: ES threshold (μA), relative (%) change in the ES threshold, CFPD values (Hz), relative (%) change in CFPD values.

The visual acuity testing and the electrophysiological examination were performed before surgery and on Days 1, 3, 7, 14, 30, 60, and 180 after the surgery.

For statistical analysis, MedCalc Software v 18.4.1 was used. The normality of the sample distribution was estimated using the Kolmogorov-Smirnov criterion. All data were presented as mean ± standard deviation. The statistical significance of differences between the groups was determined, and pair-wise comparison of groups was made using one-way analysis of variance with Bonferroni correction (p < 0.0125). Spearman’s correlation coefficient and its significance were calculated. The results were considered statistically significant if

p was <0.01.

RESULTS AND DISCUSSION

From 2012 to 2018, in the Ophthalmology Clinic of Kirov Military Medical Academy, 1,196 patients underwent an electrophysiological examination, 59 of whom met our study inclusion criteria (59 eyes, 28 women and 31 men, average age 73.32 ± 7.54 years).

The distribution of patients by groups, gender, age, and type of vitreous chamber tamponade’s agent is presented in Table 1. Figure 1 demonstrates changes in visual acuity indices throughout the follow-up period in the VE group and in the control group.



Table 1 / Таблица 1

General characteristics of patients in main groups and in the control group

Общая характеристика пациентов в основных и контрольной группах

Indicator

Group I

n = 20

Group II

n = 20

Group III

n = 19

Control group

Age

75.2 ± 7.3

77.3 ± 5.4

78.7 ± 6.2

72.7 ± 7.5

Gender

male

11

10

10

33

female

9

10

9

37

Type of tamponing agent

Sterile air

Gas-air mixture

Balanced salt solution

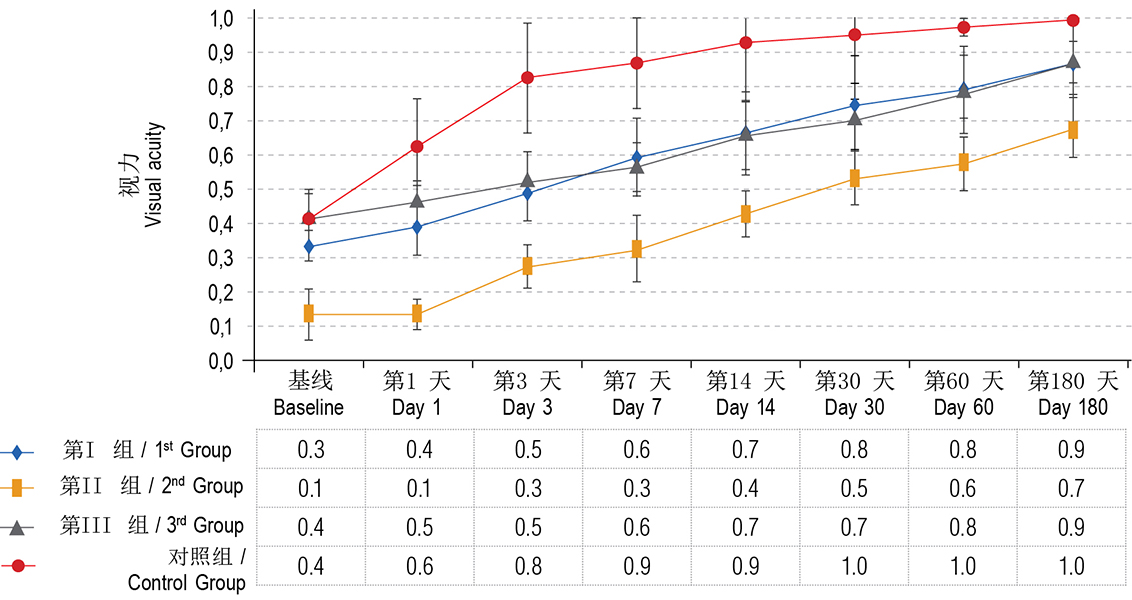

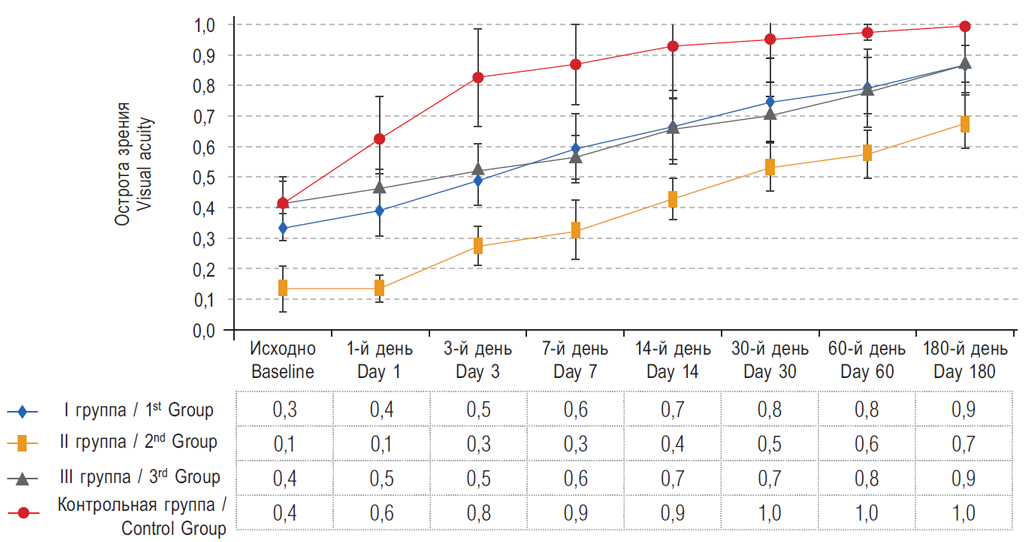

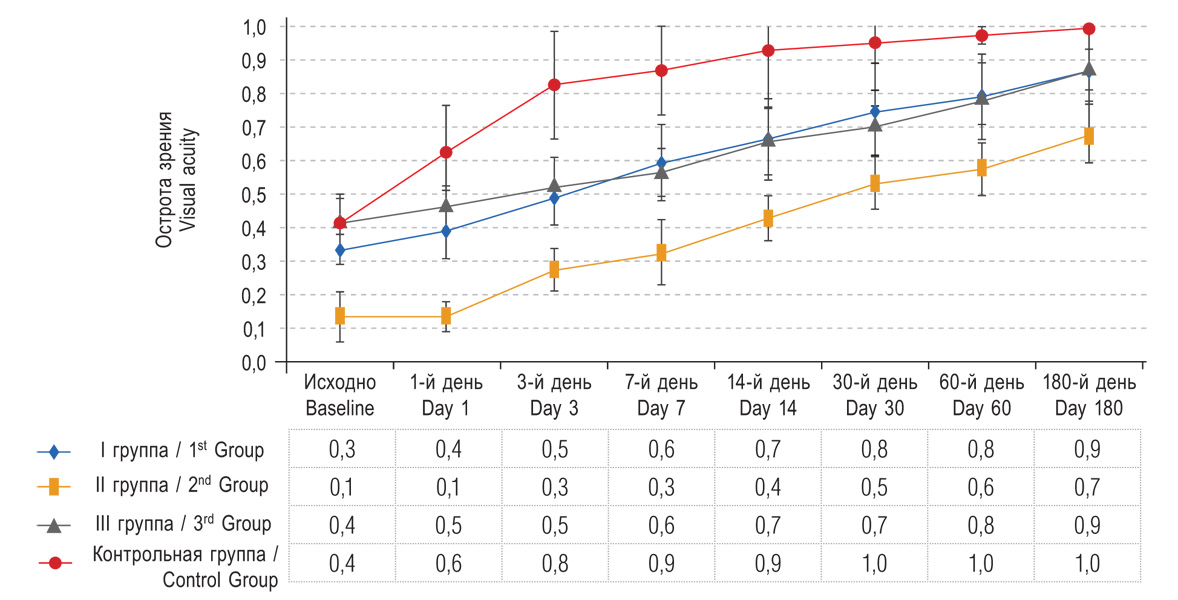

Fig. 1. Visual acuity dynamics

Рис. 1. Динамика остроты зрения



An analysis of changes with time of the kinetics of the optic nerve bioelectrical impulse revealed a significant increase (p < 0.001) in the temporal parameters of the P2 component of FVEP on Day 1 after surgery in all three VE groups (Fig. 2, 3). From Day 3 after surgery, there was a tendency of the nerve impulse conduction velocity restoration along the optic nerve. The nerve impulse kinetics reached normal values on Day 14 after VE in groups I (air) and III (BSS), and on Day 30 after surgery in group II (gas + air).

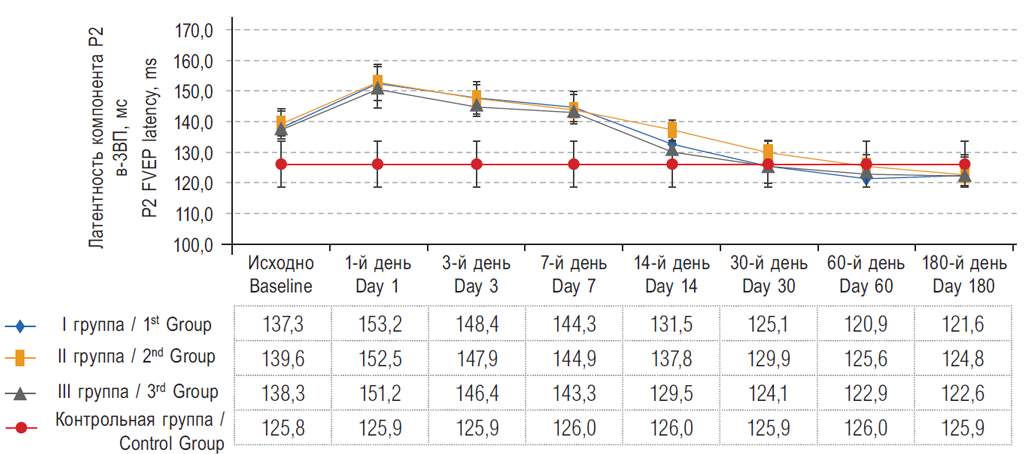

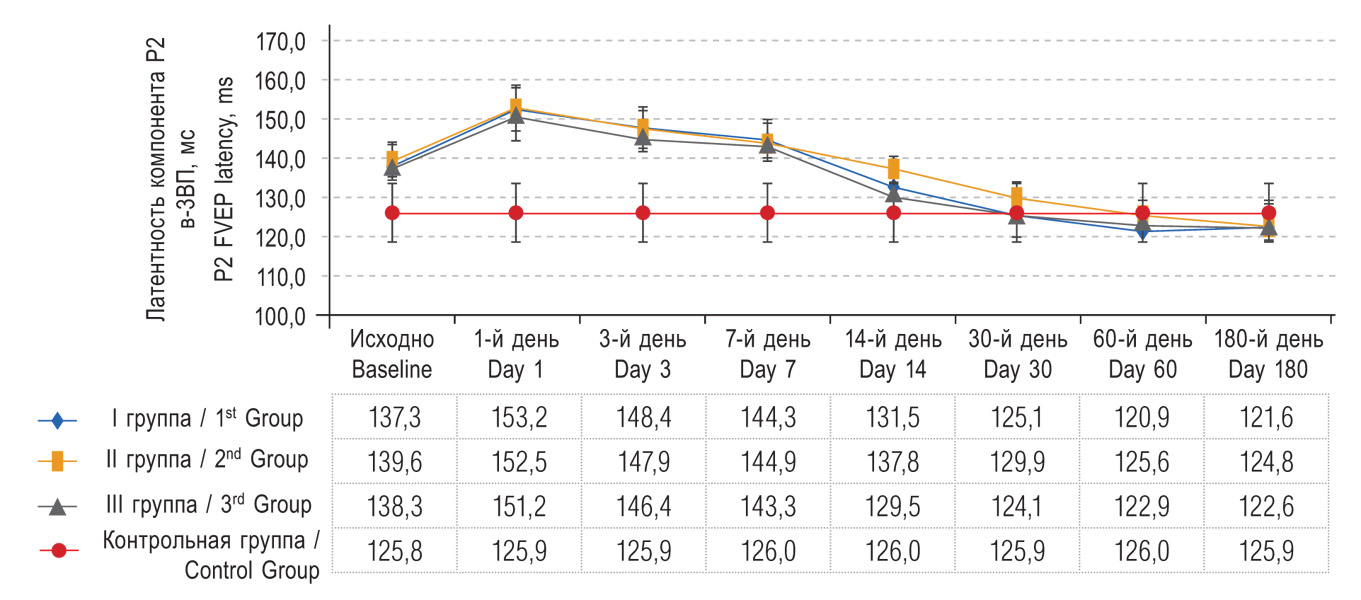

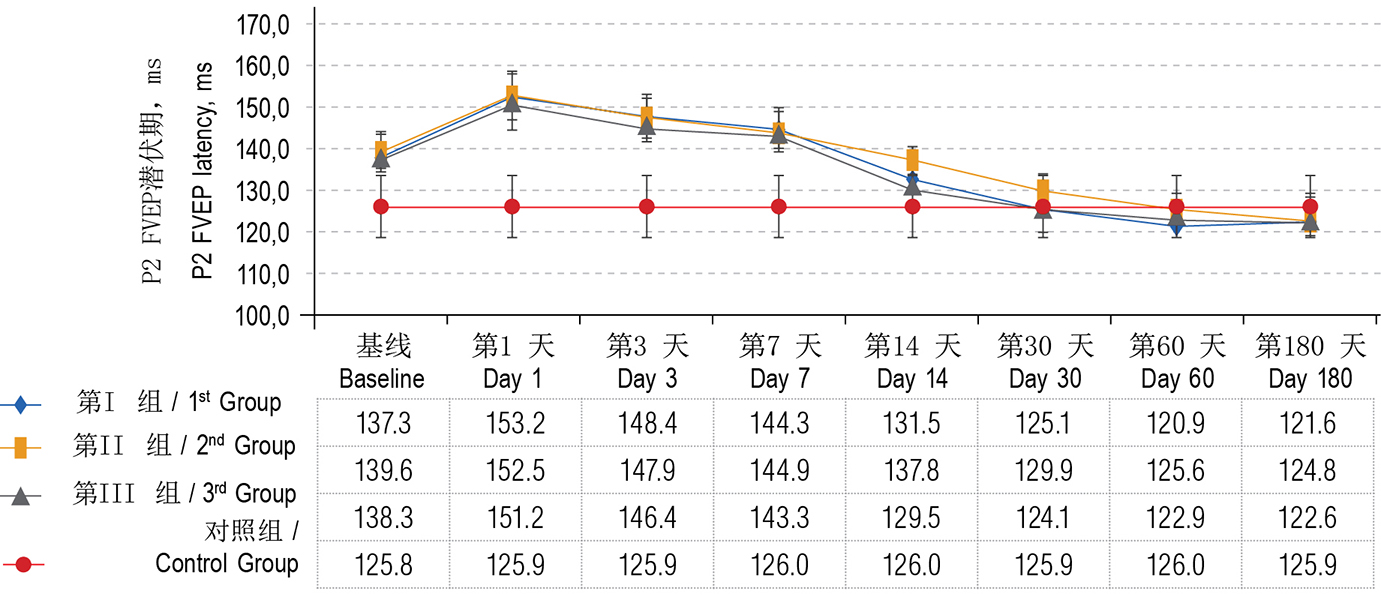

Fig. 2. Dynamics of the Р2 Flash VEP latency

Рис. 2. Динамика латентности компонента Р2 зрительных вызванных потенциалов на вспышку

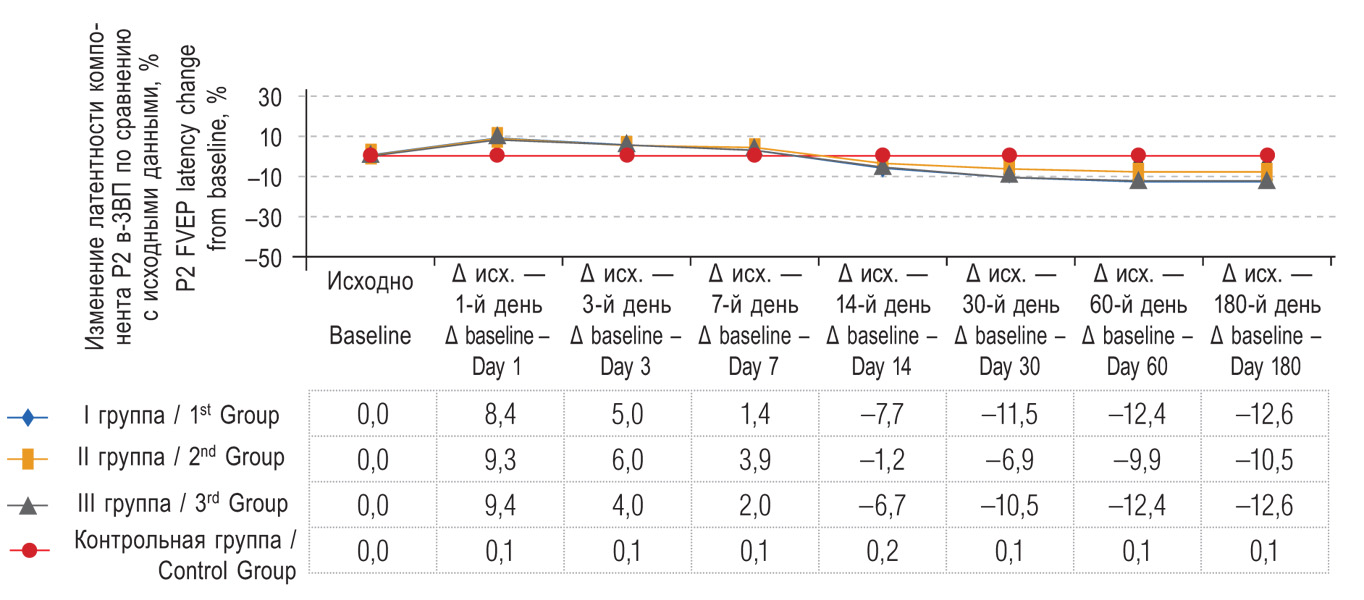

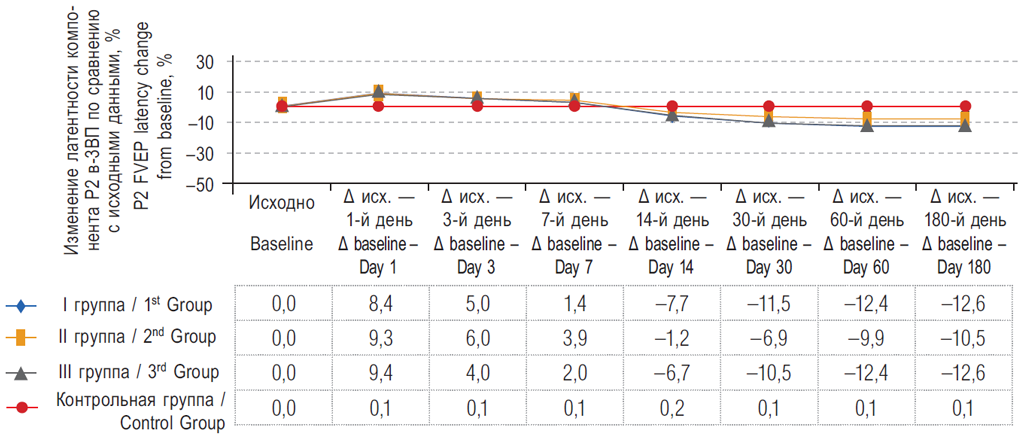

Fig. 3. Dynamics of the relative inhibition of the Р2 Flash VEP latency

Рис. 3. Динамика относительного угнетения латентности компонента Р2 зрительных вызванных потенциалов на вспышку



According to the electrophosphene investigation results, a significant increase in the threshold of ES and CFPD was revealed on Day 1 after VE compared with the initial data in all three groups (Fig. 4–7). From Day 3 after surgery, the ES and CFPD indices gradually restored to normal values. Normalization of ES in VE groups I and III was detected on Day 7, while in VE group II, it was on Day 14 after surgery. CFPD indices normalized on Day 14 in VE groups I and III, and on Day 30 after surgery in VE group II.

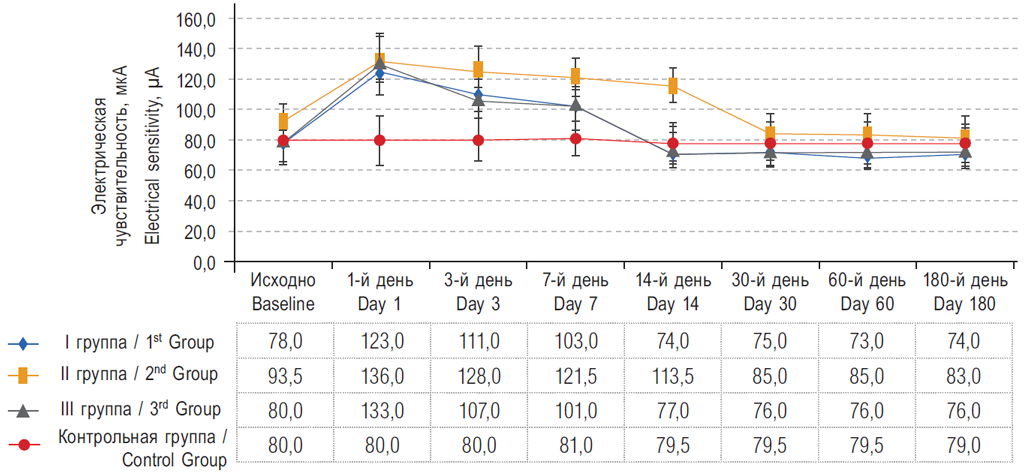

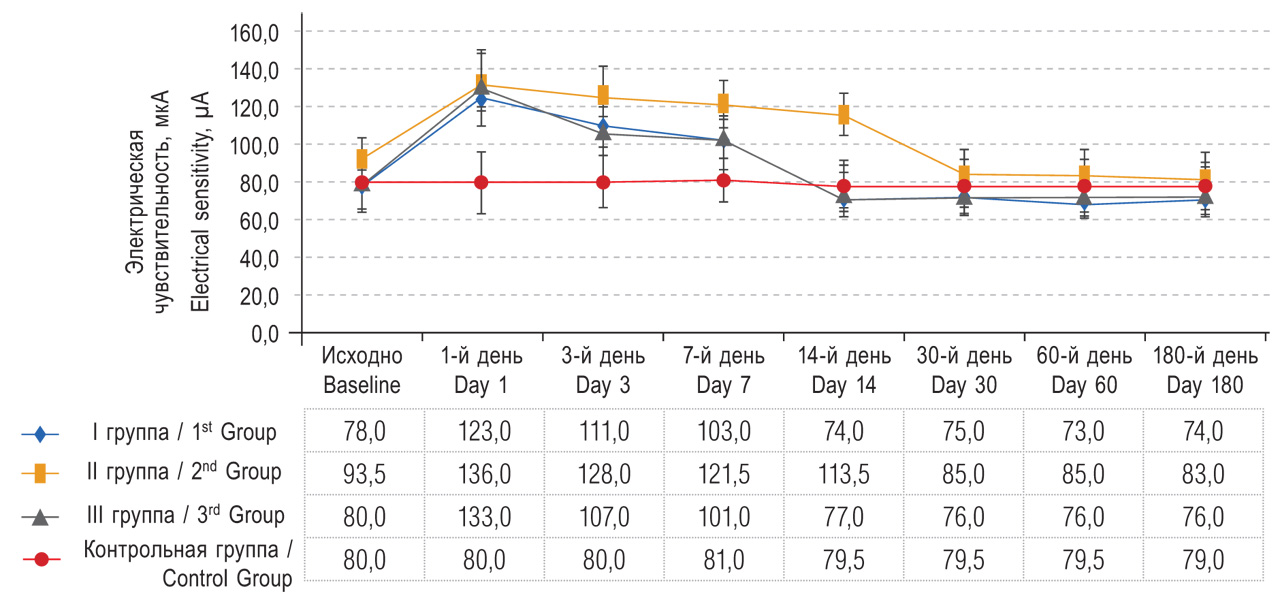

Fig. 4. Dynamics of the electrical sensitivity

Рис. 4. Динамика электрической чувствительности

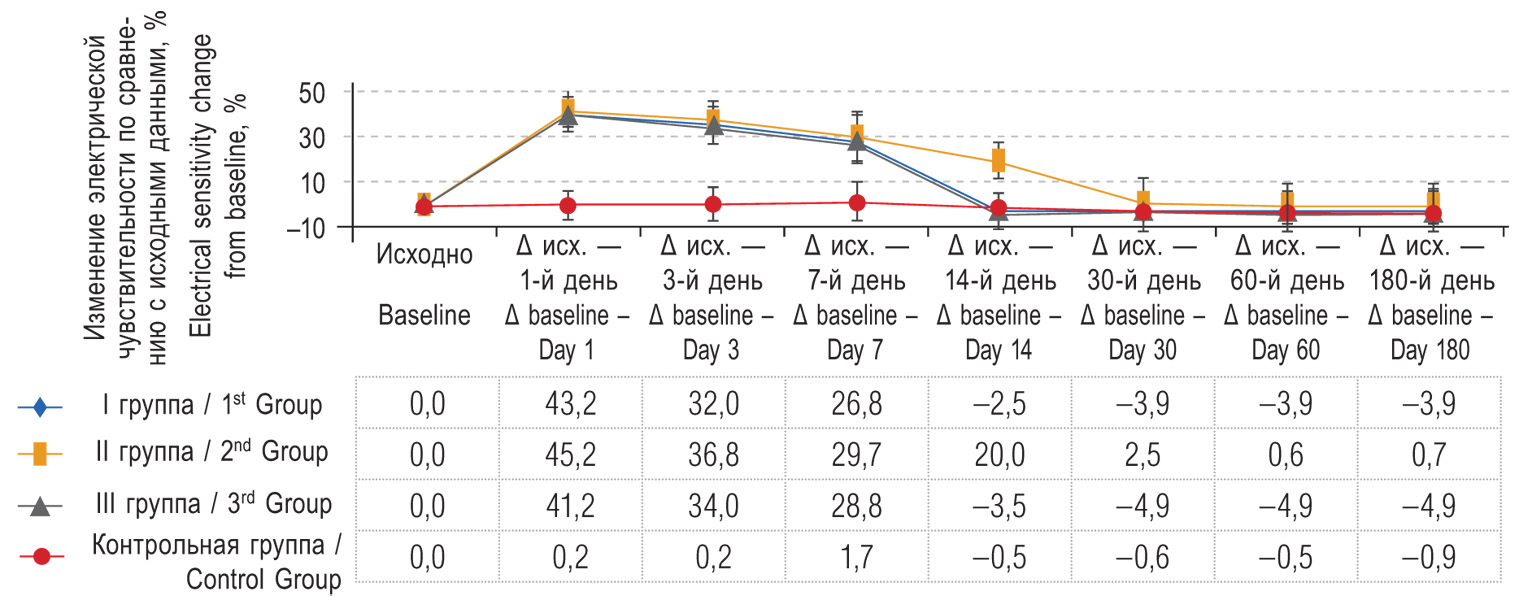

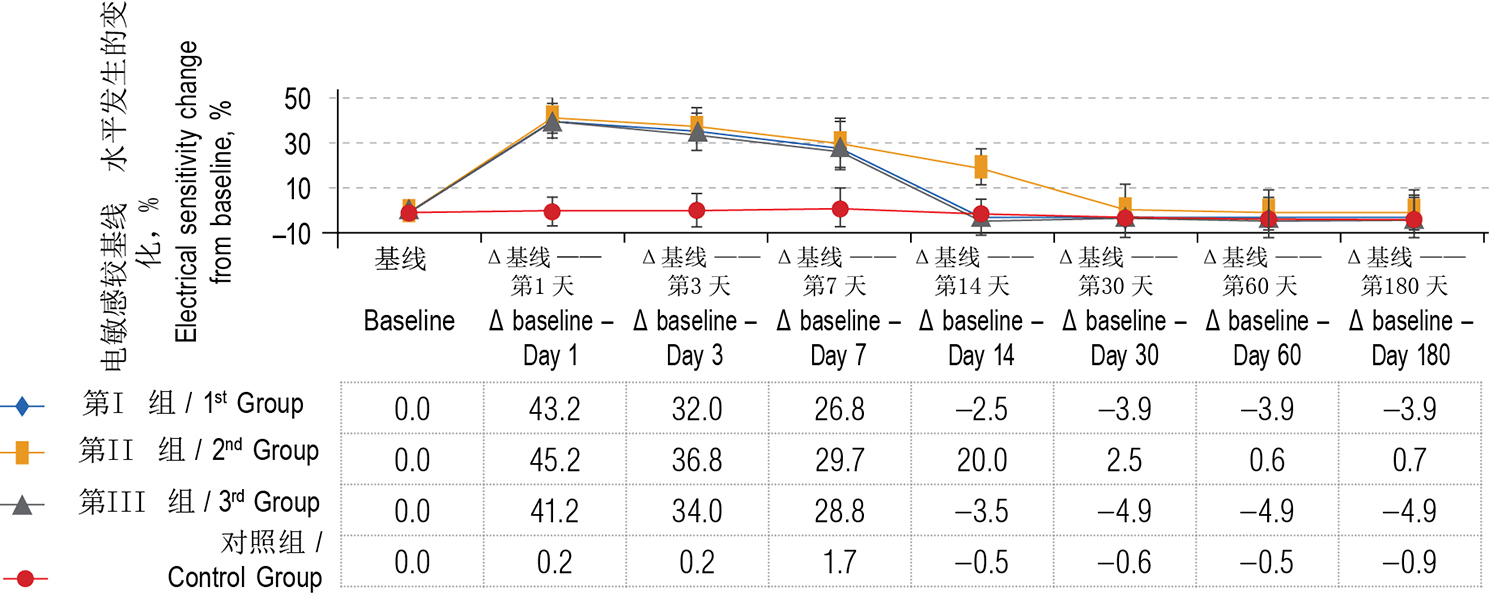

Fig. 5. Dynamics of the electrical sensitivity relative inhibition

Рис. 5. Динамика относительного угнетения электрической чувствительности

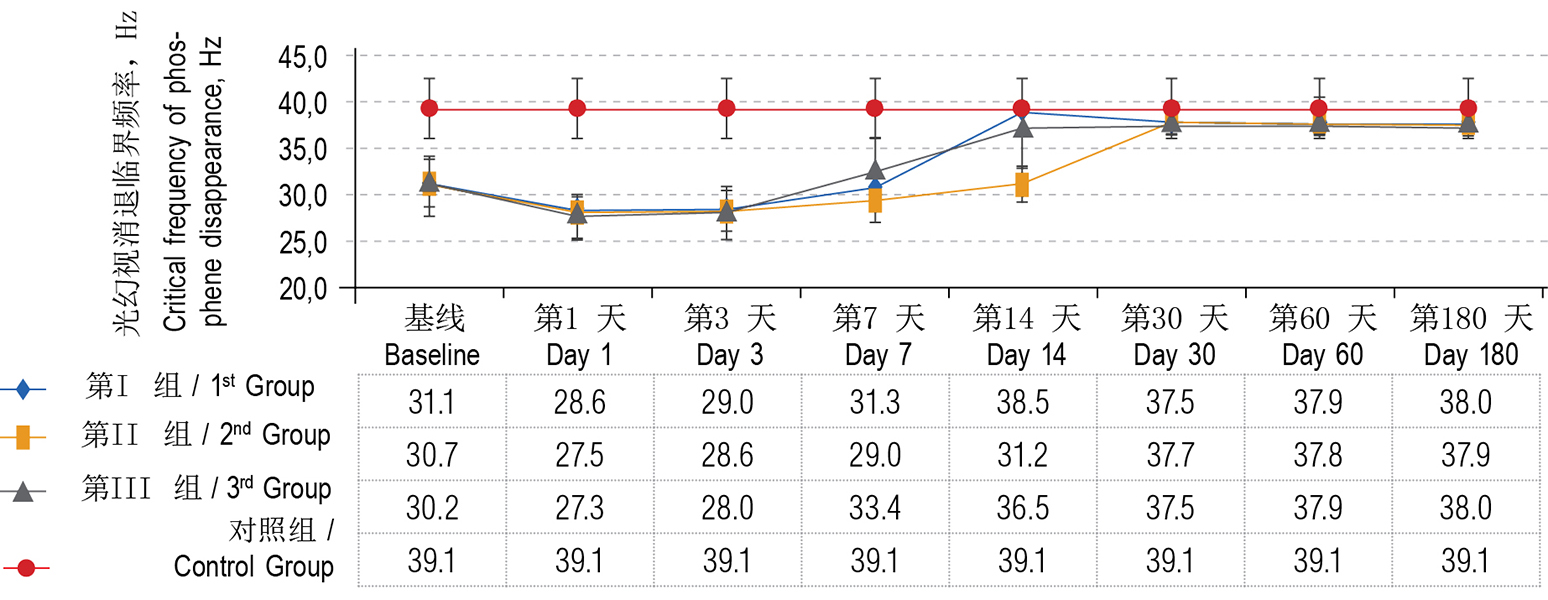

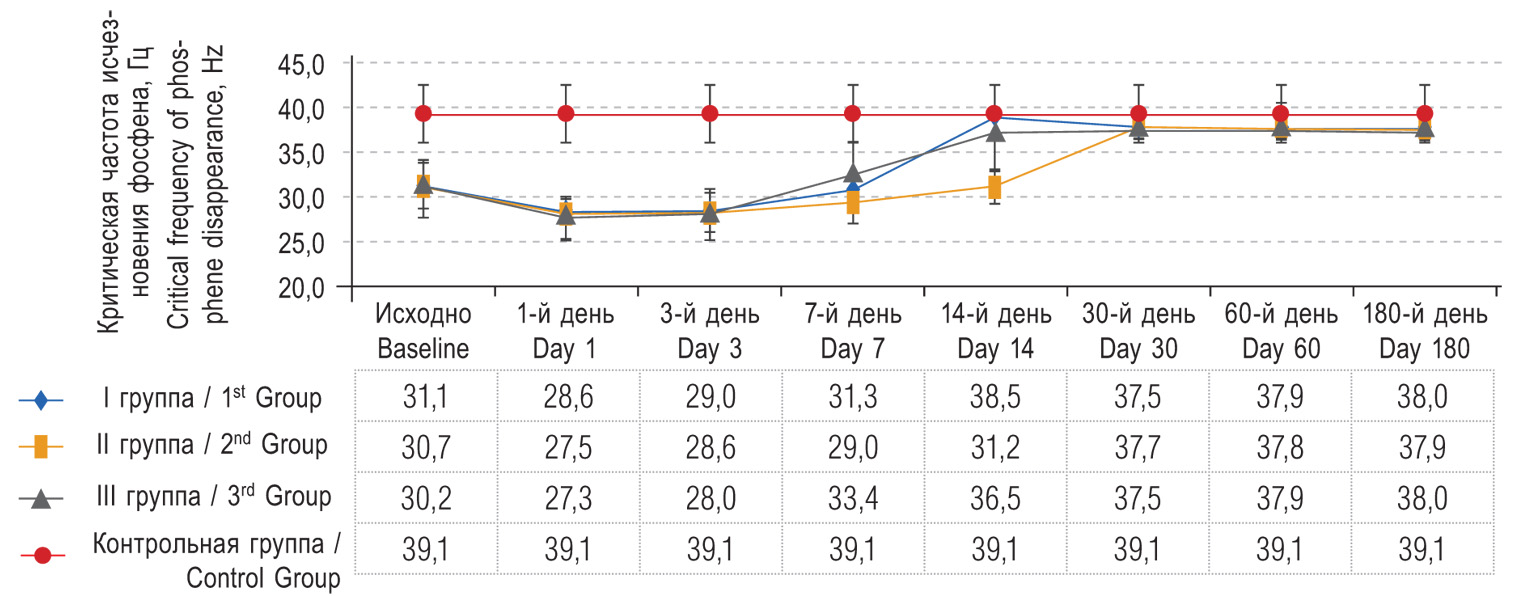

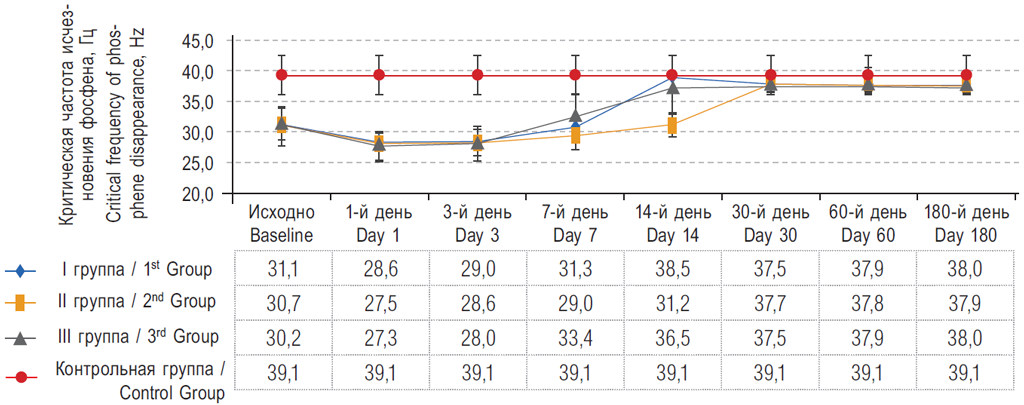

Fig. 6. Dynamics of the critical frequency of phosphene disappearance

Рис. 6. Динамика критической частоты исчезновения фосфена

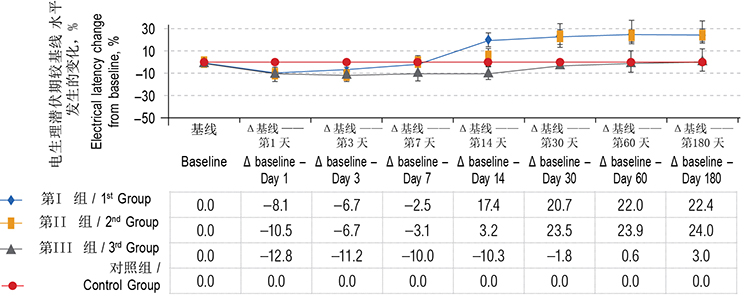

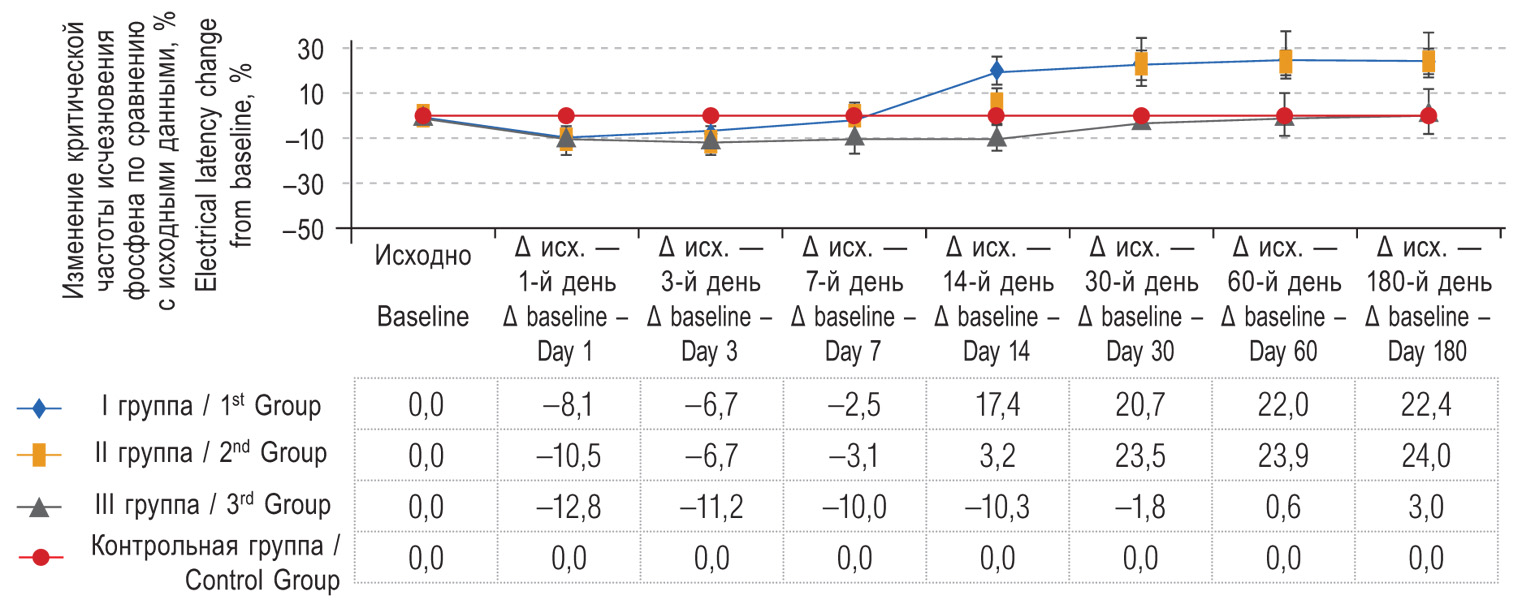

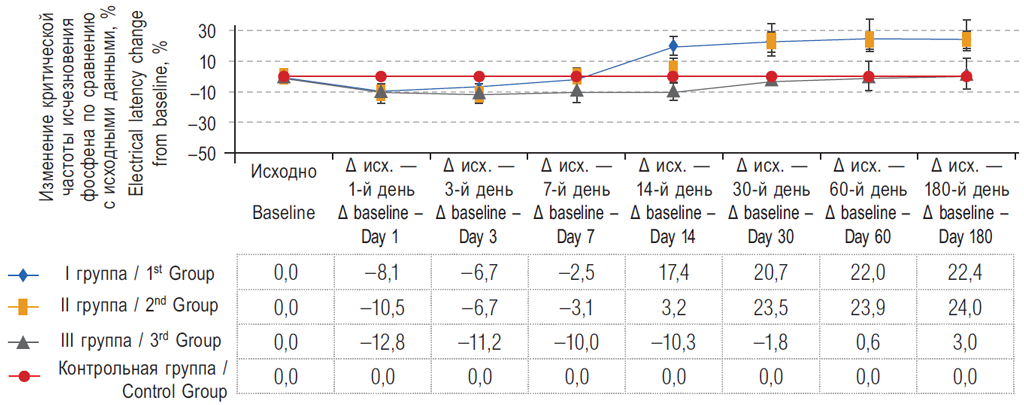

Fig. 7. Dynamics of the relative inhibition of the of the electrical lability

Рис. 7. Динамика относительного угнетения критической частоты исчезновения фосфена



Temporal parameters of the P2 component of FVEP, and electrophosphene indices in the control group were stable, and there were no significant differences at all terms of follow-up.

According to the results of the comparative analysis of the initial indices of the temporary parameters of FVEP in all groups, a statistically significant difference in the P2 component latencies of FVEP was revealed between group I and the control group, group II and the control group, and group III and the control group (p < 0.001).

According to the results of the comparative analysis of the initial CFPD indices in all groups, a statistically significant difference between the CFPD indices was found between group I and the control group, group II and the control group, and group III and the control group (p < 0.001).

The VE duration was 43.7 ± 4.4 min on average. According to the analysis of surgical procedure protocols, the average duration of VE was 42.7 ± 1.2 minutes (44.1 ± 3.8 min in group I, 42.2 ± 2.5 min in group II, and 41.9 ± 3.5 min in group III).

Table 2 presents the correlation analysis results. At all follow-up time points, no correlation was found between visual acuity indices and electrophysiological indices.



Table 2 / Таблица 2

Значение коэффициента корреляции между длительностью витрэктомии и электрофизиологическими показателями в основных группах

The value of the correlation coefficient between the vitrectomy duration and electrophysiology indices in main groups

Values under study

Correlation relationship

Correlation coefficient

Type

Power

t VE*/Δ Р2 VFEP**

straight

strong

0.85

t VE*/Δ CFPD**

0.79

t VE*/Δ ES**

medium strength

0.65

Note: *vitrectomy time in minutes; **difference between the index on Day 1 after vitrectomy and the initial value, %.



On Day 1 of the follow-up in all the VE groups, a significant decrease in the functional activity of the optic nerve and retinal inner layers was noted. The decline in neuronal function could be explained by the VE depressive effect on the bioelectric response formation in neurons of internal retinal layers and the optic nerve. In our previous studies, a reversible significant decrease in electrogenesis in the early postoperative period was proven at the level of photoreceptors and bipolar cells after VE performed for macular hole and dislocation of nuclear lens fragments due to complicated phacoemulsification [7]. According to the Russian and international literature, the decrease in functional activity of retinal neurons, including those of inner layers, is explained by mechanical trauma to the retina during removal of pathological membranes [11]. Similar changes may be seen from chemical effects of artificial dyes that are used to enhance pathological membranes’ contrast during surgery [12, 13].

Our results showed the time course of functional restoration of neurons in the inner layers of the retina and optic nerve after surgery. When comparing the changes in the latency of the Р2 component to the initial level (%) on Day 1 after VE, there were no statistically significant differences between the three VE groups. The inhibition of the neuronal function of the inner retinal layers and optic nerve due to surgical procedure did not depend on the type of tamponade agent in the vitreous cavity. The change in the latency of the P2 component, starting from Day 3 after surgery, with air or BSS tamponade was significantly less than with gas-air tamponade and this remained so until Day 14.

Taking into account the same amount of surgical trauma, the absence of statistically significant differences in the VE duration between the three groups, the differences in the timing of restoration of the neuronal function in the inner retinal layers and optic nerve according to ES, CFPD, and FVEP between groups I, III, and II are probably associated with the implementation of pathological exposure to perfluoropropane in the gas-air mixture tamponing the vitreous cavity. Similar electrophysiological changes in the restoration of the retinal and optic nerve functional activity were noted in publications on electrophysiological assessment of the effect of various types of tamponade of the vitreous cavity (such as silicone oil, or various types of liquid perfluororganic compounds) on the restoration of neuronal activity of these structures [14–16].

CONCLUSIONS

  1. Vitrectomy for VMTS causes significant reversible inhibition of the functional activity of the retina and optic nerve.
  2. The VE duration determines the degree of inhibition of the functional activity of the retina and optic nerve in the postoperative period.
  3. Tamponade of the vitreous chamber with a gas-air mixture (using perfluoropropane), in comparison with tamponade with sterile air and BSS, is a significant adverse factor affecting the rate of restoration of functional activity of the retina and optic nerve after surgery.

Additional information

The authors of this article declared no conflict of interest.

Contribution of authors

E.N. Nikolayenko created the concept and design of the study, collected and processed the material, performed statistical processing, wrote the text of the article, and prepared the illustrations.

A.N. Kulikov created the concept and design of the study, performed control over the implementation of all stages of the study, and wrote the final version of the article.

V.V. Volkov was involved in editing the text of the article.

V.F. Danilichev edited the text of the article.

About the authors

Evgeniya N. Nikolaenko

S.M. Kirov Military Medical Academy

Author for correspondence.
Email: e.n.nikolaenko@mail.ru
ORCID iD: 0000-0002-9596-5504
SPIN-code: 3517-0734
ResearcherId: I-1380-2016

Russian Federation, 6G, Akademika Lebedeva street, Saint-Petersburg, 194044

Ophthalmologist, Diagnostic Department

Alexey N. Kulikov

S.M. Kirov Military Medical Academy

Email: alexey.kulikov@mail.ru
ORCID iD: 0000-0002-5274-6993
SPIN-code: 6440-7706
Scopus Author ID: 57001225300
ResearcherId: M-2094-2016

Russian Federation, 6G, Akademika Lebedeva street, Saint-Petersburg, 194044

MD, PhD, DMedSc, Professor, Head of the Department, Ophthalmology Department

Veniamin V. Volkov

S.M. Kirov Military Medical Academy

Email: e.n.nikolaenko@mail.ru
ORCID iD: 0000-0002-1153-8418
SPIN-code: 7953-2938
Scopus Author ID: 0025348786
ResearcherId: M-3574-2016

Russian Federation, 6G, Akademika Lebedeva street, Saint-Petersburg, 194044

MD, PhD, DMedSc, Professor, Professor of the Ophthalmology Department

Vladimir F. Danilichev

S.M. Kirov Military Medical Academy

Email: e.n.nikolaenko@mail.ru
ORCID iD: 0000-0003-3315-3735
SPIN-code: 3042-7034
Scopus Author ID: 6701616945
ResearcherId: M-5592-2016

Russian Federation, 6G, Akademika Lebedeva street, Saint-Petersburg, 194044

MD, PhD, DMedSc, Professor, Professor of the Ophthalmology Department

References

  1. Либман Е.С., Калеева Э.В., Рязанов Д.П. Комплексная характеристика инвалидности вследствие офтальмологии в Российской Федерации // Российская офтальмология. – 2012. – № 5. – С. 24–26. [Libman ES, Kaleeva EV, Ryazanov DP. Kompleksnaya kharakteristika invalidnosti vsledstvie oftalmologii v Rossiyskoy Federatsii. Rossiyskaya oftalmologiya. 2012;(5): 24-26. (In Russ.)]
  2. Балашевич Л.И., Байбородов Я.В., Жоголев К.С. Хирургическое лечение патологии витреомакулярного интерфейса. Обзор литературы в вопросах и ответах // Офтальмохирургия. – 2015. – № 2. – С. 80–85. [Balashevich LI, Baiborodov JV, Zogolev KS. Surgical treatment of the vitreo-macular interface pathology. Review of the foreign literature in questions and answers. Fyodorov Journal of Ophthalmic Surgery. 2015;(2):80-85. (In Russ.)]. doi: https://doi.org/10.25276/0235-4160-2015-2-80-86.
  3. Bottos J, Elizalde J, Rodrigues EB, et al. Vitreomacular traction syndrome: postoperative functional and anatomic outcomes. Ophthalmic Surg Lasers Imaging Retina. 2015;46(2):235-242. doi: https://doi.org/10.3928/23258160-20150213-14.
  4. Kovacevic D, Markusic V. Pars plana vitrectomy for vitreomacular traction syndrome. Coll Antropol. 2013;37 Suppl 1:271-273.
  5. Николаенко Е.Н., Сосновский С.В., Куликов А.Н. Влияние продолжительности витрэктомии на угнетение биоэлектрической активности сетчатки в послеоперационном периоде // Современные технологии в офтальмологии. – 2016. – № 1. – С. 158–161. [Nikolaenko EN, Sosnovskii SV, Kulikov AN. Vliyanie prodolzhitel’nosti vitrektomii na ugnetenie bioelektricheskoy aktivnosti setchatki v posleoperatsionnom periode. Sovremennye tekhnologii v oftalmologii. 2016;(1):158-161. (In Russ.)]
  6. Li HH, Liao X, Xie CL, et al. Intraoperative risk factors associated with visual acuity outcomes of pars plana vitrectomy in idiopathic epiretinal membrane. Zhonghua Yan Ke Za Zhi. 2017;53(5):344-351. doi: https://doi.org/10.3760/cma.j.issn.0412-4081.2017.05.006.
  7. Куликов А.Н., Сосновский С.В., Николаенко Е.Н. Анализ динамики электрогенеза сетчатки и зрительного нерва после витрэктомии по поводу осложнённой хирургии катаракты // Офтальмологические ведомости. – 2018. – Т. 11. – № 3. – С. 34–47. [Nikolaenko EN, Sosnovskii SV, Kulikov AN. Analysis of retinal and optic nerve electrogenesis dynamics after vitrectomy for complicated catarct surgery. Ophthalmology journal. 2018;11(3):34-47. (In Russ.)]. doi: https://doi.org/10.17816/OV11334-47.
  8. Niwa T, Terasaki H, Kondo M, et al. Function and morphology of macula before and after removal of idiopathic epiretinal membrane. Invest Ophthalmol Vis Sci. 2003;44(4):1652-1656. doi: https://doi.org/10.1167/iovs.02-0404.
  9. Казиев С.Н., Борзенок С.А., Сабурина И.Н., и др. Эндоиллюминация в ходе витреальной хирургии — эволюция вопроса и особенности применения на современном этапе // Практическая медицина. – 2013. – № 1–3. – С. 10–12. [Kaziev SN, Borzenok SA, Saburina IN, et. al. Endoillumination in the course of vitreal surgery – history of the isssue and administration details in the modern period. Prakticheskaya meditsina. 2013;(1-3):10-12. (In Russ.)]
  10. AbdEl Dayem H, Hartzer M, Williams G, Ferrone P. The effect of vitrectomy infusion solutions on postoperative electroretinography and retina histology. BMJ Open Ophthalmol. 2017;1(1):e000004. doi: https://doi.org/10.1136/bmjophth-2016-000004.
  11. Kim NK, Kim CY, Choi MJ, et al. Effects of low-intensity ultrasound on oxidative damage in retinal pigment epithelial cells in vitro. Ultrasound Med Biol. 2015;41(5):1363-1371. doi: https://doi.org/10.1016/j.ultrasmedbio.2014.12.665.
  12. Heilweil G, Komarowska I, Zemel E, et al. Normal physiological and pathophysiological effects of trypan blue on the retinas of albino rabbits. Invest Ophthalmol Vis Sci. 2010;51(8):4187-4194. doi: https://doi.org/10.1167/iovs.09-4675.
  13. Machida S, Nishimura T, Ohzeki T, et al. Comparisons of focal macular electroretinograms after indocyanine green-, brilliant blue G-, or triamcinolone acetonide-assisted macular hole surgery. Graefes Arch Clin Exp Ophthalmol. 2016;255(3):485-492. doi: https://doi.org/10.1007/s00417-016-3478-8.
  14. Frumar KD, Gregor ZJ, Carter RM, Arden GB. Electroretinographic changes after vitrectomy and intraocular tamponade. Retina. 1985;5(1):16-21. doi: https://doi.org/10.1097/00006982-198500510-00004.
  15. Ueno S, Kondo M, Piao CH, et al. Selective amplitude reduction of the PhNR after macular hole surgery: ganglion cell damage related to ICG-assisted ILM peeling and gas tamponade. Invest Ophthalmol Vis Sci. 2006;47(8):3545-3549. doi: https://doi.org/10.1167/iovs.05-1481.
  16. Куликов А.Н. Экспериментальное изучение высокочистых жидких перфторорганических соединений при интравитреальном введении: Дис. …канд. мед. наук. – СПб., 1997. [Kulikov AN. Eksperimental’noe izuchenie vysokochistykh zhidkikh perftororganicheskikh soedineniy pri intravitreal’nom vvedenii [dissertation]. Saint Petersburg; 1997. (In Russ.)]
