Comparative analysis of parameters of cardiointervalometry, ergoreflex and data of 6 minute walk test in patients with chronic obstructive pulmonary disease

Cover Page

Abstract


Aim. To study the relationship between parameters of cardiointervalometry and ergoreflex, and 6-minute walk test data in patients with chronic obstructive pulmonary disease (COPD).

Materials and Methods. The study included 103 men, of them 63 patients with COPD, 40 patients of the control group. Functional assessment of external respiration and a 6-minute walk test were performed using Spiropalm 6MWT equipment (Cosmed, Italy). The autonomic status and the influence of the ergoreflex on it were assessed by the method of cardiointervalometry before, during and after the test with external peripheral vascular occlusion using Varicard hardware and software complex (LLC Ramena, Ryazan, Russia).

Results. When performing a 6-minute walk test, significant differences were obtained between the groups of patients with COPD and of the control group in the majority of the studied parameters (p<0.01). In 18 of 63 patients with COPD, the level of SpO2 in 6-minute walk test decreased by≥ 4% (p<0.01). The obtained result is of considerable importance for assessment of exercise tolerance in patients with COPD. In tests with external peripheral vascular occlusion in patients with COPD and of the control group, the index of activity of regulatory systems (IARS) increased in both groups. However, after completion of the test, the index in patients with COPD decreased below the initial values (p<0.05), and in patients of the control group the changes were even more pronounced (p<0.01). Patients with COPD were divided into groups depending on the distance covered in 6-minute walk test. Analysis of the data revealed a moderate positive correlation between the covered distance and the forced expiratory volume in the 1st second (FEV1, R=0.45, p<0.01).The maximum level of the total effect of the autonomic regulation of blood circulation was recorded in patients who covered the minimum distance (227.77±48.13 m) in 6-minute walk test. Besides, a moderate negative correlation between IARS and the results of 6-minute test was recorded (R=-0.34, p<0.01).

Conclusions. 1. For assessment of the functional status of patients in 6-minute walk test it is important to take measurement of saturation throughout the whole test. 2. The change in IARS values in the test with external peripheral vascular occlusion can be regarded as a reduction of the influence of reflex from the lower limb ergoreceptors on the functional condition of patients. 3. Patients with COPD showed a marked autonomic imbalance. IARS showed a moderate negative correlation with the distance covered in 6-minute walk test. 4. Maximum value of IARS was obtained in patients with the minimal distance covered in 6-minute walk test.


Chronic obstructive pulmonary disease (COPD) presents a serious problem for public healthcare service. The disease considerably impairs the quality of patients’ life. Patients experience impairment of the everyday activity, of physical working capacity, changes in the emotional status. Clinical manifestations of the disease, such as dyspnea, weakness of respiratory and physical muscles lead to reduction of tolerance to physical loads [1,2].

The diagnosis is verified on the basis of the parameter that reflects the ratio of the forced expiratory volume in the first second (FEV1) to forced vital capacity of lungs (FVCL) after use of a bronchodilator. The parameter <70% shows bronchial obstruction [3]. The diagnostic significance of FEV1 is out of doubt, but this parameter does not show a good correlation with the severity of COPD course [4].

Along with disorders in the respiratory system, patients with COPD often present with extra pulmonary alterations manifested by the reduction of physical activity [5,6]. Negative influence of sedentary lifestyle on physical and mental condition of an individual has been discussed many times [7]. Tolerance to physical activity is evaluated in tests with physical loads and also by analysis of parameters that reflect the ability of a patient to do physical work [8].

The most common loading test is a 6-minute walk test (6MWT). It is used for determination of the functional status of a patient with diseases of respiratory organs, for assessment of the effectiveness of treatment and for making prognosis. An important matter is assessment of saturation before and after 6MWT. Analysis of saturation in 6MWT is included into recommendations of the Russian Respiratory Society as a method of additional confirmation of the COPD diagnosis [9,10].

There exist literature data about heart rate variability (HRV) in individuals with different diseases, however, little information is given on assessment of the autonomic status of patients with COPD [11,12]. One of methods of assessment of the autonomic status is a method of HRV analysis. Using HRV, it is easy to assess neurohumoral regulation of the cardiovascular system (CVS) and the activity of the autonomic nervous system (ANS) [13]. Patients with COPL exhibited the autonomic imbalance manifested by a stepwise reduction in the activity of parasympathetic division of the autonomic nervous system throughout a day. The cardiointervalogram (CIG) of the majority of patients with COPD showed reduction of all time parameters [11,14].

In the study of M. Pagani, et al. (1997), relationship between HRV and the extent of bronchial obstruction in patients with bronchial asthma (BA) was established – a considerable impairment of HRV parameters: of the total spectrum power, low frequency (LF) parameters, high frequency (HF) parameters. Reduction of HF (spectrum power of the high frequency component of variability) is interpreted as the result of predomination of sympathetic division of the ANS with reduction in the influence of parasympathetic division [15]. Reduction of LF (spectrum power of a low frequency component of variability) results from increase in the activity of sympathetic division of the ANS, since this parameter reflects the condition of regulation of the vessel tone. Change in LF/HF ratio indicates the autonomic imbalance with predomination of the sympathetic influence. These changes may probably be associated with increase in the respiratory rate (RR) [16].

In the study of O.V. Pilyasova, et al. (2008) moderate relationships were established between the values of peak expiratory flow rate in 1 sec and SDNN parameters (Standard Deviation of Normal to Normal R-R Intervals, standard deviation of totality of intervals), LF/HF, LF, and a moderate relationship between FEV1/FVCL and the total spectrum power, which eventually confirms existence of interrelation between the autonomic regulation and parameters of respiratory function [17].

At present great attention is given to the systemic effects of COPD, to functional disorders in the peripheral muscles. In this connection, of interest is a study of ergoreflex [18]. Ergoreflex is one of reflex mechanisms that regulates adaptation of the respiratory and cardiovascular systems to the demands of an organism and maintains its homeostasis [19]. Muscle receptors are afferent receptors sensitive to products of metabolism of skeletal muscles. The object of study of M. Piepoli, et al. (1997) was activation of these receptors in patients with chronic cardiac failure where it could be provoked by metabolic disorders in skeletal muscles, early acidosis and accumulation of metabolites in working muscles [20].

Activation of the ergoreflex seems to be a positive compensatory mechanism for maintenance of a stable homeostasis. In patients with chronic diseases of the respiratory and cardiovascular systems, the exaggerated activation of ergoreflex is considered to be a persistent source of enhanced influence of sympathetic division of the ANS [21].

Aim to study the interrelation between the parameters of cardiointervalometry and of ergoreflex, and parameters of 6-minute walk test in patients with COPD.

Materials and Methods

103 Male patients were studied: 63 patients with COPD (average age 65.8±8.6 years) and 40 practically healthy volunteers (average age 59.8±11.3 years). Individuals presenting with decompensated chronic diseases, serious organic pathology of the CVS (disorders in heart rhythm and conduction, history of cardiovascular accidents) were not included into the study.

Comparison between the two groups in age, FEV1 and FEV1/FVCL parameters is given in Table 1.



Table 1 Comparative Initial Clinical Characteristics of Patients with COPD and Patients of Control Group



Patients with COPD

(n=63)

Control Group

(n=40)

Age, years

65.73±8.56

59.13±11.24

FEV1, L

1.57±0.65*

3.38±0.68

FEV1/FVCL, %

49.85±14.71*

78.89±6.90

Note: * – p<0.05 in comparison with the results of control group



All the tested individuals were instructed in detail about the aim and tasks of the study, they received detailed answers to their questions, after which the Informed agreement was signed. The study was approved at meeting №3 of Local Ethics Committee (9 Nov 2016) at Ryazan State Medical University.

Functional capacities of the respiratory system of patients were studied according to ATS/ERS Standards (Series ATS/ERS Task Force: Standardization of Lung Function Testing, 2005) [22] and to recommendations of the Russian Respiratory Society on use of spirometry method, 2014 [23], on the equipment Spiropalm 6MWT (Cosmed, Italy). Within 12 hours before the study the patients refrained from use of short-acting and long-acting bronchodilators.

6MWT was conducted in compliance with Clinical recommendations of the American Thoracic Society (2014) [24]. In each test person spirometry was preliminary conducted.

The influence of ergoreflex was assessed by a method of registration of cardio intervals on Varicard hardware-software complex (LLC Ramena, Ryazan, Russia). Three parameters were recorded: the initial level within 5 minutes in the supine position in relaxed wake prior to the test with external peripheral vascular occlusion; with cuffs applied on the hips – within 3 min; and in the recovery period – 5 min. Simultaneously respiratory rate was measured.

The following parameters were studied: heart rate (HR), beat/min; RR per minute; SDNN, ms; RMSSD (the Root Mean Square of Successive Heart Beat Interval Differences), ms; HF, %; LF, %; VLF (very low frequency slow waves),%; LF/HF (ratio of power in the low frequency range to power in high frequency range). Mathematical analysis of cardiointervalogram was conducted using ISKIM license software (LLC Ramena, Ryazan, Russia).

Statistical processing of the obtained results was conducted using license application program package Excel 2010 (Microsoft Corporation, USA) and Statistica 10 (Stat Soft Inc., USA). Correspondence of the variable to the normal distribution was determined using Kolmogorov-Smirnov test. The results were presented in the form of the average mean (М) ± standard deviation (σ). Quantitative signs not corresponding to the normal distribution were presented as median and interquartile range: Me [Q25;Q75]. Statistically significant were considered differences with probability of faulty judgment p<0.05.

ResultsandDiscussion

In 6MWT the following results were obtained in the group of patients with COPD and in the control group: the distance covered within 6 minutes: 424.70±162.46 m and 679.41±136.42 m, respectively; the Borg scale score for the initial level of dyspnea was: 2.29±1.44 and 0.28±0.13, respectively; the Borg scale score for the level of dyspnea after 6MWT: 5.73±1.71 and 1.41±1.12, respectively; the Borg scale score for the initial level of muscle weakness: 1.16±0.35 and 0.21±0.21, respectively; the Borg scale score for the level of muscle weakness after 6MWT: 3.10±1.80 and 0.61±0.17, respectively (р<0.01 for all the listed comparisons).

The saturation indices (SpO2) in patients with COPD and of control group were: the initial level: 93.78±3.12% and 95.91±1.54%, respectively (р<0.01), after 6MWT: 91.53±5.23% and 95.50±2.08%, respectively (р<0.01). 18 of 63 patients with COPD showed reduction of SpO2 level during 6MWT by ≥4% (р<0.01).

The results of the test with external peripheral vascular obstruction are given in Table 2.



Table 2 Comparative Analysis of HRV in Patients with COPD and of Control Group

Parameter

COPD

(n=63)

Control Group

(n=40)

Initial

In test

In recovery period

Initial

In test

In recovery period

HR, beat/min

72.47±11.04#

72.27±10.77*^

71.36±10.47

69.07±9.64

70.05±9.66

68.21±8.91

RR, per min

15.53±4.49

15.90±4.53

16.13±4.62

13.57±4.27

17.48±4.34

13.28±3.99

IARS

5.28±1.81*

5.61±2.03*^

4.92±1.96

4.76±1.74

5.15±1.74*^

4.02±1.74

RMSSD, ms
Me [Q1;Q3]

24.0

[13.0;71.0]*

30.0

[11.0;62.0]

28.0

[13.0;79.0]

15.5

[10.0;26.5]

15.0

[10.0;26.5]

17.5

[10.5;28.0]

SDNN, ms
Me [Q1;Q3]

28.0

[17.0;57.0]* #

28.0

[18.0;52.0] *^

33.0

[23.0;55.0]

22.5

[17.0;35.0]#

26.0

[16.5;37.0]

27.5

[19.5;37.0]

HF, %

47.50±25.23*

49.01±27.07

45.52±25.89

34.94±20.85

32.90±22.96

28.68±16.47

LF, %

28.67±14.93*

30.29±16.50

28.80±15.01

35.73±14.97

39.52±16.90

36.54±11.14

VLF, %

23.82±17.67

20.36±17.61*^

25.67±17.47

29.32±16.23#

27.58±17.81*^

34.52±14.70

LF/HF
Me [Q1;Q3]

0.65

[0.25;1.39]

0.62

[0.27;1.70]

0.65

[0.31;1.66]

1.17

[0.58;2.59]

1.77

[0.76;2.92]

1.20

[0.84;2.38]

Note: *p<0.05 incomparison with the results of control group,*^– p<0.05 in comparison of data during test and in the period of recovery, #– p<0.05 in comparison of the initial data with the period of recovery



In patients with COPD the index of activity of regulatory systems (IARS) increased. After the test the parameter decreased below the initial values. The statistically reliable difference was obtained between IARS during test and recovery period (p<0.05).

Similar changes were more pronounced in the control group. Statistically significant differences were found between IARS in the test and in the recovery period (p<0.01).

Thus, the test objects shifted from the group of patients with expressed tension of regulatory systems (IARS 4-6) to the group with moderate tension of regulatory systems (IARS 3-4). On the basis of the obtained data it is possible to suggest hyperactivity of ergoreflex from the lower limbs in patients with COPD (delta of the total change of IARS in the testwith peripheral external vascular occlusion in the control group exceeded delta of the total change of IARS in the group of patients with COPD).

Then patients with COPD were divided into groups depending on the distance covered in 6MWT. Analysis of the distance covered in 6MWT and of FEV1 revealed a moderate positive correlation (R=0.48, p<0.01). The obtained results demonstrate dependence of distance covered in 6MWT on the functional condition of the patient, and in case of COPD – on the respiratory function.

With increase in severity of COPD the activity of parasympathetic regulation increased. The maximal level of the total effect of the autonomic regulation of circulation was recorded in patients who covered the minimal distance in 6-minute walk test (227.77±48.13 m). A reliable increase in the extent of dyspnea and in muscle weakness in the lower limbs was found in patients who walked the minimal distance in 6MWT as compared to patients with a higher level of tolerance to physical load (p<0.05). As to RR, no reliable differences between groups of patients with COPD were revealed (p>0.05).

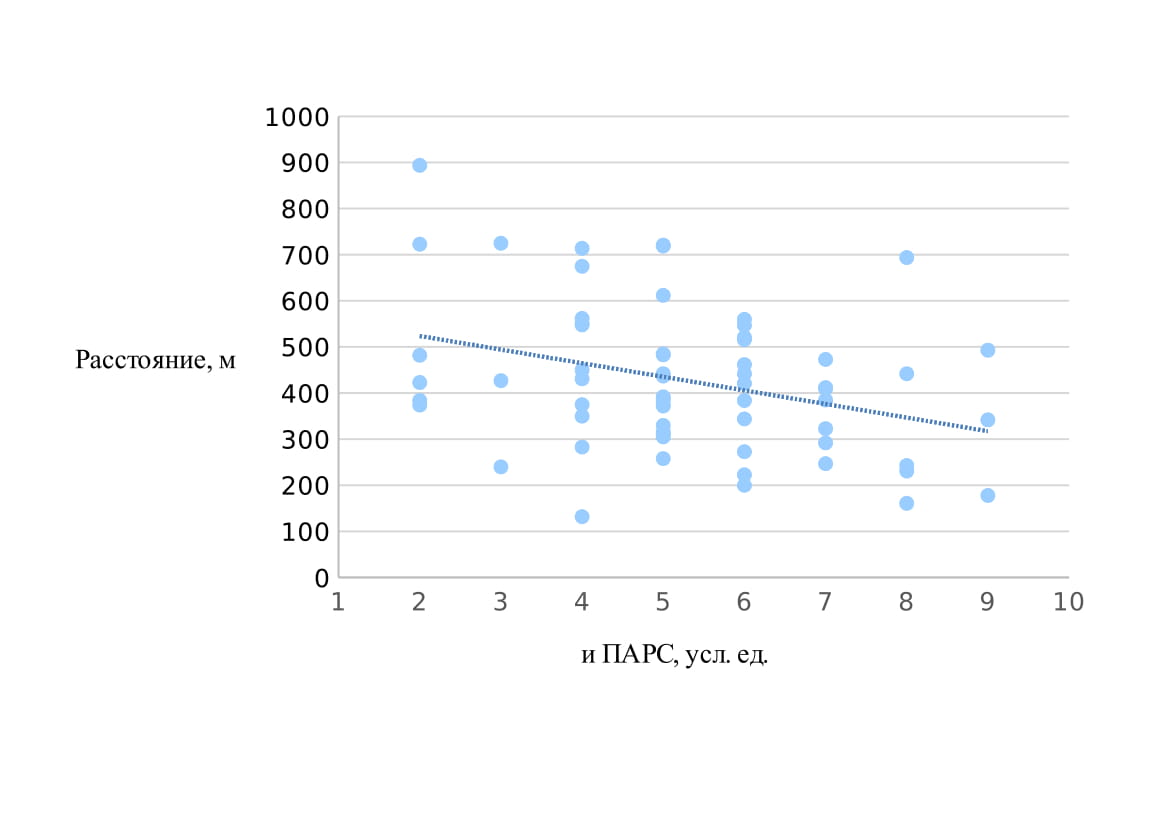

IARS showed a moderate negative correlationwith the covered distance in 6MWT (R=-0.34, p<0.01, Fig. 1). In other words, the maximal IARS 6.23±1.8 relative units (RU) was obtained in patients who walked the minimal distance in 6MWT – 227.77±48.13 m; the minimal IARS 4.36±1.7 RU was obtained in patients who walked the maximal distance – 690.82±92.69 m.



Fig. 1. Correlation analysis between the result of 6-minute walk test and IARS in patients with COPD



Conclusions

  1. In conduction of 6-minute walk test in patients with chronic obstructive pulmonary disease it is important to analyze saturation throughout the whole test for assessment of the functional condition of patients.
  2. Alteration of the values of IARS in the test with external peripheral vascular occlusion may be regarded as reduction of the influence of reflex from ergoreceptors of the lower limbs on the functional condition of patients.
  3. Inpatientswith chronic obstructive pulmonary disease an evident autonomic imbalance was found – a moderate negative correlation of IARS with the distance covered in 6-minute walk test.
  4. Maximal IARS values were obtained in patients with the minimal distance walked in 6-minute walk test.

Vladimir N. Abrosimov

Ryazan State Medical University

Email: Kosyakov_alex@rambler.ru
ORCID iD: 0000-0001-7011-4765
SPIN-code: 3212-4620
ResearcherId: S-2818-2016

Russian Federation, 9, Vysokovoltnaja, Ryazan, 390026

MD, PhD, Professor, Head of the Department of Therapy and Family Medicine of Post-graduate Education Faculty with the Course of Medico-social Examination

Aleksey V. Kosyakov

Ryazan State Medical University

Author for correspondence.
Email: Kosyakov_alex@rambler.ru
ORCID iD: 0000-0001-6965-5812
SPIN-code: 8096-5899
ResearcherId: X-2649-2018

Russian Federation, 9, Vysokovoltnaja, Ryazan, 390026

Assistant of the Department of Therapy and Family Medicine of Post-graduate Education Faculty with the Course of Medico-social Examination

Maria N. Dmitrieva

Ryazan State Medical University

Email: Kosyakov_alex@rambler.ru
ORCID iD: 0000-0003-0915-026X
SPIN-code: 1083-9650
ResearcherId: D-1806-2018

Russian Federation, 9, Vysokovoltnaja, Ryazan, 390026

PhD in Pedagogic Sciences, Associate Professor of the Department of Mathematics

  1. Troosters T, Molen T, Polkey M, et al. Improving physical activity in COPD: Towards a new paradigm. Respiratory Research. 2013;14(1):115. doi:10.1186/ 1465-9921-14-115
  2. Koubaji K, Maghraoui W, Rackita DR, et al. The life quality of patients with chronic obstructive pulmonary disease combined with ischemic heart disease. I.P. Pavlov Russian Medical Biological Herald. 2012;20(3):87-93. (In Russ).
  3. Nizov AA, Ermachkova AN, Abrosimov VN, et al. Management of patients with COPD: role of evaluation of disease in real clinical practice. Nauka molodykh (Eruditio Juvenium). 2018;6(3):429-38. (In Russ). doi: 10.23888/HMJ201863429-438
  4. Jones PW, Agusti AGN. Outcomes and markers in the assessment of chronic obstructive pulmonary disease. European Respiratory Journal. 2006;27(4): 822-32. doi: 10.1183/09031936.06.00145104
  5. Vestbo J, Hurd SS, Agustí AG, et al. Global strategy for the diagnosis, management, and prevention of chronic obstructive pulmonary disease: GOLD executive summary. American Journal of Respiratory and Critical Care Medicine. 2013;187(4):347-65. doi: 10.1164/rccm.201204-0596PP
  6. Hernandes NA, Teixeira DC, Probst VS, et al. Profile of the level of physical activity in the daily lives of patients with COPD in Brazil. Jornal Brasileiro de Pneumologia. 2009;35(10):949-56. doi:10. 1590/S1806-37132009001000002
  7. Owen N, Healy GN, Matthews CE, et al. Too Much Sitting: the Population Health Science of Sedentary Behavior. Exercise and Sports Science Reviews. 2010; 38(3):105-13. doi: 10.1097/JES.0b013e3181e373a2
  8. Caspersen CJ, Powell KE, Christenson GM. Physical activity, exercise, and physical fitness: definitions and distinctions for health-related research. Public Health Reports. 1985;100(2):126-31. doi:10.2307/ 20056429
  9. Dogra AC, Gupta U, Sarkar M, et al. Six-minute walk work in patients with chronic obstructive pulmonary disease. International Journal of Research in Medical Sciences. 2014;2(4):1283-8. doi: 10.5455/2320-6012.ijrms20141101
  10. Sally JS, Milo AP, Vasileios A, et. al. An official systematic review of the European Respiratory Society/American Thoracic Society: measurement properties of field walking tests in chronic respiratory disease. European Respiratory Journal. 2014; 44:1447-78. doi: 10.1183/09031936.00150414
  11. Camillo CA, Pitta F, Possani HV, et al. Heart rate variability and disease characteristics in patients with COPD. Lung. 2008;186(6):393-401. doi:10.1007/ s00408-008-9105-7
  12. Makarov LM. Osobennosti ispol’zovaniya analiza variabel’nosti ritma serdtsa u bol’nykh s boleznyami serdtsa. Fiziologiya cheloveka. 2002;28(3):65-8. (In Russ).
  13. Baevsky RM. The analysis of heart rate variability: history and philosophy, theory and practice. Clinical Informatics and Telemedicine. 2004;1(1): 54-64. (In Russ).
  14. Akramova EG. The features of time characteristics of heart rate variability in chronic obstructive pulmonary disease. Kazan Medical Journal. 2012; 93(2):172-7. (In Russ).
  15. Pagani M, Lucini D, Pizzinelli P, et al. Effects of aging and of chronic obstructive pulmonary disease on RR interval variability. Journal of the Autonomic Nervous System. 1996;59(3):125-132. doi:10.1016/ 0165-1838(96)00015-X
  16. Bayevsky RM. Ivanov GG, Chireykin LV, et al. Analiz variabel’nosti serdechnogo ritma pri ispol’zovanii razlichnykh elektrokardiograficheskikh sistem (metodicheskiye rekomendatsii). Vestnik aritmologii. 2001;24:65-87. (In Russ).
  17. Pilyasova OV, Statsenko ME. Osobennosti variabel’nosti serdechnogo ritma u bol’nykh arterial’noy gipertenziyey i khronicheskoy obstruktivnoy bolezn’yu legkikh. Byulleten’ Volgogradskogo nauch-nogo tsentra RAMN. 2008;4(20):41-3. (In Russ).
  18. Agusti A, Calverely PMA, Celli B, et al. Characterization of COPD heterogeneity in the ECLIPSE cohort. Respiratory Research. 2010;11:122. doi:10. 1186/1465-9921-11-122
  19. Ponikowski PP, Chua TP, Francis DP, et al. Muscle Ergoreceptor Overactivity Reflects Deterioration in Clinical Status and Cardiorespiratory Reflex Control in Chronic Heart Failure. Circulation. 2001; 104(19):2324-30. doi: 10.1161/hc4401.098491
  20. Piepoli M, Clark AL, Volterrani M, et al. Contribution of muscle afferents to the hemodynamic, autonomic and ventilatory responses to exercise in patients with chronic heart failure: effects of physical training. Circulation. 1996;93(5):940-52.
  21. Schmidt H, Francis D, Rauchhaus M, et al. Chemo- and ergoreflexes in health, disease and ageing. International Journal of Cardiology. 2005;98(3):369-78. doi: 10.1016/j.ijcard.2004.01.002
  22. Miller M.R., Crapo R., Hankinson J., et al.; Brusasco V., Crapo R., Viegi G. editors. Series «ats/ers task force: standardisation of lung function testing»: General considerations for lung function testing. European Respiratory Journal. 2005;26(1): 153-61. doi:10.1183/ 09031936.05.00034505
  23. Chuchalin AG, Aysanov ZR, Chikina SYu, et al. Federal guidelines of Russian Respiratory Society on spirometry. Russian Pulmonology. 2014;6:11-23. (In Russ). doi: 10.18093/0869-0189-2014-0-6-11-24
  24. Holland AE, Spruit MA, Troosters T, et al. An official European Respiratory Society/American Thoracic Society technical standard: field walking tests in chronic respiratory disease. European Respiratory Journal. 2014;44:1428-46. doi: 10.1183/09031936. 00150314
