Hg- and Cd-bearing Pd, Pt, Au, AND Ag minerals in sulfide-bearing mafic and ultramafic rocks of the Yoko-Dovyren intrusion in the baikalides of the Northern Baikal area

Cover Page

Cite item

Full Text

Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription or Fee Access

Abstract

Hg and Cd are rare chemical elements found in magmatic PGE and Au mineralization and typical of this mineralization in the Late Riphean Yoko-Dovyren plagioperidotite–troctolite–gabbronorite intrusion hosted in the Baikalides of the Baikal area. The paper discusses variations in the composition, associations, and distribution traits of the Hg- and Cd-bearing Pt, Pd, Au, and Ag minerals. Many of the precious-metal minerals are Pt, Pd, and Au chalcogenides and intermetallic compounds of postmagmatic genesis and occur as single crystals and stringers in sulfides and silicate matrix and at their contacts. The minerals were formed with the participation of fluids from the crystallizing Cu–Fe–Ni sulfide melts. They are constrained to the central part of the intrusion and found in sulfide-bearing plagiolherzolite (PL) in the lower part of the intrusion, in sulfide-bearing pegmatoid troctolite (T) in the bottom portion of the troctolite unit, and in sulfide-bearing pegmatoid anorthosite (A) in the top part of the troctolite unit. From PL to T and further to A, the content and diversity of the Hg-bearing minerals remarkably increase, with Hg distributed in these minerals very unevenly, and with Cd-bearing minerals identified only in A. The leading Hg concentrators in T and A are pneumatolytic (fluid–metasomatic) moncheite and, particularly, later telargpalite (Pd,Ag)3(Te,Pd,Hg), which contains up to 11 wt % Hg. The latter mineral is sometimes found in association with Hg-electrum, kustelite, and potarite. Potarite in T is Pb-rich, and this mineral in A is Pb-free. Appreciable Hg concentrations in precious-metal minerals in the Yoko-Dovyren intrusion suggest that these minerals crystallized in a closed system at high temperatures. Potarite content in A is much higher, and Hg concentration in telargpalite in A is notably lower (2.9 wt % Hg on average) than in this mineral in T (5.9 wt % Hg on average). The potarite might have been produced by epigenetic serpentinization processes (low-grade metamorphism) at the expense of the material of pneumatolytic Hg-bearing telatgpalite, kotulskite, and zvyagentsivite. This corresponds to specifics in Hg distribution in the telatgpalite, kotulskite, and zvyagentsivite in T and A and much higher intensity of metamorphism.

Full Text

Restricted Access

About the authors

E. M. Spiridonov

Lomonosov Moscow State University

Author for correspondence.
Email: ernstspiridon@gmail.com
Russian Federation, 1, Leninskie gory, Moscow, 119991

D. A. Orsoev

Geological Institute, Siberian Branch, Russian Academy of Sciences

Email: ernstspiridon@gmail.com
Russian Federation, 6A, Sakhyanova street, Ulan-Ude, 670047

A. A. Ariskin

Lomonosov Moscow State University; Vernadsky Institute of Geochemistry and Analytical Chemistry (GEOKhI)

Email: ernstspiridon@gmail.com
Russian Federation, 1, Leninskie gory, Moscow, 119991; 19, Kosygin street, Moscow, 119991

G. S. Nikolaev

Vernadsky Institute of Geochemistry and Analytical Chemistry (GEOKhI), Russian Academy of Sciences

Email: ernstspiridon@gmail.com
Russian Federation, 19, Kosygin street, Moscow, 119991

E. V. Kislov

Geological Institute, Siberian Branch, Russian Academy of Sciences

Email: ernstspiridon@gmail.com
Russian Federation, 6A, Sakhyanova street, Ulan-Ude, 670047

N. N. Korotaeva

Lomonosov Moscow State University

Email: ernstspiridon@gmail.com
Russian Federation, 1, Leninskie gory, Moscow, 119991

V. O. Yapaskurt

Lomonosov Moscow State University

Email: ernstspiridon@gmail.com
Russian Federation, 1, Leninskie gory, Moscow, 119991

References

  1. Арискин А.А., Костицын Ю.А., Конников Э.Г., Данюшевский Л.В., Меффре С., Николаев Г.С., Мак-Нил Э., Кислов Е.В., Орсоев Д.А. (2013) Геохронология Довыренского интрузивного комплекса в неопротерозое (Северное Прибайкалье, Россия). Геохимия (11), 955–1052.
  2. Ariskin A.A., Kostitsyn Yu.A., Konnikov E.G., Danyushevsky L.V., Meffre S., Nikolaev G.S., McNeill A., Kislov E.V., Orsoev D.A. (2013) Geochronology of the Dovyren Intrusive Complex, Northwestern Baikal Area, Russia, in the Neoproterozoic Geochem. Int. 51(11), 859–875.
  3. Арискин А.А., Николаев Г.С., Данюшевский Л.В., Фиорентини М., Кислов Е.В., Пшеницын И.В. (2018) Геохимические свидетельства фракционирования платиноидов иридиевой группы на ранних стадиях кристаллизации Довыренских магм (Северное Прибайкалье, Россия). Геология и геофизика 59(5), 573–588.
  4. Гурулев С.А. (1965) Геология и условия формирования Йоко-Довыренского габбро-перидотитового массива. М.: Наука. 122 с.
  5. Кислов Е.В., Конников Э.Г., Орсоев Д.А. (1997) Роль хлора в формировании малосульфидного платинометального оруденения Йоко-Довыренского расслоенного массива. Геохимия (5), 521–528.
  6. Kislov E.V., Konnikov E.G., Orsoev D.A., Pushkarev E.V., Voronina L.K. (1997) Chlorine in the Genesis of the Low-Sulfide PGE Mineralization in the Ioko-Dovyrenskii Layered Massif. Geochem. Int. 35(5), 455–461.
  7. Конников Э.Г., Кислов Е.В., Орсоев Д.А. (1994) Йоко-Довыренский расслоенный плутон и связанное с ним оруденение (Северное Прибайкалье). Геология рудных месторождений 36(6), 545–553.
  8. Лавренчук А.В. (2006) Кумуляционно-компакционная модель формирования расслоенных интрузивов на примере Йоко-Довыренского массива. Актуальные проблемы рудообразования и металлогении. Новосибирск: ГЕО, 132–133.
  9. Орсоев Д.А. (2008) Йоко-Довыренский дунит-троктолит-габбровый массив и его платиноносность. Благороднометалльная минерализация в расслоенных ультрабазит-базитовых массивах юга Сибирской платформы. Новосибирск: Параллель, 89–194.
  10. Орсоев Д.А., Рудашевский Н.С., Крецер Ю.Л., Конников Э.Г. (2003) Благороднометалльная минерализация малосульфидного оруденения в Йоко-Довыренском расслоенном массиве. ДАН 390(2), 233–237.
  11. Спиридонов Э.М. (2010) Рудно-магматические системы Норильского рудного поля. Геология и геофизика 51(9), 1356–1378.
  12. Спиридонов Э.М. (2017) Низкоградный метаморфизм – рудоподготовительный, рудогенерирующий, рудопреобразующий процесс. Геодинамические обстановки и термодинамические условия регионального метаморфизма в докембрии и фанерозое. СПб.: ИГГД, 166–168.
  13. Спиридонов Э.М., Арискин А.А., Кислов Е.В., Орсоев Д.А., Коротаева Н.Н., Николаев Г.С., Путинцева Е.В., Япаскурт В.О. (2017а) Три генетических типа минералов благородных металлов в плагиоклазовых лерцолитах низов гипербазит-базитового Йоко-Довыренского интрузива в байкалидах Северного Прибайкалья. Ультрамафит-мафитовые комплексы: геология, строение, рудный потенциал: Материалы V Международной конференции (Гремячинск, 2–6 сентября 2017 г.) отв.ред. Е.В. Кислов. Улан-Удэ: Изд-во Бурятского госуниверситета, 2017, с. 277–279.
  14. Спиридонов Э.М., Арискин А.А., Кислов Е.В., Коротаева Н.Н., Николаев Г.С., Пшеницын И.В., Япаскурт В.О. (2018) Лаурит и иридистый осмий из плагиоклазовых лерцолитов Йоко-Довыренского гипербазит-базитового интрузива (Северное Прибайкалье). Геология рудных месторождений 60(3), 241–250.
  15. Спиридонов Э.М., Кулагов Э.А., Серова А.А., Куликова И.М., Середа Е.В., Тушенцова И.Н., Беляков С.Н. (2015) Генетическая минералогия Pd, Pt, Au, Ag, Rh в норильских сульфидных рудах. Геология рудных месторождений 57(5), 447–476.
  16. Спиридонов Э.М., Ладыгин В.М., Симонов О.Н., Анастасенко Г.Ф., Кулагов Э.А., Люлько В.А., Середа Е.В., Степанов В.К. (2000) Метавулканиты пренит-пумпеллиитовой и цеолитовой фаций трапповой формации Норильского района Сибирской платформы. М.: Издательство Московского университета. 212 с.
  17. Спиридонов Э.М., Орсоев Д.А., Кислов Е.В., Арискин А.А., Япаскурт В.О. (2017б) Палладогерманид Pd2Ge, нильсенит PdCu3 и ассоциирующие минералы сульфидоносных анортозитов критического горизонта гипербазит-базитового Йоко-Довыренского интрузива в Северном Прибайкалье. Основные проблемы в учении об эндогенных рудных месторождениях: новые горизонты. Всероссийская конференция, посвященная 120-летию со дня рождения выдающегося российского ученого академика А.Г. Бетехтина. Москва, 20–22 ноября 2017 г. Материалы конференции. Электрон. дан. (1 файл: 35 Мб). – М.: ИГЕМ РАН, 2017, с. 57–61.
  18. Ярошевский А.А., Болиховская С.В., Коптев-Дворников Е.В. (2006) Геохимическая структура Йоко-Довыренского расслоенного дунит-троктолит-габбро-норитового интрузива, Северное Прибайкалье. Геохимия (10), 1027–1039.
  19. Yaroshevskii A.A., Bolikhovskaya S.V., Koptev-Dvornikov E.V. (2006) Geochemical Structure of the Yoko-Dovyren Layered Dunite-Troctolite-Gabbro-Norite Massif, Northern Baikal Area Geochem. Int. 44(10), 953–964.
  20. Amelin Yu.V., Neymark L.A., Rytsk E.Yu., Nemchin A.L. (1996) Enriched Nd-Sr-Pb isotopic signatures in the Dovyren layered intrusion (easthern Siberia, Russia): evidence for source contamination by ancient upper-crust material. Chem. Geol. 129, 39–69.
  21. Ariskin A., Danyushevsky L., Nikolaev G., Kislov E., Fiorentini M., McNeil A., Kostitsyn Y., Goemann K., Malyshev A. (2018) The Dovyren Intrusive Complex (Southern Siberia, Russia): Insights into dynamics of an open magma chamber with implication for parental magma origin, composition, and Cu-Ni-PGE fertility. Lithos. 302–303, 242–262.
  22. Fleet M.E., de Almeida C.M., Angeli N. (2002) Botryoidal platinum, palladium and potarite from the Bom Susseco stream, Minas Gerais, Brazil. Can. Mineral. 40, 341–355.
  23. Jedwab J., Badaut D., Beaunier P. (1999) Discovery of palladium-platinum-gold-mercury bitumen in the Boss Mine, Clark county, Nevada. Econ. Geol. 94, 1163–1172.
  24. Moreno T., Prichard H.M., Lunar R., Monterrubio S., Fischer P. (1999) Formation of a secondary platinum-group mineral assemblage in chromitites from the Herbeira ultramafic massif in Cabo Ortegal, NW Spain. Eur. J. Mineral. 11, 363–378.
  25. Naldrett A.J. (2004) Magmatic sulfide deposits. Geology, geochemistry and exploration. Berlin-Heidelberg-N.Y.: Springer. 727 p.
  26. Parfenov L.M., Badarch G., Berzin N.A., Hwang D.H., Khanchuk A.I., Kuzmin M.I., Nokleberg W.J., Obolenskiy A.A., Ogasawara M., Prokopiev A.V., Rodionov S.M., Smelov A.P., Yan H. (2010) Chapter 1 (Introduction). In: Nokleberg W.J. (Ed.) Metallogenesis and tectonics of northeast Asia: U.S. Geological Survey Professional Paper 1765, pp. 1–36.
  27. Prichard H.M., Ixer R.A., Lord R.A., Maynard J., Williams N. (1994) Assemblages of platinum-group minerals and sulfides in silicate lithologies and chromite-rich rocks within the Shetland ophiolite. Can. Mineral. 32, 271–294.

Supplementary files

Supplementary Files
Action
1. JATS XML
Download
2. Fig. 1. The morphology of moncheite crystals in the rocks of the Yoko-Dovyrensky intrusion: a is the nest of moncheite metacrystals in accretion with maychnerite, cotulisite and altaite (white) in silicate matrix (black) of sulfidic troctolites; b - chains of monchite metacrystals in accretion with maychnerite, cotulusite and altaite (white) at the contact of cubanite (gray) with silicate matrix (black) and in cubanite of sulfide-bearing troctolites; c - metacrystal - moncheite plate (white) (an. 14 T, Table 4) in bitovnite at the contact with olivine in sulfide-bearing troctolites; (d) lamellar metacrystals of moncheite (white) of different composition (An. 12 T and 13 T, Table 4) at the contact of Cubanite and Pentlandite, at the edge of the Iss crystal in sulfide-bearing troctolites; (d) heterogeneous composition of moncheite in the silicate matrix of sulfide-bearing troctolites (black). The moncheite of the white area (right) is enriched with mercury and lead (an. 3 T); mercury is not found in the adjacent areas of the moncheite (an. 1 T and 2 T, Table 1); е - flattened metacrystal of moncheite (An. 4 T - 6 T, Table 2) heterogeneous in composition on the contact of cubanite (gray) and silicate matrix of sulfide-bearing troctolites (black); W - small nest - accretion of moncheite (white and light gray) and cotulskite (gray) heterogeneous in composition in sulfate troctolites (black) in the silicate matrix. The moncheite of the white area (left) is enriched with Hg (an. 8 T), in the montite there is no area of ​​light gray Hg (an. 7 T, Table 3). The composition of cotulskite is highly variable content of Hg and Bi (an. 9 T -11 T); h - flattened monchite metacrystal of oval shape (white) (An. 15 A) on the contact of troilite (gray) and silicate matrix in sulfide-bearing anortosites. In the upper part of the snapshot there are a lot of small irregularly shaped secretions of altaite (white), which has replaced galena. Images in reflected electrons.

Download (433KB)
Indexing metadata
3. Fig. 1. (Continued)

Download (410KB)
Indexing metadata

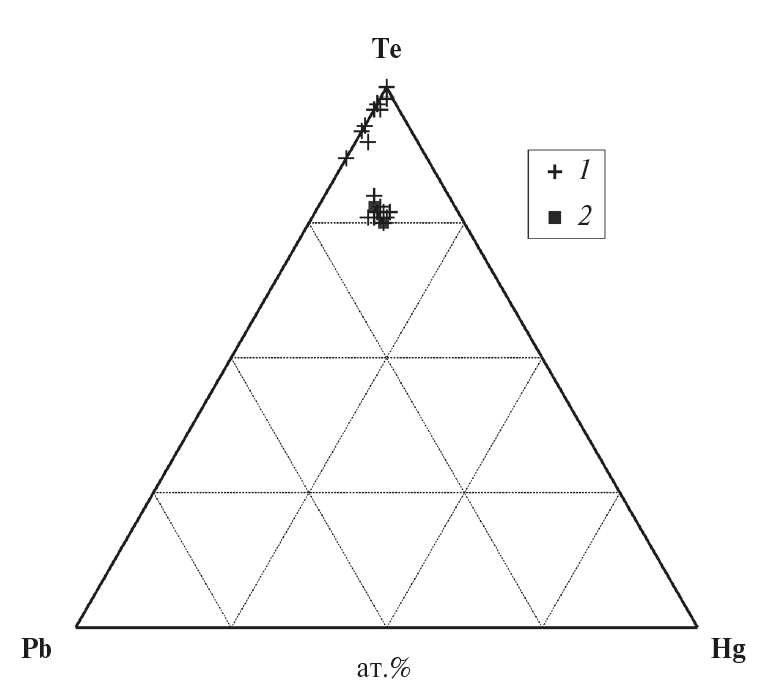

4. Fig. 2. Variations in the composition of the moncheite of sulfide-bearing rocks of the Yoko-Dovyrensky intrusion. Legend: 1 - moncheite from troctolites, 2 - moncheite from anorthosites.

Download (41KB)
Indexing metadata

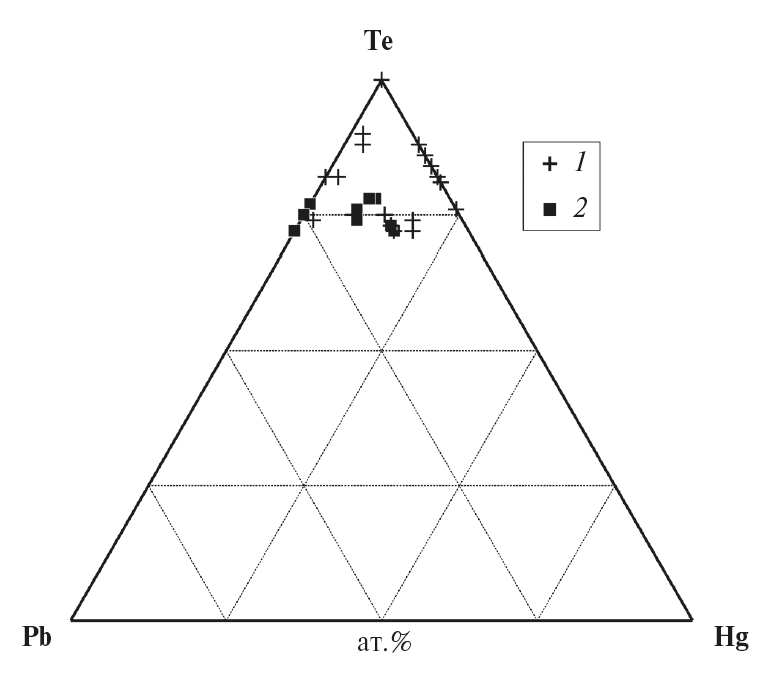

5. Fig. 3. Variations in the composition of the cotulskite sulfide-bearing rocks of the Yoko-Dovyrensky intrusive. Legend: 1 - kotulskite from troktolitov, 2 - kotulskit from anorthosites.

Download (42KB)
Indexing metadata
6. Fig. 4. The morphology of telargpalite crystals in the rocks of the Yoko-Dovyrensky intrusion: a is a chain of tetraferroplatinum crystals (in union with maychnerite) (white), which crossed the intergrowths of pentlandite and cubanite (gray) - products of Iss in decomposition in sulfidic troctolites. Tetraferroplatinum and maychnerite largely replaced telargpalit; (b) pseudomorphs of telargpalite (light gray, an. 24 T and 25 T) for tetraferroplatinum and maychnerite (white, relics) in sulfide-bearing troctolites (detail Fig. 4a). Images in reflected electrons.

Download (681KB)
Indexing metadata
7. Fig. 5. Metasomatic growth of telargpalite (white) on the contact of pentlandite and kubanite (gray) - decomposition products of Iss and the silicate matrix of sulfide-bearing troctolites. Telargpalit is heterogeneous in composition (An. 22 T and 26 T), contains relics of substituted moncheite and cotulskite. Image in reflected electrons.

Download (301KB)
Indexing metadata

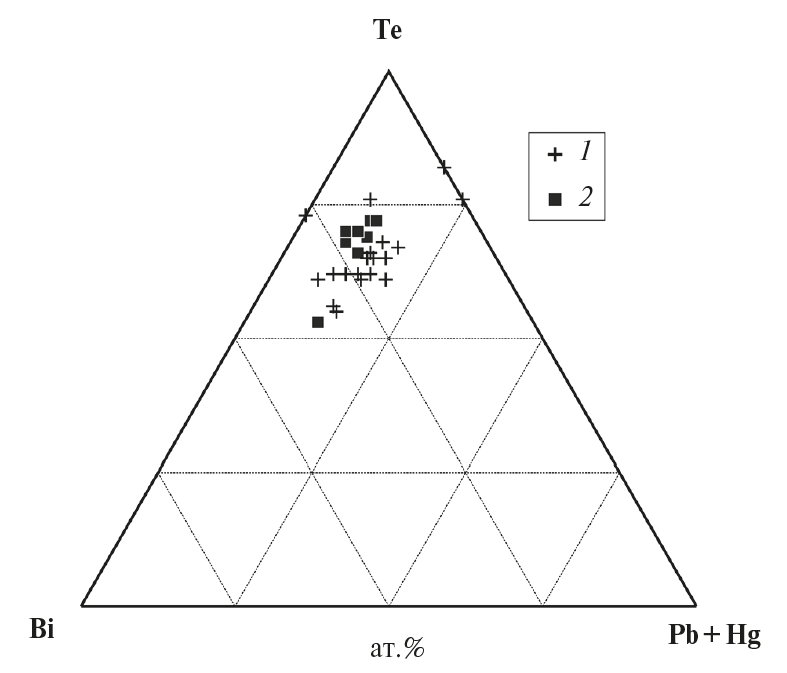

8. Fig. 6. Variations in the composition of the telargpalita of sulfide bearing rocks of the Yoko-Dovyrensky intrusive. Legend: 1 - telargpalit from troctolites, 2 - telargpalit from anorthosites.

Download (41KB)
Indexing metadata
9. Fig. 7. Accumulation of fine silver amalgam secretions (white) in a crack with chlorite and serpentine, a secant aggregate of troilite and cubanite in sulfide-bearing troctolites of the Yoko-Dovyrensky intrusive. Image in reflected electrons.

Download (401KB)
Indexing metadata
