Research of the combustion process in a tractor diesel engine when operating on alcohol and vegetable oil

Full Text

REFERENCE INFORMATION.

Symbols in captions:

RO ― rapeseed oil

E ― ethanol

EAC ― excess air coefficient

CC ― combustion chamber

EG ― exhaust gases

EF ― efficiency factor

IDP ― ignition delay period

TDC ― top dead center

SAIA ― setting angle of injection advance

q_i ― cyclic supply of ignition rapeseed oil

G_E ― hourly consumption of ethanol, kg/h

G_RO ― hourly consumption of rapeseed oil, kg/h

G_TΣ ― total fuel consumption (ethanol + rapeseed oil),

kg/h

n ― diesel engine crankshaft rotation speed, min−1

p_e ― average effective pressure, MPa

p_z ― maximum cycle pressure, MPa

Θ_E ― setting angle of ethanol injection advance, deg

Θ_RO ― setting angle of rapeseed oil injection advance,

deg

INTRODUCTION

The inevitability of an energy crisis, caused by the steady increase in the consumption of exhaustible energy resources, forces humanity to seek alternative, renewable energy sources. The active use of these sources will certainly lead to a reduction in the environmental damage caused by the burning of traditional fuels in automotive vehicles [1–3].

The motor and tractor pool significantly contribute to environmental pollution, especially in large cities where it may account for over 90% of total air pollution. Its operation is accompanied by significant pollution of the entire environment, including atmospheric air, water environment, soils, agricultural products through toxic components emitted by the exhaust gases (EG) from vehicles [4–6].

Since the Russian Federation not only has significant potential in developing renewable energy sources but also possesses the world’s largest area of arable land, it is advisable to consider fuels derived from plant materials as alternative energy sources. Ethyl alcohol and rapeseed oil (RO) are among such fuels, offering physical and chemical characteristics and properties suitable for efficient and environmentally friendly combustion in a tractor diesel engines [7, 8].

The work aimed to study the combustion process in a tractor diesel engine running on ethyl alcohol and rapeseed oil (RO). It sought to identify how different operating modes of the tractor diesel affect combustion process indicators and to determine their numerical characteristics.

METHODS AND TOOLS OF RESEARCH

At the Vyatka State Agrotechnological University, the Department of Heat Engines, Automobiles and Tractors conducted studies on the working process and developed a modification of the experimental model of the tractor diesel engine D-21A1 (2Ch 10.5/12.0). This modification allows the engine to operate on ethyl alcohol and RO using separate fuel supply systems [7–9]. The tractor diesel is equipped with a hemispherical combustion chamber (CC) in the piston, with ethanol serving as the main fuel and ignited by a jet of RO entering the CC. Owing to ethyl alcohol’s lower calorific value compared to diesel fuel (DF), it was necessary to determine the optimal cyclic supply of the igniting portion of RO. This supply ensures stable operation of the tractor diesel in all modes, while also maintaining optimal efficiency and environmental performance.

The minimum igniting fuel supply q_i, at which the engine operates without misfiring at the nominal operating mode, is 8.3 mg/cycle (0.9 kg/h) at n = 1800 min⁻¹ and 6.1 mg/cycle (0.51 kg/h) at n = 1400 min⁻¹. With an increase in the RO ignition portion, the cyclic supply of ethyl alcohol correspondingly decreased. For example, with a minimum supply of igniting fuel, the ethanol consumption at the nominal operating mode was 7.3 kg/h (67 mg/cycle). When the RO supply was increased to 2.1 kg/h (19.4 mg/cycle), the ethanol consumption reduced to 5.2 kg/h (48 mg/cycle). Optimal effective engine performance values were achieved with a cyclic RO supply in the range from 11 mg/cycle to 14 mg/cycle. At the nominal operating mode, supplying an ignition portion of 11.7 mg/cycle resulted in a total fuel consumption G_TΣ = 7.06 kg/h, ethanol consumption G_E = 5.81 kg/h, total specific effective fuel consumption g_еΣ = 384.5 g/kW, and specific effective EF η_е = 0.324 (Fig. 1).

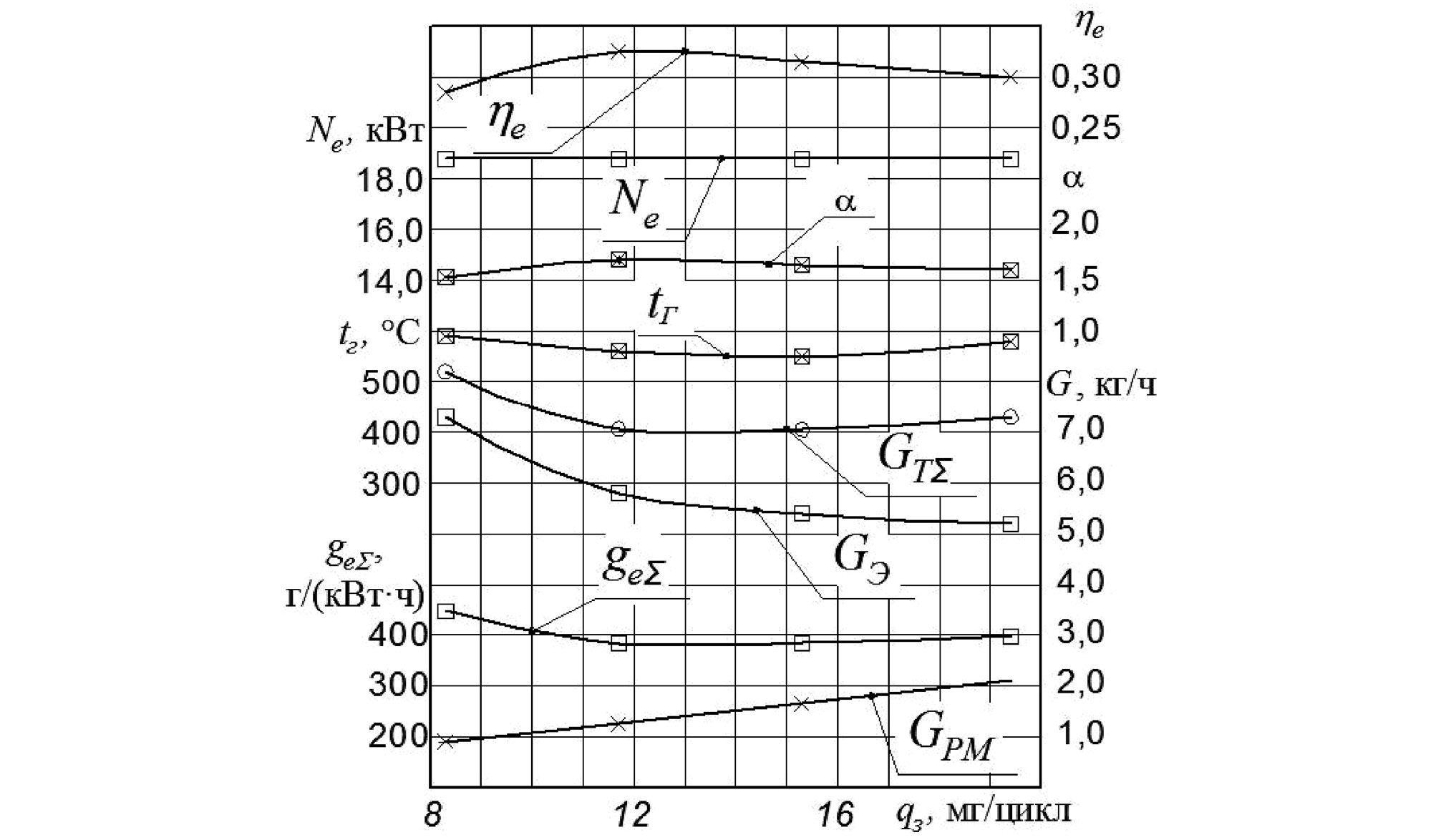

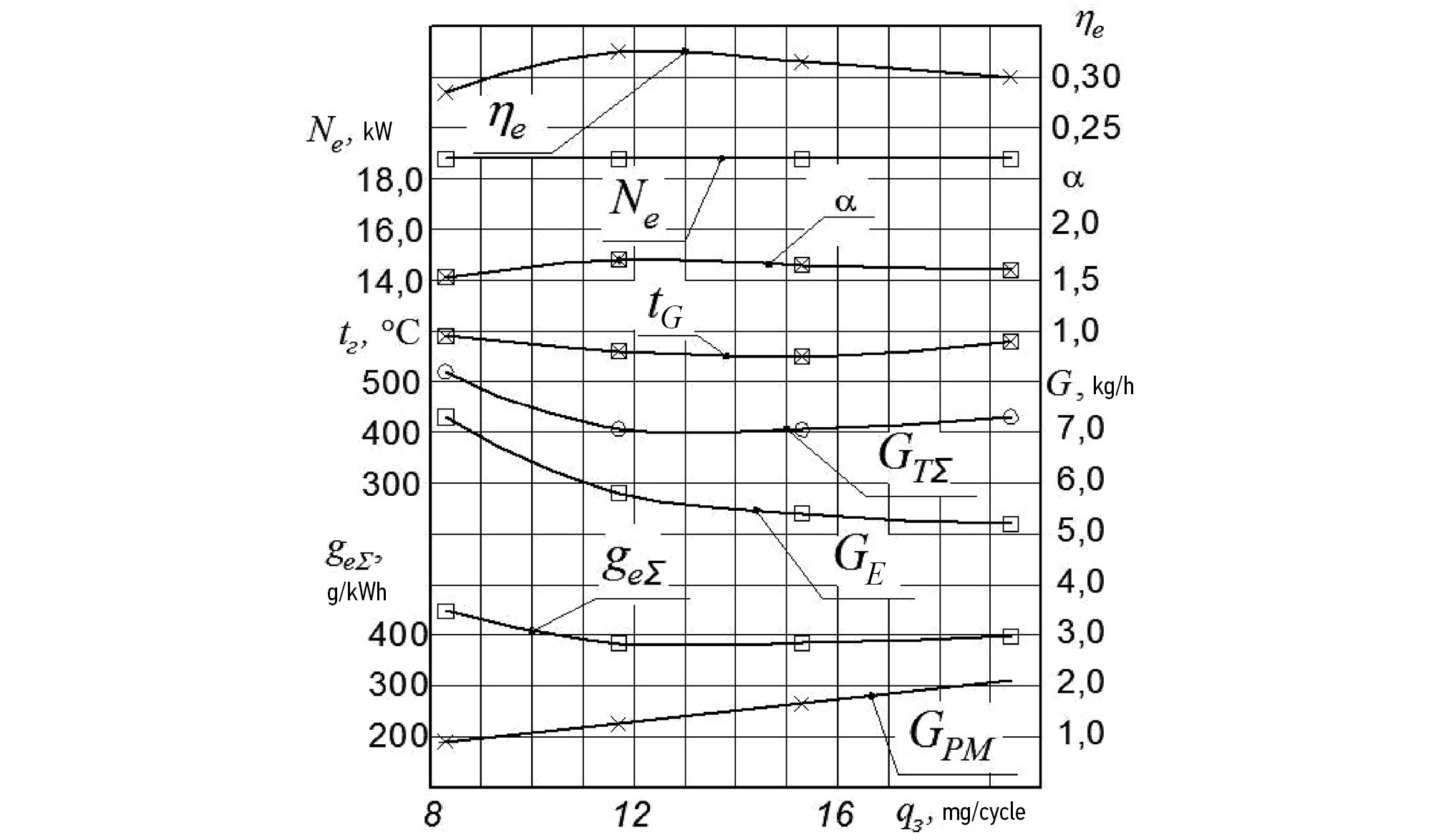

Fig. 1. The effect of the size of the ignition portion of rapeseed oil on the effective performance of the D21A1 tractor diesel engine (n =1800 min^-1 and р_е = 0.588 МPа).

Рис. 1. Влияние величины запальной порции РМ на эффективные показатели тракторного дизеля Д21А1 (n =1800 мин^-1 и р_е = 0,588 МПа).

In the maximum torque mode, the maximum effective EF η_е of 0.334 was achieved with a q_i of 12.5 mg/cycle. In this case, the total fuel consumption was G_TΣ of 4.92 kg/h, and the ethanol consumption (G_E) was 3.87 kg/h. A further increase in the cyclic supply of RO led to a decrease in the total fuel consumption. For example, with a cyclic supply of RO (q_i = 15.5 mg/cycle), the ethanol consumption G_E was 3.54 kg/h, making the total consumption G_TΣ equal to 4.84 kg/h. However, the effective EF decreases slightly and amounts to η_е of 0.32. The maximum value of the excess air coefficient (EAC) was obtained α = 1.72 at q_i = 11.7 mg/cycle at n = 1800 min−1.

With an increase in the cyclic supply of ethanol, the duration of the fuel supply increases, which slows down the evaporation process. This leads to the formation of more over-enriched zones within the ethanol fuel spray, and a decrease in the local EAC in the thermal decomposition zone decreases. Furthermore, it is necessary to consider changes in the geometric parameters of the fuel spray, as well as an increase in its volume. Concurrently, the RO supply decreases and the quality of fuel atomization in the combustion chamber (CC) by the pin nozzle deteriorates. As a result, the ignition delay period (IDP) increases, the combustion process shifts toward the expansion line, and the EG temperature rises. These factors collectively result in an increase in the total fuel supply and a decrease in EAC. Owing to the late initiation of the combustion process, not only does the effective EF diminish, but there is also a significant reduction in heat release, indicating incomplete combustion of the fuel.

Conversely, with an increase in the cyclic RO supply, the fuel atomization characteristics improve, leading to reduced unevenness of fuel supply across the cylinders and a shortened IDP. In turn, this enhances the completeness of fuel combustion and the effective EF, raises the average temperature of the gases in the cylinder (Fig. 2a), reduces the degree of homogenization of the mixture during the initial period of combustion, and increases the mass of fuel burned in the diffusion flame. However, when cyclic portions of RO exceed 16 mg/cycle, the range of the fuel spray expands, causing part of it to potentially deposit on the CC walls. This deposition worsens the mixture formation process, leading to increased total fuel consumption and increased soot formation. Furthermore, with an increase in the igniting fuel supply, the maximum combustion pressure p_z escalates from 5.24 MPa with a cyclic RO supply of q_i = 8.3 mg/cycle to 6.44 MPa with q_i = 19.4 mg/cycle at the nominal crankshaft speed (Fig. 2b).

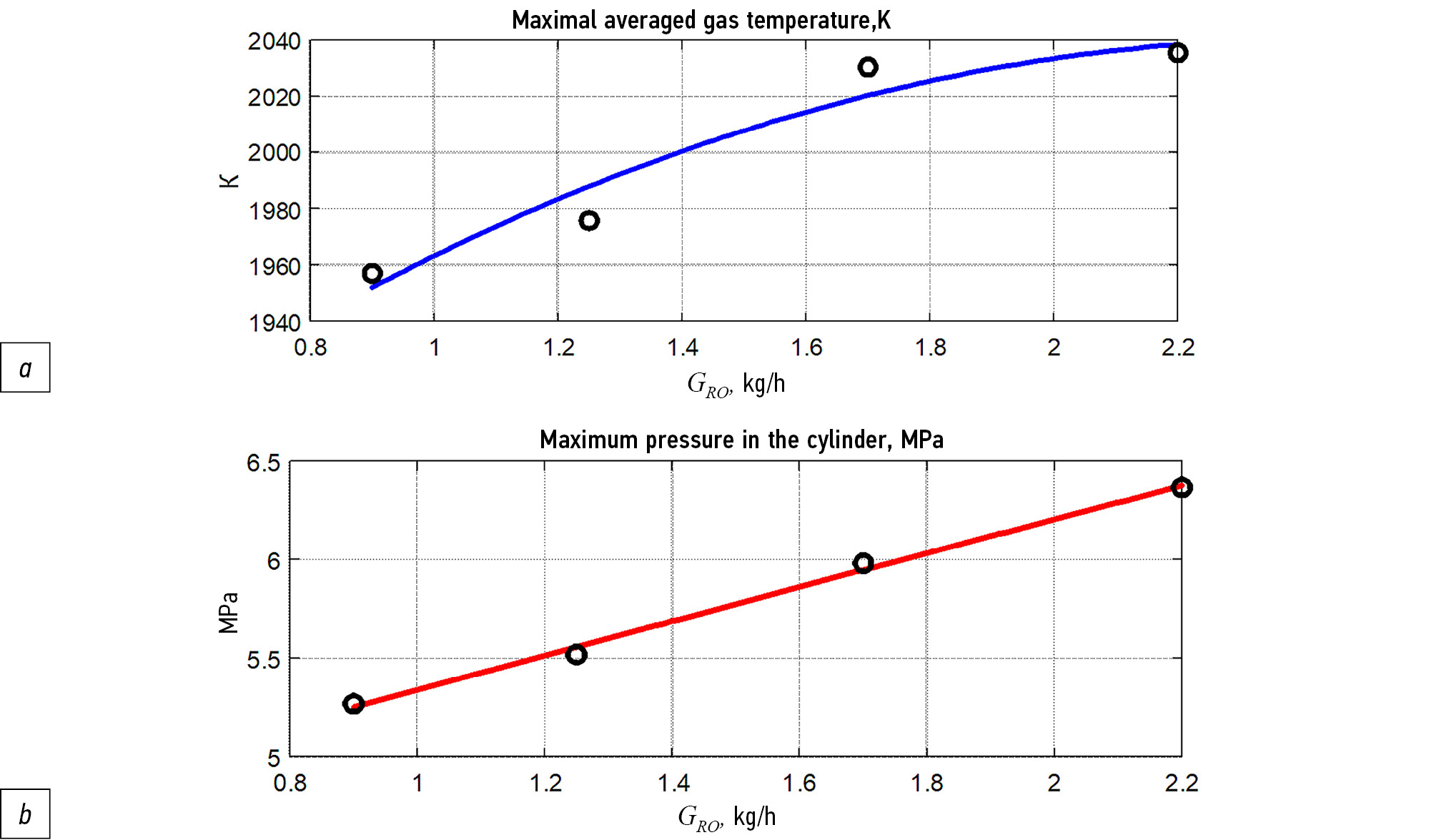

Fig. 2. The influence of rapeseed oil consumption on the combustion process indicators: a – the maximal averaged gas temperature, K; b – the maximal indicator pressure in a cylinder, MPa.

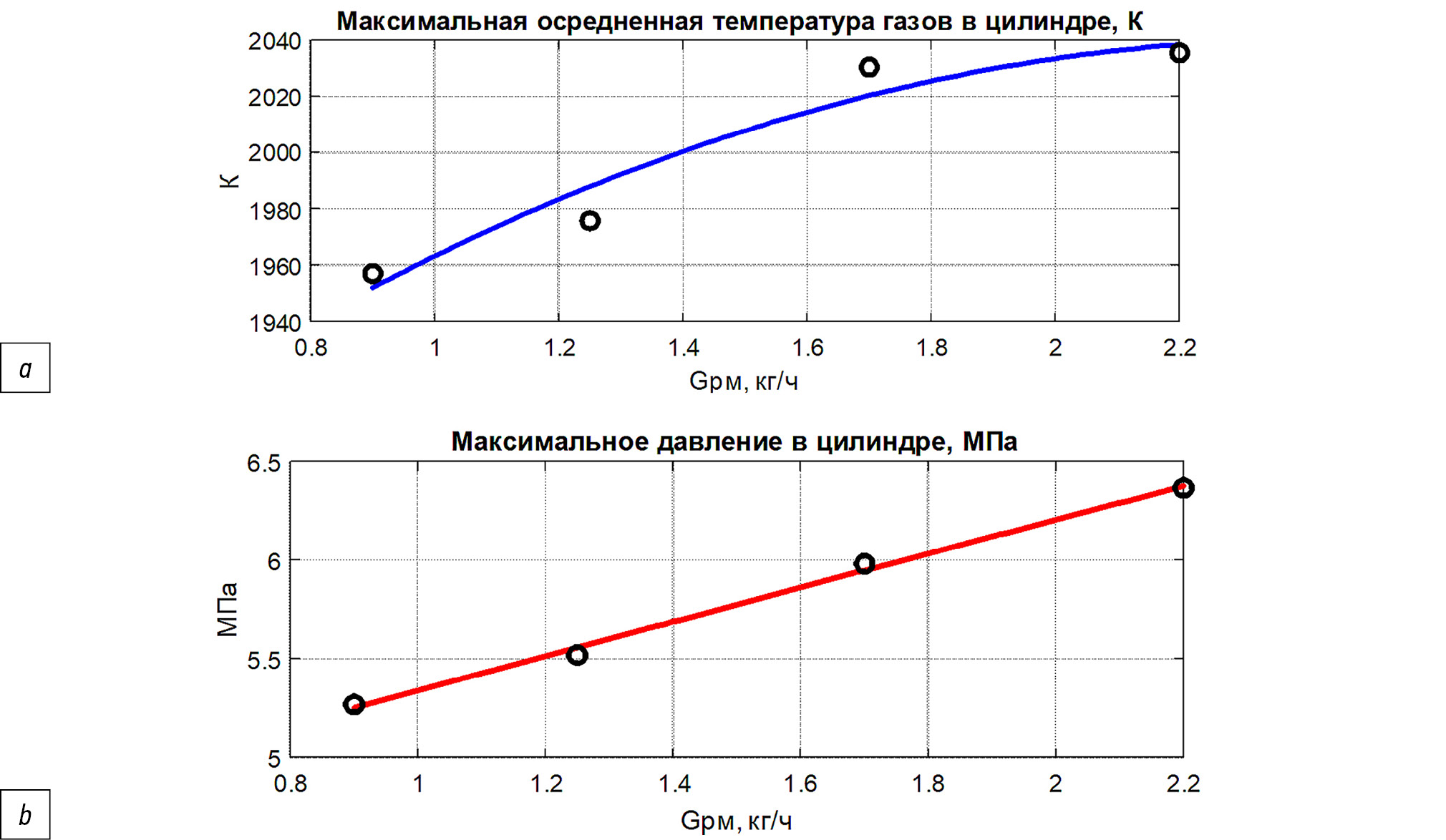

Рис. 2. Влияние расхода РМ на показатели процесса сгорания: a – максимальной осредненной температуры газов, К; b – максимального индикаторного давления в цилиндре, Мпа.

When the igniting fuel portion increases above 16 mg/cycle, the combustion process worsens, evident from a decrease in active heat release and an increase in total fuel consumption. This is attributed to an increase in the amount of igniting fuel reaching the CC walls, extending the fuel evaporation duration and prolonging the combustion period.

Experimental findings have thus established that for optimal performance of a diesel engine, setting the igniting fuel supply at q_i = 13 mg/cycle is advisable. Reducing the amount of the ignition portion leads to higher EG temperatures, increased specific effective and total fuel consumption, and a degraded combustion process. With an increase in the ignition portion, the environmental performance of a tractor diesel engine deteriorates and the EG smoke opacity increases. Further studies were performed with a cyclic supply of RO q_i = 13 mg/cycle, which corresponds to an hourly consumption of RO G_RO = 1.4 kg/h at the nominal operating mode.

After determining the ignition portion of RO, the optimal combination of setting injection of advance angles (SAIA) of RO and ethanol was determined.

RESEARCH RESULTS AND DISCUSSION

SAIA has a strong influence on the combustion process. When the ignition fuel SAIA is adjusted from 30 degrees of crankshaft rotation (c.s.r.) to 38 c.s.r. away from the top dead center (TDC), the maximum pressure in the cylinder increases. The diagram’s point of separation from the compression line and peak pressure in the cylinder (p_z) shifted to the left by 5 degrees c.s.r. (Fig. 3a). This increase in pressure, resulting from a higher RO SAIA, is attributed to intensified combustion near TDC.

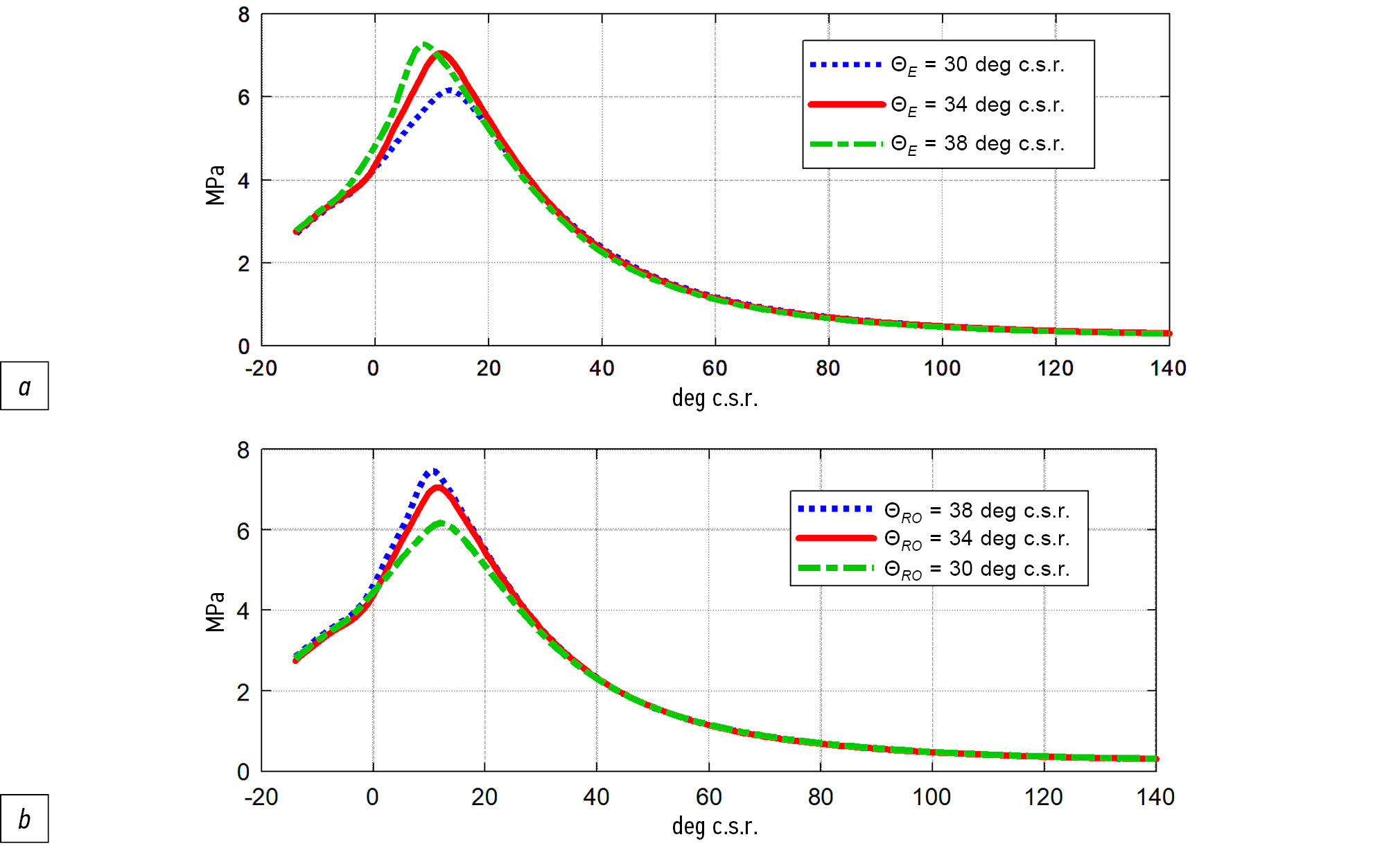

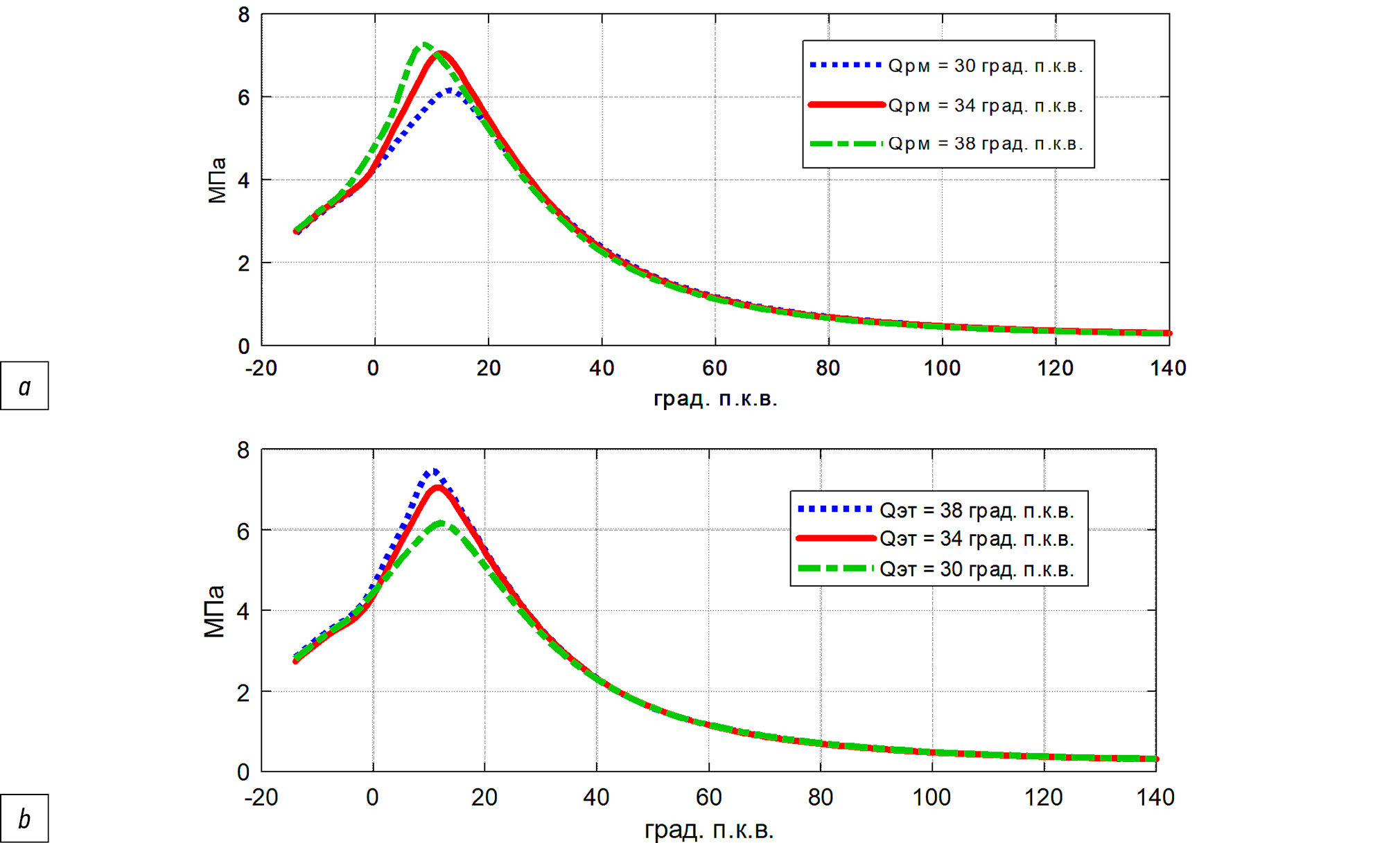

Fig. 3. The gas pressure in a cylinder of the tractor diesel engine when operating on ethanol and rapeseed oil at various setting angles of fuel injection advance: а – Θ_E =34°; b – Θ_RO =34°.

Рис. 3. Давление газов в цилиндре тракторного дизеля при работе на этиловом спирте и РМ при различных УУОВ: а – Θ_E =34°; b – Θ_РМ =34°.

When adjusting the SAIA of ethanol with a constant RO injection timing, the shift of characteristic points on the indicator diagram relative to TDC is less significant (Fig. 3b). Early ethanol injection leads to an increase in the indicator pressure as more heat is released during homogeneous combustion. The onset of combustion depends on the timing of igniting fuel injection, although ethanol inhibits the ignition process.

Figure 4 presents the results of a two-dimensional regression analysis of experimental data, measuring the maximum gas pressure in the cylinder p_z depending on the setting angle when operating a diesel engine on ethanol and RO.

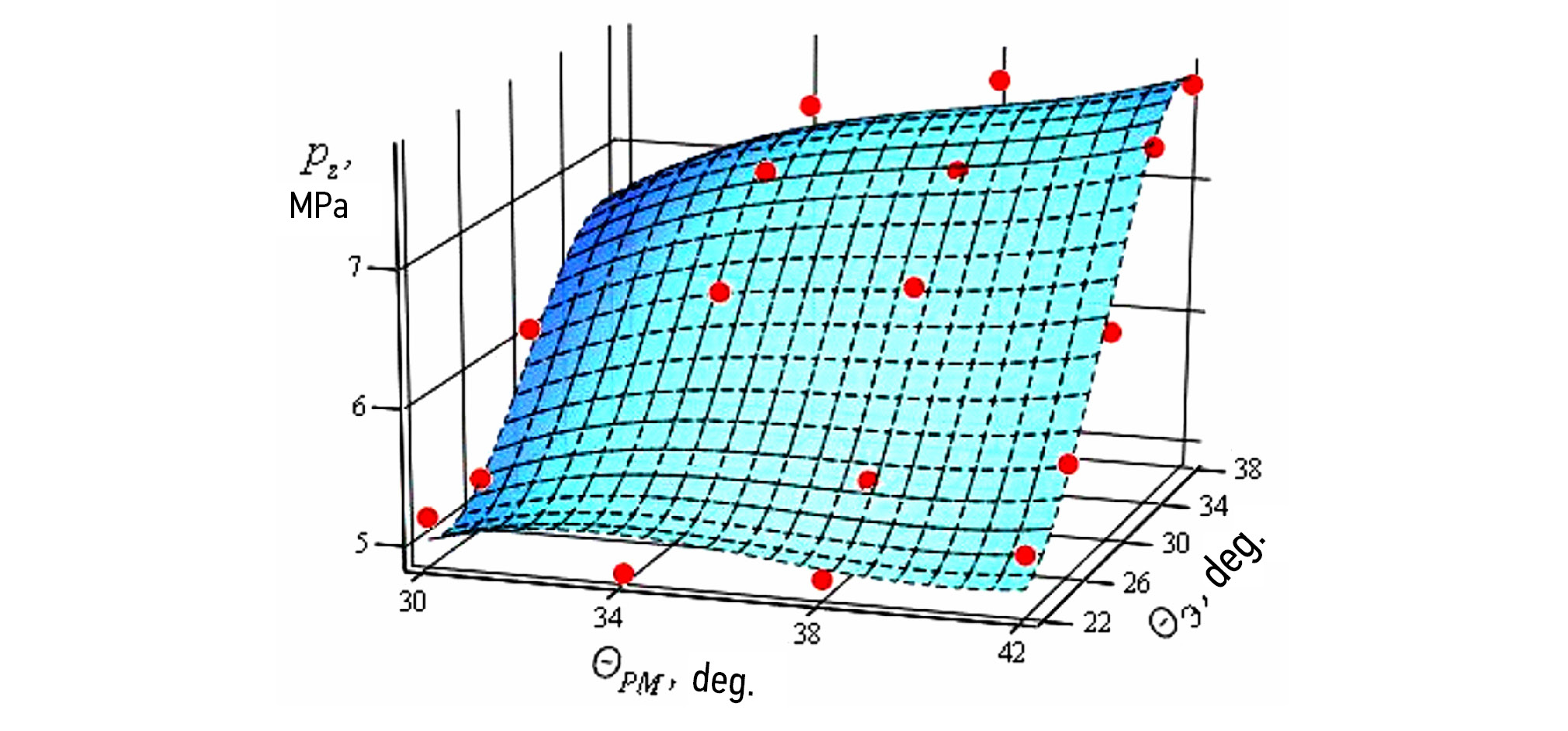

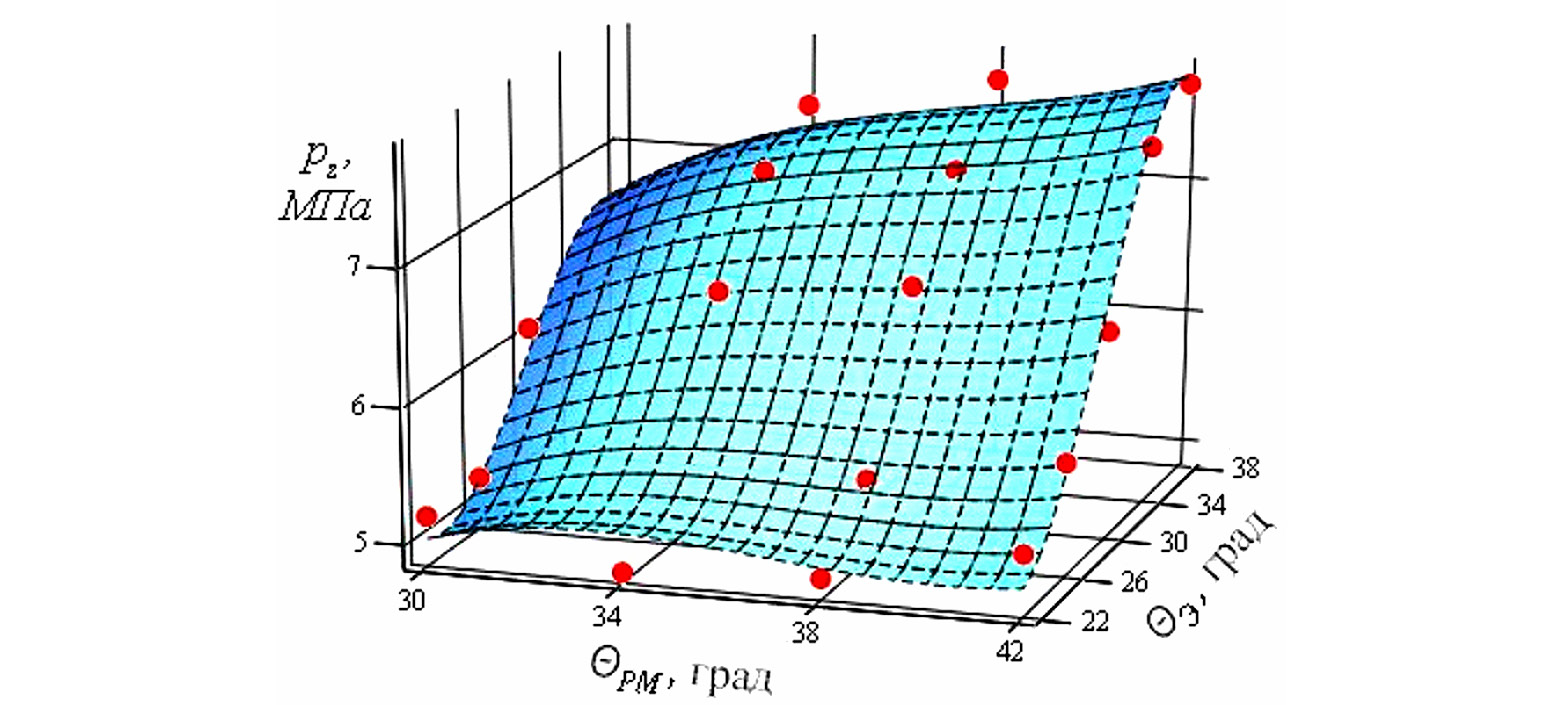

Fig. 4. Change in the maximum combustion pressure in a cylinder of the D21A1 diesel engine when operating on ethanol and rapeseed oil.

Рис. 4. Изменение максимального давления сгорания в цилиндре дизеля Д21А1 при работе на этиловом спирте и РМ.

Experimental data has established that the variation in maximum pressure, with a constant ethanol SAIA depending on the RO SAIA, is less pronounced, especially at late ethanol supply angles. With an increase in ethanol SAIA, the influence of RO SAIA also increases. The maximum value of p_z is recorded at Θ_Э of 38° and Θ_RO of 42° and is p_z = 7,72 MPa.

Changes in the RO SAIA cause a corresponding shift in the function of the average temperature of the gases in the cylinder (Fig. 5). An earlier supply leads to an earlier peak temperature achievement. However, the maximum gas temperature does not change significantly.

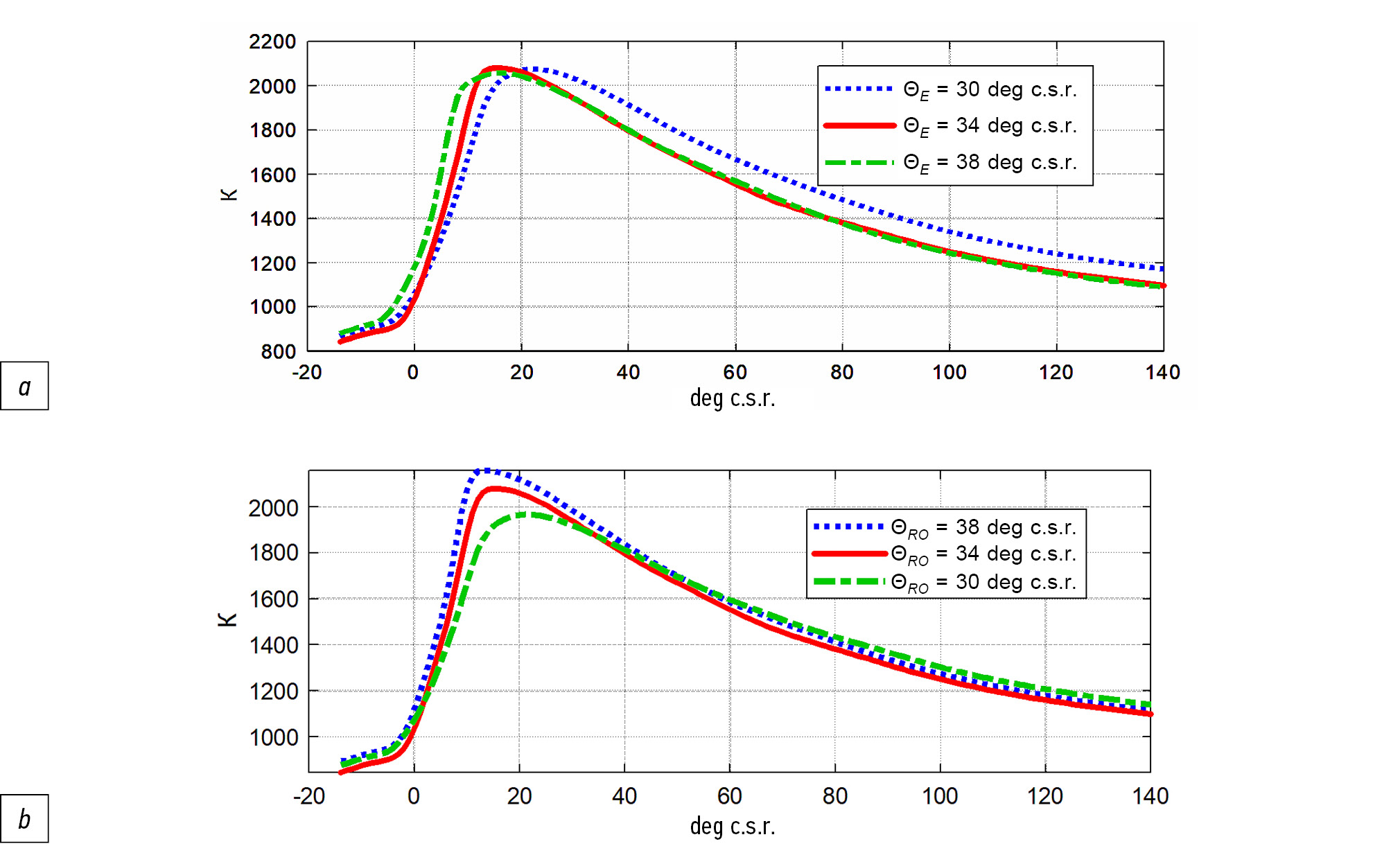

Fig. 5. The averaged gas temperature in a cylinder of the tractor diesel engine when operating on ethanol and rapeseed oil: а – Θ_E =34°; b – Θ_RO =34°.

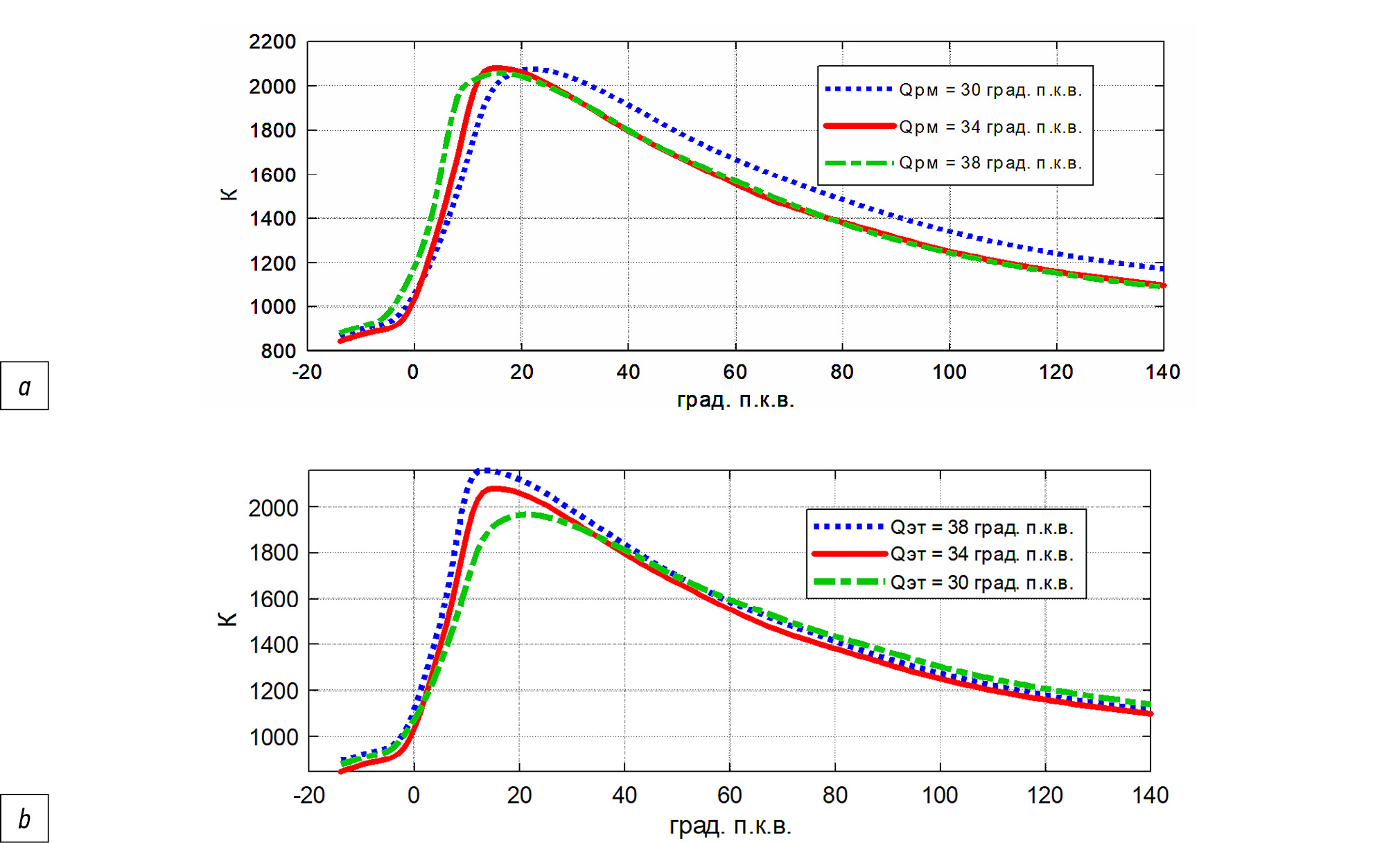

Рис. 5. Осредненная температура газов в цилиндре тракторного дизеля при работе на этиловом спирте и РМ: а – Θ_E =34°; b – Θ_РМ =34°.

At a constant ignition fuel SAIA, when varying the ethanol SAIA values, an increase in the maximum indicator temperature of the gases in the cylinder is observed with early alcohol supply. This increase is attributed to the causes mentioned previously, namely the energy saturation of fuel portions and the different cetane numbers of RO and ethyl alcohol.

The maximum gas temperature increases with an increase in the ethanol SAIA at all ignition fuel SAIA settings. At late RO supply angles, the increase in the maximum average gas temperature in the cylinder is more intense in the cylinder than at early RO angles (Θ_RO = 42°). The highest T_max values are achieved at Θ_E = 38° c.s.r. to TDC (Fig. 6).

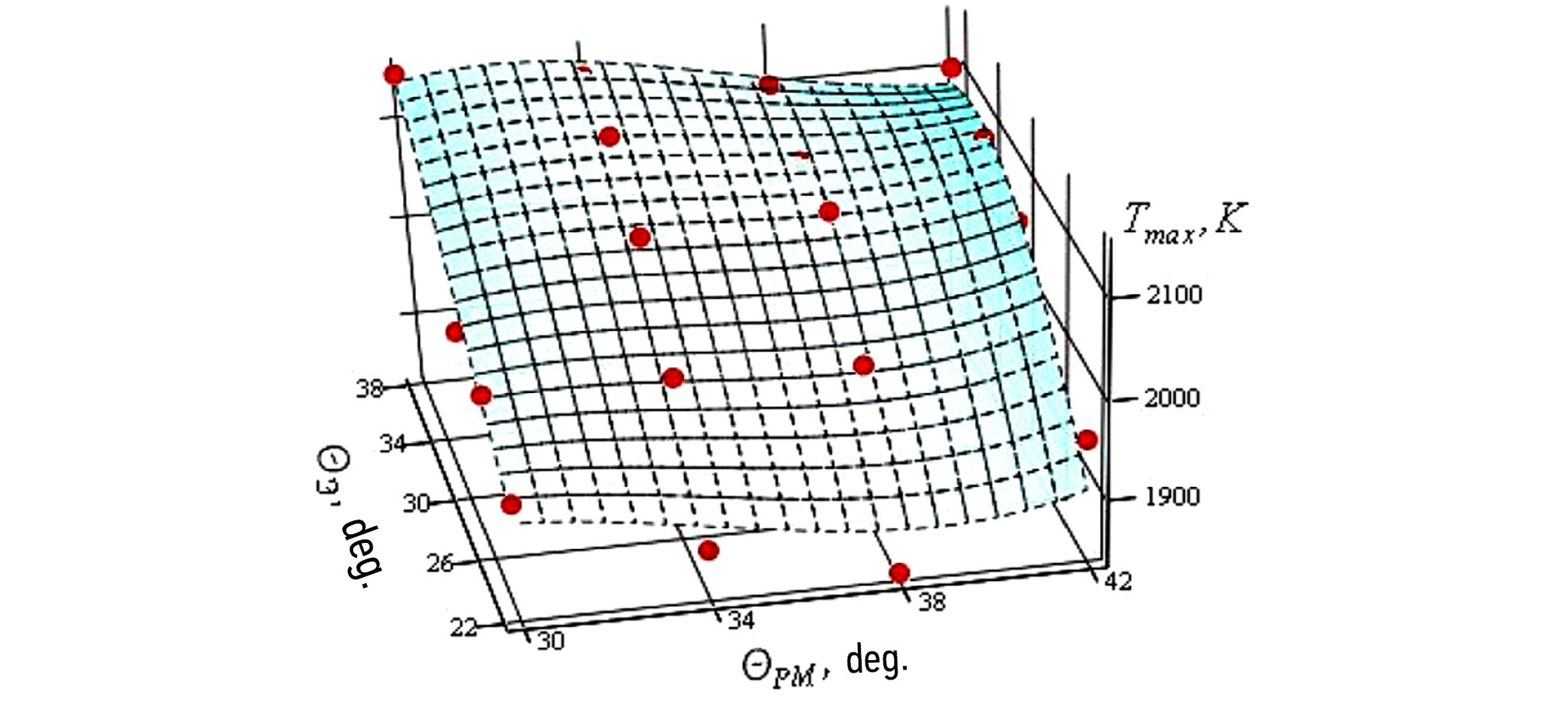

Fig. 6. Change in the maximal average gas temperature in a cylinder of the D21A1 tractor diesel engine when operating on ethanol and rapeseed oil.

Рис. 6. Изменение максимальной осредненной температуры газов в цилиндре тракторного дизеля Д21А1 при работе на этаноле и РМ.

The influence of the RO SAIA on the maximum averaged temperature of the gases in the cylinder is complex, stemming from different degrees of fuel combustion and an increase in fuel supply with inefficient combustion process organization in the cylinder at non-optimal fuel SAIA settings. The highest temperature values are recorded at Θ_RO = 30° and Θ_RO = 34° at early ethanol SAIA.

In analyzing the values of the main combustion process indicators p_z and T_max depending on the SAIA of fuels, the following observations can be made:

• The values of these parameters depend strongly on the SAIA of ethanol and, to a lesser extent, on changes in the RO SAIA.
• Excessively high values of the maximum pressure and average gas temperature, associated with early ethanol SAIA, affect negatively the durability of engine parts, lead to an increase in the noise of the diesel engine, the appearance of knocking, and a higher maximum rate of pressure increase in pressure in the cylinder.
• Too late ethanol supply angles shift the combustion process toward the expansion line, leading to higher EG temperatures, increased specific effective fuel consumption, and a decrease in effective EF.

When a tractor diesel engine operates on ethyl alcohol and RO, the maximum value of the average gas temperature T_max in the cylinder at maximum loads is higher than when operating on DF (Fig. 7a). Temperature equality between the fuel types is achieved at p_e of 0.4 MPa. However, at lower loads, the maximum temperature in the cylinder when operating on ethanol and RO is achieved much later than when operating on DF, indicating late combustion (Fig. 7c). This late combustion decreases the efficiency of diesel engines running on ethanol and RO at low loads. Increasing the ethanol supply improves the combustion process, shifts the angle of maximum gas temperature closer to TDC, and raises the maximum gas temperature in the cylinder.

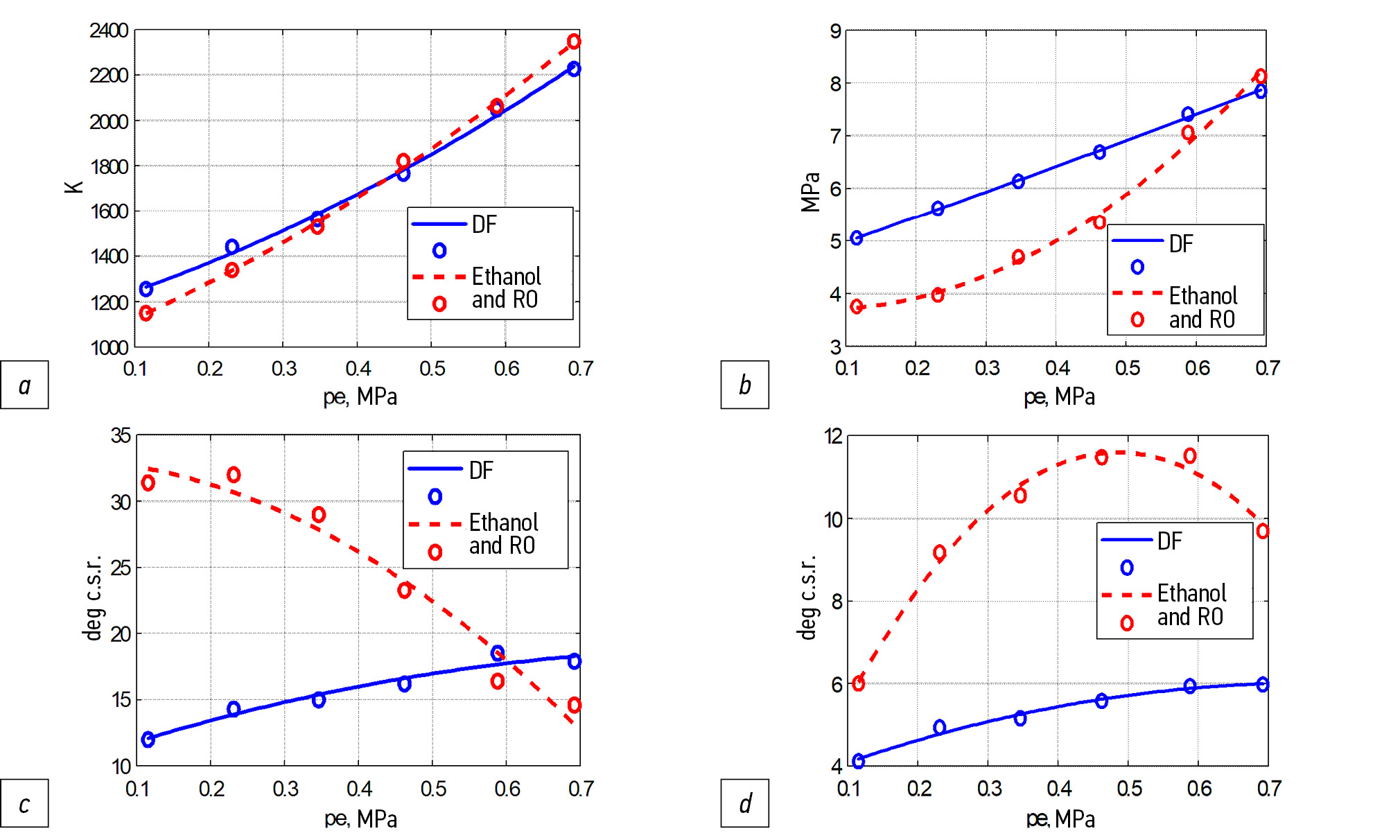

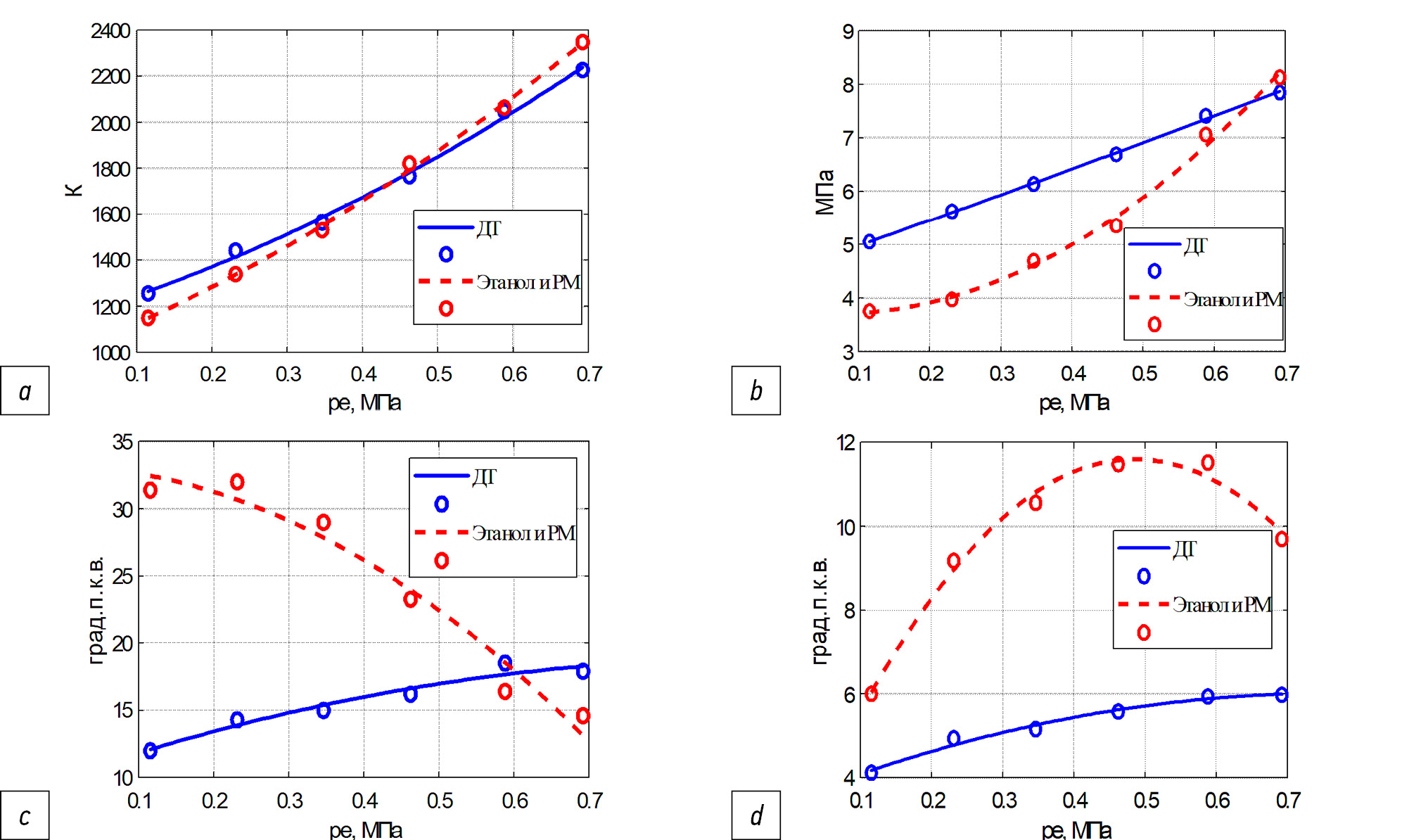

Fig. 7. Indicators of the combustion process during operation of the D21A1 tractor diesel engine depending on the load: a – the maximal averaged gas temperature in a cylinder; b – the maximal pressure in a cylinder; c – the crankshaft rotation angle corresponding to the maximal averaged gas temperature in a cylinder, deg; d –the crankshaft rotation angle corresponding to the maximal gas pressure in a cylinder, deg.

Рис. 7. Показатели процесса сгорания при работе тракторного дизеля Д21А1 в зависимости от нагрузки: a – максимальная осредненная температура газов в цилиндре; b – максимальное давление в цилиндре; c – угол п.к.в., соответствующий максимальной осредненной температуре газов в цилиндре град.; d – угол п.к.в., соответствующий максимальному давлению газов в цилиндре, град.

Moreover, when the engine runs on ethanol and RO, there is a more intense increase in the maximum combustion pressure with increasing load (Fig. 7b). The maximum pressure is p_z = 3.91 MPa at p_e = 0.115 MPa, and p_z = 8.1 MPa at p_e = 0.692 MPa. At loads where p_e is lower than 0.500 MPa, the maximum pressure p_z in the cylinder, when running a diesel engine on alternative fuels, is lower compared to when running on DF. The maximum gas pressure in a diesel cylinder when operating on DF increases from p_z = 5.1 MPa at p_e = 0.115 MPa to p_z = 7.85 MPa at p_e = 0.692 MPa. The angle in degrees of c.s.r. for maximum pressure in the cylinder when operating on ethanol and RO is reached later by 2–5 degrees, depending on the load mode. A shift in the angle of maximum pressure at higher loads does not diminish the efficiency of heat supply; on the contrary, it contributes to an increase in the effective energy factor of a diesel engine by reducing the portion of heat supplied to TDC, thereby reducing the duration of intense combustion.

The increase in the maximum pressure and maximum average temperature of the gases in the cylinder with increasing load is associated with an increase in the cyclic supply of ethanol, which burns almost completely in the flame of a homogeneous air-fuel mixture.

CONCLUSIONS

The complete replacement of petroleum DF with alternative ones has been achieved without making significant changes to the design of the tractor diesel engine. This change has improved its environmental characteristics while maintaining power indicators at the level of a serial diesel engine.

It has been proven that in the tractor diesel engine under study, when operating on ethyl alcohol and RO, it is necessary to set the igniting fuel supply q_i to 13 mg/cycle for optimal performance. Decreasing the amount of the ignition portion results in a higher EG temperature, increased specific effective and total fuel consumption, and a deterioration of the combustion process. Conversely, increasing the ignition portion leads to worse environmental performance of a tractor diesel engine and an increase in EG smoke opacity.

Based on experimental studies, the optimal setting angles for fuel injection advance when operating a tractor diesel engine on ethanol and RO have been determined. For ethanol, Θ_E = 34°, for RO Θ_RO = 34°. At this configuration, operating in nominal mode yields the minimum total specific effective fuel consumption of g_eΣ = 368 g/(kW∙h).

Experimental data has shown that when operating in nominal mode on DF, ethanol and RO, the values of the maximum gas pressure p_zmax in the diesel cylinder are nearly identical. However, the combustion process when operating a diesel engine on ethanol and RO shifts slightly to the right beyond the TDC line, with the maximum cycle pressure p_zmax being achieved at angle φ = 11.5° c.s.r. after TDC. By contrast, while using DF, the pressure p_zmax is achieved at φ = 6.5° c.s.r. after TDC, indicating that the combustion process on alternative fuels occurs mostly in an increasing cylinder volume. Consequently, the maximum effective EF shifts toward higher load operating modes.
