Modeling of snow cover on glaciers of the Caucasus and Kamchatka Peninsula
- Authors: Sushintsev I.M.1,2, Drozdov E.D.1,2, Toropov P.A.1,2, Mikhalenko V.N.1, Vorobiev M.A.1, Hayredinova A.G.1
-
Affiliations:
- Institute of Geography RAS
- Lomonosov Moscow State University
- Issue: Vol 65, No 1 (2025)
- Pages: 21-36
- Section: Glaciers and ice sheets
- URL: https://journals.eco-vector.com/2076-6734/article/view/684161
- EDN: https://elibrary.ru/GZPRUC
- ID: 684161
Cite item
Full Text
Abstract

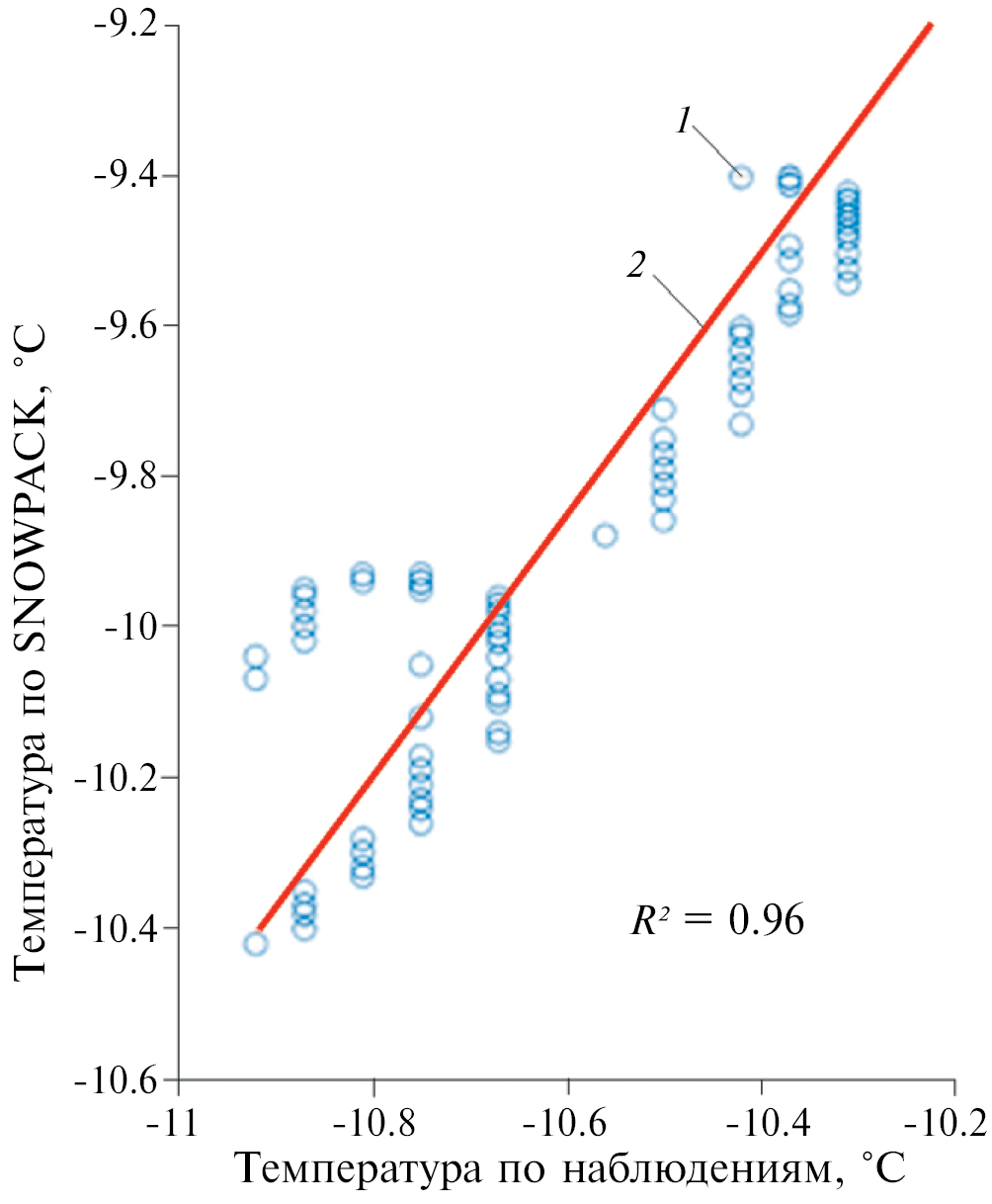

The paper evaluates the possibility of using a computing complex that includes a SNOWPACK model and an algorithm for calculating orographic precipitation addition to reproduce snow cover in mountainous areas. This model complex was tested in the conditions of two contrasting mountain-glacial systems provided with in-situ data: the Central Caucasus (using the example of Mount Elbrus), and Kamchatka (using the example of the Ushkovsky volcano). Numerical experiments were carried out for the period of 09.2023–02.2024 for Elbrus and for the period of 1986–1997 for Ushkovsky, ERA5 reanalysis data was used as a forcing. It is shown that on a seasonal scale for the Elbrus volcano, the simulation results are in good agreement with the field data: the error in the amount of snow accumulation was 3 cm, for the temperature inside the whole snow column mean average error was 1.4 °C with a coefficient of determination R2 = 0.96. For Ushkovsky, 3 numerical experiments were conducted with different input data on precipitation. The simulation results were compared with the data from the 1996 ice core. When using the orographic precipitation model, the error in reproducing accumulation over 10 years was reduced to 25% compared to 40% according to the ERA5 reanalysis. At the same time, the model described the stratigraphy of the snow cover well: 4 out of 5 ice formations were reproduced. It is shown that the presented model tool can be used to approximate the dynamics of snow accumulation on long time scales and to analyze changes in ice formation conditions on mountain glaciers. Possible ways of the model complex developing are also discussed, which will allow more accurate assessment of snow column structure and reproduction of ice formations. According to the drilling data of 2022, it was revealed that the density profile of the Ushkovsky volcano is very different from that presented in the 1996 study. Previously, only about 4% of ice was observed in the snow-firn stratum, currently its content has increased to 53% of the entire profile. Thus, climate change has affected the snow cover structure of Kamchatka’s high-altitude glaciers. This is manifested in an increase in the frequency of positive summer temperatures over the past decades, which leads to melting and infiltration of liquid moisture into the snow-firn stratum.
Keywords
About the authors
I. M. Sushintsev
Institute of Geography RAS; Lomonosov Moscow State University
Author for correspondence.
Email: sushintsev@yahoo.com
Russian Federation, Moscow; Moscow
E. D. Drozdov
Institute of Geography RAS; Lomonosov Moscow State University
Email: sushintsev@yahoo.com
Russian Federation, Moscow; Moscow
P. A. Toropov
Institute of Geography RAS; Lomonosov Moscow State University
Email: sushintsev@yahoo.com
Russian Federation, Moscow; Moscow
V. N. Mikhalenko
Institute of Geography RAS
Email: sushintsev@yahoo.com
Russian Federation, Moscow
M. A. Vorobiev
Institute of Geography RAS
Email: sushintsev@yahoo.com
Russian Federation, Moscow
A. G. Hayredinova
Institute of Geography RAS
Email: sushintsev@yahoo.com
Russian Federation, Moscow
References
- Drozdov E.D., Toropov P.A., Avilov V.K., Artamonov A.Y., Polyukhov A.A., Zheleznova I.V., Yarinich Y.I. Meteorological regime of the Elbrus high-mountain zone during the accumulation period. Led i Sneg. Ice and Snow. 2024, 1 (64): 25–40. https://doi.org/10.31857/S2076673424010022 [In Russian].
- Kotlyakov V.M. The Snow Cover of the Antarctic and Its Role in the Present-Day Glaciation of the Continent. Jerusalem, 1966: 256 p.
- Krenke A.N. Zones of ice formation on glaciers. Geofizicheskiy bulleten’. Geophysical bulletin. Moscow: Nauka Publ., 1973, 25: 44–56 [In Russian].
- Ledniki i klimat Elbrusa. Glaciers and climate of Elbrus / Resp. ed. V.N. Michalenko. Мoscow; St. Petersburg: Nestor-Istoria Publ., 2020: 372 p. [In Russian].
- Muraviev Ya.D., Salamatin A.N. Mass balance and thermodynamic regime of the glacier in the crater of Ushkovsky volcano. Vulkanologiya i seismologiya. Volcanology and seismology. 1989, 3: 85–92 [In Russian].
- Тoropov P.A., Мikhalenko V.N., Kutuzov S.S., Morozova P.A., Shestakova A.A. Temperature and radiation regime of glaciers on slopes of the Мount Elbrus in the ablation period over last 65 years. Led i Sneg. Ice and Snow. 2016, 1 (56): 5–19. https://doi.org/10.15356/2076-6734-2016-1-5-19 [In Russian]
- Toropov P.A., Shestakova A.A., Yarynich Yu.I., Kutuzov S.S. Simulation of orographic precipitation’s component on the Mount Elbrus example. Led i Sneg. Ice and Snow. 2022, 4 (62): 485–503. https://doi.org/10.31857/S2076673422040146 [In Russian].
- Fierz C., Armstrong R.L., Durand Y., Etchevers P., Green E., McClung D.M., Nishimura K., Satyawali P.K., Sokratov S.A. International classification for seasonally falling snow (a guide to the description of snow thickness and snow cover). 2012, 2: 80 p. [In Russian]
- Khromova T.Y., Nosenko G.A., Glazovsky A.F., Muraviev A.Y., Nikitin S.A., Lavrentiev I.I. New Inventory of the Russian glaciers based on satellite data (2016–2019). Led i Sneg. Ice and Snow. 2021, 3 (61): 341–358. https://doi.org/10.31857/S2076673421030093 [In Russian].
- Barry R.G. Mountain weather and climate. London: Cambridge University Press, 2008: 505 p.
- Beniston M., Farinotti D., Stoffel M., Andreassen L.M., Coppola E., Eckert N., Fantini A., Giacona F., Hauck C., Huss M., Huwald H., Lehning M., López-Moreno J.-I., Magnusson J., Marty C., Morán-Tejéda E., Morin S., Naaim M., Provenzale A., Rabatel A., Six D., Stötter J., Strasser U., Terzago S., Vincent C. The European Mountain cryosphere: a review of its current state, trends, and future challenges. Cryosphere. 2018, 12: 759–794. https://doi.org/10.5194/tc-12-759-2018
- Chizhova Yu.N., Mikhalenko V.N., Korneva I.A., Hayredinova A.G., Vorobiev M.A., Muravyov Ya.D. New Data on Deuterium Excess Values of Glacial Ice in Kamchatka Peninsula. Dokl. Earth Sc. 2024, 517: 1387–1392. https://doi.org/10.1134/S1028334X24602190
- Clifford H.M., Potocki M., Rodda C., Dixon D., Birkel S., Handley M., Mayewski P.A. Prefacing unexplored archives from Central Andean surface-to-bedrock ice cores through a multifaceted investigation of regional firn and ice core glaciochemistry. Journ. of Glaciology. 2023, 69 (276): 693–707. https://doi.org/10.1017/jog.2022.91
- Essery R., Kim H., Wang L., Bartlett P., Boone A., Brutel-Vuilmet C., Burke E., Cuntz M., Decharme B., Dutra E., Fang X., Gusev Y., Hagemann S., Haverd V., Kontu A., Krinner G., Lafaysse M., Lejeune Y., Marke T., Marks D., Marty C., Menard C. B., Nasonova O., Nitta T., Pomeroy J., Schädler G., Semenov V., Smirnova T., Swenson S., Turkov D., Wever N., Yuan H. Snow cover duration trends observed at sites and predicted by multiple models. The Cryosphere. 2020, 14: 4687– 4698. https://doi.org/10.5194/tc-14-4687-2020
- Hersbach H., Bell B., Berrisford P., Biavati G., Horányi A., Muñoz Sabater J., Nicolas J., Peubey C., Radu R., Rozum I., Schepers D., Simmons A., Soci C., Dee D., Thépaut J-N. (2023): ERA5 hourly data on pressure levels from 1940 to present. Copernicus Climate Change Service (C3S) Climate Data Store (CDS). Accessed March 30, 2024. https://doi.org/10.24381/cds.bd0915c6
- Huss M., Hock R. Global-scale hydrological response to future glacier mass loss // Nat. Clim. Chang. 2018, 8 (2): 135–140. https://doi.org/10.1038/s41558-017-0049-x
- Kodama Y., Shiraiwa T., Kobayashi D., Matsumoto T., Yamaguchi S., Muravyev Ya.D., Glazirin G.E. Hydrometeorological and glaciological observations in the Koryto and Ushkovsky Glaciers, Kamchatka // Low Temp. Sci. Ser. A. 1996, 55: 107–136.
- Korneva I.A., Toropov P.A., Muraviev A.Ya., Aleshina M.A. Climatic factors affecting Kamchatka glacier recession // International Journ. of Climatology. 2024, 44 (2): 345–369. https://doi.org/10.1002/joc.8328
- Lehning M., Bartelt P., Brown B., Fierz C., Satyawali P. A physical SNOWPACK model for the Swiss avalanche warning: Part II. Snow microstructure. Cold regions science and technology. 2002a, 35 (3): 147–167. https://doi.org/10.1016/S0165-232X(02)00073-3
- Lehning M., Bartelt P., Brown B., Fierz C. A physical SNOWPACK model for the Swiss avalanche warning: Part III: Meteorological forcing, thin layer formation and evaluation. Cold Regions Science and Technology. 2002b, 35 (3): 169–184. https://doi.org/10.1016/S0165-232X(02)00072-1
- Matoba S., Ushakov S.V., Shimbori K., Sasaki H., Yamasaki T., Ovshannikov A.A., Manevich A.G., Zhideleeva T.M., Kutuzov S., Muravyev Ya.D., Shiraiwa T. The glaciological expedition to Mount Ichinsky, Kamchatka, Russia // Bulletin of Glaciological Research. 2007, 24: 79–85.
- Mikhalenko V., Sokratov S., Kutuzov S., Ginot P., Legrand M., Preunkert S., Lavrentiev I., Kozachek A., Ekaykin A., Fa.n X., Lim S., Schotterer U., Lipenkov V., Toropov P. Investigation of a deep ice core from the Elbrus western plateau, the Caucasus, Russia // The Cryosphere. 2015, 9: 2253–2270. https://doi.org/10.5194/tc-9-2253-2015
- Ozeki T., Akitaya E. Energy balance and formation of sun crust in snow // Annals of Glaciology. 1998, 26: 35–38.
- Pinzer B.R., Schneebeli M., Kaempfer T.U. Vapor flux and recrystallization during dry snow metamorphism under a steady temperature gradient as observed by time-lapse micro-tomography // The Cryosphere Discussions. 2012, 6 (3): 1673–1714. https://doi.org/10.5194/tc-6-1141-2012
- Quéno L., Vionnet V., Cabot F., Vrécourt D., Dombrowski-Etchevers I. Forecasting and modelling ice layer formation on the snowpack due to freezing precipitation in the Pyrenees. Cold Regions Science and Technology. 2018, 146: 19–31. https://doi.org/10.1016/j.coldregions.2017.11.007
- Quéno L., Fierz C., van Herwijnen A., Longridge D., Wever N. Deep ice layer formation in an alpine snowpack: monitoring and modeling. The Cryosphere. 2020, 14 (10): 3449–3464. https://doi.org/10.5194/tc-14-3449-2020
- Sato T., Shiraiwa T., Greve R., Seddik H., Edelmann E., Zwinger T. Accumulation reconstruction and water isotope analysis for 1735–1997 of an ice core from the Ushkovsky volcano, Kamchatka, and their relationships to North Pacific climate records // Climate of the Past Discussions. 2013, 9 (2): 2153–2181. https://doi.org/10.5194/cpd-9-2153-2013
- Schlögl S., Lehning M., Nishimura K., Huwald H., Cullen N.J., Mott R. How do Stability Corrections Perform in the Stable Boundary Layer Over Snow? // Boundary-Layer Meteorol. 2017, 165: 161–180. https://doi.org/10.1007/s10546-017-0262-1
- Shiraiwa T., Muravyev Ya.D., Yamaguchi S. Stratigraphic Features of Firn as Proxy Climate Signals at the Summit Ice Cap of Usnkovsky Volcano, Kamchatka, Russia // Arctic and Alpine Research. 1997, 29 (4): 414–421.
- Shkaberda O.A., Vasilevskaya L.N. Long-term variability of the temperature and humidity regime on the Kamchatka peninsula // Izvestiya TINRO. 2014, 178 (3): 217–233. https://doi.org/10.26428/1606-9919-2014178-217-233
- Thompson L.G., Davis, M.E., Mosley-Thompson E., Porter S.E., Corrales G.V., Shuman C.A., Tucker C.J. The impacts of warming on rapidly retreating high-altitude, low-latitude glaciers and ice core-derived climate records. Global and Planetary Change. 2021, 203: 103538. https://doi.org/10.1016/j.gloplacha.2021.103538
- Toropov P.A., Aleshina M.A., Grachev A.M. Large-scale climatic factors driving glacier recession in the greater caucasus, 20th–21st century // International Journ. of Climatology. 2019, 39: 4703–4720. https://doi.org/10.1002/joc.6101
- Wever N., Schmid L., Heilig A., Eisen O., Fierz C., Lehning M. Verification of the multi-layer SNOWPACK model with different water transport schemes // The Cryosphere. 2015, 9: 2271–2293. https://doi.org/10.5194/tc-9-2271-2015
- Wever N., Würzer S., Fierz C., Lehning M. Simulating ice layer formation under the presence of preferential flow in layered snowpacks. The Cryosphere. 2016, 10 (6): 2731–2744. https://doi.org/10.5194/tc-10-2731-2016
