Artificial activation of nif gene expression in nodule bacteria Ex Planta

Cover Page

Abstract


Background. Rhizobia are the most effective nitrogen-fixing organisms that can fix nitrogen only in symbiosis with leguminous plants. The general transcriptional activator of nitrogen fixation genes in diazotrophic bacteria is NifA. In this work, the possibility of modifying the regulation of nitrogen fixation in the nodule bacteria Mesorhizobium, Ensifer and Rhizobium was studied by introducing an additional copy of the nifA gene into the bacterial genomes during the regulation of induced bacterial promoters.

Materials and methods. A series of expression genetic constructs with NifA genes of nodule bacteria strains under the control of an inducible promoter Pm were created. The resulting constructs were transformed into strains of nodule bacteria. The obtained recombinant strains were investigated for the appearance of their nitrogen-fixing activity in the free-living state.

Results. It was shown that the expression of nifA in recombinant cells of all three genera of bacteria leads to the appearance of insignificant nitrogenase activity. At the same time, the level of nitrogenase activity does not have a correlation with the level of expression of the introduced nifA gene, which, most likely, is a consequence of the multilevel regulation of nitrogen fixation.

Conclusion. The possibility of artificial activation of nitrogenase activity in nodule bacteria in the free-living state by introducing the NifA regulatory protein gene into bacteria was shown.


INTRODUCTION

The absorption of molecular nitrogen from the air, known as nitrogen fixation, is one of the most important biological processes and is essential for much of the life on Earth. The most effective nitrogen fixers are nodule bacteria (rhizobia), which live in symbiosis only with legumes (with very few exceptions). These bacteria are characterized by high genome plasticity, recombination activity, and active involvement in the process of horizontal gene transfer. The symbiotic nif, fix, and nod are the most actively involved in gene transfer. The main method by which nodular bacteria undergo horizontal gene transfer is conjugation [1]. As this process is frequently interrupted, a cell is not always able to obtain all genes required for the full expression of nitrogen fixation, although theoretically cells may obtain the missing genes in the next round of conjugation they undergo. As this process is not limited to only one species of bacteria and can occur among bacteria of different taxons, the combination of nif from different bacteria can occur, which is an element of the combinative evolutionary process [2–4]. The genes of the bovine proteins of nitrogenase are arranged in a single operon and are primarily inherited together; this is not the case for the genes of complexing proteins of nitrogen fixation, which form individual operons in many nitrogen-fixing bacteria. This is especially typical for nodular bacteria, which demonstrate dissociation of nif in different operons. Because of this, these microorganisms serve as ideal models for examining the combinative evolution of nitrogen fixation in bacteria. nifA is one of the least associated with genes coding for bovine proteins; however, it is an integral part of the nitrogenase complex of rhizobia; it encodes the regulatory protein NifA, the protein on which the activation of entire nitrogenase complex depends. As an enhancer element, it activates expression of all genes involved in nitrogen fixation, and is the final link in the signal cascade of activation of the genes of the nitrogenase complex.

nifA of symbiotic free-living nitrogen fixers is kept in a repressed state in case of oxygen abundance. This results in the subsequent repression of gene expression of the nitrogenase complex [5] and in the production of nitrogenase proteins; therefore, nodular bacteria ex planta do not display nitrogen fixation activity. However, currently there are studies focused on activating the gene of the nitrogenase complex of the free-living nitrogen fixers by means of the modification of the expression of nifA regulation [6]. It is known that constitutive expression of this gene in non-symbiotic nitrogen fixers results in an increase of nitrogen fixation intensity [7] and causes nitrogenase activity when nitrogen compounds are abundant in the environment [8]. In this study, we assessed the possibility of inducting the nitrogenase activity of nodular bacteria in the free-living state using artificial activation of nifА at the detectable level. This will allow the use of nifA of nodular bacteria as a suitable marker for studying the functionality of heterologous combinations of nif. This is because this gene is also an integral part of the nitrogen fixation apparatus of all rhizobia, and does not have a rigid association with the genes of bovine proteins of nitrogenase. Thus, based on the occurrence of nitrogenase activity of nodular bacteria ex planta using the artificial activation of nifA, judgments can be made about the functionality of this gene in heterologous systems of nif.

Besides this, the possibility of activation of nitrogen fixation of rhizobia in a saprophytic state can have practical value. It has been demonstrated that some strains of rhizobia can serve as plant growth-promoting Rhizobacteria when grown in association with plants [9, 10]. Giving these cells the ability to fix nitrogen ex planta could significantly improve their growth-promoting properties.

METHODS

The strains of bacteria from the collection of the IBG of UFIC RAS were used: “Symbiont” Rhizobium sp. VSy9, Ensofer sp.Mlu10, and Mesorhizobium sp. LZh7 had been extracted from nodules of the wild-growing legumes of the South Urals attributed to tribes Fabeae, Trifolieae, and Loteae: wood vetch (Vicia sylvatica L.), black medic (Medicago lupulina L.), and bird’s foot (Lotus zhegulensis Klokov) accordingly and Escherichia coli XL1Blue for genetic manipulations.

Nodular bacteria were cultivated on JM medium (1 % mannitol, 0.05 % K2HPO4, 0.02 % MgSO4, 0.01 % NaCl, and 0.1 % yeast extract) at 28 °C. E. coli were cultivated on LB medium (1 % bacto-tryptone, 0.5 % yeast extract, and 0.5 % NaCl) at 37 °C. Ampicillin (100 mg/mL) was used as a selective antibiotic during transformation. The expression of nifA in plasmid pJB658 was activated using mtoluene acid (2 mM).

Total DNA was extracted from bacteria by lysing cells in 1 % Triton X100 and 1 % suspension Chelex100. For this purpose, a small amount of bacterial mass was placed in 1.5-ml flasks with 100 μL of 1 % Triton X100 and 1 % suspension Chelex100 and incubated after suspending at 95 °C for 10 min. Cellular debris were deposited by centrifuging at 12000 g for 3 min. Supernatant liquid was used as matrix for PCR. Plasmid DNA was extracted using the kit diaGene (“Diem,” Russia).

To express plasmid-borne nifA, the broad-host-range plasmid pJB658 with replicon RK2 was selected [11, 12]. The sequence of the target gene was identified using PCR along with primers nifAviciaNdeIF 5′tttgtacatatgattaaaccagaggcgcggctccata-3′ and nifAviciaBamHIR 5′ttacggggatcctggcgatcgcggtcactccttcttcaca-3′ in which restriction sites were introduced: Nde1 was in the first primer, and BamH1 was in the back primer. Amplified product included nifA with the size of 1560 bp. The availability of restriction sites at the ends of obtained PCR products facilitated directed cloning of the target sequence and allowed access to the reading frame (Fig. 1).

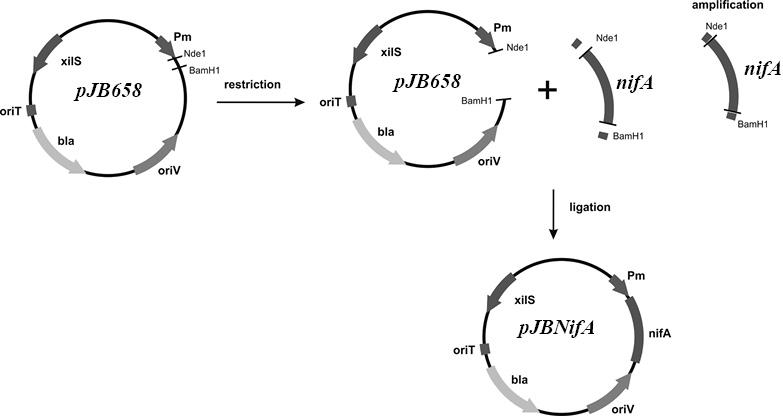

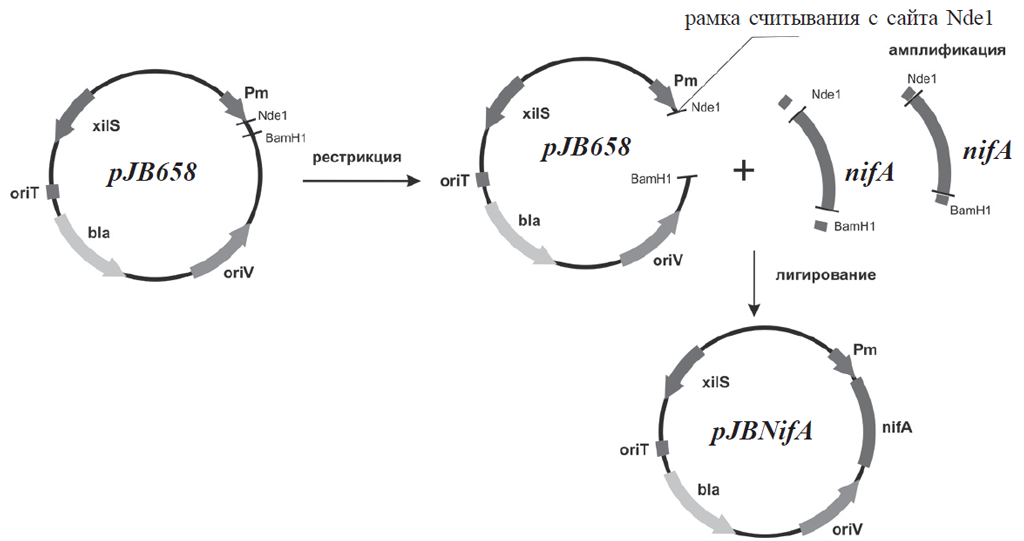

Fig. 1. The strategy of cloning nifA genes into plasmid pJB658



Cell transformation with vectors was performed with electroporation using MicroPulser (BioRad, USA) based on the program and protocol for agrobacteria transformation in a 0.1 cm electroporation measuring cell. Electrocompetent cells were prepared according to the technique described by Lin [13].

The visual observation of fluorescent-labeled bacteria was performed using a fluorescent microscope (Axio Imager M1; Carl Zeiss, Germany). The No. 10 set of color filters was used for GFP detection (BP excitation band, 450–490 nm; BP emission, 515–565 nm).

To assess the expression of nif using RT-PCR, RNA was extracted using FastRNA Pro Blue Kit (USA). The first DNA chain complementary to mRNA was obtained by the ferment of MMLV revertase (reverse transcriptase obtained from mouse leukemia virus) (“Eurogen,” Russia). The reaction was performed at 42 °C for 2 h. The reaction mixture contained 1–5 μg of RNA, 20 μM of random hexamer primer (Fermentas, USA), normal strength buffer for revertase (50 mM trisHCl with pH 8.3, 10 mM MnCl2, 10 mM DTT, and 0.5 mM of spermidine), 500 μM of each deoxinucleotide triphosphate, and 5 units of MMLV revertase. After incubation, the reaction mixture was inactivated by heating at up to 70 °C for 10 min. Obtained samples were split into aliquots, and the primers used for RT-PCR were as follows: NifHF (5′acgctagccgcccttgtgga-3′) and NifHR (5′gagttcgcgatcggtttgacg-3′) for the amplification of nifH fragment with the size 513 bps and NifAF (5′cggcagcgcgacggtgacatt-3′) and NifAR (5′caagaggagcgccgaagaaca-3′) for the amplification of nifA fragment with the size 246 bps.

Proteins from the nodular bacteria cell culture were extracted using an aforementioned method [14]. Proteins for PVDFmembrane (BIORAD, USA) for Western blot analysis were transferred using previously described method [15] and instrument MiniTransBlot® Module 170-3924EDU BioRad (USA) at 4 °C for 1 h at 100 V and 18–22 mA. To detect NifH, polyclonal chicken antibodies were used, which were obtained against bovine NifH (Agrisera, Sweden). PVDFmembrane was treated with the solution of antibodies, which was diluted 1000 times in TBSbuffer (20 mM Tris base, 150 mM NaCl), with 1 % of powdered skim milk and 0.1 % Twin-20 and was incubated for 10–16 h at 4 °C. After this, the solution of primary antibodies was drained, and the membrane was washed out in TBSbuffer with 0.1 % Twin-20.

The detection of primary antibodies associated with antigen was performed using secondary monoclonal rabbit antibodies to polyclonal chicken antibodies marked with horseradish peroxidase HRP (Agrisera, Sweden). Serum was diluted in 0.2 mL of water; the obtained solution (2 μL) was further diluted in 10 mL of TBSbuffer with 0.01 % of Twin-20. The membrane was incubated in the solution of secondary antibodies for 1.5–2 h at room temperature. The detection of peroxidase on the membrane was performed using chromogene DAB (Cell Marque Corporation, USA).

To determine nitrogenase activity, microorganisms were cultivated for 1–2 days on liquid nitrogen-free nutrient medium, with selective antibiotics and inducers in required concentrations, in an orbital shaker ES20 at 160 rpm and an optimal growth temperature of 28 °C until they reached a CFU of 1–2 × 108. Following this, 1 mL of culture liquid was obtained from each sample and placed in sterile glass bottles of 15 mL. Ten bottles of sand were required for controlling non-specific ethylene genesis; 5 grams of sterile sand was used as a carrier and was placed in each bottle before placing the liquid culture. After the culture liquid was placed, the sand humidity amounted to 60 % of full water capacity. Ten bottles with samples in three replicas were used for each recombinant and reference strain (30 samples per strain). Bottles closed with cotton wool plugs were incubated for 24 h at 28 °C; then, the bottles were closed with rubber plugs, and acetylene was injected into each up to the concentration of 10 % volume. After 1–1.5 h of incubation, 1 ml of gas samples were taken with syringe. Acetylene and ethylene contents were determined using gas chromatography (Shimadzu Gas Chromatograph GC-2014, Japan) with a flame-ionization detector.

The content of exchangeable ammonium in soil was determined using photometric method (GOST 2648985) in five replicates. The filtrates of soil extracts either not inoculated or inoculated with recombinant and wild strains of rhizobia were used for analysis. Two cm2 of filtrates and reference solution of 0.25 mg/cm3 NH4Cl were placed in 100-mL glass flasks. Following this, 40 cm3 of the colored solution of 5.7 % sodium salicylate, 1.7 % potassium-sodium tartrate, 2.7 % sodium hydroxide, 0.04 % sodium nitroprusside, and 0.2 % Trilon B was added to the flasks; finally, 2 cm3 of 0.125 % solution of NaOCl was added. The solutions were thoroughly mixed and photometrically scanned relative to the reference solution at a wavelength of 655 nm after 1 h on the photoelectric photometer KFK 301 in glass measuring cells with a transparent layer thickness of 1 cm. Every filtrate was measured in three replicates. The graduated diagram of dependence of the readings on ammonia concentration in the samples was plotted; the results expressed in ppm and rounded to the first decimal point.

The mass fraction of nitrogen in the nitrates in conversion to the dry soil (X1) in ppm was calculated using the formula: X1 = X · K1 · K2, where X is the mass fraction of nitrates nitrogen, mln.–1; K1 and K2 are factors considering the mass fraction of moisture in soil and the increase of the extracting solution interacting with the analyzed sample by means of the moisture content in soil.

Nitrate content was determined using an ionometric method (GOST 2695186). This method is based on nitrate extraction using aluminum potassium sulfate solution (1 % K2SO4) with a ratio of soil sample weight to solution of 1 : 2.5. Further determination of nitrates in the extraction was performed using an ion-selective electrode. The filtrates of extractions from untreated soil and from soil treated with recombinant strains and with wild strains of nodular bacteria were used for analysis. Twenty grams of soil samples were placed in cone glass flasks; further, 50 cm3 of 1 % K2SO4 solution was added, and the sample was mixed for 3 min. Nitrate content was calculated using the obtained suspensions, which were agitated before measurement. A nitrate ion-selective electrode was thoroughly rinsed by holding in distilled water for 10 min. Following this, the electrode pair was placed in the suspension, and readings were taken minimum 1 min after the termination of the reading drift.

Based on the determination of EDS (in microvolts) in the reference solution, the graduated diagram of dependence of the pH meter readings on nitrate concentration was plotted. Results were expressed in ppm and rounded to the first decimal point.

RESULTS AND DISCUSSION

Currently, many different signal cascades are known to activate nitrogen fixation in bacteria. The last stage of the transcriptional regulation of many nitrogen fixation bacteria, including the groups of nodular bacteria, is the activation of the expression of the genes of the nitrogenase complex by the regulator protein NifA [16].

Here, we formed a series of genetically engineered structures with nifA of nodular bacteria under control of inducible promoter Pm [17, 18], which was expressed using the broad-host-range plasmid pJB658 with replicon Т2: pJB658nifAvicea, pJB658nifAMesorh, and pJB658nifASinorh, with genes nifA Rhizobium sp.VSy9, Ensifer sp. MLu10, and Mesorhizobium sp. LZh7 accordingly. To ensure the functionality of the structures in plasmid pJB658, a similar structure was constructed in parallel in rhizobia strains using a reporter TurboGFP in place of the target gene. When this structure was transformed into Rhizobium sp. (VSy9), Ensifer sp. (MLu10), and Mesorhizobium sp. (LZh7), green-colored bacterial colonies grew on media with methylbenzoic acid, demonstrating the functionality of the Pm promoter. The structures with nifA were then transformed into the aforementioned strains of nodular bacteria. Recombinant strains were formed on the basis of the donors of the target gene. In fact, that strain’s own copy of nifA was added to bacterial cells regulated with an inducible promoter. Obtained strains were analyzed for nitrogen fixation activity in the free-living state using the acetylenic method.

When analyzing recombinant strain Rhizobium sp.VSy9 with structure pJB658nifAvicea (strain VSy9PmNifA) without induction, the occurrence of nitrogenase activity was detected. Interestingly, at low induction of NifA, a reduction in nitrogen fixation activity was observed (Fig. 2).

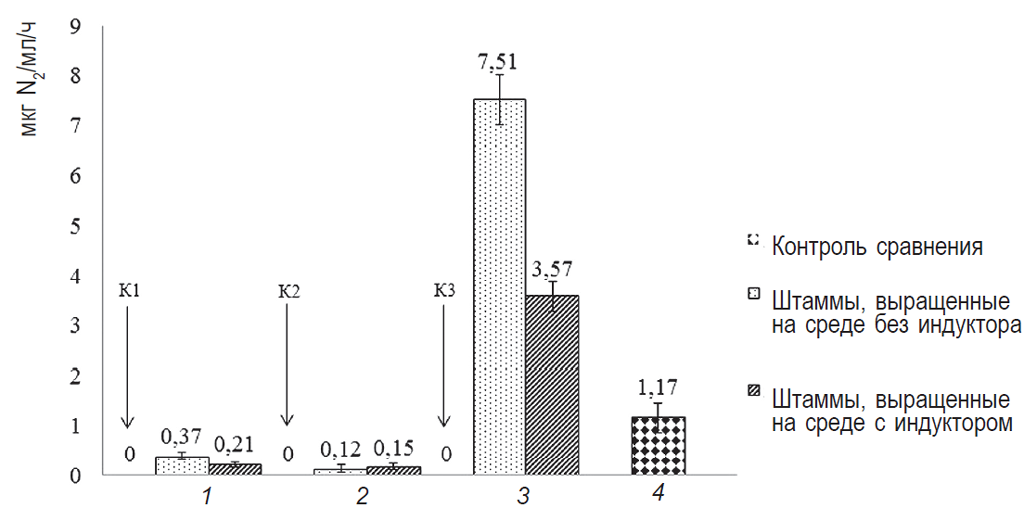

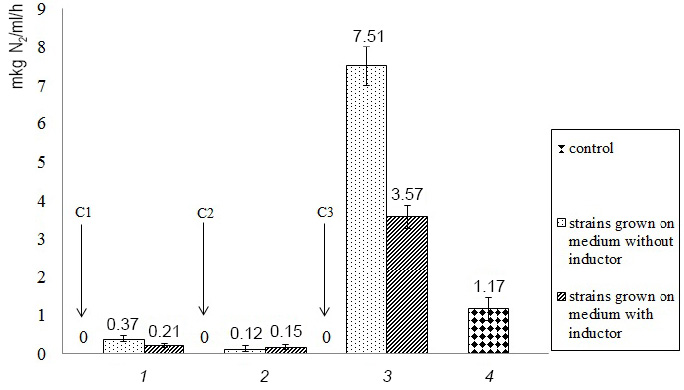

Fig. 2. Analysis of the nitrogenase activity of bacteria. 1 — Rhizobium sp.VSy9PmNifA; 2 — Mesorhizobium sp. LZh7PmNifA; 3 — Ensifer sp. Mlu10PmNifA; 4 — control (Pseudomonas sp. К749 — free-living nitrogen fixer). К1, К2, К3 — wild variants of strains of nodule bacteria



Moreover, recombinant strain Mesorhizobium sp. LZh7 with the structure pJB658nifAMesorh (strain LZh7PmNifA) demonstrated nitrogenase activity outside of plants. The minimum induction of nifA did not remarkably change the level of acetylene reduction. it is known that Mesorhizobium sp. contains two copies of the gene for the regulatory protein NifA, namely, nifA1 and nifA2 [19–21]. As nifA2 is involved in the regulation of nitrogen fixation genes, and nifA1 does not affect nitrogen fixation activity [22], only homologous nifA2 was used in this study. The ability of recombinant strain Mesorhizobium sp. LZh7nifA to convert acetylene to ethylene in the free-living state confirms that the nifA2 is involved in the activation of the nitrogenase complex.

An unexpected result was obtained during the analysis of recombinant strain Ensifer sp. MLu10 when transformed with structure pJB658nifASinorh (recombinant strain Mlu10PmNifA); the ability to recover acetylene was detected in these microorganisms, which exceeded the ability of the reference strain Pseudomonas sp. К749 by >6 times, whereas weak induction (the same as that in the case of Rhizobium sp.VSy9PmNifA) resulted in the reduction of nitrogenase activity. It is likely that a minimal amount of regulator protein is sufficient for the induction of nitrogen fixation activity, whereas an increased concentration of the same does not directly affect nitrogenase activity; likely, at this point, other limiting factors start to affect the process [23–25].

To evaluate this, RT-PCR analysis of the expression of nifA was conducted along with the analysis of one of the genes (nifH) of the bovine nitrogenase proteins in the recombinant strains. The induction of promoter of the target nifA resulted in the activation of its transcription (demonstrated on phoregram in the form of occurrence of appropriate PCR products, Fig. 3); this was not observed in the non-stimulated samples. It is assumed that this is because when the inducer is absent, an insignificant amount of mRNA of the target gene is produced, and therefore, it is not possible to detect it.

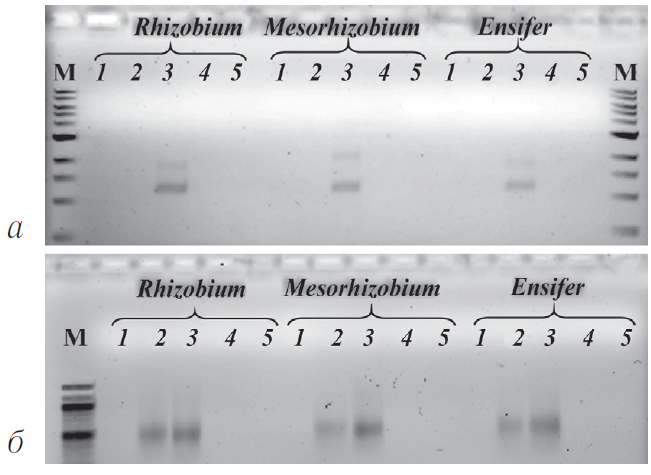

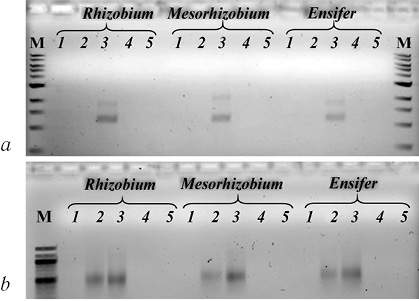

Fig. 3. RT-PCR analysis of the transcriptional activity of the nifA (a) and nifH (б) genes in cells of wild and recombinant rhizobia strains of Rhizobium sp. VSy9, Mesorhizobium sp. LZh7, Ensifer sp. Mlu10. 1 — wild strains of bacteria; 2 — recombinant bacteria strains without induction; 3 — recombinant bacterial strains with induction; 4 — PCR of a total recombinant bacteria tion after DNAse treatment; 5 — negative control



When analyzing expression of nifH, transcription was observed in the recombinant strains during the induction of the expression of nifA; transcription was also observed in the strains without induction (see Fig. 3).

Thus, the total level of expressed mRNA of nifH depends on NifA protein, but does not directly depend on the expression of nifA, once again confirming the complicated multilevel mechanism of the induction of nitrogen fixation activity in rhizobia.

The strains were examined for the availability of NifH protein using dot-blot analysis, because Western blot analysis with splitting proteins in polyacrylamide gel for analyzing the total protein of recombinant strains detected only one target band. It was demonstrated that NifH is absent in wild strains in the free-living state. In all recombinant strains, NifH is present during the induction of foreign nifA and without it (Fig. 4).

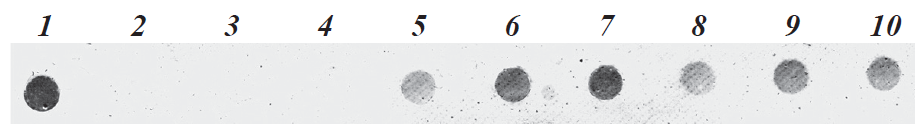

Fig.4. Dot-blot analysis of NifH protein production by recombinant strains of nodule bacteria grown on a nutrient medium without and with the addition of an inducer of m-toluic acid (0.5 mM). 1 — positive control of strain Pseudomonas sp. К749; 2 — non-recombinant strain of bacteria Rhizobium sp. VSy9; 3 — Non-recombinant bacteria strain Ensifer sp. Mlu10; 4 — non-recombinant strain of bacteria Mesorhizobium sp. LZh7; 5 — recombinant strain of bacteria Rhizobium sp. VSy9PmNifA, cultivated on medium without inductor; 6 — recombinant strain of bacteria Ensifer sp. Mlu10PmNifA, cultivated on medium without inductor; 7 — recombinant strain of bacteria Mesorhizobium sp. LZh7PmNifA, cultivated on the medium without inductor; 8 — recombinant strain of bacteria Rhizobium sp. VSy9PmNifA, cultivated on medium with inductor; 9 — recombinant strain of bacteria Ensifer sp. Mlu10PmNifA, cultivated on medium with inducer; 10 — recombinant strain of bacteria Mesorhizobium sp. LZh7PmNifA, cultivated on medium with inductor



Thus, the artificial activation of nifA in all sampled strains of bacteria, attributed to three main species of rhizobia, results in detectable nitrogenase activity ex planta. The occurrence of nitrogenase activity without the induction of target gene is probably caused by the so-called “promoting” of promoter Pm, during which genes are weakly expressed under the control of this promoter. Owing to this, the insignificant production of the target protein that takes place is capable enough to invoke the induction of nitrogenase activity.

The interaction of plants and growth-promoting microorganisms is a complicated process, which involves products of multiple genes. Any changes in this mechanism can affect the plant–microbe interaction. We examined how the change of nitrogen fixation regulation in recombinant rhizobia affects their ability to form nodules in comparison with their wild-type strains.

It was found that the introduction of additional copy of nifA in the cells under the control of bacterial promoters exhibited an insignificant effect on their ability to form nodules. No difference was seen in comparison with the wild-type strains (data shown). The exception to this was a recombinant strain Ensifer sp. Mlu10PmNifA, which demonstrated the highest nitrogenase activity and whose inoculation did not result in the formation of nodules. Probably, this strain exhibited more significant changes in the expression of the gene due to recombination; this altered the genes that were involved in the formation of symbiosis with the host plant.

Because strain Ensifer sp. Mlu10PmNifA demonstrated high nitrogen fixation activity, we examined the change of the amount of nitrogen compounds in the soil after the introduction of these bacteria. Thirty days after the soil inoculation, the content of ammonia-based nitrogen significantly increased, while the amount of nitrate-based nitrogen significantly decreased (Table 1). This could indicate that bacteria of this strain are able to switch to nitrate respiration, blocking oxygen delivery. This particular fact likely allows them to exhibit high nitrogen fixation activity. Such a possibility was already demonstrated for E. meliloti 1021 during initial incubation in the conditions of low oxygen concentration (2 %) [26]. The denitrification power of nodular bacteria plays a key role in preventing the early formation of nodules [27, 28]. The loss of ability to form nodules by recombinant strains and the appearance of nitrate respiration can be interrelated.



Table 1

Analysis of the composition and amount of nitrogen compounds in the soil

Sample

NH4+, mg/kg

NO3+, mg/kg

Untreated soil

30.86 ± 3.2

1050 ± 11

Inoculation with the wild type strain Ensifer sp. Mlu10

31.15 ± 2.7

1050 ± 13

Inoculation with a recombinant strain Ensifer sp. Mlu10PmNifA

83.6 ± 1.6

355 ± 7



Here, it was demonstrated that nitrogen fixation activity outside of plants can be induced in nodular bacteria by modifying the regulation of the expression of nifA. The degree of this activity does not have direct dependence on the level of expression of the regulatory protein. The nitrogenase activity of nifA-recombinant strains is easily detectable, although it is significantly lower than that of the free-living nitrogen fixers. In some cases, recombinant strains can manifest super nitrogen fixation properties, which are considerably superior to those of the free-living nitrogen fixers.

Acknowledgments

The work was performed using the instrumentation pool of the CCU “Biomika” of the Institute of Biochemistry and Genetics of UFRC RAS within the frame of the state task (subject No. ААААА161160203500284) with financial support of the grant of the Russian Foundation of Basic Research No. 183400034 мол_а, No. 183420004 мол_а_вед and grant for innovation research “UMNIK” of A.A. Vladimirova (No. 12605ГУ/2017). Plasmid expression constructions were created with financial support of the Russian Scientific Foundation (grant No. 177430012).

Andrey K. Baymiev

Institute of Biochemistry and Genetics – Subdivision of the Ufa Federal Research Centre of the Russian Academy of Sciences

Author for correspondence.
Email: baymiev@anrb.ru
ORCID iD: 0000-0001-6637-9365
SPIN-code: 1919-5236
ResearcherId: R-9219-2016

Russian Federation,  71, prospekt Oktyabrya, Ufa, 450054

PhD, Leading Researcher, Laboratory of Plant and Microbial Bioengineering

Roman S. Gumenko

Institute of Biochemistry and Genetics – Subdivision of the Ufa Federal Research Centre of the Russian Academy of Sciences

Email: r.gumenko@yandex.ru

Russian Federation,  71, prospekt Oktyabrya, Ufa, 450054

Junior Researcher, Laboratory of Plant and Microbial Bioengineering

Anastasiya A. Vladimirova

Institute of Biochemistry and Genetics – Subdivision of the Ufa Federal Research Centre of the Russian Academy of Sciences

Email: vladimirovaw@bk.ru

Russian Federation,  71, prospekt Oktyabrya, Ufa, 450054

Graduate Student, Laboratory of Plant and Microbial Bioengineering

Ekaterina S. Akimova

Institute of Biochemistry and Genetics – Subdivision of the Ufa Federal Research Centre of the Russian Academy of Sciences

Email: iv.katerina-bio@yandex.ru

Russian Federation,  71, prospekt Oktyabrya, Ufa, 450054

PhD, Researcher, Laboratory of Plant and Microbial Bioengineering

Zilya R. Vershinina

Institute of Biochemistry and Genetics – Subdivision of the Ufa Federal Research Centre of the Russian Academy of Sciences

Email: zilyaver@mail.ru

Russian Federation,  71, prospekt Oktyabrya, Ufa, 450054

PhD, Researcher, Laboratory of Plant and Microbial Bioengineering

Aleksey K. Baymiev

Institute of Biochemistry and Genetics – Subdivision of the Ufa Federal Research Centre of the Russian Academy of Sciences

Email: baymiev@mail.ru

Russian Federation,  71, prospekt Oktyabrya, Ufa, 450054

PhD, Head of Laboratory of Plant and Microbial Bioengineering

  1. Проворов Н.А., Воробьев Н.И. Генетические основы эволюции растительно-микробного симбиоза. – СПб.: Информ-Навигатор, 2012. [Provorov NA, Vorob’ev NI. Geneticheskie osnovy evolyutsii rastitel’no-mikrobnogo simbioza. Saint Petersburg: Inform-Navigator; 2012. (In Russ.)]
  2. Dludlu MN, Chimphango SBM, Walker G, et al. Horizontal gene transfer among Rhizobia of the Core Cape Subregion of Southern Africa. S Afr J Bot. 2018;118:342-52. https://doi.org/10.1016/j.sajb.2018.02.406.
  3. Andrews M, De Meyer S, James EK, et al. Horizontal transfer of symbiosis genes within and between Rhizobial Genera: Occurrence and Importance. Genes (Basel). 2018;9(7). https://doi.org/10.3390/genes9070321.
  4. Ling J, Wang H, Wu P, et al. Plant nodulation inducers enhance horizontal gene transfer of Azorhizobium caulinodans symbiosis island. Proc Natl Acad Sci USA. 2016;113(48):13875-13880. https://doi.org/10.1073/pnas.1615121113.
  5. Dixon R, Kahn D. Genetic regulation of biological nitrogen fixation. Nat Rev Microbiol. 2004;2(8):621-31. https://doi.org/10.1038/nrmicro954.
  6. Kennedy C, Robson RL. Activation of nif gene expression in Azotobacter by the nifA gene product of Klebsiella pneumoniae. Nature. 1983;301(5901):626-628. https://doi.org/10.1038/301626a0.
  7. Kim Y-M, Hidaka M, Masaki H, et al. Constitutive expression of nitrogenase system in Klebsiella oxytoca by gene targeting mutation to the chromosomal nifLA operon. J Biotechnol. 1989;10(3-4):293-301. https://doi.org/10.1016/0168-1656(89)90073-4.
  8. An Q, Dong Y, Wang W, et al. Constitutive expression of the nifA gene activates associative nitrogen fixation of Enterobacter gergoviae 57-7, an opportunistic endophytic diazotroph. J Appl Microbiol. 2007;103(3):613-620. https://doi.org/10.1111/j.1365-2672.2007.03289.x.
  9. Chabot R, Antoun H, Kloepper JW, Beauchamp CJ. Root colonization of maize and lettuce by bioluminescent Rhizobium leguminosarum biovar phaseoli. Appl Environ Microbiol. 1996;62(8):2767-2772.
  10. Chao WL. Antagonistic activity of Rhizobium spp. against beneficial and plant pathogenic fungi. Lett Appl Microbiol. 1990;10(5):213-215. https://doi.org/10.1111/j.1472-765X.1990.tb01336.x.
  11. Blatny JM, Brautaset T, Winther-Larsen HC, et al. Improved broad-host-range RK2 vectors useful for high and low regulated gene expression levels in gram-negative bacteria. Plasmid. 1997;38(1):35-51. https://doi.org/10.1006/plas.1997.1294.
  12. Sletta H, Nedal A, Aune TE, et al. Broad-host-range plasmid pJB658 can be used for industrial-level production of a secreted host-toxic single-chain antibody fragment in Escherichia coli. Appl Environ Microbiol. 2004;70(12):7033-7039. https://doi.org/10.1128/AEM.70.12.7033-7039.2004.
  13. Lin JJ. Electrotransformation of Agrobacterium. In: Methods in molecular biology. Totowa: Humana Press; 1995. P. 171-178.
  14. Towbin H, Staehelin T, Gordon J. Electrophoretic transfer of proteins from polyacrylamide gels to nitrocellulose sheets: procedure and some applications. Proc Natl Acad Sci USA. 1979;76(9):4350-4354. https://doi.org/10.1073/pnas.76.9.4350.
  15. Mongiardini EJ, Ausmees N, Perez-Gimenez J, et al. The Rhizobial adhesion protein RapA1 is involved in adsorption of Rhizobia to plant roots but not in nodulation. FEMS Microbiol Ecol. 2008;65(2):279-288. https://doi.org/10.1111/j.1574-6941.2008.00467.x.
  16. Tsoy OV, Ravcheev DA, Cuklina J, Gelfand MS. Nitrogen fixation and molecular oxygen: comparative genomic reconstruction of transcription regulation in Alphaproteobacteria. Front Microbiol. 2016;7:1343. https://doi.org/10.3389/fmicb.2016.01343.
  17. González-Pérez MM, Marqués S, Domínguez-Cuevas P, Ramos JL. XylS activator and RNA polymerase binding sites at the Pm promoter overlap. FEBS Letters. 2002;519(1-3):117-122. https://doi.org/10.1016/s0014-5793(02)02730-8.
  18. Brautaset T, Lale R, Valla S. Positively regulated bacterial expression systems. Microb Biotechnol. 2009;2(1):15-30. https://doi.org/10.1111/j.1751-7915.2008.00048.x.
  19. Sullivan JT, Trzebiatowski JR, Cruickshank RW, et al. Comparative sequence analysis of the symbiosis island of Mesorhizobium loti strain R7A. J Bacteriol. 2002;184(11):3086-3095. https://doi.org/10.1128/jb.184.11.3086-3095.2002.
  20. Sullivan JT, Brown SD, Ronson CW. The NifA-RpoN regulon of Mesorhizobium loti strain R7A and its symbiotic activation by a novel LacI/GalR-family regulator. PLoS One. 2013;8(1): e53762. https://doi.org/10.1371/journal.pone.0053762.
  21. Gamez-Reyes A, Becerra-Lobato N, Ramírez-Trujillo JA, et al. The Rhizobium leucaenae CFN299 pSym plasmid contains genes expressed in free life and symbiosis, as well as two replication systems. Ann Microbiol. 2017;67(3): 263-73. https://doi.org/10.1007/s13213-017-1257-3.
  22. Nukui N, Minamisawa K, Ayabe S, Aoki T. Expression of the 1-aminocyclopropane-1-carboxylic acid deaminase gene requires symbiotic nitrogen-fixing regulator gene nifA2 in Mesorhizobium loti MAFF303099. Appl Environ Microbiol. 2006;72(7):4964-4969. https://doi.org/10.1128/AEM.02745-05.
  23. Oelze J. Respiratory protection of nitrogenase in Azotobacter species: is a widely held hypothesis unequivocally supported by experimental evidence? FEMS Microbiol Rev. 2000;24(4):321-333. https://doi.org/10.1111/j.1574-6976.2000.tb00545.x.
  24. Boyd ES, Costas AM, Hamilton TL, et al. Evolution of molybdenum nitrogenase during the transition from anaerobic to aerobic metabolism. J Bacteriol. 2015;197(9):1690-9. https://doi.org/10.1128/JB.02611-14.
  25. Boyd ES, Peters JW. New insights into the evolutionary history of biological nitrogen fixation. Front Microbiol. 2013;4:201. https://doi.org/10.3389/fmicb.2013.00201.
  26. Torres MJ, Rubia MI, de la Pena TC, et al. Genetic basis for denitrification in Ensifer meliloti. BMC Microbiol. 2014;14:142. https://doi.org/10.1186/1471-2180-14-142.
  27. Bobik C, Meilhoc E, Batut J. FixJ: a major regulator of the oxygen limitation response and late symbiotic functions of Sinorhizobium meliloti. J Bacteriol. 2006;188(13): 4890-4902. https://doi.org/10.1128/JB.00251-06.
  28. Cabeza R, Koester B, Liese R, et al. An RNA sequencing transcriptome analysis reveals novel insights into molecular aspects of the nitrate impact on the nodule activity of Medicago truncatula. Plant Physiol. 2014;164(1):400-411. https://doi.org/10.1104/pp.113.228312.
