Experience of using intra-aortic balloon counterpulsation during coronary bypass surgery and coronary stenting in patients with reduced left ventricular ejection fraction and mitral regurgitation of ischemic genesis
- Authors: Kostyamin Y.D.1, Mikhailichenko V.Y.2, Basiyan-Kuhto N.K.1, Grekov I.S.1
-
Affiliations:
- State educational institution “Donetsk national medical University. M. Gorky”
- Medical Academy named after S.I. Georgievsky of Vernadsky CFU
- Issue: Vol 29, No 3 (2021)
- Pages: 419-426
- Section: Original study
- URL: https://journals.eco-vector.com/pavlovj/article/view/60221
- DOI: https://doi.org/10.17816/PAVLOVJ60221
- ID: 60221
Cite item
Abstract
AIM: To analyze the changes in the degree of mitral regurgitation (MR) of ischemic origin and of clinical outcomes in patients with reduced left ventricular ejection fraction (LVEF) and multi-vascular coronary artery disease during use of intra-aortic balloon counterpulsation (IABC).
MATERIALS AND METHODS: The results of the treatment of 186 patients with ischemic mitral insufficiency who underwent intra-aortic balloon counterpulsation as a preoperative preparation in connection with a low LVEF were outlined in this manuscript. The patients were divided into 2 groups. Group 1 included 132 patients who underwent coronary bypass surgery while Group 2 included 54 patients who underwent coronary artery stenting. The dynamics of MR and LVEF before and after left ventricular revascularization were studied on the basis of echocardiographic data.
RESULTS: In group 1, there was a decrease in the degree of mitral regurgitation by 58% using IABC (p < 0.05) in the early postoperative period (based on the measurement of vena contracta, v.c., the width of the regurgitation jet on the valve), and by 54% (p < 0.05) in more than 6 months following surgical treatment. In group 2, there was a significant decrease in the degree of MR (based on v.c.) by 42% (p < 0.05) in the early postoperative period and by 41% (p < 0.05) in more than 6 months following surgical treatment.
CONCLUSION: The use of intra-aortic balloon counterpulsation in patients with low LVEF, moderate and severe MI, and with significant coronary artery pathology, led to the reduction in the duration of surgical treatment and the time of using artificial blood circulation through by excluding the need for the correction of MI, both directly during surgical revascularization and in the long-term period (more than 6 months).
Full Text
IABC was inserted in all 186 patients three days before the surgical intervention because of reduced LVEF (from 17% to 42%). IABC was used in 1:1 mode. Adrenomimetics were used in 19 patients because of pronounced arterial hypotension. Also, 89 patients had signs of cardiac insufficiency (IIB stage). No patient was required to have surgical correction of MIn performed because the echocardiography (EchoCG) data showed no anatomic lesions of the cusps and other mitral valve structures. All patients had significant atherosclerotic lesions of the carotid arteries and arteries of the lower limbs (to the extent of occlusion). Also, 63% of patients had comorbid type 2 diabetes mellitus.
The duration (M ± σ) of the surgical intervention in group 1 was 245 ± 3 2 min, artificial circulation — 98 ± 14 min, of compression of the aorta — 56 ± 9 min, and stay in the hospital — 12 ± 2 days. In all the patients in whom the vena contracta (v.c.) in EchoCG before the surgery was more than 4.0 mm, intraoperative water testing was performed to identify the degree of MIn (Figure 2). IABC was switched off on the second day after the surgical intervention.
In group 2, the intervention duration (M ± σ) was 138 ± 19 min. In two patients, revascularization of five CA was performed (the trunk of the left coronary artery, the anterior descending artery, circumflex artery, obtuse marginal branch, right coronary artery), in 19 patients — four vessels (the anterior descending artery, circumflex artery, obtuse marginal branch, right coronary artery), in 27 patients — three vessels (anterior descending artery, circumflex artery, right coronary artery), in six patients — two vessels (anterior descending artery, circumflex artery). IABC was removed on average on the seventh day after revascularization.
INTRODUCTION
The problem of ischemic mitral insufficiency (MIn) remains relevant up to the present time [1, 2]. Dilatation of the left ventricle (LV) leads to distension of the mitral valve ring, which, in turn, leads to mitral regurgitation (MR) of a different extent and severity. The most common cause of ischemic dilatation of the LV is long-standing atherosclerosis of the coronary arteries (CA) [1–3]. If the pathology was not timely diagnosed, patients were admitted to the clinic with a triad: a reduction in the ejection fraction (EF) of the LV, Min, and multivascular lesions of CA. The gold standard for treating such patients is coronary artery bypass surgery with prosthetics/plasty of the mitral valve [4, 5].
Without special preparation, however, these patients demonstrate a high percentage of lethal outcomes (in some cases, patients are refused surgical treatment and/or offered a heart transplantation operation) [4, 6]. This is directly associated with myocardial hibernation, inadequate myocardial perfusion with custodial during the operation, a prolonged switch-off of the artificial blood-circulation apparatus due to pronounced heart weakness, leading to high-dose adrenomimetic use [7]. For preoperative preparation of patients with such pathology, intra-aortic balloon counterpulsation (IABC) support is used. It has repeatedly been proven that IABC improves myocardial perfusion and increases EF LV [7, 8]. However, in several patients, the MIn dynamics were such that the surgical treatment volume and the surgical revascularization method were changed because of the need for MR correction [1, 6, 9, 10].
Aim — this study analyzes the dynamics of ischemic mitral regurgitation and clinical outcomes in patients with reduced left ventricular ejection fractions and multivascular lesions of the coronary arteries using intra-aortic balloon counterpulsation in coronary bypass surgery and coronary stenting.
MATERIALS AND METHODS
A retrospective analysis of 186 patients with moderate or pronounced MR was conducted from 2010 to 2020. In all patients, coronary bypass surgery or stenting was performed in the cardiovascular surgery department of Donetsk Clinical Territorial Medical Association. Patients over 18 years old (average, 53.6 ± 6.32 years) were enrolled. All patients were divided into two groups based on the treatment method used.
Group 1 included 132 patients (91 men and 41 women) whose revascularization procedure was coronary artery bypass surgery. The average LVEF was 34.1 ± 4.6% (minimal 26%, maximal 42%). In 89 patients, III degree MR was recorded before IABC support, 27 patients — II degree MR, and 16 patients — I degree MR (Table 1, Fig. 1A).
Group 2 included 54 patients (26 men and 28 women) who underwent coronary artery stenting as the revascularization method. This group included the patients with the most severe conditions (LVEF less than 25% and III degree MR, Table 1), associated with high surgical risks when performing traditional bypass surgery.
Table 1. The severity of Mitral Insufficiency in Study Groups before Intra-Aortic Balloon Counterpulsation Support
Study Group | n (%) | Vena contracta | ||
Data Format | Result, mm | |||
Group 1 | I degree Mitral Insufficiency | 16 (8.6%) | M ± σ Me [Q1–Q3] | 2.1 ± 0.22 2.2 [1.9–2.4] |
II degree Mitral Insufficiency | 27 (14.5%) | M ± σ Me [Q1–Q3] | 4.9 ± 0.31 5.06 [4.6–5.2] | |
III degree Mitral Insufficiency (left ventricle ejection fraction ≥26%) | 89 (47.9%) | M ± σ Me [Q1–Q3] | 6.2 ± 0.3.9 6.25 [5.9–6.8] | |
Group 2 | III degree Mitral Insufficiency (left ventricle ejection fraction ≤25%) | 54 (29.0%) | M ± σ Me [Q1–Q3] | 6.3 ± 0.22 6.42 [5.8–7.0] |

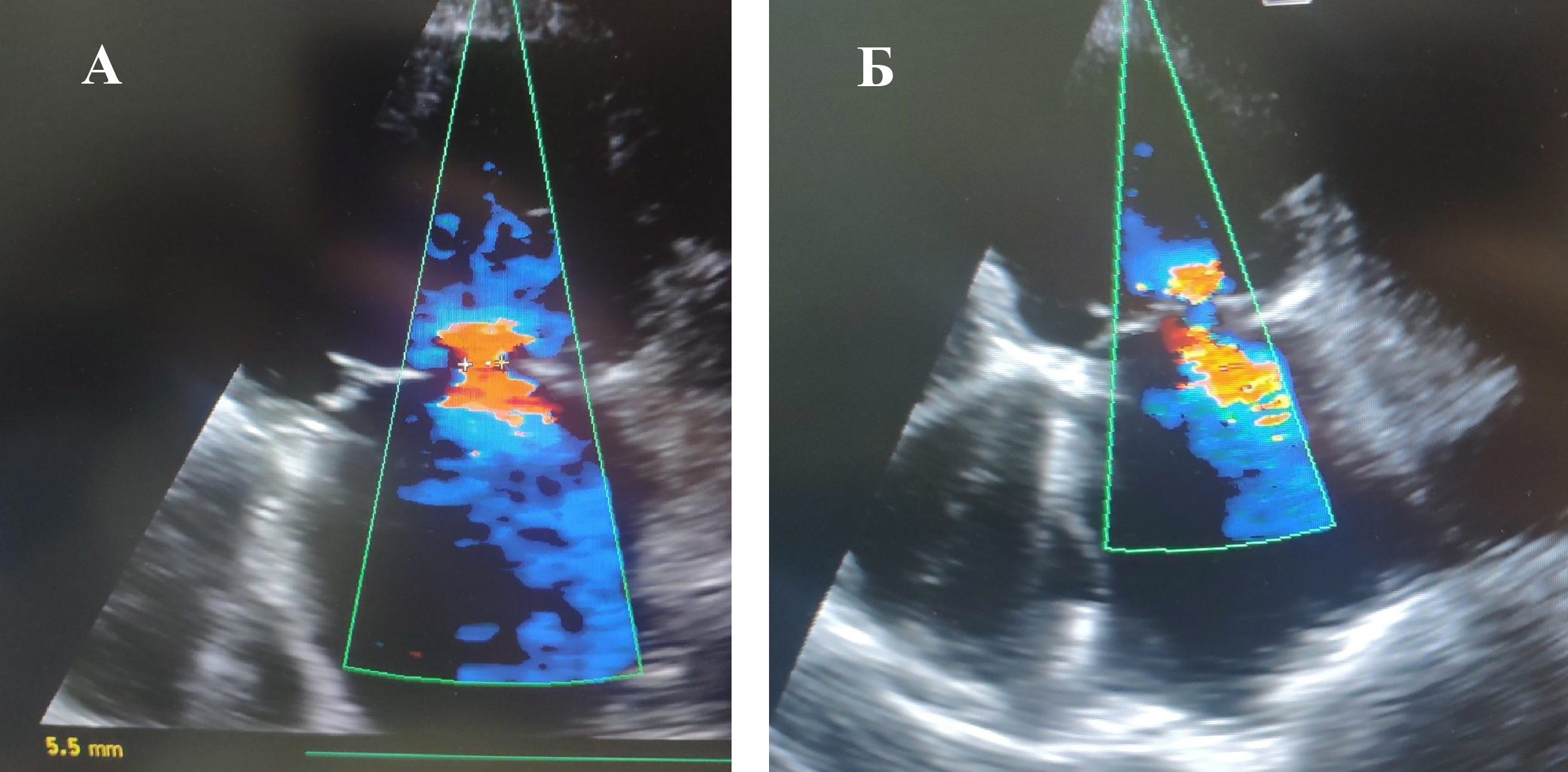

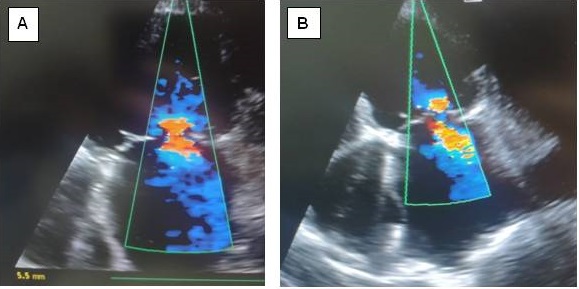

Fig. 1. Visualization of Mitral Insufficiency using color Doppler imaging before the surgical intervention: A — before insertion of Intra-Aortic Balloon Counterpulsation; B — with the working Intra-Aortic Balloon Counterpulsation in the early postoperative period.
Fig. 2. Intraoperative revision of the mitral valve by conducting water testing.
The results obtained were processed using Statistica 10.0 program (Stat Soft Inc., USA). The data are presented in the form of the mean (M), standard deviation (σ), median (Me), and interquartile range [Q1–Q3]. The statistical significance of the differences between the groups was assessed using the nonparametric Mann–Whitney test. The differences were considered statistically significant at p < 0.05.
RESULTS
The dynamics of v.c. and LVEF in the study groups during the follow-up period are given in Tables 2 and 3.
Table 2. Dynamics of Vena contracta and Left Ventricle Ejection Fraction in Study Groups in Hospital stage
Parameters | Data Format and p | Before Intra-Aortic Balloon Counterpulsation | 3 Days of Intra-Aortic Balloon Counterpulsation | One hour after Surgery | 7 Days after Surgery |
Group 1 | |||||
Vena contracta, мм | M ± σ Me [Q1–Q3] р | 5.7 ± 0.3 5.72 [1.9–6.8] | 3.6 ± 0.4 3.74 [1.4–4.3] 0.005 | 3.7 ± 0.3 3.84 [1.5–4.4] 0.005 | 2.5 ± 0.7 2.74 [1.4–4.2] 0.005 |
Left ventricle ejection fraction, % | M ± σ Me [Q1–Q3] р | 34.1 ± 4.6 36.1 [26.2–42.0] | 42 ± 2.4 45.6 [31.8–50.4] 0.0003 | 41 ± 2.7 44.2 [30.7–48.9] 0.0003 | 44 ± 1.9 45.6 [32.1–50.3] 0.0003 |
Group 2 | |||||
Vena contracta, мм | M ± σ Me [Q1–Q3] р | 6.3 ± 0.3 6.52 [6.1–7.2] | 2.1 ± 0.5 2.24 [2.0–3.2] 0.001 | 2.2 ± 0.3 2.12 [1.8–3.3] 0.001 | 2.2 ± 0.5 2.21 [1.8–3.9] 0.001 |
Left ventricle ejection fraction, % | M ± σ Me [Q1–Q3] р | 20.3 ± 2.1 21.4 [17.1–24.9] | 37 ± 2.9 38.3 [27.4–43.1] 0.0003 | 37 ± 2.8 38.6 [26.9–42.5] 0.0003 | 41 ± 2.8 42.5 [29.4–46.1] 0.0003 |
Note: р — reflects statistically significant difference compared with the given parameter before insertion of Intra-Aortic Balloon Counterpulsation
Table 3. Dynamics of Vena contracta and Left Ventricle Ejection Fraction in Study Groups at 6 and 12 Months of Observation
Parameters | Data Format and p | 6 Months | 12 Months |
Group 1 | |||
Vena contracta, мм | M ± σ Me [Q1–Q3] р | 2.6 ± 0.3 2.72 [1.5–4.1] 0.005 | 2.7 ± 0.5 2.83 [1.5–4.2] 0.005 |
Left ventricle ejection fraction, % | M ± σ Me [Q1–Q3] р | 43 ± 3.2 45.2 [31.1–48.7] 0.005 | 42 ± 2.7 44.6 [30.9–49.4] 0.005 |
Group 2 | |||
Vena contracta, мм | M ± σ Me [Q1–Q3] р | 2.2 ± 0.4 2.26 [1.7–4.1] 0.001 | – |
Left ventricle ejection fraction, % | M ± σ Me [Q1–Q3] р | 39.3 ± 1.4 40.7 [29.3–45.8] 0.0003 | – |
Note: р — reflects statistically significant difference compared with the given parameter before insertion of Intra-Aortic Balloon Counterpulsation
In group 1 with the application of IABC, a statistically significant reduction in the degree of MIn (based on the change in the diameter of the v.c.) by 58% (р < 0.05) in the early postoperative period (Fig. 1B) and by 54% (р < 0.05) more than six months after the surgical intervention. This parameter remained at this level for a long observation period, with a minimum of 12 months.
Complications: Massive postoperative bleeding (required resternotomy) occurred in three patients, whereas 26 patients had paroxysmal forms of rhythm disorder in the postoperative period (was eliminated conservatively). Two patients required the implantation of electrocardiostimulators in the postoperative period because they developed complete atrioventricular blocks. Also, four patients died in the early postoperative period (three due to acute mesenteric ischemia and one — ischemic stroke).
In group 2, with the application of IABC, a statistically significant reduction in the degree of MIn (based on changes in the diameter of the v.c.) by 42% (p < 0.05) in the early postoperative period and by 41% (p < 0.05) at more than six months after surgical treatment. There was also a statistically significant increase in LVEF by 78% (p < 0.05) seven days after surgery and by 84% (p < 0.05) six months after surgical treatment.
In the second group, no deaths occurred. In nine patients, negative dynamics were noted on the ECG in the first five days (negative T wave in V4–V6 leads), which is most probably associated with intraoperative damage to the myocardium resulting from temporary vessel closure during stenting.
DISCUSSION
Our data agree with those of other authors. According to a meta-analysis of seven randomized and 16 observational studies, including 9212 patients, the preventive use of IABC reduced the risk of lethality in randomized clinical studies by 4.4% (odds ratio 0.43; 95% confidence interval 0.25–0.73; р = 0.0025). Besides, the patient length of stay with preoperative IABC support in an intensive care unit (р < 0.0001) and in a hospital (р < 0.0001) also significantly decreased. According to the analysis, current randomized clinical trial and observational study data enable patients at high risk before coronary aortic bypass surgery to expect favorable effects of IABC [11]. Similar data are provided in the review by Poirier et al. [12].
CONCLUSION
Thus, intra-aortic balloon counterpulsation in patients with a low left ventricular ejection fraction, moderate and pronounced mitral insufficiency, and significant pathology of the coronary arteries permitted a reduction in the duration of surgical treatment and artificial circulation (in study group 1) by refusing surgical correction of mitral insufficiency. In group 2, it permitted the complete refusal of additional intervention (for valve prosthesis or plasty) because of the absence of these indications (the average time of correction of isolated mitral regurgitation by valve plasty/prosthetics is 15–25 min). Besides, these patients do not need to take anticoagulants, which reduce the risk of developing early and late hemorrhagic complications.
It is also possible to use intra-aortic balloon counterpulsation to treat patients in extremely severe conditions (those inoperable with traditional methods due to high risks). It is not only the volume of surgical intervention that changes, but also the method of revascularization changes to a minimally invasive one. This almost always reduces the risks of surgical treatment for a patient.
ADDITIONAL INFORMATION
Funding. Budget of Gorky Donetsk National Medical University.
Conflict of interest. The authors declare no conflict of interests.
Patient сonsent. The study used data from people in accordance with signed informed consent.
Contribution of the authors: Yu. D. Kostyamin — concept of the study, collection and processing of the material, writing the text, V. Yu. Mikhaylichenko, N. K. Baziyan–Kukhto, I. S. Grekov — collection and processing of the material, writing the text.
About the authors
Yuri D. Kostyamin
State educational institution “Donetsk national medical University. M. Gorky”
Email: kostiamin@mail.ru
ORCID iD: 0000-0003-0141-8719
SPIN-code: 8687-0660
MD, Cand. Sci. (Med.)
Ukraine, DonetskVyacheslav Y. Mikhailichenko
Medical Academy named after S.I. Georgievsky of Vernadsky CFU
Email: pancreas1978@mail.ru
ORCID iD: 0000-0003-4204-5912
SPIN-code: 4606-8664
MD, Dr. Sci. (Med.), Professor
Russian Federation, SimferopolNaira K. Basiyan-Kuhto
State educational institution “Donetsk national medical University. M. Gorky”
Email: naira-251088@mail.ru
ORCID iD: 0000-0002-3554-4505
MD, Cand. Sci. (Med.)
Ukraine, DonetskIlya S. Grekov
State educational institution “Donetsk national medical University. M. Gorky”
Author for correspondence.
Email: ilya.grekov.1998@gmail.com
ORCID iD: 0000-0002-6140-5760
6th year student
Ukraine, DonetskReferences
- Baumgartner H, Falk V, Bax JJ, et al. 2017 ESC/EACTS Guidelines for the management of valvular heart disease. European Heart Journal. 2017;38(36):2739–91. doi: 10.1093/eurheartj/ehx391
- Kron IL, Acker MA, Adams DH, et al. 2015 The American Association for Thoracic Surgery Consensus Guidelines: Ischemic mitral valve regurgitation. The Journal of Thoracic and Cardiovascular Surgery. 2016;151(4):940–56. doi: 10.1016/j.jtcvs.2015.08.127
- Roffi M, Patrono C, Collet J-P, et al. 2015 ESC Guidelines for the management of acute coronary syndromes in patients presenting without persistent ST-segment elevation: Task Force for the Management of Acute Coronary Syndromes in Patients Presenting without Persistent ST-Segment Elevation of the European Society of Cardiology (ESC). European Heart Journal. 2016;37(3):267–315. doi: 10.1093/eurheartj/ehv320
- Bokeriya LA, Gudkova RG. Serdechno-sosudistaya khirurgiya — 2015. Bolezni i vrozhdennyye anomalii sistemy krovoobrashcheniya. Moscow: NTsSSKh im. A.N. Bakuleva RAMN; 2016. (In Russ).
- De Bruyne B, Pijls NH, Kalesan B, et al. Fractional flow reserve-guided PCI versus medical therapy in stable coronary disease. The New England Journal of Medicine. 2012;367(11):991–1001. doi: 10.1056/NEJMoa1205361
- Khubulava GG, Marchenko SP, Aleksanyan MG, et al. Mitral valve repair with coronary artery bypass grafting in patients with ischemic mitral regurgitation. Bulletin of the Russian Military Medical Academy. 2013;(1):6–10. (In Russ.).
- Bokeriya LA, Skopin II, Mironenko VA. Ishemicheskaya mitral’naya regurgitatsiya. Sovremennyye podkhody k khirurgicheskomu lecheniyu. Russian Journal of Surgery. 2002;(2):14–21. (In Russ).
- Bursi F, Enriquez-Sarano M, Jacobsen SJ, et al. Mitral regurgitation after myocardial infarction: a review. The American Journal of Medicine. 2006;119(2):103–12. doi: 10.1016/j.amjmed.2005.08.025
- Borger MA, Alam A, Murphy PM, et al. Chronic ischemic mitral regurgitation: repair, replace or rethink? The Annals of Thoracic Surgery. 2006;81(3):1153–61. doi: 10.1016/j.athoracsur.2005.08.080
- Szeto WY, Gorman RC, Gorman JH 3rd, et al. Ischemic mitral regurgitation. In: Cohn L.C. Cardiac Surgery in the Adult. 3rd ed. New York: McGraw-Hill; 2003. P. 785–802.
- Deppe А–C, Weber С, Liakopoulos ОJ, et al. Preoperative intra-aortic balloon pump use in high-risk patients prior to coronary artery bypass graft surgery decreases the risk for morbidity and mortality – A meta-analysis of 9,212 patients. Journal of Cardiac Surgery. 2017;32(3):177–85. doi: 10.1111/jocs.13114
- Poirier Y, Voisine P, Plourde G, et al. Efficacy and safety of preoperative intra-aortic balloon pump use in patients undergoing cardiac surgery: a systematic review and metaanalysis. International Journal of Cardiology. 2016;207:67–79. doi: 10.1016/j.ijcard.2016.01.045
