Systematic of polymorphous transformation of crystals, generalized on the base of M.J. Burger’s criteria

Cover Page

Cite item

Full Text

Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription or Fee Access

Abstract

The paper proposes an extended (3 × 3) classification of polymorphous transformations, which includes the 0th coordination sphere in addition to the M. J. Burger’s I and II coordination spheres. As a result, the first parameter of this classification is the number of a transformable coordination sphere — it takes the value equal to 0 (atom, ion), 1 (the coordination polyhedra) and 2 (the nearest to the coordination polyhedra environment). The second parameter of the classification is determined by the Burger’s energy barrier for a transformation. And here, in addition to transformations with a break of chemical bonds (reconstructive) and without it (deformational), some intermediate types of transformations take place — with a disordering of structural units (atoms, molecules and other atomic complexes). As examples of polymorphous transformations with transformation of the 0th coordination sphere, there are considered electron transitions in an atom, changes of the atom’s spin, and magnetic ordering of atoms in a crystal structure. Transformations with disordering are illustrated by substitutions-jumps of structural units and their slowed down or free rotation. There is developing the concept of “polymorphism” of chemical elements.

Full Text

Restricted Access

About the authors

Stanislav K. Filatov

Saint-Petersburg State University

Author for correspondence.
Email: filatov.stanislav@gmail.com
Russian Federation, Universitetskaya embankment, 7/9; Saint-Petersburg, Russia

Peter Paufler

Dresden technical university

Email: peter.paufler@tu-dresden.de
Germany, Drezden

References

  1. Baumhauer H. Über die Kristalle des Carborundums. Z. Kristallogr. 1912. Vol. 50. S. 33-39.
  2. Boky G. B. Crystal chemistry. Moscow: Nauka, 1971. 400 p. (in Russian).
  3. Bridgman P. W. The compressibility and pressure coefficient of resistance of ten elements. Proc. Am. Acad. Arts and Sci. 1927. Vol. 62. No. 8. P. 207-226.
  4. Buerger M. J. Crystallographic aspects of phase transphormations. In: Phase transformations in solids. Eds R. Smoluchowski, J. E. Mayer, W. A. Weyl. N.-Y.: John Wiley and Sons, 1951. P. 183- 211.
  5. Buerger M. J. Phase transitions. Cristallografiya. 1971. Vol. 16. P. 1084-1096 (in Russian).
  6. Dolivo-Dobrovolsky V. V. Crystal chemistry. Saint Petersburg: Saint Petersburg University Press, 1999. 118 p. (in Russian).
  7. Filatov S. K. High-temperature crystal chemistry. Leningrad: Nedra, 1990. 280 p. (in Russian).
  8. Filatov S. K. Crystal chemical phenomena: systematics, controversial facts, «borderline» problems. Cryst. Rep. 1995. Vol. 40. No. 1. P. 63-69 (in Russian).
  9. Filatov S. K. General concept of increasing crystal symmetry with an increase in temperature. Cryst. Rep. 2011. Vol. 56. No. 6. P. 1019-1028.
  10. Filatov S. K., Polyakova I. G., Gaikova A. G., Kamentsev I. E. Thermal X-ray determination of the jump in the structural parameters of quartz during α-β transformation. Crystal. Rep. 1982. Vol. 27. No. 3. P. 624-626 (in Russian).
  11. Filatov S. K., Grunun V. S., Razumeenko M. V., Alekseeva T. V. Microisomorphism and polymorphism of titanium dioxide. In: Crystal chemistry and X-ray of minerals. Leningrad: Nauka, 1987. P. 44-62 (in Russian).
  12. Filatov S. K., Kotelnikova E. N., Chazhengina S. Yu. New phase transition of the first kind and new polymorphic modifications of paraffins. Doklady Earth Sci. 1993. Vol. 330. No. 5. P. 605-608 (in Russian).
  13. Filatov S. K., Kotelnikova E. N., Filippova I. V. New mixed-type rotational crystalline state of solids on an example of paraffin. Cryst. Rep. 1997. Vol. 42. No. 4. P. 608-611.
  14. Filatov S. K., Krivovichev S. V., Bubnova R. S. General crystal chemistry. Saint Petersburg: Saint Petersburg University Press, 2018. 276 p. (in Russian).
  15. Frank F. C. CII. The growth of carborundum: Dislocations and polytypism. The London, Edinburgh, and Dublin Philosoph. Mag. J. Sci.: Series 7. 1951. Vol. 42. No. 332. P. 1014-1021.
  16. Goldschmidt V. M. Kristallchemie. Jena: Verlag von Gustav Fischer, 1934. 63 p.
  17. Grunun V. S., Razumeenko M. V., Patrina I. B., Filatov S. K., Alekseeva T. V. About the existence and prevalence of TiO2 - rutile, anatase and brookite. In: Reports of the USSR Academy of Sciences. 1983. Vol. 268. No. 3. P. 686-688 (in Russian).
  18. Kondo R.-I., Mashimo T., Sawaoka A. Electrical resistivity and phase transformation of hematite under shock compression. J. Geophysic. Res. 1980. Vol. 85. No. B2. P. 977-982.
  19. Kotelnikova E. N., Filatov S. K. Crystal chemistry of paraffins. Leningrad: Neva, 2002. 352 p. (in Russian).
  20. Landau L. D., Lifshitz E. M. Statistical Physics. Part 1. Oxford; New York; Toronto; Sydney; Paris; Frankfurt: Pergamon Press, 1980. 449 p.
  21. Lawson A. W., Ting Yuan Tang. Concerning the high pressure allotropic modification of cerium. Phys. Rev. 1949. Vol. 76. P. 301-302.
  22. Likhter A. I., Ryabinin Yu. N., Vereshchagin L. F. The phase diagram of Cerium. Zh. Eksp. Teor. Fiz. 1957. Vol. 33. No. 3(9). P. 610-613 (in Russian).
  23. Lima-de-Faria J., Hellner E., Liebau F., Makovicky E., Parthé E. Report of the International Union of Crystallography Commission on Crystallographic Nomenclature Subcommittee on the Nomenclature of Inorganic Structure Types. Acta Cryst. 1990. Vol. A46. P. 1-11.
  24. Mitscherlich E. Über die Körper, welche in zwei verschiedenen Formen kristallisieren. Abhandl. Berlin: Akad. Wissensch., aus d. Jahren 1822-1823, 1825. P. 43-48.
  25. Ohsumi H., Arima T.-H. Novel insight into structural magnetism by polarized synchrotron X-ray scattering. Adv. Phys. 2016. Vol. 1. P. 128-145.
  26. Poniatowskii E. G. About the critical point on the cerium polymorphic transformation curve. Doklady USSR Acad. Sci. 1958. Vol. 120. No. 5. P. 1021-1023 (in Russian).
  27. Reeder R. J. Crystal chemistry of the rhombohedral carbonates. Rev. Mineral. 1971. Vol. 11. P. 1-48.
  28. Sanson A., Kantor I., Cerantola V., Irifune T., Carmera A., Pascarelli S. Local structure and spin transition in Fe2O3 hematite at high pressure. Phys. Rev. 2016. Vol. B 94. P. 0141112-1-0141112-7.
  29. Schuch A. F., Sturdivant J. H. The structure of cerium at the temperature of liquid air. J. Chem. Phys. 1950. Vol. 18. No. 1. P. 145.
  30. Shafranivskii I. I. History of Crystallography, XIXth Century. Leningrad: Nauka, 1980. 324 p. (in Russian).
  31. Trombe F., Foex M. Domaine d’existence et propriétés des différents états allotropiques du cérium métallique. Ann. Chim. 1944. Vol. 19. P. 417-445.
  32. Urusov V. S. Theoretical crystal chemistry. Moscow: Moscow State University, 1987. 272 p. (in Russian).
  33. Verma A., Krishna P. Polymorphism and Polytypism in Crystals. New York: John Wiley and Sons, 1966. 341 p.
  34. Voytekhovsky Y. L. Definition, classification and matrix description of transformations of petrographic structures. Bull. Murmansk State Technical University. 2014. Vol. 17. No. 2. P. 266-270 (in Russian).
  35. Weinstein B. K., Fridkin V. M., Indenbom V. L. Modern Crystallography 2. Structure of Crystals. Springer-Verlag Berlin Heidelberg, 2000. 521 p.

Supplementary files

Supplementary Files
Action
1. JATS XML
Download

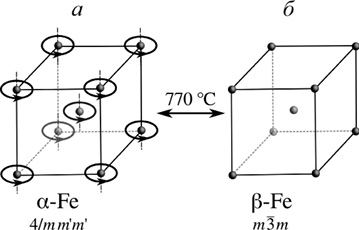

2. Fig. 1. Structures of ferromagnetic tetragonal α-Fe (а) and paramagnetic cubic β-Fe (б) polymorphic modifications of iron (Filatov, 1995).

Download (21KB)
Indexing metadata

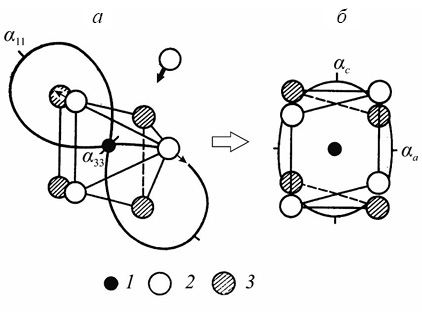

3. Fig. 2. Example of succession in reconstruction of the structure during deformations and polymorphous transition of crystals while the increase of temperature (Filatov, 2011). Coordination 7-verteces monoclinic modification ZrO2 (baddeleite) and principal features of its reconstruction (dark arrows (а)) in the 8-verteces tetragonal modification (б) in comparison with patterns of thermal expansion coefficients of these two modifications. 1 — Zr, 2 — upper atoms of oxygen, 3 — lower atoms of oxygen.

Download (31KB)
Indexing metadata

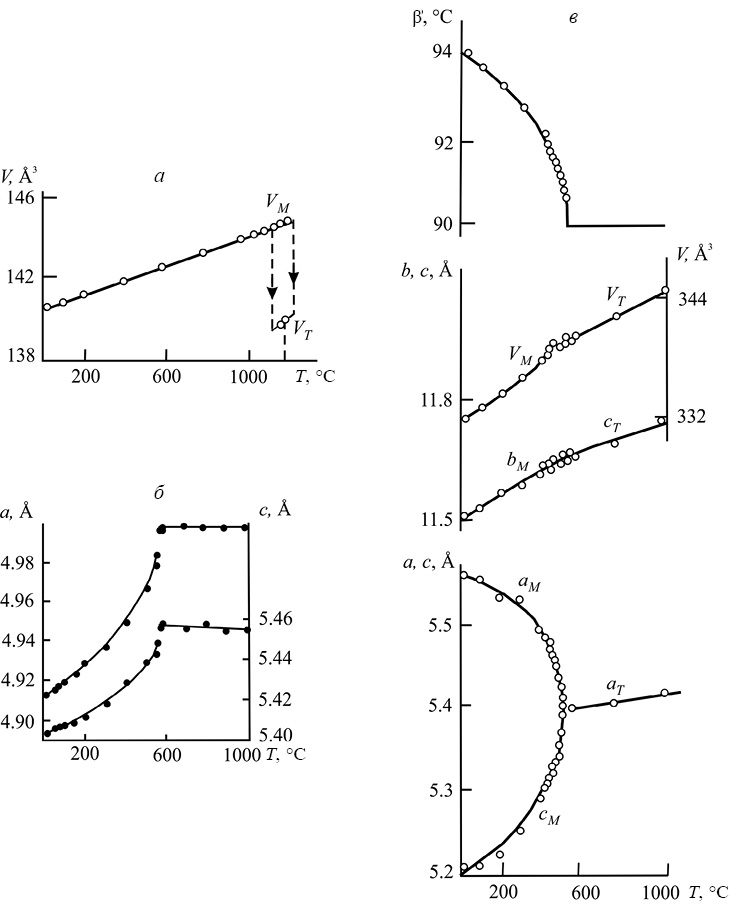

4. Fig. 3. Polymorphous transitions accompanied by different in value jumps of the modification volume (Filatov, 1990, p. 68, 99, 124): а — ZrO2, ΔV = –3.4 %; б — quartz, ΔV = +0.6 %; в — LaNbO4, ΔV = 0. Footnote indices M and T specify monoclinic and tetragonal modifications.

Download (85KB)
Indexing metadata

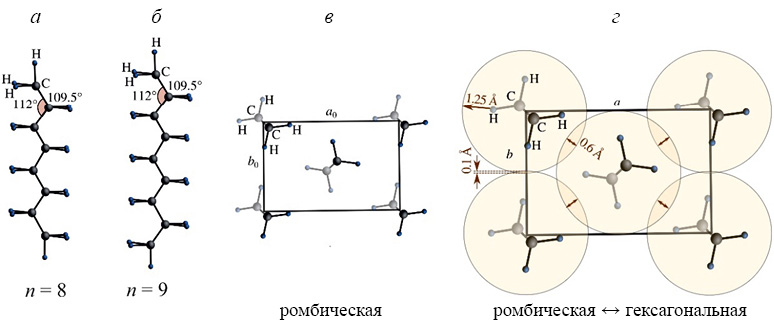

5. Fig. 4. Crystal structure of n-paraffin’s (Filatov et al., 1993; 1997; Kotelnikova, Filatov, 2002): even (а) and odd (б) aliphatic chains of C8H18 and C9H20 homolog’s; position of chains in structure ob orthorhombic (в) and hexagonal (г) modifications (axis c perpendicular to pictures); light and dark circles — atoms at different levels along the axis c; large circles — sections of «cylinders» of rotating chains.

Download (56KB)
Indexing metadata

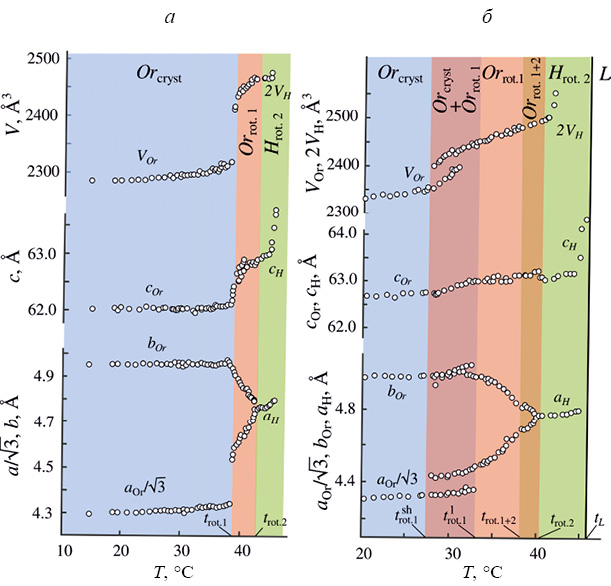

6. Fig. 5. Thermal dependence of a√3, b, c parameters and the volume V of n-paraffin’s unit cells (Filatov et al., 1993; 1997; Kotelnikova, Filatov, 2002): а — orthorhombic crystalline (Orcryst), orthorhombic rotation-crystalline (Orrot.1) and hexagonal rotation-crystalline (Hrot.2) modifications of the C23H48 homolog; б — the same for the solid solution of C22H46 and C24H50 homolog’s in the 1:1 ratio. Additional designations of phases are in text.

Download (97KB)
Indexing metadata

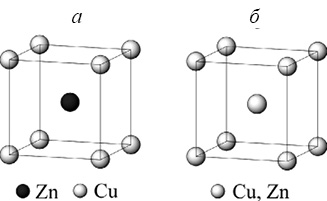

7. Fig. 6. Crystal structures of CuZn alloy: а — low temperature cubic modification, с. т. CsCl; б — high temperature cubic modification, с. т. β-Fe (Fig. 1).

Download (16KB)
Indexing metadata

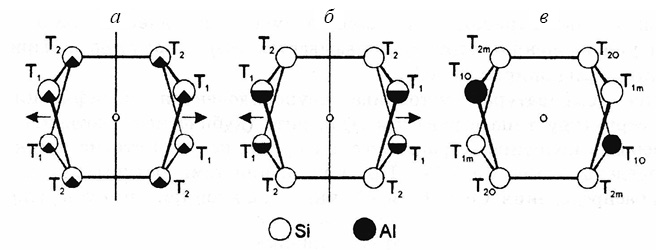

8. Fig. 7. Scheme of distribution of Si and Al atoms in tetrahedrical positions in sanidine (а), orthoclase (б) and the maximum microcline (в) (Dolivo-Dobrovolsky, 1999). Tetrahedra are marked according to the nomenclature of feldspars. Vertical lines — planes of symmetry, small circles — inversion centers.

Download (42KB)
Indexing metadata

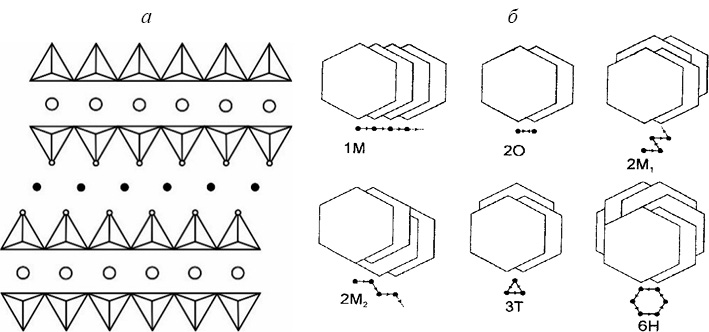

9. Fig. 8. To the question of polytypism of layered silicates: а — crystal structure of mica; б — six simple modes of the ordered overlapping of layers in mica.
