Selective system based on fragments of the M1 virus for the yeast Saccharomyces cerevisiae transformation

Cover Page
Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription or Fee Access


Background. A selective system based on the M1 virus of the yeast Saccharomyces cerevisiae was proposed.

Methods. To create a recipient strain, a DNA fragment encoding the killer toxin of the M1 virus under the control of the regulated promoter of the GAL1 gene was inserted into the genome of S. cerevisiae strains Y-1236 and Y-2177.

Results. Integration of such expression cassette leads to the conditional lethality – resulting strains die on a medium with galactose when killer toxin synthesis occurs. A linear DNA fragment containing the gene of interest flanked by sequences homologous to the promoter of the GAL1 gene and the termination region of the CYC1 gene is used to transform the obtained strains. During transformation due to homologous recombination, the sequence encoding the killer toxin is cleaved and the transformants grow on a medium with galactose.

Conclusion. The proposed selective system combines the main advantages of other systems: the use of simple media, without the need to add expensive antibiotics, and a simplified technique for constructing expression cassettes and selecting transformants.

Full Text

Restricted Access

About the authors

Dmitri M. Muzaev

Saint Petersburg State University


Russian Federation, Saint-Petersburg


Andrey M. Rumyantsev

Saint Petersburg State University

ORCID iD: 0000-0002-1744-3890
SPIN-code: 9335-1184
Scopus Author ID: 55370658800
ResearcherId: N-3546-2015

Russian Federation, Saint-Petersburg

PhD, Researcher

Ousama R. Al Shanaa

Saint Petersburg State University; Atomic Energy Commission of Syria


Syrian Arab Republic, Saint-Petersburg; Damascus, Syria

PhD Student

Elena V. Sambuk

Saint Petersburg State University

Author for correspondence.
ORCID iD: 0000-0003-0837-0498
SPIN-code: 8281-8020
Scopus Author ID: 6603061322
ResearcherId: H-6895-2013

Russian Federation, Saint-Petersburg

Doctor of Science, Docent


  1. Varela C. The impact of non-Saccharomyces yeasts in the production of alcoholic beverages. Appl Microbiol Biotechnol. 2016;100(23):9861-9874.
  2. Tofalo R, Fusco V, Böhnlein C, et al. The life and times of yeasts in traditional food fermentations. Crit Rev Food Sci Nutr. 2019;26:1-30.
  3. Thim L, Hansen MT, Norris K, et al. Secretion and processing of insulin precursors in yeast. Proc Natl Acad Sci U S A. 1986;83(18):6766-6770.
  4. Nielsen J. Production of biopharmaceutical proteins by yeast: advances through metabolic engineering. Bioengineered. 2013;4(4):207-211.
  5. Jin YS, Cate JH. Metabolic engineering of yeast for lignocellulosic biofuel production. Curr Opin Chem Biol. 2017;41:99-106.
  6. Duina AA, Miller ME, Keeney JB. Budding yeast for budding geneticists: a primer on the Saccharomyces Cerevisiae model system. Genetics. 2014;197(1):33-48. 1534/genetics.114.163188.
  7. Sikorski RS, Hieter P. A system of shuttle vectors and yeast host strains designed for efficient manipulation of DNA in Saccharomyces cerevisiae. Genetics. 1989;122(1):19-27.
  8. Berlec A, Strukelj B. Current state and recent advances in biopharmaceutical production in Escherichia coli, yeasts and mammalian cells. J Ind Microbiol Biotechnol. 2013;40(3-4):257-274.
  9. Падкина М.В., Самбук Е.В. Генетически модифицированные микроорганизмы-продуценты биологически активных соединений // Экологическая генетика. – 2015. – Т. 13. – № 2. – С. 36–57. [Padkina MV, Sambuk EV. Genetically modified microorganisms as producers of biologically active compounds. Ecological genetics. 2015;13(2):36-57. (In Russ.)].
  10. Землянко О.М., Рогоза Т.М., Журавлева Г.А. Механизмы множественной устойчивости бактерий к антибиотикам // Экологическая генетика. – 2018. – Т. 16. – № 3. – С. 4–17. [Zemlyanko OM, Rogoza TM, Zhouravleva GA. Mechanisms of bacterial multiresistance to antibiotics. Ecological genetics. 2018;16(3):4-17. (In Russ.)].
  11. Magliani W, Conti S, Gerloni M, et al. Yeast killer systems. Clin Microbiol Rev. 1997;10(3):369-400.
  12. Hatoum R, Labrie S, Fliss I. Antimicrobial and probiotic properties of yeasts: from fundamental to novel applications. Front Microbiol. 2012;3:421.
  13. Belda I, Ruiz J, Alonso A, et al. The biology of pichia membranifaciens killer toxins. Toxins (Basel). 2017;9(4). pii: E112.
  14. Zhu H, Bussey H. Mutational analysis of the functional domains of yeast K1 killer toxin. Mol Cell Biol. 1991;11(1):175-181.
  15. Schmitt MJ, Tipper DJ. Sequence of the M28 dsRNA: preprotoxin is processed to an alpha/beta heterodimeric protein toxin. Virology. 1995;213(2):341-351.
  16. Самбук Е.В., Музаев Д.М., Румянцев А.М., Падкина М.В. Киллер-токсины дрожжей Saccharomyces cerevisiae: синтез, механизмы действия и практическое использование // Экологическая генетика. – 2019. – Т. 17. – № 3. – С. 59–73. [Sambuk EV, Muzaev DM, Rumjanzev AM, Padkina MV. Saccharomyces cerevisiae killer toxins: synthesis, mechanisms of action and practical use. Ecological genetics. 2019;17(3):59-73. (In Russ.)].
  17. Bussey H, Saville D, Greene D, et al. Secretion of Saccharomyces cerevisiae killer toxin: processing of the glycosylated precursor. Mol Cell Biol. 1983;3(8):1362-1370.
  18. Bussey H, Sherman D. Yeast killer factor: ATP leakage and coordinate inhibition of macromolecular synthesis in sensitive cells. Biochim Biophys Acta. 1973;298(4):868-875.
  19. Eisfeld K, Riffer F, Mentges J, Schmitt MJ. Endocytotic uptake and retrograde transport of a virally encoded killer toxin in yeast. Mol Microbiol. 2000;37(4):926-940.
  20. Остерман Л.А. Методы исследования белков и нуклеиновых кислот. Электрофорез и ультрацентрифугирование (практическое пособие). – М.: Наука, 1981. – 288 с. [Osterman LA. Methods of protein and nucleic acid research. Springer; 1984. 288 p. (In Russ.)].
  21. Hanahan D. Studies on transformation of Escherichia coli with plasmids. J Mol Biol. 1983;166(4):557-580.
  22. Wu S, Letchworth GJ. High efficiency transformation by electroporation of Pichia pastoris pretreated with lithium acetate and dithiothreitol. Biotechniques. 2004;36(1):152-154.
  23. Guthrie C, Fink GR. Guide to yeast genetics and molecular biology. Methods Enzymol. 1991;194:1-863. 6879(00)x0276-5.
  24. Gier S, Schmitt MJ, Breinig F. Expression of K1 toxin derivatives in Saccharomyces cerevisiae mimics treatment with exogenous toxin and provides a useful tool for elucidating K1 mechanisms of action and immunity. Toxins (Basel). 2017;9(11). pii: E345.
  25. Botstein D, Fink GR. Yeast: an experimental organism for modern biology. Science. 1988;240(4858):1439-1443. 10.1126/science.3287619.
  26. Duina AA, Miller ME, Keeney JB. Budding yeast for budding geneticists: a primer on the Saccharomyces cerevisiae model system. Genetics. 2014;197(1):33-48.
  27. Tian Z, Liu R, Zhang H, et al. Developmental dynamics of antibiotic resistome in aerobic biofilm microbiota treating wastewater under stepwise increasing tigecycline concentrations. Environ Int. 2019;131:105008.
  28. Baquero F, Martínez JL, Cantón R. Antibiotics and antibiotic resistance in water environments. Curr Opin Biotechnol. 2008;19(3):260-265.
  29. Tuller T, Girshovich Y, Sella Y, et al. Association between translation efficiency and horizontal gene transfer within microbial communities. Nucleic Acids Res. 2011;39(11):4743-4755.
  30. Terrinoni M, Nordqvist SL, Källgård S, et al. A novel nonantibiotic, lgt-based selection system for stable maintenance of expression vectors in Escherichia coli and Vibrio cholerae. Appl Environ Microbiol. 2018;84(4). pii: e02143-2117.

Supplementary files

Supplementary Files Action

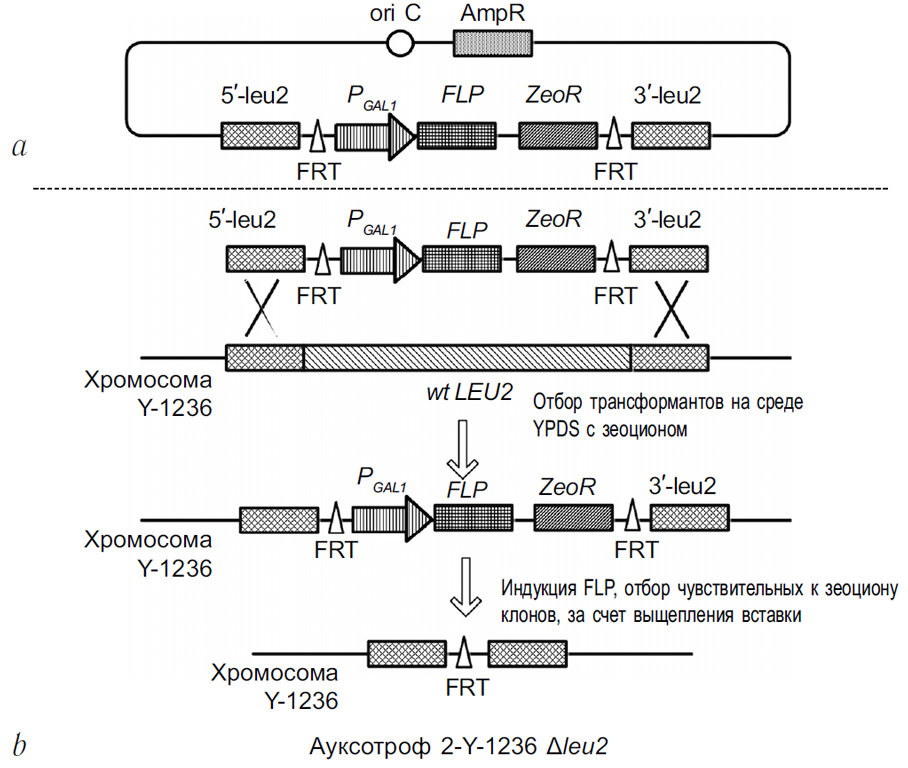

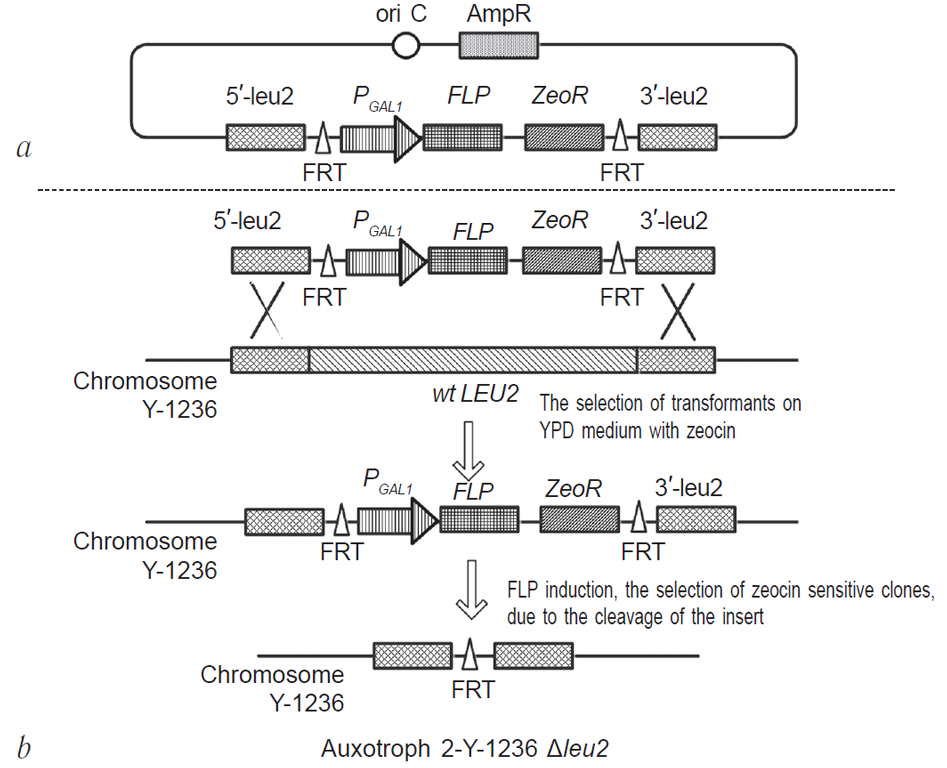

Fig. 1. Scheme for the production of S. cerevisiae yeast strains with deletions in the LEU2 and URA3 genes: a - structure of plasmid pAL2T-delleu2; b - scheme for obtaining the auxotrophic strain 1-Y-1236 (Δleu2) using the FLP-FRT recombination system (strains 2-Y-1236 (Δura3), 1-Y-2177 (Δleu2) and 2-Y-2177 (Δura3) received similarly). Strains with two auxotrophy in leucine and uracil 3-Y-1236 (Δleu2 Δura3) and 3-Y-2177 (Δleu2 Δura3) were obtained using strains with a single auxotrophy as initial

Download (233KB) Indexing metadata

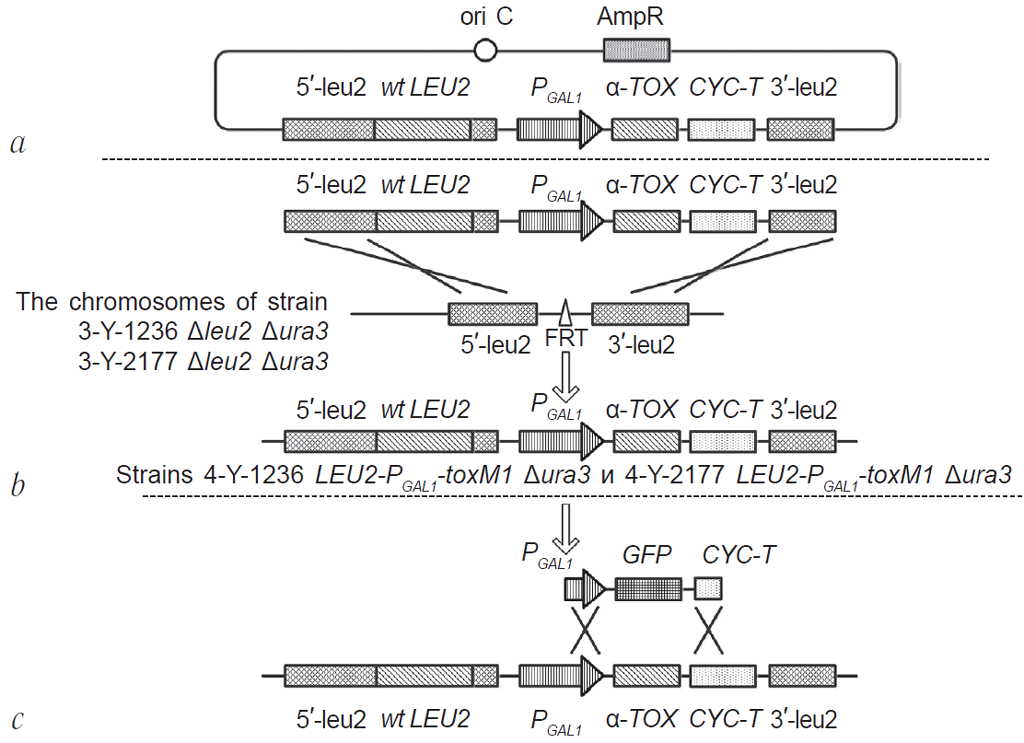

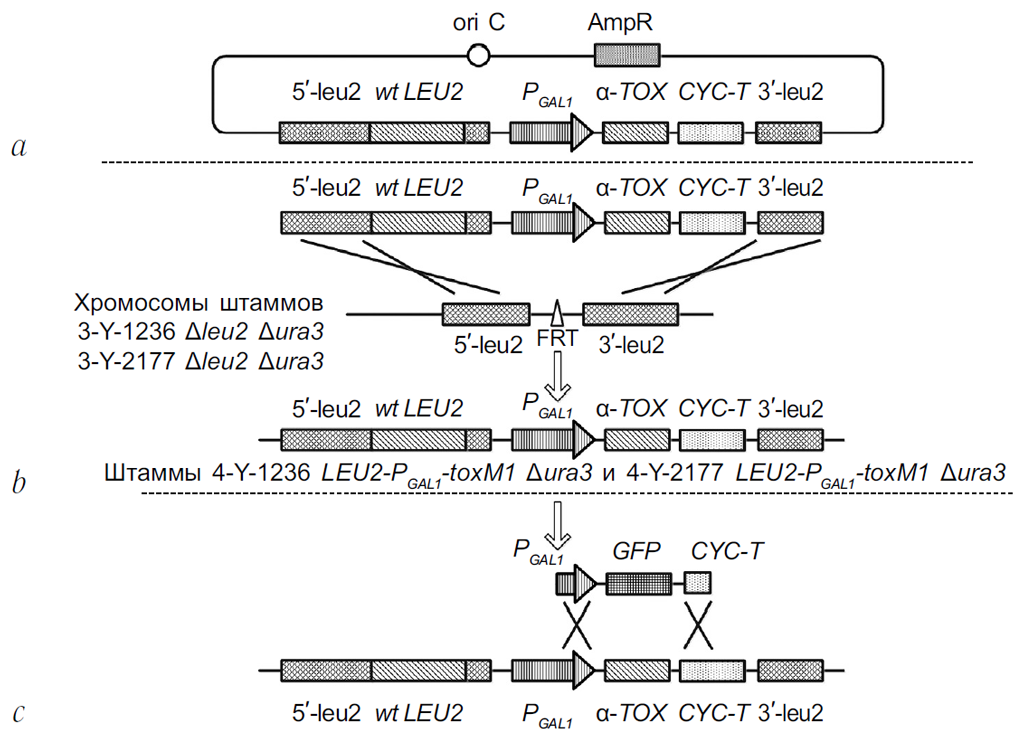

Fig. 2. Scheme for integrating the sequence of the toxin of the M1 virus into the genome of S. cerevisiae yeast strains and its use as a selective marker: a - structure of plasmid pAL2-T-PGAL1-αTOX; b — scheme for obtaining strains 4-Y-1236 (LEU2-PGAL1-toxM1 Δura3) and 4-Y-2177 (LEU2-PGAL1-toxM1 Δura3), into the genome of which the M1 virus DNA toxin sequence was integrated under the control of the regulated promoter of the GAL1 gene ; c is a diagram of the integration of a GFP gene flanked by sequences homologous to the promoter of the GAL1 gene and the termination region of the CYC1 gene

Download (239KB) Indexing metadata
Fig. 3. Phenotypes of strains 3-Y-1236 (Δleu2 pYES2-M1) and 3-Y-1236 (Δleu2 pYES2-M28) on a medium with lawns of the control strains 3-Y-1236 (Δleu2 pYES2) and 3-Y-2177 (Δleu2 pYES2). The suppression zone results from the action of killer toxins.

Download (172KB) Indexing metadata
Fig. 4. The growth of strains 4-Y-1236 (LEU2-PGAL1-toxM1 Δura3) and 4-Y-2177 (LEU2-PGAL1-toxM1 Δura3), into the genomes of which the DNA sequence of the toxin of the M1 virus was integrated under the control of the regulated promoter of the GAL1 gene, on environments with glucose and galactose. The strains are characterized by conditional lethality - they do not grow on media with galactose, since toxin synthesis occurs in their cells under these conditions. 10 μl of a suspension of 104 and 103 cells / ml were sown

Download (114KB) Indexing metadata

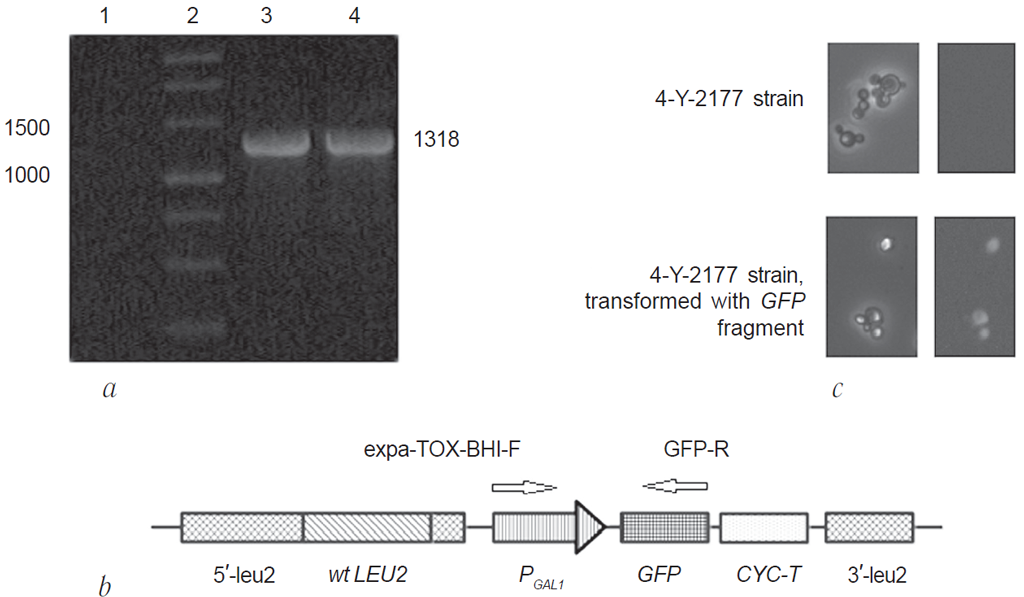

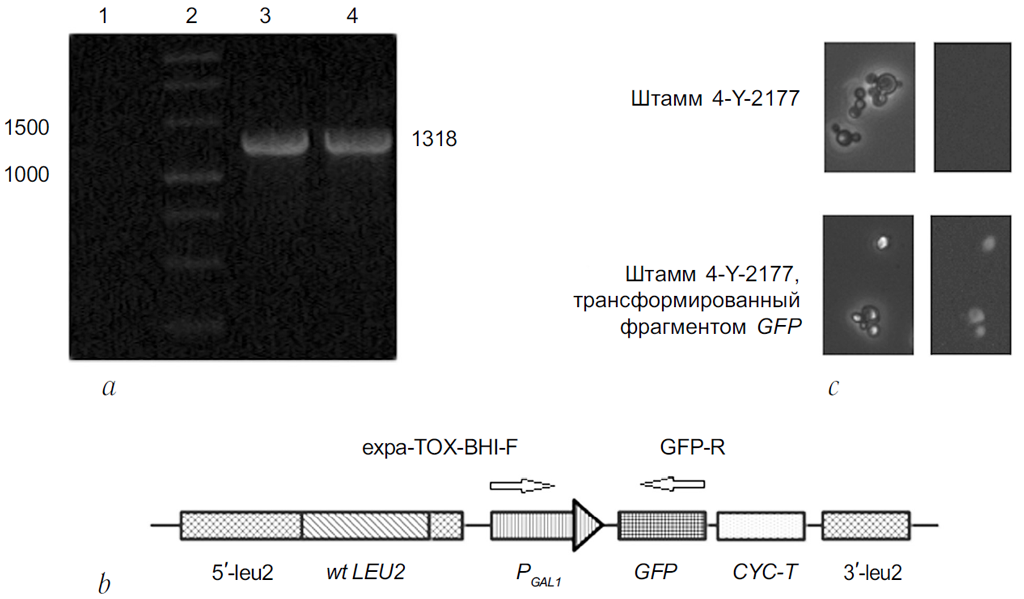

Fig. 5. Checking for the integration of the GFP gene into the transformant genome: a — PCR results with expαTOX-BHI-F and GFP-R primers and genomic DNA strains: 1) 4-Y-2177; 3) 4-Y-2177 with GFP gene integration, clone 1; 4) 4-Y-2177 with the integration of the GFP gene, clone 2. The sizes of the fragments correspond to the theoretically expected 1343 bp; 2) 1 kb DNA length marker (Eurogen). b is an arrangement of primers expαTOX-BHI-F and GFP-R; c - fluorescence of cells of the original strain 4-Y-2177 and the strain transformed with the GFP fragment (clone 2)

Download (184KB) Indexing metadata

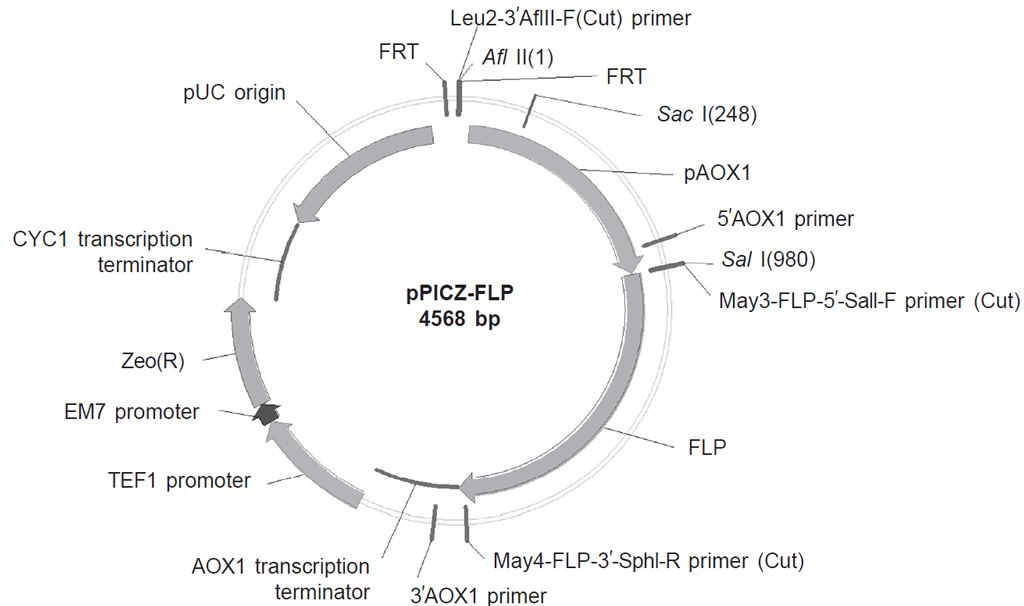

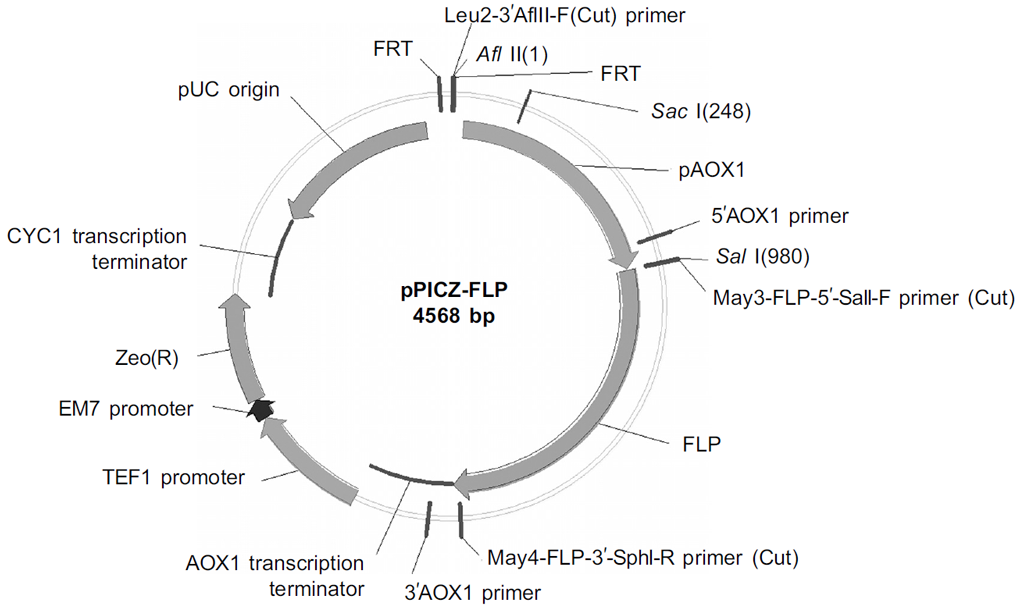

Map plasmid pPICZ-FLP:

Download (162KB) Indexing metadata
