Role of biometric characteristics of the uterine junctional zone in fertility outcomes in patients with adenomyosis

Full Text

BACKGROUND

The uterine junctional zone represents the inner part of the myometrium. Junctional zone dysfunction may contribute to the pathogenesis of adenomyosis and its clinical manifestations, and its biometric characteristics are currently considered as promising early diagnostic criteria for this disease. Adenomyosis has traditionally been associated with parity and intrauterine interventions, primarily in older patients. However, at present, modern imaging tools often enable the diagnosis of diseases in young patients with infertility and without a burdened gynecological history [1–5]. The mechanisms of adenomyosis-associated infertility are not fully understood. They may be associated with an impairment of the hormone-dependent peristaltic activity of the junctional zone [6, 7], an impaired endometrial decidualization, pathological implantation and invasion of trophoblasts, as well as inadequate remodeling of the spiral arteries of the uterus during pregnancy [8].

High-quality visualization of the junctional zone is possible by magnetic resonance imaging (MRI) [4–5, 8–11]. Most of the studies have focused on the maximum thickness of the junctional zone [10, 12–15]. Studies of other indicators of the junctional zone are sporadic. Moreover, a change in the biometric characteristics of the junctional zone can be a diagnostic sign of adenomyosis and can underlie the prognosis of the onset and clinical course of pregnancy [6, 10, 11, 16].

MATERIALS AND METHODS

We examined 102 patients who planned pregnancy. The inclusion criteria were patent fallopian tubes and the presence of two of the three signs of changes in the myometrium according to ultrasound examination (i.e., a relative increase in the thickness of one of the uterine walls; hypo-, hyper- or anechoic inclusions in the myometrium up to 5 mm in size; and lack of clear boundaries between the myo- and endometrium). The exclusion criteria were as follows: hypergonadotropic ovarian failure; submucous form of uterine fibroids, type 0–2 according to the International Federation of Gynecology and Obstetrics (FIGO, 2018), and diameter of the myomatous nodule in types 3–8 according to FIGO of ≥30 mm; and male factor of infertility, due to which intracytoplasmic sperm injection technology is required [17]. The patients were distributed into two groups: group 1 included patients without a history of intrauterine interventions and pregnancies (n = 58), and group 2 included patients with a history of childbirth and/or intrauterine interventions (n = 44). MRI of the uterus was performed on an Avanto apparatus (Siemens Healthineers AG, Germany) during phase 2 of the menstrual cycle (sequences were weighted by T2 and T2 with fat suppression). Five biometric characteristics of the junctional zone were assessed, namely, minimum thickness, maximum thickness, average thickness, symmetry coefficient (representing the difference between the maximum and minimum thickness), distribution coefficient of the maximum thickness of the junctional zone (the ratio between the maximum thickness of the junctional zone and the thickness of the entire myometrium — the sum of the thickness of the anterior and posterior walls of the uterus).

The study followed a prospective design. After 12 months of follow-up, the frequency of pregnancy, frequency of complications (retrochorial hematoma and spontaneous miscarriage) in the first trimester of pregnancy, and proportion of favorable reproductive outcomes (the onset of pregnancy that ended in term delivery) were determined.

Parametric and nonparametric statistics were used for the statistical processing of the results. The Mann–Whitney U-test was used to assess the relationship between quantitative and qualitative attributes. The probability of an unfavorable reproductive outcome was assessed using binary regression. The significance of the data obtained was accepted at p < 0.05.

RESULTS

In the analysis of the biometric parameters of the junctional zone, only the average and maximum thickness values of the junctional zone in group 2 were significantly higher than those in group 1 (Table 1).



Table 1. Biometric indicators of the junctional zone of the uterus in patients examined by groups

Indicator	Group 1 (n = 58)	Group 2 (n = 44)	U-test	p
Minimum thickness of the junctional zone, mm	3.0 [2.3; 3.6]	4.3 [3.2; 5.3]	657.5	<0.001
Average thickness of the junctional zone, mm	7.0 [4.6; 8.4]	8.3 [6.6;10.1]	847.5	<0.01
Maximum thickness of the junctional zone, mm	10.4 [6.3; 13.5]	11.8 [9.4; 15.0]	1111.5	>0.05
Symmetry coefficient, mm	6.8 [4.0; 10.0]	7.0 [4.5; 9.6]	1250	>0.05
Distribution coefficient, %	31.4 [22.4; 42.4]	33.0 [26.8; 40.9]	1159.5	>0.05



The pregnancy rate in groups 1 and 2 were not significantly different at 43.1% and 38.6%, respectively (p > 0.05); the incidence of retrochorial hematoma was 13.8% and 22.7%, respectively (p > 0.05).

In group 1, the incidence of retrochorial hematoma formation was dependent on the coefficient of symmetry of the junctional zone. Thus, at the time of inclusion in the study, the initial coefficient of symmetry was 5.8 [4.0; 8.6] mm in patients whose first trimester of pregnancy was complicated by retrochorial hematoma, and it was 3.1 [2.5; 3.6] mm in patients with uncomplicated pregnancies (p < 0.05). In group 2, no significant relationship was found between the biometric parameters of the uterine junctional zone and the incidence of retrochorial hematoma formation (p > 0.05).

Spontaneous miscarriage was registered in both groups before 8 weeks of pregnancy, which occurred in 6.9% and 6.8% of the patients in groups 1 and 2, respectively (p < 0.05). In group 2, large average and maximum thickness values of the junctional zone, as well as the coefficient of symmetry, were recorded at inclusion in the study during pregnancy that resulted in spontaneous miscarriage than in pregnancy the ended childbirth (Table 2). In group 1, no significant relationship was revealed between the biometric indicators of the junctional zone and the incidence of spontaneous miscarriage (p > 0.05).



Table 2. Initial biometric indicators of the junctional zone in group 2 during pregnancy that ended in childbirth and spontaneous miscarriage

Indicator	Pregnancy ended in childbirth	Spontaneous miscarriage	U-test	p
Minimum thickness of the junctional zone, mm	3.54 [3.2; 5.05]	3.7 [3.2; 7.5]	12	>0.05
Average thickness of the junctional zone, mm	6.7 [4.6; 8.5]	10.12 [8.56; 11.2]	2	<0.05
Maximum thickness of the junctional zone, mm	9.12 [7.1; 11.0]	15.0 [13.4; 17.0]	1	<0.05
Symmetry coefficient, mm	5.13 [3.0; 6.0]	9.68 [7.5; 13.7]	2	<0.05
Distribution coefficient, %	29.6 [24.7; 40.1]	40.9 [39.4; 50.9]	4	>0.05



The incidence of adverse reproductive outcomes (infertility/spontaneous miscarriage) was 63.8% in group 1 and 68.2% in group 2 (p > 0.05). In group 1, the initial indicators of the average and maximum thickness of the junctional zone, as well as the coefficients of symmetry and distribution with an unfavorable reproductive outcome, were 1.7–2.5 times higher than those in patients with a favorable outcome (p > 0.05). In group 2, an unfavorable reproductive outcome was recorded with significantly higher indicators of the average and maximum thickness of the junctional zone and the coefficient of symmetry (Table 3).



Table 3. Initial biometric indicators of the junctional zone in patients of the examined groups with different reproductive outcomes

Indicator	Outcome		U-test	p
	Pregnancy ended in childbirth	infertility/spontaneous miscarriage
Group 1 (n = 58)
Minimum thickness of the junctional zone, mm	3.0 [2.17; 3.3]	3.0 [2.4; 3.7]	312.5	>0.05
Average thickness of the junctional zone, mm	4.6 [3.8; 5.6]	8.0 [5.9; 8.7]	117.5	<0.001
Maximum thickness of the junctional zone, mm	6.1 [5.4; 8.2]	12.9 [9.4; 14.1]	116.5	<0.001
Symmetry coefficient, mm	3.5 [2.5; 5.6]	9.0 [6.4; 11.0]	132	<0.001
Distribution coefficient, %	22.0 [17.3; 27.3]	36.7 [30.0; 45.1]	144	<0.001
Group 2 (n = 44)
Minimum thickness of the junctional zone, mm	3.6 [3.2; 5.0]	4.6 [3.1; 6.0]	164	>0.05
Average thickness of the junctional zone, mm	6.7 [6.0; 8.5]	8.8 [6.9; 10.7]	108	<0.01
Maximum thickness of the junctional zone, mm	9.6 [7.5; 11.0]	12.7 [10.0; 16.6]	102	<0.01
Symmetry coefficient, mm	5.1 [3.0; 6.5]	7.8 [5.0; 10.4]	119.5	<0.05
Distribution coefficient, %	29.5 [25.1; 37.0]	35.14 [27.6; 44.3]	141	>0.05



To predict the probability of an unfavorable reproductive outcome, taking into account the biometric indicators of the junctional zone, a logistic binary regression model was created. Per the data obtained, receiver operating characteristic (ROC) curves were plotted to predict an unfavorable reproductive outcome (Figure). For patients without a history of intrauterine interventions or childbirth, the biometric indicators of the junctional zone can be used to predict the probability of an adverse reproductive outcome, namely, average thickness (sensitivity 83.8%, specificity 66.7%), maximum thickness (sensitivity 84%, specificity 75%), symmetry coefficient (sensitivity 86.5%, specificity 33.3%), and distribution coefficient (sensitivity 86.5%, specificity 66.7%). For patients with a history of intrauterine interventions and/or childbirth, when predicting the probability of an unfavorable reproductive outcome, an indicator of the average thickness of the junctional zone (sensitivity 90%, specificity 35.7%), an indicator of the maximum thickness of the junctional zone (sensitivity 72%, specificity 50%), and the coefficient of symmetry (sensitivity 86.6%, specificity 28.6%) can be applied. The area under curve values indicate that the models had good quality.

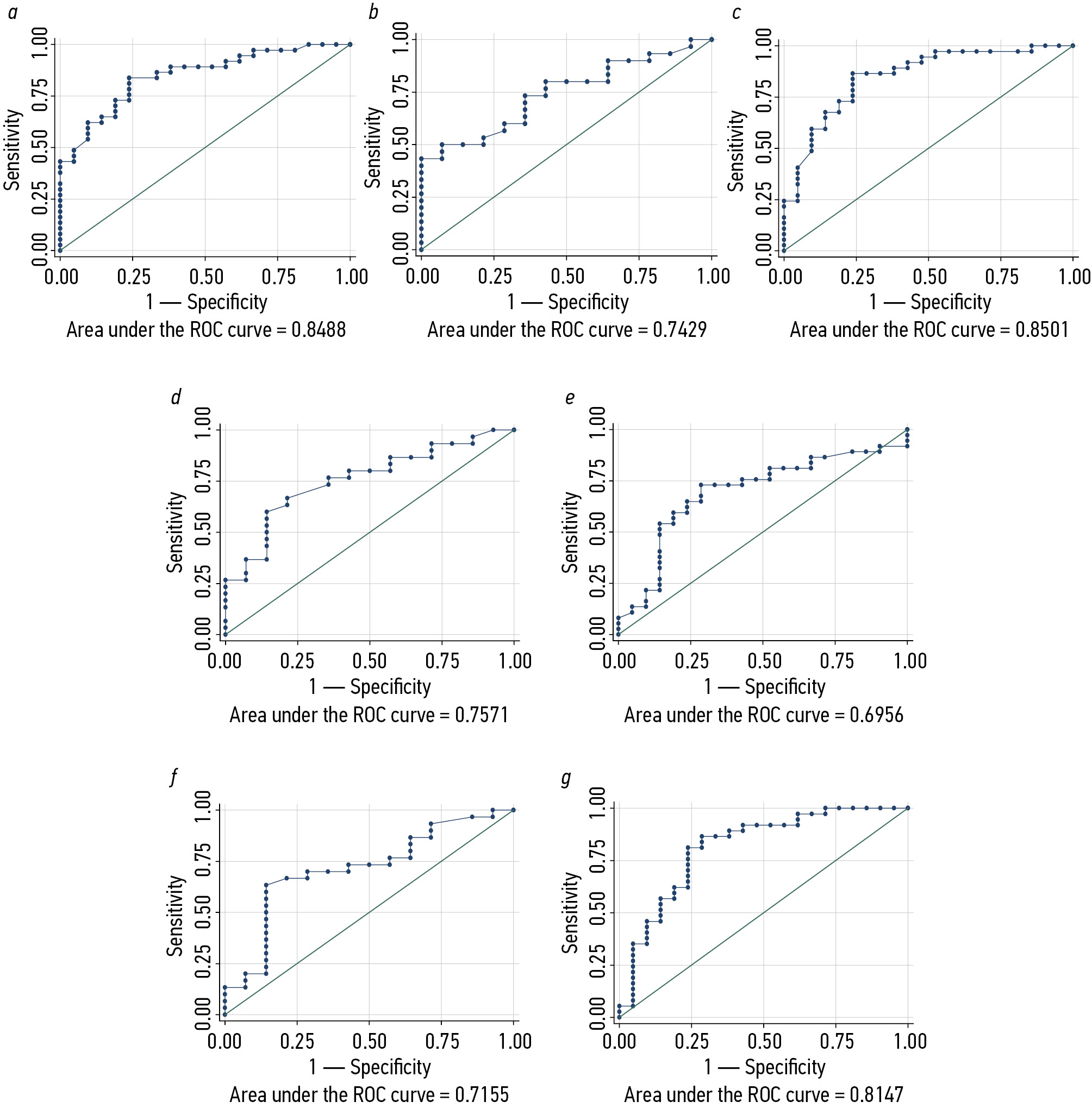

Figure. Receiver operating characteristic curves for a model of prediction of an adverse reproductive outcome in patients with adenomyosis: a, group 1, taking into account the average thickness of the junctional zone; b, group 2, taking into account the indicator of the average thickness of the junctional zone; c, group 1, taking into account the indicator of the maximum thickness of the junctional zone; d, group 2, taking into account the indicator of the maximum thickness of the junctional zone; e, group 1, taking into account the coefficient of symmetry; f, group 2, taking into account the coefficient of symmetry; g, group 1, taking into account the distribution coefficient



The threshold values of the biometric parameters of the junctional zone were calculated to predict the probability of an unfavorable reproductive outcome of 60%–90%. Data are presented in Tables 4 and 5.



Table 4. Threshold values of the average and maximum thickness of the junctional zone for the probability of an unfavorable outcome in patients examined by groups

Probability, %	Threshold values of the average thickness of the junctional zone, mm		p	Threshold values of the maximum thickness of the junctional zone, mm		p
	group 1	group 2		group 1	group 2
60	6.0	7.0	<0.05	9.11	10.0	<0.05
70	6.7	8.1	<0.05	10.2	11.7	<0.05
80	7.4	9.5	<0.05	11.5	13.4	<0.05
90	8.5	11.5	<0.05	13.5	16.6	<0.05



Table 5. Threshold values of the symmetry coefficient for female patients examined by groups and the distribution coefficient in group 1 concerning the probability of an unfavorable outcome

Probability, %	Threshold values of the symmetry coefficient, mm		p	Threshold values of the distribution coefficient (group 1), %
	group 1	group 2
60	7.6	5.3	<0.05	29
70	9.3	7.2	<0.05	30
80	11.5	9.5	<0.05	38
90	15.3	13.2	<0.05	45



DISCUSSION

Adenomyosis affects significantly the proper functioning of the reproductive system [18, 19]. The problem of coping with adenomyosis-associated infertility has not yet been solved, including the use of assisted reproductive technologies [20–22]. Many researchers associate structural changes in the junctional zone with the development and clinical manifestations of adenomyosis, including infertility. However, some authors distinguish junctional zone pathology as an independent disease [6, 10, 11, 16, 23].

The uterine junctional zone, which is the inner part of the myometrium, is characterized by certain architectonics of histological structure, vascularization, and hormone-dependent peristaltic activity. The uterine junctional zone was histologically determined by Werth and Grusdew in 1898 [24]. However, it was only in 1983 where its intravital visualization with the use of MRI became possible [9]. On MRI, the zone is represented by an area with reduced intensity and clear boundaries between the hyperintense endometrium and the external myometrium, which has an intermediate MR signal intensity [8]. The muscle fibers of the junctional zone are arranged concentrically; myocytes contain less water and have a wide nucleus and a large mass compared with the external myometrium [25]. Junctional zone thickness of ≥12 mm is regarded as a diagnostic sign of adenomyosis [10–12]. According to some reports, an increase in the ratio of the maximum thickness of the junctional zone to the thickness of the entire myometrium by more than 40% and an increase in the symmetry coefficient of ≥5 mm are more highly specific signs in the non-invasive diagnostics of adenomyosis [10, 16]. Most of these studies have been conducted in older female patients with histologically confirmed adenomyosis after hysterectomy. A few studies have focused on the relationship between changes in the junctional zone and the implementation of the reproductive function of women. Thus, Piver and Maubon reported an increase in the thickness of the junctional zone of ≥10 mm as a predictor of reproductive failures in cycles of assisted reproductive technologies [13, 14]. Maubon revealed a similar relationship with an increase in the average thickness of the junctional zone by ≥7 mm [14]. According to Lazzarini, in patients with a history of miscarriage, the maximum thickness of the junctional zone and the coefficient of symmetry are higher than those in patients with uncomplicated pregnancy [15].

Our data indicate that changes in the junctional zone are possible not only in patients with mechanical damage to the endometrium–myometrium interface during intrauterine interventions and childbirth but also in young patients without them. This confirms one of the theories of adenomyosis development, namely, the theory of “tissue damage and healing” by Leyendecker [6], which is based on the assumption that hyperperistalsis of the junctional zone can lead to autoinjury with subsequent activation of tissue regeneration processes, which in turn contributes to the penetration of the endometrium into the myometrium thickness. According to our data, the maximum thickness of the junctional zone, symmetry coefficient, and distribution coefficient do not differ significantly in patients with and without parity and intrauterine interventions. Thus, changes in the junctional zone occur regardless of the trigger factor of damage.

In patients without parity or intrauterine interventions, the relationship between the frequency of retrochorial hematoma and the value of the symmetry coefficient probably indicates functional incompetence of the junctional zone. In patients with a history of intrauterine interventions and childbirth, the absence of such a relationship, as well as higher biometric indicators of the junctional zone with spontaneous miscarriage, enable to consider organic damage to the uterine walls as a possible cause of a negative effect on the reproductive outcome. Impaired endometrial decidualization, trophoblast invasion, and embryo implantation in adenomyosis may be associated with increased activity of natural killers located along the spiral arteries of the junctional zone, as well as with initially (before pregnancy) altered angiogenesis in the endometrium and adjacent junctional zone due to the imbalance of proangiogenic factors (interleukin-6, interleukin-10, vascular endothelial growth factor, etc.) [26–28].

Our data indicate a high incidence of adverse reproductive outcomes (>63%) in patients with adenomyosis. In group 1, an unfavorable reproductive outcome was associated with an increase in the average and maximum thickness of the junctional zone and coefficients of symmetry and distribution compared with patients with a favorable reproductive outcome. In group 2, an increase in the maximum and average thickness, as well as the coefficient of symmetry with an unfavorable reproductive outcome, was revealed. The data obtained may be based on the impaired peristaltic activity of the uterine junctional zone, including those associated with impaired expression of receptors for oxytocin in it, which in turn leads to the impaired transport of gametes and embryos in the uterine cavity, and can prevent implantation [23–30].

Previous studies have enabled the use of biometric indicators of the uterine junctional zone only as a diagnostic criterion for adenomyosis. To our knowledge, we have determined for the first time the threshold values of biometric parameters of the junctional zone, which can be used in clinical practice as predictors of the reproductive function implementation with an assessment of probability of an adverse reproductive outcome in patients with adenomyosis with and without a history of intrauterine interventions and childbirth.

CONCLUSIONS

The implementation of reproductive function in female patients with adenomyosis is associated with the transformation of the junctional zone which biometric parameters can be determined by MRI and used to predict the onset and clinical course of pregnancy.

ADDITIONAL INFORMATION

Funding. The study had no external funding.

Conflict of interest. The authors declare no conflict of interest.

Author contributions. E.K. Orekhova and I.Yu. Kogan created the study concept and design and wrote the text; E.K. Orekhova and O.A. Zhandarova collected and processed the material; E.K. Orekhova performed statistical processing of the data; I.Yu. Kogan edited the text.
