## Control of three-degree-of-freedom resonant actuator driven by novel vector control

**Authors:**Kato M.^{1}, Hirata K.^{1}**Affiliations:**- Osaka University

**Issue:**Vol 4, No 3 (2018)**Pages:**90-101**Section:**Original papers**URL:**https://transsyst.ru/transsyst/article/view/10430**DOI:**https://doi.org/10.17816/transsyst20184390-101- Cite item

#### Abstract

This paper presents a novel vector control method for three-degree-of-freedom resonant actuator in order to improve its controllability. The effectiveness of the presented method is verified through electromagnetic field analysis using 3-D finite element method:

**Issue: **A three-degree-of-freedom resonant actuator has a great potential to broaden the application range of linear oscillatory actuators because it has a lot of advantages: high efficiency, simple structure, etc. However, this actuator has low controllability because the magnetic structure of each axis is not independent.

**Aim: **To establish a novel vector control technique suitable for our actuator.

**Materials and methods of the studies:** Electromagnetic analysis employing 3-D finite element method.

**Results****:** In this study, the novel vector control theory was constructed on the basis of four-phase system. The new dq model was achieved by considering 3-D coordinate transformation. The proposed method is able to decrease the influence of thrust interference from other axis and achieved higher controllability.

**Conclusion: **The results of the study will contribute to a practical use of the three-DOF resonant actuator.

## INTRODUCTION

Linear resonant actuators (LRAs) [1-5] have been used in a wide range of applications because they can reciprocate in a comparatively short stroke in spite of their compact size and lightweight. In order to broaden the application range of LRAs, various kinds of multi-degree of freedom (DOF) resonant actuators have been developed [6, 7]. Authors have also proposed a two degree-of-freedom resonant actuator that was able to be independently driven in x- and z-axes by vector control [8-10]. Additionally, authors have designed a three-DOF resonant actuator driven by conventional vector control [11]. However, the previous control method did not completely control the thrusts in three directions (*x*, *y*, and *z*) because the magnetic circuit for each axis was not independent.

In order to improve controllability of the thrust, this paper proposes a novel vector control method using a four-phase system. Four fundamental voltage vectors (V_{x}, W_{x}, V_{y}, and W_{y} phases) are defined in a stationary three-dimensional (3-D) coordinate systems. 3-D rotation using Euler angles achieved a spatial dq transformation. Electromagnetic field analysis by 3-D finite element method suggested that *x*- and *y*-axes thrust did not affect each other strongly when the proposed vector control was applied. Finally, the effectiveness of the proposed method was validated by comparing with the conventional method.

## THREE-DOF RESONANT ACTUATOR AND OPERATING PRINCIPLE

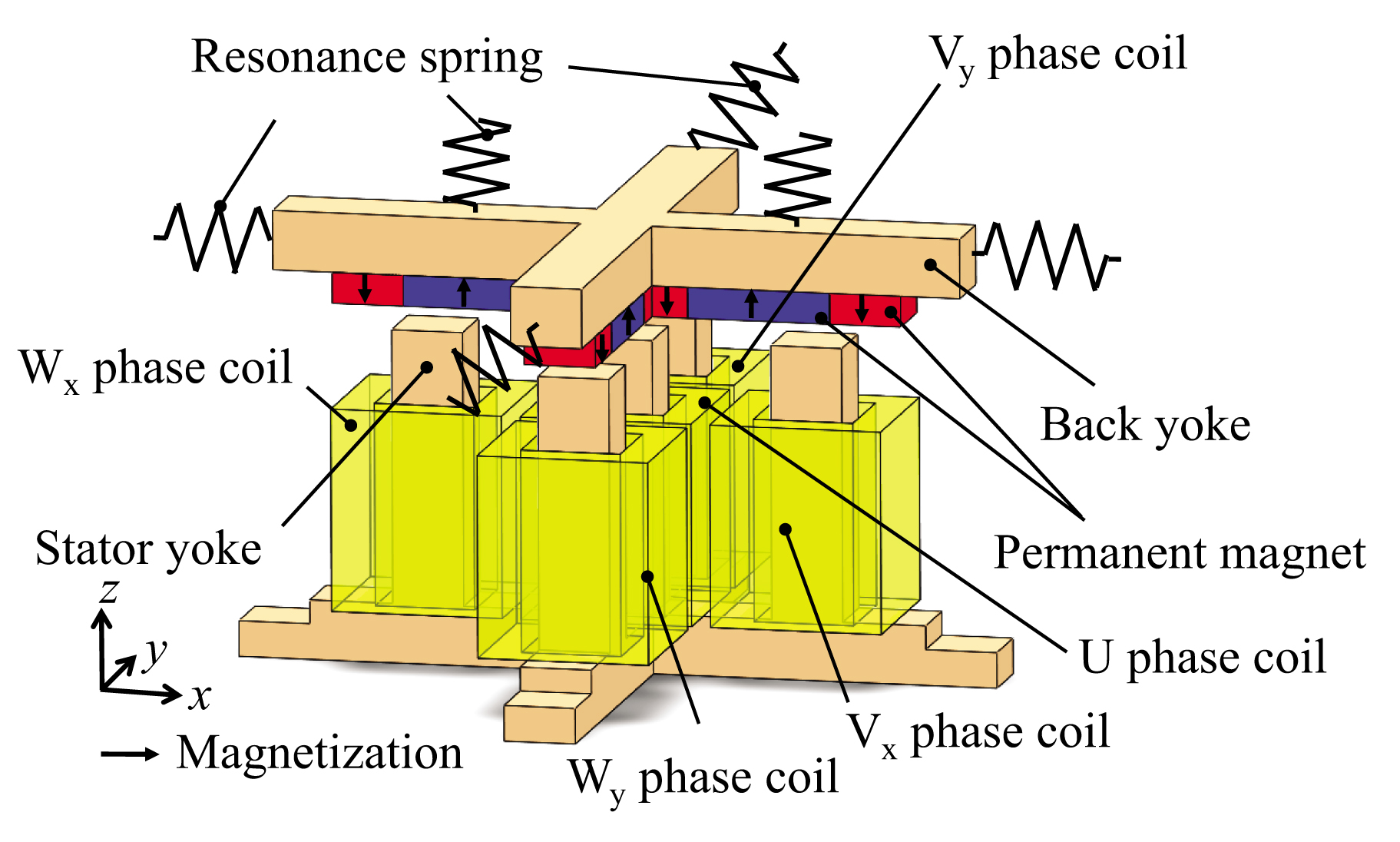

The basic structure of the three-DOF resonant actuator is shown in Fig. 1. This actuator mainly consists of a mover, a stator, and resonance springs in the *x*-, *y*-, and *z*-directions that support the mover. The mover is composed of a cross-shaped laminated yoke with five excitation coils (45 turns). This actuator is assumed to move with a range of ±1.2mm in the *x*-and *y*-directions and ±0.5mm in the *z*-direction, respectively. Resonance frequencies in *x*-, *y*-, and *z*-axes drive are set to be 41, 42, and 175 Hz, respectively. The specification of this actuator is shown in Table 1.

**Fig. 1. Basic structure of three-DOF resonant actuator**

**Table 1. Specification of three-DOF resonant actuator**

Parameter | Value | ||

x-axis | y-axis | z-axis | |

Mass of mover [g] | 214.89 | 55.38 | 21.22 |

Spring constant [N/mm] | 14.89 | 3.22 | 29.15 |

Viscous damping coefficient [Ns/m] | 0.997 | 0.44 | 0.528 |

Dimensions [mm] | 31 x 31 x 18.8 | ||

Remanence of magnet [T] | 1.4 | ||

Coil resistance [Ω] | 0.24 |

When a sectional view of the actuator in *x*-*z* plane is focused, the magnetic structure is similar to those of four-pole three-phase permanent magnet synchronous motors. Therefore, this actuator is operated by vector control. The mover is driven in *x* and *z* axes independently when the field current element *I _{dx}* and the torque current element

*I*are assigned as the

_{qx}*z*- and

*x*-axes thrust elements, respectively. Because of the symmetry of magnetic circuits in

*x*- and

*y*-direction, the mover is also independently driven in

*y*and

*z*axes when the

*I*and

_{dy}*I*are assigned as the

_{qy}*z*- and

*y*-axes thrust elements, respectively. This actuator is a non-salient pole type and the thrust equation under the vector control is given as follow:

${\left[\begin{array}{ccc}{F}_{z}& {F}_{x}& {F}_{y}\end{array}\right]}^{T}=\varphi {\left[\begin{array}{ccc}{I}_{dx}+{I}_{dy}& {I}_{qx}& {I}_{qy}\end{array}\right]}^{T}$ (1)

where *F _{x}*,

*F*, and

_{y}*F*are the thrust of the

_{z}*x*-,

*y*-, and

*z*-axes, respectively, and

*φ*is the armature interlinkage flux from the permanent magnet. A phase angle of each axis between the stator and the mover is given as follow:

${\theta}_{j}=\frac{j}{l}\pi $ (2)

where *l* is the distance between north and south poles, and *j* is the axis of the mover. From the equations (1) and (2), the current of each phase is determined by the inverse d-q transformation, as follow:

$\left[\begin{array}{c}{I}_{\text{U}}\\ {I}_{{\text{V}}_{j}}\\ {I}_{{\text{W}}_{j}}\end{array}\right]=\sqrt{\frac{2}{3}}\left[\begin{array}{cc}\mathrm{cos}{\theta}_{j}& -\mathrm{sin}{\theta}_{j}\\ \mathrm{cos}({\theta}_{j}-2/3\text{\pi})& -\mathrm{sin}({\theta}_{j}-2/3\text{\pi})\\ \mathrm{cos}({\theta}_{j}+2/3\text{\pi})& -\mathrm{sin}({\theta}_{j}+2/3\text{\pi})\end{array}\right]\left[\begin{array}{c}{I}_{\text{d}j}\\ {I}_{\text{q}j}\end{array}\right]$ (3)

where *I _{U}* is the current of U phase coil, and

*I*and

_{Vj}*I*are the current of V

_{Wj}*and W*

_{j}*(*

_{j}*j*=

*x*,

*y*) phase coils, respectively.

## EVALUATION OF THRUST INTERFERENCE

In this chapter, thrust interference is evaluated by electromagnetic field analysis using 3-D finite element method (FEM). Fig. 2 shows the FEM model except air region. The number of tetrahedron elements and edges are approximately 1,554 000 and 1,799 000, respectively. CPU time per one step was about 10 minutes. Fig. 3 shows the analyzed current thrust characteristics in *x*-direction when magnetomotive force of 45 A is applied to each excitation coil (U, V* _{x}*, W

*, V*

_{x}*, and W*

_{y}*phase). Out of five thrust waveforms, the waveforms in the U, V*

_{y}*, and W*

_{x}*phase coils are sinusoidal and the phase differences of these waveforms are approximately 120 degrees in electrical angle. This result means that the actuator is able to operate in the*

_{x}*x*-axis if the three coils are excited on the basis of normal vector control theory. Fig. 4 shows the analyzed current thrust characteristics in

*z*-direction. Thrust waveforms of U, V

*, and W*

_{x}*phase coils are also sinusoidal as thrust waveforms in*

_{x}*x*-direction mentioned above.

** **

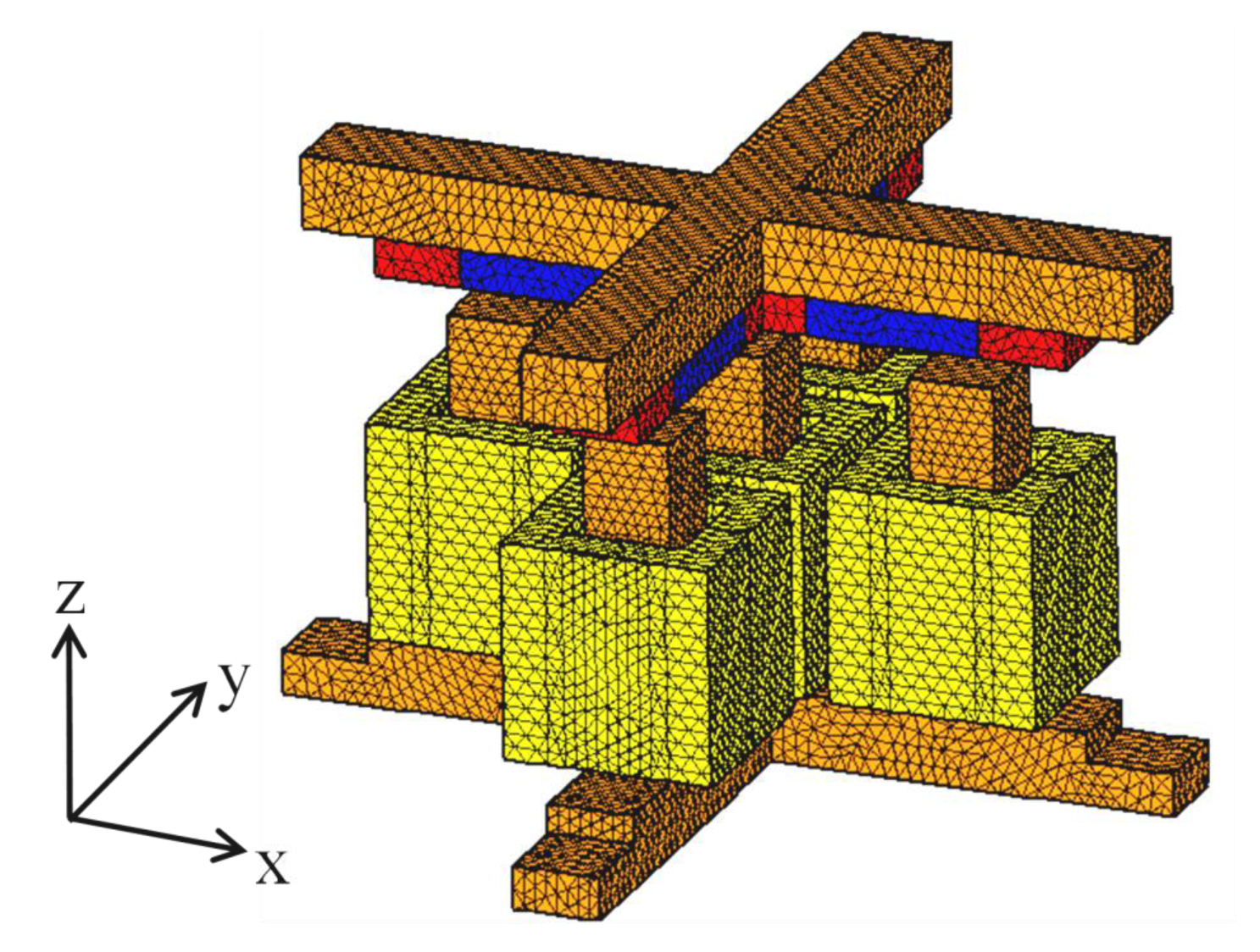

**Fig. 2. FEM model**

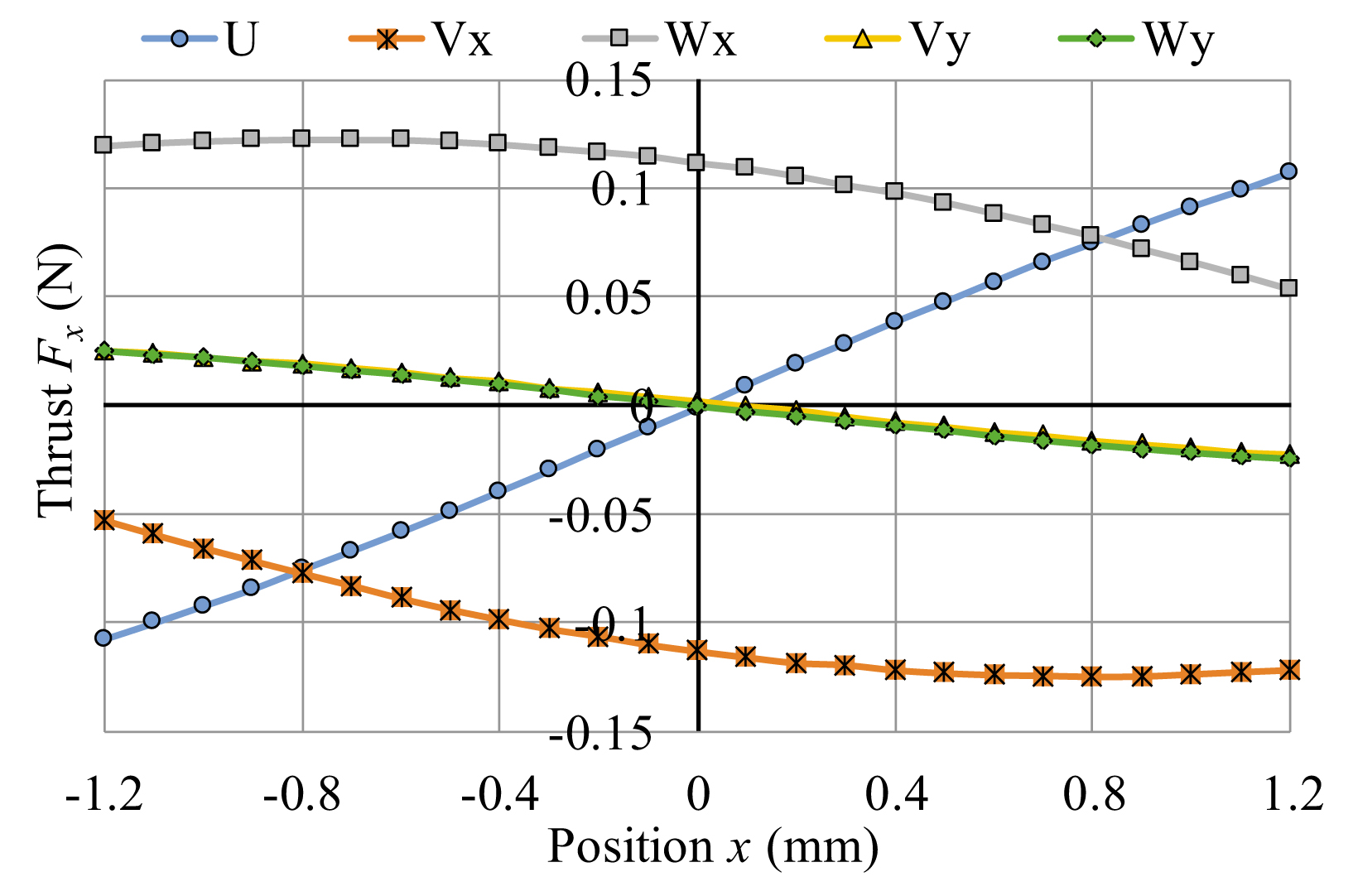

**Fig. 3. Current thrust characteristic (x-axis)**

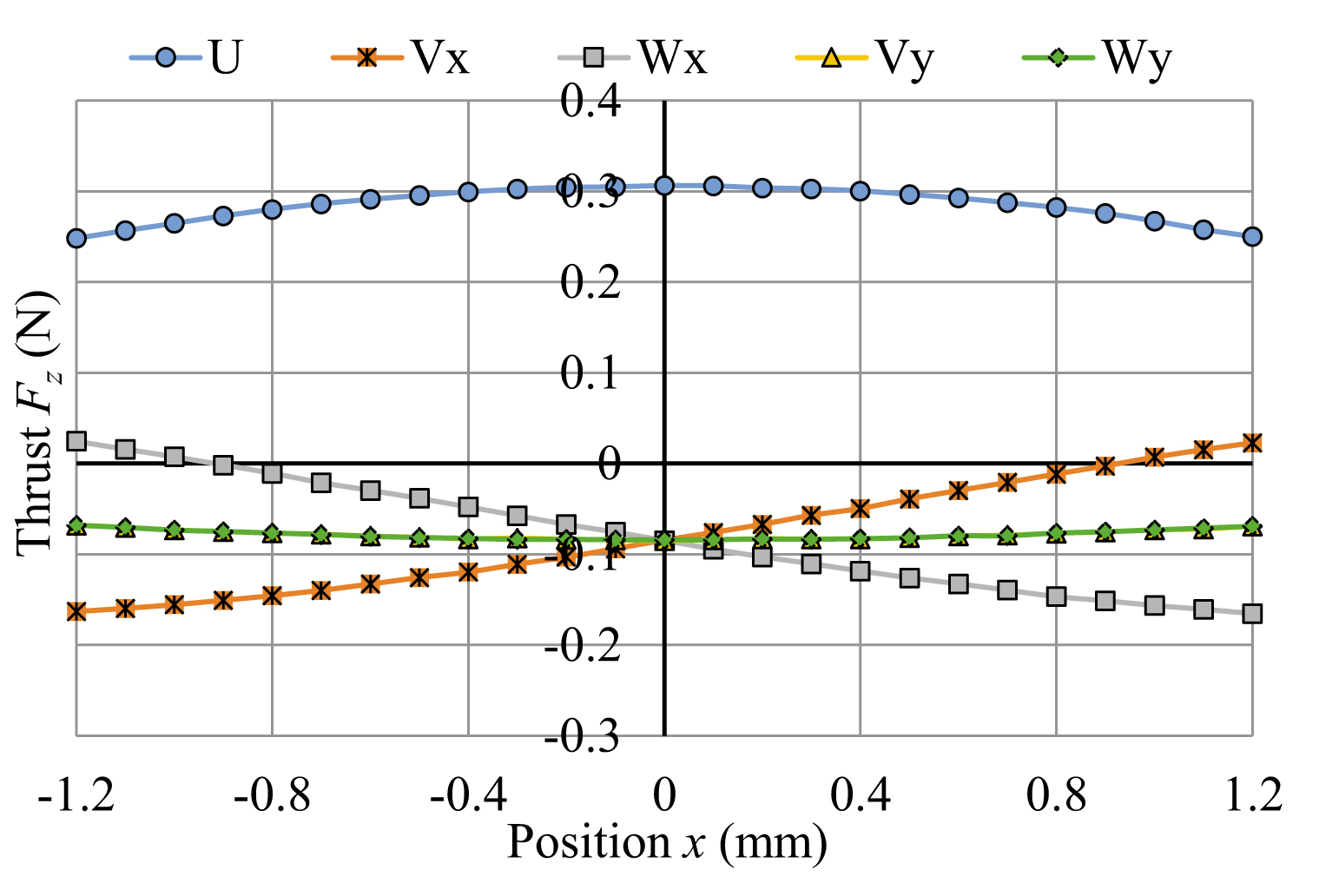

**Fig. 4. Current thrust characteristic (z-axis)**

Next, the mutual thrust interference is evaluated when the vector control which is described at the previous section is employed. Fig. 5, 6 show the static thrust characteristics when only one target current is set. In Fig. 5, the *x*-axis thrust is almost constant with respect to the displacement in the *x*- and *y*-directions. However, the undesirable thrust in the *z*-axis is generated though d-axis targets *d _{x}* and

*d*are zero, respectively. This is because the thrust characteristics of U, V

_{y}*, and W*

_{x}*phase coils are not complete sine wave due to the end effect. Similarly in Fig. 6, the*

_{x}*z*-axis thrust is almost constant with respect to the displacement in

*x*- and

*y*-directions and the undesirable

*x*-axis thrust is slightly generated. From these results, the mutual thrust interference is tiny when the target direction of thrust is single.

Fig. 7 shows the static thrust characteristics when two target currents are simultaneously set. The *x*- and *z*-axes thrusts severely vary with respect to the displacement in the *x*- and *y*-directions. This is because V* _{y}* and W

*phase coils, which are originally used for*

_{y}*y*-axis operation, generate the thrust in the

*x*-direction, as shown in Fig. 5. Moreover, the

*y*-axis target current affects the

*z*-axis thrust. Therefore, when the actuator is operated to oscillate in two or three directions, the thrust equation (3) is not suitable for obtaining a target thrust precisely.

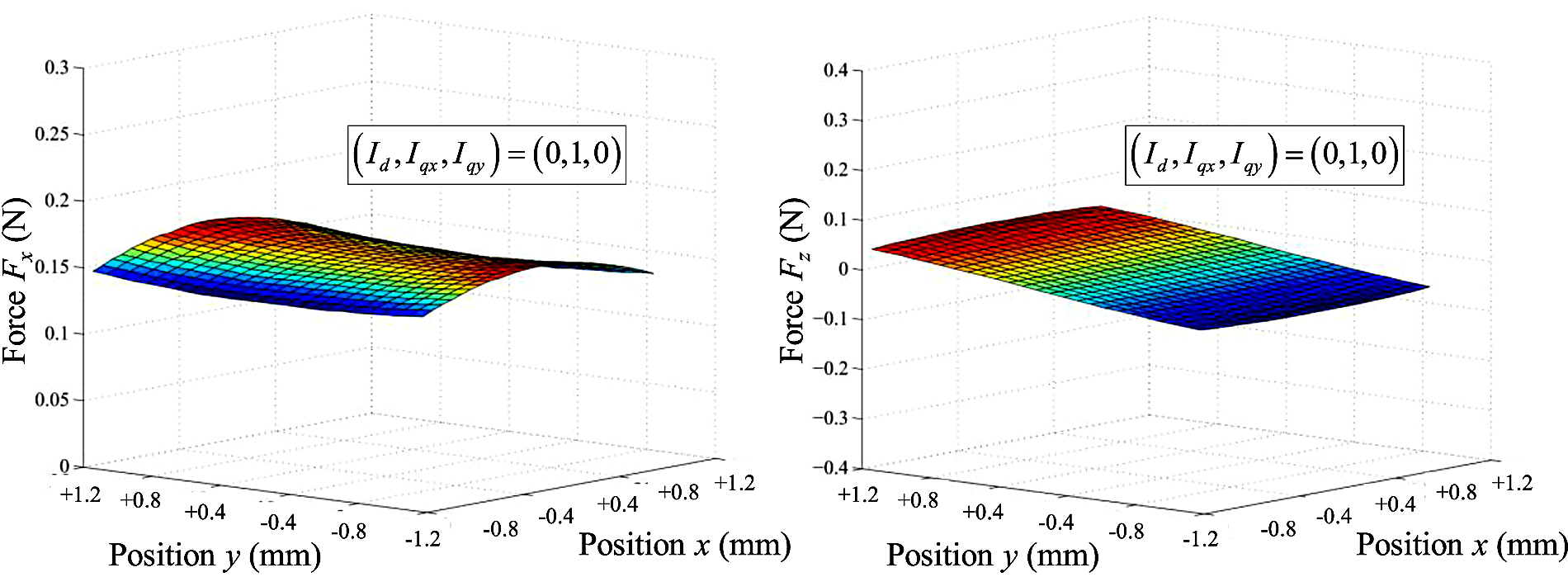

**Fig. 5. Thrust characteristics under only one target current (qx=1)**

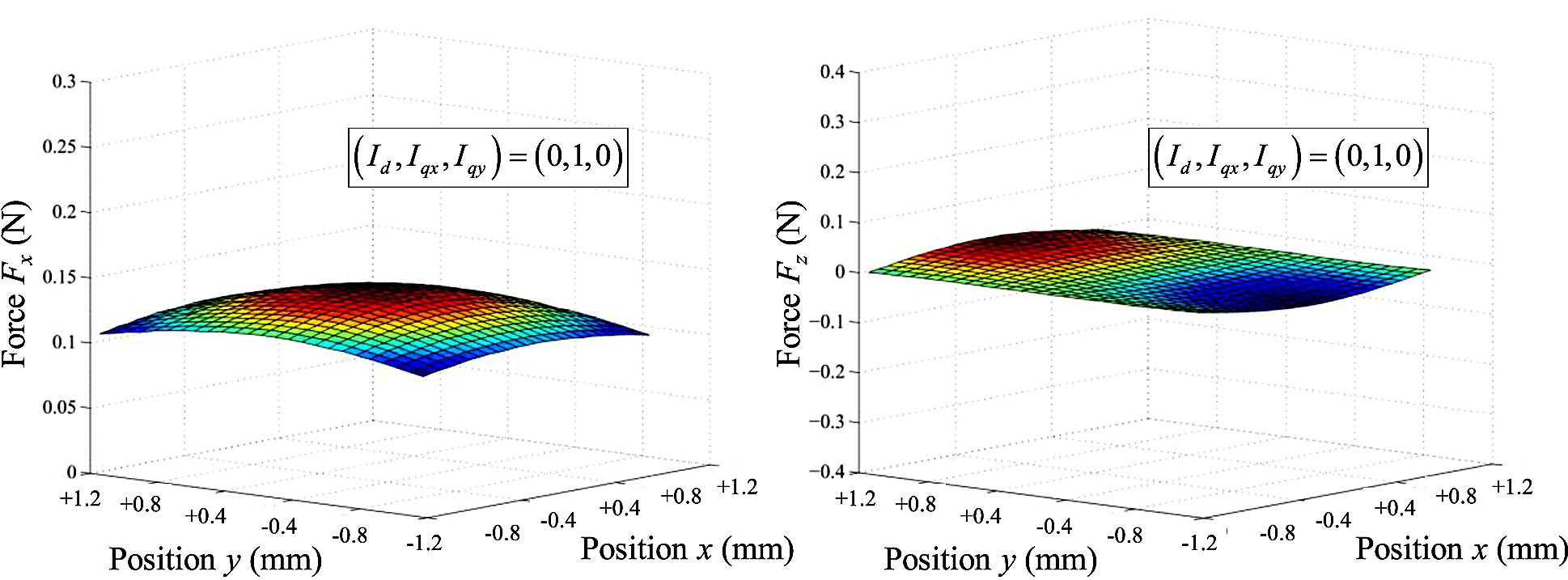

**Fig. 6. Thrust characteristics under only one target current (dx=1)**

**Fig. 7. Thrust characteristics under two target currents (qx=qy=1)**

## NOVEL VECTOR CONTROL THEORY

As described in the previous chapter, the conventional vector control is not completely able to control the thrust of the actuator because U phase coil is shared. When a sectional view of the actuator in *x*-*z* plane is focused, three-phase system under the vector control corresponds to “three” actions. Two of the three are torque current (*x*- or *y*-axis drive) and field current (*z*-axis drive). The rest one is a condition that the sum of three-phase currents is constrained to zero. This suggests that the numbers of phases and actions are identical. On the basis of this concept, four-phase system is theoretically desirable for three-DOF resonant actuator because four-phase system corresponds to three operational actions (*x*-, *y*-, and *z*-axes drive) and one constraints that the sum of four-phase currents is zero.

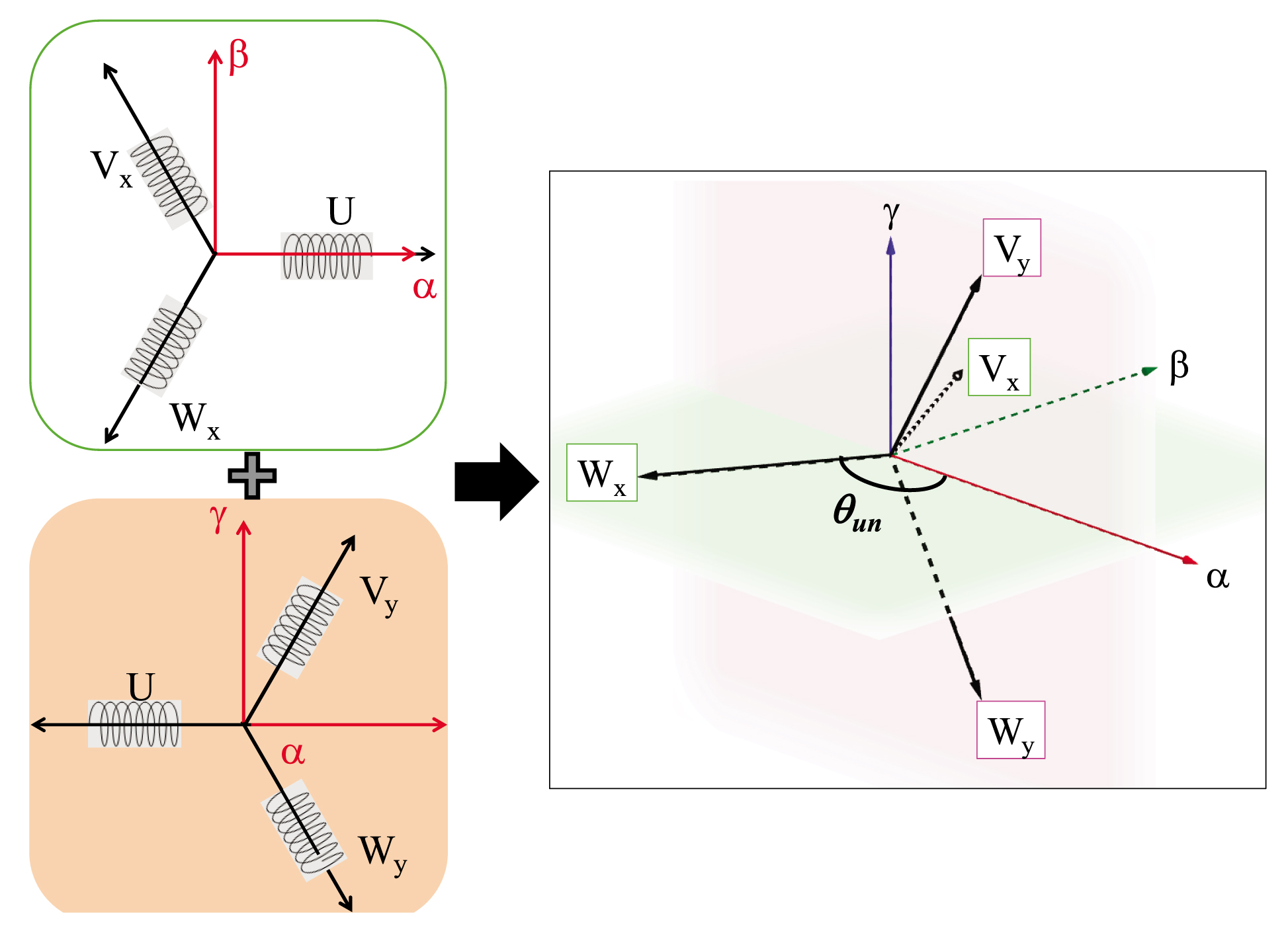

Fig. 8 shows the schematic diagram of space vectors in the novel vector control using four-phase system. U* _{x}*, V

*and W*

_{x}*phase vectors are defined in αβ plane and U*

_{x}*, V*

_{y}*and W*

_{y}*phase vectors are defined in αγ plane. These six vectors are integrated in the αβγ space. However, U*

_{y}*and U*

_{x}*phase vectors are arranged in order to cancel each other. As a result, four phase vectors are defined in the αβγ space. Since αβ plane are orthogonal to αγ plane, the four phase vectors work as basis vectors of the proposed control.*

_{y}Next, we form a novel dq transformation matrix. The transformation matrix from a four-phase stationary reference frame to a three-axis orthogonal stationary reference frame is represented by the following equation which contains three unknowns:

$\left[\begin{array}{c}{I}_{\text{\alpha}}\\ {I}_{\text{\beta}}\\ {I}_{\text{\gamma}}\\ {I}_{\text{0}}\end{array}\right]=k\left[\begin{array}{cccc}\mathrm{cos}{\theta}_{un}& \mathrm{cos}{\theta}_{un}& -\mathrm{cos}{\theta}_{un}& -\mathrm{cos}{\theta}_{un}\\ \mathrm{sin}{\theta}_{un}& -\mathrm{sin}{\theta}_{un}& 0& 0\\ 0& 0& \mathrm{sin}{\theta}_{un}& -\mathrm{sin}{\theta}_{un}\\ a& a& a& a\end{array}\right]\left[\begin{array}{c}{I}_{{\text{V}}_{x}}\\ {I}_{{\text{W}}_{x}}\\ {I}_{{\text{V}}_{y}}\\ {I}_{{\text{W}}_{y}}\end{array}\right]=\left[\mathbf{C}_{\mathbf{VWVW}}^{\text{\alpha \beta \gamma}}\right]\left[\begin{array}{c}{I}_{{\text{V}}_{x}}\\ {I}_{{\text{W}}_{x}}\\ {I}_{{\text{V}}_{y}}\\ {I}_{{\text{W}}_{y}}\end{array}\right]$ (4)

where, *I*_{α}, *I*_{β}, and *I*_{γ} are the αβγ orthogonal reference frame quantities, *I*_{0} is the zero sequence current, *I*_{vx}, *I*_{wx}, *I*_{vy}, and *I*_{wy} are the four-phase stationary reference frame quantities. *θ _{un}* is the unknown angle between the α-axis and W

*phase vector. The unknown coefficients*

_{x}*a*and

*k*are required to satisfy power invariance before and after the transformation. In order to satisfy it, the product of the matrix [

^{αβ}

^{γ}

*C*_{VWVW}] and its transpose matrix [

^{VWVW}

*C*_{αβ}

_{γ}] needs to be identity matrix. Therefore, the following equation is obtained and three unknown values are identified:

$\left[\mathbf{C}_{\mathbf{VWVW}}^{\text{\alpha \beta \gamma}}\right]{\left[\mathbf{C}_{\mathbf{VWVW}}^{\text{\alpha \beta \gamma}}\right]}^{T}={k}^{2}\left[\begin{array}{cccc}4\mathrm{cos}{}^{2}{\theta}_{un}& 0& 0& 0\\ 0& 2\mathrm{sin}{}^{2}{\theta}_{un}& 0& 0\\ 0& 0& 2\mathrm{sin}{}^{2}{\theta}_{un}& 0\\ 0& 0& 0& 4{a}^{2}\end{array}\right]=\left[\mathbf{I}\right]\{\begin{array}{l}{\theta}_{un}\cong 125\mathrm{deg}.\iff \mathrm{cos}{\theta}_{un}=-\frac{1}{\sqrt{3}}\\ k=\frac{\sqrt{3}}{2}\\ a=\frac{1}{\sqrt{3}}\end{array}$ (5)

**Fig. 8. Schematic diagram of novel vector control theory**

This result suggests that the four-phase system has a slightly different angle (125 deg.) from that of the normal three-phase system (120deg.). Next, dq transformation for three-DOF resonant actuator is introduced. The proposed vector control employs Euler angles representaion in order to express the two electrical angles *θ** _{x}* and

*θ*

*. Fig. 9 shows the schematic diagram of dq transformation by Euler angles. The αβγ reference frame is converted to α’β’γ reference frame by rotating around β-axis by*

_{y}*θ*

*, as shown in Fig. 9b. After that, The α’β’γ reference frame is converted to d-q*

_{y}_{x}-q

_{y}rotational reference frame by rotating around γ’-axis by

*θ*

*, as shown in Fig. 9c. The transformation matrix from a three-axis stationary reference frame to a three-axis rotational reference frame is expressed by the following equation.*

_{x}

$\left[\begin{array}{c}{I}_{\text{d}}\\ {I}_{{\text{q}}_{x}}\\ {I}_{{\text{q}}_{y}}\\ {I}_{0}\end{array}\right]=\left[\begin{array}{cccc}\mathrm{cos}{\theta}_{x}\mathrm{cos}{\theta}_{y}& \mathrm{sin}{\theta}_{x}& \mathrm{cos}{\theta}_{x}\mathrm{sin}{\theta}_{y}& 0\\ -\mathrm{sin}{\theta}_{x}\mathrm{cos}{\theta}_{y}& \mathrm{cos}{\theta}_{x}& -\mathrm{sin}{\theta}_{x}\mathrm{sin}{\theta}_{y}& 0\\ -\mathrm{sin}{\theta}_{y}& 0& \mathrm{cos}{\theta}_{y}& 0\\ 0& 0& 0& 1\end{array}\right]\left[\begin{array}{c}{I}_{\text{\alpha}}\\ {I}_{\text{\beta}}\\ {I}_{\text{\gamma}}\\ {I}_{0}\end{array}\right]=\left[\mathbf{C}_{\mathbf{\alpha \beta \gamma}}^{\text{dq}}\right]\left[\begin{array}{c}{I}_{\text{\alpha}}\\ {I}_{\text{\beta}}\\ {I}_{\text{\gamma}}\\ {I}_{0}\end{array}\right]$ (6)

From equations (5) and (6), The dq transformation matrix is obtained:

$\left[\begin{array}{c}{I}_{d}\\ {I}_{{q}_{x}}\\ {I}_{{q}_{y}}\end{array}\right]=\frac{\sqrt{3}}{2}\left[\begin{array}{cccc}\text{c}{\theta}_{x}\text{c}{\theta}_{y}\text{c}{\theta}_{un}+\text{s}{\theta}_{x}\text{s}{\theta}_{un}& \text{c}{\theta}_{x}\text{c}{\theta}_{y}\text{c}{\theta}_{un}-\text{s}{\theta}_{x}\text{s}{\theta}_{un}& -\text{c}{\theta}_{x}\text{c}({\theta}_{y}+{\theta}_{un})& -\text{c}{\theta}_{x}\text{c}({\theta}_{y}+{\theta}_{un})\\ -\text{s}{\theta}_{x}\text{c}{\theta}_{y}\text{c}{\theta}_{un}+\text{c}{\theta}_{x}\text{s}{\theta}_{un}& -\text{s}{\theta}_{x}\text{c}{\theta}_{y}\text{c}{\theta}_{un}-\text{c}{\theta}_{x}\text{s}{\theta}_{un}& \text{s}{\theta}_{x}\text{c}({\theta}_{y}+{\theta}_{un})& \text{s}{\theta}_{x}\text{c}({\theta}_{y}-{\theta}_{un})\\ -\text{s}{\theta}_{y}\text{s}{\theta}_{un}& -\text{s}{\theta}_{y}\text{s}{\theta}_{un}& \text{s}({\theta}_{y}+{\theta}_{un})& \text{s}({\theta}_{y}+{\theta}_{un})\end{array}\right]\left[\begin{array}{c}{I}_{{V}_{x}}\\ {I}_{{W}_{x}}\\ {I}_{{V}_{y}}\\ {I}_{{W}_{y}}\end{array}\right]$ (7)

where, s and c are the abbreviations for sine and cosine, respectively.

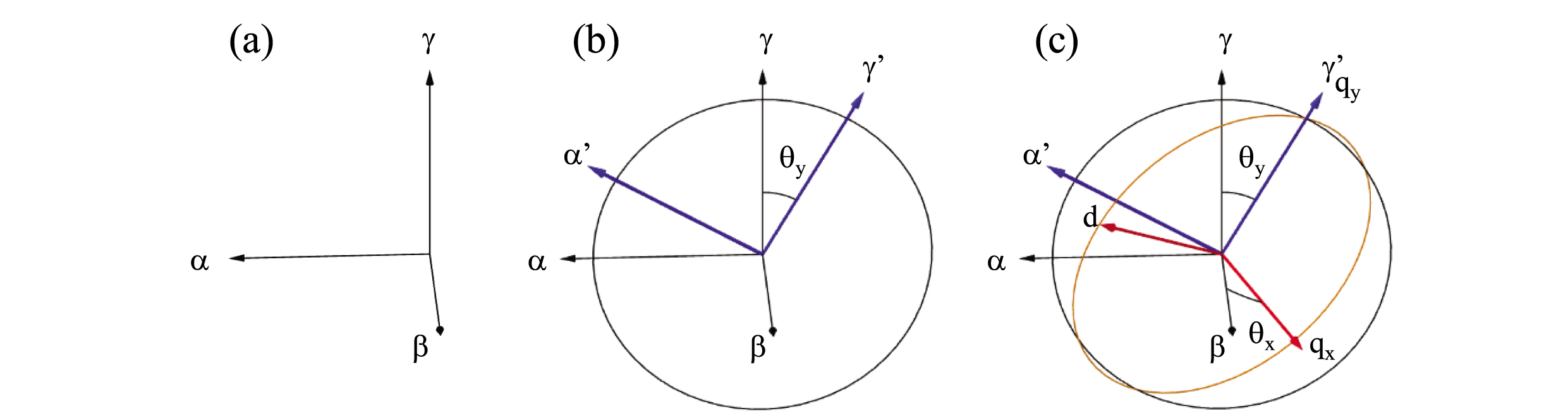

**Fig. 9. 3-D dq transformation by Euler angles representation**

## PERFORMANCE COMPARISON

The proposed vector control theory is applied to the three-DOF resonant actuator in order to confirm its effectiveness. Fig. 10 shows the static thrust characteristics when only one target current is set under the proposed control. In this case, the *x*-axis thrust is almost constant with respect to *x*- and *y*-axes displacements and this result is the same as that shown in Fig. 5. Similarly, the *z*-axis thrust is almost zero because the target current *I _{d}* equals zero. Fig. 11 shows the static thrust characteristics when two target currents are set simultaneously under the proposed control. It can be seen from the comparison between Fig. 11, 7 that the proposed vector control is able to decrease the thrust interferences from the other target current.

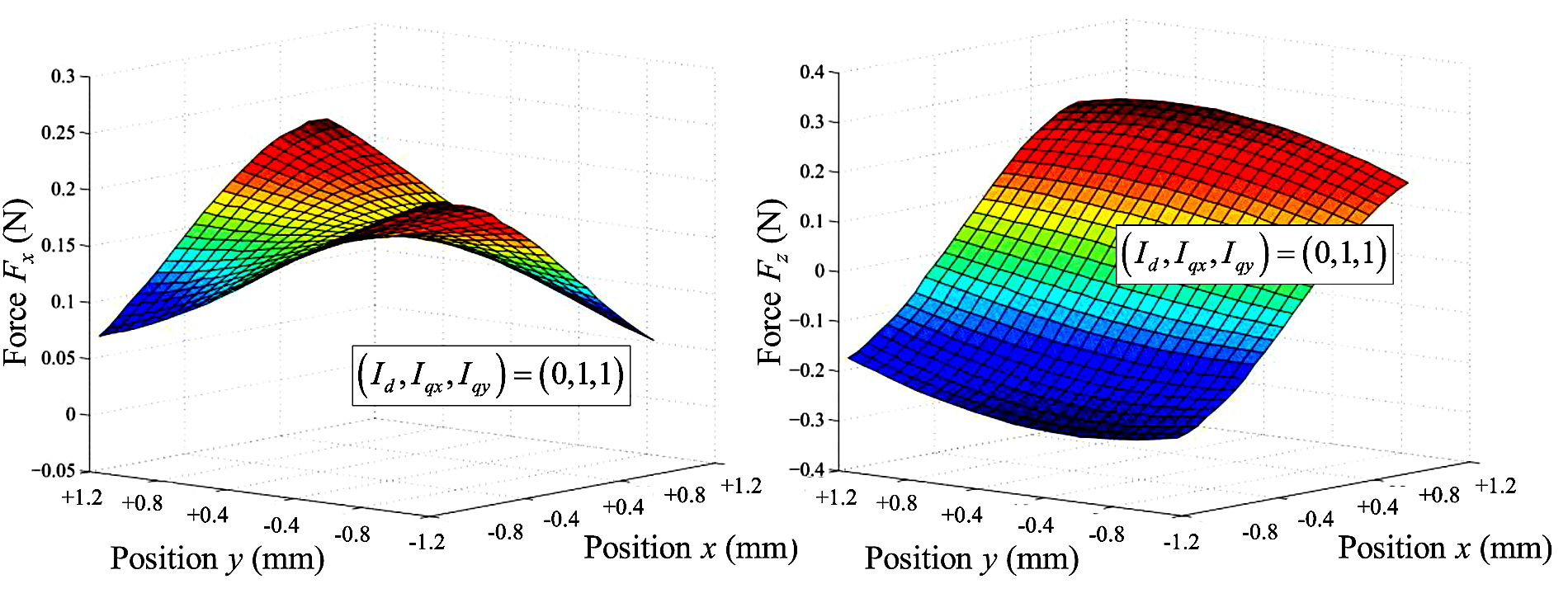

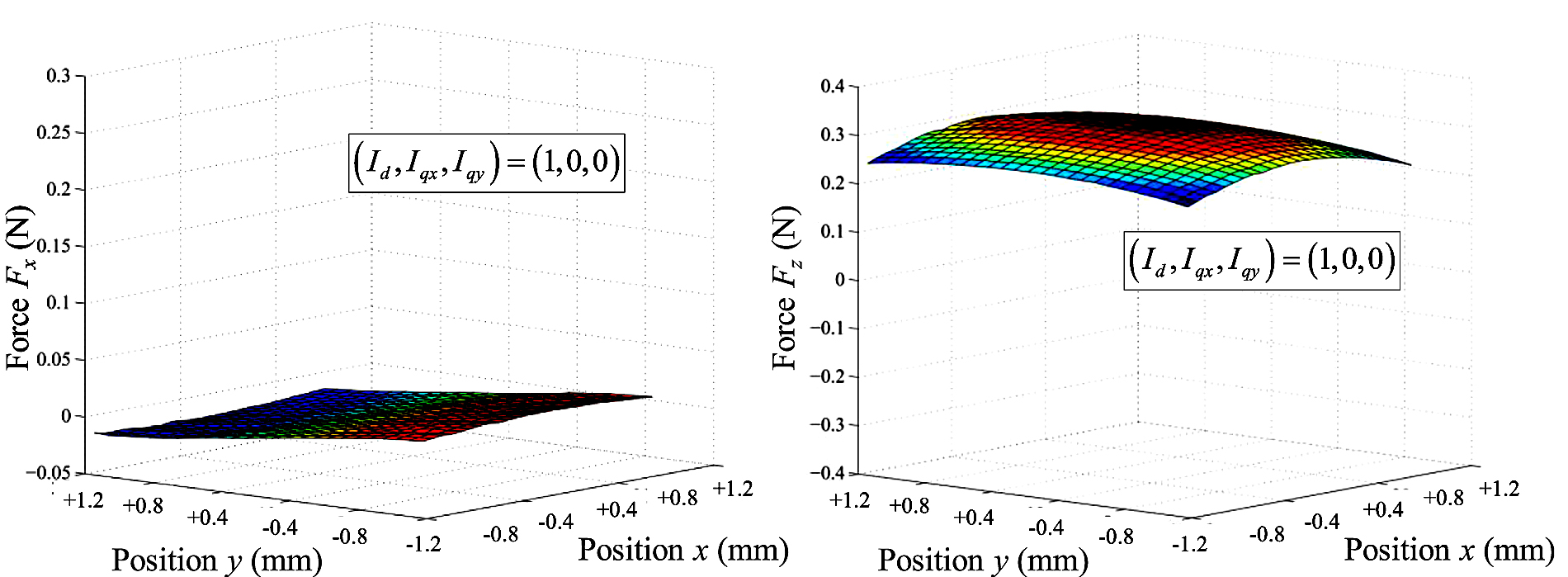

**Fig. 10. Thrust characteristics under the proposed vector control (qx= 1)**

** **

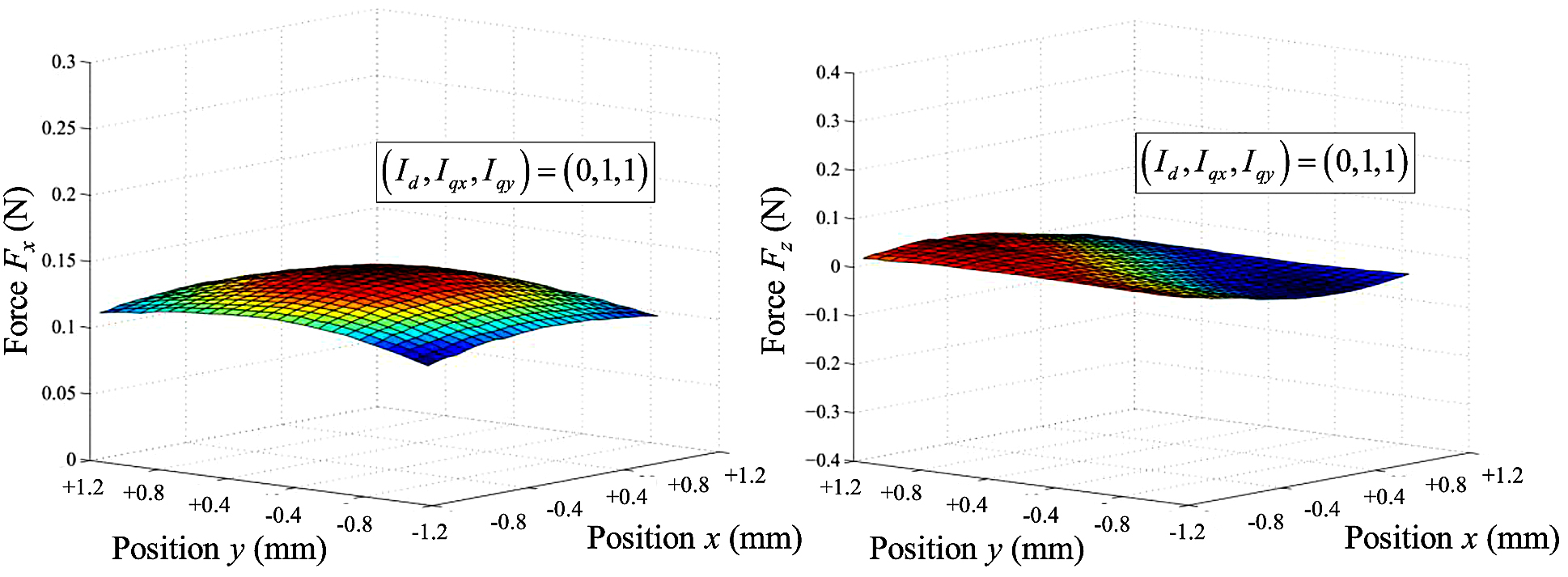

**Fig. 11. Thrust characteristics under the proposed vector control (qx=qy=1)**

## CONCLUSION

In this paper, we propose a novel vector control theory to improve a controllability of our three-DOF resonant actuator. The proposed control have an originality in that a four-phase system was used, not a combination of two sets of three-phase system. A dq transformation matrix for this actuator was successfully derived on the basis of a new phase angle (125 deg.) and 3-D rotation by Euler angles representation. As a result, the proposed control decreased the thrust interference from the other target current and its effectiveness was validated.

There are already several studies dealing with d-q transformation theory of multiphase induction motors [12, 13]. However, we were not able to confirm any studies for multi-DOF electromagnetic actuators. Moreover, the proposed method have a great potential to apply to a two-DOF spherical actuator [14] because its magnet arrangement is similar to that of the three-DOF resonant actuator.

### Masayuki Kato

Osaka University
**Author for correspondence.**

Email: masayuki.kato@ams.eng.osaka-u.ac.jp

ORCID iD: 0000-0002-0856-1588

Japan, Yamadaoka 2-1, Suita-shi, Osaka-fu, 5650871

Master of Engineering, Doctor-course Student

### Katsuhiro Hirata

Osaka University
Email: k-hirata@ams.eng.osaka-u.ac.jp

ORCID iD: 0000-0002-5597-5265

Japan, Yamadaoka 2-1, Suita-shi, Osaka-fu, 5650871

Doctor of Engineering, Professor
