Lu-Hf isotope composition of zircon from syenites of the Sakharjok alkaline massif, Kola Peninsula

Cover Page

Cite item

Full Text

Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription or Fee Access

Abstract

This study examines zircon from the alkaline and nepheline syenites of the Sakharjok massif magmatic (2.645 ± 7 Ma), hydrothermal (1.832 ± 7 Ma) and metamorphic (1.784 ± 22 Ma) stages. Zircon from the alkaline syenites shows lower ɛHf and ɛNd values compared to that from ocean island basalts (OIB) suggesting their mantle-derived prololiths, are close to the CHUR in terms of isotopic composition. It is assumed that the formation of the Neoarchean alkaline Keivy province resulted from the plume-lithospheric interaction triggered by the uplift of a Neoarchean plume that stipulated the processes of metasomatic alterations and subsequent partial melting of the subcratonic lithospheric mantle and crustal rocks. The initial melts of the Sakharjok massif could probably form during the reactivation of the plume activity that occurred 20—30 million years after the emplacement of alkaline granites of the province by selective melting of the metasomatized lithospheric mantle rocks.

Full Text

Restricted Access

About the authors

Valeriy R. Vetrin

Kola Science Center of the RAS; Institute of Mineralogy, Geochemistry and Crystalochemistry of Rare Elements of the RAS

Author for correspondence.
Email: vetrin.val@gmail.com
SPIN-code: 3512-4033

Dr. Ph., leading sci. researcher, Geological Institute

Russian Federation, 14 Fersman St. Apatity Murmansk region 184209 Russia; 15 Veresayev St. Moscow 121357 Russia

Elena A. Belousova

Macquarie University

Email: elena.belousova@mq.edu.au

Dr. Sci, Professor, Dept. of Earth and Planetary Sciences, Faculty of Science

Australia, NSW 2109, Sydney, Australia

References

  1. Arzamastsev A. A., Fedotov Zh. A., Arzamastseva L. V. The dyke complex of a northeast part of the Baltic Shield. SPb: Nauka, 2009. 383 p. (in Russian).
  2. Batieva I. D. Petrology of alkaline granitoids of the Kola Peninsula. Leningrad: Nauka, 1976. 224 p. (in Russian).
  3. Batieva I. D., Bel’kov I. V. Sakharjok alkaline massif: rocks and minerals. Apatity: Kola branch Academy of Sciences of the USSR, 1984. 134 p. (in Russian).
  4. Bayanova T. B. Age of reference geological complexes of the Kola Region and duration of magmatic processes. Saint Petersburg: Nauka, 2004. 174 p. (in Russian).
  5. Beard A. D., Downes H., Mason P. R. D., Vetrin V. R. Depletion and enrichment processes in the lithospheric mantle beneath the Kola Peninsula (Russia): Evidence from spinel lherzolite and wehrlite xenoliths. Lithos. 2007. Vol. 94. P. 1-24.
  6. Blichert-Toft J., Rosing M. T., Lesher C. E., Chauvel C. Geochemical constraints on the origin of the Late Archean Skjoldungen alkaline igneous province, SE Greenland. J. Petrol. 1995. Vol. 36. P. 515-561.
  7. Blichert-Toft J., Arndt N. T., Ludden J. N. Precambrian alkaline magmatism. Lithos. 1996. Vol. 37. P. 97-111.
  8. Blichert-Toft J., Albarede F. The Lu-Hf isotope geochemistry of chondrites and evolution of the mantle-crust system. Earth. Planet. Sci. Lett. 1997. Vol. 148. P. 243-258.
  9. Bouvier A., Vervoort J. D., Pattchett P. J. The Lu-Hf and Sm-Nd isotopic composition of CHUR: constraints from unequilibrated chondrites and implications for the bulk composition of terrestrial planets. Earth Planet Sci. Lett. 2008. Vol. 273. P. 48-57.
  10. Chen Ren-Xu, Zheng Yong-Fei, Xie Liewen. Metamorphic growth and recrystallization of zircon: Distinction by simultaneous in-situ analyses of trace elements, U-Th-Pb and Lu-Hf isotopes in zircons from eclogite-facies rocks in the Sula orogeny. Lithos. 2010. Vol. 114. P. 132-154.
  11. Erlank A. J., Waters F. G., Hawkesworth C. J., Haggerty S. E., Allsopp H. L., Rickard R. S., Menzies M. A. Evidence for mantle metasomatism in peridotite nodules from the Kimberley pipes, South Africa. In: Mantle Metasomatism. London: Academic Press, 1987. P. 221-311.
  12. Geology of the Archean of Baltic Shield. Saint Petersburg: Nauka, 2006. 329 p. (in Russian).
  13. Griffin W. L., O’Reilly S. Y., Ryan C. G. Thecomposition and origin of subcontinental lithosphericmantle. In: Mantle Petrology: Field observations and high-pressure experimentation. Geochem. Soc. Spec. Publ. 1999. No. 6. P. 13-46.
  14. Griffin W. L., Pearson N. J., Belousova E., Jackson S. E., O’Reilly S. Y., van Achterberg E., Shee S. R. The Hf isotope composition of cratonic mantle: LAM-MC-ICPMS analysis of zircon megacrysts in kimberlites. Geochim. Cosmochim. Acta. 2000. Vol. 64. P. 133-147.
  15. Griffin W. L., Wang X., Jackson S. E., Pearson N. J., O’Reilly S. Y., Xu X., Zhou X. Zircon chemistry and magma mixing, SE China: In-situ analysis of Hf isotopes, Tonglu and Pingtan igneous complexes. . 2002. Vol. 61. P. 237-269.
  16. Griffin W. L., Belousova E. A., Neill C. O., O'Reilly S. Y., Malkovets V., Pearson N. J., Spetsius S., Wilde S. A. The world turns over: Hadean-Archean crust-mantle evolution. Lithos. 2014. Vol. 189. P. 2-15.
  17. Guggisberg A., Berthelsen A. A two-dimentional velocity model for the lithosphere beneath the Baltic Shield and its possible tectonic significance. Terra cognita. 1987. Vol. 7. No. 4. P. 631-638.
  18. Heilimo E., Halla J., Andersen T., Huhma H. Neoarchean crustal recycling and mantle metasomatism: Hf-Nd-Pb-O isotope evidence from sanukitoids of the Fennoscandian shield. Precambr. Research. 2013. Vol. 228. P. 250-266.
  19. Heilimo E., Elburg M. A., Andersen T. Crustal growth and reworking during Lapland-Kola orogeny in northern Fennoscandia: U-Pb and Lu-Hf data from the Nattanen and Litsa-Aragub-type granites. Lithos. 2014. Vol. 205. P. 112-126.
  20. Hill R. I., Chappell B. W., Campbell I. H. Late Archaean granites of the southeastern Yilgarn Block, Western Australia: age, geochemistry, and origin. Trans. Royal Soc. Edinburgh Earth Sci. 1992. Vol. 83. P. 211-226.
  21. Lassen B., Hattori K., Persival J. Late Archean alkaline magmatism in the western Quetico belt, Superior Province, Ontario. Geol. Surv. Canada. 2007. Current Res. 2000-C21. P. 1-6.
  22. Lyalina L. M., Zozulya D. R., Savchenko E. E. Multiple crystallization of zircon in the Sakharyok rare-earth element - zirconium deposit, Kola Peninsula. Doklady Earth Sci. 2010. Vol. 430. No. 1. P. 120-124.
  23. Mints M. V., Belousova E. A., Konilov A. N., Natapov L. M., Shchipansky A. A., Griffin W. L., O’Reilly S. Y., Dokukina K. A., Kaulina T. V. Mesoarchean subduction processes: 2.87 Ga eclogites from the Kola Peninsula, Russia. Geology. 2010. Vol. 38. No. 8. P. 739-742.
  24. Mitrofanov F. P., Zozulya D. R., Bayanova T. B., Levkovich N. V. The word´s oldest anorogenic alkaline granitic magmatism in the Keivy structure of the Baltic Shield. Doklady Earth Sci. 2000. Vol. 374. P. 1145-1148.
  25. Multimedia reference book on mineral raw material resources and mining complex of Murmansk region: Digital information resource. Apatity: GI KSC RAS, 2001. P. 255-258.
  26. Peltonen P., Brügman G. Origin of layered continental mantle (Karelian craton, Finland). Geochemical and Re-Os isotope constraints. Lithos. 2006. Vol. 89. P. 405-423.
  27. Peltonen P., Kinnunen K. A., Huhma H. Petlology of two diamondiferous eclogite xenoliths from the Lahtojoki kimberlite pipe, Eastern Finland. Lithos. 2002. Vol. 63. P. 151-164.
  28. Precambrian magmatic formations of a Northeast part of Baltic Shield. Leningrad: Nauka, 1985. 176 p. (in Russian).
  29. Ruchlov A. S., Bell K. Geochronology of carbonatites from the Canadian and Baltic Shields: clues to mantle evolution. Miner. Petrol. 2010. Vol. 98. P. 11-54.
  30. Scherer E., Münker C., Mezger K. Calibration of the lutetium-hafnium clock. Science. 2001. Vol. 293. P. 683-687.
  31. Storey M., Mahoney J. J., Kroenke L. W., Saunders A. D. Are oceanic plateaus sites of komatiite formation? Geology. 1991. Vol. 19. P. 376-379.
  32. Vervoort J. D., Patchett P. J. Bechavior of gafnium and neodymium isotopes in the crust: constraints from Precambrian crustally derived granites. Geochim. Cosmochim. Acta. 1996. Vol. 60. P. 3717-3733.
  33. Vervoort J. D., Blichert-Toft J. Evolution of depleted mantle: Hf evidence from juvenile rocks through time. Geochim. Cosmochim. Acta. 1999. Vol. 63. No. 3/4. P. 533-556.
  34. Vetrin V. R. Isotope and geochemical systematics (Sm-Nd, Lu-Hf) of Neoarchaean subalkaline and alkaline rocks of Keyvi structure, Kola Peninsula: their age and genetic correlations. Zapiski RMO (Proc. Russian Miner. Soc). 2018. No. 4. P. 1-13 (in Russian, English translation: Geol. Ore Deposits. 2019. Vol. 61. N 7. P. 1-8).
  35. Vetrin V. R., Rodionov N. V. Geology and geochronology of Neoarchean anorogenic magmatism of the Keivy structure, Kola Peninsula. Petrology. 2009. Vol. 17. No. 6. P. 537-557.
  36. Vetrin V. R., Skublov S. G. Composition of trace elements in zircon of different genetic types from the Sakharjok syenite massif, Kola Peninsula. Zapiski RMO (Proc. Russian Miner. Soc). 2015. No. 3. P. 1-13 (in Russian, English translation: Geol. Ore Deposits. 2016. Vol. 58. No. 7. P. 26-34).
  37. Vetrin V. R., Belousova E. A., Chupin V. P. Trace element composition and Lu-Hf isotope systematics of zircon from plagiogneisses of the Kola Superdeep Well: contribution of a Paleoarchean crust in Mesoarchean metavolcanic rocks. Geochem. Int. 2016. Vol. 54. No. 1. P. 92-111.
  38. Vetrin V. R., Belousova E. A., Kremenetsky A. A. Lu-Hf isotopic systematics of zircon from lower crustal xenoliths in the Belomorian Mobile Belt. Geol. Ore Deposits. 2018. Vol. 60. No. 7. P. 568-577.
  39. Vetrin V. R., Belousova E. A., Kremenetsky A. A. Lu-Hf isotopic systematics of zircon and petrogenesis subalkaline and alkaline granites of the Keivy megabloсk. Works Fersman scientific session. Apatity: GI KSC RAS, 2019 (in press).
  40. Vetrin V. R., Skublov S. G., Balashov Yu. A., Lialina L. M., Rodionov N. V. The time of formation and genesis of yttrium-zirconium mineralization of the Sakharjok massif, Kola Peninsula. Zapiski RMO (Proc. Russian Miner. Soc). 2014. Nо. 2. P. 1-22 (in Russian, English translation: Geol. Ore Deposits. 2014. Vol. 56. Nо. 8. P. 603-616).
  41. Watson E. B., Wark D. A., Thomas J. B. Crystallization thermometers for zircon and rutile. Contrib. Miner. Petrol. 2006. Vol. 151. P. 413-433.
  42. White R. S., McKenzie D. Magmatism at rift zones: the generation of volcanic continental margins and flood basalts. J. Geoph. Res. 1989. Vol. 94. No. B6. P. 7685-7729.
  43. Zozulya D. R., Bayanova T. B., Serov P. N. Age and isotopic geochemical characteristics of Archean carbonatites and alkaline rocks of the Baltic Shield. Doklady Earth Sci. 2007. Vol. 415. No. 2. P. 874-879.
  44. Zozulya D. R., Lyalina L. M., Savchenko E. E., Eby N. Ore geochemistry, zircon mineralogy, and genesis of the Sakharjok Y-Zr deposit, Kola Peninsula, Russia). Geol. Ore Deposits. 2012. Vol. 54. No. 2. P. 81-98.
  45. Zozulya D. R., Bayanova T. B. Age and tectonic setting of alkali gabbro from the late Archean Sakharjok massif (Kola Peninsula). In: Geology and geochronology of rock-forming and ore processes in crystal rocks. Apatity: K&M, 2013. P. 60-62 (in Russian).

Supplementary files

Supplementary Files
Action
1. JATS XML
Download

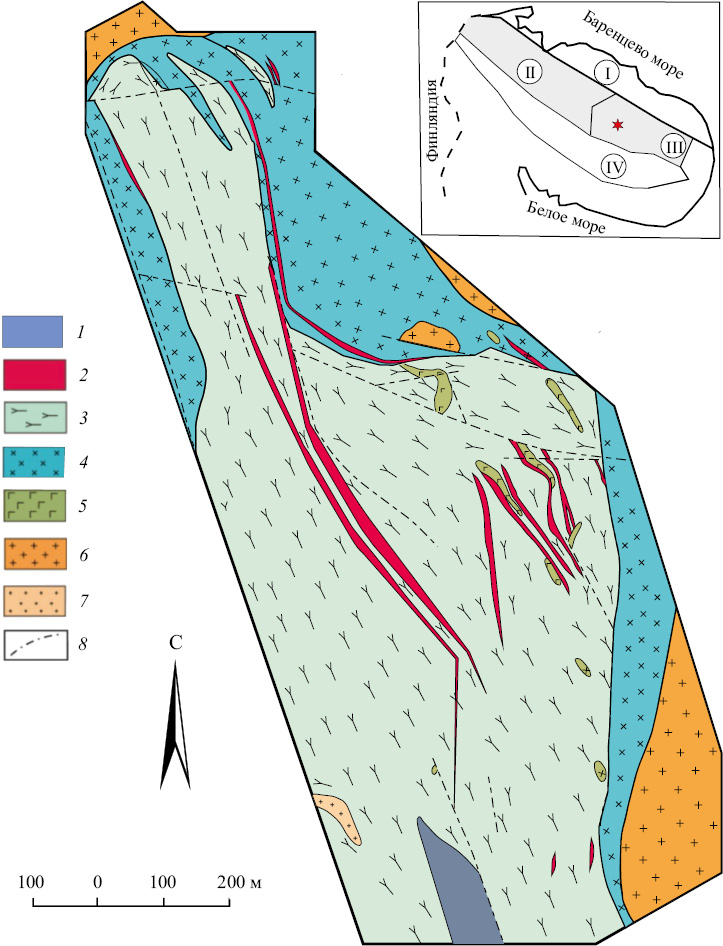

2. Fig. 1. Geological scheme of the Sakharjok deposit (after: Multimedia Reference Book…, 2001, with simplifications).

Download (212KB)
Indexing metadata
3. Fig. 2. Zircon crystals from alkaline and nepheline syenites. CL images. Circles are locations of the ionic probe beam. Their numbers corresponds to number of analyses in Table.

Download (189KB)
Indexing metadata
4. Fig. 3. Lu-Hf isotope diagrams for zircon from syenites of the Sakharjok deposit.

Download (102KB)
Indexing metadata
5. Fig. 4. Hf-Nd isotope diagram for zircon from syenites of the Sakharjok deposit.

Download (63KB)
Indexing metadata
