Neyite from the Yugo-Konevo deposit (Southern Urals, Russia) and its crystal structure

Cover Page

Cite item

Full Text

Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription or Fee Access

Abstract

Neyite Ag2Cu6Pb25Bi26S68 was identified in the dumps of Yugo-Konevo tungsten deposit (Chelyabinsk oblast, Southern Urals) for a first time in Russia. This rare sulfosalt forms prismatic crystals up to 3 х 0.5 mm in fluorite-muscovite-quartz veins and is associated with aikinite, tetradymite and pyrite. Reflectance spectra and values of neyite are published for the first time. The chemical composition of neyite is (wt. %, electron microprobe, mean of 7 analyses): Ag 1.75, Cu 3.59, Pb 35.01, Cd 0.12, Bi 42.59, S16.54, total 99.60. The empirical formula calculated based on S = 68 atoms per formula unit is Ag2.14Cu7.45Pb22.27Cd0.14Bi26.86S68. The crystal structure of neyite from Yugo-Konevo was refined on the single crystal, R1 = 3.43 %, wR2 = 7.22 %. The mineral is monoclinic, space group С2/m, a = 37.3900(6) Å, b = 4.05500(10), c = 43.5821(7) Å, β = 108.740(2)°, V = 6257.5(2) Å3, Z = 2. The structure of neyite is based upon three different modules of archetypal PbS structure: (111)PbS slabs of octahedra extended along b alternate with (100)PbS slabs in a direction. Resulting layers are alternated with (922) PbS layers along c. The main structural feature of neyite from Yugo-Konevo deposit that distinguishes it from previously published data on neyite from type locality and cuproneyite is the disorder of Me16 site and the presence of the additional Cu5 site. These features, combined with the bond valence sums analysis, suggest the presence of chains of CuS4 tetrahedra alternating with chains of BiS6 octahedra.

Full Text

Restricted Access

About the authors

I. V. Kornyakov

Saint Petersburg State University

Author for correspondence.
Email: ikornyakov@mail.ru

Institute of Earth Sciences

Russian Federation, Saint Petersburg; Apatity

A. V. Kasatkin

Fersman Mineralogical Museum RAS

Email: ikornyakov@mail.ru
Russian Federation, Moscow

V. V. Gurzhiy

Saint Petersburg State University

Email: ikornyakov@mail.ru

Institute of Earth Sciences

Russian Federation, Saint Petersburg

R. Škoda

Masaryk University

Email: ikornyakov@mail.ru

Department of Geological Sciences

Czech Republic, Brno

A. M. Kuznetsov

Email: ikornyakov@mail.ru
Russian Federation

References

  1. Anthony J.W., Bideaux R.A., Bladh K.W., Nichols M.C. Handbook of mineralogy. Vol. 1. Elements, sulfides, sulfosalts. Tucson, Arizona: Mineral data publishing, 1990. 588 p.
  2. Balić-Žunić T., Makovicky E. Determination of the Centroid or ‘the Best Centre’ of a Coordination Polyhedron. Acta Crystallogr. 1996. Vol. B52. P. 78—81.
  3. Bernard J.H., Hyršl J. Minerals and their localities. Third updated edition. Granit, s. r.o, 2015. 912 p.
  4. Bonstedt-Kupletskaya E.M. On the mineralogy of the Karas'evskoe and Yugo-Konevskoe tungsten deposits in the Middle Urals. Doklady USSR Acad. Sci. 1943. Vol. 40. N 9. P. 412—415 (in Russian).
  5. Brese N.E., O’Keeffe M. Bond-valence parameters for solids. Acta Crystallogr. 1991. Vol. B47. P. 192—197.
  6. Brown I.D. Modern Bond Valence Theory. In: Comprehensive Coordination Chemistry III. United States: Elsevier, 2021. P. 276—306.
  7. Brown I.D., Altermatt D. Bond-valence parameters obtained from a systematic analysis of the inorganic crystal structure database. Acta Crystallogr. 1985. Vol. B41. P. 244—247.
  8. Castor S.B., Ferdock G.C. Minerals of Nevada. Nevada Bureau of Mines and Geology. Special Publication 31 in association with University of Nevada Press, 2004. 512 p.
  9. Ciobanu C.L., Cook N.J., Maunders C., Wade B.P., Ehrig K. Focused Ion Beam and Advanced Electron Microscopy for Minerals: Insights and Outlook from Bismuth Sulphosalts. Minerals, 2016. Vol. 6(4). Paper 112.
  10. Criddle A.J., Stanley C.J. Quantitative data files for ore minerals. Third edition. Springer-science+Business media, 1993. 635 p.
  11. CrysAlisPro Software System, version 11.171.41.93а (2023). Rigaku Oxford Diffraction: Oxford, UK.
  12. Dolomanov O.V., Bourhis L.J., Gildea R.J., Howard J.A.K., Puschmann H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009. Vol. 42. P. 339—341.
  13. Drummond A.D., Trotter J., Thompson R.M., Gower J.A. Neyite, a new sulphosalt from Alice Arm, British Columbia. Canad. Miner. 1969. Vol. 10. P. 90—96.
  14. Eckel E.B. Minerals of Colorado. Updated and revised by R.R. Cobban, D.S. Collins, E.E. Foord, D.E. Kile, P.J. Modreski and J.A. Murphy. Fulcrum Publishing, 1997. 665 p.
  15. Eon J.-G., Nespolo M. Charge distribution as a tool to investigate structural details. III. Extension to description in terms of anion-centred polyhedra. Acta Crystallogr. 2015. Vol. B71. P. 34—47.
  16. Gaspar O., Bowles J.F.W., Shepherd T.J. Silver mineralization at the Vale Gatas tungsten mine, Portugal. Miner. Mag. 1987. Vol. 51. P. 305—310.
  17. Hoppe R. Effective coordination numbers (ECoN) and mean fictive ionic radii (MEFIR). Z. Kristallogr. 1979. Vol. 150. P. 23—52.
  18. Ilinca G. Charge Distribution and Bond Valence Sum Analysis of Sulfosalts — The ECoN21 Computer Program. Minerals. 2022. Vol. 12. Paper 924.
  19. Ilinca G., Makovicky E., Topa D., Zagler G. Cuproneyite, Cu7Pb27Bi25S68, a new mineral species from Băiţa Bihor, Romania. Canad. Miner. 2012. Vol. 50. P. 353—370.
  20. Karup-Møller S., Makovicky E. Mummeite — A new member of the pavonite homologous series from Alaska mine, Colorado. N. Jb. Miner. Mh. 1992. P. 555—576.
  21. Kasatkin A.V., Belogub E.V., Kuznetsov A.M., Novoselov K.A., Škoda R., Nestola F., Rogov D.A. Bismuth minerals from Yugo-Konevo and Porokhovskoe tungsten deposits (South Urals). Mineralogy. 2023. Vol. 9. N 3. P. 26—49 (in Russian).
  22. Kolodkin S.P. Tungsten ore deposit “3rd year of the five-year plan”. Mineral exploration. 1936. Vol. 8. P. 9—13 (in Russian).
  23. Korovko A.V., Dvoeglazov D.A., Kuzovkov G.N., Smirnov V.N., Purtov V.A., Burnatnaya L.N., Gerasimenko B.N., Glazyrina N.S., Sidorova M.N., Vedernikov V.V. State Geological Map of the Russian Federation. Scale 1: 200000. Second edition. Series Sredneuralskaya. Sheet O-41-XXXII. Explanatory letter. Moscow, MF VSEGEI, 2015. 274 p. (in Russian).
  24. Makovicky E., Balić-Žunić T. New measure of distortion for coordination polyhedra. Acta Crystallogr. 1998. Vol. B 54. P. 766—773.
  25. Makovicky E., Balić-Žunić T., Topa D. The crystal structure of neyite, Ag2Cu6Pb25Bi26S68. Canad. Miner. 2001. Vol. 39. P. 1365—1376.
  26. Makovicky E., Makovicky M. Representation of compositions in the bismuthinite — aikinite series. Canad. Miner. 1978. Vol. 16. P. 405—409.
  27. Nespolo M. Charge distribution as a tool to investigate structural details. IV. A new route to heteroligand polyhedra. Acta Crystallogr. 2016. Vol. 72. P. 51—66.
  28. Nespolo M., Ferraris G., Ohashi H. Charge distribution as a tool to investigate structural details: Meaning and application to pyroxenes. Acta Crystallogr. 1999. Vol. 55. P. 902—916.
  29. Nespolo M., Ferraris G., Ivaldi G., Hoppe R. Charge distribution as a tool to investigate structural details. II. Extension to hydrogen bonds, distorted and hetero–ligand polyhedra. Acta Crystallogr. 2001. Vol. B57. P. 652—664.
  30. Palenik G.J. A critical evaluation of homo- and hetero-leptic cadmium complexes using bond valence sums. Can. J. Chem. 2006. Vol. 84. P. 99—104.
  31. Rogov D.A., Belogub E.V., Novoselov K.A., Rassomakhin M.A., Irmakov R.R., Chugaev A.E. Mineral forms of tungsten at the Porokhovskoe and Yugo-Konevskoe deposits (South Urals). Mineralogy. 2023.Vol. 9. N 2. P. 41—59 (in Russian).
  32. Sheldrick G.M. SHELXT — Integrated space-group and crystal structure determination. Acta Crystallogr. 2015a. Vol. A71. P. 3—8.
  33. Sheldrick G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015b. Vol. C71. P. 3—8.
  34. Shields G.P., Raithby P.R., Allen F.H., Motherwell W.D.S. The assignment and validation of metal oxidation states in the Cambridge Structural Database. Acta Crystallogr. 2000. Vol. B56. P. 455—465.
  35. Topa D., Makovicky E. The crystal chemistry of cosalite based on new electron-microprobe data and single-crystal determinations of the structure. Canad. Miner. 2010. Vol. 48. P. 1081—1107.
  36. Trömmel M. Abstandskorrelationen bei der Tellur(IV)-Sauerstoff- und bei der Antimon(III)-Sauerstoff-Koordination. Z. Kristallogr. 1981. Vol. 154. P. 338—339.
  37. Yokoro Y., Nakashima K. Ag-Cu-Pb-Bi-S Minerals Newly Discovered from the Ohori Base Metal Deposit, Yamagata Prefecture, NE Japan: Implications for Bi-metallogenesis in the Green-Tuff Region. Resource Geology. 2008. Vol. 60. P. 1—17.
  38. Zoloev K.K., Levin V. Ya., Mormil S.I., Schardakova G. Yu. Minerageny and deposits of rare metals, molybdenum, tungsten of the Urals. Yekaterinburg, OAO UGSE, 2004. 336 p. (in Russian).

Supplementary files

Supplementary Files
Action
1. JATS XML
Download

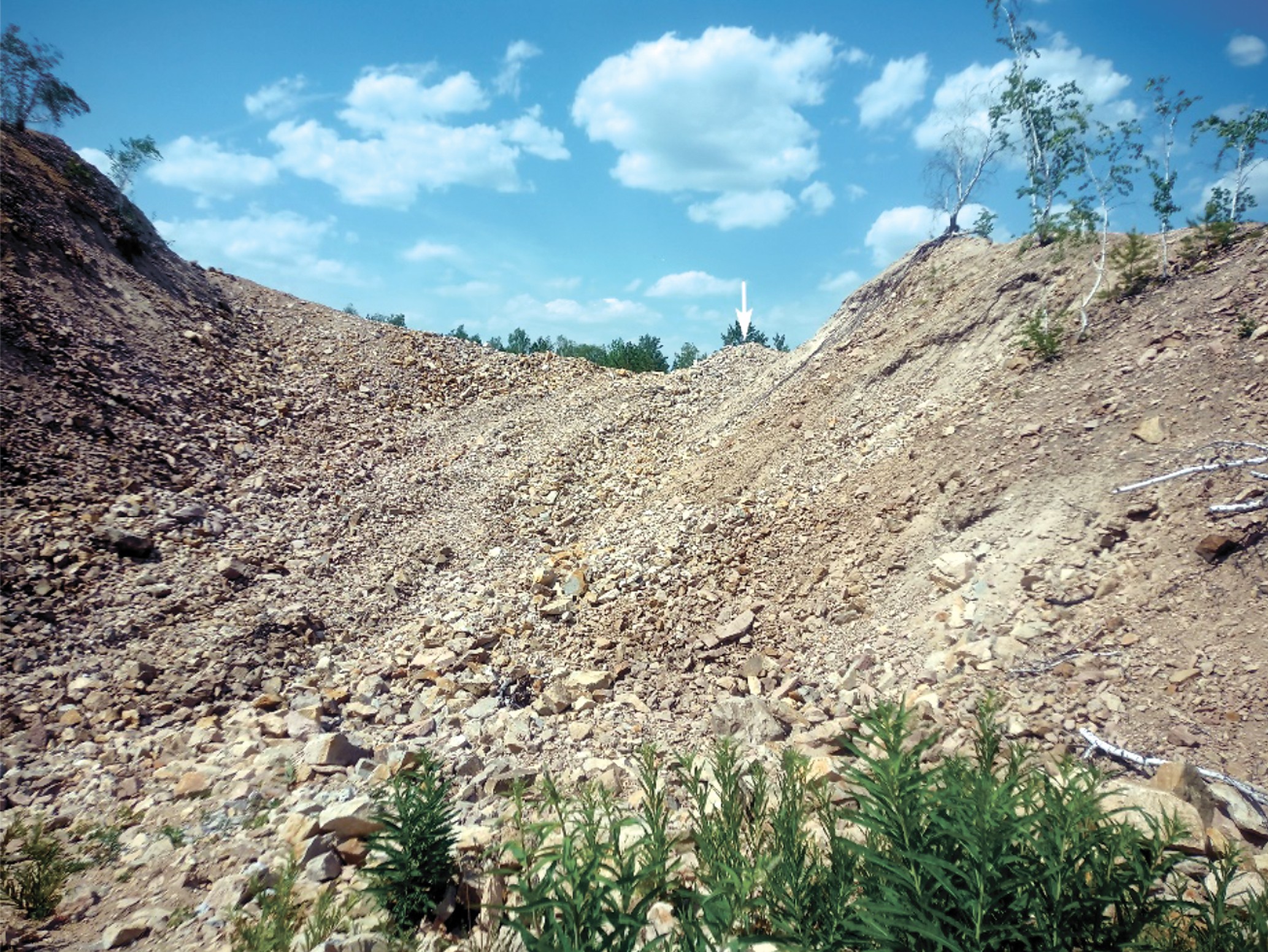

2. Fig. 1. Dumps of the Yugo-Konevo tungsten deposit. Place of neyite sampling is shown by an arrow. FOV ~ 15×10 m. May 2023. Photo: P. M. Andryushchenko.

Download (1024KB)
Indexing metadata

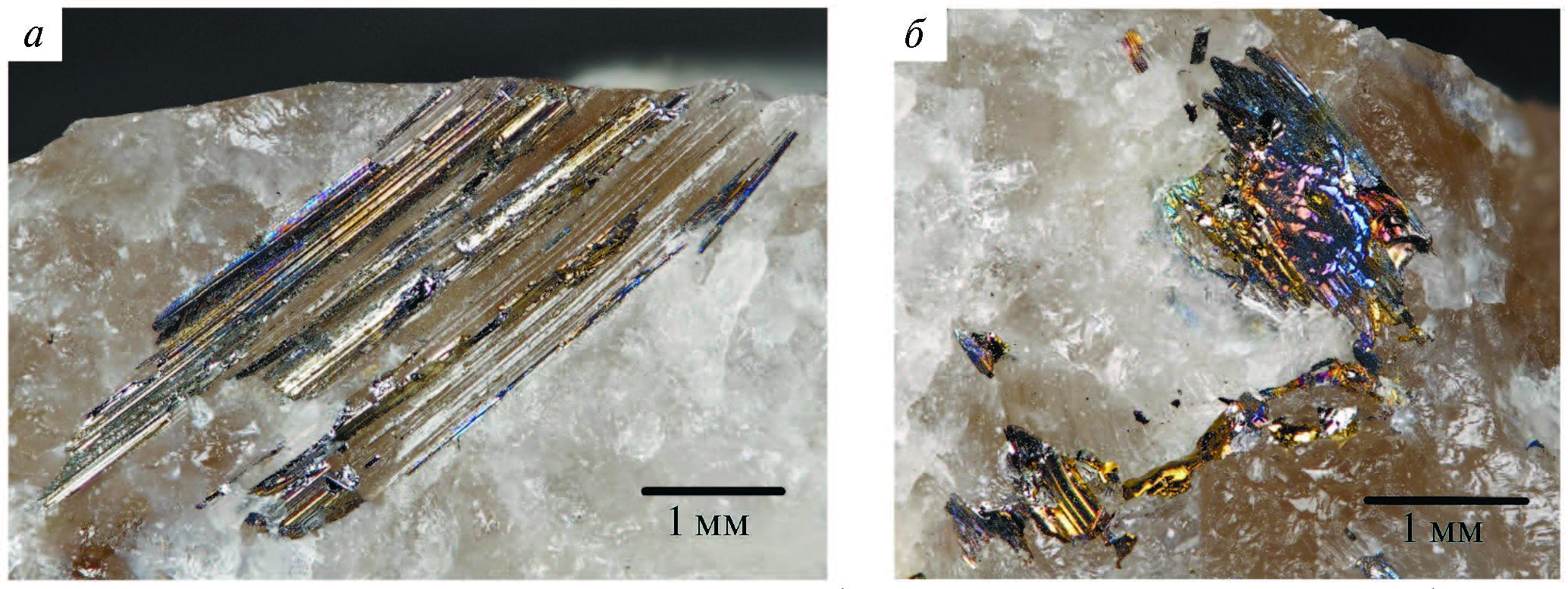

3. Fig. 2. Neyite from the Yugo-Konevo tungsten deposit. а — fragment of prismatic crystal in quartz; б — fragments of crystals and grains of neyite showing characteristic iridescence. Photo: M. D. Milshina.

Download (350KB)
Indexing metadata
4. Fig. 3. Aikinite (Aik) and tetradymite (Ttd) inclusions in neyite (Ney) crystal. SEM image, BSE mode.

Download (115KB)
Indexing metadata
5. Fig. 4. Cental part of neyite crystal with aikinite inclusions pictured in Fig. 3, when rotating the microscope stage by 45°. Reflected light, crossed nicols. The difference in anisotropy color effects between aikinite and neyite is well observed.

Download (208KB)
Indexing metadata

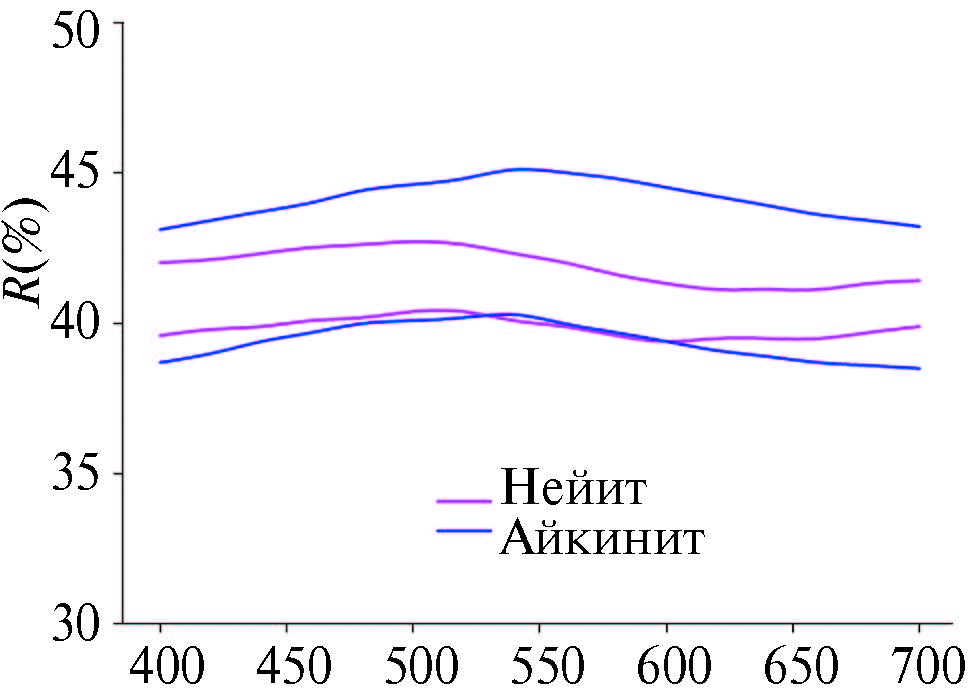

6. Fig. 5. Reflectance spectra of neyite and aikinite from Yugo-Konevo deposit.

Download (61KB)
Indexing metadata

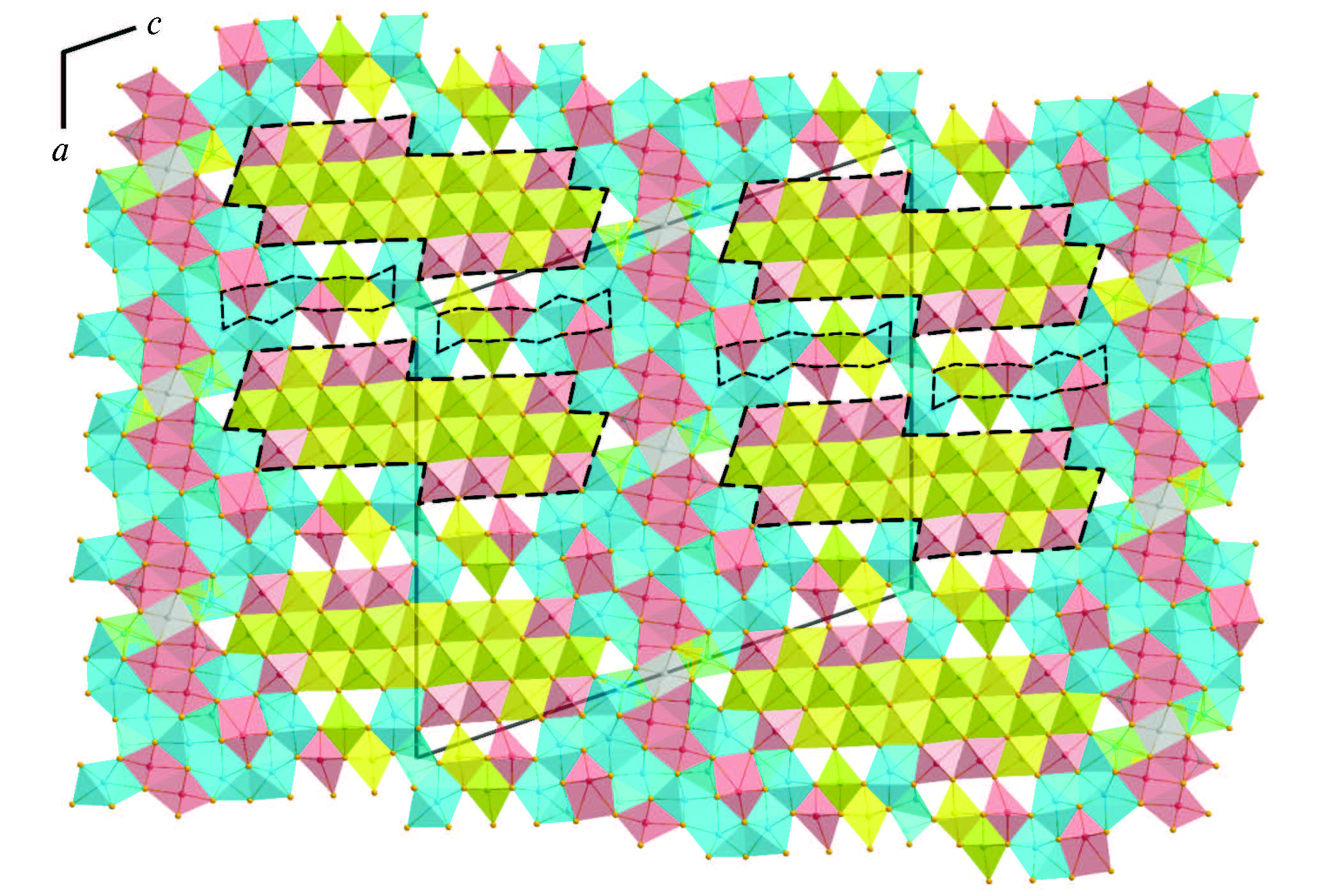

7. Fig. 6. A crystal structure of neyite. Legend: red = positions fully occupied by Bi3+; blue = positions fully occupied by Pb2+; yellow = positions occupied by a mixture of Bi3+ and Pb2+; green = positions with admixtures of Ag+ and Cd2+; orange = sulfur; cyan = copper; grey = silver. Dashed black lines denote (111)PbS and (100)PbS modules.

Download (412KB)
Indexing metadata

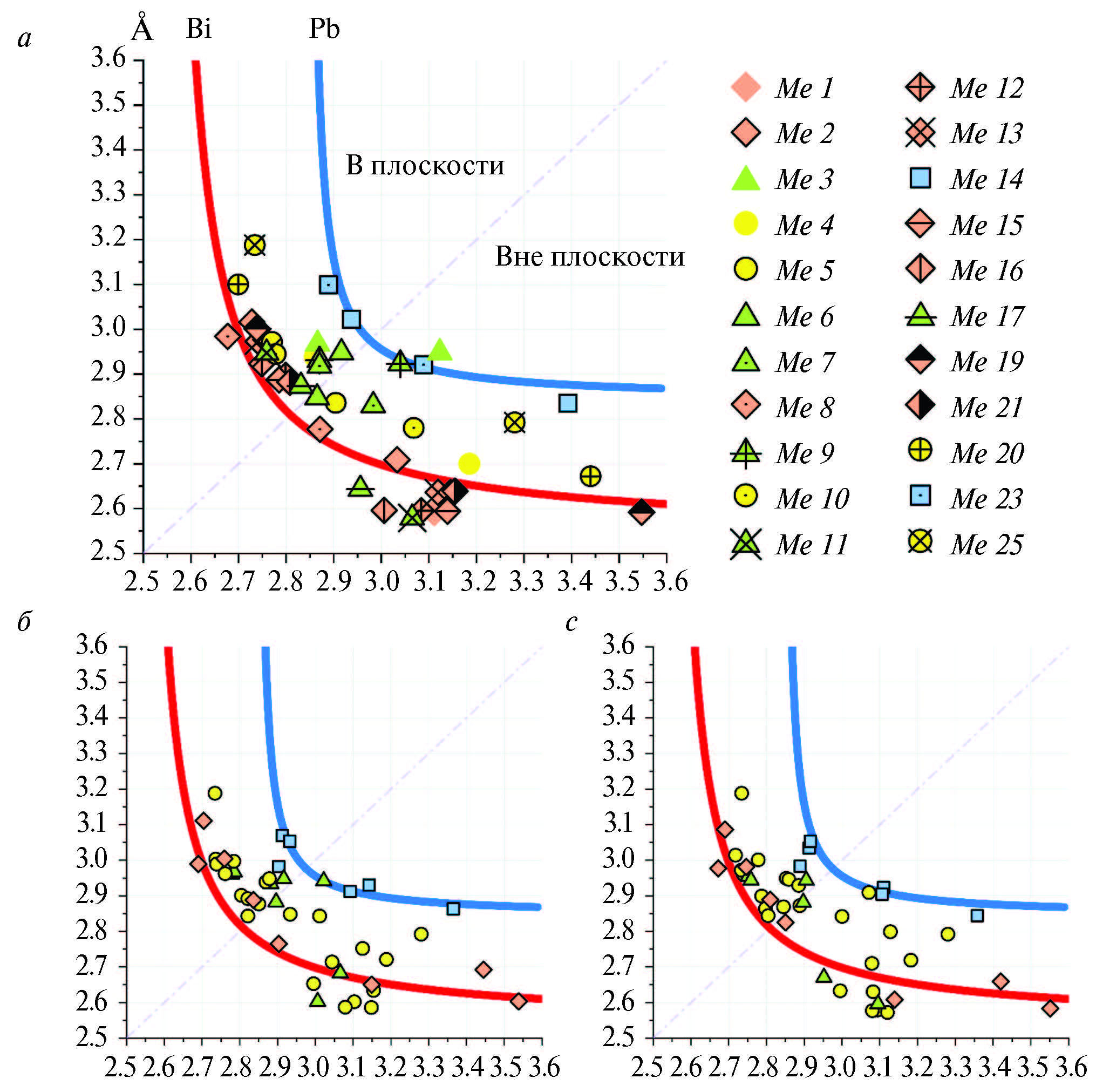

8. Fig. 7. Trӧmmel diagrams of opposing bond-lengths in the crystal structures of (a) neyite from Yugo-Konevo deposit, our data, (б) neyite from Lime Creek deposit, Canada (Makovicky et al., 2001), and (в) cuproneyite (Ilinca et al., 2012). red diamonds = positions fully occupied by Bi3+; blue squares = positions fully occupied by Pb2+; yellow circles = positions occupied by a mixture of Bi3+ and Pb2+; green triangles = positions with admixtures of Ag+ and Cd2+. Hyperbolas means arrangement of points of idealized polyhedra centered by Bi3+ (red) and Pb2+ (blue). See details in the text.

Download (411KB)
Indexing metadata

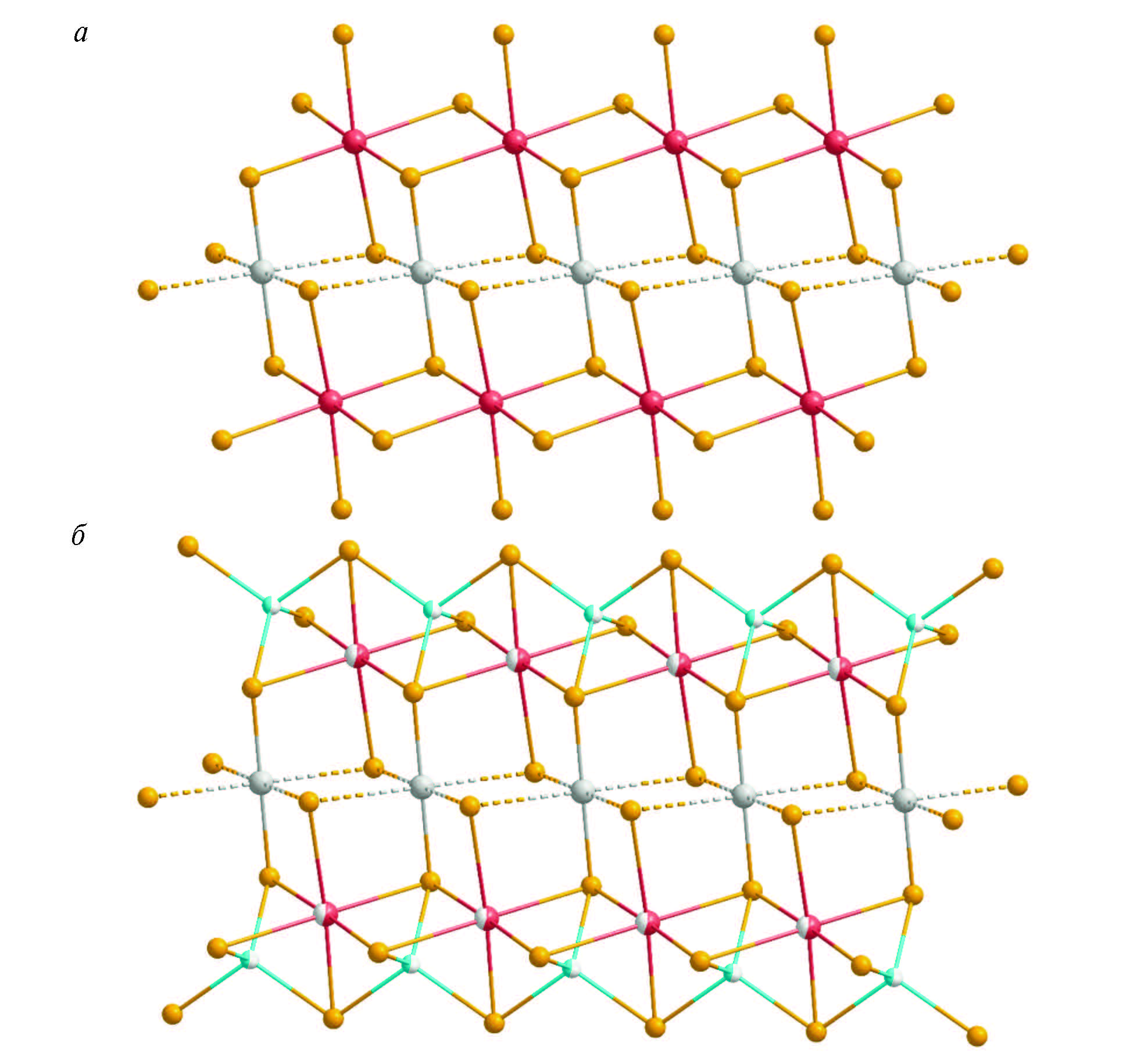

9. Fig. 8. Fragments of crystal structures of (a) neyite from Lime Creek deposit, Canada (Makovicky et al., 2001) and (б) neyite from Yugo-Konevo deposit, our data. Legend: red ‒ Bi3+; gray ‒ Ag+; cyan ‒ Cu+; orange ‒ S2–. See details in the text.

Download (269KB)
Indexing metadata
