Results of the complex optimization of maglev

Cover Page

Abstract


In this paper, the analysis of the technology of complex optimization of transport is performed on the example of various Maglev systems for the passenger and goods transport


1. INTRODUCTION

Maglev systems are in general regarding as more expensive and having a lower profitability in relation to its investment costs as wheel-rail systems or conventional bulk systems what substantially restricts the use of Maglev systems in the planning of transport infrastructure.

Therefore, in this paper the usefulness of the technology of complex optimization of transport [1] is shown how to reduce costs of Maglev systems. Using the results this can improve their chances in competition with traditional modes of transport on the existing transport market

2. METHODS OF SOLUTION

In accordance with the technology of complex optimization of transport, an abstract model for a generalized transport system was developed. This model determines mathematically the maximum balance between overall system components and provides adaptation of any guidedtransport system to its operation conditions. As a result, unnecessary costs are cut off to increase the efficiency of Maglev systems.

Two variants – internal and combined – for the optimization control of Maglev systems were implemented.  For internal one, the optimal values of design parameters of Maglev systems are established automatically. For the combined one, the maximum train speed between the stops and the number of its sections are selected in a manual way while the values of other design parameters of the system are established automatically.

Also, for determination of the scopes of application of Maglev systems, a dynamic model for the development of scopes for the effective application of transport systems was developed to find the most effective transport system for every application case.

In this case the main evaluation criterion for determination of effective application of Maglev systems, as compared with the traditional types of transport, is the value of the specific travel tariff (Figure 1), which was received from the calculation of the payback of the total costs to the time of credit payment.

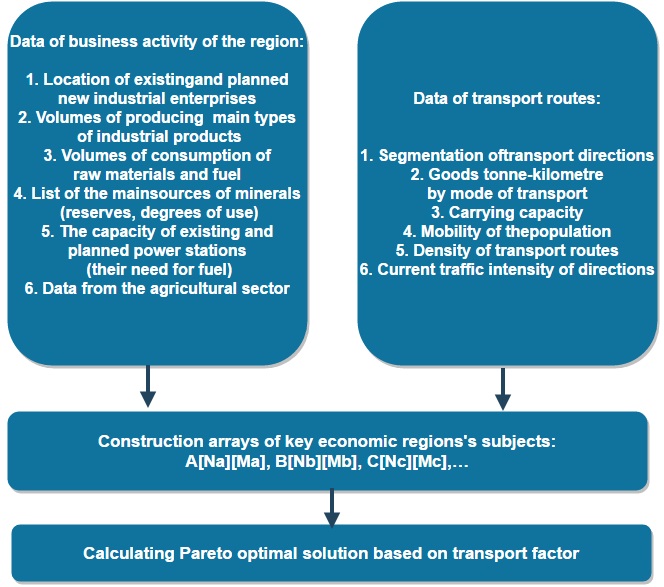

Fig. 1. Principles of the complex optimization process



3. INPUT DATA

The calculations were performed for four Maglevsystems:, TRANSMAG and TRANSPROGRESS as well as TRANSRAPID and MLX01.

TRANSMAG is a Ukrainian Maglev system with aero-electrodynamic suspension, superconducting magnets and a long stator linear synchronous motor (Figure 2). It was developed at the Institute of Transport Systems and Technologies of National Academy of Sciences of Ukraine [2]. The economic component of the calculations of TRANSMAG was obtained in accordance with the internal market prices.

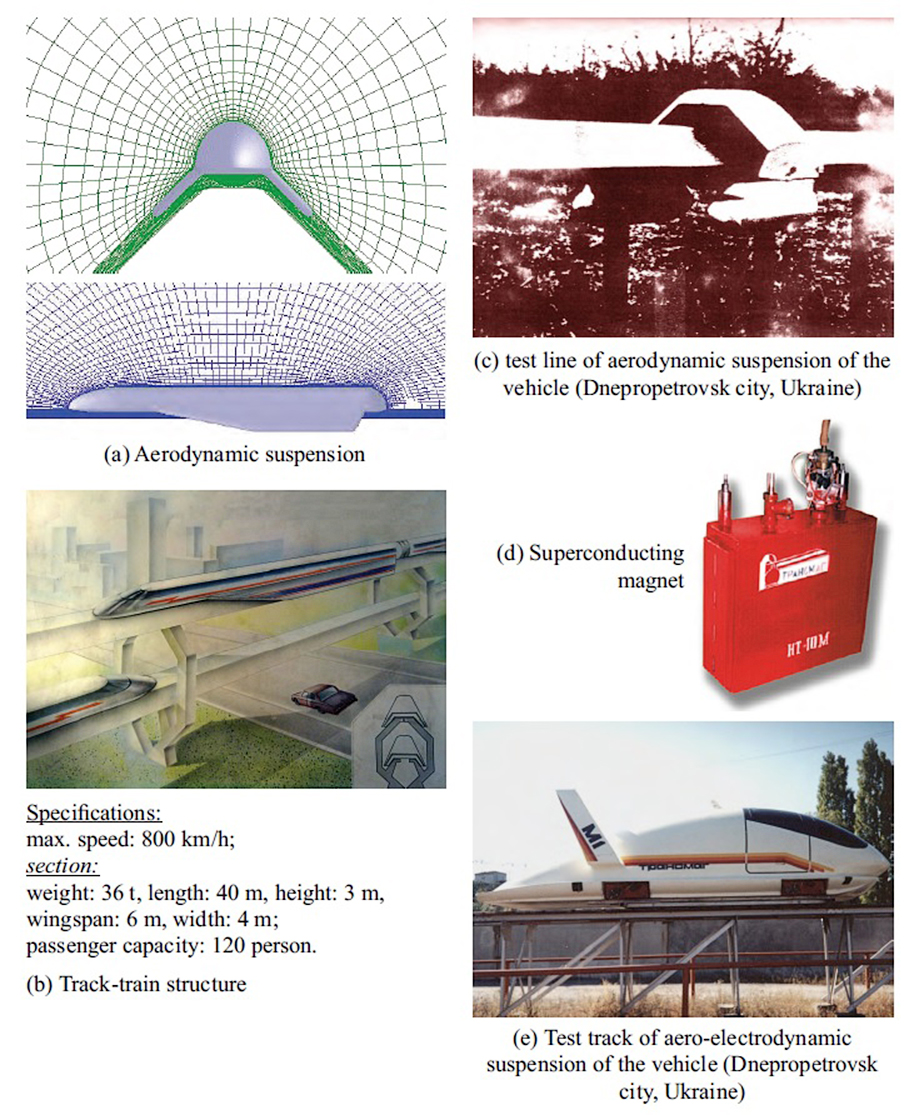

Fig. 2. TRANSMAG Maglev system test vehicle and test trackline



TRANSPROGRESS is the Russian Maglev system on permanent magnetic suspension of vertical type with a short stator linear asynchronous motor (developed in the design office "Transprogress" (Moscow) from 1986 to 1990), intended for transportation of friable goods in ore mining and metallurgical enterprises Fig. 3 [3].

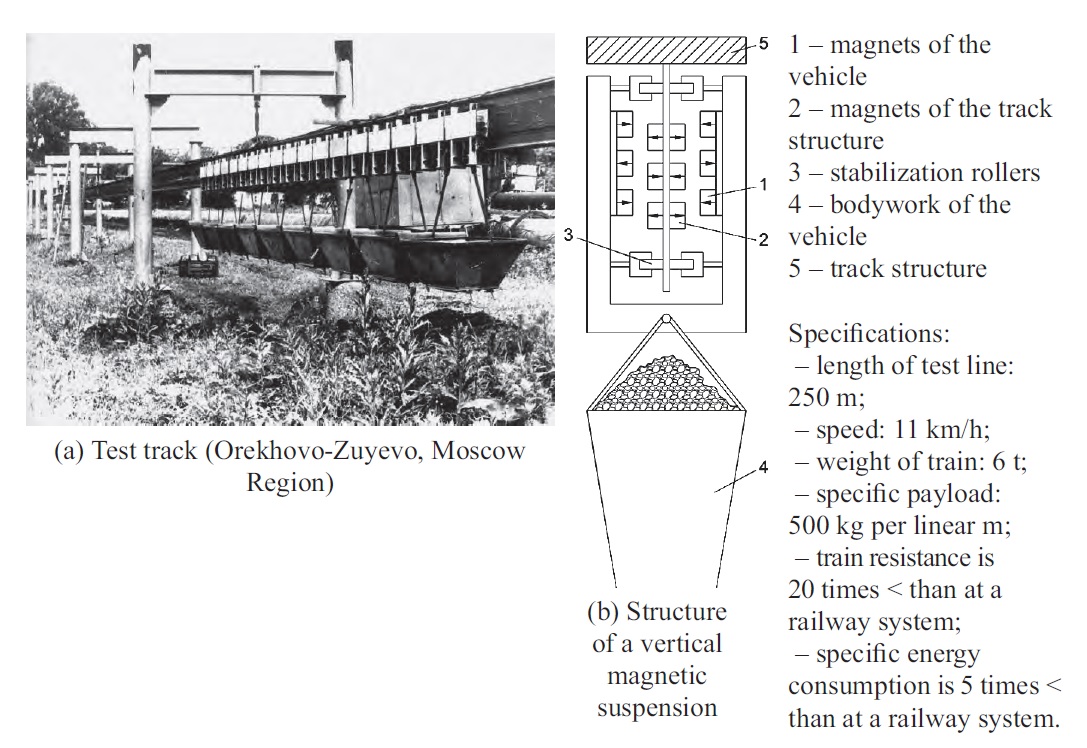

Fig. 3. TRANSPROGRESS Maglevsystem on test track



On the basis of an abstract model for a generalized transport system for each of these Maglev systems an algorithm was written. For TRANSRAPID and MLX01, the principle of combined optimization control was applied, and for TRANSMAG and TRANSPROGRESS the internal one was used.

Calculations of TRANSRAPID and MLX01 performed for the selected model lines and for lines in operation as described in Table 1.

For TRANSMAG and TRANSPROGRESS, calculations were carried out for an array of input data that characterize a set of model lines. For TRANSMAG, the length of line was taken in the range from 250 to 4 500 km, and traffic volumes varied from 1 to 25 million passengers per year. For TRANSPROGRESS, the  line lengths varied from 1 to 15 km with  a slope from 0 to 40 ‰  and goods traffic from 0.1 to 0.9 mil. t/year were examined (Fig. 4).



Table 1.  Initial design data of various lines TRANSRAPID



Parameter



Unit

Project

METRO-
RAPID
 MÜNCHENSHANGHAI SHANGHAI-HANGZHOU Maglev Line  HAMBURG-BERLINSIC!

Line

end stopping



Düsseldorf Hbf –

Dortmund Hbf

München Hbf -
München Flughafen

Longyang

Road Station -
Flughafen Pudong

Longyang Road

Station -
Hangzhou East Station

Hamburg Hbf -
Berlin Lehrter Bf

Berlin Papestraße-
Budapest

Length

km

79

37

30

163

292

884

Number of stations

stations

7

2

2

6

5

10

Average distance between stops

km

13.15

36.80

30.00

32.60

73.00

98.22

Maximum longitudinal slope

30

80

19

40

100

100

Design slopes

4 a

7 a

5

4 a

5 a

6

Relative length of bridges b

%

3.00

5.80

1.24

3.00

1.70 c

1.20

Relative length of tunnels

%

5.06

20.00

0.00

14.72d

0.62

0.80 e

Relative length of at grade guideway

%

72.46

47.00

1.24

30.00

32.77

65.20

Reltive length of guideway elevated

%

22.48

33.00

98.76

55.28

66.61

34.00

Annual volume of passenger traffic in both directions

mil. pass. per year

34.37

7.86

10.00

33.00

10.50

6.10

Annual growth of the volume of passenger traffic per year

%

4.5

3.5

4.3

6.2

3.2

1.6

The normative repayment of costs incurred (the validity period of the loan) f

years

20

20

27

31

20

50g

Annual percent of the credit

%

5.00 h

5.00 h

2.81

5.34

5.00 h

4.37 i

_____________________

a Approximate data.
b Track structure on bridges laid on pillars.
c Total length of 4.7 km [4].
d 24 km tunnel under the Huangpu River on a 32 km part between the Longyang Road Station and the airport Hongqiao [5].
e Five tunnels with total length: 6.3 km [6].
From the moment of putting of the line into operation.
g For the overall design life of the project 50 years (of which 10 years account for design and construction work and 40 years on the phase of operation) on total costs was not the returned [6].
h Equals to the average discount rate: ~ 5% [7].
i 3 % - discount factor + 1.37 % - internal revenue [6].

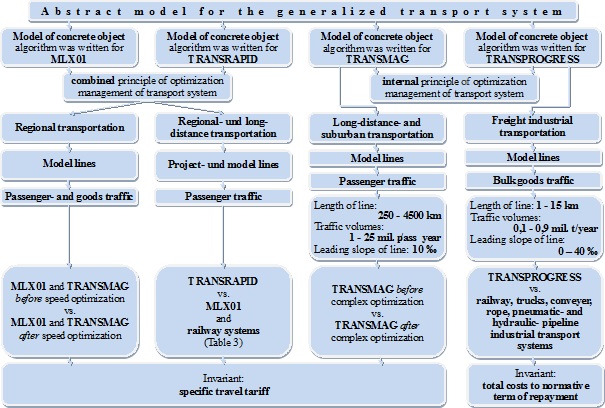

Fig. 4. Structure of the abstract model for the generalized transport system



For passenger transport, a comparison of Maglev system with conventional modes of transport the railway system was selected. These railway systems are operated or planned for the lines where in parallel concrete projects TRANSRAPID were investigated.

For goods traffic Maglev systems were compared with railway, trucks, conveyor, rope, pneumatic- and hydraulic- pipeline industrial transport systems.

In order to select the correct approaches for optimization of Maglev systems, the dependency of cost from the train maximum speed and the train configuration was studied

According to the results of the complex optimization, maglev-systems were evaluated by two criteria cost reduction and expansion of the application areas of Maglev systems compared to railway system (for passenger transport), as well as to other types of traditional transport (for freight industrial transport).

At the same time the limits of scopes of the application of TRANSRAPID and MLX01 were determined (Fig. 5).

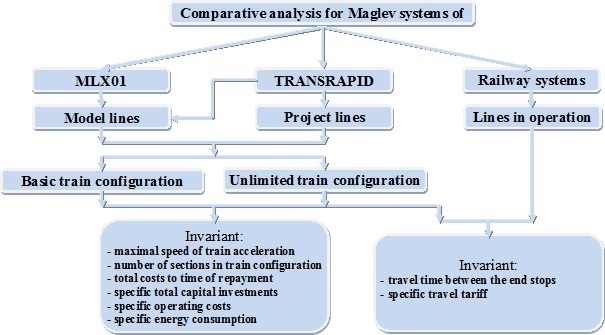

Fig. 5. Principles of the comparative analysis of Maglev systems



4. ANALYSIS AND ITS RESULTS

4.1 ANALYSIS OF COMPLEX OPTIMIZATION TRANSMAG

After conducting of the optimization of TRANSMAG [8] the value of the specific tariff was obtained for the transport of one passenger per one km, depending on traffic volume and line length (Fig. 6).

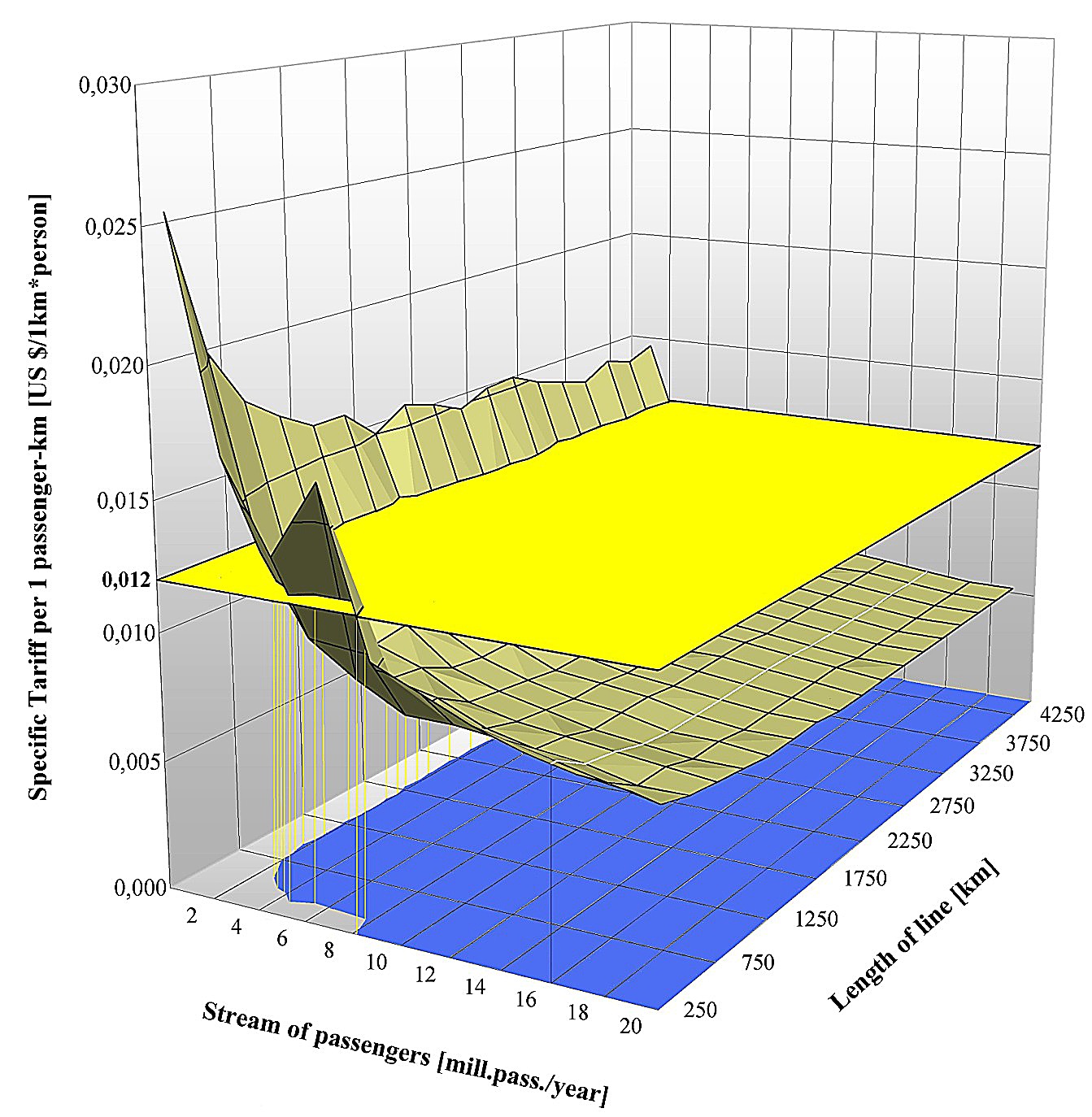

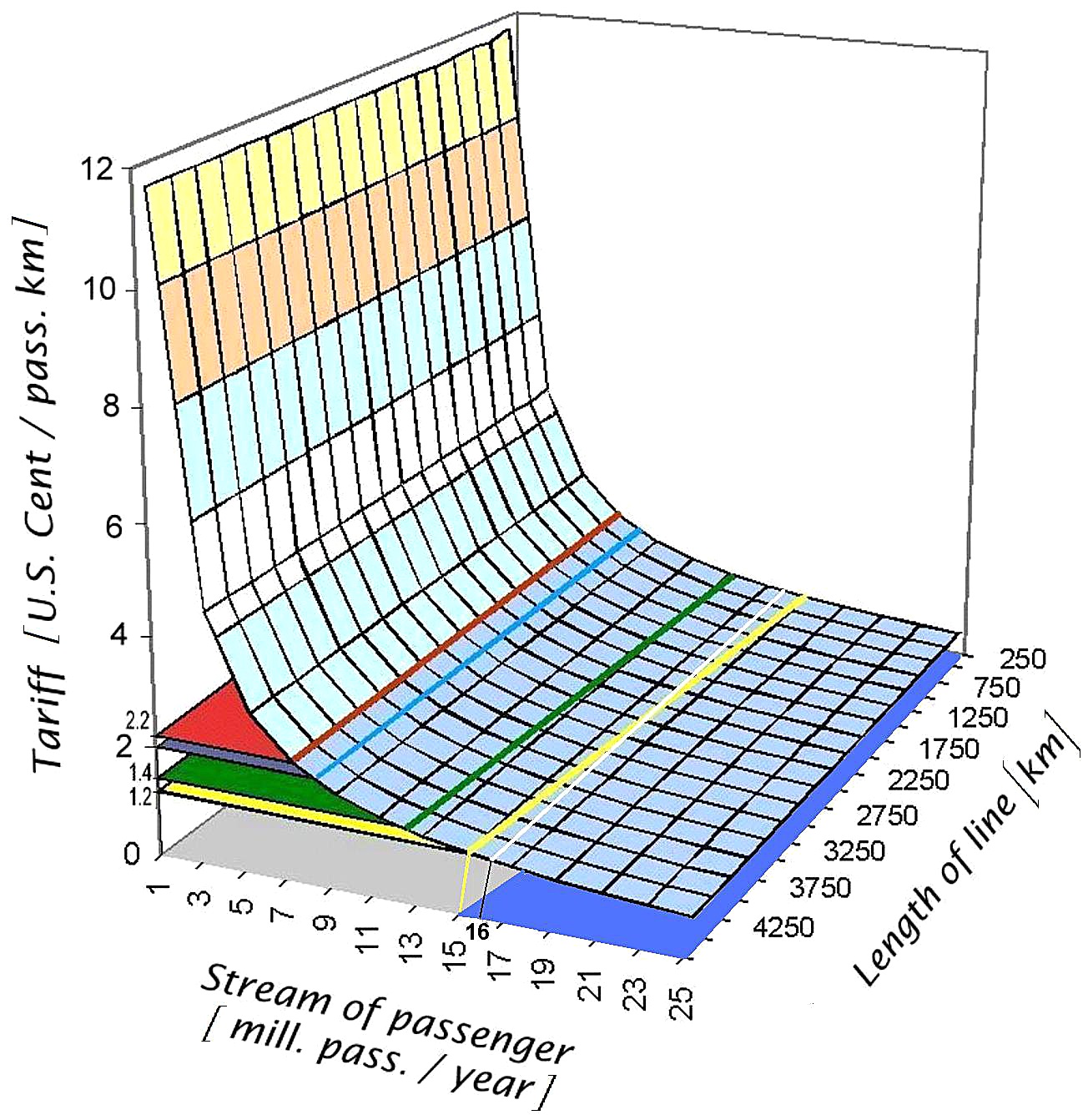

Fig. 6. Dependence of value of specific tariff of TRANSMAG on the traffic volume and line length, after the optimization



As a result of comparison of the tariffs of TRANSMAG before and after its complex optimization (Fig. 7) more than a double decline in the necessary traffic volume has been revealed at the fixed value of specific travel tariff 1,2 U.S. Cent per person*km (Table 2).



Fig. 7. Dependence of value of specific tariff of TRANSMAG on the traffic volume and line length, before the optimization [9]



On this basis, it is necessary that at the fixed volume of annual traffic of 16 millions passengers per year, after complex optimization of TRANSMAG the size of travel tariff, after complex optimization of TRANSMAG, is approximately 2.11 times lower than the tariff before the system optimization (Table 3).

Thus, a 52.5 % decrease in the total expenses has been reached, decrease in capital investments and operational expenses defines economic efficiency of complex optimization of TRANSMAG.





Table 2. Determination of efficiency of complex optimization of TRANSMAG on the decline of traffic volume at the fixed value of travel tariff a

Parameter

Unit  Before opti-mazationAfter opti-mazation
Specific travel tariff

U.S. Cent per person/km

1.2

Normative term of exploitation of line, to repayment of the expenses

Years

10

Low range of traffic volume, depending on length of line

mill. pass.

per year

from
15–17

from
3–9.5

Arithmetical mean value of low range of traffic volume in both ends

mill. pass.

per year

from 16

from 6.25

Coefficient of decline of necessary minimum volume of annual traffic for providing of self-repayment of the born charges to the normative term of exploitation of line

x times

0

2.56

_____________________

a Minimum necessary volume of annual traffic in both ends, for providing of self-repayment of the charges to the normative term of exploitation of line.



Table 3.  Determination of efficiency of complex optimization of TRANSMAG on the decline of value of the spared travel tariff at the fixed value of volume of annual traffic

Parameter

 Unit Before opti-mazation After opti-mazation
Volume of traffic

mill. pass.

per year

16

Range of tariffs at the set volume of annual traffic depending on length of line

U.S. Cent per personkm

1.1–1.3

0.8–0.53

Arithmetical mean value of tariff

U.S. Cent per personkm

1.2

0.57

Coefficient of decline of value of tariff at the set volume of annual traffic

x times

0

2.11

Stake of the total resulted cost cutting to the normative term of exploitation of line

%

0

52.5

Stake of capital investments from the total brought charges over to the normative term of exploitation of line

%

27.48

47.39

Stake of total operating expenses from the total brought charges over to the normative term of exploitation of line

%

72.52

52.61



More detailed structural analysis of expenses is presented in Table 4. It is showed, that the greatest part of their decrease constitutes of the operating costs.

The analysis shows a significant increase in efficiency of TRANSMAG as a result of its complex optimization [10].



Table 4. Structural determination of economic efficiency of complex optimization of TRANSMAG

Parameter

Unit

Capital investments

Operating
Costs

Reduction of costs at the expense of optimization

%

18

66

Reduction of the initial resulted costs

%

5

48

Reduction of the costs of the total economized sum

%

10

91

Reduction of the mean annual operating costs of the initial resulted expenses

%

missed

5

Reduction of the mean annual operating costs of the total economized sum

%

missed

9



4.2 ANALYSIS OF OPTIMIZATION MLX01 AND TRANSRAPID

For the calculation of MLX01 and TRANSRAPID, the design data on the TRANSRAPID lines were used. Fig. 8–15 present the results of simulation of MLX01 and TRANSRAPID.

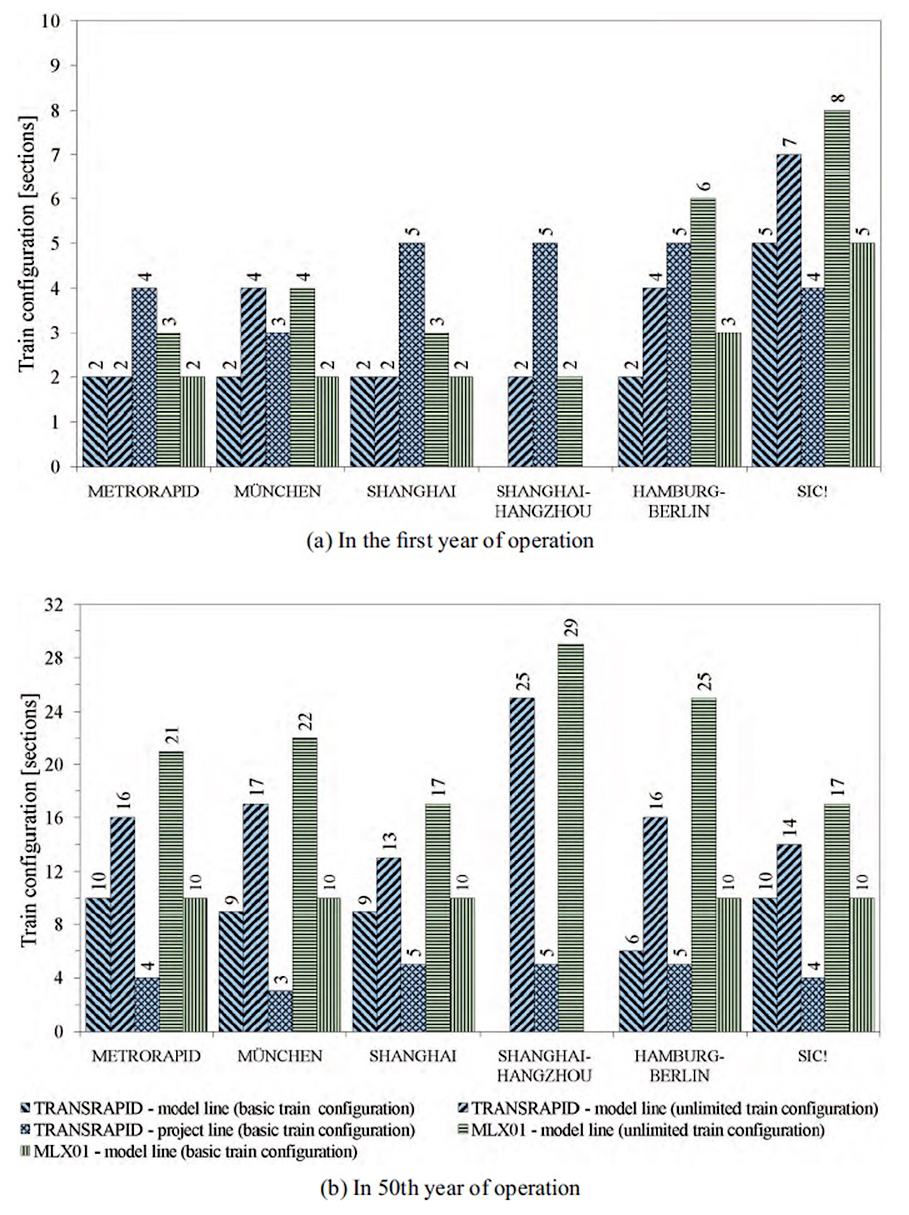

Fig. 8. Number of sections in train configuration

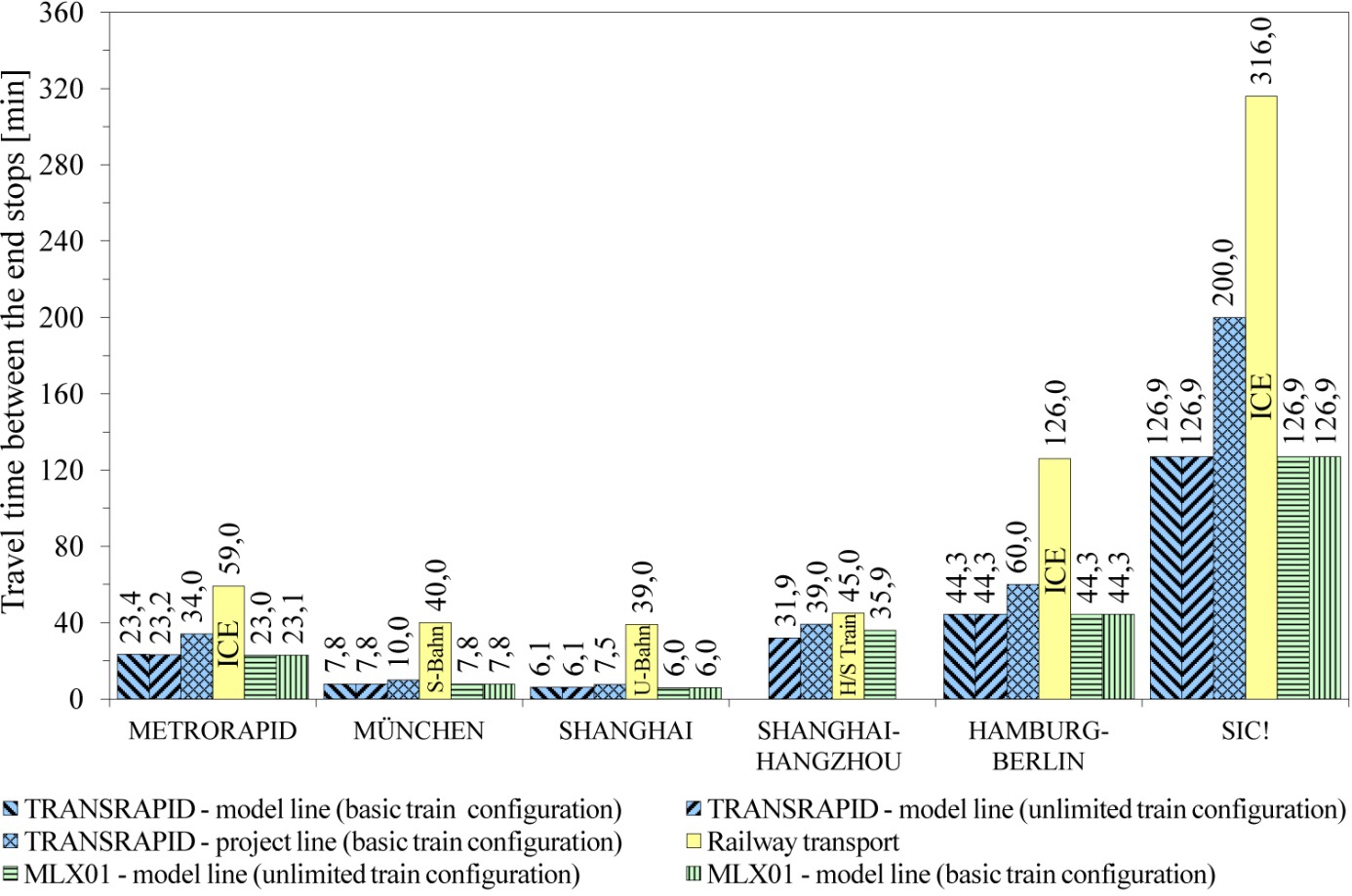

Fig. 9. Travel time between the end stops per line

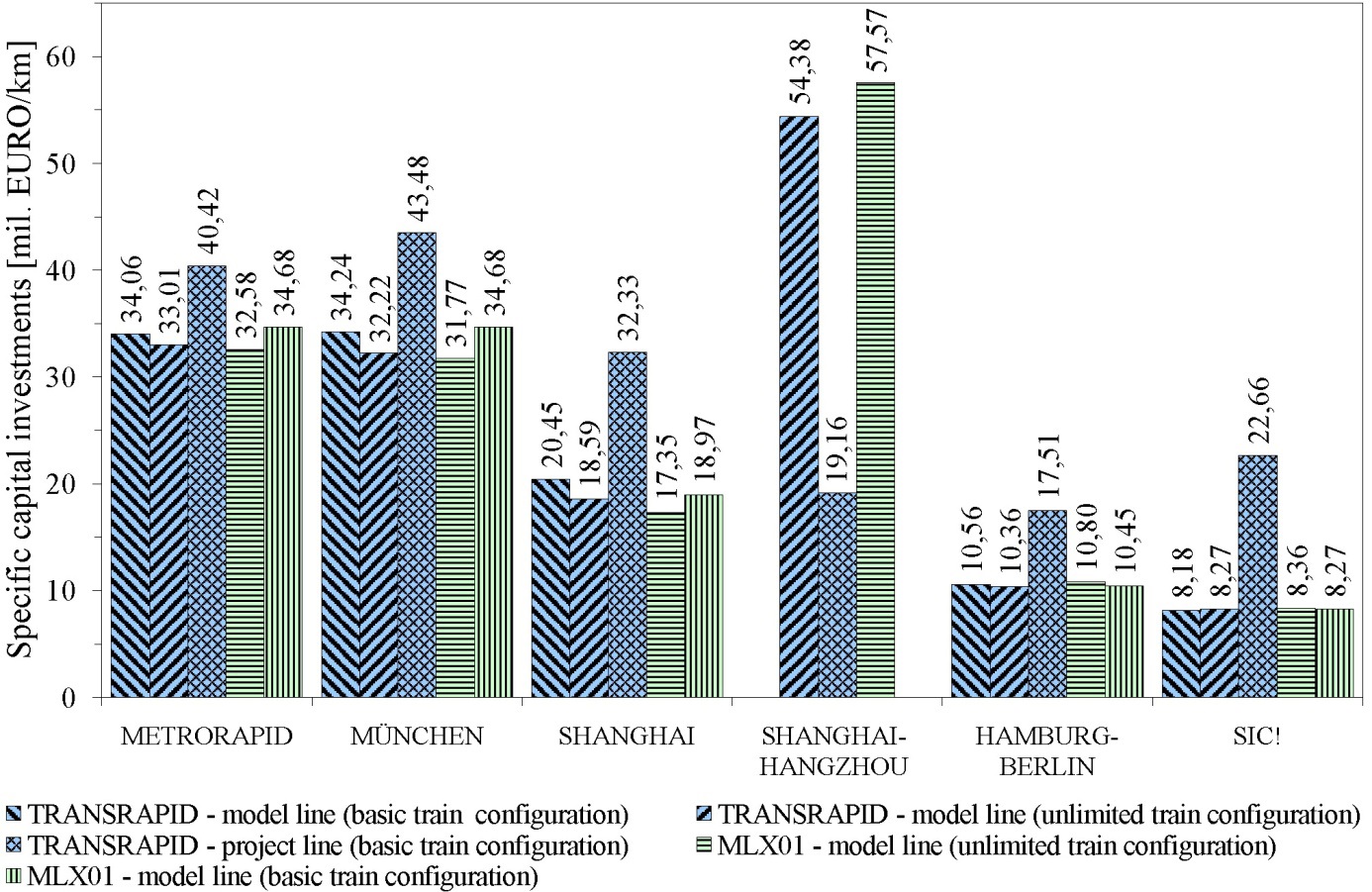

Fig. 10. Specific total capital investments per km length

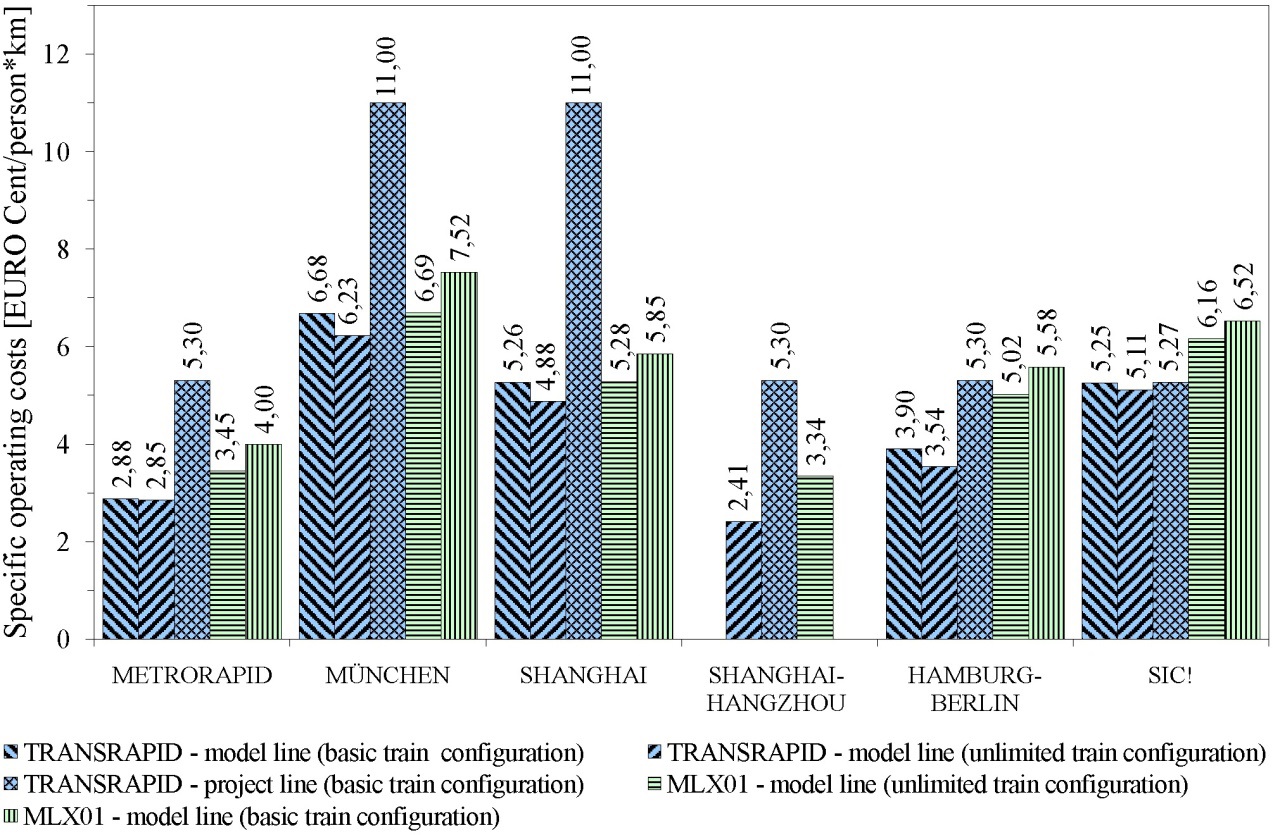

Fig. 11. Specific operating costs for one passenger and one 1 km length

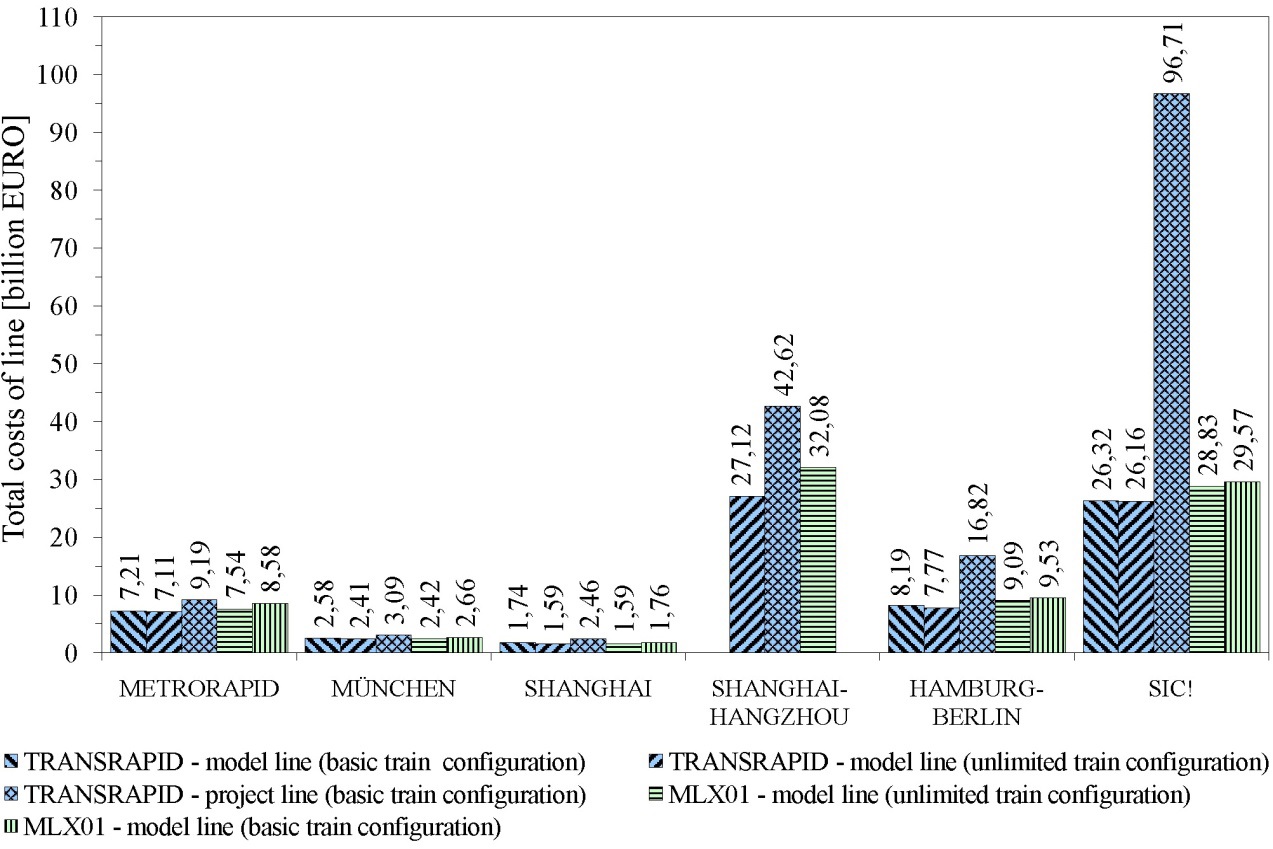

Fig. 12. Total costs to time of repayment (payment of the loan)

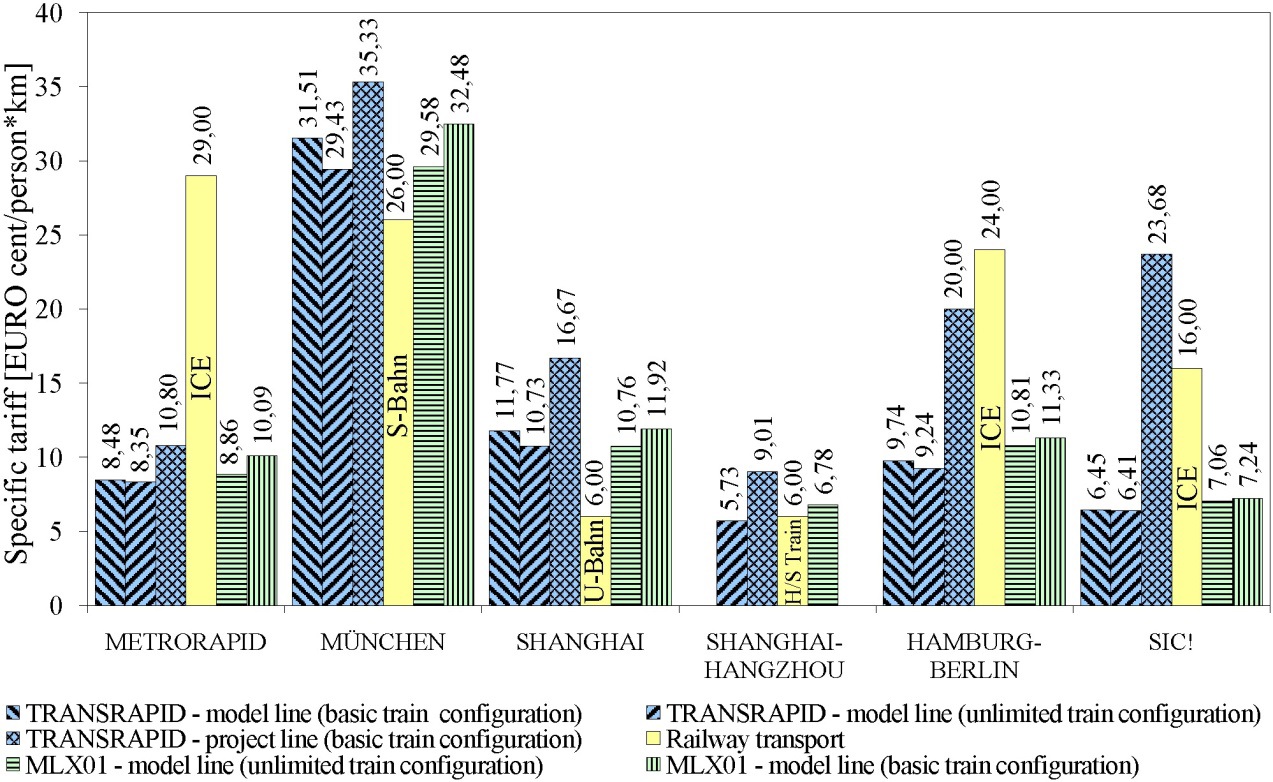

Fig. 13. Specific tariff for transportation of 1 passenger per 1 km (the car of 2nd class)



The optimization model showed that, in parallel with the increase in speed performance, economic efficiency of the TRANSRAPID has increased on one third compared to its design data (Fig. 14).

These results are quite analogous with the value of economic efficiency, obtained in the optimization of TRANSMAG (52.5 %). This testifies the reliability of the results.

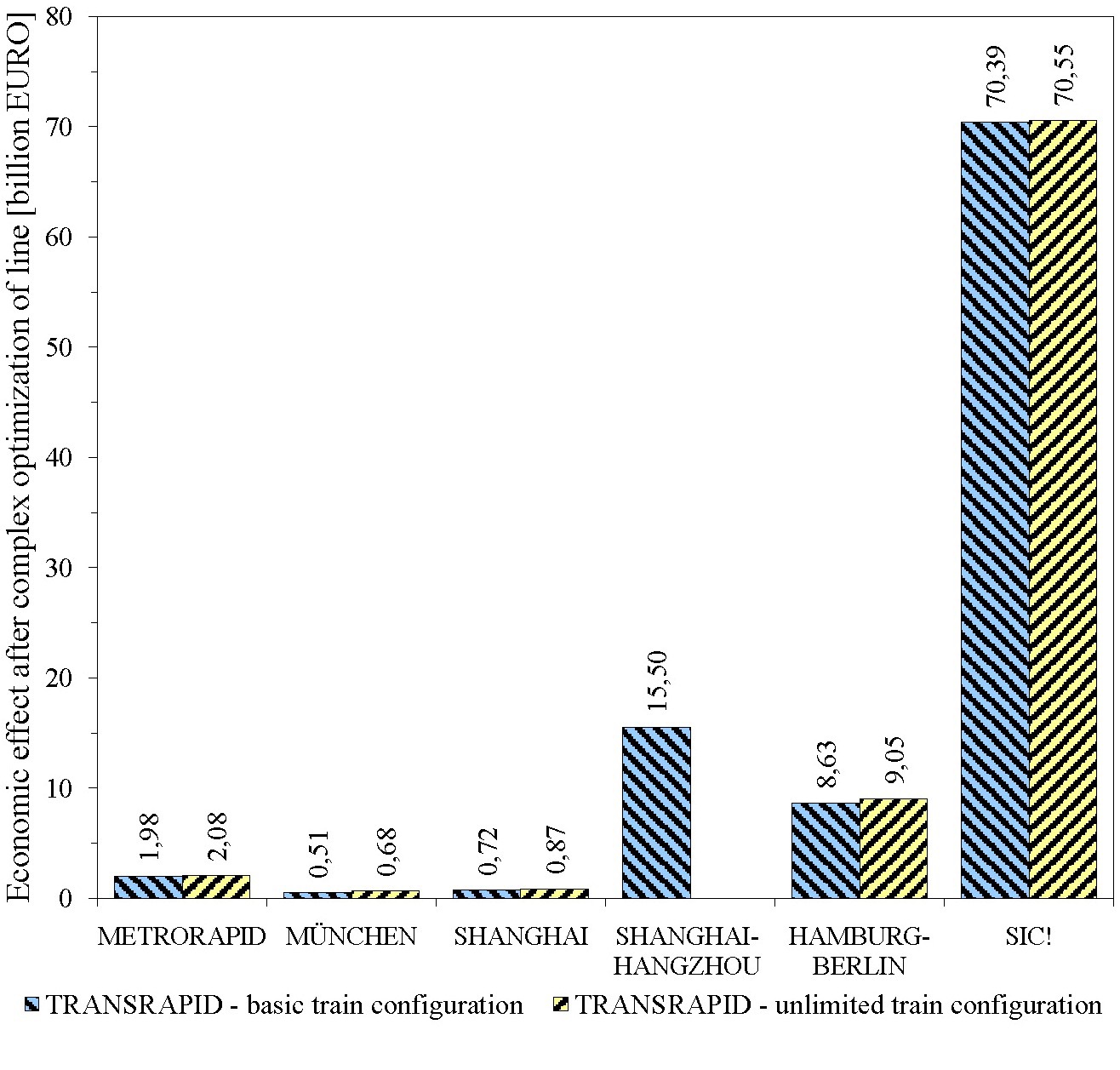

Fig. 14. Economic effect to time of repayment of the total costs (validity period of loan), of TRANSRAPID



It also demonstrates that the increase of maximal number of sections per train compared with the base configuration, results in an additional decline of expenses of Maglev-systems by 7 percent on average.



4.3 DETERMINATION OF THE APPLICATION SCOPES BETWEEN TRANSMAG AND RAILWAY SYSTEM

The area, characterizes by the specific travel tariff of the Ukrainian high speed train (1/2 U.S. Cent per personkm), limits the scope of the effective application of TRANSMAG by the largest annual passenger traffic (Fig. 6, 7). By the  optimization model of TRANSMAG, this low boundary moved up from 15–17 to 3–9.5 million passengers per year (Table 2) and thus two and half times enlarges the scope of its effective application.

4.4 DETERMINATION OF THE SCOPE OF TRANSPROGRESS IN COMPARISON WITH INDUSTRIAL BULK TRANSPORT SYSTEMS

For determination of the scope of effective application of the Maglev systems with traditional industrial transport systems for ore mining and metallurgical companies at transportation of friable loads, TRANSPROGRESS was chosen.

In this case the choice of the most effective transport system was carried out by minimum value of the total costs of line to the normative term of their repayment.

For TRANSPROGRESS, a abstract model of a generalized transport system was chosen. The method of calculation of the technical-economic indices [12] and preliminary optimization [13] were utilized. The technical-economic indices of other compared traditional industrial transport systems were executed via the methods of [14–15].

The scopes of effective application of the compared transport systems were determined in 3D co-ordinates, the axes of which correspond to the basic line parameters: length, size of leading slope and annual traffic of goods. Every point in the indicated co-ordinates system corresponds to most effective of compared transport systems.

The results of calculations for seven conventional  goods transport systems showed that the hydraulic pipeline appeared to be the most effective. After excluding from comparison the hydraulic pipeline transport system, the next effective systems are the TRANSPROGRESS, the rope transport system and the pneumatic-pipeline transport system (Fig. 15). In this case other belt systems appeared not competitive.

Further for the exposure of scopes of effective application of TRANSPROGRESS, the rope (Fig. 16), pneumatic pipeline (Fig. 17) and conveyor transport systems were consistently excluded from comparison.

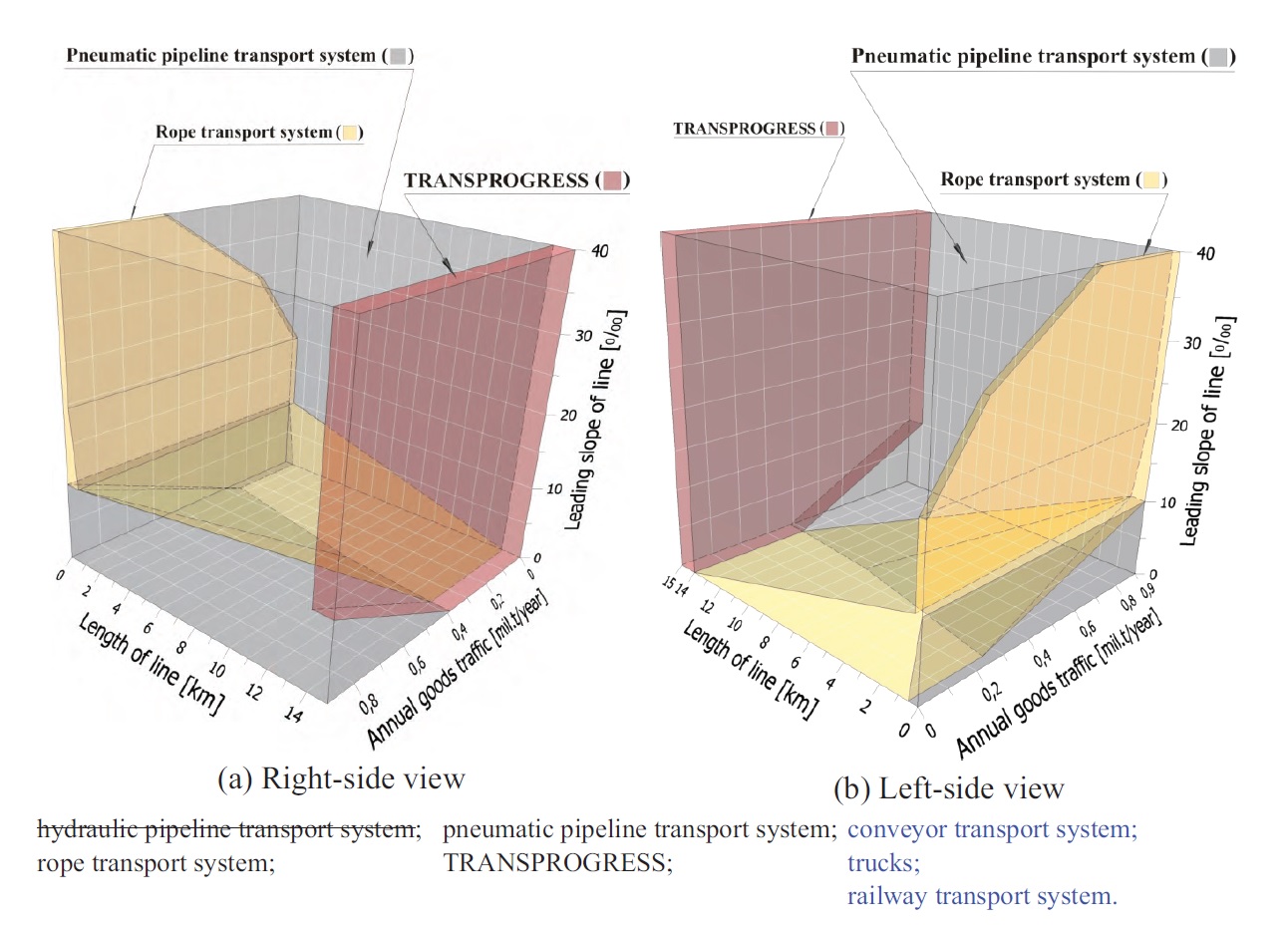

Fig. 15. Comparison of TRANSPROGRESS with rope and pneumatic pipeline transport systems for transportation of bulk good in the conditions of ore mining and metallurgical companies

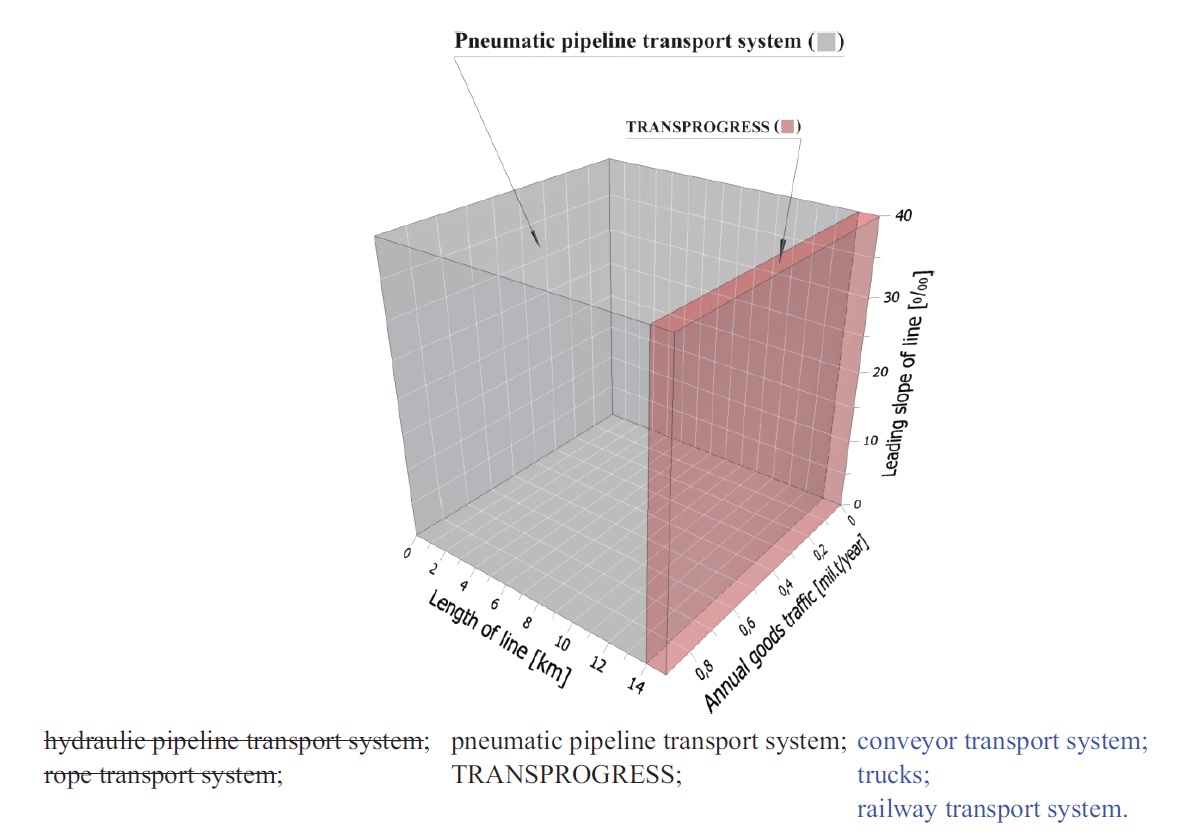

Fig. 16. Comparison of TRANSPROGRESS with pneumatic pipeline transport system for the transport for of ore mining and metallurgical companies

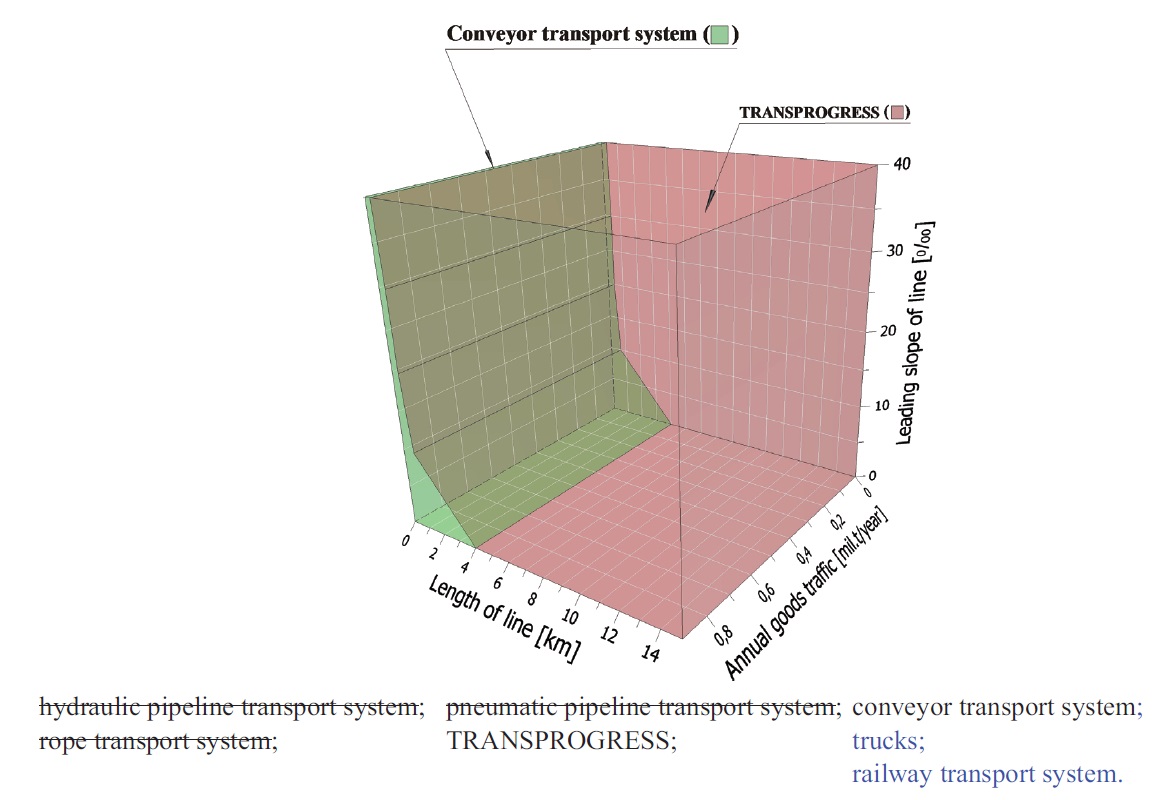

Fig. 17. Comparison of TRANSPROGRESS with conveyor transport system for the transport for of ore mining and metallurgical companies



As it is seen, after exclusion from comparison of the conveyor transport system, the TRANSPROGRESS stay the most effective transport as compared to remaining railway and motor-car.

Thus, in all cases of application of TRANSPROGRESS, the most optimum for composition of its trains appeared configuration of continuous (closed) type that technically fully corresponds to the conditions of transport in ore mining and metallurgical enterprises.

Thus, on the example of complex optimization of TRANSPROGRESS, the competitiveness of application of the Maglev system in ore mining and metallurgical companies was grounded. Also possibility of determination of scopes of effective application of the compared traditional industrial transport systems was evidently presented (Fig. 18).

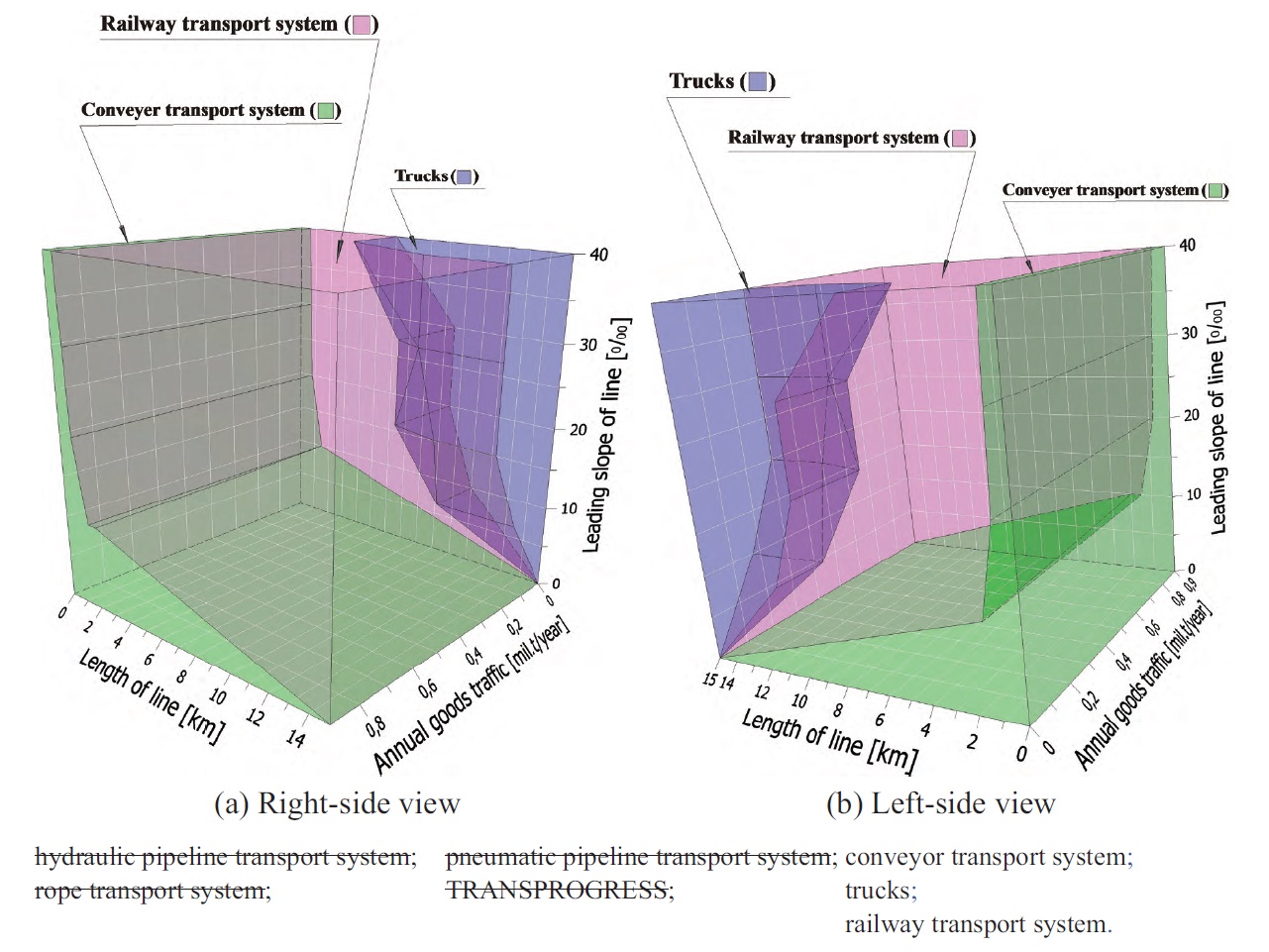

Fig. 18. Comparison of a conveyor belt system with trucks and a railway transport systems for the transport for of ore mining and metallurgical companies



CONCLUSION

This study proved the validity of the technology of complex optimization of transport  (for example Maglev systems). Its use will significantly reduce the cost of implementation of various transport systems and expand the scope of their effective application (Fig. 19).

The results of theoretical researches presented in this work are intended above all for the exposure of basic directions of optimization of transport systems.

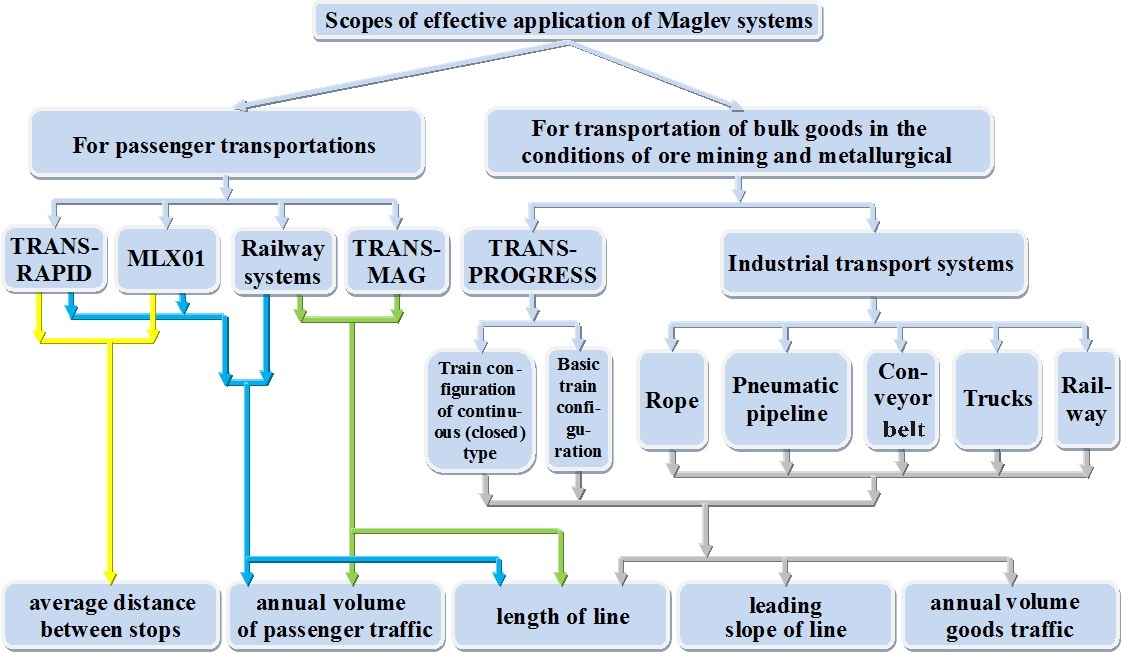

Fig. 19. Determination scheme of the scopes of effective application of Maglev systems

Aarkadij Lascher

Technical University of Dresden, Professorship Electric Railway Systems (Professur Elektrische Bahnen)

Author for correspondence.
Email: a.lasher@gmx.de

Germany, 13, 01062 Dresden

Dipl.-Ing, PhD-student

Michael Witt

MW System Consult

Email: mikewitt@t-online.de

Germany, Markdorf

Dipl. Wi.-Ing, Senior Advisor

Evgeni Frishman

Department Electronics, Jerusalem College of Technology

Email: f688349@netvision.net.il

Israel, Jerusalem

Dr.-Ing, Department head- Electronics

Mark Umanov

Institute of the Transport Systems and Technologies of the National Academy of Sciences of Ukraine „Transmag”

Email: m.umanov@mail.ru

Ukraine, Dnepropetrovsk

Dr.-Ing, Senior scientific researcher

  • Lascher AN. Results of application of the theory of complex optimization of transport (present by an example of maglev-systems). Vortrag an der Fakultät für Verkehrswissenschaften an der Technischen Universität Dresden, Germany; 2012 October 17. 13 p. (In German)
  • Prykhodko OA, Polevoy OB, Menddriy AV. On the calculation of aerodynamic characteristics of high-speed ground vehicles on the base of three-dimensional navier-stokes equations. Proceedings of the 18th International Conference on Magnetically Levitated Systems and Linear Drivers. Shanghai, China; 2004 October 26–28. p. 575–583.
  • Alexandrov AM, Iskanderov AA, Melik SP, et al., inventors. Magnetic suspension for a vehicle. Patent No. 4, 711, 182. 1987 Decemb 8.
  • Heilmeier E, Rogg D. Magnetschwebebahnsysteme für hohe Geschwindigkeiten in Deutschland und Japan, Vergleich der Entwicklungsverläufe und der technischen und ökonomischen Merkmale. Proceedings of the 2th International Conference „Elektrische Bahnsysteme“. Berlin, Germany; 1999 March 23–24. p. 331–339. (in German)
  • Heckl FX. Infoblatt Transrapid in Shanghai. Verlag: Klett, Leipzig, Germany; 2010 January 24. (in German)
  • Platzer G. Endbericht SIC! – Modul, Vergleichende Untersuchung von Hochgeschwindigkeitssystemen im Verkehrskorridor Berlin – Sachsen – Praha – Wien – Bratislava – Budapest. Auftraggeber: Sächsisches Staatsministerium des Innern, Dresden, Germany; 2007 March 30. 282 p. (In German)
  • Obermeyer/Krebs and Kiefer & Spiekermann/Vössing. Machbarkeitsstudie für Magnetschnellbahnstrecken in Bayern und Nordrhein-Westfalen. Planungsgemeinschaft: Metrorapid-Transrapid, Teil II – Teilprojekt Bayern, Erläuterungsbericht und Teil III – Teilprojekt Nordrhein-Westfalen, Erläuterungsbericht; 2002. Berlin, Germany. (In German)
  • Lascher AN, Umanov MI, Frishman EM, Prishedko HN. Complex optimization of parameters of Maglev systems is a basic condition of their implementation. Proceedings of the 19th International Conference on Magnetically Levitated Systems and Linear Drivers; 2006 September 13–15; Dresden, Germany. p. 721–725.
  • Umanov MI, Lascher AN, Taturjevich AM. Ways of increase of efficiency of Maglev-transport with the purpose of acceleration of its introduction. Proceedings of the 17th International Conference on Magnetically Levitated Systems und Linear Drives; 2002 September 3–5; Lausanne, Switzerland.
  • Stephan A, Lascher A, Umanov M. Optimization of lengths of maglev trains. Proceedings of the 20th International Conference on Magnetically Levitated Systems and Linear Drivers; 2008 December 15–18; San Diego, California, USA.
  • Gers V, Hübner H, Otto P, Stiller H. Zu Ressourcenproduktivität von spurgeführten Hochgeschwindigkeitsverkehrssystemen: Ein Vergleich von ICE und Transrapid. Eine gemeinsame Studie des Lehrstuhls für Technik, Wirkungs- und Innovationsforschung der Universität Kassel und des Wuppertal Instituts (Kurzfassung), Kassel – Wuppertal, Germany; 1997 June. 19 p. (In German)
  • Frishman EM, Umanov, MI, Lascher, AN. Are the transport systems of cargo carts on permanent magnetic suspension economical? Lifting-transport technique and warehouses. 1991;1:41-42. (In Russ.)
  • Umanov MI, Frishman EM, Lascher AN. Determination of optimum cargo capacity of section of a transport system with the use of permanent magnetic suspension. Transport: science, technique, management. 1991;8:18–21. (In Russ.)
  • Gel'man AS. Reference book for designer of industrial roads. Moscow: Industrial transport; 1972. 232 p. (In Russ.)
  • Institute of complex transport problems. Values of specific capital investments and operating costs on the different types of transport. Methodical instructions. Moscow: Transport; 1984. 206 p. (In Russ.)

Supplementary files

Supplementary Files Action
1. Fig. 1. Principles of the complex optimization process View (133KB) Indexing metadata
2. Fig. 2. TRANSMAG Maglev system test vehicle and test trackline View (680KB) Indexing metadata
3. Fig. 3. TRANSPROGRESS Maglevsystem on test track View (241KB) Indexing metadata
4. Fig. 4. Structure of the abstract model for the generalized transport system View (129KB) Indexing metadata
5. Fig. 5. Principles of the comparative analysis of Maglev systems View (75KB) Indexing metadata
6. Fig. 6. Dependence of value of specific tariff of TRANSMAG on the traffic volume and line length, after the optimization View (429KB) Indexing metadata
7. Fig. 7. Dependence of value of specific tariff of TRANSMAG on the traffic volume and line length, before the optimization [9] View (478KB) Indexing metadata
8. Fig. 8. Number of sections in train configuration View (598KB) Indexing metadata
9. Fig. 9. Travel time between the end stops per line View (255KB) Indexing metadata
10. Fig. 10. Specific total capital investments per km length View (419KB) Indexing metadata
11. Fig. 11. Specific operating costs for one passenger and one 1 km length View (374KB) Indexing metadata
12. Fig. 12. Total costs to time of repayment (payment of the loan) View (235KB) Indexing metadata
13. Fig. 13. Specific tariff for transportation of 1 passenger per 1 km (the car of 2nd class) View (336KB) Indexing metadata
14. Fig. 14. Economic effect to time of repayment of the total costs (validity period of loan), of TRANSRAPID View (355KB) Indexing metadata
15. Fig. 15. Comparison of TRANSPROGRESS with rope and pneumatic pipeline transport systems for transportation of bulk good in the conditions of ore mining and metallurgical companies View (244KB) Indexing metadata
16. Fig. 16. Comparison of TRANSPROGRESS with pneumatic pipeline transport system for the transport for of ore mining and metallurgical companies View (125KB) Indexing metadata
17. Fig. 17. Comparison of TRANSPROGRESS with conveyor transport system for the transport for of ore mining and metallurgical companies View (140KB) Indexing metadata
18. Fig. 18. Comparison of a conveyor belt system with trucks and a railway transport systems for the transport for of ore mining and metallurgical companies View (282KB) Indexing metadata
19. Fig. 19. Determination scheme of the scopes of effective application of Maglev systems View (198KB) Indexing metadata

Views

Abstract - 37

PDF (English) - 28

PlumX


Copyright (c) 2018 Lascher A., Witt M., Frishman E., Umanov M.

Creative Commons License
This work is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License.
