Calcium phosphate and composite materials functionalization of bioactive agents for its target delivery to the bone

Cover Page
Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription or Fee Access

Abstract


Aim of the study. The development of the method of octacalcium phosphate (OCP) and mineral-polymer composite material functionalization with biological agents (human platelet lysate (PL) growth factors and antibiotic vancomycin) by the biomimetic coprecipitation principle technique.

Materials and methods. The OCP and the mineral-polymer composite matrices (sodium alginate / gelatin / OCP) functionalization was obtained by biomimetic coprecipitation of calcium phosphates and the bioactive molecules on their surface. The materials structure was examined by electron microscopy. The functionalization efficiency was determined by measurement of the incorporated compounds in solution, as well as by analysis of their release over the 8 days. The antimicrobial activity of vancomycin functionalized samples was evaluated by in vitro disk diffusion method against the Staphylococcus aureus strain.

Results. The evaluation of incorporated molecules release showed that the OCP functionalization with vancomycin is more effective than PL. The antibiotic release had continued for three days, while PL growth factors — only for 30 minutes. The incorporated into a composite matrix vancomycin was completely released within 24 h. In vitro study of the functionalized composite samples showed growth delay of the Staphylococcus aureus strain in dependence on antibiotic content.

Conclusion. The developed method of drug incorporation during biomimetic precipitation allowed to create target delivery system which transfer antibiotic to the bone defect.


Full Text

Restricted Access

About the authors

Ekaterina A. Kuvshinova

P.A.Herzen Moscow Oncology Research Institute — Branch of the National Medical Research Radiological Centre of the Ministry of Healthcare of the Russian Federation

Author for correspondence.
Email: beliay@mail.ru
ORCID iD: 0000-0003-4331-239X
SPIN-code: 5228-5640
Scopus Author ID: 56736479200

Russian Federation, 2-nd Botkinskiy str, 3, Moscow, 125284

junior researcher

Natalia V. Petrakova

Institutution of Russian Academy of Science A.A. Baikov Institute of Metallurgy and Material Science

Email: petrakova.nv@mail.ru

Russian Federation, Leninskiy str. 49, Moscow, 119334

candidate of sciences, researcher

Natalya S. Sergeeva

P.A.Herzen Moscow Oncology Research Institute — Branch of the National Medical Research Radiological Centre of the Ministry of Healthcare of the Russian Federation

Email: prognoz.06@mail.ru

Russian Federation, 2-nd Botkinskiy str, 3, Moscow, 125284

doctor of biological sciences, professor, head of the department

Irina K. Sviridova

P.A.Herzen Moscow Oncology Research Institute — Branch of the National Medical Research Radiological Centre of the Ministry of Healthcare of the Russian Federation

Email: prognoz.06@mail.ru

Russian Federation, 2-nd Botkinskiy str, 3, Moscow, 125284

candidate of biological sciences, leading researcher

Valentina A. Kirsanova

P.A.Herzen Moscow Oncology Research Institute — Branch of the National Medical Research Radiological Centre of the Ministry of Healthcare of the Russian Federation

Email: prognoz.06@mail.ru

Russian Federation, 2-nd Botkinskiy str, 3, Moscow, 125284

candidate of biological sciences, researcher

Suraya A. Ahmedova

P.A.Herzen Moscow Oncology Research Institute — Branch of the National Medical Research Radiological Centre of the Ministry of Healthcare of the Russian Federation

Email: prognoz.06@mail.ru

Russian Federation, 2-nd Botkinskiy str, 3, Moscow, 125284

candidate of biological sciences, researcher

Pavel A. Karalkin

P.A.Herzen Moscow Oncology Research Institute — Branch of the National Medical Research Radiological Centre of the Ministry of Healthcare of the Russian Federation

Email: pkaralkin@gmail.com

Russian Federation, 2-nd Botkinskiy str, 3, Moscow, 125284

candidate of biological sciences, senior researcher

Anastasia Y. Teterina

Institutution of Russian Academy of Science A.A. Baikov Institute of Metallurgy and Material Science

Email: kinskusha@mail.ru

Russian Federation, Leninskiy str. 49, Moscow, 119334

candidate of technical sciences, junior researcher

Vladimir S. Komlev

Institutution of Russian Academy of Science A.A. Baikov Institute of Metallurgy and Material Science

Email: komlev@mail.ru

Russian Federation, Leninskiy str. 49, Moscow, 119334

PhD, corresponding member of the Russian Academy of Sciences, director

References

  1. Баринов С.М., Комлев В.С. Биокерамика на основе фосфатов кальция. — М.: Наука, 2014. [Barinov SM, Komlev VS. Calcium phosphate based bioceramics. Moscow: Nauka; 2014. (In Russ.).]
  2. Cancedda R, Dozin B, Giannoni P, Quarto R. Tissue engineering and cell therapy of cartilage and bone. Matrix Biol. 2003;22(1):81-91. https://doi.org/10.1016/s0945-053x(03)00012-x.
  3. Tang Z, Li X, Tan Y, et al. The material and biological characteristics of osteoinductive calcium phosphate ceramics. Regen Biomat. 2018;5(1):43-59. https://doi.org/10.1093/rb/rbx024.
  4. Dorozhkin SV. Multiphasic calciumorthophosphate (CaPO4) bioceramics and theirbiomedicalapplications. Review paper. Ceram Int. 2016;42(6):6529-6554. https://doi.org/10.1016/j.ceramint.2016.01.062.
  5. Bouler JM, Pilet P, Gauthier O, Verron E. Biphasic calcium phosphate ceramics for bone reconstruction: a review of biological response. Acta Biomaterialia. 2017;53:1-12. https://doi.org/10.1016/j.actbio.2017.01.076.
  6. Wang Z, Xiao ZW, Fan HS. Fabrication of micro-grooved patterns on hydroxyapatite ceramics and observation of earlier response of osteoblasts to the patterns. J Inorg Mat. 2013;28(1):51-57. https://doi.org/10.3724/SP.J.1077.2013.12093.
  7. Ridi F, Meazzini I, Castroflorio B, et al. Functional calcium phosphate composites in nanomedicine. Adv Colloid Interface Sci. 2017;244:281-295. https://doi.org/10.1016/j.cis.2016.03.006.
  8. Stapleton M, Sawamoto K, Alméciga-Díaz CJ, et al. Development of bone targeting drugs. Review. Int J Mol Sci. 2017;18(7):1345. https://doi.org/10.3390/ijms18071345.
  9. Barrere F, Layrolle P, van Blitterswijk CA, de Groot K. Biomimetic coatings on titanium: a crystal growth study of octacalcium phosphate. J Mater Sci: Mater Med. 2001;12:529-534. https://doi.org/10.1023/a:1011271713758.
  10. Lu X, Leng Y. Theoretical analysis of calcium phosphate precipitation in simulated body fluid. Biomater. 2005;26:1097-1108. https://doi.org/10.1016/j.biomaterials.2004.05.034.
  11. Forsgren J, Brohede U, Stromme M, Engqvist H. Co-loading of bisphosphonates and antibiotics to a biomimetic hydroxyapatite coating. Biotechnol Lett. 2011;33:1265-1268. https://doi.org/10.1007/s10529-011-0542-7.
  12. Kazemzadeh-Narbat M, Lai BFL, Ding C, et al. Multilayered coating on titanium for controlled release of antimicrobial peptides for the prevention of implant-associated infections. Biomater. 2013;34(24):5969-5977. https://doi.org/10.1016/j.biomaterials.2013.04.036.
  13. Lin X, de Groot K, Wang D, et al. A review paper on biomimetic calcium phosphate coatings. Open Biomed Eng J. 2015;9(Suppl 1-M4):56-64. https://doi.org/10.2174/1874120701509010056.
  14. Yu X, Wei M. Preparation and evaluation of parathyroid hormone incorporated CaP coating via a biomimetic method. J Biomed Mater Res. Pt B: Appl Biomat. 2011;97B(2):345-354. https://doi.org/10.1002/jbm.b.31820.
  15. Кувшинова E.A., Петракова Н.В., Сергеева Н.С., и др. Функционализация кальцийфосфатных материалов биологически активными соединениями белковой природы. Biomedical Chemistry: Research and Methods. 2019;2(3):e00096. [Kuvshinova EA, Petrakova NV, Sergeeva NS, et al. The functionalization of calcium phosphate materials of protein-based biologically active molecules. Biomedical Chemistry: Research and Methods. 2019;2(3):e00096. (In Russ.)] https://doi.org/10.18097/bmcrm00096.
  16. Комлев В.С., Федотов А.Ю. Способ получения керамики на основе октакальциевого фоcфата. Патент на изобретение РФ RU 2596504 C1; 2014. [Komlev VS, Fedotov AYu. Method of producing ceramic based on octacalcium phosphate (OCP). Patent RU 2596504 C1; 2014. (In Russ.)]
  17. Komlev VS, Sergeyeva NS, Fedotov AY, et al. Investigation of physicochemical and biological properties of composite matrices in a alginate-calcium phosphate system intended for use in prototyping technologies during replacement of bone defects. Inorg Mater: Appl Resh. 2016;7(4):630-634. https://doi.org/10.1134/S2075113316040158.
  18. Каралкин П.А., Сергеева Н.С., Комлев В.С., и др. Биосовместимость и остеопластические свойства минерал-полимерных композиционных материалов на основе альгината натрия, желатина и фосфатов кальция, предназначенных для трехмерной печати костнозамещающих конструкций. Гены и клетки. 2016;11(3):1-8. [Karalkin PA, Sergeeva NS, Komlev VS, et al. Biocompatibility and osteoplastic properties of mineral polymer composite materials based on sodium alginate, gelatin, and calcium phosphates intended for 3D-printing of the constructions for bone replacement. Genes and cells. 2016;11(3):1-8. (In Russ.)]
  19. Petrakova NV, Kuvshinova EA, Ashmarin AA, et al. Calcium phosphate ceramic surface coating via precipitation approach. IOP Conference Series: Materials Science and Engineering. 2019;525:012101. https://doi.org/10.1088/1757-899X/525/1/012101.
  20. Сергеева Н.С., Шанский Я.Д., Свиридова И.К., и др. Биологические эффекты тромбоцитарного лизата при добавлении в среду культивирования клеток человека. Гены и клетки. 2014;9(1):77-85. [Sergeeva NS, Shansky YaD, Sviridova IK, et al. Biological effects of platelet lysate added to cultural medium of human cells. Genes and cells. 2014;9(1):77-85. (In Russ.)]
  21. Шанский Я.Д., Сергеева Н.С., Свиридова И.К., и др. Исследование лизата тромбоцитов человека как перспективной ростовой добавки для культивирования стволовых и других типов клеток. Клеточные технологии в биологии и медицине. 2013;3:153-158. [Shansky YaD, Sergeeva NS, Sviridova IK, et al. Study of human platelet lysate as a promising growth additive for the cultivation of stem and other types of cells. Kletochnyye tekhnologii v biologii i meditsine. 2013;3:153-158. (In Russ.)]
  22. Ferraro MJ. Performance standards for antimicrobial susceptibility testing: Ninth informational supplement. NCCLS document M100-S9. 1999;19(1):104.
  23. Methods for the determination of susceptibility of bacteria to antimicrobial agents. EUCAST Definitive document. Clin Microbiol Infect. 1998;4:291-296.
  24. Stigter M, Bezemer J, de Groot K, Layrolle P. Incorporation of different antibiotics into carbonated hydroxyapatite coatings on titanium implants, release and antibiotic efficacy. J Controll Release. 2004;99(1):127-137. https://doi.org/10.1016/j.jconrel.2004.06.011.
  25. Комлев В.С., Федотов А.Ю., Тетерина А.Ю. и др. Способ получения композиционного трехмерного каркаса для замещения костно-хрящевых дефектов. Патент на изобретение РФ RU 2606041 C2; 2017. [Komlev VS, Fedotov AYu, Teterina AYu, et al. Method of producing composite 3D frame for replacement of bone-cartilage defects. Patent RU 2606041 C2; 2017. (In Russ.)]
  26. Komlev VS, Barinov SM, Bozo II, et al. Bioceramics composed of octacalcium phosphate demonstrate enhanced biological behavior. ACS Appl Mater Interfaces. 2014;6:16610-16620. https://doi.org/10.1021/am502583p.

Supplementary files

Supplementary Files Action
1.

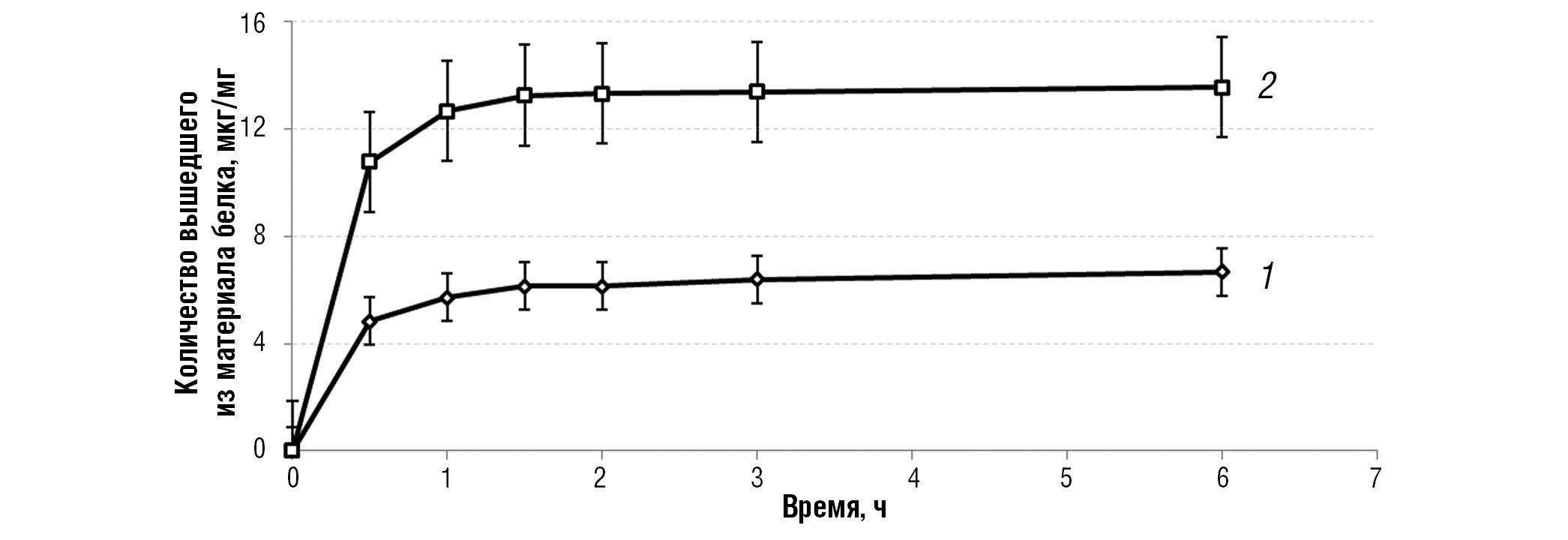

Fig. 1. The release dynamic of platelet lysate protein from octacalcium phosphate upon incorporation in 10% (curve 1) and 20% (curve 2) platelet lysate solution

Download (103KB) Indexing metadata
2.

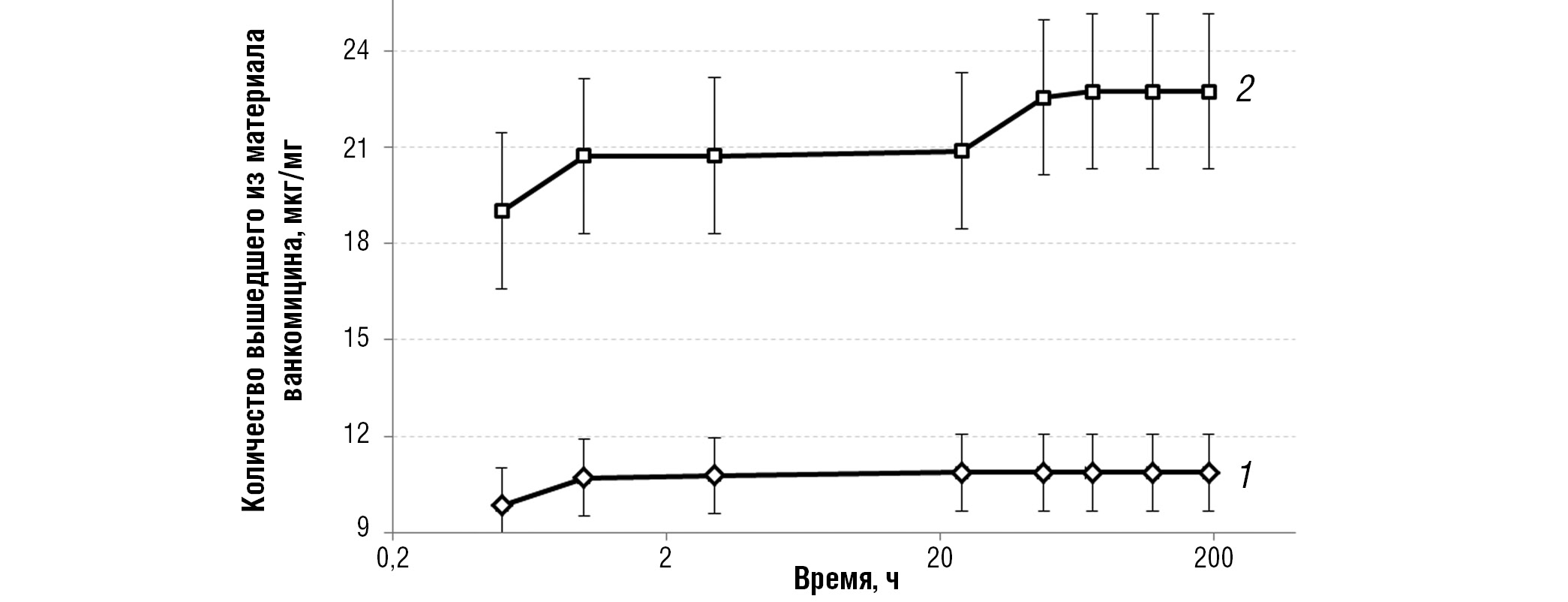

Fig. 2. The release dynamic of vancomycin from octacalcium phosphate upon incorporation in solutions with antibiotic concentration 8.0 mg/ml (curve 1) and 16.0 mg/ml (curve 2)

Download (110KB) Indexing metadata
3.
Fig. 3. SEM-photographs of the initial composite material: a — ×250, b — ×5000; a modified composite material: c — ×5000

Download (234KB) Indexing metadata
4.

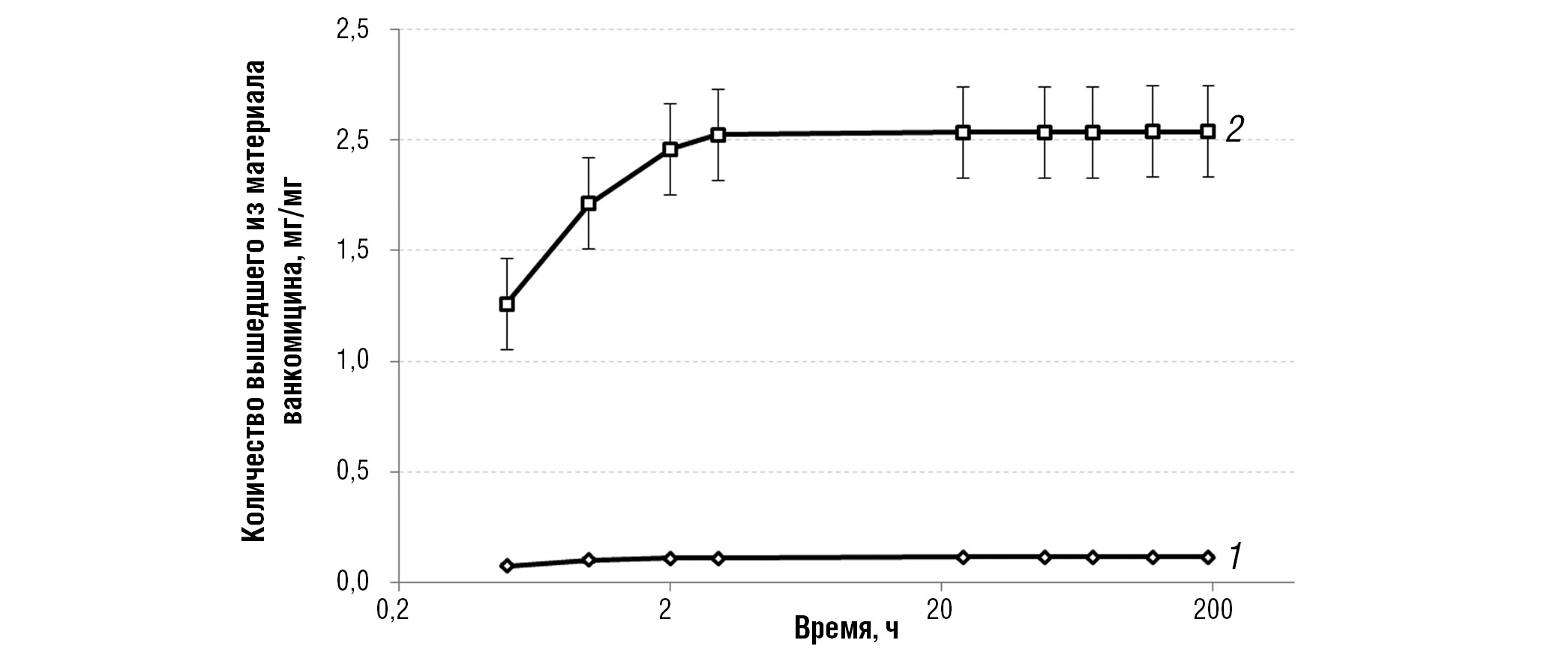

Fig. 4. The release dynamic of vancomycin from composite matrix upon incorporation in solutions with antibiotic concentration 5.0 mg / ml (curve 1) and 50.0 mg / ml (curve 2)

Download (112KB) Indexing metadata
5.
Fig. 5. Zones for suppressing bacterial growth: a — control samples (non-functionalized matrices), 0–5 mm; b — functionalized samples containing 0.1 mg/mg vancomycin, 16.0 mm; c — functionalized samples containing 2.0 mg/ml vancomycin, 20.0 mm

Download (308KB) Indexing metadata
